NewTechWood UltraEasy Fence UH78 User manual
UltraEasy Fence UH78/FN0249
Installation Guide
v20220928
UltraEasy Fence UH78/FN0249 Installation Guide / v20220928 2
Important Note
UltraEasy Fence Parts
UltraEasy Fence Installation
-Post Mount Installation
-Post Sleeve Installation
-Fence Board Installation
CONTENTS
3 - 4
5 - 6
7 - 8
8
9 - 13
UltraEasy Fence UH78/FN0249 Installation Guide / v20220928 3
IMPORTANT:
Read All Sections Before You Start
For the most up-to-date information, please visit our website @ www.newtechwood.com
Prior to installing any composite product, it is recommended that you check with local building codes
for any special requirements or restrictions. The diagrams and instructions outlined in this guide are
for illustration purposes only and are not meant or implied to replace a licensed professional. Any
construction or use of NewTechWood must be in accordance with all local zoning and/or building codes.
The consumer assumes all risks and liability associated with the construction and use of this product.
Safety
When dealing with any type of construction project, it is necessary to wear appropriate safety equipment
to avoid any risk of injuries. NewTechWood recommends but is not limited to the following safety
equipment when handling, cutting, and installing NewTechWood: gloves, a respiratory protection, long
sleeves, pants, and safety glasses.
Tools
Standard woodworking tools may be used. It is recommended that all blades have a carbide tip.
Standard stainless steel screws are recommended.
Environment
A clean, smooth, at, and strong surface is needed to install NewTechWood’s products correctly. Please
check with local building codes before ever installing any type of fencing If installation does not occur
immediately NewTechWood’s products need to be put on a at surface at all times. Never ever should it
be put on a surface that is NOT at.
Planning
Plan a layout for your fencing before starting it to ensure the best possible looking fence for your project.
Building codes and zoning ordinances generally apply to permanent structures, meaning anything that is
anchored to the ground or attached to the house. So nearly every kind of fencing requires permits and
inspections from a local building department. We recommend drawing out a site plan of your proposed
project that you intend to do to minimize errors and make your perfect fence.
Construction
NewTechWood UltraEasy fencing is NOT intended for use as columns, support posts, beams, joist
stringers, support against a force, or other primary load-bearing members. NewTechWood must be
supported by a code-compliant substructure. While NewTechWood products are great for retrofits,
NewTechWood’s products CANNOT be installed on existing siding boards.
Static
Static can also be more prevalent in areas that are of higher altitude because the humidity is lower. For
these areas, be careful of using conducive objects such as metal railing and chairs as static shocks might
occur more often. A potential way to lower the amount of static shocks occurring is to apply Staticide
(www.aclstaticide.com) on your deck or use anti-static mats before doorways.
UltraEasy Fence UH78/FN0249 Installation Guide / v20220928 4
Ventilation
UltraEasy fencing needs to have at least one of the clips or stopper installed at the bottom of each
aluminum post sleeve as well as a starting and ending aluminum trim to work properly.
If one clip or stopper is not installed at the bottom of the post sleeve, there will be not sufcient enough
air ow and could result in high wind speeds damaging the fence.
Heat and Fire
Excessive heat on the surface of NewTechWood products from external sources such as but not limited
to re or reection of focussing sunlight from some optical objects can potentially harm NewTechWood
products. This extreme elevation of surface temperatures, which exceeds that of normal exposure, can
possibly cause NewTechWood products to melt, sag, warp, discolor, increase expansion/contraction, and
accelerate weathering.
Fasteners
When fastening NewTechWood’s products all screws that are face fastened should always be driven in
at a 90 degree angle to the siding surface. Toe nailing/screwing should never be done to the products.
An extra furring strip should be added if a 90 degree angle cannot be driven into the board. All fasteners
should be on their own independent furring strips, when two boards ends meet each other there must
be a sister furring strip. The end of each board must sit on its own furring strip.
Use white chalk, straight boards, or string lines as templates for straight lines. NEVER USE COLORED
CHALK. Colored chalk will permanently stain NewTechWood’s products and are highly not recommended.
All screws that are face xed should always be stainless steel. Depending on the screws that you use
when face xing, there could be potential bulging or mushrooming. It is recommended to take care of
these mushrooms/bulges by taking a rubber mallet and patting them down to give your siding a better
look.
When choosing which screws to use, always check first with your local home centers and hardware
stores to see if they have screws that are engineered specically for composite wood. These screws will
always work and give NewTechWood’s products the best looking outcome, using other screws that are
not recommended for composite could potentially damage/harm the siding. If you are unsure which
screw to use, contact your manufacturer for more information.
UltraEasy Fence UH78/FN0249 Installation Guide / v20220928 5
UltraEasy Fence Parts
)
*
-
+
.
,
/
2
'
(
0
1
UltraEasy Fence UH78/FN0249 Installation Guide / v20220928 6
'
(
)
*
+
,
-
.
/
0
1
2
^
^
^
^
^
^
^
^
^
^
^
^
)ROV,4
9IXK]9:^=0
6UYZ)GV,49
+TJOTM'R[SOT[S:XOS,4
6UYZ:XOS,4
-GR\GTO`KJ9ZKKR:[HK
,KTIK(UGXJ;.
6UYZ9RKK\K,4
6UYZ3U[TZ,4
9ZUVVKX,4
9IXK]9:^
9ZGXZOTM'R[SOT[S:XOS,4
)UJK 7Z_ *KYIXOVZOUT6GXZY4[SHKX
3^ (URZ9:^=0
4^ 6RGYZOI'TINUX3^=0
UltraEasy Fence UH78/FN0249 Installation Guide / v20220928 7
Installation Procedure
Step 1: Post Mounts Installation
- Measure and Position the Post Mounts
- Fix the Post Mounts
Step 2: Post Sleeves Installation
Step 3: Fence Boards Installation
- Fixing the First Stopper
- Installing the Starting Aluminum Trim
- Installing the Fence Boards
- Installing the Post Trims
- Installing the Ending Aluminum Trim
- Installing the extra piece of Post Trim
- Installing the Post Cap
UltraEasy Fence Installation
Post Mount Installation

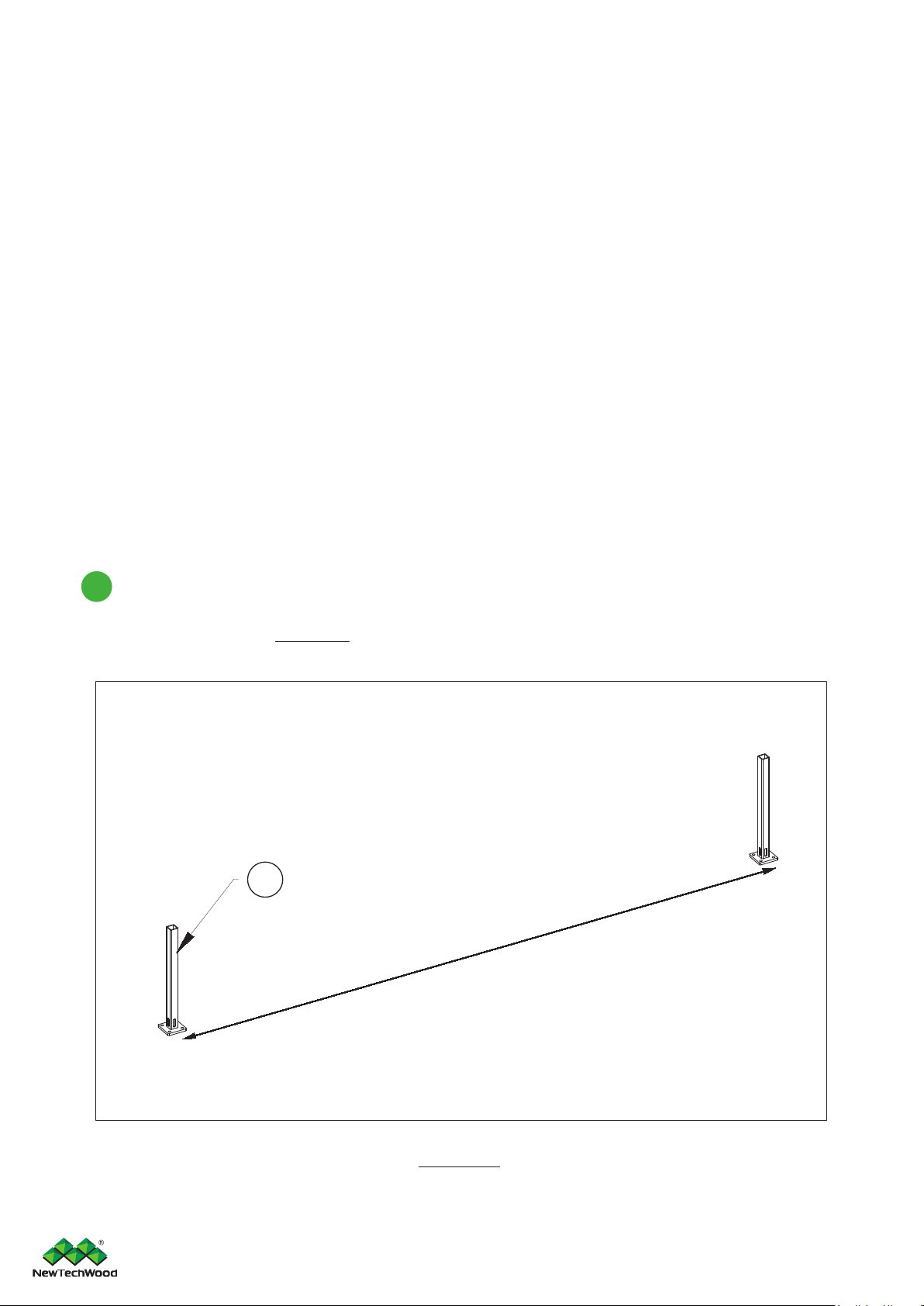

1Measure and position the Post Mounts (I)
on the ground at a distance of 1.8m on
center, and mark the screw holes on the
ground, as shown in
Diagram 1
.
S
/
6UYZ
3U[TZ
Diagram 1
UltraEasy Fence UH78/FN0249 Installation Guide / v20220928 8
2Use an electric drill to drill the screw
holes on the ground and put the Plastic
Anchors (N) inside the screw holes.
Then put the Post Mounts (I) in place
and x them with Bolts (M), as shown in
Diagram 2
.
/
6UYZ3U[TZ
3
(URZ
4
6RGYZOI
'TINUX
Post Sleeves Installation
3Insert the Post Sleeves (H) over the Post
Mounts (I), as shown in
Diagram 3
.
Please Note:
Check whether the Post Sleeves (H)
is appropriately placed with the Post
Mounts (I), as shown in
Detail 3-1
.
.
6UYZ9RKK\K
/
6UYZ
3U[TZ
*KZGOR
Diagram 2
Diagram 3
.
6UYZ9RKK\K
/
6UYZ
3U[TZ
Detail 3-1
UltraEasy Fence UH78/FN0249 Installation Guide / v20220928 9
Fence Boards Installation
4Insert a Stopper (J)
into the bottom of the
Post Sleeves (H) and x it with the Screw
(K), as shown in
Diagram 4
.
Please Note:
Ensure the Stopper (J) is placed at the
boom of the Post Sleeves (H) properly.
0
9ZUVVKX
.
6UYZ
9RKK\K 1
9IXK]
Diagram 4
5Put the Starting Aluminum Trim (L)
over
the Stopper (J), as shown in
Diagram 5
and
Detail 5-1
.
.
6UYZ
9RKK\K
2
9ZGXZOTM
'R[SOT[S:XOS
*KZGOR
Diagram 5
/
6UYZ
3U[TZ
2
9ZGXZOTM
'R[SOT[S
:XOS
0
9ZUVVKX
.
6UYZ
9RKK\K
Detail 5-1
UltraEasy Fence UH78/FN0249 Installation Guide / v20220928 10

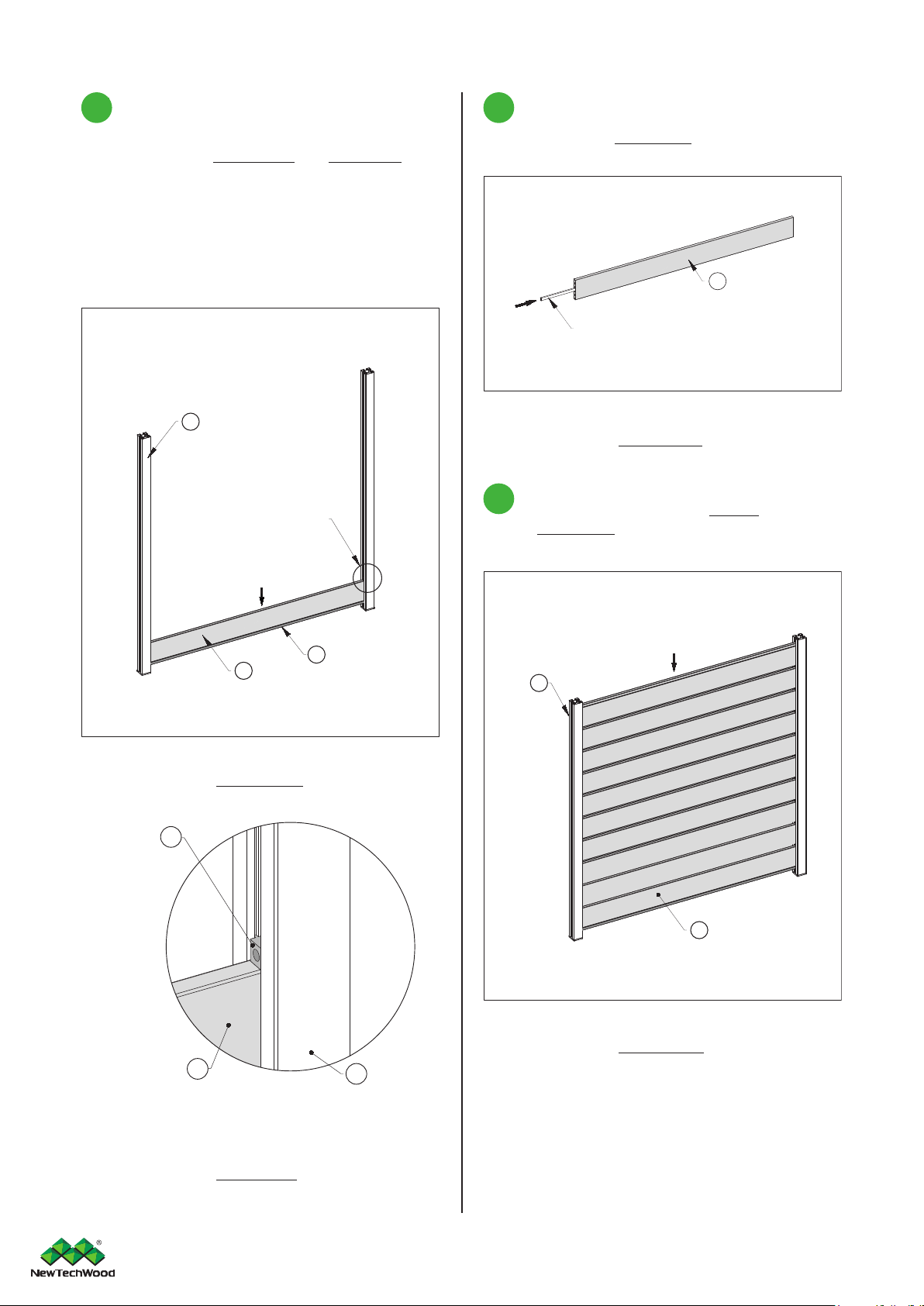

6Put the first Fence Board (G) over the
Starting Aluminum Trim (L). Then insert a
Stopper (J) over the rst Fence Board (G),
as shown in
Diagram 6
and
Detail 6-1
.
*KZGOR
.
6UYZ
9RKK\K
-
,KTIK
(UGXJ
2
9ZGXZOTM
'R[SOT[S:XOS
Diagram 6
.
6UYZ
9RKK\K
0
9ZUVVKX
-
,KTIK
(UGXJ
Detail 6-1
Please Note:
It is no need to insert the Galvanized Steel
Tube
for the rst Fence Board (G).
7Insert a Galvanized Steel Tube into the
central hollow of the rest Fence Board (G),
as shown in
Diagram 7
.
-
,KTIK(UGXJ
-GR\GTO`KJ
9ZKKR:[HK
Diagram 7
8Complete the installation for the rest of
the Fence Boards (G) as
Step 6
, as shown
in
Diagram 8
.
.
6UYZ
9RKK\K
-
,KTIK
(UGXJ
Diagram 8
UltraEasy Fence UH78/FN0249 Installation Guide / v20220928 11
9Insert the Post Trim (E) into the Post
Sleeve (H), as shown in
Diagram 9
.
+
6UYZ:XOS
.
6UYZ
9RKK\K
Diagram 9
10 Put the Clip (A) inside the Ending
Aluminum Trim (D) and fix it with the
Screw (B), as shown in
Diagram 10
.
*
+TJOTM
'R[SOT[S:XOS
'
)ROV
(
9IXK]
Diagram 10
11 Put the Ending Aluminum Trim (D) over
the last Fence Board (G), as shown in
Diagram 11
and
Detail 11-1.
*KZGOR
*
+TJOTM
'R[SOT[S:XOS
Diagram 11
*
+TJOTM
'R[SOT[S
:XOS
.
6UYZ
9RKK\K
'
)ROV
Detail 11-1
UltraEasy Fence UH78/FN0249 Installation Guide / v20220928 12

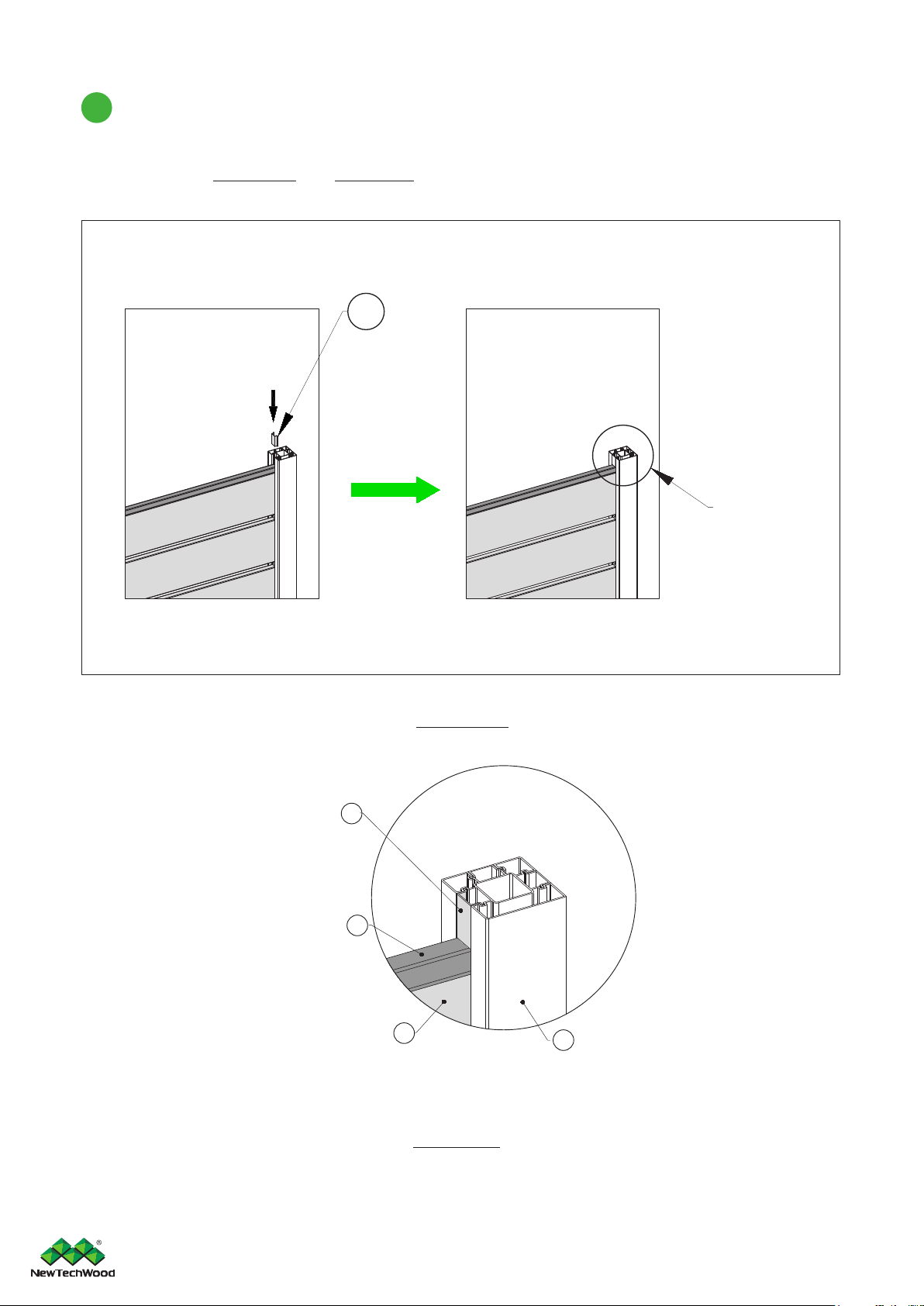

12 Cut a small piece of Post Trim (E) and put
it over the Ending Aluminum Trim (D) to
cover the slot between the Post Sleeve's
(H)
top and the Ending Aluminum Trim (D),
as shown in
Diagram 12
and
Detail 12-1.
*KZGOR
+
6UYZ
:XOS
Diagram 12
+
6UYZ
:XOS
*
+TJOTM
'R[SOT[S
:XOS
.
6UYZ
9RKK\K
-
,KTIK(UGXJ
Detail 12-1
UltraEasy Fence UH78/FN0249 Installation Guide / v20220928 13

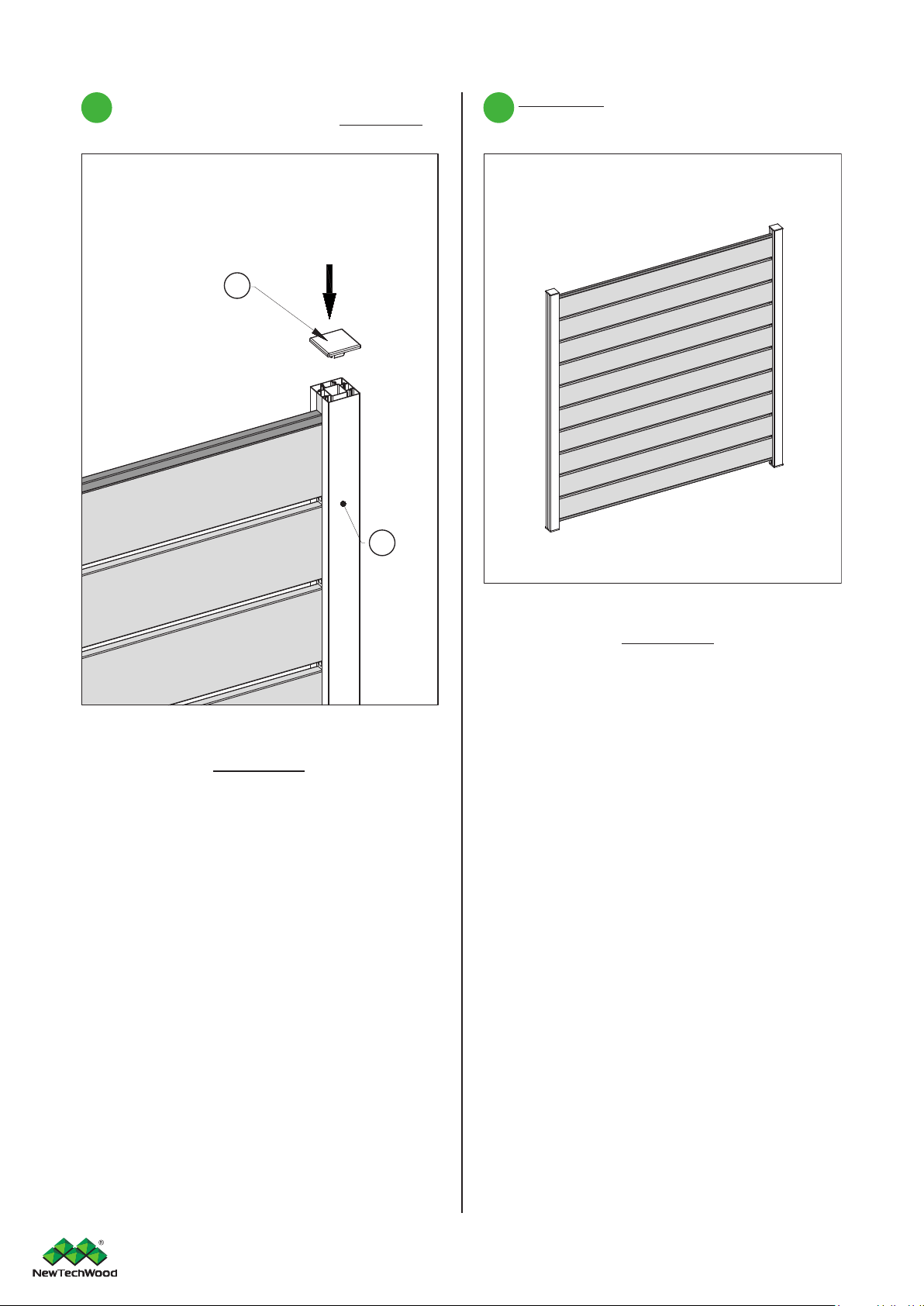

13 Put the Post Cap (C) on the top of the
Post Sleeve (H), as shown in
Diagram 13
.
)
6UYZ
)GV
.
6UYZ
9RKK\K
Diagram 13
14
Diagram 14
presents the nal appearance
after complete the installation.
Diagram 14
UltraEasy Fence UH78 / FN0249
Installation Guide
v20220928
©2022 Newtechwood Corporation
NewTechWood is a registered trademark of Newtechwood Corporation.
To obtain a copy of the most current version of this installation guide,
visit us online at www.newtechwood.com.
®
