NewVission NV-1280 User manual

NewVission
User Manual
DIGITAL VISUALIZER
Pls read carefully before installation and keep reservation
NV-1280

Content :
Safety Notice..............................................................................
Feature Instruction......................................................................
Struction & components..............................................................
Whole struction...................................................................
Back/side connections........................................................
Connection Surrondings.............................................................
Whole Connections.............................................................
Basic Operation..........................................................................
Unfold process...................................................................
Fold process......................................................................
Methods of Usage.......................................................................
Control Panel.....................................................................
Remote controller...............................................................
PC RS-232 controlling........................................................
Daily Maintainace and Attention..................................................
Problem and Solution..................................................................
Attached list................................................................................
Technical Specification................................................................
2
3
5
5
5
7
7
8
8
8
9
9
14
17
18
19
20
21
- 1 -

Safety Notice :
Warning: Pls don't let it in rain or put it into wet
environment in order to prevent from fire breaking or leak
of electricity. The visual presenter includes high voltage
accessories and dangerous, so installing will fully and
repairing spareparts are prohibited, just the professional
can do these.
1. Before using, pls see power voltage and frequency same or not. To keep safe,
users must be consciously that power socket should be three poles: L-line,
N-line, G-line, and connect them in right way.
2. User must get G-line of all equipment’s input and output ports through before
turning power on, in order to avoid the unexpected damage caused by mute /
high-voltage. Don’t insert or pull out cables with electricity.
3. Pls don’t rebuild visual presenter or use it without outer shell.
4. Pls don’t drop something easy-fire, liquid or metal into, otherwise, will easily
break the visual presenter or make troubles for visual presenter. Pls don’t put
something easy-fire or liquid on the table.
5. Don’t take it in the environment of high tempreture, wetness, corrodible gas like
acid oralkali, more-dust, and shakiness. Put it on special-steady desk , and
don’t put the visual presenter on unsteady tabletop or don’t put 1KG things on
the baselight table.
6. Pls clean it by dry cloth, and cut down electricity before cleaning, users also
can not use liquid dilution, volatilised gasoline, insecticide or other chemistry
solvent.
7. Pls pull power-plug out if long time no use.
8. Don’t let children play visual presenter to prevent from electric-shock.
9. Pls turn off power immediately if there are some abnormal appearance (noise
or smoking) and pull power-plug out.
- 2 -

Featured Instruction :
Welcome to use visual presenter. Pls read "Manual
Operation Booklet" attentively before usage. We sincerely
hope this booklet will bring convinience and skilled method
to you.
R Japan and Korea Fashionable Outer Design with smooth line, combines
fashion and creation;
R Special sensitive touch-key design, prevents dust and water from, may use
for long(palent);
R Special drawer function, human-being design, may store remote controller,
pick-up pens, pick-up stick and others into;
R All joints featured with no press damping design, easily operated;
R No need turn visual presenter on to get through: when PC signal comes to
visual presenter, continually connect with monitor., and no need turn visual
presenter on;
R VGA belt width 440MHz with long cable, image brightness and comparison
can be improved up to 1/3, makes image more beautiful and clear;
R Put digital volume adjustment inner, make volume adjustment more easier
(correct), can output original voice;
R Specially provide with ESD protection, won‟t break inner spareparts when
pull out/plug into with electricity;
R Total zoom 80, make the smallest letters and number biger and clear to show;
R High Digital : image proceeds by professional video device, 1,300,000 high
resolution, (1280x1024) CMOS image signal with high clarity, shows in digital
unit, image is extremely clear, no shining, no shaking, image steady, color
elements deoxidized well, when capturing small and tiny B/W characters,
there is no white edge, shaking, shinning and other problems can connect
with projector directly, rear projector TV, or monitor RGB port, specially
suitable for school’s demonstration or B/W character teaching.
≥
- 3 -

R Powerful image proceeded, freeze, color/B/W, Positive/Negative, mirror,
brightness adjusted, rotate, image/text, comparison, image storage;
R Multi-input, multi-output, combine intelligently, switch multi-media to
demonstrate;
R Camera can turn 350 vertically or horizontally
R methods of control: control panel, remote controller, RS-232, USB
R Microphone soc ket which can adjust volume can connect with cable or
eternal microphone.
- 4 -

- 5 -
Struction & components :

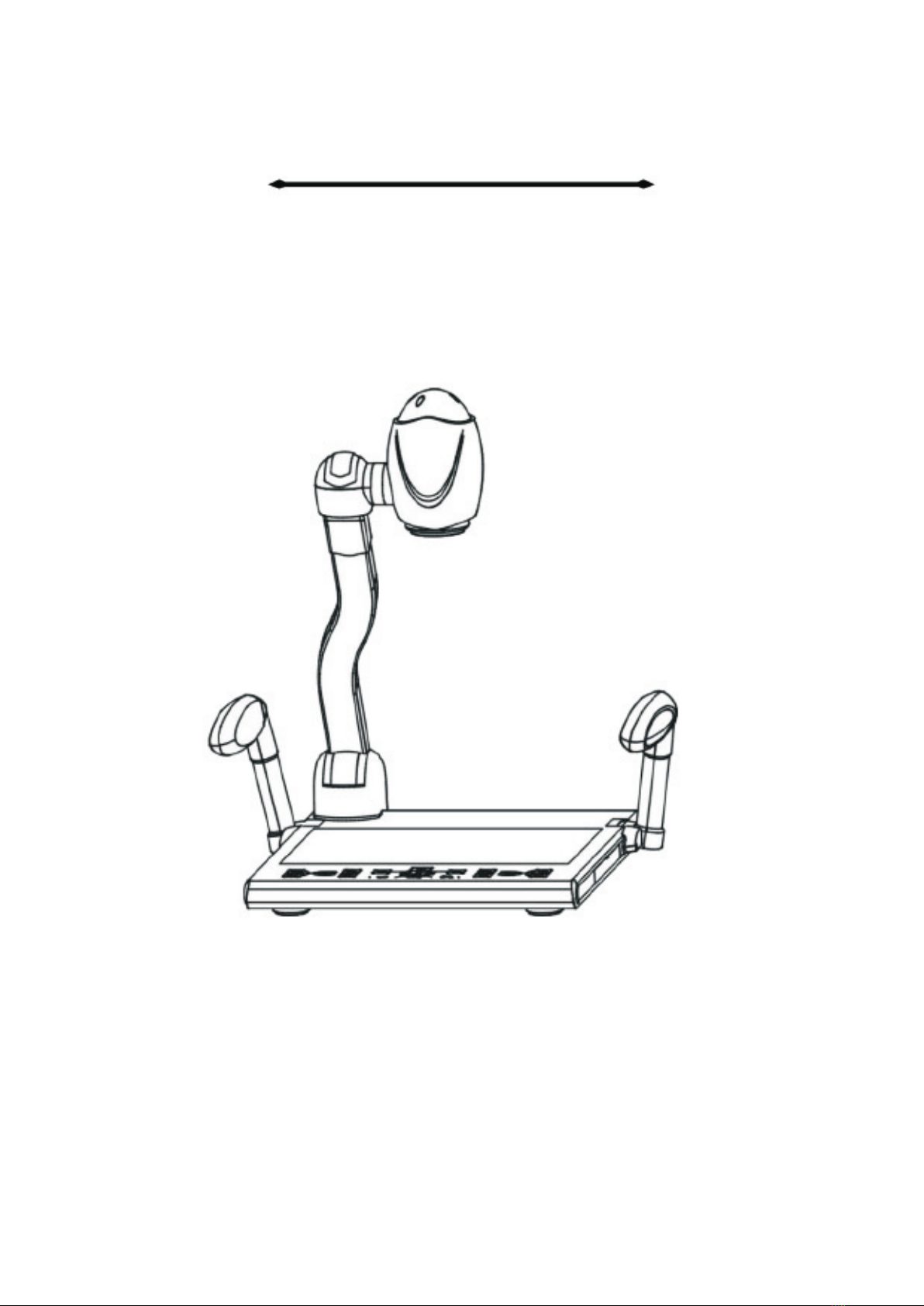

=Whole Structure :
=back/side connections :
1.Main Pole; 2.Assistant lamp Arms; 3.assistant lamps; 4.drawer
(once Push to rebound, twice push to recover.
Attention: don’t pull it out of the position with heavy strength);
5.Infrared Receiver Window; 6.Camera Outshell; 7.CameraCover;
8.Baselight; 9.Back Connections; 10.Side connections;
11.Control Panel.

1.DC12V power input; 2.DC12V power output; 3.RS-232 controlling
port, RS-232 multi-functioned cable connect to PC’s COM port
(If select central controller’s spareparts, this port is used for
RS-232 F/M cable); 4.S-VIDEO output port (selected); 5.Video
Output Port (selected); 6.Stereo Output; 7.PC Stereo Input
Port; 8.PC RGB input port; 9.Output port to Monitor; 10.Output
port to Projector(or rear projector TV); 11.USB Port; 12.Microphone
Volume Adjustment; 13.Microphone Plug; 14. RGB Input Port;
15.Stereo Input.
Note: pls check exact goods for the standard.
- 6 -

Connection Surrondings:
=Whole Connections :
Note: pls cut down Surronding equipment’s power
before start operation.
- 7 -

Basic Operations:

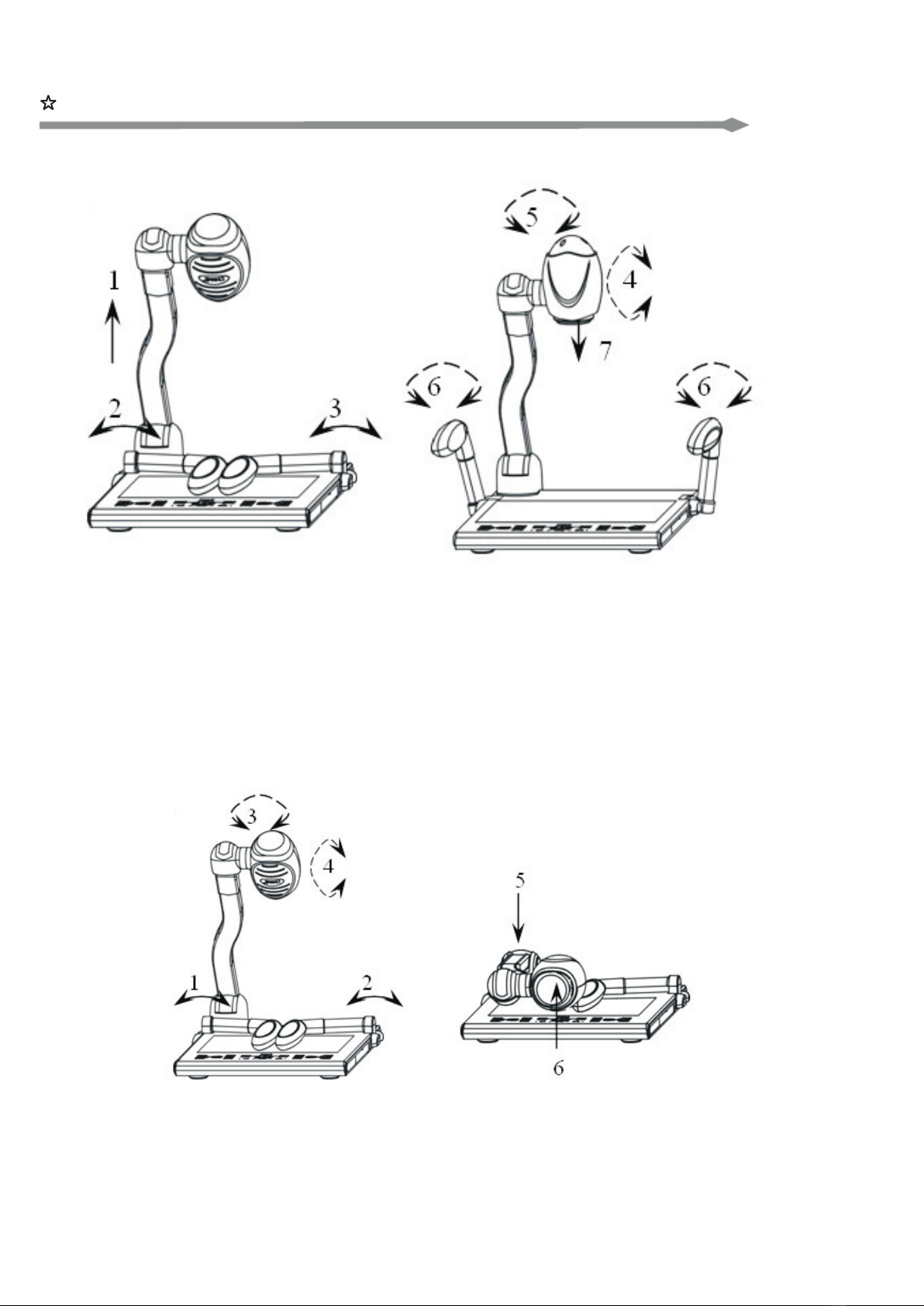

=Unfold Steps :
=Fold Steps :
1.Lift the pole; 2.Lift assitant lamp to the left; 3.Lift assistant
lamp to the right; 4.adjust Camera angle vertically; 5.adjust
camera angle horizonally; 6.adjust assitant lamps’ angle properly;
7.take Camera cover off(Note: Pls rotate it to the right, don’t pull
with heavy strength).
1.Press left assitant lamp arm down; 2.Press the right lamp arm
down; 3.adjust Camera outershell horizonally to parallel with the
pole; 4.adjust Camera outershell vertically to parallel with the pole;
5.put the pole down; 6.put Camera cover on (Note:don’t rotate, cover
it directly).
- 8 -

Methods of Usage:
.
There are three methods of operation: 1. Control Panel 2. remote controller 3.
control it through RS-232 Port supported by Computer’s Window System. Three
methods can be executed individually, and can be fixed up.
It is into awaiting state when visualiser’s power on ,and " “ light will be on,
meanwhile it acquiesces PC output to monitor and projector, thus PC’s monitor
and projector’s light will be on. Light of "volume+" and "volume-" will be on, at this
time user can adjust volume. This visualiser adopts sensitive touch key, just
touch it with finger to use, don’t strike with heavy metal or heavy strengh to
prevent from the nick.
After connections,press , and it turns from red shinning to red, means the
visual presenter’s power is on. When heard of “Bee” twice, users can start
operation. Please try again to open projector when user found that projector’s
power was off.

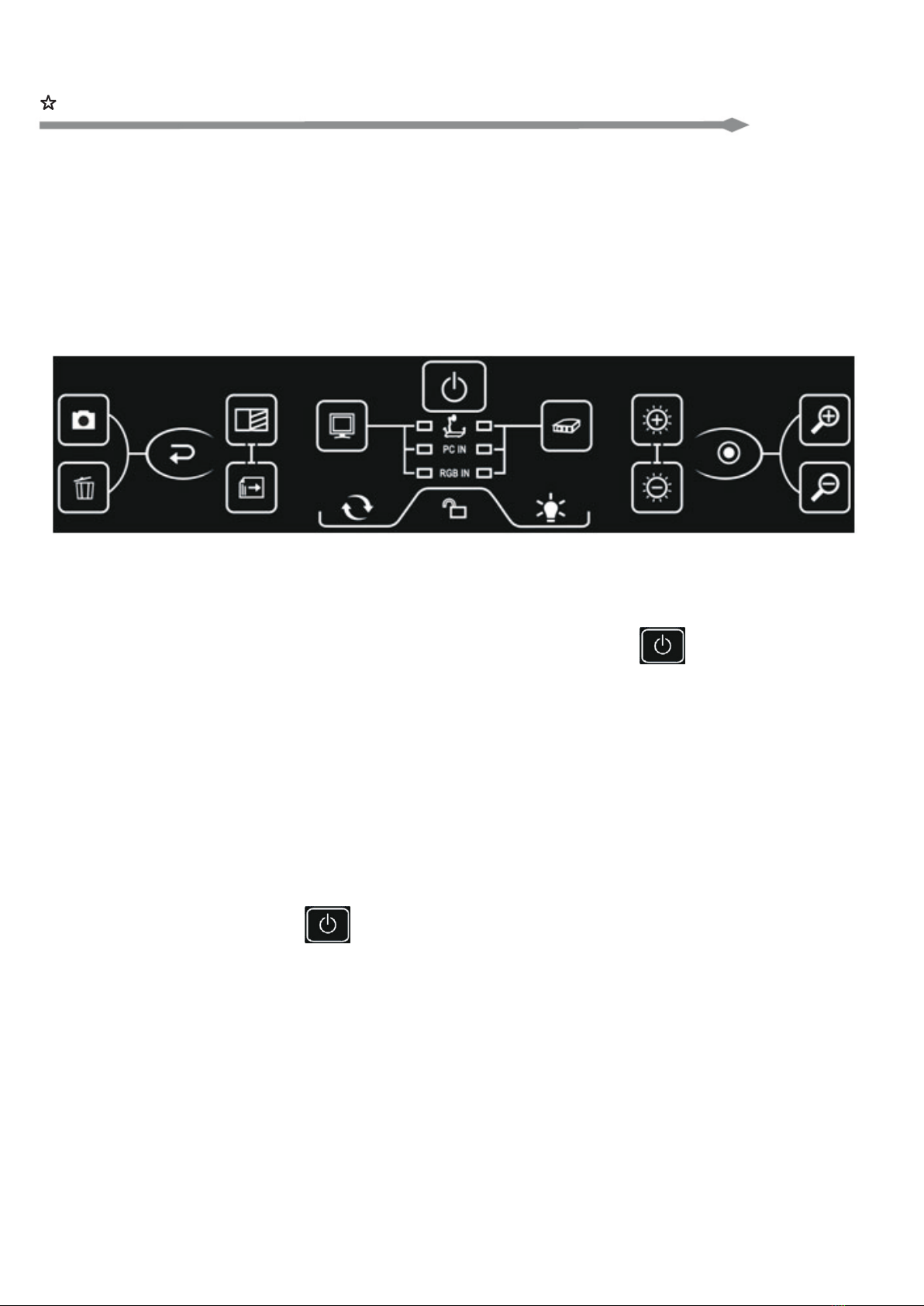

1. Control Panel:（Note:pls check exact goods for the standard.）
=Turn on:
=System acquiesces the following:
- 9 -
