Nexa Orion 10.1 User manual

1
Preface
Congratulations on your purchase of the Nexa Orion 10.1 Android Tablet. As we
continuously update and improve our products, there may be small differences
between the printed manual and your tablet in some cases. You have the option of
downloading the current version of the manual and firmware updates from our
website – www.nexa.cc. We appreciate your decision in buying our product.

2
Preface 01
Device Overview 03
Basic Operation 04
Seing up WiFi 06
Seing up accounts 10
Why use a Google Account? 11
Configuring tablet / other seings 12
App Installer 14
Camera 14
USB charging 16
Using OTG cable 16
Product Specifications 17
Contact & Support Information 18
Contents

3

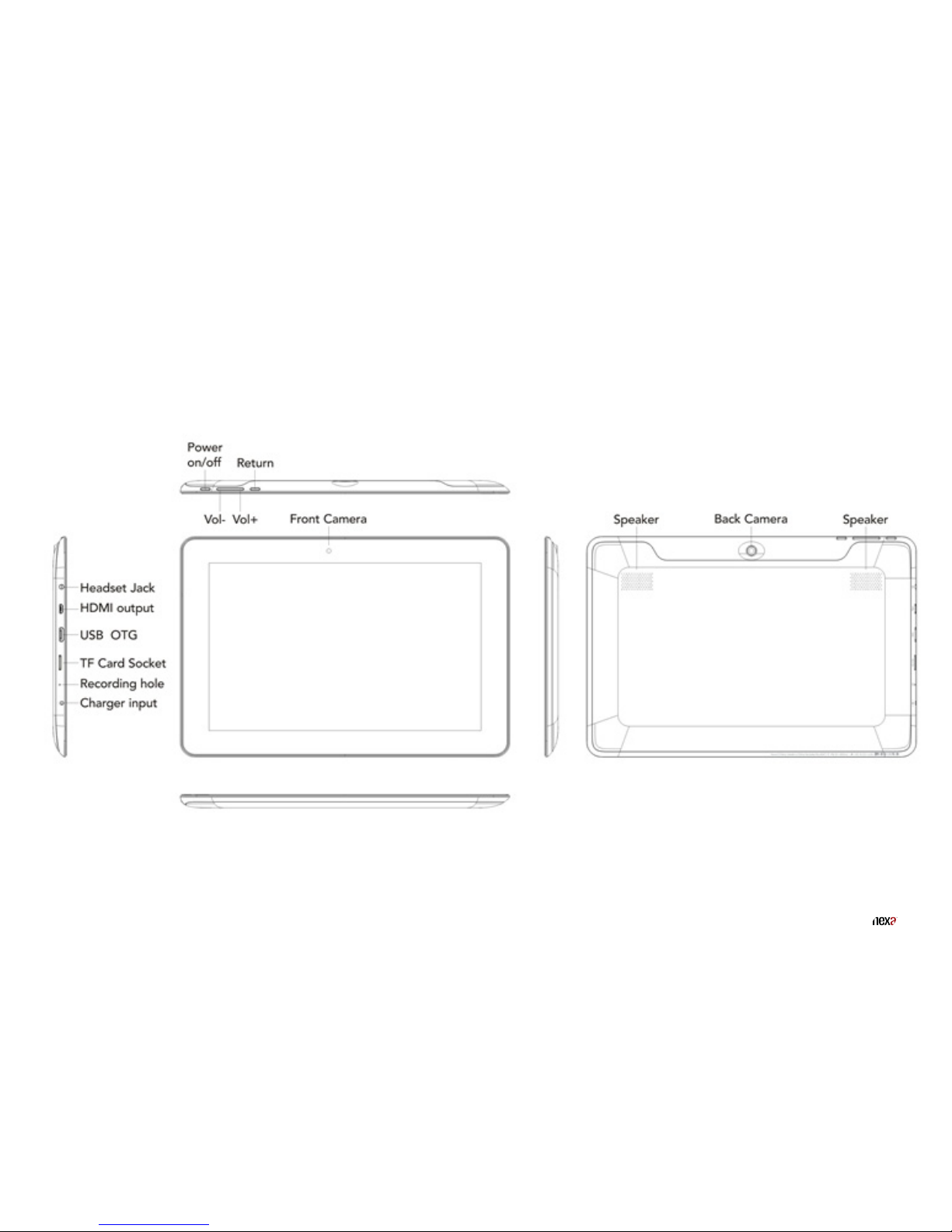

Device Overview

4
Basic Operation
Power On: Hold the power buon for 3 seconds to switch the tablet on. The tablet should
take less than a minute to fully boot into the operating system. Drag the lock icon to the
right to unlock the tablet.
Power Off: Hold the power
buon for 3 seconds to switch
the tablet off. A pop-up will
appear, select “Power Off”.
Tap to open the ‘all apps’ drawer.
See figure 2.
Tap to view recent apps.
Tap to return to the home
screen.
Tap to go one step back.
figure 1

5
Set Wallpaper: Click in the middle of the home screen to set the wallpaper image.

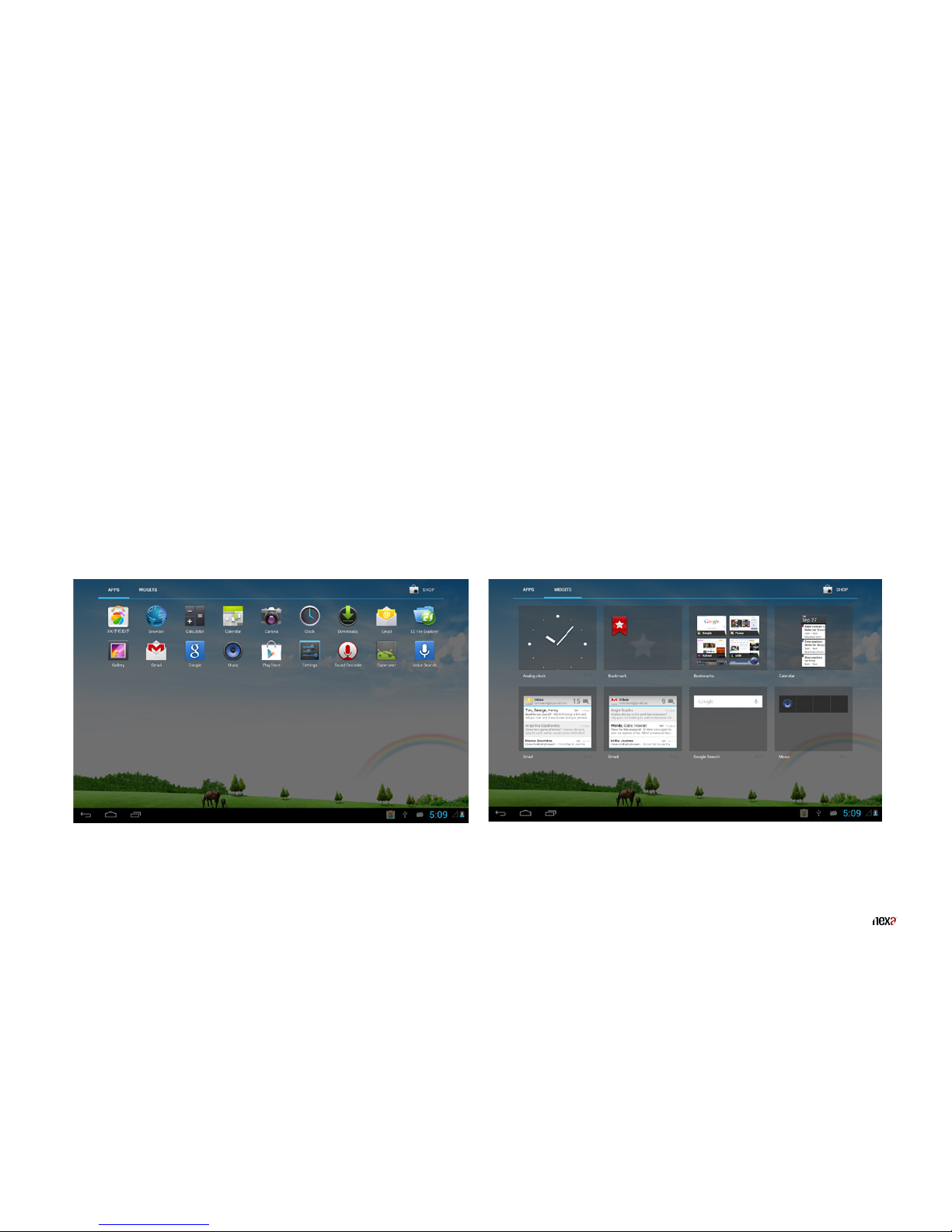

Applications & Widgets: Open the app drawer to select from a list of installed applications
(see figure 2). Tap and hold an application to move it to your desktop. Slide right or le to
navigate through applications and widgets. To use a widget, tap and hold, move it to your
desktop and enter relevant seings (see figure 3).
figure 2 figure 3

6
Seing up WiFi
Turn Wi-Fi on & connect to a Wi-Fi network
If you’re adding a Wi-Fi network when first seing up your device, Wi-Fi is turned on automatically.
1. Touch the Seings icon on a Home or All Apps screen.
2. Touch Wireless & networks > Wi-Fi.
3. Slide the Wi-Fi switch to the On position.
The device scans for availableWi-Fi networks and displays the names of those it finds. Secured
networks are indicated with a Lock icon. If the device finds a network that you connected to previ-
ously, it connects to it.
4. Touch a network name to see more details or connect to it.
If the network is secured, you’re prompted to enter a password or other credentials. (Ask your
network administrator for details.)
To modify a network’s seings, touch & hold the network name.
Add a Wi-Fi network
You can add aWi-Fi network so your device will remember it, along with any security credentials, and

7
connect to it automatically when it’s in range. You must also add aWi-Fi network if the network does not
broadcast its name (SSID), or to add a Wi-Fi network when you are out of range.
To join a secured network, you first need to learn security details from the network’s administrator.
1. Turn on Wi-Fi, if it’s not already on.
2. Touch the plus icon at the top of the screen.
3. Enter the SSID (name) of the network. If necessary, enter security or other network configuration
details.
4. Touch Save.
The information about the network is saved. Your device will connect to this network automatically the
next time you come within range.
Forget a Wi-Fi network
You can make the tablet forget about the details of a Wi-Fi network that you added—for example, if you
don’t want the tablet to connect to it automatically or if it’s a network that you no longer use.
1. Turn on Wi-Fi, if it’s not already on.
2. In the Wi-Fi seings screen, touch the name of the network.
3. Touch Forget in the dialog that opens.

8
Configure proxy seings for a Wi-Fi network
Some network administrators require you to connect to internal or external network resources via a
proxy server. By default, the Wi-Fi networks you add are not configured to connect via a proxy, but you can
change that for eachWi-Fi network you’ve added.
Proxy seings are used by Browser but may not be used by other apps.
1. Touch & hold a network in the list of Wi-Fi networks you’ve added.
2. Touch Modify network in the dialog that opens.
3. Select Show advanced options.
4. If the network has no proxy seings, touch None under Proxy Seings, then touch Manual in the
menu that opens.
5. Enter the proxy seings supplied by your network administrator.
6. Touch Save.
The proxy seings apply only to theWi-Fi network you modified. To change the proxy seings for other
Wi-Fi networks, modify them individually.
Set Wi-Fi notifications, disconnect policy & other advanced options
To work with advanced Wi-Fi seings:

9
1. Turn on Wi-Fi, if it’s not already on.
2. In the Wi-Fi seings screen, touch the Menu buon menu and choose Advanced.
These are the seings you can adjust:
Network notification: By default, when Wi-Fi is on, you receive notifications in the Status bar when your
device detects an open Wi-Fi network. Uncheck this option to turn off notifications.
Keep Wi-Fi during sleep: To conserve mobile data usage, your device stays connected to Wi-Fi when the
screen goes to sleep.
Touch this option to change this default behavior: either to stay connected to Wi-Fi only when the device
is connected to a charger (when baery life isn’t a problem), or never to stay connected toWi-Fi during
sleep. The laer choice is likely to increase mobile data usage. You may want to revisit this seing if you
receive a notification that you’re approaching your specified mobile data limit.
This screen also displays the following information:
MAC address: The Media Access Control (MAC) address of your device when connected to a Wi-Fi net-
work.
IP address: The Internet Protocol (IP) address assigned to the device by theWi-Fi network you are con-
nected to (unless you used the IP seings to assign it a static IP address).

10
Seing up Accounts
You can use multiple Google Accounts on your device. You may also be able to add other kinds of accounts,
depending on your apps. For example you can add IMAP and POP3 email accounts with the email app.
1. Click on the Seings Icon (see figure 4).
2. On the le, navigate down to the
menu item “Accounts”.
3. Click on “Add Account”.
4. Choose an account eg. Google, Email
etc.
5. If you are seing up a Google
Account, it will give you an option
to create a new Account or add an
existing account. See why you need a
Google Account on the next page.
figure 4
