Nexelec INSAFE+ Pilot User manual

INSAFE
INSTRUCTION MANUAL
INSAFE+ Pilot
Temperature and humidity sensor / Indoor Air Quality Monitor
INSAFE+ Carbon
Carbon dioxide detector / Temperature and humidity sensor
Indoor Air Quality Monitor

1. PRÉSENTATION
INSAFE+ PILOT is a temperature and humidity sensor as well as an indoor air
quality monitor.
Applications:
- Control of indoor air quality and hygrothermal comfort in residential or commer-
cial environment
- HVAC control
- Enhancement of energy efciency in residential, commercial or industrial
buildings
INSAFE+ CARBON is a carbon dioxide detector, a temperature and humidity
sensor as well as an indoor air quality monitor.
Applications :
- Indoor air quality control in residential premises and public places. The device
measures temperature, relative humidity and CO2 levels.
- INSAFE+ Carbon calculates the level of containment which assesses the quality of
air renewal
- HVAC control
INSAFE+ Pilot
- Temperature / Humidity sensor and
Indoor Air Quality monitor
-Product model: I880
INSAFE+ Carbon
- Carbon dioxide detector, temperature and humidity
sensor and indoor air quality monitor.
- Product model: I420
INSAFE+ Pilot, INSAFE+ Carbon and their sealed lithium batteries have a lifespan of up to 10 years according to
wireless protocol and environment.
These products come with a push button that enables to automate actions and to control various connected devices
and services.
For further information, refer to the appropriate technical documentation or contact our service support.
INSAFE+ Pilot and INSAFE+ Carbon devices are in conformity with the relevant Union harmonization legislation:
- Directive 2014/53/EU Radio Equipment Directive ( RED )
- Directive 2011/65/EU restriction of the use of certain hazardous substances ( RoHS )
The complete EU Declaration of Conformity can be found on Nexelec’s website: www.nexelec.fr
Dimensions: L 105 mm x W 105 mm x H 30 mm  Humidity: from 0% to 95%
Storage and operating temperature: between 0°C and +50°C  Protection rating: IP40
The devices are designed to be used in a household environment.
INSAFE
EN
INSTRUCTION MANUAL
Read this manual carefully before use.
Keep all documentation supplied throughout the entire service life of the product.

Recurrent and/or extended use in an exceptional environment can reduce the life of the battery and therefore
the autonomy of the monitor.
Les appareils sont conçus pour être utilisés dans un environnement intérieur.
Une utilisation récurrente et/ou prolongée dans un environnement exceptionnel peut réduire la durée de la
pile et donc l’autonomie du détecteur.
Protocols Radio frequencies
EnOcean 868MHz : Europe (EN300-220)
915MHz : US (FCC Part 15)
920 MHz: South America, Australia, New Zealand (ANATEL 506, AS/NZS 4268)
Sigfox 868MHz : Europe (EN300-220)
915MHz : US (FCC Part 15)
920 MHz: South America, Australia, New Zealand, Japan (ANATEL 506, AS/NZS 4268)
LoRa 868MHz : Europe (EN300-220)
915MHz : US (FCC Part 15)
920 MHz: South America, Australia, New Zealand (ANATEL 506, AS/NZS 4268)
2.4GHz : Worldwide (ISM Band)
Zigbee /
Thread
2.4GHz : Worldwide (ISM Band)
Bluetooth Low
Energy
2.4GHz : Worldwide (ISM Band)
The product sends specic messages according to used wireless protocol.
For further information, refer to the appropriate technical documentation or contact our service support.
2. MEASUREMENT AND ANALYSIS OF CARBON DIOXIDE
INSAFE+ Carbon measures temperature, humidity and carbon dioxide (CO2) level every 10 minutes.
The level of CO2, produced naturally through breathing, is a good indicator of building level of containment.
INSAFE+ Carbon calculates an index that characterizes the quality of air renewal.
Optional visual
indication (LED) Indoor Air Quality Analysis and recommended actions
Bad
The air renewal
is too low
The concentration of carbon dioxide is too high.
Ventilate the room right now and check the ventila-
tion systems to improve indoor air quality
Poor
The air renewal
is too low
The concentration of carbon dioxide is high.
Ventilate the room to improve indoor air quality
Excellent
Optimal conditions
Measurements are good,
indoor air quality seems ideal

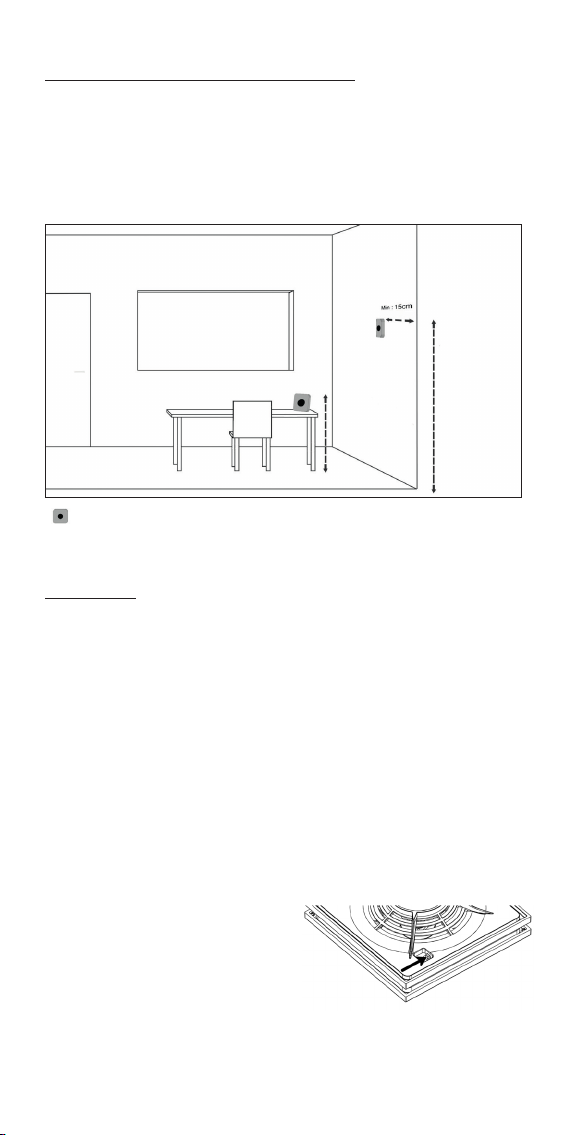

3. INSTALLATION LOCATIONS
Recommended locations in a domestic or tertiary environment
It is recommended to install the monitor:
- Less than 1 meter above the ground if the monitor is placed on an item of furniture or a shelf (using the mobile
mounting base delivered with INSAFE+ Carbon)
- Less than 1.5 meters above the ground if the monitor is wall mounted (attached with screws and wall plugs)
In order to obtain accurate and reliable data, we suggest you to follow recommended locations
Locations to avoid
Do not install the indoor air quality monitor:
- Less than 30 cm from the ceiling
- Outdoors
- In a location where the temperature is less than 0°C or more than 50°C
- In a location where humidity levels is more than 95% (bathroom, kitchen, laundry room, etc.)
- In a dusty or dirty location (garage, workshop, etc.)
- Less than 1 m from doors and windows, heating, cooling or air vents
- In a narrow area where the monitor could be damaged
- In a contained location (e.g. in a cupboard or behind a curtain)
- In a location where the monitor could be blocked (e.g. by furniture)
4. COMMISSIONING THE MONITOR
To commission your monitor, activate the single-use
switch (1).
Conrmation of product activation is indicated by a
ashing of the green-orange-red LED for 10 seconds.
Then, the green LED ashes about every 20 seconds
during the initializing period hat may last up to 2
minutes. The end of this initializing period is
represented by the continuous lighting of the green
LED for 5 seconds.
Indoor Air Quality Monitor
(1)
Wall mounted:
Maximum height
1.50 m above
the ground
Placed on an item
of furniture:
Maximum height
1.00 m above
the ground

Attaching the monitor to a wall
Use the mounting base and the screws and wall plugs provided with the monitor.
The product can also be mounted using the INSAFE Fix adhesive attachments (sold separately).
Comply with the following procedure:
- Select an appropriate location to secure the monitor to the wall
- Remove the mounting base from the monitor
- Mark the preferred location of screw holes on the wall using a pencil. The drawing inside the base shows
the nal position of the monitor when attached. (3)
- Insert the nylon wall plugs provided and screw on the mounting base (4)
- Place your monitor on the mounting base and then rotate a quarter turn to the right to secure.
You should hear a «click», indicating that your monitor is secured in its mounting base (5)
- Check that your monitor is securely tted to the wall
Placing the monitor on an item of furniture or a shelf (for INSAFE+
Carbon only)
Use the mobile mounting base supplied with the monitor.
Comply with the following procedure:
- Place the monitor on an item of furniture or a shelf, less than 1 meter above
the ground, to prevent any damage if the monitor accidentally falls.
- Place your mobile mounting base on the back of the monitor and then rotate
a quarter turn to the right to secure. You should hear a «click», indicating that your monitor is secured
in its mobile mounting base.
5. PRECAUTIONS AND OPERATING LIMITS OF THE MONITOR
- Do not install the monitor in one of the locations described in § «Locations to avoid».
- Do not paint or cover the monitor.
- Do not block the monitor openings.
- Do not disassemble, modify or damage the monitor.
The monitor is designed to operate for a life up to 10 years that would ensure the measurements of temperature,
humidity, CO2 (INSAFE+ Carbon model only) and air quality throughout this period.
Some conditions could damage the monitor, reduce its sensitivity and/or the life of the battery and therefore of
the monitor:
- Exposing the monitor to temperatures or humidity levels outside of the normal environment.
- A recurrent and/or prolonged use in this exceptional environment.
6. MAINTENANCE
Clean your monitor on a regular basis:
- Remove the dust from your monitor and clean the upper edges using an anti-static cloth
(2) (3) (4)

7. SCRAPPING AND RECYCLING THE
MONITOR
This symbol, placed on the monitor and its packaging, indicates that this product must not be
scrapped with household waste, in accordance with European Directive 2002/96/EC on Waste
electrical and electronic equipment (WEEE).
The monitor must be disposed of at an appropriate recycling centre for electrical and electronic
equipment. Comply with national scrapping laws.
By cooperating with these instructions, you are helping to eliminate the potential effects of hazardous substances
on the environment and human health, as well as enhancing re-use, recycling and other forms of recovery.
NEXELEC is a member of the following eco-friendly waste management organisation: Ecologic
IMPORTANT : The monitor contains a lithium battery: do not dispose of this battery by re,
melt or incinerate.
8. GARANTIE
NEXELEC proposes a contractual warranty for INSAFE+ Pilot and INSAFE+ Carbon monitors within the European
Union, covering the product’s design functions, in accordance with the applicable European Directives and Regu-
lation, for a period of 2 years from the date of purchase.
This warranty will not apply for any damage to the monitor, caused by negligence, inadequate storage condi-
tions, inappropriate handling, inadequate attachment, incorrect use, inappropriate maintenance, dismantling,
modication, non-compliance with the operating precautions recommended for the monitor in the user manual.
This warranty will not apply for any damage caused by the use of incorrect attachment devices or non-com-
pliance with the installation process. Given the many different factors which could affect the quality of the
installation of the monitor, only the user is able to oversee all risks inherent to installation, as these factors are
difcult to foresee and depend on the characteristics of the environment in which it is installed. The inadequate
operation or non-operation of the monitor due to clogging by dust and/or insects, despite maintenance in com-
pliance with this manual, will be considered as normal wear to the device and cannot be covered by the warranty
as these aspects are difcult to predict and depend on the characteristics of the dwelling. This warranty cannot
be considered as insurance. This warranty applies in addition to your statutory warranty. If a fault is detected
for the product, and if the warranty is applied as per the conditions mentioned in the user manual, the defective
monitor will be repaired or replaced.
9. AFTER-SALES SERVICE
Before requesting the application of the contractual warranty, you must check the information available on
the website www.nexelec.fr/support and obtain a return reference. The warranty may not be applied without
a return reference.
If a fault is detected during the warranty period, the buyer must send the monitor by post to the NEXELEC
after-sales service.
Proof of purchase, with a date, and a letter requesting the application of the warranty and explaining the fault
in question must be enclosed with the monitor.

67, cours Mirabeau
13100 Aix-en-Provence
France
