MODEL #820-0033
OUTDOOR TABLE TOP
GAS GRILL
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-800-913-8999, 8 a.m. - 5 p.m., PST, Monday -
Friday.
ANS Z21.89a-2008
CSA 1.18a-2008
Outdoor Cooking
Gas Appliance

2
TABLE OF CONTENTS
Package Contents ............................................................................................................... 3
Safety Information ............................................................................................................... 4
Preparation...........................................................................................................................7
Assembly Instructions.......................................................................................................... 7
Installation Instructions..................................................................................................... 10
Operating Instructions ...................................................................................................... 13
Care and Maintenance ..................................................................................................... 15
Troubleshooting................................................................................................................ 17
Warranty ........................................................................................................................... 18
Replacement Parts List .................................................................................................... 20

3
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Grill 1
B Left leg 1
C Right leg 1
D Knob 2
PART DESCRIPTION QUANTITY
E Cooking grid 1
F Flame tamer 2
G Grease tray 1
F GE
A B DC
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open
3. Open lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or local
department.

4
SAFETY INFORMATION
losion, which could cause property
damage, personal injury or death.
DANGER
•
NEVER operate this appliance unattended.
• NEVER operate this appliance within 10 ft. (3 m) of any structure, combustible material or other gas
cylinder.
• NEVER operate this appliance within 25 ft. (7.5 m) of any liquid.
• DO NOT cooking vessel beyond maximum line.
• This appliance is not intended for and should never be used as a heater.
• If a should occur, keep away from the appliance and immediately call your department.
DO NOT attempt to extinguish an oil or grease with water.
LP- gas supply cylinder to be used must be constructed and marked in accordance with the
for LP-gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada,
CANB339, Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods.
DANGER
•
The installation must conform with local codes or, in the absence of local codes, with the National
Fuel Gas Codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Storage and Handling of
Petroleum Gases, ANSI/NFPA 58, or the Standard for Recreational Vehicles, ANSI A119.2/
NFPA 1192, and the Recreational Vehicle Code, CSA Z240 RV, as applicable.
• This table top grill is for outdoor use only. The grill should be operated in a well-ventilated space.
NEVER operate in an enclosed space, garage or building. Your grill is not intended to be installed in or
on recreational vehicles and/or boats.
• Heated liquids remain at scalding temperatures long after the cooking
process. DO NOT touch the cooking appliance until liquids have
cooled to 115°F (45°C) or less.
• DO NOT install or use grill within 24 in. of combustible materials
from back and sides of grill. Grill shall not be located under overhead
surfaces (closed carport, garage, porch, patio) that can catch
• NEVER attempt to attach this grill to the self-contained LP gas system
of a camper trailer or motor home.
• It is the responsibility of the assembler/owner to assemble, install and maintain the gas grill.
DO NOT let children and pets operate or play near your table top grill. Failure to follow these
instructions could result in serious personal injury and/or property damage.
• Remove lid before lighting grill. When grill is not in use, turn off control knob on LP gas cylinder.
• Carefully follow instructions in this manual for proper assembly and leak testing of your grill.
DO NOT use grill until leak checked. If a leak is detected at any time, it must be stopped and corrected
before using grill further.
• Appliance area should be kept clear and free from combustible materials, gasoline, bottled gas in any
form and other vapors and liquids. DO NOT obstruct of combustion and ventilation air.
• NEVER try to light grill with lid closed! Buildup of gases is very dangerous and could cause an
explosion.
• Keep any electrical cord or fuel supply hose away from any heated surfaces.

5
SAFETY INFORMATION
•  Propaneisaammablegasandimproperhandlingmayresultinexplosionand/orreandserious
accident or injury.
•  This appliance will be hot during and after use. Use insulated oven mitts or gloves
forprotectionfromhotsurfacesorsplatterfromcookingliquids.
•  DO NOT leave your grill unattended while in operation.
•  DO NOTusewhileundertheinuenceofdrugsoralcohol.
•  DO NOT store any spare LP (propane) cylinder, full or empty, under or near your grill.
•  This appliance is not intended for commercial use or rental.
•  The cylinder must be disconnected when the appliance is not in use.
Sometimes spiders and other small insects climb into the burner tube. The spiders spin webs, build
nests and lay eggs. The webs or nests can be very small, but they are very strong and can block the
owofgas.Cleanburnerpriortouseafterstoring,atthebeginningofgrillingseasonorafteraperiod
of one month not being used.
THE FUEL SYSTEM
The items in the fuel system are designed for operation with this grill. They must not be replaced with
any other brand. (See parts list for replacement items.)
GAS BURNER:Thegasburnerisconstructedofstainlesssteelandshouldnotrequiremaintenance
other than inspection for insects/nests inside the air intake slots.
CAUTION
Thegaspressureregulatorprovidedwiththisappliancemustbeused.Thisregulatorisequippedwith
therequiredoriceandissetfortherequiredoutletpressureforthisappliance.Thiscombinationof
oricesizeandpressureregulationspecicationsprovidesthecookingperformanceintendedbythe
manufacturer. Substitution of regulator for any other device is dangerous and could result in serious
injury.
FUEL SUPPLY HOSE
The hose connected regulator provided with this appliance is 3 ft. long. Keep the fuel hose away from
any heated surface(s).
WARNING
PROPANE FUEL:Propaneisaammablegas.Improperhandlingmayresultinanexplosionand/or
reandseriousaccidentorinjury.Thisgrillisdesignedtooperatewithpropane(LP)gasonlyandis
equippedwiththeproperoriceforpropanegas.
CAUTION
DO NOT connect this grill with any gas supply other than propane. Propane gas is heavier than air
andsettlesinlowerareas.Makecertainadequateventilationisavailablewhenusingthegrill.The
gas cylinder may be stored outside in a well-ventilated area out of the reach of children when the grill
is not in use.

6
SAFETY INFORMATION
The LP gas cylinder shall be used only outdoors in a well-ventilated space and not in a building,
garage, or any other enclosed area. The table top grill may be stored indoors if the LP gas cylinder is
removed and stored outdoors. The LP gas cylinder (not included) is threaded for connection directly
to the gas regulator supplied with this appliance. Care should be taken when threading the cylinder
to the regulator to engage threads correctly to achieve the proper and intended connection. When
disconnecting or connecting the gas cylinder, be careful that the regulator does not strike the grill,
the ground, or any other surfaces. Replace the protective cap over the threaded cylinder connection
when removed from grill. If any occurs when connecting or disconnecting the cylinder to the
regulator assembly, contact your local gas supplier for assistance.
When re-connecting the LP gas cylinder to the regulator, be sure to hand-tighten until snug. This
connection should be inspected for damage and leak tested after each re-connection.

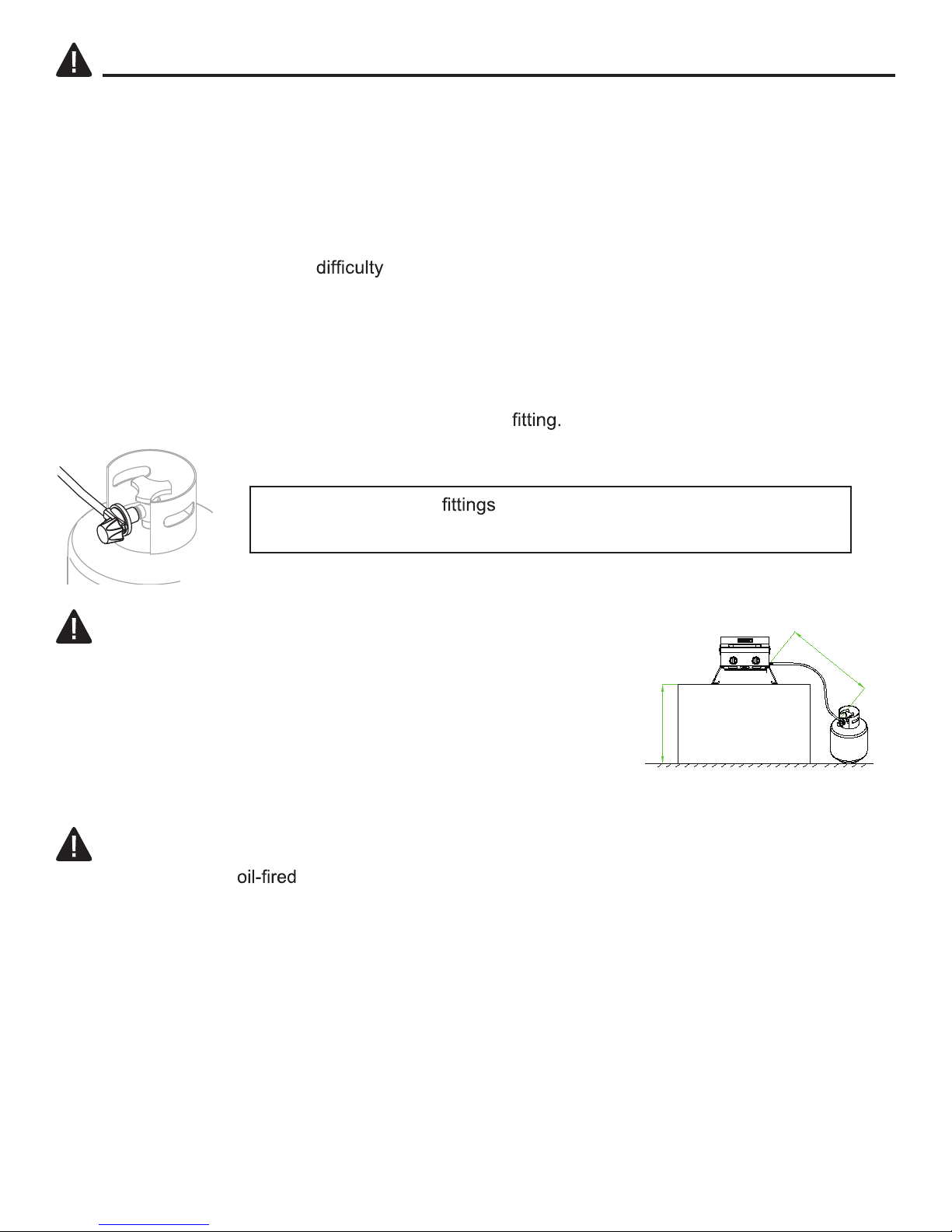

To do a leak test, make a soap solution of one part liquid detergent and one part water. You will need
a spray bottle, brush, or rag to apply the solution to the Bubbles indicate leaks.
WARNING
•
ALWAYS operate the grill on a tabletop, no higher than 32 in.
•Place the propane tank on the ground immediately adjacent to the
tabletop, no further than 24 in. from the grill.
•Failure to follow these instructions could cause the propane tank
to overheat and vent propane which could ignite, causing serious
personal injuries or property damage; and/or create a tripping hazard
with the gas hose or propane tank which could lead tothe grill being
pulled off the tabletop, causing serious personal injuries or property damage.
PROPOSITION 65 WARNING
•Fuels used in gas or appliances and the products of combustion of such fuels contain
chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.
This warning is issued pursuant to California Health and Safety Code Sec. 25249.6.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Check all gas supply for leaks before each use. DO NOT use
the grill until all connections have been checked and do not leak.
24"(61cm) max
32" (81cm)max

7
PREPARATION
ASSEMBLY INSTRUCTIONS
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list. If any part is missing or damaged, do not attempt to assemble the product.
• Remove all the packing materials from the grill.
Estimated Assembly Time: 5 minutes
2. Unfold the left leg (B) and right leg (C) to lock them
into place.
1. Insert the left leg (B) and the right leg (C) into the
brackets on the bottom of the grill (A) as shown.
Note: With two hands, expand the foldable legs to
allow them to slide into the brackets.
1
B
C
A
2
B
C
A

8
ASSEMBLY INSTRUCTIONS
5. Placetheametamers(F)andcookinggrid(E)
insidetherebox.

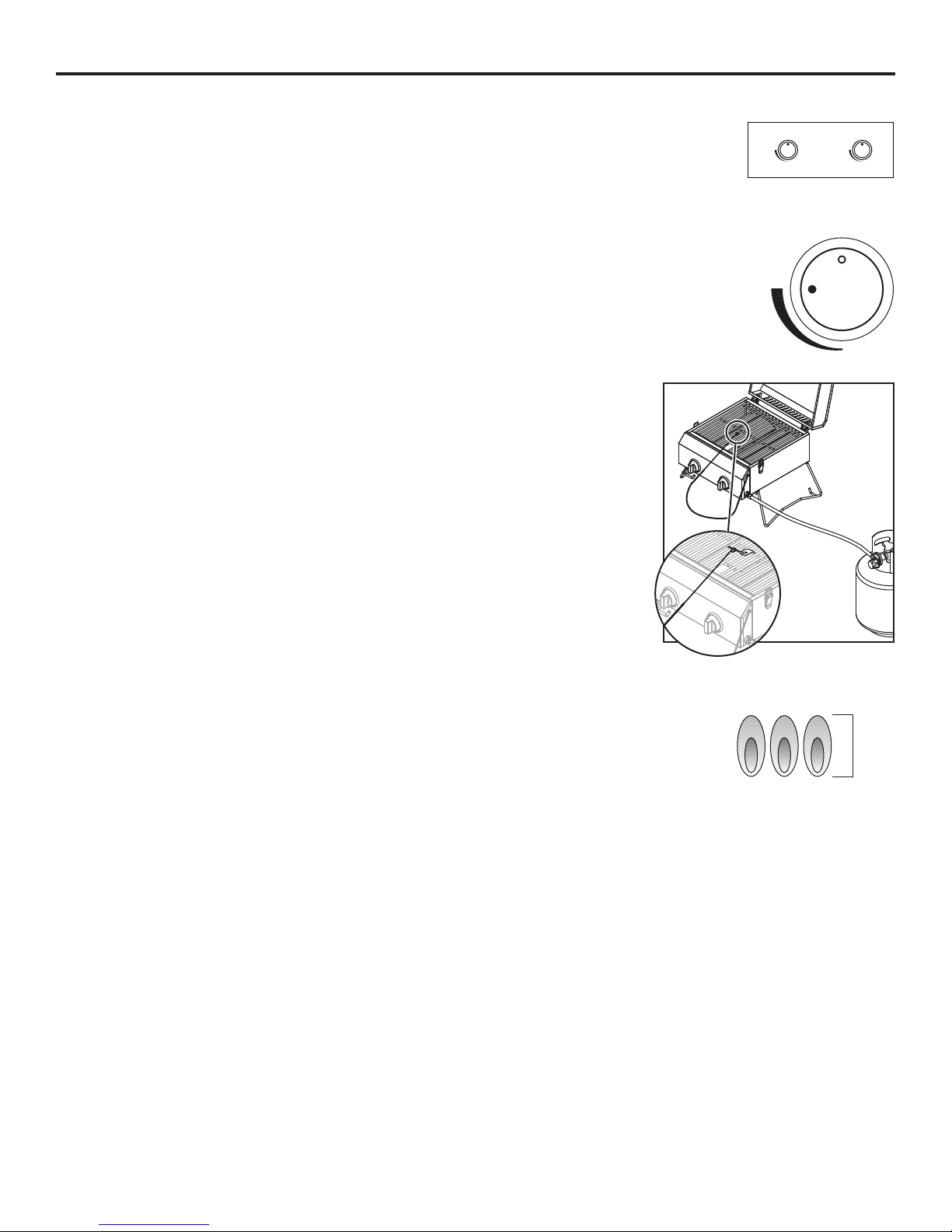

4. Attach the control knobs (D) to the front of grill.
Push and turn the knob and check for sparks.
5
F
E
4
D
3. Insert the grease tray (G) into the bottom of
the grill (A). 3
G
A

9
ASSEMBLY INSTRUCTIONS

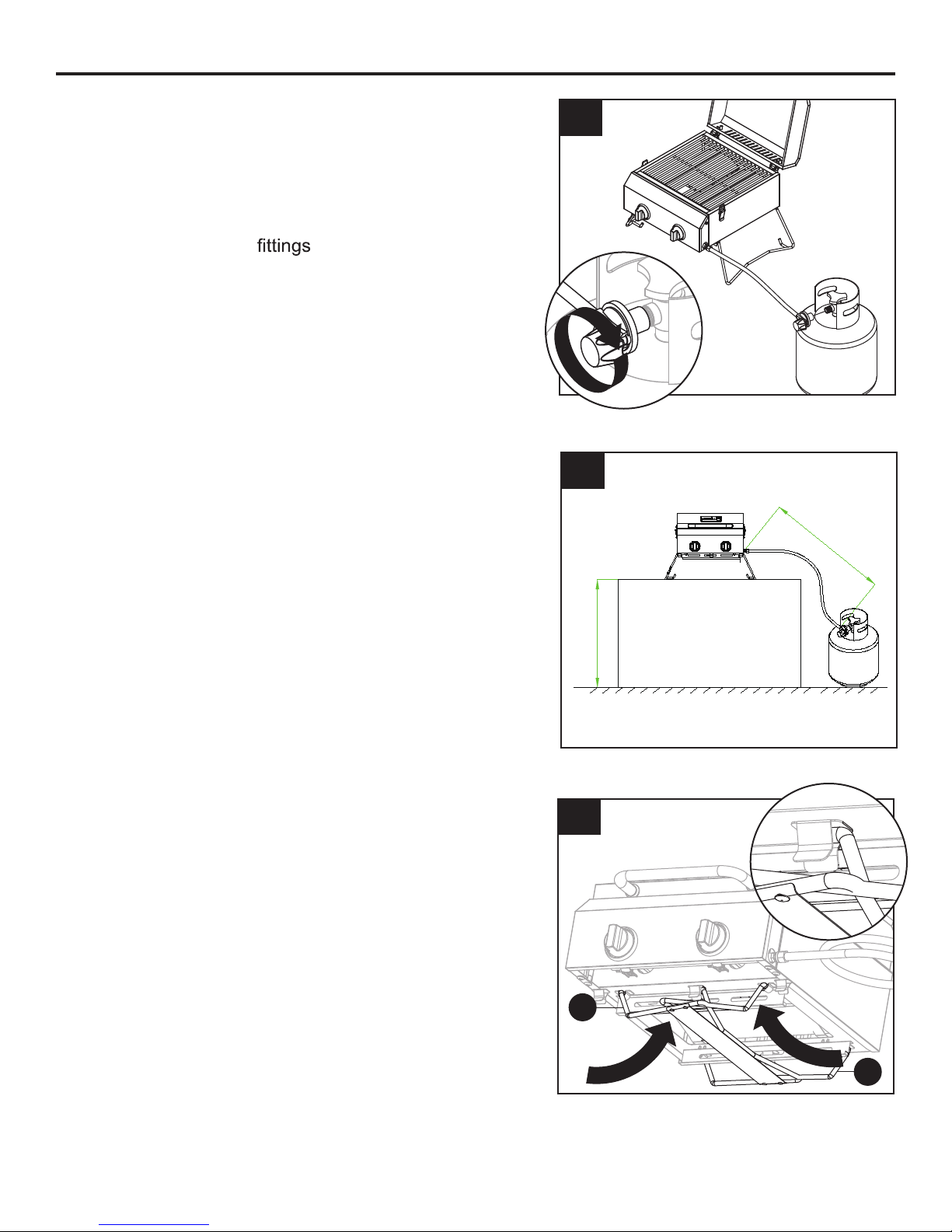

6. Attach the regulator found on the end of the
hose to the propane cylinder (not included) by
turning the regulator handle clockwise. If the grill
is not in use, the gas must be turned “OFF” at
the liquid propane cylinder.
Check all gas supply for leaks before
each use. DO NOT use the grill until all
connections have been checked and do not leak
(see “Leak Testing” instructions on pages 11 and
12).
6
8. When the grill is not in use, fold the left leg (B)
and the right leg (C) and lock them into the
brackets on the bottom of the grill for storage.
7. It is recommended to use this grill on a table 32
in. high with the liquid propane cylinder no more
than 24 in. away.
8
B
C
7
24"(61cm) max
32" (81cm)max

10
GAS HOOK-UP
Only the pressure regulator and hose assembly supplied with the grill should be used. Any
replacementpressureregulatorandhoseassemblymustbespeciedbythegrillmanufacturer.This
grillisconguredforliquidpropane.DO NOT use a natural gas supply.
Total gas consumption (per hour) with all burners set on “HIGH”
Main burners 16,000 BTU/Hr.
Total 16,000 BTU/Hr.
The installation of this appliance must conform with local codes or, in the absence of local codes,
with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, National Gas Propane Installation
Code, CSA B149.1, or Propane Storage and Handling Code, B149.2,or the Standard for Recreation
Vehicles,ANSIA119.2/NFPA1192,andCSAZ240RVSeries,RecreationVehicleCode,as
applicable.
LIQUID PROPANE CYLINDER REQUIREMENTS (20-lb cylinder)
• Adentedorrustyliquidpropanecylindermaybehazardousandshouldbecheckedbyyoursupplier.
• NEVER use a cylinder with a damaged valve.
• Theliquidpropanecylindermustbeconstructedandmarkedinaccordancewiththespecications
forliquidpropanecylindersbytheUnitedStatesDepartmentofTransportation(DOT)orthe
National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of
Dangerous Goods Commission.
• The20-lbcylindermusthaveashutoffvalveterminatinginavalveoutletspecied,asapplicable,
for connection type QCC1 in the standard for compressed gas cylinder valve outlet and inlet
connectionANSI/CGA-V-1.
• Storageofanoutdoorcookinggasapplianceindoorispermissibleonlyifthecylinderis
disconnected and removed from the outdoor cooking gas appliance.
• Thecylindersystemmustbearrangedforvaporwithdrawal.
• Thecylindermustincludeacollartoprotectthecylindervalve.
• Manifoldpressure:(operating)11incheswatercolumn(W.C.),(non-operating)11.2incheswater
column. (W.C.).
• TheliquidpropanecylindermustbettedwithanOverllProtectionDevice(OPD).
• Removetheplasticvalvecoverfromtheliquidpropanecylinder.
• Makesurethegrillgashosesdonotcontactthegreasepanorgrillreboxwhentheliquidpropane
cylinder is placed into the cart.
INSTALLATION INSTRUCTIONS

11
INSTALLATION INSTRUCTIONS
CONNECTING THE LIQUID PROPANE CYLINDER
Toconnecttheliquidpropanegassupplycylinder:
1. The cylinder valve should be in the “OFF” position. If not, turn the valve clockwise until it stops.
2. Make sure the cylinder valve has the proper type-1 external male thread connections per ANSI
Z21.81.
3. Make sure the burner valves are in the “OFF” position.
4. Inspect the valve connections, port and regulator assembly. Remove debris and inspect the hose
for damage.
5. When connecting the regulator assembly to the valve, use your hand to tighten the nut clockwise
until it stops.
6. Useofawrenchcoulddamagethequickcouplingnutandresultinahazardoussituation.
7. Open the cylinder valve fully by turning the valve counterclockwise.
8. Before lighting the grill, use a soap and water solution to check all the connections for leaks.
9. If a leak is found, turn the cylinder valve “OFF” and DO NOTusethegrilluntilalocalliquid
propane dealer can make repairs.
WARNING
NEVERattempttousedamagedorobstructedequipment.Seeyourlocalliquidpropanedealerfor
repair.
DISCONNECTING THE LIQUID PROPANE CYLINDER
1. Turn the grill burner valves “OFF” and make sure the grill is cool.
2. Turntheliquidpropanecylindervalve“OFF”byturningclockwiseuntilitstops.
3. Detachtheregulatorassemblyfromthecylindervalvebyturningthequickcouplingnut
counterclockwise.
4. Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of
dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or
plugs may result in leakage of propane.
LEAK TESTING
Although gas connections on the grill are leak tested prior to shipment, a complete leak test must
be performed at the installation site. Before each use, check all gas connections for leaks using the
procedures listed below. If the smell of gas is detected at any time, you should immediately check the
entire system for leaks.
BEFORE TESTING
Make sure all packing materials have been removed from the grill, including the burner tie-down
straps.

12
INSTALLATION INSTRUCTIONS
WARNING
Checkallgassupplyttingsforleaksbeforeeachuse.DO NOT use the grill until all connections
have been checked and do not leak. DO NOT smoke while leak testing. NEVER leak test with an
opename.Makeasolutionofonepartliquiddetergentandonepartwater.Youwillneedaspray
bottle,brush,orragtoapplythesolutiontothettings.Fortheinitialleaktest,makesuretheliquid
propane cylinder is full.
TO TEST
1. Turn the burner valves off.
2. Turntheliquidpropanecylindervalvecounterclockwisetoopenthevalve.
3. Applythesoapsolutiontoallgasttings.Soapbubbleswillappearwherealeakispresent.
4. Ifaleakispresent,immediatelyturnthegassupply“OFF”andtightenleakyttings.
5. Turn the gas back “ON” and recheck.
6. Shouldthegascontinuetoleakfromanyofthettings,turnthegassupply“OFF”andcontact
customer service at 1-800-913-8999.
7. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to
the outdoor cooking gas appliance being put into operation.
• Onlythosepartsrecommendedbythemanufacturershouldbeusedonthegrill.Substitutionswill
void the warranty.
WARNING
DO NOT store grill indoors unless the cylinder is disconnected. DO NOT store cylinder in a building,
garage, or any other enclosed area, and keep out of reach of children at all times.
INSTALLER FINAL CHECK
Maintainspeciedclearanceof24inchesfromcombustiblematerialsandconstruction.
• Allinternalpackaginghasbeenremoved.
• Thehoseandregulatorareproperlyconnectedtotheliquidpropanecylinder.
• Theunithasbeentestedandisfreeofleaks.
• Thegassupplyshutoffvalvehasbeenlocated.
• Allburnersareinstalled.
• Keeptheinstructionmanualforfuturereference.
WARNING
• Thegrillanditsindividualshutoffvalvemustbedisconnectedfromthegassupplypipingsystem
during any pressure testing of that system at test pressure in excess of 1/2-in. PSI (3.5 kpa).
• Theoutdoorcookinggasappliancemustbeisolatedfromthegassupplypipingsystembyclosing
its individual manual shutoff valve during any pressure testing of the gas supply piping system at
testpressureequaltoorlessthan1/2-in.PSI(3.5kpa).
• DO NOTstorespareliquidpropanecylindersunderornearthisappliancetoavoidtheriskofre
which could cause death or serious injury.
• NEVERllthecylinderbeyond80percentcapacity.Failuretodosocouldresultinarecausing
death or serious injury.

13
OPERATING INSTRUCTIONS
LIGHTING THE GRILL
1. Place the legs in up position.
2. Make sure the propane cylinder is tightly threaded into the regulator (hand
tighten only).
3. Open lid. ALWAYS open lid when lighting.
4. Push and turn main burner knob slowly to IGNITE/HIGH; burner should light
immediately.
5. If ignition does not occur in 3-5 seconds, turn the control knob “OFF”. Wait 5
minutes before attempting to re-light the grill. If the grill fails to ignite after the
second attempt, call customer service at 1-800-913-8999 for assistance.
Note: If the knob can’t spark insert the match into the lighting rod. Ignite the
match and insert through the cooking grids to the burner.
TURNING THE GRILL OFF
1. Turn knob to “OFF” position.
2. Turn the propane cylinder control knob to the “OFF” position.
CAUTION: DO NOT attempt to re-light the grill without following all
the lighting instructions.
3. Allow the grill body to cool at least 30 minutes before attempting to
move or transport.
FLAME CHARACTERISTICS
Checkforproperburneramecharacteristics.Burneramesshould
be blue and stable with no yellow tips, excessive noise, or lifting.
Thefollowingstepsshouldbefollowedforcorrectingtheame
characteristics:
• Turnthecontrolknobsandliquidpropanecylindervalves“OFF.”
• Allowthegrillandburnerstocool.
• Iftheameisyellow(notenoughair),turntheadjustmentscrewfoundat
the front of the burner counterclockwise.
• Iftheameisnoisyorliftsawayfromtheburner(toomuchair),turnthe
adjustment screw clockwise.
• Iftheseadjustmentsdonotcorrecttheproblem,contactcustomerserviceat
1-800-913-8999.
OFF
LO
OFF
LO
IGNITE
/ HIGH
IGNITE
/ HIGH
Main Burners
OFF
LO
IGNITE
/ HIGH
1 inch

14
OPERATING INSTRUCTIONS
USING THE GRILL
1. Find a level surface for the grill.
2. Allow the grill to warm up with the lid closed for 5 minutes prior to cooking.
3. You may cook on the grill in any weather. If the temperature is extremely cold or hot, the cooking
times will be slightly increased or decreased. Keep the grill out of excessive winds when
operating.

15
CARE AND MAINTENANCE
To ensure safe operation of your grill, the area of cooking should always be kept free of combustible
materialsofanytype,suchasgasolineorotherammablevaporsorliquids.
External Grill Parts - These are stainless steel. These can be cleaned easily with warm soapy water
or any stainless steel cleaner.
Cooking Grid and Grease Tray – The cooking grid is made of stainless steel. The cooking grid
should be brushed with a steel brush immediately after cooking while the grill is still warm. The
greasetrayisalsostainlesssteelandcanbecleanedwithaatscrapersuchasaputtyknife.
CAUTION
The grease tray must be kept clean and free of heavy buildup for the grill to perform properly and to
eliminateare-ups.
Grill Main Burners - Extreme care should be taken when removing a burner. It must be correctly
centeredontheoricebeforeanyattemptismadetorelightthegrill.Frequencyofcleaningwill
depend on how often you use the grill.
• Failuretoproperlyplacetheburnerovertheoricecouldcausearetooccurbehindandbeneath
the valve panel, thereby damaging the grill and making it unsafe to operate.
• Beforecleaning,makesurethegassupplyandcontrolknobsareinthe“OFF”positionandthe
burners have cooled.
To remove the main burners for cleaning:
1. Locatetheburnerscrewattherearoftherebox.
2. Removethescrewandlifttheburneroutoftherebox.
To clean the grill burners:
1. Clean the exterior of the burner with a wire brush. Use a metal scraper for stubborn stains or debris.
2. Clear clogged ports with a straightened paper clip. Never use a wooden toothpick as it may break
off and clog the port.
3. Check and clean burners/venturi tubes for insects and insect nests. A clogged tube can lead to a
rebeneathandbehindthemaincontrolpanel.
To reinstall the main burners:
1. Insert the burner over the main burner gas valve.
2. Makesuretheoricespudisinsidetheburnerventuriasshown.
3. Aligntheburnerscrewholewiththereboxhole,insertscrewand
tighten.
Burner
venturi
Orifice
spud

16
CARE AND MAINTENANCE
Firebox - Use warm soapy water to clean this area. DO NOT allow grease to build up.
Drain Hole – The drain hole must be kept clear of grease and food particles to allow drippings to
drain properly into the grease tray. This must be done to maintain proper operation of your grill.
General-Thisgrill,likeallequipment,willlookbetterandlastlongerifkeptoutoftheweatherwhen
not in use.
CAUTION
DO NOT store propane cylinders in enclosed areas. When using a cover or moving the grill, always
wait until the grill has cooled for at least 30 minutes.
• Notobstructingtheowofcombustionandventilationair.
• Acloggedtubecanleadtoarebeneaththeappliance.
• Thisunitmustbekeptinanareafreefromcombustiblematerials,gasolineandotherammable
vaporsandliquids.
• Makesureallopeningsintothegrillbodyarefreeofblockagesordebrisandtherearenoobjects
ormaterialsblockingtheowofcombustionorventilation.Makesurethelegsareintheupposition
when using the grill.
• Checkburnerairinletopenings(behindtheinletguardontherightendofthegrillbody)forinsect
nests or blockages. Make sure the slots in the burner tube are clear.
• Whenthegrillisnotinuse,turnthecontrolknobtothe“OFF”positionandremovethepropane
cylinder from the regulator. Remove the regulator from the burner.
• Foroutdooruseonly,ifstoredindoors,detachpropanecylinderandstoreoutdoors.Propane
cylinders must be stored out of reach of children.
IMPORTANT
First-time use: It is important that the grill be lit and allowed to heat up for at least 30 minutes
before any food is placed on the cooking grid. It is normal for some smoke to appear during the initial
operation of the grill. After initial heating, the grill is ready for use. A cooking spray can be used on the
cooking grids to allow easier clean up.
THIS COOKING APPLIANCE IS FOR OUTDOOR USE ONLY AND SHALL NOT BE USED IN A
BUILDING, GARAGE OR ANY OTHER ENCLOSED AREA.
MOVING INSTRUCTIONS
CAUTION
NEVER move the grill with burner lit.
Make sure control knob is in the “OFF” position. Disconnect the propane cylinder from the regulator.
Remove the regulator from the grill. Be sure the grill has completely cooled for at least 30 minutes.
Close the lid and secure the latch. Place the legs in the down position. Use the handle to carry the grill.
Note: It is best to leave the grease tray in place attached to the bottom of the grill-some grease may
continue to drip from drain hole during transport.

17
TROUBLESHOOTING
PROBLEM CORRECTIVE ACTION
The grill will not light. 1. Checktoseeiftheliquidpropanecylinderisempty.
2. Check burner ports for any blockage. Use a soft wire brush
to clear plugged ports.
3. Checkthegasoriceontheburnerforanobstruction.If
oriceisblocked,cleanwithaneedleorthinwire.
NEVER USE A WOODEN TOOTHPICK.
Burnerameisyellowororange
in conjunction with gas odor.
1. Check for spiders and insects.
2. Call customer service at 1-800-913-8999.
Low heat with the control knob on
the "HIGH" setting.
1. Make sure the grill area is clear of dust.
2. Makesuretheburnerandoriceareclean.
3. Check for spiders and insects.
4. Isthereadequategassupplyavailable?
5. Is the grill being preheated for 15 minutes?
Ifyouhaveanyquestionsregardingtheproduct,pleasecallcustomerservice
at1-800-913-8999, 8 a.m. - 5p.m., PST, Monday - Friday.
WARNING
Spidersandinsectscannestinsidetheburnersofthegrillanddisruptgasow.Thisverydangerous
conditioncouldcausearebehindthevalvepanel,therebydamagingthegrillandmakingitunsafe
for operation. Inspect the grill at least twice a year or immediately after any of the following conditions
occur:
1. Thesmellofgasinconjunctionwithburneramesappearingyellow.
2. The grill does not reach temperature.
3. The grill heats unevenly.
4. The burners make popping noises.
If the grill does not function properly, use the following checklist before contacting your dealer
for service.

18
WARRANTY
Manufacturer warrants to the original consumer-purchaser only that this product (Model #820-0033)
shall be free from defects in workmanship and materials after correct assembly and under normal
and reasonable home use for the periods indicated below beginning on the date of purchase. The
manufacturerreservestherighttorequirephotographicevidenceofdamage,orthatdefectiveparts
be returned, postage and or freight pre-paid by the consumer, for review and examination.
•MAIN BURNERS: 3 year LlMlTED warranty against perforation.
• CART: 1 Year LIMITED warranty against perforation; does not cover cosmetic issues like surface
corrosion, scratches and rust.
• PARTS: 1 Year LIMITED warranty (Includes, but not limited to, valves, frame, housing, control
panel, igniter, regulator, hoses) *Does not cover chipping, scratching, cracking surface corrosion,
scratches or rust.
Upon consumer supplying proof of purchase as provided herein, Manufacturer will repair or replace
thepartswhichareprovendefectiveduringtheapplicablewarrantyperiod.Partsrequiredto
complete such repair or replacement shall be free of charge to you except for shipping costs, as
long as the purchaser is within the warranty period from the original date of purchase. The original
consumer-purchaser will be responsible for all shipping charges of parts replaced under the terms of
this limited warranty. This limited warranty is applicable in the United States only, is only available to
theoriginalowneroftheproductandisnottransferable.Manufacturerrequiresreasonableproofof
your date of purchase. Therefore, you should retain your sales receipt and/or invoice. If the unit was
received as a gift, please ask the giftgiver to send in the receipt on your behalf, to the below address.
Defective or missing parts subject to this limited warranty will not be replaced without registration or
proof of purchase. This limited warranty applies to the functionality of the product ONLY and does
not cover cosmetic issues such as scratches, dents, corrosions or discoloring by heat, abrasive and
chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust,
or the discoloration of stainless steel surfaces. Surface rust, corrosion, or powder paint chipping on
metal parts that does not affect the structural integrity of the product is not considered a defect in
workmanship or material and is not covered by this warranty. This limited warranty will not reimburse
you for the cost of any inconvenience, food, personal injury or property damage. If an original
replacement part is not available, a comparable replacement part will be sent. You will be responsible
for all shipping charges of parts replaced under the terms of this limited warranty.
ITEMS MANUFACTURER WILL NOT PAY FOR:
• Servicecallstoyourhome.
• Repairswhenyourproductisusedforotherthannormal,single-familyhouseholdorresidentialuse.
• Damageresultingfromaccident,alteration,misuse,lackofmaintenance/cleaning,abuse,re,ood,
acts of God, improper installation, and installation not in accordance with electrical or plumbing
codes or use of products not approved by the manufacturer.
• Anyfoodlossduetoproductfailures.
• ReplacementpartsorrepairlaborcostsforunitsoperatedoutsidetheUnitedStatesorCanada.

19
WARRANTY
• Pickupanddeliveryofyourproduct.
• Postagefeesorphotoprocessingfeesforphotossentinasdocumentation.
• Repairstopartsorsystemsresultingfromunauthorizedmodicationsmadetotheproduct.
• Theremovaland/orreinstallationofyourproduct.
• Shippingcost,standardorexpedited,forwarranty/nonwarrantyandreplacementparts.
DISCLAIMER OF IMPLIED WARRANTIES; LlMlTATlON OF REMEDIES
Repair or replacement of defective parts is your exclusive remedy under the terms of this limited
warranty.Manufacturerwillnotberesponsibleforanyconsequentialorincidentaldamagesarising
from the breach of either this limited warranty or any applicable implied warranty, or for failure or
damageresultingfromactsofGod,impropercareandmaintenance,greasere,accident,alteration,
replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial
use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper
installation or installation not in accordance with local codes or printed manufacturer instructions.
THlS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE
MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION
WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT
SET FORTH IN THlS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING
UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN DURATION TO
THE DURATION OF THlS LIMITED WARRANTY.
Neither dealers nor the retail establishment selling this product has any authority to make any
additional warranties or to promise remedies in addition to or inconsistent with those stated above.
Manufacturer's maximum liability, in any event, shall not exceed the documented purchase price of
the product paid by the original consumer. This warranty only applies to units purchased from an
authorizedretailerandorre-seller.NOTE:Somestatesdonotallowanexclusionorlimitationof
incidentalorconsequentialdamages,sosomeoftheabovelimitationsorexclusionsmaynotapplyto
you;thislimitedwarrantygivesyouspeciclegalrightsassetforherein.Youmayalsohaveother
rights which vary from state to state.
Allconsumerreturns,partsorders,generalquestions,andtroubleshootingassistancecan
beacquiredbycalling1-800-913-8999,8a.m.-5p.m.,PST,Monday–Friday.

20
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-913-8999, 8 a.m. - 5 p.m.,
PST, Monday –Friday.
PART DESCRIPTION PART #
1Main Lid 820-0033-01
2Logo 820-0033-02
3Main Lid Handle Assembly 820-0033-03
4Cooking Grid with Hole 820-0033-04
5Flame Tamer 820-0033-05
6Burner Pin Assembly 820-0033-06
7Main Burner 820-0033-07
8Main Lid Hinge 820-0033-08
9Left Leg 820-0033-10
10 Control Panel Connector 820-0033-11
PART DESCRIPTION PART #
11 Gas Valve 820-0033-12
12 Main Manifold 820-0033-13
13 Main Control Panel 820-0033-14
14 Control Knob Bezel 820-0033-15
15 Control Knob 820-0033-16
16 Lighting Rod 820-0033-17
17 Regulator, LP 820-0033-18
18 Right Leg 820-0033-19
19 Grease Tray 820-0033-20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
10
8
16
