next audiocom MAVERICK MV10 User manual

USER MANUAL
v202204
Thank you for purchasing NEXT Audiocom Speakers and their associated products.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

THIS PAGE INTENTIONALLY LEFT BLANK

www.nextaudiocom.com
CONTENTS
INTRODUCTION
INTRODUCTION 1
UNPACKING 1
MAVERICK SERIES OVERVIEW 1
SAFETY
SAFETY FIRST 2
GETTING STARTED
PACKAGING CONTENTS 3
MULTI-POSITION FEATURE 3
POWER AMPLIFIER 3
TONE OPTIMIZER 4
BATTERY LEVEL INDICATOR 4
BLUETOOTH AUDIO REPRODUCTION 4
APPLICATIONS
MV10 + USB + MIC + GUITAR 5
MV10 + STEREO MIXER 5
MV10 MONITOR + MV10 30º LEAN BACK 5
SERVICE
REMOTE CONTROL 6
TROUBLESHOOTING 6
BATTERY REPLACEMENT 6
TECHNICAL
WARRANTY POLICY 7
END-OF-LIFE 7
SIMPLIFIED EU DECLARATION OF CONFORMITY 7
DIMENSIONS 8
TECHNICAL SPECIFICATIONS 8

1www.nextaudiocom.com
INTRODUCTION
INTRODUCTION
Thank you for purchasing a NEXT Audiocom MAVERICK Series speaker. This manual will provide you with useful
and important information about your active portable series element. Please devote some time reading this
manual, and keep it at hand for future reference. NEXT Audiocom is concerned with your safety and well-being,
so please follow all instructions and heed all warnings. Also, a better understanding of some specic features
of the speaker will help you to operate it to its full potential. With a continuous evolution of techniques and
standards, NEXT Audiocom, reserves the right to change the specications of its products without early warn-
ing. For the most current data, please visit our website: www.nextaudiocom.com
UNPACKING
NEXT Audiocom’s MAVERICK Series are built under quality supervision of NEXT Audiocom, according to the
highest standards. When unpacking your element, carefully examine it for any signs of possible transit damage
and inform your dealer immediately if any such damage has occurred.
It is suggested that you retain the original packaging so that the cabinet can be repacked in the future if
necessary. Please note that NEXT Audiocom and its authorized distributors cannot accept any responsibility for
damage to any returned product through the use of non-approved packaging.
MAVERICK SERIES OVERVIEW
NEXT Audiocom engineered the MAVERICK series, a portable loudspeaker series oering the best performance
and reliability in their class. Combining an ultra compact size, user friendly operation and a great design makes
this series a great solution for musicians, DJs, basic installation and portable multi-porpose sound at a limited
budget.
Maverick series aims to enhance usability and versatility combining eciency to a professional sound perfor-
mance, featuring high quality Bluetooth audio streaming, for background music or musical accompaniment,
impressive SPL and an advanced DSP. A surprisingly simple handling concept lets you plug in and play straight-
away. Congure the system by selecting the appropriate Preset (MV12) or Tone Optimizer (MV6 and MV10) and
let the system do the rest.
Thanks to the lightweight, and a very compact size, ABS plastic cabinet, it’s easy to carry and take just about
anywhere. This series comprises three dierent models, MV6 (6,5”), MV10 (10”) and MV12 (12”).
The Maverick MV6 and MV10 are a all-in-one Battery-Powered Portable PA with Bluetooth connection, USB
MP3 Player, AUX IN, MIC IN and instrument input. It comes with a remote control allowing the user to control it
at distance. The rechargeable lithium-ion battery keeps you going for up to 12 hours on MV6 and 8 hours on
the MV10. The multi-position feature allows the user to use it in several diferent ways: oor standing, oor
tilted, stage monitor and pole mounted.
The Maverick MV12 is a 2-way active speaker with Bluetooth connection, AUX IN, CD PLAYER IN, MIC IN and
instrument input. The powerful built-in DSP disposes 5 Presets that successfully adapt the speaker for the most
distinct and demanding applications (Live performance, Music Reproduction, Speech or Stage Monitor). It is
also possible to extend the system’s frequency range adding an external subwoofer and changing the preset
accordingly. Thanks to the multi-position feature, both MV6 and MV10 can cover many dierent applications.

SAFETY FIRST
It is important that the speaker systems are used in a safe manner. Please take some time to review the follow-
ing point concerning safe use of your NEXT Audiocom’s MAVERICK speaker.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use your speaker near any sources of water, like swimming pools, lakes, water streams, exposed to rain,
high humidity environments or any other source of water or moisture.
• Use only a soft dry cloth to clean your speaker.
• Never use your speaker too close to any heat source, such as radiators, or any other device that produces heat.
Recommended temperature: 0ºC to +35ºC.
• Never place your speaker in a way that prevents air ow near the amplier. A minimum clearance distance of
20cm should be kept between the amplier and any near surface.
• When pole mounted, always ensure that the oor or structure where the stack will take place is even and can
withstand the weight.
• Do not suspend the speaker by its handles. The handles are intended to only be used for temporary transport
by people.
• Place cables in a way that they do not present a trip hazard.
• Do not place any objects on top of the speaker, they can fall accidentally and cause injuries.
• Do not attempt to move the speaker while connected.
• It is advised to unplug the speaker during storms or when not in use for a long period of time.
• Do not attempt to service the speaker beyond what is described in this manual. All other service or repair of
this product should be carried only by qualied personnel.
• To prevent electric shock, do not use any extension cord, receptacle or other outlets where the blades of the
connectors cannot be fully inserted.
• Do not operate the unit for an extended period of time with the sound distorting.
• Do not operate the unit with the “PEAK” led consistently on.
2
www.nextaudiocom.com
SAFETY

3
GETTING STARTED
www.nextaudiocom.com
PACKAGING CONTENTS
- 1 x Maverick MV10
- 1 x IEC C13 Power Cable
- 1 x Remote Control
- 1 x User’s Guide
MULTI-POSITION FEATURE
Thanks to the multi-position feature, the MV10 can be used in several dierent applications.
POWER AMPLIFIER
1 - Input Signal / Peak LED
Green - Signal / Red - Peak
2 - Input Channel Level
3 - High EQ Level
4 - Bass EQ Level
5 - Reverb Eect Level
6 - Tone Optimizer
EQ optimization for Voice (microphone icon) or Instrument
(guitar icon) or “OFF” for general music reproduction
7 - XLR / TRS 1/4”Combo Inputs
8 - USB Input
Can be used as a 5V 1A charger
9 - Remote Control IR Receiver
10 - Function Buttons
Mode: Switch between USB - Bluetooth / AUX has priority
Play/Pause: Click to Pause / Press 1-2 sec. to select USB folder
Playback Mode: Switch among RANDOM, ALL and SINGLE
Next: Skip track / Move to the next folder
Previous: Previous track / Move to the previous folder
11 - Mains Power Input - IEC C13 connector
12 - Power On/O Switch
13 - LCD Display
14 - AUX Input - 3.5mm audio jack
15 - Mix Output - TRS 6.35mm
The output is post mix i.e. the EQ and Reverb are included
16 - TWS Pair/Unpair Button
17 - Bluetooth Pair/Unpair Button
1
7
9
Floor Standing Stage Monitor 30º Lean BackPole / Tripod Mount
with AUTO EQ
6

4
www.nextaudiocom.com
GETTING STARTED
TONE OPTIMIZER
MICROPHONE - Automatic Input EQ for the best voice reproduction.
INSTRUMENT - Automatic Input EQ for the best instrument reproduction.
OFF - No Input EQ - is used for recorded music playback and electronic dance music applications or
when connected to an MV10 output.
BATTERY LEVEL INDICATOR
BLUETOOTH AUDIO REPRODUCTION
MONO:
1. Press MODE button until “BT” shows on the display. Now, the speaker is
looking for bluetooth devices and the Bluetooth logo, at the lower left
corner, will start blinking.
2. On your mobile device, select NEXT MV10 to initiate the pairing process.
3. Once the device is paired, the Bluetooth logo will turn solid.
4. Play the audio from the mobile device.
To unpair the speaker from the mobile device press the Bluetooth Pair/Unpair Button.
TWS STEREO:
1. Press MODE button until “BT” shows on the display of both
speakers.
2. Press TWS Pair button on either of the MV10 speakers.
Wait until both speakers successfuly connect with
each other.
3. On your mobile device, select NEXT MV10 to initiate
the pairing process.
AUDIO
AUDIO

5www.nextaudiocom.com

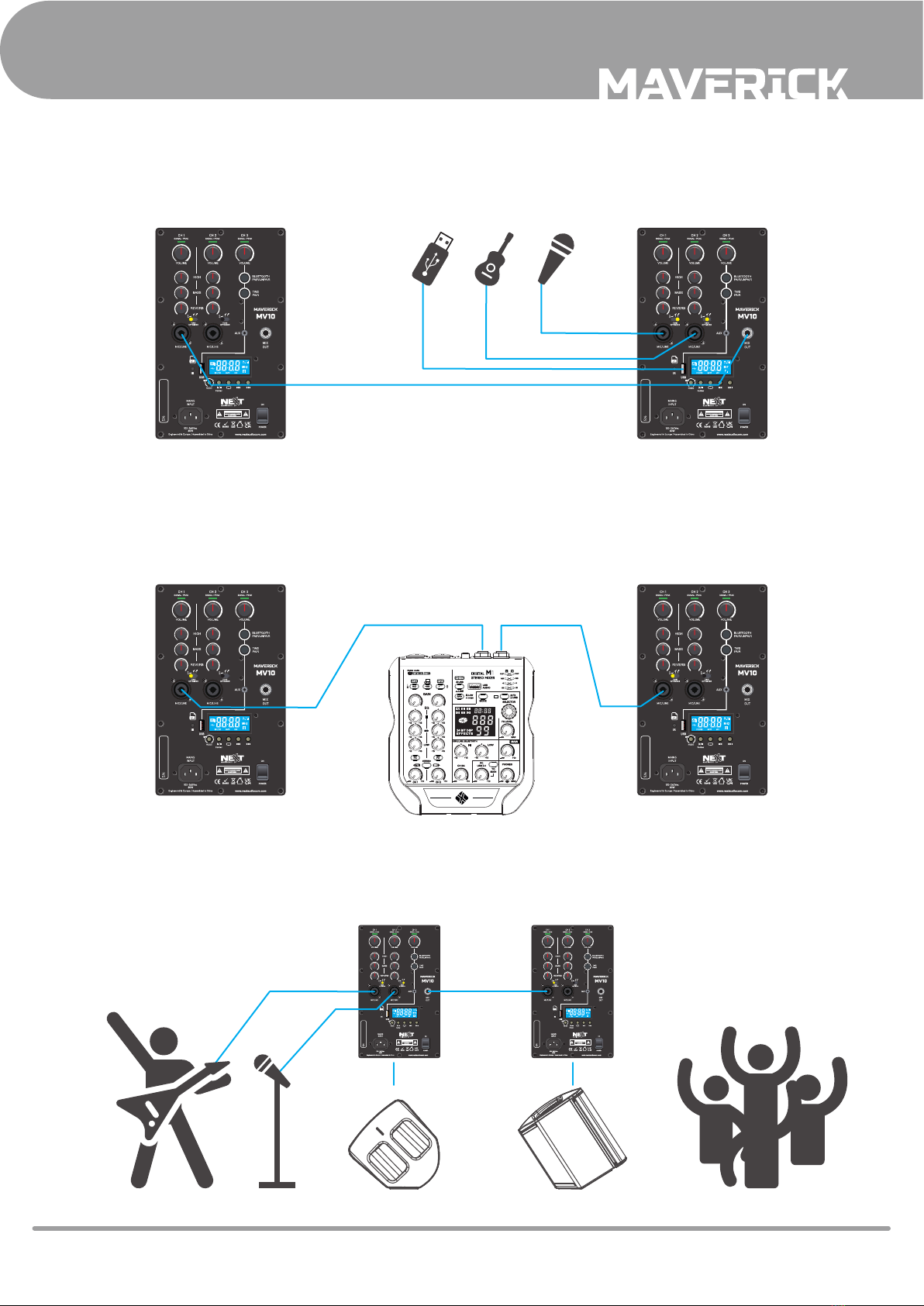

APPLICATIONS
MV10 + USB + MIC + GUITAR
MV10 + STEREO DJ MIXER
MV10 MONITOR + MV10 30º LEAN BACK
L R
R
L R
L

6
www.nextaudiocom.com
SERVICE
REMOTE CONTROL
1 - Pair Bluetooth Audio Device
2 - Pair MV10 in TWS mode (Stereo Bluetooth)
3 - Increase Volume Level
4 - Previous Track
5 - Play / Pause
6 - Next Track
7 - Decrease Volume Level
8 - Folder Selection
9 - Folder Selection
10 - Playback Loop
TROUBLESHOOTING
BATTERY REPLACEMENT
1. Switch the speaker OFF. Unscrew the four screws at the bottom of the speaker.
2. Unplug the connector, remove and replace the battery, re-connect the plug.
3. Install the bottom cover and secure it with the four screws.
All LED OFF on the amplier panel
Speaker is ON but no sound
No sound from microphone
Sound distorting - peak LED ON most of time
Sound distorting - peak LED OFF
Skipping or stuttering playback with streaming
audio Paired device is too far from the speaker Move the device closer to the speaker
Acoustic feedback from the microphone Microphone is in front or too close to the MV6 Avoid being in front or too close to the speaker
Intermittent output - cracking or distortion Faulty signal connection Check and / or replace signal cables
Mixer / audio source is overdriven Reduce level from source / Raise level on MV10
Excessive sound level at the input channel Reduce the level knob - counterclockwise
Condenser microphone - needs phantom power Switch to a dynamic microphone or use external
phantom power for condenser microphones
Signal source not sending / faulty signal cables Verify the audio is playing / replace signal cables
AC Cable not connected / Battery discharged Verify the IEC cable / Charge the battery
Symptom Possible cause Action
1
2
3
5
8
6
7
9

7www.nextaudiocom.com
TECHNICAL
WARRANTY POLICY
NEXT Audiocom’s products are warranted, by NEXT Audiocom, against manufacturing defects in materials or
craftsmanship over a period of 2 years counting from the date of original purchase. The original receipt of
purchase is mandatory for warranty validation purposes, and the product must have been bought from a NEXT
Audiocom authorized dealer. The warranty can be transferred to a subsequent owner during the warranty
period; however, this cannot extend the warranty period beyond the original warranty period of two years
from the original date of purchase stated on the NEXT Audiocom’s invoice.
During the warranty period NEXT Audiocom will, at its own discretion, either repair or replace a product which
prove to be defective provided that the product is returned in its original packaging, shipping prepaid, to an
authorized NEXT Audiocom service agent or distributor.
NEXT Audiocom cannot be held responsible for defects caused by unauthorized modications, improper use,
negligence, exposure to inclement weather conditions, act of God or accident, or any use of this product that
is not in accordance with the instructions provided by this manual and/or NEXT Audiocom. NEXT Audiocom is
not liable for consequential damages. This warranty is exclusive and no other warranty is expressed or implied.
This warranty does not aect your statutory rights.
END-OF-LIFE
When to be denitively put out of operation, take the product to a local recycling plant for a disposal which is
not harmful to the environment.
Devices marked with this symbol must not be disposed of as household waste. Contact your retailer or local
authorities for more information.
SIMPLIFIED EU DECLARATION of CONFORMITY
Hereby, CVA ELECTRONICA, LDA declares that this radio equipment type is in compliance with Directive
2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
www.nextaudiogroup.com/en/apoio-ao-cliente/downloads

8
www.nextaudiocom.com
DIMENSIONS
TECHNICAL SPECIFICATIONS
TECHNICAL
Dimensions in milimeters
Speaker Type
Baery Powered Speaker
Frequency Response (-6dB)
42Hz – 20kHz
Calculated Max. SPL
(Connuous/Peak) 116dB/119dB (Full-space)
Coverage Angle (-6dB)
100º Conical
Components
LF - 1 x 10" Woofer / 2.5" Voice Coil
HF – 1 x 1” (Exit) High Freq. Driver
Program/Peak Power
150W/300W
Mixer
3 Channels
EQ
Bass, High
Effects
Reverb
Tone Opmizer
Microphone and Instrument
AUTO EQ
Automac EQ when pole mounted
Bluetooth
Stereo Audio Streaming – 10m range
Amplifier Technology
Class D Amplifier with DSP
Cooling
Convecon
AC Operang Voltage
100V - 240V 50/60Hz
Nominal Power Consumpon
150W (0.6A)
Connectors
Power: 1 x IEC
Signal IN: 2 x XLR/TRS combo,
1 x 3.5mm jack, 1 x USB
Signal OUT: 1 x TRS 6.35mm
USB
Charging port: 5V, 1A
Fings
1 x 35mm pole mount socket
Handles
One on Top
Construcon
Light-weight ABS plasc
Baery Type
Lithium–ion Rechargeable Baery
Baery Charge Time 3 to 5 Hours
Baery Play Time Up to 8 Hours
Dimensions WxHxD (mm)
344 x 473 x 363
Net Weight
11.6kg
Shipping Weight
13.7kg
