EAW Subwoofer UB22z User manual

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0392 (A) UB22z July 2006
UB22z Specifications

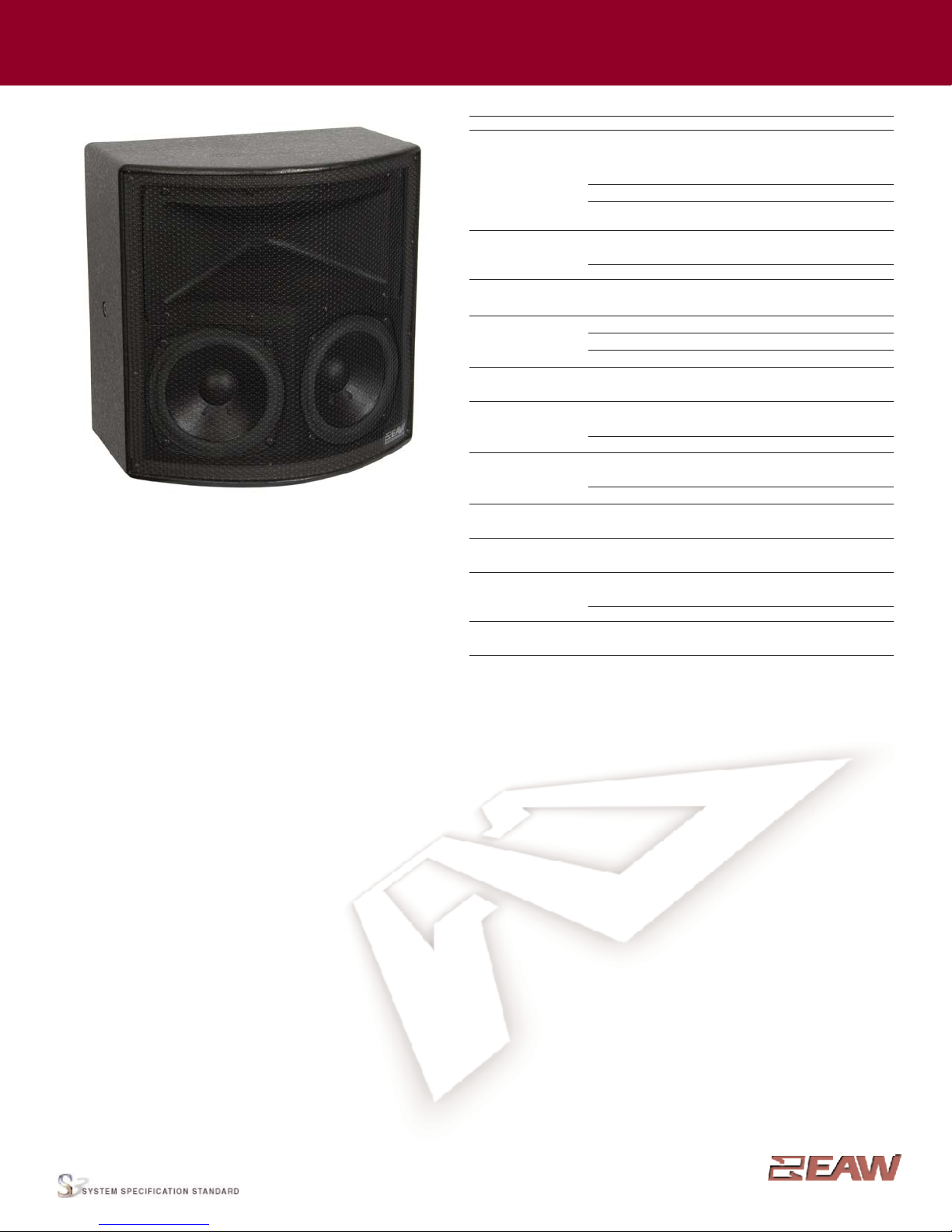

DESCRIPTION
• Ultra-compact 2-way system
• Wide projection pattern
• LF on angled baffles to maintain a wide upper/midrange beamwidth
• High output, high definition sound
DESCRIPTION
The UB22z is engineered for extra-wide-angled coverage
(horizontal) from a wall mounted position. This ultra-compact
loudspeaker provides surprisingly high output and exceptional
fidelity for near field applications. It is highly effective as a fill/delay
element in larger overall systems or for foreground/background
music reproduction as a stand-alone loudspeaker or in distributed
systems.
Because they are compact and lightweight, UB22zs install quickly
and easily in difficult spaces. As components of larger overall
systems, the UB22z series can be used to provide underbalcony,
overbalcony, and side box area coverage. Applications as fill/delay
elements include large and small theatres and houses of worship. As
a main system, they can be built into high definition, distributed
systems for use in industrial or retail environments and as
standalone or distributed loudspeakers for boardrooms, restaurants,
offices, and transportation centers.
Foam-backed grilles hide the drivers from view for pleasing
aesthetics. Side mounting points allow enclosures to be mounted in
using accessory brackets. Additional mounting points accept an
OmniMount® 30.0 Series or similar bracket. Standard colors are
black and white. Other colors can be specified as a special order
items.
Six year warranty.
2-WAY COMPACT FULL-RANGE
See NOTES TABULAR DATA for details
CONFIGURATION
Subsystem
Transducer Loading
LF 2x 5.25 in cone Sealed
HF 1x 1 in exit, 1 in voice CD horn
coil compression driver
Operating Mode
Amplifier Channels External Signal Processing
Single-amp LF/ HF HPF
PERFORMANCE 1
Operating Range 85 Hz to 20 kHz
Nominal Beamwidth (rotatable)
Horz 120°
Vert 50°
Axial Sensitivity (whole space SPL)
LF/HF 91 dB 85 Hz to 20 kHz
Input Impedance (ohms)
Nominal Minimum
LF/HF 8 7.5 @ 280 Hz
Input Taps (MT versions)
70 V 100 V
LF/HF 64 W / 32 W / 16 W 64 W / 32 W
High Pass Filter
High Pass =>55 Hz, 12 dB/octave Butterworth
Accelerated Life Test 2
LF/HF 40 V 200 W @ 8 ohm
Calculated Axial Output Limit (whole space SPL)
Average Peak
LF/HF 114 dB 120 dB
ORDERING DATA
Description Part Number
UB22z 2-Way Full-Range Loudspeaker Black 0013733
UB22z 2-Way Full-Range Loudspeaker White 0017844
UB22zMT w/64 W Xfmr Black 0013734
UB22zPL-WP Weather-protected 0013736
UB22zMTPL-WP Weather-protected w/64 W Xfmr 0013735
Optional Accessories
Aluminum U-bracket Kit Black 0015342
Aluminum U-bracket Kit White 0015830
1To achieve specified performance, the listed external signal processing with EAW-provided settings is required.
2For recommendations to select power amplifier size refer to : “HOW MUCH AMPLIFIER POWER DO I NEED?” on the EAW web site.

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0392 (A) UB22z July 2006
UB22z Specifications

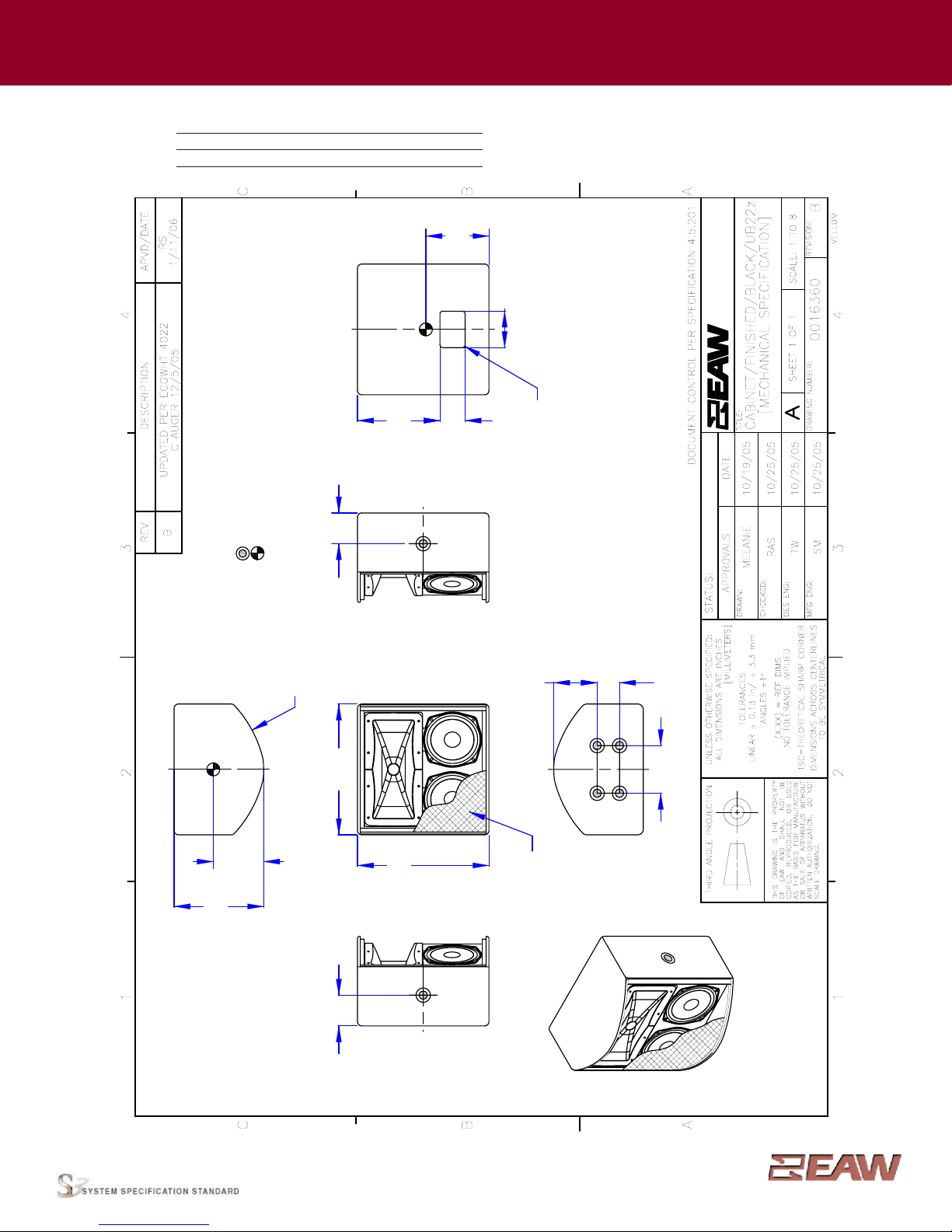

ENCLOSURE
Material Baltic birch plywood (Celtec® for PL-WP versions)
Finish Wear resistant textured black paint
Grille Powder-coated perforated steel with foam backing
[99.0]
[50.8]
[R 274.1]
R 10.79
GRILLE PARTIALLY SHOWN
11.74
UB22z
LEFT SIDE
[108.0] 2.00
4.25
BOTTOM
C3.88
L
FRONT
[203.2]
8.00
[69.8]
C
L
2.75
TOP
[298.2]
[296.7]
11.68
[114.3]
L
C
4.50
2.25 3.25
5.63
INPUT
[57.1]
EASTERN ACOUSTIC WORKS
ONE MAIN STREET
WHITINSVILLE, MA 01588 USA
PRODUCTION
RIGHT SIDE [82.5]
BACK
[187.1]
NOTES: 1. SYMBOL INDICATES MOUNTING POINT, 1/4-20 THREADED HOLE. 2. SYMBOL INDICATES CENTER OF BALANCE. 3. WEIGHT APPROX. 16 lb [7.3 kg]. 4. SHIPPING WEIGHT APPROX. 18 lb [8.2 kg].
7.36
[69.9]
C
L
2.75
[143.0]
C
L
NOTE: This drawing has been reduced. Do not scale.
For WP version, add 0.25 in / 6.4 mm to the outside dimensions = 0.125 in / 3.2 mm all around.

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0392 (A) UB22z July 2006
UB22z Specifications
PERFORMANCE DATA
See NOTES GRAPHIC DATA for details
Frequency Response: Processed
Single-amp = blue
SPL (dB)
Frequency Response: Unprocessed
Single-amp = blue
SPL (dB)
Frequency Response: Digital Signal Processor
Single-amp = blue
dB re 0.775 V
Beamwidth (-6 dB SPL Points)
Horizontal = orange Vertical = black
Degrees
Impedance Magnitude
LF = green, MF/HF = black, Single-amp = blue
Ohms
120
110
100
90
80
70
60
100
10
1
400
100
10
1
100 1000 20000
Frequency (Hz)
10 100 1000 20000
Frequency (Hz)
10
0
-10
-20
-30
-40
-50
20
10
0
-10
-20
-30
-40
10 100 1000 20000
Frequency (Hz)
10 100 1000 20000
Frequency (Hz)
10 100 1000 20000
Frequency (Hz)

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0392 (A) UB22z July 2006
UB22z Specifications
0
-45
-90
-135
180
135
90
45
100 Hz
125 Hz
160 Hz
200 Hz
0
-45
-90
-135
180
135
90
45
250 Hz
315 Hz
400 Hz
500 Hz
0
-45
-90
-135
180
135
90
45
630 Hz
800 Hz
1000 Hz
1250 Hz
0
-45
-90
-135
180
135
90
45
1600 Hz
2000 Hz
2500 Hz
3150 Hz
0
-45
-90
-135
180
135
90
45
4000 Hz
5000 Hz
6300 Hz
8000 Hz
0
-45
-90
-135
180
135
90
45
10000 Hz
12000 Hz
16000 Hz

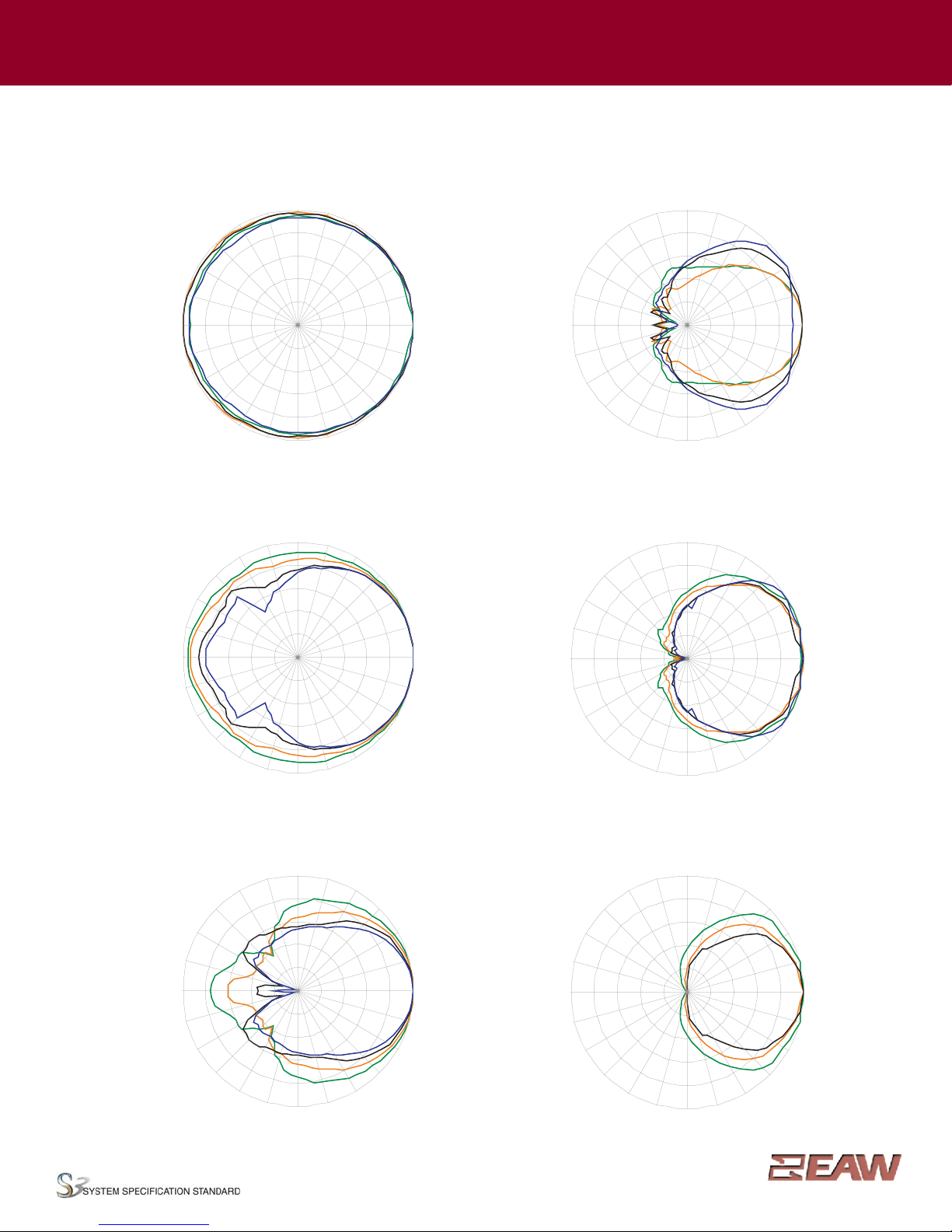

HORIZONTAL POLAR DATA (Gridlines: 6 dB axial / 15 degree radial)
See NOTES GRAPHIC DATA for details

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0392 (A) UB22z July 2006
UB22z Specifications
VERTICAL POLAR DATA (Gridlines: 6 dB axial / 15 degree radial)
See NOTES GRAPHIC DATA for details
0
-45
-90
-135
180
135
90
45
100 Hz
125 Hz
160 Hz
200 Hz
0
-45
-90
-135
180
135
90
45
250 Hz
315 Hz
400 Hz
500 Hz
0
-45
-90
-135
180
135
90
45
630 Hz
800 Hz
1000 Hz
1250 Hz
0
-45
-90
-135
180
135
90
45
4000 Hz
5000 Hz
6300 Hz
8000 Hz
0
-45
-90
-135
180
135
90
45
10000 Hz
12000 Hz
16000 Hz
0
-45
-90
-135
180
135
90
45
1600 Hz
2000 Hz
2500 Hz
3150 Hz

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0392 (A) UB22z July 2006
UB22z Specifications
INPUT PANEL
UB22z
S/N
WHITINSVILLE, MA USA
+
--
NOTES
TABULAR DATA
1. Measurement/Data Processing Systems: Primary - FChart: proprietary EAW software; Secondary - Brüel & Kjær 2012.
2. Microphone Systems: Earthworks M30; Brüel & Kjær 4133
3. Measurements: Dual channel FFT; length: 32 768 samples; sample rate: 48 kHz; logarithmic sine wave sweep.
4. Measurement System Qualification (includes all uncertainties):SPL: accuracy +/-0.2 dB @ 1 kHz, precision +/-0.5 dB 20 Hz to 20 kHz, resolution 0.05 dB; Frequency: accuracy +/-1 %,
precision +/-0.1 Hz, resolution the larger of 1.5 Hz or 1/48 octave; Time: accuracy +/-10.4 µs, precision +/-0.5 µs, resolution 10.4 µs; Angular: accuracy +/-1°, precision +/-0.5°, resolution 0.5°.
5. Environment: Measurements time-windowed and processed to eliminate room effects, approximating an anechoic environment. Data processed as anechoic or fractional space, as noted.
6. Measurement Distance: 7.46 m. Acoustic responses represent complex summation of the subsystems at 20 m. SPL is referenced to other distances using the Inverse Square Law.
7. Enclosure Orientation: For beamwidth and polar specifications, as shown in Mechanical Specification drawing.
8. Volts: Measured rms value of the test signal.
9. Watts: Per audio industry practice, “loudspeaker watts” are calculated as voltage squared divided by rated nominal impedance. Thus, these are not True Watt units of energy as defined by
International Standard.
10. SPL: (Sound Pressure Level) Equivalent to the average level of a signal referenced to 0 dB SPL = 20 microPascals.
11. Subsystem: This lists the transducer(s) and their acoustic loading for each passband. Sub = Subwoofer, LF = Low Frequency, MF = Mid Frequency, HF = High Frequency.
12. Operating Mode: User selectable configurations. Between system elements, a comma (,) = separate amplifier channels; a slash (/) = single amplifier channel. DSP = Digital Signal Processor.
IMPORTANT: To achieve the specified performance, the listed external signal processing must be used with EAW-provided settings.
13. Operating Range: Range where the processed Frequency Response stays within -10 dB SPL of the power averaged SPL within this range; measured on the geometric axis. Narrow band
dips are excepted.
14. Nominal Beamwidth: Design angle for the -6 dB SPL points, referenced to 0 dB SPL as the highest level.
15. Axial Sensitivity: Power averaged SPL over the Operating Range with an input voltage that would produce 1 W at the nominal impedance; measured with no external processing on the
geometric axis, referenced to 1 m.
16. Nominal Impedance: Selected 4, 8, or 16 ohm resistance such that the minimum impedance point is no more than 20% below this resistance over the Operating Range.
17. Accelerated Life Test: Maximum test input voltage applied with an EIA-426B defined spectrum; measured with recommended signal processing and Recommended Protection Filter.
18. Calculated Axial Output Limit: Highest average and peak SPLs possible during the Accelerated Life Test. The Peak SPL represents the 2:1 (6 dB) crest factor of the Life Test signal.
19. High Pass Filter: This helps protect the loudspeaker from excessive input signal levels at frequencies below the Operating Range.
GRAPHIC DATA
1. Resolution: To remove insignificant fine details, 1/12 octave cepstral smoothing was applied to acoustic frequency responses and 1/3 octave cepstral smoothing was applied to the
beamwidth and impedance data. Other graphs are plotted using raw data.
2. Frequency Responses: Variation in acoustic output level with frequency for a constant input signal. Processed: normalized to 0 dB SPL. Unprocessed inputs: 2 V (4 ohm nominal impedance),
2.83 V (8 ohm nominal impedance), or 4 V (16 ohm nominal impedance) referenced to a distance of 1 m.
3. Processor Response: The variation in output level with frequency for a constant input signal of 0.775 V = 0 dB reference.
4. Beamwidth: Average angle for each 1/3 octave frequency band where, starting from the rear of the loudspeaker, the output first reaches -6 dB SPL referenced to 0 dB SPL as the highest
level. This method means the output may drop below -6 dB SPL within the beamwidth angle.
5. Impedance: Variation in impedance magnitude, in ohms, with frequency without regard to voltage/current phase. This means the impedance values may not
be used to calculate True Watts (see 9 above).
6. Polar Data: Horizontal and vertical polar responses for each 1/3 octave frequency band 100 Hz to 16 kHz or Operating Range.
70 V / 100 V
AMP
2-Way, Single-Amp (LF/HF)
XVR
LF
HF
HPF
AMP
2-Way, Single-Amp (LF/HF)
XVR
LF
HF
HPF

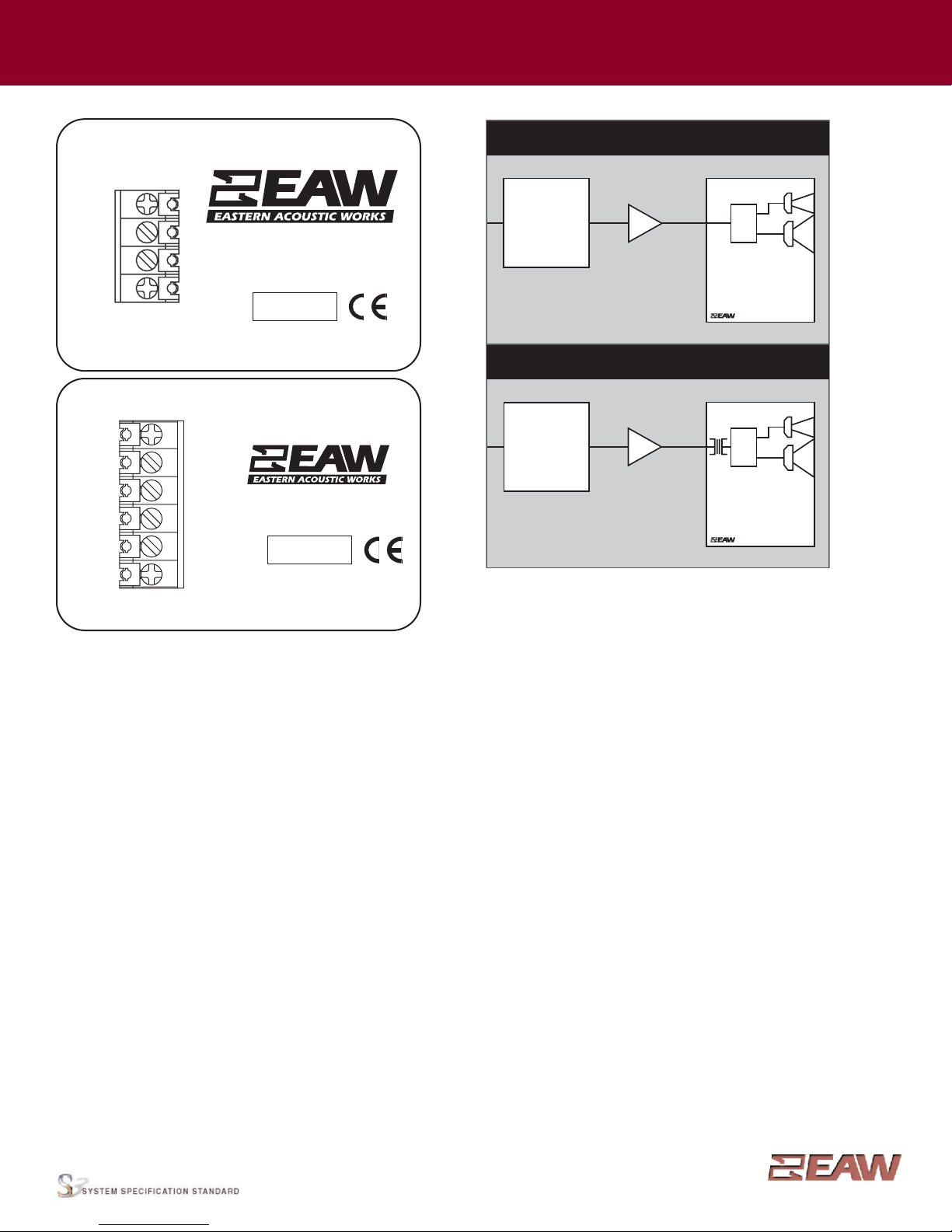

SIGNAL DIAGRAM
LEGEND
DSP: User-supplied Digital Signal Processor.
HPF: High Pass Filter for crossover or Recommended High Pass Filter.
LPF: Low Pass Filter for crossover.
LF/MF/HF: Low Frequency / Mid Frequency / High Frequency.
AMP: User-supplied Power Amplifier.
XVR: Passive LPFs, HPFs, and EQ integral to the loudspeaker.
COM
32W
64W
NC
COM
16W
32W
64W
70V
100V
S/N
UB22zMT
WHITINSVILLE, MA USA
