Next YE-18000HD User manual

GENERAL INFORMATION
INSTALLATION
MENU INFORMATION
3
8
9
Main Features
For your Safety
Unpacking
General Operation
RCU
Front Panel
Rear Panel
3
4
5
5
6
7
7
Connecting to TV& VCR usingRCAsupport
Connecting to Digital Amplifier
8
8
Main Menu
1. Edit Channel
1.1 TV Channel List
1.2 Radio ChannelList
1.3 Delete Channelsby Satellite
1.4 Favorite
2. Installation
3. System Setup
3.1 Language
3.2 TV System
3.3
3.4 Local Time setting
3.5 Parental Lock
3.6 OSD Setting
3.7 Other
4. Tools
4.1 Information
4.2 Factory Setting
4.3 S/W Upgradeby OTA
4.4
Display Setting
Upgrade by USB
4.5 Network LocalSetting
4.6 Wifi Manager
4.7 Upgrade byNetwork
9
10
10
13
13
13
13
16
16
17
17
17
18
18
18
19
19
19
19
19
20
20
20

6. REC
6.1 PVR StorageInformation
6.2 PVR Setting
6.3 TimerSetting
6.4 Media Player
6.5 Remove USBDevice safely
7. Hot key
7.1 Info
7.2 EPG
7.3 Find
7.4 Number
7.5 TV/Radio
7.6 Up/Down
7.7 Left/Right
7.8 Mute
7.9 Pause
7.10 OK
7.11 Audio
7.12 Recall
7.13 Fav
7.14 Teletext
7.15 Zoom
21
21
21
21
22
23
24
24
24
25
25
25
25
25
25
25
25
26
26
26
26
26
27
5. Entertainment
5.1 Youtube
5.2 Daily motion
5.3 IPTV
5.4 Web Radio
5.5 Google Map
5.6 Weather Forecast
5.7 RSS Reader
5.8 Picasa
5.9 Othello/ Sudoku
20
20
20
20
21
21
21
21
21
21

CAUTION: There may be a voltage difference between TV mains GND and satellite signal
distribution or Cable TV distribution systems' GND. Or these kinds of voltage differences may
appear because of any failure or changing later on the electricity network. In these cases,
depending on the voltage difference rate, there may occur heating, fire and other serious
damages on TVs and STBs through the socket or cable connections (SCART, HDMI, RF,
RCA etc.). Considering such possibilities, we strongly recommend you to use “Galvanic
Isolator*” during the system installation and not remove the isolator.
Note: Applying an isolator causes a little signal loss.
*Equipment connected to the protective grounding of the building through the mains
connection or through the other equipment with a connection to protective grounding and to
a cable distribution system using coaxial cable, may in some circumstances create a fire
hazard.
Connection to a cable distribution system has therefore to be provided through a device
providing electrical isolation below a certain frequency range. (Galvanic Isolator EN 60728-
11:2010)

A Digital Satellite Receiver is a convenient product that allows you to view a variety
of programs provided through satellite. This user's guide covers the installation of
the DSR and the necessary steps to implement various features. This also explains
special features available only in this DSR in detail, which will allow you to make full
use of thesefeature.
Information confirmed in this document is subject to change. We reserves the right,
without notice, to make change in product design or performances as progress in
engineering or technology.
Main Features
MPEG2 SD, MPEG2 HD, H.264/AVC SD, H.264/AVC HD
Embedded Conax
SCPC and MCPC receivable from C/Ku band satellite
Automatic PAL/NTSC conversion
8000 TV and Radio Channel Programmable
8 different favorite groups selection
Multi-language OSD
Fully support to 7 days Electronic Program Guide(EPG)
Picture in Graphics(PIG) support
True color On Screen Display
Automatic network search for newly added transponders
DiSEqC 1.2 fully support, 13/18V, 0/22K LNB control
Various channel editing functions(favorite, moving, locking, renaming,
deleting and sorting)
Parental control for channels
Easy to use Menu System
Software upgrades through RS232 port and Receiver to receiver, Support
USB upgrade
8 Timer Reservations, automatically switch to a specific channel
Subtitle support DVB EN300743 and EBU
Teletext support DVB ETS300472 by VBI and OSD
Automatic save for last channel
Channel list can be sorted by alphabetic A-Z,Scramble,Favorite,Lock,Sat
Dual display - HD and SD simultaneous
Support FAT16/FAT32/FAT12
Only list JPEG/BMP files
480i/p, 576i/p, 720p, 1080i, 1080p with HDCP copy protection
Games
1 recording, time shift, media player

For Your Safety
Be sure to turn the Receiver off and
disconnect the AC power cord before
cleaning the Receiver surface. If the
surface is dirty, wipe clean with a cloth
which has been dipped in a weak soap-and-
water solution and wrung out thoroughly,
and then wipe again with a dry cloth.
Switch the receiver off whenever it remains
out of service for an extended period.
Do not touch the receiver during thunder,
since that might create electric-shock
hazards.
Do not block ventilation holes of the
Receiver so that air can circulate freely.
Do not expose the receiver un-der the
sunlight. And keep it away from the heat
source.
Keep the receiver away from flower vases,
tubs, sinks, etc., in order to avoid damaging
the equipment.
To avoid electric-shock hazards, do not
open the cabinet, refer servicing to qualified
personnel only.
When the abnormal phenomenon occur,
you should cut off the power immediately.

General Operation
Throughout this manual you will notice that the everyday operation of the receiver is
based on a series of user friendly on screen display and menus. These menus will
help you get the most from your receiver, guiding you through installation, channel
organizing, viewing andmany other functions.
All functions can be carried out using the buttons on the RCU, and some of the
functions can alsobe carried outusing the buttonson the frontpanel.
The receiver is easy to use, always at your command and adaptable for future
advances.
Please be awarethat new softwaremay change thefunctionality of thereceiver.
Should you experience any difficulties with the operation of your receiver, please
consult the relevant section of this manual, including the Problem Shooting, or
alternatively call yourdealer or acustomer service adviser.

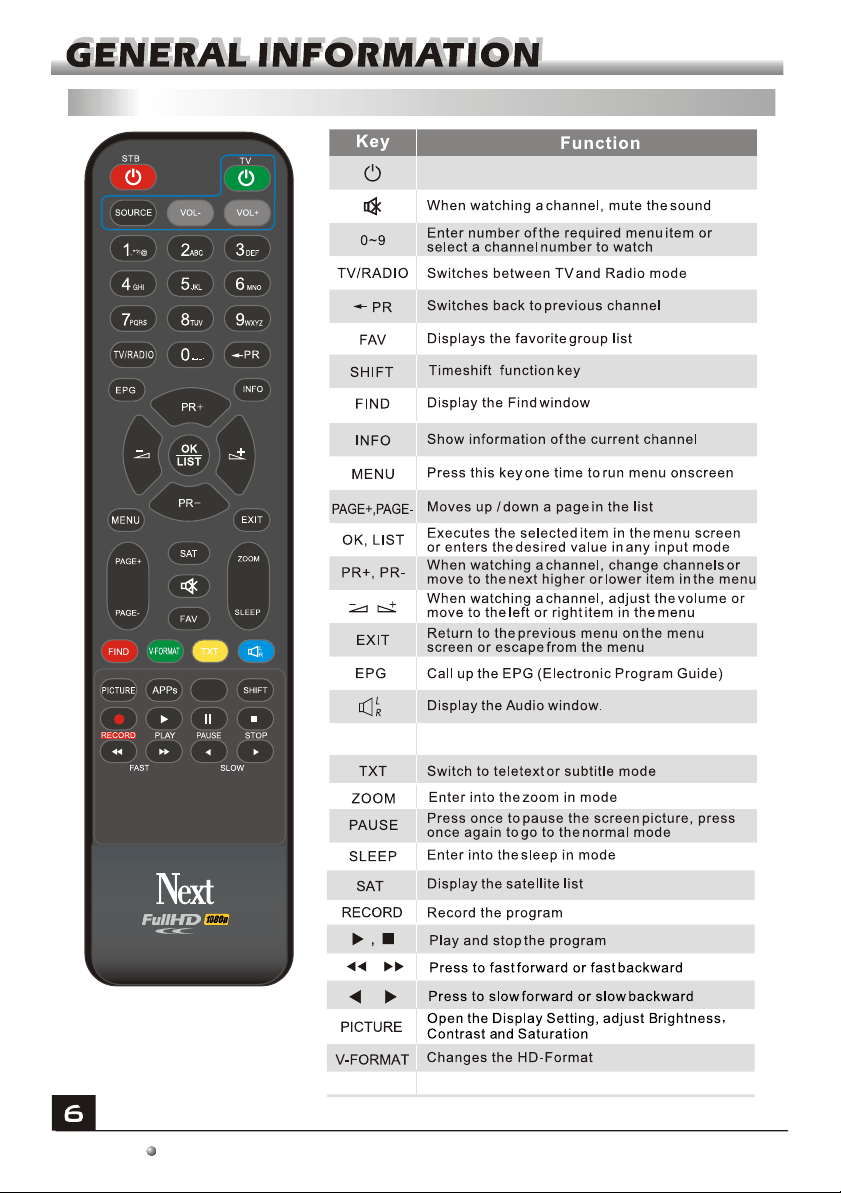

Remote Control Batteries Guide
DiSEqC
HDMI cable

RCU
The picture is only for reference,please make the object as the standard.
DiSEqC
Standby On/Off
APPs Go to Entertainment main menu
DiSEqC Display DiSEqC window

1. Set top box control section: press the key, the RCU will send out the default remote
codes.
2. TV section search functions:
a) Press both keys “VOL+” and “VOL-” at the same time, after 3 seconds, it can enter into
the TV search status.
b) Press the “VOL+” key send out 3 group of code values and go forward to search. While
the TV appears "volume" symbol, please loosen the key. Press the “VOL-” key and go
afterward to search.
3.STB manufacturer has tried including most popular more than 130 LED, LCD, Plasma
and CRT TV's remote controller codes. Due to the limitation it is not possible to include
whole models. Function is restricted by On/Off, Volume +/- and Source TV functions. STB
manufacturer will not be responsible for missing some TV model codes, excluding other TV
function keys, end user code teaching performance or ability. This feature has been added
to STB Remote controller as an added value and preventing the necessity of keeping the
TV RCU at near while watching TV with Next brand STB source.
Remote Control Operating Instruction

Rear PanelRear Panel
Rear PanelFront Panel
POWER ON/OFF
CONNECT TOAUDIO R/LTO
TV ORAUDIO TUNER
CONNECT TOA PC
FOR S/W UPGRADE
CONNECT TO TV SET DV-OUT INPUT
LNB IN: CONNECTTO SATELLITE ANTENNA
CONNECT TO ADIGITAL AMPLIFIER
The picture is only for reference,please make the object as the standard.
COMPOSITE VIDEO BROADCASTSIGNAL
7

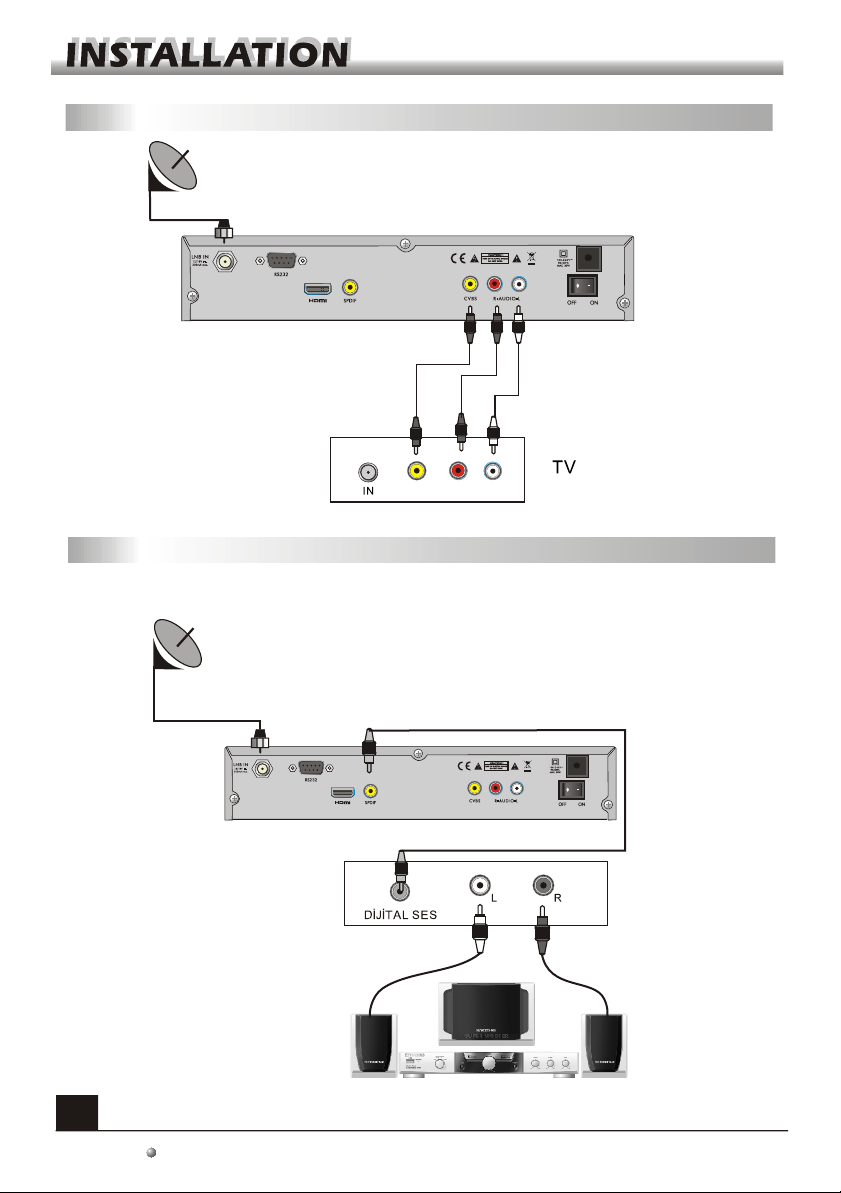

Connecting to DigitalAmplifier
DIGITALAUDIO
CONVERTOR OR
AMPLIFIER
SPEAKER
Connecting to TVusing RCA support
DSR
Satellite
Dish
Satellite
Dish
The picture is only for reference,please make the object as the standard.
AUDIOVIDEO
L
R
8

Main Menu
This menu consistsof 6 majormain menus
as follow.
- Edit Channel
- Installation
- System Setup
- Tools
- Entertainment
-REC
During the installation the OK key confirms a selection and LIST key shows Down
List Box if the column has 34 mark. You can also use the numeric keys on the
RCU to enternumeric value.
Use the PR+,PR- key to move upwards and downwards from one line to another
line and use key to move from main menu to sub menu and move from left
side to rightside or versa.
Meantime, you want to escape the menu system, please press MENU or EXIT key
on the RCU.
Make sure thatyou have properlyinstalled and connectedthe cables ofthe receiver .
If the receiver is the factory status or there is no program list, when power on, the
Main Menu windowwill be displayedon the screen.
During the normal TV/Radio mode, press MENU key on the RCU to enter into the
Main Menu window.
9

If there is no program, you can not exit from the Main Menu window by pressing
MENU or EXIT key. System will inform"No channel" andthe following itemsturn grey.
Sub-menu Turn grey when there is no program
Edit Channel
Installation
System Setup
Tools
TV Channel List
Radio Channel List
Delete Channels bySatellite
Language TV System
Local TimeSetting
Parental Lock OSDSetting
Information Factory Setting
1. Edit Channel
1. Press keysto select satellite.
2. Press PR+, PR- keys to select the program
that you want to play, and then press OK key to
view it in the small window. If move the yellow
cursor to select up or down, you will see a gray
line which indicates the playing program in the
small window.
1.1 TV ChannelList
Entertainment
REC
PVR Storage Information PVRSetting
S/W Upgrade byOTA Upgrade by USB
Display Setting
Media Player Timer Setting
Favorite
Other
Remove USB DeviceSafely
Installation
Youtube Daily motion
IPTV Web Radio
Google Map Weather Forecast
RSS Reader Picasa
Othello Sudoku
10

3. Press FAV key to move the FAV button upward.
Select the program and press OK key to pop up the
favourite group list. In the list, select the group that
you want to add into and press OK key, and then
you will find the favourite mark is displayed at the
right side ofthe selected program.
Press FAV key again to exit from the fav mode, and
you will find the FAV button return to the origin
position.
4. Press red colour key to move the Lock button
upward. Select the program and press OK key to
mark this program with the Lock mark. You can
cancel this markby pressing OK key once more.
Press red colour key again to exit from the lock
mode, and youwill find theLock button returnto the
origin position.
5. Press green colour key to move the Skip button
upward. Select the program and press OK key to
mark this program with the skip mark. You can
cancel this markby pressing OK key once more.
Press green colour key again to exit from the skip
mode, and you will find the Skip button return to the
origin position.
6. Press yellow colour key to move the Move
button upward. Select the program and press OK
key to mark this program with the move mark.
Press PR+, PR- keys to move the cursor to the
position where you want to locate and press OK
key to confirm.
Press yellow colour key again to exit from the
yellow mode, and you will find the yellow button
return to theorigin position.
7. Press blue colour key to enter into the Edit
channel window.
11

Press red colour key to pop up the Sort drop-down
list.
Name(A-Z): The ascending order, omitting the $
character, the number is ahead, then the capital
letter, atlast the lowercase.
Name (Z-A): The opposite order of the above Name
(A-Z).
Free/Scramble: All FTA programs are listed ahead,
while all scrambledprograms are listedlast.
Lock: all locked programsare listed atthe last.
i . Sort(red colour key)
Press green colour key to move the Edit button
upward. Select the program and press OK key to
pop up theRename window.
In Rename window, press red colour key to switch
between capital letter and lower letter; press green
colour key to delete the character on the cursor;
press keys to move the cursor left or right;
press numeric keys (0-9) to input the character,
please refer to the down table. Press yellow colour
key to save and exit, or press blue key to cancel
and exit.
ii. Edit (greencolour key)
Numeric keys Press numeric keyrepeatedly, displayin circle
1
2
3
4
5
6
7
8
9
0
.,*?!@1
ABC2
DEF3
GHI4
JKL5
MNO6
PQRS7
TUV8
WXYZ9
[space]_-0
If the name is empty, system will pop up a dialogue informing "Name" once yellow
colour key ispressed. Press OK key to close this dialogue.
12

In Delete window, press blue colour key to move
the Delete button upward. Select the program and
press OK key to mark this program with the
deletion mark. You can cancel this mark by
pressing OK key again.
Press EXIT key to pop up the dialogue "Are you
sure to save?". Select Yes button and press OK
key to save, or select NO button and press OK key
to exit withoutsaving.
1.2 Radio ChannelList
The same operationas 1.1 TV ChannelList, here wedon't explain anymore.
iii. Delete (bluecolour key)
1.3 Delete channelsby satellite
2. Installation
There are 8favorites group listedin this window.
Press PR+, PR- keys to select one and press
OK key to the Rename window. Since the same
operation as the above the Add Satellite
window, herewe don't explainany more.
1.4 Favorite
Motor Type: Press keys to select between
Motor Antennaand FixedAntenna.
13

Satellite List
1. Satellite list is on the left side of the window. Press
PR+, PR- keys to select the satellite up or down. Press
OK key to select and mark, and you can press OK key
again to cancel the selection and the mark.
2. Press red colour key to pop up the Single
Satellite Search window.
3. Press green colour key to pop up the Multi
Satellite Search window.
4. Press yellow colour key to pop up the Edit
window.
Name: User numeric keys to change the name of
the satellite, pleaserefer to theEdit Channel Name.
Longitude: You can press keys to switch between east longitude and west
longitude. After pressing OK key, you can use numeric keys to edit the longitude, press
EXIT key or the PR+, PR- keys to exit editing mode. The range of the longitude is from 1to
180 degree. If beyond this range, system will inform you "out of range" when you press
yellow colour key on the RCU.
After setting, press yellow colour key to save and exit, while press blue colour key to exit
without saving.
5. Press blue colour key to pop up the Add/Delete
window. The same operation as the above Edit
Satellite window
6. Press blue colour key and select delete, it will
pop up the dialogue "Are you sure to delete?".
Select Yes button and press OK key to delete the
selected satellite. You can cancel this operation by
pressing OK key at theNO button.
14

1. Satellite: All selected satellites in the satellite list
are displayed inthis item.
Press keys toselect the satellite in circle. Or
press OK key to pop up the drop-down list, then
select the desired satellite in the list and press OK
key to confirm.
2. LNB Freq, Transponder, DiSEqC1.0,
DiSEqC1.1: The same operation as theabove.
Antenna Setup
3. 22K, Polarity: Youcan press keys to select in circle.
4. LNB Type: Select the properLNB type.
5. Motor Type: Select among Fixed Antenna, DiSEqC1.2 and USALS. If you select
DiSEqC1.2, the followingLocal Longitude andLocal Latitude itemswill turn grey.
6. Scan Channel:Select among TV+Radio, TV Channel and Radio.
7. Scan Mode:Select among BlindScan, Preset Scanand TP Search.
In Antenna Setup List
3. Press yellow key to enterTP list.
In TP list press red colour key topop up the Edit
TP window.
Frequency, Symbol rate: Press keys to
add or reduce by step one. Or press numeric
keys (0-9) to input the desired value. The range
of the frequency is 3000-13500, while the range
of the symbol rate is 1000~45000. The inputted
value is beyond this range, the value will return
to the originvalue.
Polarity: Press keys to switch between
Vertical andHorizontal.
1. Press red colour key topop up theSingle Satellite Searchwindow.
2. Press green colour key topop up theMulti Satellite Searchwindow.
15

4. Press green colour key to pop up the Add TP
window. Since the same operation as the above
Edit TP window, herewe don't explainany more.
5. Press yellow colour key to pop up dialogue "
Are you sure to delete?". Press OK key at the
Yes button to delete the selected TP, or press
EXIT key to cancelthe operation.
6. Press blue colour key to pop up the TP
Search window.
FTA only, Scan Channel, Network Search:
Press keys toselect the properoption.
Press OK key at theOK button tostart searching.
1. Press OK key to enter into the Language
window. Press keys to select the language
in circle, while press PR+, PR- keys to move the
cursor up ordown in circle.
2. Press MENU key or EXIT key to saveand exit.
3. The types of the language, pleaser refer to the
configuration of thecustomer.
3. System Setup
3.1 Language
16

Press PR+, PR- key to move the cursor up or down,
while press keys to change the setting and
the setting will take effect immediately.
1. Video Resolution: Select among 480i, 576i,
480p,576p,720P_50,720P_60,1080i_25 ,1080i_30,
1080p_50 and 1080p_60.
2. Aspect Mode: Select among 4:3LetterBox,
4:3PanScan, 16:9 and Auto.
3.2 TV System
3. Video Output: Select between RGBand YUV.
4.Digital Audio Out: Select among LPCMOut, Autoand BS Out.
1. Summer Time: Select between ON and OFF.
"OFF" delegates the normal time. If select ON,
time will addone hour.
2. GMT Offset: When select "ON" in GMT Usage
item, system will get the date and time
information from the screen automatically. Date
and Time two items will turn grey. Select the
proper option in the GMT Offset item. The default
setting is GMTON.
3.4 Local Time Setting
3.Date, Time: When select "OFF" in GMT Usage, Date and Time two items take
effect, while GMT Usage turns grey. Use numeric keys to input the desired value.5.
After setting, press MENU key or EXIT key to exit and save. If the value is invalid,
system will inform "Invalid input! Continue to edit?". Press OK key at the Yes button
to continue themodification, or pressOK key at theNo button to exit without saving.
3.3 Display Setting
1. Brightness: Press key to select from 0-100.
2. Contrast: Press key to select from 0-100.
3. Saturation: Press key to select from 0-100.
4. Hue: Press key to select from 0-100.
5. Sharpness: Press key to select from 0-9.
17
