Installation, Operation and Maintenance Manual
Scalestop 7,8,9,10 &12” Systems
© 2006-2010 next filtration technologies inc. 2document:NSS-7-12-RES-IOM.pdf
Table of Contents
Introduction........................................................................................ 3
System Overview............................................................................... 4
System Specifications ....................................................................... 5
Cautions ............................................................................................ 6
Notes to the Installer.......................................................................... 6
Installation and Start-Up.................................................................... 7
Note to the Homeowner..................................................................... 8
Warranty............................................................................................ 9 & 10

Installation, Operation and Maintenance Manual
Scalestop 7,8,9,10 &12” Systems
© 2006-2010 next filtration technologies inc. 3document:NSS-7-12-RES-IOM.pdf
Introduction
The next-ScaleStop system provides protection from scale formation throughout the home. The
ScaleStop system can be installed at the point of entry to treat your entire home, both hot and cold
water, or it can be located directly before a water heater or other device (e.g. sauna, etc) that requires
protection from hard water.
ScaleStop reduces or eliminates scale formation on internal and external plumbing surfaces as well
as reducing spotting and streaking normally associated with hard water.
ScaleStop prevents scale by transforming the normal dissolved hardness minerals into undissolved
crystal micro-particles. These crystals stay suspended in the water and have a greatly reduced ability
to react and attach to surfaces like dissolved hardness does. Therefore the problem of internal build-
up of scale in pipes, water heaters and on fixtures and glass is greatly reduced.
ScaleStop is not a water softener – Low or phosphate-free cleaning products are recommended to
achieve optimum results. Modern surfactant or detergent based, liquid soaps are preferred over old-
fashioned caustic solid soaps.
Unlike softened water, Scalestop treated water maintains the beneficial essential mineral content of
your water and is safe to drink.
ScaleStop Benefits.
t $IFNJDBM'SFF4DBMF1SFWFOUJPO$PTUTBWJOHTBOEFOWJSPONFOUBMCFOFGJUT
t 7JSUVBMMZ.BJOUFOBODF'SFF/PTBMUCBHTPSPUIFSDIFNJDBMTUPCVZUSBOTQPSUBOETUPSF
t /P&MFDUSJDJUZOPXBTUFXBUFSDPNQMFUFMZTFMGDPOUBJOFE
t #FOFGJDJBMNJOFSBMTSFUBJOFEGPSNPSFIFBMUIGVMESJOLJOHXBUFS
t *NQSPWFTUIFFGGJDJFODZPGXBUFSVTJOHBQQMJBODFT
t 4JNQMFJOTUBMMBUJPOoOPFMFDUSJDBMBOEESBJOIPPLVQ
t 4BGFGPSMBOETDBQJOHBOEMBXOXBUFSJOH/POFFEUPDPTUMZCZQBTTQMVNCJOH
t $PNQBUJCMFXJUIBMMPOTJUFBOEDPNNVOJUZXBTUFXBUFSUSFBUNFOUTZTUFNT
t /PUTVCKFDUUPXBUFSTPGUFOFSSFTUSJDUJPOTBOEiCBOTw

Installation, Operation and Maintenance Manual
Scalestop 7,8,9,10 &12” Systems
© 2006-2010 next filtration technologies inc. 4document:NSS-7-12-RES-IOM.pdf
Tank Head
Media Tank
System Overview
CK-V3007-02
1” Brass Sweat Fitting
CK-V3007
1” PVC Male NPT Elbow
Assy.
CK-V3006
Bypass Assy. CK-V3191-01
Bypass Elbow Assy.
Typical Connection Fittings
Optional Connection Fittings

Installation, Operation and Maintenance Manual
Scalestop 7,8,9,10 &12” Systems
© 2006-2010 next filtration technologies inc. 5document:NSS-7-12-RES-IOM.pdf
Equipment Specifications
next-ScaleStop systems are complete, self-contained, loaded with media and ready to use. A simple
JOMFUBOEPVUMFUDPOOFDUJPOJTBMMUIBUJTSFRVJSFEGPSJOTUBMMBUJPO1MFBTFSFWJFXPQFSBUJOHQSFTTVSFT
temperatures and water chemistry limitations to ensure compatibility.
Specifications
Inlet/Outlet Connection wwNVMUJQMFPQUJPOT
Temperature 40° - 110°F
pH 6.5 to 8.5
Ferrous Iron, Max* 0.3 mg/L
Manganese, Max* 0.05 mg/L
Copper, Max* 1.3 mg/L
8BUFS1SFTTVSF NJONBY14*
* See note about Iron, Manganese and Copper on the next page.
a b
c
e
d
Mechanical Specs.
744 844 948 1054 1252
Max Service Flow (gpm) 10 12 16 20 30
Dry Weight (lbs) 22 25 29 35 43
Service Weight (lbs) 80 97 129 168 235
Dimensions (nominal - inches)
a 48.5 48.5 52.5 59.5 56.5
b 46 46 48 57 54
c 7 8 9 10 12
d 2.5 2.5 2.5 2.5 2.5
e 3.0 3.0 3.0 3.0 3.0
Using ScaleStop with other water treatment equipment.
Due to the unique properties of ScaleStop, there are some
VOJRVFSFRVJSFNFOUTGPSVTJOH4DBMF4UPQJODPOKVODUJPOXJUI
filtration or other forms of water treatment.
1. ScaleStop must be the last stage in the treatment chain.
Do not install any filters after ScaleStop or before any de-
WJDFTGPSXIJDITDBMFQSFWFOUJPOJTSFRVJSFE106GJMUFST
e.g. carbon or RO are exempt from this requirement.
2. Do not apply phosphate or any other antiscalant either
before or after ScaleStop.

Installation, Operation and Maintenance Manual
Scalestop 7,8,9,10 &12” Systems
© 2006-2010 next filtration technologies inc. 6document:NSS-7-12-RES-IOM.pdf
Notes to the Installer.
The ScaleStop system differs from a conventional softener or media filter in a number of key re-
spects.
t 5IFTZTUFNJTMJHIUBOEPOMZQBSUJBMMZGJMMFEXJUINFEJB5IJTJTOPSNBM5IF61GMPXPQFSBUJPOPGUIF
system requires a lot of freeboard to allow the bed to fully fluidize.
t 5IFTZTUFNIBTOPVOEFSCFETPZPVDBOUJQUIFTZTUFNPWFSXJUIPVUBOZGFBSPGVQTFUUJOHUIFNF-
dia. This makes transportation and installation much easier than conventional systems.
t #FDBVTFUIF4DBMF4UPQTZTUFNPQFSBUFTJOUIF61'MPXNPEFUIFUBOLDPOOFDUJPOTBSFPQQPTJUF
of what you’re used to.
t 1MFBTFTFFUIFiJNQPSUBOUOPUFBCPVUJSPONBOHBOFTFBOEDPQQFSwBCPWF
t 1MFBTFTFFUIFOPUFBCPVUi6TJOH4DBMF4UPQXJUIPUIFSXBUFSUSFBUNFOUFRVJQNFOUwPOUIFQSFWJ-
ous page.
An important note about iron, manganese and copper in the water supply.
Iron and Manganese
Just as with conventional water softening media, ScaleStop needs to be protected from excess levels
PGDFSUBJONFUBMTUIBUDBOFBTJMZDPBUUIFBDUJWFTVSGBDFSFEVDJOHJUTFGGFDUJWFOFTTPWFSUJNF1VCMJD
water supplies rarely, if ever, present a problem, but if the water supply is from a private well confirm
that the levels of iron (Fe) and manganese (Mn) are less than 0.3 mg/L and 0.05 mg/L respectively.
Copper should be less than 1.3 mg/L.
Copper
Copper usually originates from new copper plumbing upstream of the ScaleStop system. If this condi-
tion exists, we recommend waiting 3-4 weeks before placing the system in operation. This will allow
the copper surfaces to be fully flushed and develop a natural protective surface. To further minimize
any problem with excess copper the plumbers should be advised to avoid applying excess flux on the
JOOFSTVSGBDFTPGUIFQJQFBOEUPVTFBMPXDPSSPTJWJUZXBUFSTPMVCMFGMVYMJTUFEVOEFSUIF"45.#
standard. Once the plumbing connections are complete, place the ScaleStop system in bypass prior
to following the startup procedure and flush the plumbing for at least 10 minutes.
Cautions!
t %POPUMFUUIFTZTUFNGSFF[F%BNBHFUPUIFUBOLNBZSFTVMU
t 4ZTUFNNVTUCFPQFSBUFEJOBWFSUJDBMQPTJUJPO%POPUMBZJUEPXOEVSJOHPQFSBUJPO5IFTZTUFN
may be placed in any position for shipping and installation but must be operated in the vertical
position.
t 1MBDFUIFTZTUFNPOBTNPPUIMFWFMTVSGBDF#FDBVTFUIFTZTUFNPQFSBUFTJOBO61'MPXGMVJE-
ized bed mode, having a level surface is more important than with a softener or media filter.
t "CZQBTTWBMWFTIPVMECFJOTUBMMFEPOFWFSZTZTUFNUPGBDJMJUBUFJOTUBMMBUJPOBOETFSWJDF
t 0CTFSWFBMMMPDBMQMVNCJOHBOECVJMEJOHDPEFTXIFOJOTUBMMJOHUIFTZTUFN
!
!
i

Installation, Operation and Maintenance Manual
Scalestop 7,8,9,10 &12” Systems
© 2006-2010 next filtration technologies inc. 7document:NSS-7-12-RES-IOM.pdf
Installation
 1MBDFUIFTZTUFNJOUIFEFTJSFEMPDBUJPO
2. Connect the Cold Water supply to the inlet of the
ScaleStop system.
 /05&5IF4DBMF4UPQTZTUFNPQFSBUFTJOUIF61'-08
mode which is opposite of a conventional softener.
 1MBDFBCVDLFUVOEFSUIFPVUMFUQPSUPSSVOBMJOFGSPNUIF
outlet port to a drain.
5. Slowly open the supply valve (user supplied) to the
ScaleStop system. Allow the tank to fill with water. Close
the supply valve when a steady stream of water comes
out of the outlet port.
6. Connect the Outlet of the ScaleStop system to the cold
water supply to the home.
7. Open the supply valve to the ScaleStop system.
8. Open faucets downstream from the ScaleStop system to
relieve any air.
9. Check for leaks. Repair as needed.
10. The system is now ready for service
IN
Cold Water
OUT
ScaleStop Treated Water
Figure 1.
844 shown with optional
bypass assy..
4FSWJDF1PTJUJPO
down-flow tank. As shipped, the bypass is set-up
for down-flow use. The arrow
shape of the handles points in the
XSPOHEJSFDUJPOGPS61GMPXVTF
5PDPOWFSUJUUP61GMPXVTFQVMM
up on the red handles until they
come off. Rotate the handle 180°
and put it back on the valve stem.
4FSWJDF1PTJUJPO
61GMPXUBOL
#ZQBTT1PTJUJPO
61GMPXUBOL
Bypass Valve Modification

Installation, Operation and Maintenance Manual
Scalestop 7,8,9,10 &12” Systems
© 2006-2010 next filtration technologies inc. 8document:NSS-7-12-RES-IOM.pdf

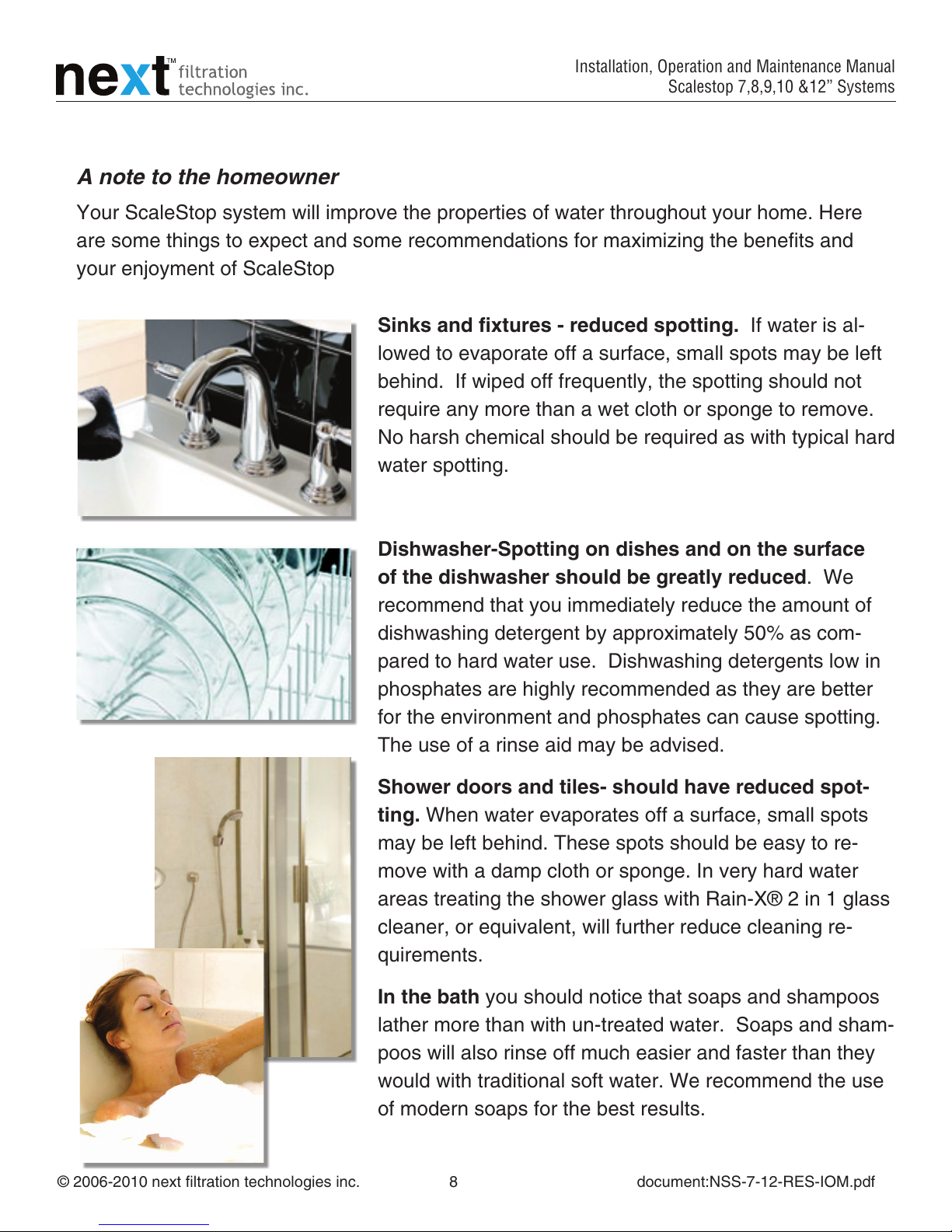

A note to the homeowner
Your ScaleStop system will improve the properties of water throughout your home. Here
are some things to expect and some recommendations for maximizing the benefits and
ZPVSFOKPZNFOUPG4DBMF4UPQ
Sinks and fixtures - reduced spotting. If water is al-
lowed to evaporate off a surface, small spots may be left
behind. If wiped off frequently, the spotting should not
require any more than a wet cloth or sponge to remove.
No harsh chemical should be required as with typical hard
water spotting.
Dishwasher-Spotting on dishes and on the surface
of the dishwasher should be greatly reduced. We
recommend that you immediately reduce the amount of
dishwashing detergent by approximately 50% as com-
pared to hard water use. Dishwashing detergents low in
phosphates are highly recommended as they are better
for the environment and phosphates can cause spotting.
The use of a rinse aid may be advised.
Shower doors and tiles- should have reduced spot-
ting. When water evaporates off a surface, small spots
may be left behind. These spots should be easy to re-
move with a damp cloth or sponge. In very hard water
areas treating the shower glass with Rain-X® 2 in 1 glass
cleaner, or equivalent, will further reduce cleaning re-
quirements.
In the bath you should notice that soaps and shampoos
lather more than with un-treated water. Soaps and sham-
poos will also rinse off much easier and faster than they
would with traditional soft water. We recommend the use
of modern soaps for the best results.

Installation, Operation and Maintenance Manual
Scalestop 7,8,9,10 &12” Systems
© 2006-2010 next filtration technologies inc. 9document:NSS-7-12-RES-IOM.pdf
Things to watch for:
During the first 30-90 days:
t 'BVDFUBFSBUPSTBOEESBJOTNBZQMVHPDDBTJPOBMMZBTPMETDBMFJTSFNPWFEGSPNZPVS
plumbing system and water heater.
t :PVNBZBMTPTFFNJMLZXBUFSXIJMFUIFEFTDBMJOHJTUBLJOHQMBDF5IJTJTTJNQMZBOJO-
crease in the calcium in the water because scaleStop is removing old scale deposits from
your pipes.
Good practices:
If your dishwasher is severely coated with scale at the time of installation, we recommend that
you purchase a product like Jet-Dry Dishwasher cleaner to accelerate the cleaning. After this
initial cleaning ScaleStop should keep it clean.
We also recommend that you drain your water heater tank. This should be done 30 to 60
days after ScaleStop is installed, and again in one year. This is a good practice that can dra-
NBUJDBMMZJODSFBTFUIFMJGFPGZPVSXBUFSIFBUJOHBQQMJBODF*GZPVIBWFBOFMFDUSJDiUBOLUZQFw
water heater, for optimum results and higher efficiency, we recommend you change the heat-
JOHFMFNFOUTUPBiMPXXBUUEFOTJUZwNPEFM1MFBTFJOTVSFUIBUUIFXBUUEFOTJUZJTTQFDJGJFEBU
less than 70 watts per square inch, and is compatible with the brand you own. If you can only
change one heating element, change the lower unit which operates most of the time. One
example is available at Home Depot (SKU # 258184). The ScaleStop will help keep the tank
BOEIFBUJOHFMFNFOUTGSFFPGTDBMFBOEPQFSBUJOHBUQFBLFGGJDJFODZ1MFBTFGPMMPXUIFNBOV-
facturer’s instructions when draining or servicing the tank!

Installation, Operation and Maintenance Manual
Scalestop 7,8,9,10 &12” Systems
© 2006-2010 next filtration technologies inc. 10 document:NSS-7-12-RES-IOM.pdf
LIMITED WARRANTY
Next Filtration Technologies Inc. warrants the ScaleStop system as follows:
t 5IF5BOLJTXBSSBOUFEUPCFGSFFPGEFGFDUTJONBUFSJBMTBOEXPSLNBOTIJQGPSZFBSTGSPNUIF
date of original installation.
t 5IF)FBEJTXBSSBOUFEUPCFGSFFPGEFGFDUTJONBUFSJBMTBOEXPSLNBOTIJQGPSGJWFZFBSTGSPNEBUF
of original installation.
t 5IF4DBMF4UPQNFEJBJTXBSSBOUFEGPSQFSGPSNBODFGPSBQFSJPEPGUXPZFBSTGSPNUIFEBUFPGUIF
original installation.
Conditions
1. The ScaleStop system must be installed and serviced by an authorized Next Filtration Technolo-
gies Inc. dealer, or other entity approved by Next.
2. Any component failure must not result from abuse, fire, freezing or other acts of nature, violence,
or improper installation.
3. Equipment must be installed and operated in compliance with the local plumbing codes, and on an
approved water supply.
 &RVJQNFOUJTMJNJUFEUPVTFBUXBUFSQSFTTVSFTOPUUPFYDFFE14*BOEUFNQFSBUVSFTOPUUP
exceed 110 degrees F.
 8BUFSTVQQMZNVTUOPUFYDFFE11.DIMPSJOF'PSXBUFSTVQQMZFYDFFEJOH11.DIMPSJOF
QSFUSFBUNFOUJTSFRVJSFE1MFBTFDPOUBDUZPVSXBUFSUSFBUNFOUTQFDJBMJTU
6. Information, including model number, serial number, and date of installation, must be provided for
any claims pertaining to equipment in warranty.
 %FGFDUJWFQBSUTBSFTVCKFDUUPJOTQFDUJPOCZFJUIFS/FYU'JMUSBUJPO5FDIOPMPHJFT*ODPSBOZBVUIP-
SJ[FESFQSFTFOUBUJWFCFGPSFGJOBMDPNNJUNFOUPGXBSSBOUZBEKVTUNFOUJTNBEF
8. Next Filtration Technologies Inc. reserves the right to make changes or substitutions in parts or
equipment with material of equal quality or value and of then current production.
Limitations
Our obligation under this warranty with respect to the tank or valve is limited to furnishing a replace-
ment for, or at our option, repairing any part or parts to our satisfaction that prove defective within the
XBSSBOUZQFSJPETUBUFEBCPWF4VDISFQMBDFNFOUQBSUTXJMMCFEFMJWFSFEUPUIFPXOFS'0#OFBSFTU
factory, at no cost, excluding freight and local labor charges, if any.
Our obligation under this warranty with respect to the Scale Stop media will be limited to furnishing a
replacement for the media within two years from date of original installation. Such replacement me-
EJBXJMMCFEFMJWFSFEUPUIFPXOFS'0#OFBSFTUGBDUPSZBUOPDPTUFYDMVEJOHGSFJHIUBOEMPDBMMBCPS
charges, if any. Damage to the media due to chlorine, other oxidizers or fouling or any other opera-
tion outside of the limits shown under Specifications, is not covered by this warranty.
Next Filtration Technologies Inc. shall not be liable for freight, handling or labor charges, or conse-
quential damages.

Installation, Operation and Maintenance Manual
Scalestop 7,8,9,10 &12” Systems
© 2006-2010 next filtration technologies inc. 11 document:NSS-7-12-RES-IOM.pdf
Warranty Registration
We appreciate your purchase of the chemical-free ScaleStop, scale control system. Under proper
conditions you will have years of trouble-free performance from this product.
The laws of the United States do not require consumers to return warranty cards or registration cards
to be covered by an implied warranty, however, you must keep a copy of your receipt.
At Next Filtration we support your rights as a consumer. We hope you will take the time to fill out the
warranty registration below in order to insure that we have documentation showing that you have
purchased the system and that a qualified technician installed it. The information provided will be kept
in strict confidence and will never be available to marketing companies.
1MFBTFEFUBDIUIFTFDUJPOCFMPXGJMMPVUUIFMJNJUFEJOGPSNBUJPOBOETFOEJUBMPOHXJUIBDPQZPG
your receipt to:
Next Filtration Technologies Inc
Warranty Registration
10#PY
*ODMJOF7JMMBHF/7
-----------------------------------------------------------------------------------------------------------------------
Owner’s name:
Address: ______________________________________________________________
Model number: _________________________________________________________
Installation date: ________________________________________________________
Installer or Dealer name: _________________________________________________
Installer or Dealer contact number: _________________________________________

© 2006 next filtration technologies inc. document:NSS-7-12-RES-IOM.pdf
