NextBase NB7-CAR User manual

Instruction Manual
ENGLISH
NORSK
SVENSKA
DANSK
SUOMI

NB7-CAR / NB7T-CAR / NB7D-CAR
NB9-CAR / NB9T-CAR / NB9D-CAR

TABLE OF CONTENTS
1
TABLE OF CONTENTS.......................................................................................................................01
PRECAUTIONS....................................................................................................................................02
CAUTIONS ON USING THIS PRODUCT.........................................................................................03
PACKAGE CONTENTS ......................................................................................................................04
PLAYER PARTS & CONTROLS
CAR7 SERIES DVD PLAYER.......................................................................................................05
CAR7 SERIES MONITOR.............................................................................................................08
CAR9 SERIES DVD PLAYER.......................................................................................................10
CAR9 SERIES MONITOR.............................................................................................................13
EASYFIT CAR MOUNT & INSTALLATION
CAR MOUNT BRACKET ...............................................................................................................15
CAR MOUNT...................................................................................................................................16
SYSTEM CONNECTIONS..................................................................................................................17
CAR ADAPTOR FUSE INFORMATION............................................................................................19
INSERTING ADISC.............................................................................................................................19
AUDIO / VIDEO CONNECTIONS......................................................................................................20
REMOTE CONTROL...........................................................................................................................21
REMOTE CONTROL BATTERYREPLACEMENT..........................................................................24
MEDIA PLAYBACK..............................................................................................................................25
VIDEO COMPRESSION FORMATS.................................................................................................26
WIRELESS HEADPHONES...............................................................................................................27
SYSTEM SETUP
GENERAL........................................................................................................................................28
VIDEO..............................................................................................................................................29
PREFERENCES.............................................................................................................................30
PASSWORD....................................................................................................................................31
PRODUCT SPECIFICATION..............................................................................................................32
SMASHED SCREEN IDENTIFICATION...........................................................................................33
PIXEL STATEMENT......................................................................................................................................33
TROUBLE SHOOTING .......................................................................................................................34
This manual covers the following NEXTBASE models:
1) NB7-CAR: CAR 7" DVD Player
2) NB7T-CAR: CAR 7" DVD Player/Monitor
3) NB7D-CAR: CAR 7" DVD Player/Player
4) NB9-CAR: CAR 9" DVD Player
5) NB9T-CAR: CAR 9" DVD Player/Monitor
6) NB9D-CAR: CAR 9" DVD Player/Player
ENGLISH

2
PRECAUTIONS
Thank you for choosing this NEXTBASE portable DVD player. Please read this manual carefully
before operation and keep it for future reference. It will be helpful should you encounter any
operational problem.
WARNING: Do not expose this product to rain, moisture or water under any circumstances,
doing so may result in the risk of electric shock or fire.
CAUTION:
LASER:
Toreduce the risk of electric shock, do not perform any servicing other than
that contained in the instruction manual unless you are qualified to do so.
Have the unit serviced by a qualified service technician if;
The unit has been exposed to rain or water.
The unit does not seem to operate normally.
The unit exhibits a marked changes in performance.
This product contains a Class 1M Laser. Due to possible eye injury only qualified
service technicians should remove the cover or attempt to service this device.
AUDIO LEVEL: When using earphones listen at a reasonable volume for reasonable lengths
of time.
Do not turn the volume so high that you cannot hear what is around you.
WEEE: Disposal of Waste Electrical and Electronic Equipment and/or Battery by
users in private households in the European Union.
This symbol on the product or on the packaging indicates that this can not be
disposed of as household waste. You must dispose of your waste equipment
and/or battery by handing it over to the applicable take-back scheme for the
recycling of electronic equipment and/or battery. For more information please
contact your local household waste disposal office.
DO NOT ATTEMPT TO SERVICE THE UNIT BY YOURSELF!
LASER RADIATION
DO NOT VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS
CLASS 1M LASER PRODUCT
LASER:
Type Semiconductor laser GaAIAs
Wave Length 650nm / 780nm
Output Power 5mW
Beam Divergence 60 degrees
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ENGLISH

3
CAUTIONS ON USING THIS PRODUCT
1. Please read this instruction manual carefully and follow the instructions for safe
operation of the player andaccessories.
2. Refer all servicing to authorized NEXTBASE repair centres only. Do not attempt to
repair this product yourself due to risk of electric shock, doing so will render the
manufacturers warranty void.
3. Only use the supplied accessories with the DVD player, failure to do so may result
in damage not covered under the manufacturerswarranty.
4. Do not touch the laser pickup lens, doing so may cause damage not covered under
the manufacturers warranty.
5. Do not leave the DVD player in places where the temperature is extremely low
(approx. -10°C or lower) or extremely high temperatures (approx. 60°C or higher).
Doing so may result in damage not covered under the manufacturerswarranty.
6. Do not block the ventilation openings on the rear of DVD player, do not place the
DVD player with the rear housing in contact with a soft material, i.e. carpet.
7. Should you need to clean the DVD player use a soft cloth with a neutral detergent
diluted in 5-6 parts water, wipe off the dirt and then use a dry clean cloth to remove
any residue. Do not use alcohol based products as this may cause damage.
Always disconnect the DVD player from any power supply before cleaning.
8. Disconnect the DVD player from the power supply when not in use.
9. It is forbidden by law to copy, broadcast, broadcast via cable, play in public, or rent
copyrighted material without permission.
10. This product features the copyright protection technology that is protected by U.S.
patents and other intellectual propertyrights.
Use of this copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and limited viewing purposes only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
11. The model number and serial number are located on the back housing of the
DVD player, please record these details below along with the date of purchase.
Model Number:
Serial Number:
Date of Purchase:
SPECIAL NOTE ON USE OF THIS DVD PLAYER WITHIN A VEHICLE
We strongly advise that the driver of the vehicle should not view or operate this product
whilst driving.
Most countries have laws that prohibit the driver from having visibility of the screen while
driving. Please adhere to these laws.
ENGLISH

4
PACKAGE CONTENTS
Please check the contents of your purchased model using the guidebelow.
In the event of an item being missing please contact your local NEXTBASE dealer.
NB7-CAR / NB9-CAR
NB7T-CAR / NB9T-CAR
NB7D-CAR / NB9D-CAR
Note:
The actual products might appear slightly different from pictures shown above.
DVD Player
Easy Fit Car Mount
Car Power Cable
Remote Control
ST EP
S E AR C H MUTE S O U R C E
1 2 3 4
5 6 7 8
9 0 10+
DI SP L A Y S U BT I TL E
AN GLE AUDIO
M E N U
/P B C
TITLE
P
US
H
M ODE
SETUP
VOL- VOL+
R E P E A T SLOW
PRO GRA M ZOOM
Earphones
Instruction Manual
DVD Player
Monitor
Easy Fit Car Mount x 2
Car Power Cable
P
US
H
Remote Control
ST EP
S E AR C H MUTE S O U R C E
Connection Cable
Earphones x 2
Instruction Manual
1 2 3 4
5 6 7 8
9 0 10+
DI SP L A Y S U BT I TL E
AN GLE AUDIO
M E N U
/P B
C
TITLE
M ODE
SETUP
VOL- VOL+
R E P E A T SLOW
PRO GRA M ZOOM
DVD Player x 2
Easy Fit Car Mount x 2
Car Power Cable
Remote Control x 2
S TEP
S E AR C H MUTE S O U R C E
1 2 3 4
5 6 7 8
9 0 10+
DI SP L A Y S U BT I TL E
AN GLE AUDIO
M E N U
/P B C
TITLE
M ODE
P
US
H
SETUP
VOL- VOL+
R E P E A T SLOW
PRO GRA M ZOOM
Connection Cable
Earphones x 2
Instruction Manual
ENGLISH

5

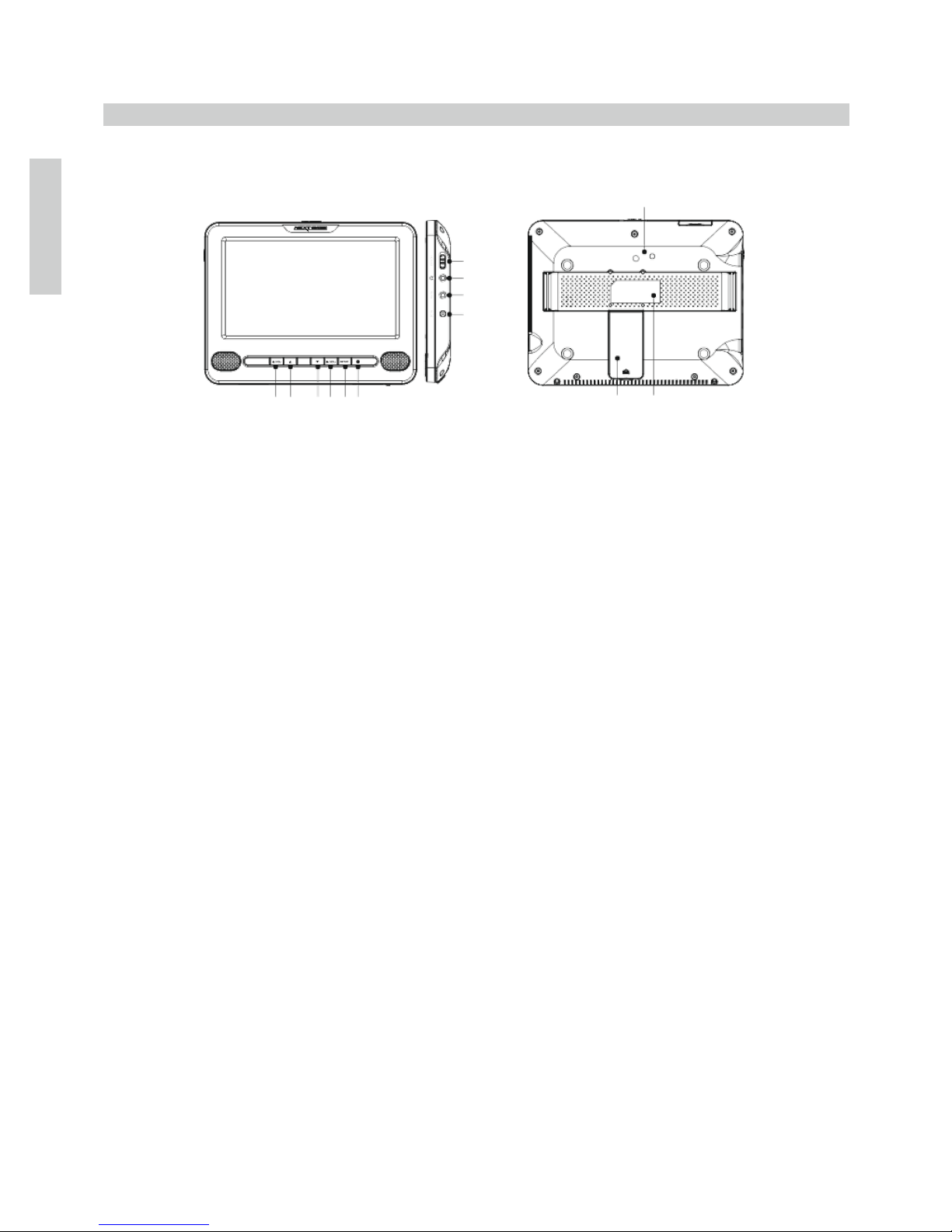

NB7-CAR SERIES DVD PLAYER
NB7-CAR / NB7T-CAR / NB7D-CAR
Player
20
21
1
19
18
17
16
15
14
13
12 1110 9 8 7 6 5 4 3 2
1. Fixing points for easy fit car mountbracket
Fixing points to secure the supplied car mount bracket.
See page 15 for further information.
2. Product Rating label
Product details, model name etc to be foundhere.
3. Player stand
Pull out stand from the bottom to use DVD player outside ofvehicle.
Player stand will not be accessible when the car mount bracket is attached.
4. Receiver for remote control
Point remote control here, be careful when using two players in the same vehicle
to avoid controlling the second DVD player.
5. Power LED indicator
LED will be illuminated (red) when power is supplied to DVDplayer.
6. Stop / Mode
Press to stop playback.
Press and hold for 2-3 seconds to select Mode: DVD / AV IN / MEDIA / SETUP.
Note: SETUP will only give access to the General SetupPage.
7. Down / Next
Press to navigate down within the menus.
Press to move to next chapter ortrack.
8. VOL+
Press to increase volume level.
Applies to DVD player speakers andearphones.
ENGLISH

6

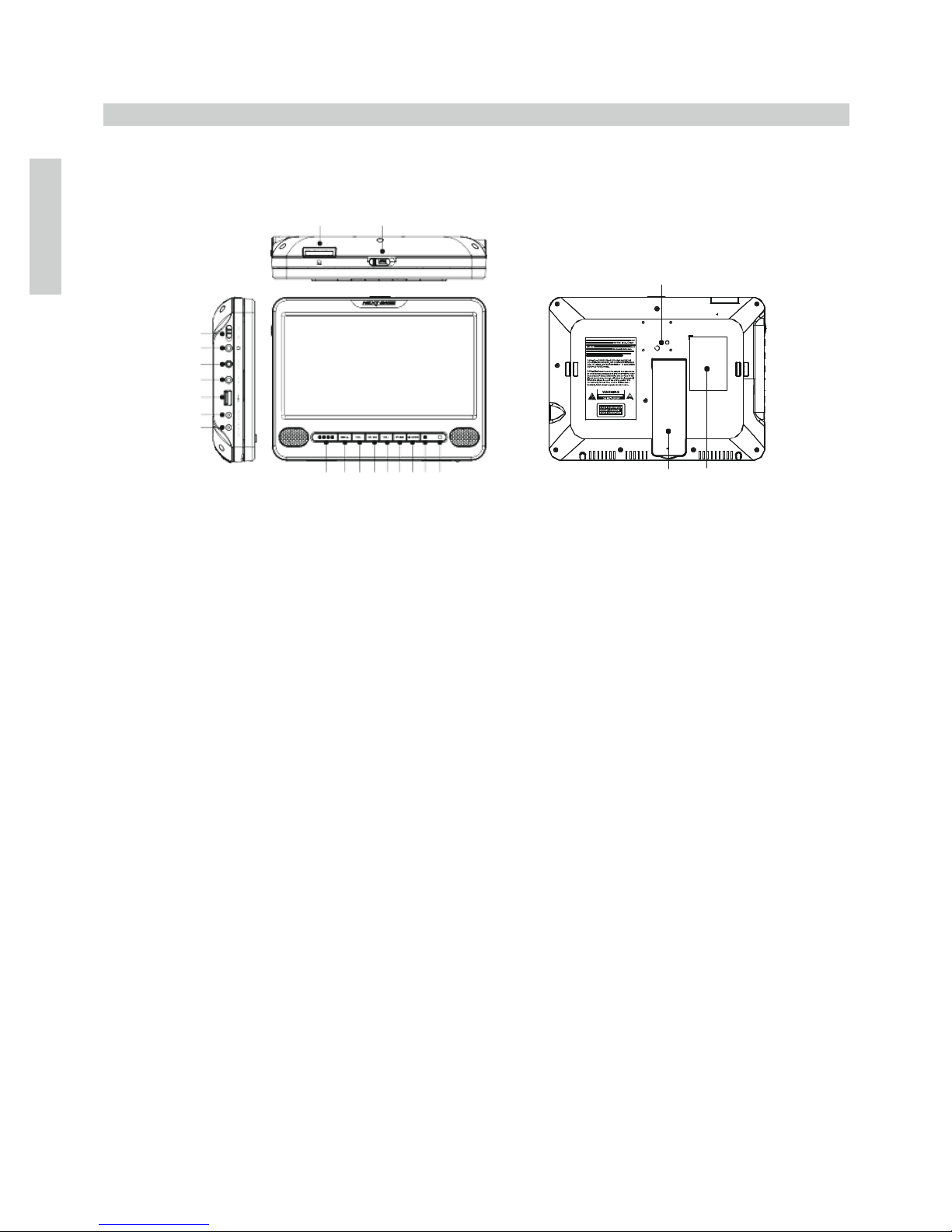

NB7-CAR SERIES DVD PLAYER (CONTD.)
NB7-CAR / NB7T-CAR / NB7D-CAR
Player
20
21
1
19
18
17
16
15
14
13
12 1110 9 8 7 6 5 4 3 2
9. OK / Play & Pause
Press to confirm selection made within the Setup menu or DVD menu
Press to start / pause / resume playback.
10. VOL-
Press to decrease volume level.
Applies to DVD player speakers andearphones.
11. Previous / Up
Press to move to previous chapter ortrack.
Press to navigate up within the menus.
12. IR Headphone LED’s
When illuminated the four red LED’s indicate that the infra-red transmitter for use
with compatible wireless headphones (not supplied) has been turnedon.
See page 27 for further information.
13. DC IN socket
Connect the supplied 12VDC car power cable here, not for use with 24VDC vehicles.
14. DC Out socket
Used with the ‘T’ (player/monitor) and ‘D’ (player/player) models to pass power
between screens using the supplied connection cable.
See page 17 for further information.
15. USB Port
Insert USB memory stick here. For direct connection of USB flash memory sticks
only. NOT for PC connection or for external hard drive / alternative device connection.
See page 25 for further information.
ENGLISH

7
NB7-CAR SERIES DVD PLAYER (CONTD.)
NB7-CAR / NB7T-CAR / NB7D-CAR
Player
20
21
1
19
18
17
16
15
14
13
12 1110 9 8 7 6 5 4 3 2
16. AV In socket
Used to connect the DVD player to a second DVD player using the connection cable
supplied with the ‘D’ (player/player) models.
The DVD player can also be connected to other devices, such as a camcorder and
used as a monitor using an AV cable (notsupplied).
See page 20 for further information.
17. AV Out socket
Used to connect the DVD player to the second DVD player or monitor using the
connection cable supplied with the ‘T’ (player/monitor) and ‘D’ (player/player)
models.
The DVD player can also be connected to other external devices, such as a television
using an AV cable (not supplied).
See pages 17, 18 & 20 for further information.
18. Earphone socket
Connect earphones here, note that connecting earphones will mute the speakers.
19. On / Off switch
Move button up to turn on the DVD player ON and down to turnOFF.
20. Card Reader
Insert SD / MMC memory cards, take care that the memory card is correctly installed
with contacts facing forwards, as per thesymbol.
See page 25 for further information.
21. Open
Slide button to the right to release the catch and gently pull screen forwards, to access
the disc compartment.
Note: Do not pull on the screen excessively or damage will result which is not covered
by the manufacturers warranty.
ENGLISH

8
NB7-CAR SERIES MONITOR
NB7T-CAR
Monitor
1
4
5
6
7
1312 11109 8 3 2
1. Fixing points for easy fit car mountbracket
Fixing points to secure the supplied car mount bracket.
See page 15 for further information.
2. Product Rating label
Product details, model name etc to be foundhere.
3. Monitor stand
Pull out stand from the bottom to use monitor outside of vehicle.
Monitor stand will not be accessible when the car mount bracket is attached.
4. On / Off switch
Move button up to turn ON the monitor and down to turnOFF.
5. Earphone socket
Connect earphones here, note that connecting earphones will mute the speakers.
6. AV In socket
Socket for the audio / video connector of the connection cable supplied with the ‘T’
(player/monitor) models.
See page 17 for further information.
7. DC IN socket
Socket for the power connector of the connection cable supplied with the ‘T’
(player/monitor) models.
See page 17 for further information.
8. Power LED indicator
LED will be illuminated (red) when power is supplied to themonitor.
9. Setup
Press to enter monitor settings menu to adjust:
Brightness / Contrast / Colour / Language / Zoom /Reset.
Use the navigation buttons on the front of the monitor to select & adjust as required,
press SETUP to exit the menu.
ENGLISH

9
NB7-CAR SERIES MONITOR (CONTD.)
NB7T-CAR
Monitor
1
4
5
6
7
1312 11109 8 3 2
10. VOL+ / Right
Press to increase volume level.
Press to navigate right and adjust settings within the monitor displaySETUPmenu.
11. DOWN
Press to navigate down within the monitor display SETUPmenu.
12. UP
Press to navigate up within the monitor display SETUPmenu.
13. VOL- / Left
Press to decrease volume level.
Press to navigate left and adjust settings within the monitor display SETUP menu.
ENGLISH

10
NB9-CAR SERIES DVD PLAYER
NB9-CAR / NB9T-CAR / NB9D-CAR
Player
20
21
1
19
18
17
16
15
14
13
12 1110 9 8 7 6 5 4 3 2
1. Fixing points for easy fit car mountbracket
Fixing points to secure the supplied car mount bracket.
See page 15 for further information.
2. Product Rating label
Product details, model name etc to be foundhere.
3. Player stand
Pull out stand from the bottom to use DVD player outside ofvehicle.
Player stand will not be accessible when the car mount bracket is attached.
4. Receiver for remote control
Point remote control here, be careful when using two players in the same vehicle
to avoid controlling the second DVD player.
5. Power LED indicator
LED will be illuminated (red) when power is supplied to DVDplayer.
6. Stop / Mode
Press to stop playback.
Press and hold for 2-3 seconds to select Mode: DVD / AV IN / MEDIA / SETUP.
Note: SETUP will only give access to the General SetupPage.
7. Down / Next
Press to navigate down within the menus.
Press to move to next chapter ortrack.
8. VOL+
Press to increase volume level.
Applies to DVD player speakers andearphones.
ENGLISH

11
NB9-CAR SERIES DVD PLAYER (CONTD.)
NB9-CAR / NB9T-CAR / NB9D-CAR
Player
20
21
1
19
18
17
16
15
14
13
12 1110 9 8 7 6 5 4 3 2
9. OK / Play & Pause
Press to confirm selection made within the Setup menu or DVD menu
Press to start / pause / resume playback.
10. VOL-
Press to decrease volume level.
Applies to DVD player speakers andearphones.
11. Previous / Up
Press to move to previous chapter ortrack.
Press to navigate up within the menus.
12. IR Headphone LED’s
When illuminated the four red LED’s indicate that the infra-red transmitter for use
with compatible wireless headphones (not supplied) has been turnedon.
See page 27 for further information.
13. DC IN socket
Connect the supplied 12VDC car power cable here, not for use with 24VDC vehicles.
14. DC Out socket
Used with the ‘T’ (player/monitor) and ‘D’ (player/player) models to pass power
between screens using the supplied connection cable.
See page 17 for further information.
15. USB Port
Insert USB memory stick here. For direct connection of USB flash memory sticks
only. NOT for PC connection or for external hard drive / alternative device connection.
See page 25 for further information.
ENGLISH

12
NB9-CAR SERIES DVD PLAYER (CONTD.)
NB9-CAR / NB9T-CAR / NB9D-CAR
Player
20
21
1
19
18
17
16
15
14
13
12 1110 9 8 7 6 5 4 3 2
16. AV In socket
Used to connect the DVD player to a second DVD player using the connection cable
supplied with the ‘D’ (player/player) models.
The DVD player can also be connected to other devices, such as a camcorder and
used as a monitor using an AV cable (notsupplied).
See page 20 for further information.
17. AV Out socket
Used to connect the DVD player to the second DVD player or monitor using the
connection cable supplied with the ‘T’ (player/monitor) and ‘D’ (player/player)
models.
The DVD player can also be connected to other external devices, such as a television
using an AV cable (not supplied).
See pages 17, 18 & 20 for further information.
18. Earphone socket
Connect earphones here, note that connecting earphones will mute the speakers.
19. On / Off switch
Move button up to turn on the DVD player ON and down to turnOFF.
20. Card Reader
Insert SD / MMC memory cards, take care that the memory card is correctly installed
with contacts facing forwards, as per thesymbol.
See page 25 for further information.
21. Open
Slide button to the right to release the catch and gently pull screen forwards, to access
the disc compartment.
Note: Do not pull on the screen excessively or damage will result which is not covered
by the manufacturers warranty.
ENGLISH

13
NB9-CAR SERIES MONITOR
NB9T-CAR
Monitor
1
4
5
6
7
1312 11109 8 3 2
1. Fixing points for easy fit car mountbracket
Fixing points to secure the supplied car mount bracket.
See page 15 for further information.
2. Product Rating label
Product details, model name etc to be foundhere.
3. Monitor stand
Pull out stand from the bottom to use monitor outside of vehicle.
Monitor stand will not be accessible when the car mount player bracket is attached.
4. On / Off switch
Move button up to turn ON the monitor and down to turnOFF.
5. Earphone socket
Connect earphones here, note that connecting earphones will mute the speakers.
6. AV In socket
Socket for the audio / video connector of the connection cable supplied with the ‘T’
(player/monitor) models.
See page 17 for further information.
7. DC IN socket
Socket for the power connector of the connection cable supplied with the ‘T’
(player/monitor) models.
See page 17 for further information.
8. Power LED indicator
LED will be illuminated (red) when power is supplied to themonitor.
9. Setup
Press to enter monitor settings menu toadjust:
Brightness / Contrast / Colour / Language / Zoom /Reset..
Use the navigation buttons on the front of the monitor to select & adjust as required,
press SETUP to exit the menu.
ENGLISH

14
NB9-CAR SERIES DVD MONITOR (CONTD.)
NB9T-CAR
Monitor
1
4
5
6
7
1312 11109 8 3 2
10. VOL+ / Right
Press to increase volume level.
Press to navigate right and adjust settings within the monitor SETUP display menu.
11. DOWN
Press to navigate down within the monitor display SETUPmenu.
12. UP
Press to navigate up within the monitor SETUP displaymenu.
13. VOL- / Left
Press to decrease volume level.
Press to navigate left and adjust settings within the monitor SETUP display menu.
ENGLISH

15
EASY FIT CAR MOUNT &INSTALLATION
2
The supplied mount has been designed to allow the easy installation into your vehicle.
Please follow instructions given below.
Car Mount Bracket 1
6 3
5
4
1. Locating hole for thumbwheel
Thumbwheel will pass through the car mount brackethere.
2. Locating hole for Anti-rotationpin
Anti-rotation pin will pass through the car mount brackethere.
3. Anti-rotation pin
This metal pin will locate through the car mount bracket and into a hole in the rear housing
of the player / monitor to stop possible rotation of the screen when vehicle is moving.
4. Car mount bracket guide
The guide is used to locate the bracket on to the carmount.
5. Locking tab recess
Locating recesses for the car mount locking tabs.
6. M6 Player bracket thumbwheel
Thumbwheel is used to secure the player bracket to the rear housing of the DVD
player / monitor, remember to fit the anti-rotation pin prior to tightening the
thumbwheel, see item 3 above.
M6 brass insert Anti-rotation hole Thumbwheel Anti-rotation pin
ENGLISH

16
EASY FIT CAR MOUNT &INSTALLATION (CONTD.)
Car Mount 7
9
12
7. Seat / Screen adjustment thumbwheel
Loosen thumbwheel to increase / decrease the distance between seat and the screen
as required, remembering to re-tighten the thumbwheel before use.
8. Screen viewing angle adjustment thumbwheel
Loosen this thumbwheel to change the angle of the screen as required, remembering
to re-tighten the thumbwheel before use.
9. Car mount guide
Once attached to the DVD player / monitor the bracket will slide down into this guide.
10. Securing clamp thumbwheels
Remove the two thumbwheels to release the rear securing clamp, place the two clamps
either side of the metal poles (stanchions) that connect the headrest to the car seat.
Re-tighten the two thumbwheels.
Rear securing clamp
Stanchion
Thumbwheel
11. Locking tabs
These locking tabs will lock into the player bracket and a click will be heard when the
DVD player / monitor is correctly attached.
12. Release catch
Push the catch backwards to release the locking tabs, pull DVD player / monitor
upwards to remove from the car mount.
11
10
P U S H
8
ENGLISH

17
SYSTEM CONNECTIONS
NB7-CAR / NB9-CAR (Player onlymodels)
Is recommended that the DVD player is mounted behind the drivers seat, for best cable
routing.
The only connection required is 12VDC (not 24VDC) power using the supplied car adaptor.
With the vehicle running connect the car adaptor to the 12VDC outlet within the vehicle
and making sure the DVD player is turned off connect the car adaptor to the socket
marked ‘DC IN 9-12V’ which is located on the left hand side of the DVD player.
12VDC car adaptor
The DVD player can now be turned on. Please turn the DVD player off before
disconnecting the car adaptor or turning off thevehicle.
NB7T-CAR / NB9T-CAR (Player / Monitor models)
For the player / monitor models there is the standard car adaptor connection as described
above and also the audio / video / power connection between the player and monitor to be
made using the supplied cable.
DVD Player:
Insert the DC connector into the ‘DC OUT’socket located on the left hand side of the DVD
player.
Insert the 3.5mm AV connector into the ‘AV OUT’socket also located on the left hand side
of the DVD player.
Monitor:
Insert the DC connector into the ‘DC IN’ socket located on the right hand side of the
monitor.
Insert the 3.5mm AV connector into the ‘AV IN’ socket also located on the right hand side
of the monitor.
Monitor
AV IN
Connector
DC IN
Connector
AV OUT
Connector
Player A
DC OUT
Connector
12VDC car adaptor
ENGLISH
C OUT
DC IN 9-12V
