NHK R1 Series User manual

OWNER’S MANUAL

INTRODUCTION
ABOUT NHK R1 SERIES
HELMET SPECIFICATION
HELMET PARTS DESCRIPTION
1. AIR VENTS / VENTILATION SYSTEM
2. SUN VISOR
4. PINLOCK ( ANTI FOG LENS ) *
6. NHK HELMET INNER LINING
• CHEEK PADS
*) Please check your production series, some model might be different.
*) If you have any inquiry, please send your email to : [email protected]om
5. RETENTION SYSTEM ( STRAP ) *
• MICROMATIC BUCKLE
• DOUBLE D RING
1
3. VISOR / SHIELD
• CROWN PAD

INTRODUCTION
Thank you for purchase of your new NHK R1 helmet. This helmet has been designed and
created to be modern, high performing product, and also safety. This NHK helmet is made
possible by the helmet design, its ergonomic, comfort and aerodynamic properties as well
as its practical and easy to use controls.
Please read this manual carefully before use and keep it for future reference. This manual
contains valuable information to help you understand all the function of manual contains
valuable information to help you understand all the function of the product and the
instructions how to use your NHK helmet for more safety and comfortable use.
ABOUT NHK R1 SERIES
NHK R1 is one of our stylish street helmet that equipped with dual visor technology. NHK R1
is created with Advanced Thermo Polymer Shell that comes with comfortable inner lining
system for maximum air vent system, cool feeling and safety.
HELMET SPECIFICATION
This NHK R1 is available in 3 different comfort size. This chart is only for reference. Always
try the helmet on and follow this manual's instructions for a proper fit. These are available
size for NHK R1 series :
VISOR /
SHIELD
SUN VISOR
SUN VISOR
SWITCH LEVER
VENTILATION
PINLOCK PIN
OUTER SHELL
2
HEAD
CIRCUMFERENCE
CM
22.44 -22.83
INCH
CM
23.23 - 23.62
INCH
23.62 - 24.02
CM
INCH
EPS
INTERIOR LINER
HELMET STRAP
*

HELMET PARTS DESCRIPTION
1. AIR VENTS / VENTILATION SYSTEM
NHK R1 helmet has been designed with a good circulated air ventilation flow
· Front Vent air intake ( left & right ) distribute fresh air directly to forehead area.
· Top Vent air intake distribute fresh air to the top part of the head
2. SUN VISOR SWITCH / LEVER
NHK R1 equipped with Double Visor Technology to ensure
extra comfort for the biker during daylight to reduce the
sun brightness. This double visor switch design to be
comfort and easy to use. To lower the sun visor you may
slide the lever down. And to raise up the sun visor, you can
slide up the lever.
3. VISOR / SHIELD
WARNING !
If the visor is damaged or deeply scratched causing reduced visibility, this means that the
protective treatment is probably damaged so the visor need to be replaces. The Visor can
be used for the intended helmet model only. Do not paint or apply any stickers on your
visor.
To Open Your Main Visor :
· Open the visor by pressing your thumb
up on the visor lever until it snaps open.
· Lift visor all the way up.
To Close Your Main Visor :
· Close the visor by sliding it down all the
way and pressing the visor lever
until it snaps shut.
SLIDE DOWN
TO LOWER
SLIDE UP
TO RAISE
3

• How To Remove NHK R1 Visor
- Slide up the visor until completely open
- Please make sure the visor and ratchet are in the right position ( Picture 1 )
- Pull down the trigger lever on the ratchet ( Picture 2 )
- Pull out the visor until released from the ratchet ( Picture 3 )
- Do the same step to the other side of visor
- Remove the visor safely from the helmet
• How To Install NHK R1 Visor
- Pull down the trigger lever on the ratchet ( Picture 1 )
- Please make sure visor, bracket and hook are in the right track position ( Picture 1 )
- Press the visor until the hook fully insert under the ratchet track ( Picture 2 )
- Do the same step to the other side of visor
- Try to slide up and down the visor to make sure its installed correctly ( Picture 3 )
4
Picture 1 Picture 2
Picture 3
SLIDE UP
THE VISOR
PULL DOWN
THE TRIGGER
MAKE SURE
THE HOOK
RELEASED
NOW RELEASED
THE VISOR
MAKE SURE
THE HOOK
INSTALLED
PULL DOWN
THE TRIGGER
SLIDE UP
THE VISOR
PULL DOWN
THE TRIGGER
TRY TO
SLIDE UP & DOWN
THE VISOR
Picture 1 Picture 2
Picture 3

6. NHK HELMET INNER LINING
With the comfort inner lining system, we bring you a completely new development in
regards to; noise reduction, ventilation, and fitment. The innovative soft mesh material
forms around the curves of your head, this way the material does not only feels soft on
your skin but also stays firmly placed. To clean you interior padding, use only mild soap
and water to wash you interior of your helmet. Never allow your helmet to come in
contact high chemical liquid. Do not use washing machine and hot water to clean and
wash.
5
• Micromatic Buckle Strap :
To release the helmet, unfasten the press stud
by pulling on the end of the tape and loosen
the tape by sliding it through the rings, using
the red tab.
How To Fasten :
How To Release :
4. PINLOCK ( ANTI FOG LENS ) *
This NHK R1 series equipped with Pinlock Pin on the visor. You can add and install NHK
Pinlock® 70 lens. Pinlock® 70 lens is made from a moisture absorbing plastic. The
Pinlock® lens fits exactly into the dedicated recess in the helmet shield and provides you
with a maximized free feld of view. The silicon seal on the Pinlock® lens creates an
insulating air pocket between the Pinlock® lens and the helmet shield. The pins,
between which the Pinlock® lens is to be fitted, are eccentric, which means that the axis
of the pin is not precisely in the center. This enables you to increase or decrease the
tension on the Pinlock® lens by turning the pins, allowing the silicone seal to have a
perfect fit. Please notice! The Pinlock® lens is less resistant to scratching than the helmet
shield!
Buckle Chinstrap
Strap ladder
(A)
(B)
To fasten the strap, push the long tongue firmly into
the buckle until it locks with a click. Pull chinstrap
tight against your throat and the end of chinstrap
ladder to secure it.
-
To release the chinstrap, lift up the red lever and then
release the lock.
-

No helmet can protect the user from all possible and foreseeable
impacts. However, for adequate protection, this NHK helmet must
fit closely and the retention system must be securely attached.
The helmet shall not easily removed when its fitted and fastened.
Do not apply paint, substances and any other solvent to this helmet.
Helmet can be seriously damaged. To maintain full efficiency of
the helmet, please do not make any modification on helmet parts
and structure. If the helmet has experience a severe impact
the helmet should be replaced.

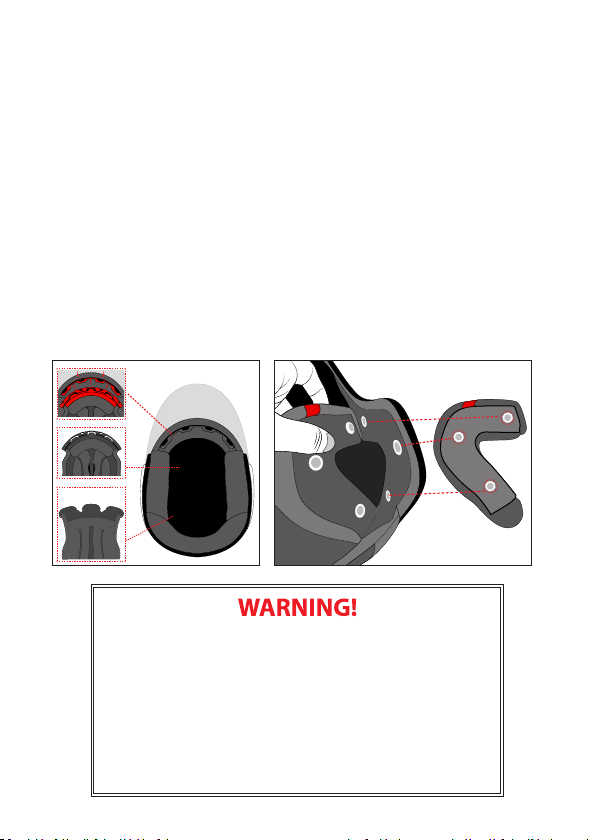

• CHEEK PADS & CROWN PAD
Sometimes some part of helmet inner lining may require removal for washing or
replacement.
How To Remove Cheek Pads :
- Put your fingers behind the cheek pads
- Gently tug the cheek pads away from the helmet interior wall
- There are 3 snaps that require unsnapping. At the same time slide the plastic trim
out the helmet grip
- Do the same on the other side
How To Remove Crown Pad :
- Remove the cheek pads, and chin guard first
- From the back side of the helmet, pull the crown pad away from the shell
- Then pull the crown pad out of the helmet gently
How To Install Cheek Pads and Crown Pad :
- To re-install cheek pads and crown pad please reverse this process.
6
CROWN PAD CHEEK PADS

www.NHKhelmet.com
