TrackDrive
Operating & Safety Instructions
MODEL TD120TN/TD34TN SERIES
Manufactured by:
Niftylift Limited
Fingle Drive
Stonebridge
Milton Keynes
MK13 0ER
England
www.niftylift.com
e-mail: [e-mail]
Tel: [phone]
Fax: [phone]
9E-1B20-0345-0202-1
P12452/002
M50251/03

TrackDrive (TD) Series
Operating & Safety Instructions
English/USA 01/10 1
Table of Contents
1INTRODUCTION AND GENERAL INFORMATION PAGE
1.1 Foreword 2
1.2 Scope 3
1.3 Introducing the Track Drive 120TN (TD) Series 3
1.4 General Specification 4

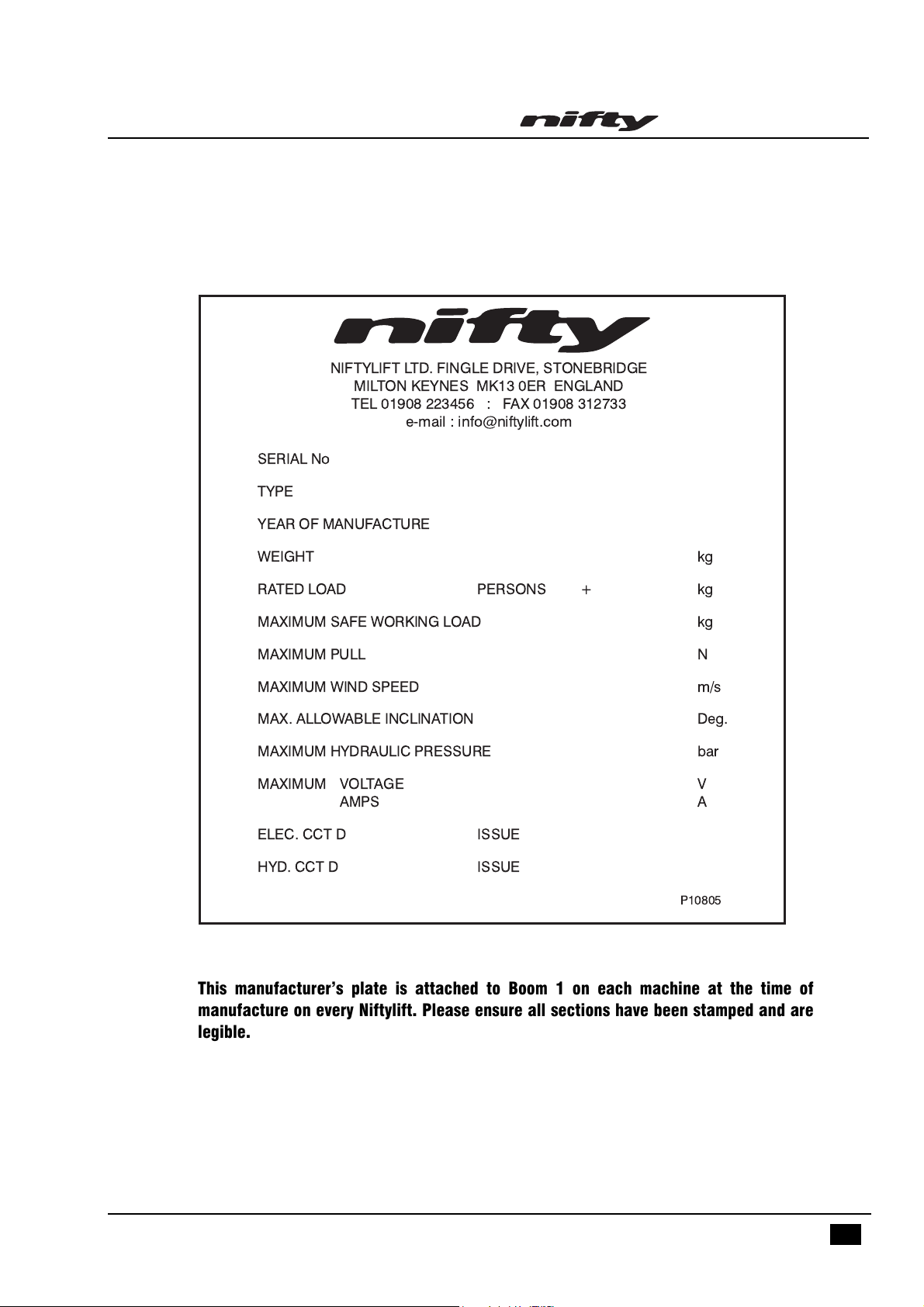

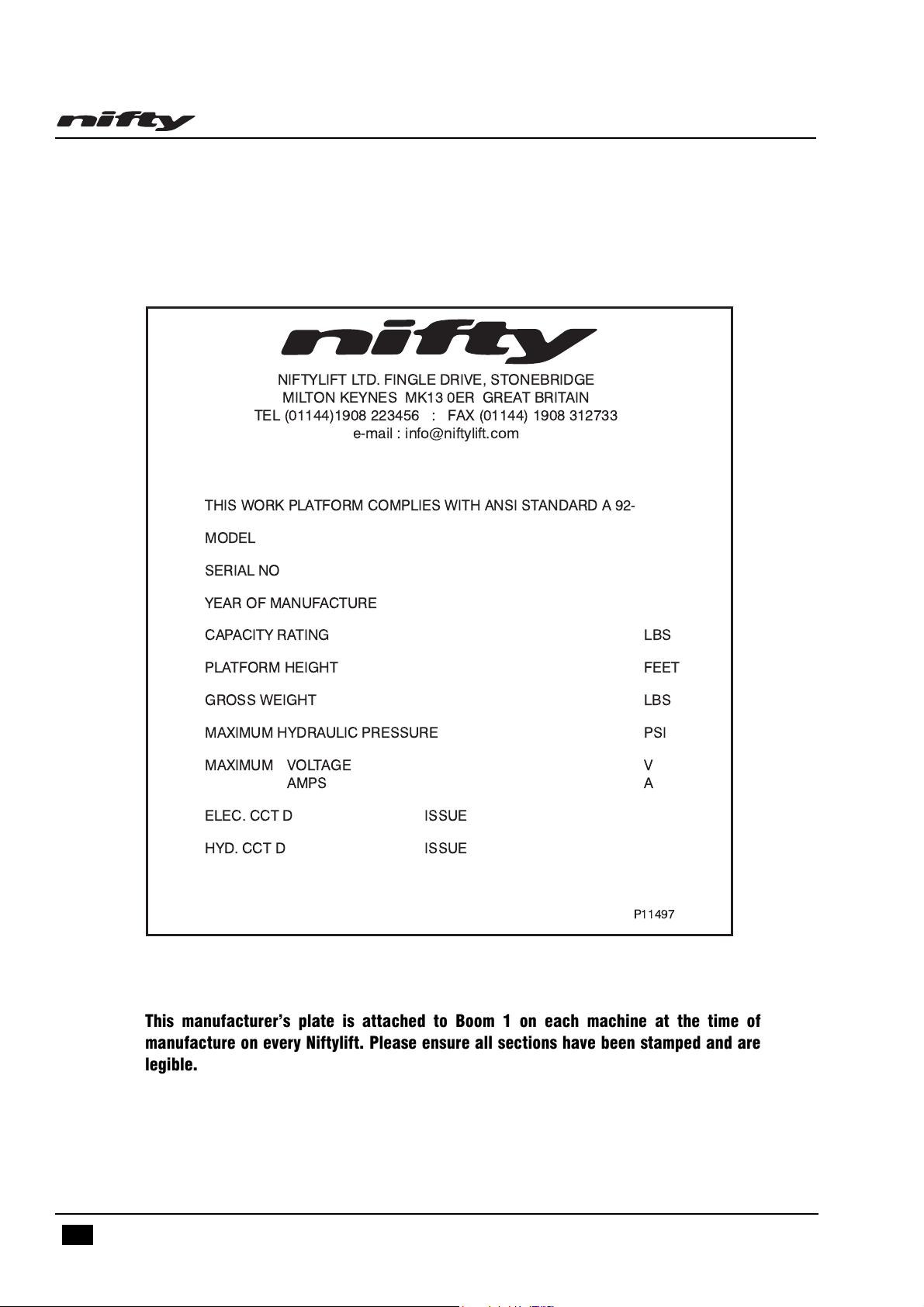

1.5 Identification 5-6
1.6 EC Declaration of Conformity 7
2 SAFETY
2.1 Mandatory Precautions 8-11
2.2 Environmental Limitations 11
2.3 Noise & Vibration 11
2.4 Test Report 12
3 PREPARATION AND INSPECTION
3.1 Unpacking 13
3.2 Preparation for Use 13
3.3 Pre-Operational Safety Check Schedules 14-15

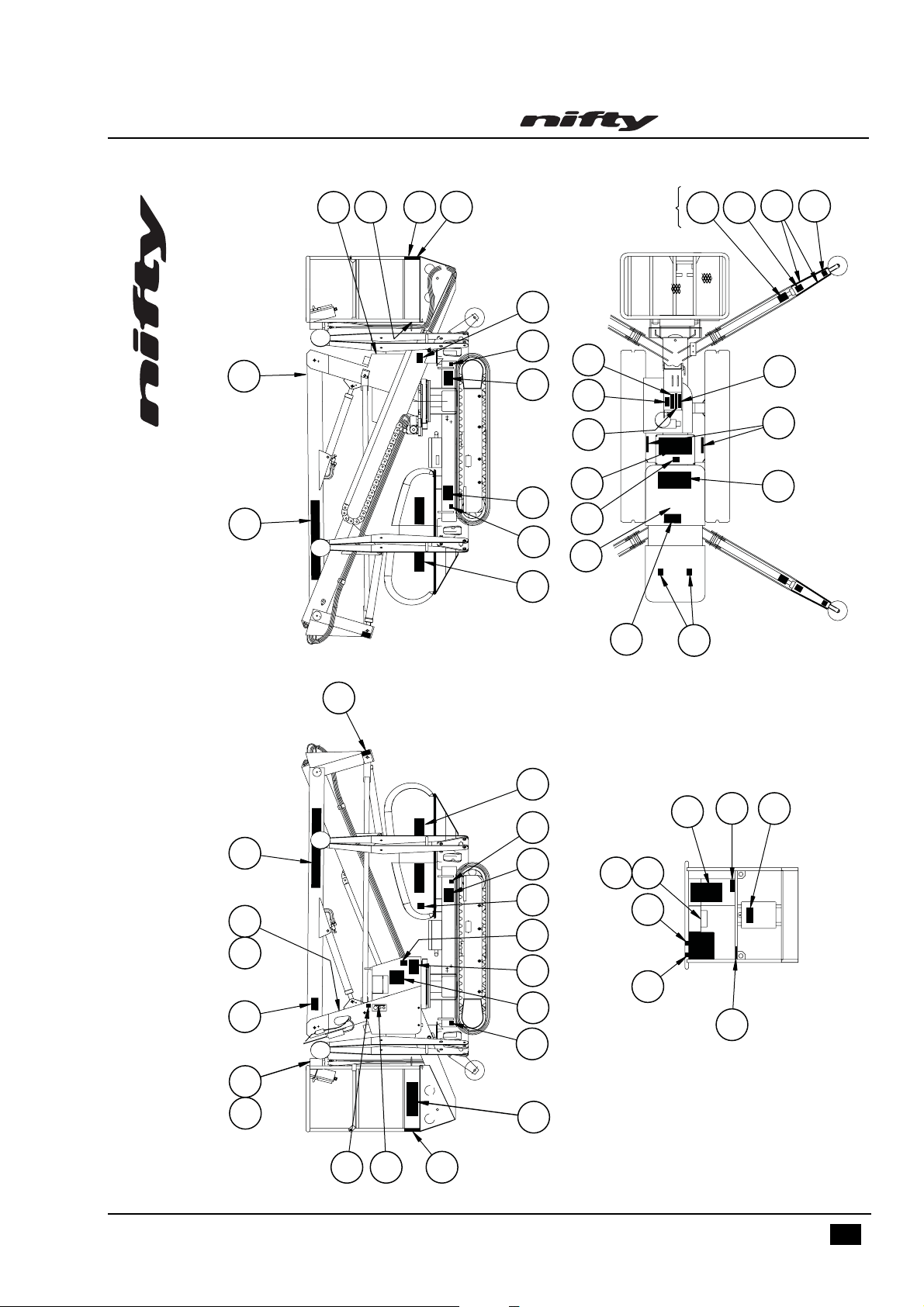

3.4 Placard, Decals and Installation 16-20
3.5 Torque Requirements 21
4 OPERATION
4.1 Overview 22-28
4.2 Setting Up Procedures 29
4.3 Ground Control Operation 30-31
4.4 Platform Control Operation 32-34
4.5 Cage Weigh System 35-37
4.6 Transporting, Craneage, Storage and Setting to Work 38-40
5 EMERGENCY CONTROLS
5.1 General 41
5.2 Emergency Procedures - Incapacitated Operator 41
5.3 Emergency Procedures - Machine Failure 41
5.4 Incident Notification 41
6 RESPONSIBILITIES
6.1 Changes in Ownership 42
6.2 Manual of Responsibilities (USA only) 42
6.3 Inspection/ Service Check List 43-44

TrackDrive (TD) Series
Operating & Safety Instructions
English/USA 01/10
2
1 Introduction and General Information
1.1 FOREWORD
The purpose of these manuals is to provide the customer with appropriate safety operating and
maintenance instructions essential for proper machine operation.
All information in these manuals should be READ and fully UNDERSTOOD before any attempt is made
to operate the machine. THESE MANUALS ARE VERY IMPORTANT TOOLS - Keep them with the
machine at all times.
The manufacturer has no direct control over machine application and use, therefore
conformance with good safety practices is the responsibility of the user and his operating
personnel.
All information in these manuals is based on the use of the machine under proper operating
conditions. Alteration and/or modification of the machine are strictly forbidden.
One of the most important facts to remember is that any equipment is only as safe as those
who operate it.
DANGER, WARNING, CAUTION, IMPORTANT, INSTRUCTIONS AND NOTICE
Any place these topics may appear, either in this manual or on the machine, they are defined as
follows:
DANGER: If not correctly followed there is a high probability of serious injury or death to personnel.
WARNING OR CAUTION:If not correctly followed there is some possibility of serious injury or death to
personnel.
THE 'SAFETY ALERT' SYMBOL IS USED TO CALL ATTENTION TO POTENTIAL
HAZARDS THAT MAY LEAD TO SERIOUS INJURY OR DEATH, IF IGNORED.
IMPORTANT AND INSTRUCTIONS: Denotes procedures essential to safe operation and prevention of
damage to or destruction of the machine.
NOTICE: Indicates general safety rules and/or procedures relating to the machine.
It is the owner's/user's responsibility to know and comply with all applicable rules,
regulations, laws, codes and any other requirements applicable to the safe use of this
equipment.

TrackDrive (TD) Series
Operating & Safety Instructions
English/USA 01/10 3
1.2 SCOPE
These operating instructions contain all the necessary information required to allow the safe operation
of the Niftylift TD120TN ‘Narrow’ (TD34TN), mains electric (AC), diesel (D), petrol/gasoline (P) engine,
or a combination of these.
For further technical information, circuit diagrams and specific instructions for all maintenance which
may need to be carried out by specialist trained personnel, see the associated Workshop and Parts
manual for your model of Niftylift TD120TN (TD34TN).
1.3 INTRODUCING THE TD120TN TRACK DRIVEN (TD) SERIES
Please note at the time of going to press all information, illustrations, details and descriptions contained
herein are valid. Niftylift reserves the right to change, modify or improve its products without any
obligations to install them on previously manufactured machines.
If you require further information after reading this manual, please do not hesitate to contact us.
Niftylift Ltd, Fingle Drive, Stonebridge, Milton Keynes MK13 0ER, Great Britain
Tel: [phone] Fax: [phone]
Niftylift Inc, 32 Concourse Way, Greer, SC 29651 USA
Tel: [phone] Fax: [phone]
Nifty Pty Ltd, 11 Kennington Drive, Tomago, NSW 2322, Australia
Tel: [phone] Fax: [phone]
The Niftylift TD120T (Track Drive) is an extremely versatile articulated boom platform of unique and
simple design. It is capable of placing one man and his tools up to a height of 12.20m (40ft) or an
outreach of 6.10m (20ft 1in).
The booms are mounted via a 406opowered swing mechanism on to a compact base mounted on
rubber tracks. The fourth boom is telescopic, and when combined with the use of the articulating
booms gives an outstanding working envelope. The powered tracks enable the machine to reach areas
previously thought unattainable.
The four outriggers make a simple and swift set up possible. A unique pressure sensitive micro switch
system fitted to each outrigger prevents operation of the machine until all outriggers have been
correctly deployed and also provides a loud audible alarm warning of a possibly hazardous situation.
Standard build is four fully hydraulically operated outrigger legs, with integral load holding valves
mounted on each outrigger cylinder.
A simple, all-hydraulic proportional control system gives smooth, reliable movement of the platform
and maximum reliability in the harshest environments.
Models include the following:
DAC: - DIESEL & AC ELECTRIC PAC: - PETROL & AC ELECTRIC
D: - DIESEL ONLY PG: - PETROL & LPG (PROPANE)
P: - PETROL ONLY
