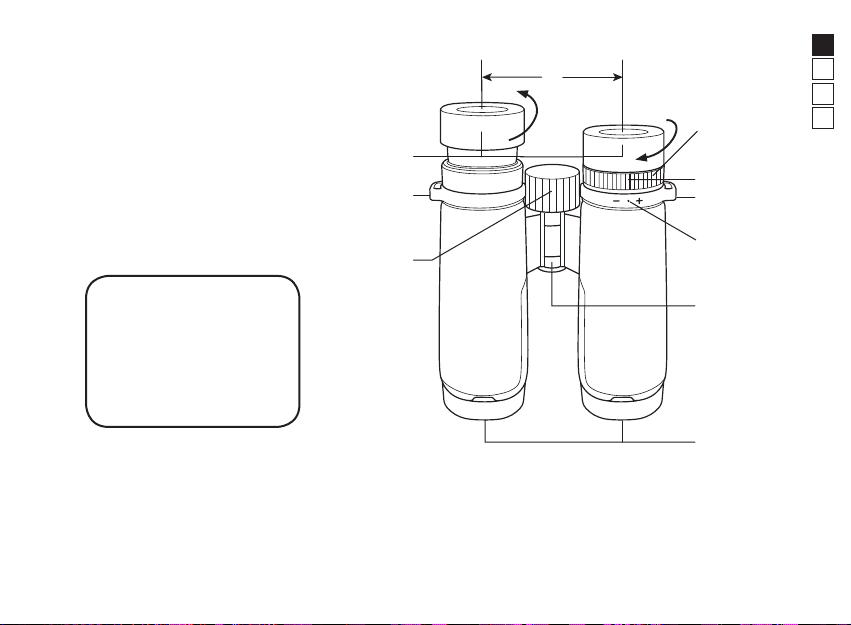

Nomenclature
1Eyecup
2Neck strap eyelet
3Focusing ring
4Objective lens
5Interpupillary distance
6Diopter ring
7Diopter index
80 (zero) diopter position
9Central shaft
ITEMS SUPPLIED
Binoculars ×1
Eyepiece cap ×1
Objective lens cap ×2
Objective rubber ring ×2
Case ×1
Neck strap ×1
1
2
4
5
3
9
7
6
2
8
English

4
En
Es
Fr
Pb
Eyecups
For directions in which to turn the eyecups, please refer to the image on page 3.
• For eyeglass wearers, use fully retracted. To accurately adjust your view, you can also use either of the
two click stops before reaching the fully retracted position.
• For non-eyeglass wearers, use fully extended. To accurately adjust your eye position, you can also use
either of the two click stops before reaching the fully extended position.

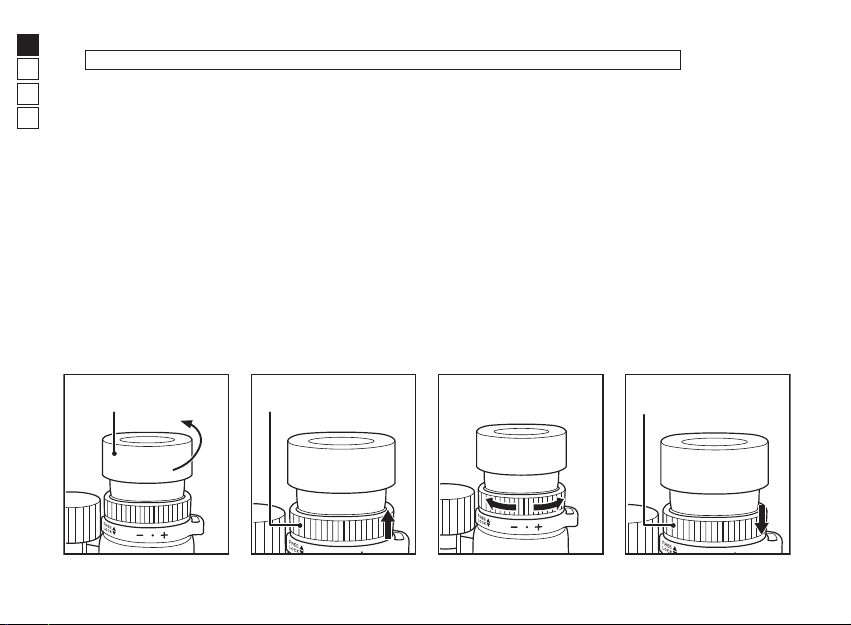

Diopter and diopter lock mechanism
1. When using 8×30/10×30, rotate the eyecup as illustrated in (A) to extend it. When using 8×42/10×42,
proceed to“2.”.
2. Pull up the diopter ring as illustrated in (B) to unlock it. Adjust the diopter by rotating it clockwise or
counterclockwise (C).
3. After adjusting the diopter on the right side, pull down the diopter ring as illustrated in (D) to lock it.
Diopter ringEyecup
A B C D
Diopter ring

5
En
Es
Fr
Pb
Neckstrap and caps during observation

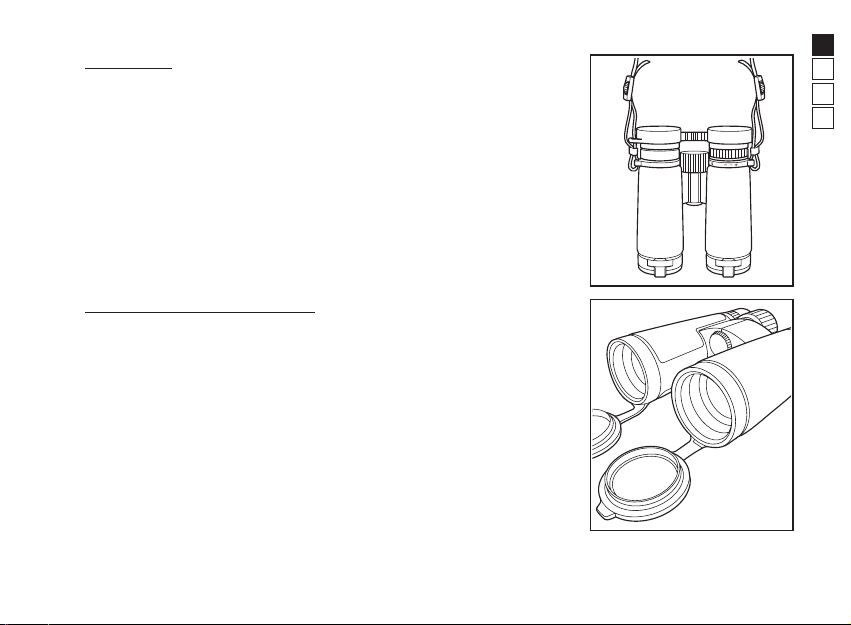

Neck Strap
Attach the neckstrap as illustrated in (E), paying special attention to avoid
twisting the strap.
E

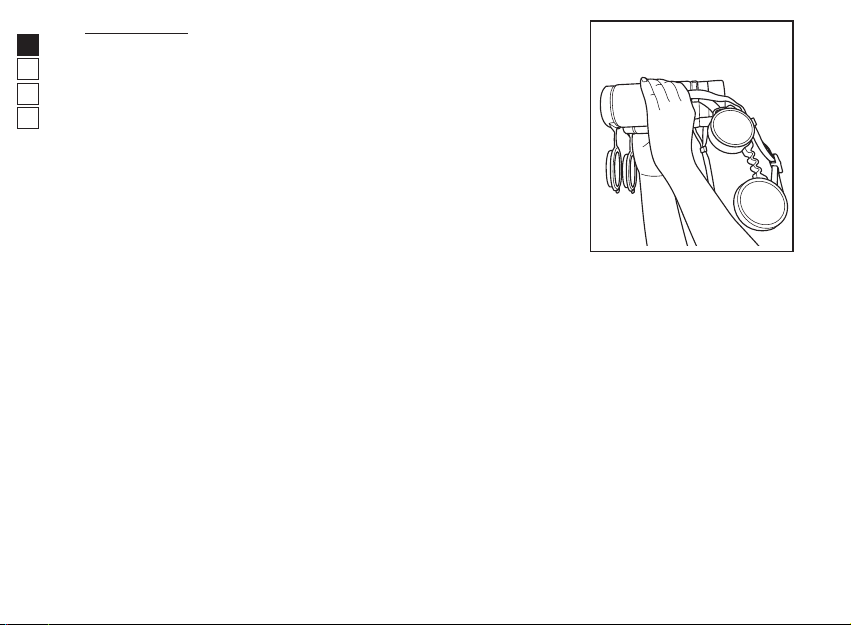

Flipdown objective lens caps
Attach the objective lens caps as illustrated in (F), making sure the cap
part hinges open downward from the binocular tube when folded open.
(correctly attached when supplied).
F

6
En
Es
Fr
Pb
Eyepiece cap
Remove the eyepiece cap from the eyepieces, then allow the cap to hang
from the left neckstrap as illustrated in (G).
G

7
En
Es
Fr
Pb

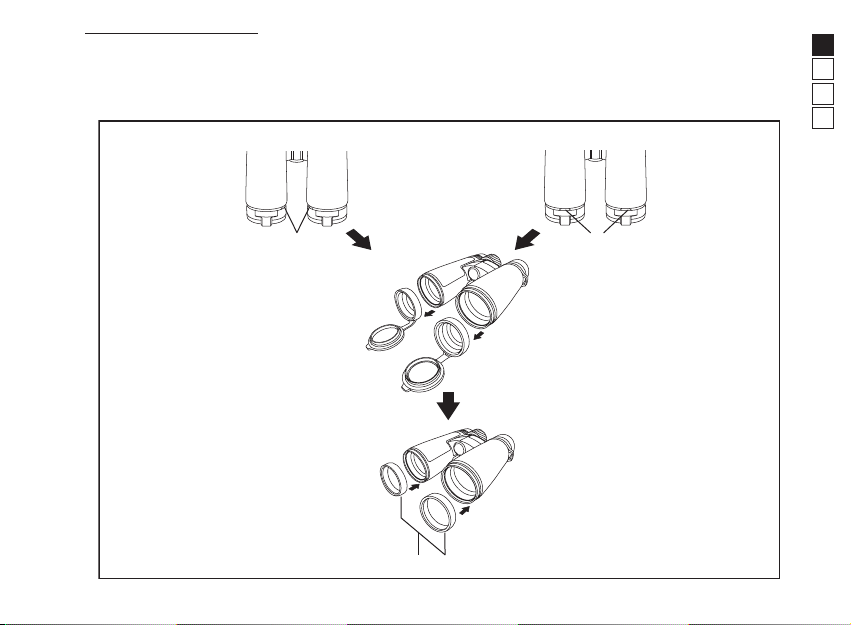

Objective rubber ring
You can insert your fingers into the notches to remove the objective lens caps, and attach the objective
rubber rings as replacement parts (H).
If you store the binoculars in the case with the objective rubber rings attached, dirt or dust may adhere to
the objective lens.
H
Objective rubber ring
NotchesNotches
•8×30/10×30 •8×42/10×42

8
En
Es
Fr
Pb
Specifications
Type: Dach prism central focusing type
Model 8×30 10×30 8×42 10×42
Magnification (×) 8 10 8 10
Effective diameter of objective
lens (mm) 30 30 42 42
Angular field of view (real) (˚)
8.3 6.9 8.3 6.9
Angular field of view (apparent) (˚)* 60.3 62.2 60.3 62.2
Field of view at 1,000m/yd. (m/ft)
145/435 121/362 145/435 121/362
Exit pupil (mm) 3.8 3.0 5.3 4.2
Brightness 14.4 9.0 28.1 17.6
Eye relief (mm) 16.2 15.2 17.8 17.0
Close focusing distance (m/ft) 2/6.6 2/6.6 2/6.6 2/6.6
Length (mm/in.) 119/4.7 119/4.7 145/5.7 145/5.7
Width (mm/in.) 126/5.0 126/5.0 131/5.2 131/5.2
Depth (mm/in.) 47/1.9 47/1.9 56/2.2 56/2.2
Weight (g/oz.) 450/15.9 450/15.9 665/23.5 680/24.0
Interpupillary distance
adjustment (mm/in.)
56-74
2.2-2.9
56-74
2.2-2.9
56-74
2.2-2.9
56-74
2.2-2.9
Structure
Waterproof (up to 5 m (16.4 ft) for 10 minutes) and nitrogen gas filled
* The number calculated by the formula [tan ω' = Γ × tanω ]: Apparent field of view: 2ω', Magnification: Γ ,
Real field of view: 2ω

9
En
Es
Fr
Pb
About waterproof and defogging:
• All models shown are waterproof, and will suffer no damage to the optical system if submerged or
dropped in water to a maximum depth of 5 m (16.4 ft) for up to 10 minutes.
• Can be used in conditions of high humidity, dust and rain without risk of damage.
• Nitrogen-filled design makes them resistant to condensation and mold.
Observe the following when using these products:
• The binoculars cannot be used underwater. Also, do not subject it to strong water pressure such as
from running water.
• Any moisture should be wiped off before adjusting movable parts of these products to prevent
damage and for safety reasons.
To keep your binoculars in excellent condition, regular servicing by authorized dealer is recommended.
• Specifications and design are subject to change without notice.
• No part of the manual may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form, by any means, without Nikon’s prior written permission.
Cleaning lens
When cleaning the binoculars’objective lenses using an aerosol-type dust cleaner, make sure to hold
the can upright at least 30 cm (11.8 in.) from the lens surface while moving the can to avoid focusing
the vaporized liquid gas on one point.
Notice for customers in the State of California
WARNING: This product contains chemicals including Lead which is known to the State of California to cause
cancer and birth defects or other reproductive harm. For more information go to www.
P65Warnings.ca.gov.

Printed in China, 877C_1_1803

Jp
En
Fr
Pt
Es
Se
Nl
Fi
De
Ru
It
Pl
Dk
No
Hu
Cz
Ro
双眼鏡共通使用説明書
Binocular general instructions
Instrucciones generales de los binoculares
Instructions générales des jumelles
Allgemeine Anleitungen für das Fernglas
Istruzioni generali per binocolo
Kikare allmänna instruktioner
Algemene gebruiksaanwijzing voor verrekijkers
Бинокль: общие инструкции
Instruções gerais binóculo
Ogólne instrukcje dotyczące korzystania z lornetki
Kiikarien yleisohjeet
Generelle instruksjoner for kikkert
Generel vejledning for kikkert
Všeobecné pokyny k binokulárním dalekohledům
Instrucţiuni generale pentru binoclu
Távcsövek általános útmutatója

10
En
Jp
Fr
Es
Pt
Ru
Se
Nl
De
It
Dk
Pl
Hu
Cz
Fi
No
Ro
CONTENTS
PRECAUTIONS ................................. 10
SAFETY PRECAUTIONS ................. 11
OPERATION PRECAUTIONS ... 12-13
OPERATION (Adjusting
interpupillary distance and diopter
adjustment) ................................ 14-15
English
PRECAUTIONS
Thank you for purchasing a Nikon
binocular.
Strictly observe the following
guidelines in order to use the
equipment properly and avoid
potentially dangerous accidents
1Before using the product,
thoroughly read the“SAFETY
PRECAUTIONS”and the
instructions accompanying the
product on correct use.
2Keep these instructions within
easy reach for reference.
3Some of the“SAFETY
PRECAUTIONS”, “OPERATION
PRECAUTIONS”and “OPERATION”
described here may not refer to
the product you purchased.
In order to protect you and third
parties from possible injury and/
or property damage or loss, you
are kindly requested to pay close
attention to all instructions, warnings
and cautions regarding the use and
care of this product.
OPERATION
PRECAUTIONS
The items contained in this section
alert you to the fact that any
improper use ignoring the contents
described herein may negatively
affect product performance and
functionality.
WARNING
This indication alerts you to the fact
that any improper use ignoring the
contents described herein can result
in potential death or serious injury.
CAUTION
This indication alerts you to the fact
that any improper use ignoring the
contents described herein can result
in potential injury or may cause only
physical damage.

11
En
Jp
Fr
Es
Pt
Ru
Se
Nl
De
It
Dk
Pl
Hu
Cz
Fi
No
Ro

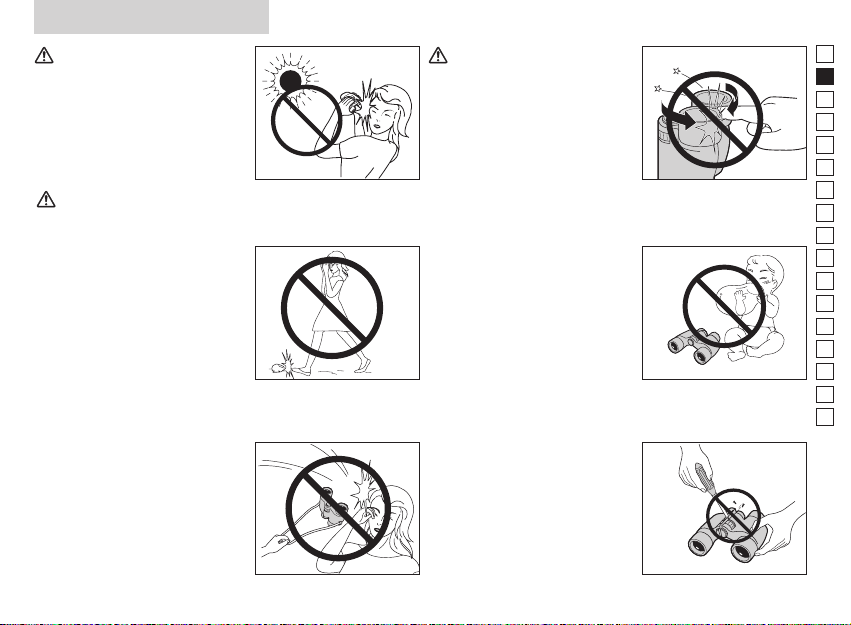

Never look at the sun directly
while using binoculars/
monocular.
Doing so may seriously damage the
eyes. (Fig. 1)
CAUTION!
• Do not leave the binoculars/
monocular in an unstable place.
They may fall and cause injury.
• Do not look through the
binoculars/monocular while
walking. You may walk into
unexpected objects and get hurt.
(Fig. 2)
• Do not swing the binoculars/
monocular by their straps. They
may hit someone and cause injury.
(Fig. 3)
• The soft case, strap, and external
materials utilized on binoculars/
monocular and rubber eyecups
may deteriorate due to aging
and stain clothes. To prevent this,
check their condition before each
use, and consult with a Nikon-
authorized service representative
if such deterioration is found.
WARNING!
SAFETY PRECAUTIONS
• If you use the rubber eyecups for
a long period of time, you may
suffer skin inflammation. If you
develop any symptoms, stop use
and consult a doctor immediately.
• Be careful not to pinch your finger
when adjusting interpupillary
distance or diopter. Be
particularly careful if you let small
children use the binoculars. (Fig.
4)
• Do not leave the polyethylene
bag used for packaging within
small children’s reach. Children
may put it on their mouths and
suffocate. (Fig. 5)
• Be careful that small children do
not inadvertently swallow the
cap or eyecup. If it does happen,
consult a doctor immediately.
• Do not disassemble the
binoculars/monocular. Repair
should be referred to a Nikon-
authorized service representative.
(Fig. 6)
CAUTION!
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6

12
En
Jp
Fr
Es
Pt
Ru
Se
Nl
De
It
Dk
Pl
Hu
Cz
Fi
No
Ro
OPERATION AND CONTROLS

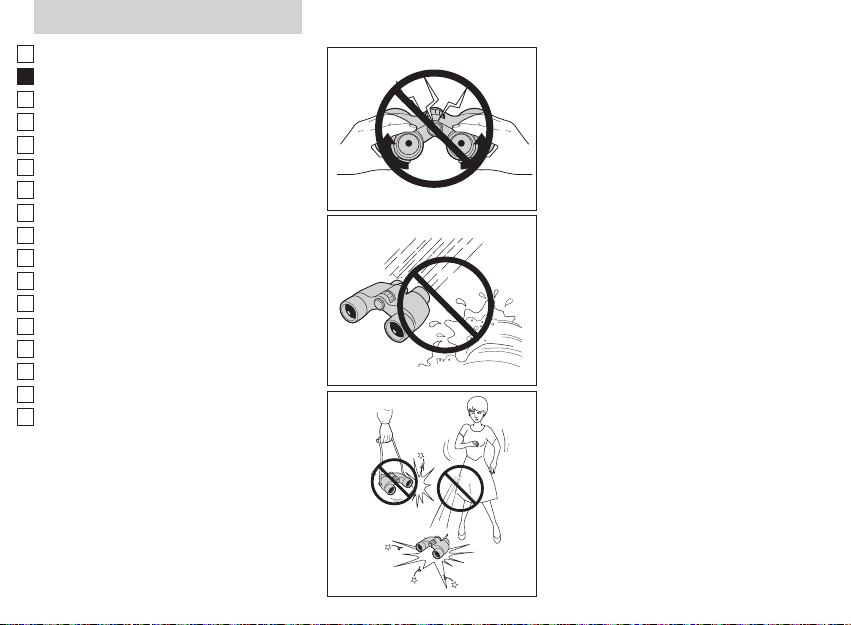

1. Do not open the right and left binocular
tubes beyond their limits. Also be
careful not to rotate the diopter ring,
focusing ring and zoom lever (ring)
beyond their limits. (Fig. 7)
2. Avoid rain, water splashes, sand and
mud. (Fig. 8) With waterproof/water-
resistant binoculars, though some
rain or water splash will do no harm,
wipe the water off as soon as possible.
To confirm if your binoculars are
waterproof/water-resistant or not, check
the instruction manual of the product
you purchased.
3. Always protect binoculars/monocular
from shock. If you cannot obtain
a normal image after dropping or
getting the binoculars/monocular wet,
take them immediately to a Nikon-
authorized service representative (Fig. 9)
4. When exposed to sudden temperature
changes, water condensation may occur
on lens surfaces. In this case, thoroughly
dry the binoculars/ monocular at room
temperature.
Fig. 7
Fig. 9
Fig. 8
STORAGE
5. Water condensation or mold may
occur on lens surfaces because of
high humidity. Therefore, store the
binoculars/monocular in a cool, dry
place. After use on a rainy day or at
night, thoroughly dry them at room
temperature, then store in a cool, dry
place.
6. For long term storage, keep
binoculars/ monocular in a plastic
bag or an airtight container with a
desiccant. If this is not possible, store in
a clean, well-ventilated place, separate
from the case, as they are easily
affected by moisture. (Fig. 10)
7. Do not leave the binoculars/monocular
in a car on a hot or sunny day, or near
heat generating equipment. This may
damage or negatively affect them.
(Fig. 11)
OPERATION PRECAUTIONS

13
En
Jp
Fr
Es
Pt
Ru
Se
Nl
De
It
Dk
Pl
Hu
Cz
Fi
No
Ro
Fig. 10
Fig. 11
MAINTENANCE & STORAGE
8. Remove dust trapped in the focusing
unit, diopter adjustment unit, or other
rotating parts with a soft brush.
(Fig. 12)
9. After having removed dust with a
blower, clean the body surface using
a soft, clean cloth. After use at the
seaside, lightly soak a soft, clean cloth
with water and wipe off salt that may
be on the body surface. Then wipe the
body surface with a dry cloth. Do not
use benzene, thinner, or other organic
solvent. (Fig. 13)
10. When removing dust on the lens
surface, use a soft oil-free brush.
11. When removing stains or smudges like
fingerprints from the lens surfaces,
wipe the lenses very gently with a
soft clean cotton cloth. Use a small
quantity of pure alcohol (ethanol) or
lens cleaner available in stores to wipe
stubborn smudges, from the center
of the lens to the outside in a circular
motion. Do not use anything hard as it
may scratch the lens surface. (Fig. 14)
Fig. 13
Fig. 14
Fig. 12

14
En
Jp
Fr
Es
Pt
Ru
Se
Nl
De
It
Dk
Pl
Hu
Cz
Fi
No
Ro

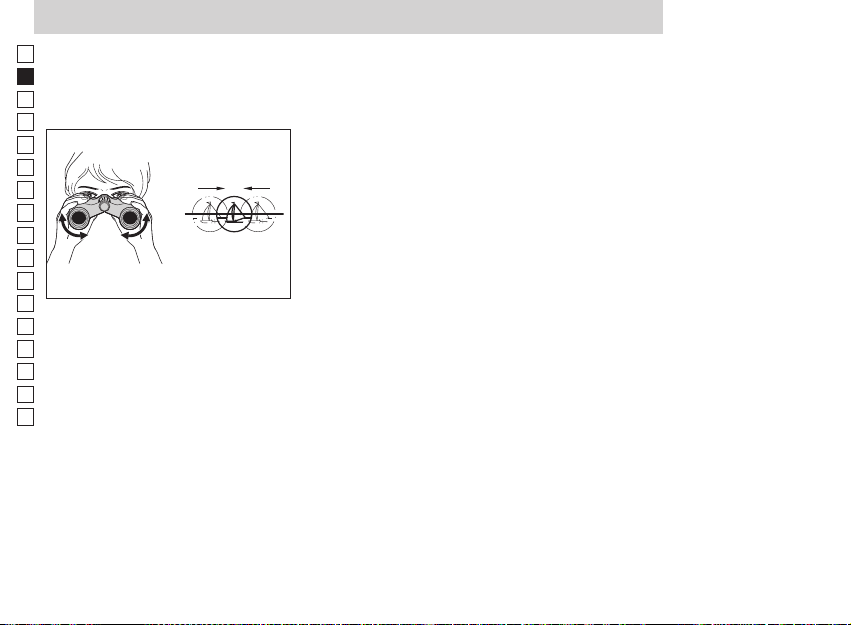

Adjusting interpupillary distance
Match the distance between right and left eyepiece
tubes with your interpupillary distance by moving the
tubes apart or closer together.
Merge the two
circular viewfields
into one.
OPERATION (Adjusting interpupillary distance and diopter adjustment)
Diopter adjustment
(Balancing right and left eyesight)
* With the focus correctly adjusted,
remember the diopter index position
for easier future diopter adjustment.
* For focusing with the diopter
adjustment ring or focusing ring,
rotate counterclockwise to focus on
a nearby subject, or clockwise for a
distant subject.

15
En
Jp
Fr
Es
Pt
Ru
Se
Nl
De
It
Dk
Pl
Hu
Cz
Fi
No
Ro
CF: Central focusing binoculars
Binoculars with the diopter
adjustment ring on the right
eyepiece.
Binoculars with the diopter adjustment
ring on the left eyepiece (some models of
zoom binoculars).
IF: Individual focusing binoculars
For individual focusing binoculars,
diopter adjustment is basically
unnecessary.
Note: For zoom binoculars
When viewing the subject at
a different magnification, first
correctly adjust focusing at a higher
magnification. This minimizes
blurring, which may occur when you
change magnification.
* If you change the magnification from
low to high after adjusting focusing
at low magnification, serious image
blurring may occur.
1 Rotate the focusing ring until you
obtain a sharp image of your subject
in the left eyepiece.
2 Rotate the diopter adjustment ring
of the right eyepiece until you obtain
a sharp image of the same subject in
the right eyepiece.
3 Check focusing on both eyes.
4 When you view a different subject,
adjust the focusing ring until you
obtain a sharp image.
2 Rotate the focusing ring until you obtain a sharp
image of your subject in the right eyepiece.
1 Set the zoom lever at the
maximum magnification position.
3 Rotate the diopter adjustment ring of the left
eyepiece until you obtain a sharp image of the
same subject in the left eyepiece.
4 Check focusing on both eyes.
5 When you view a different subject, adjust the
focusing ring until you obtain a sharp image.
1 Focus right and left eyes separately.
2 When the subject changes, focus with
both eyes separately.

Printed in China (311K)2DE/1203
住所：〒 142-0043 東京都品川区二葉 1 丁目 3 番 25 号
NIKON VISION CO., LTD.
3-25, Futaba 1-chome, Shinagawa-ku, Tokyo 142-0043, Japan

Nikon Nikon Sport Optics
A
Product Serial # Pr o du ct De scription
MUNARCH HG 10X3 0
THIS IS YOUR NIKON INC. (Nikon) (VALID IN THE CONTINENTAL UNITED STATES, HAWAII, CENTRAL AND SOUTH
AMERICA, AND THE CARIBBEAN) LIMITED WARRANTY FOR NEW NIKON BINOCULARS, RANGEFINDING BINOCULARS
AND FIELDSCOPES. YOU MUST PRESENT THIS FORM TOGETHER WITH YOUR PURCHASE RECEIPT THAT DISPLAYS THE
PURCHASE DATE TO OBTAIN WARRANTY SERVICE.
NIKON BINOCULAR, RANGEFINDING BINOCULAR AND FIELDSCOPE LIFETIME LIMITED
WARRANTY
~ TIME
~ •~,:;~NTY
• Nikon's Lifetime Limited Warranty applies to the optical system components of this Nikon Binocular,
Rangefinding Binocular or Fieldscope, which optical system components are warranted by Nikon to be f ree
from defects in material and workmanship for the lifetime of the product from the date of purchase by the
original consumer purchaser from a Nikon authorized dealer.
• Nikon's Seven Year Limited Warranty applies to the non-op t ical system components of this Nikon Binocular, Rangefin d in g Binocul ar or
Fieldscope , which non-optical system components are warranted by Nikon to be free from defects in material and workmanship for seven
years from the date of purchase by the original consumer purchaser from a Nikon authorized dealer .
• Nikon's One Year Limited Warranty applies to the electronic components, if any , of this Nikon Binocular, Rangefinding Binocular or
Fieldscope, which electronic components, if any , are warranted by Nikon to be free from defects in material and workmanship for one
year from the date of purchase by the original consumer purchaser from a Nikon authorized dealer.
During the Lifetime of the Product, Seven Year or One Year time period stated above that applies, if a component of this Binocula r,
Rangefinding Binocular or Fieldscope is found to be defective in material or workmanship, Nikon will at its option, either repair or replace
this Binocular, Rangefinding Binocular or Fieldscope, with a product of comparable specifications and value, without charge, or refund the
purchase price shown on your purchase receipt, subject to the following conditions , limitations and exclusions :
1. This warranty extends to the original consumer purchaser only and is not assignable or transferable.
2. This warranty shall not apply to any product which has been subJected to misuse , abuse , abnormal use, negligence , alteration, accident,
power surge if the product contains electronic components , or has had its serial number altered or removed.
3. This warranty does not apply to any defects or damage directly or indirectly caused by or resulting from the use of unauthorized
replacement parts and/or service performed by unauthorized personnel.
4. This warranty does not apply to any batteries.

THIS WARRANTY IS MADE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT
NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR
NONINFRINGEMENT , AND ALL OTHER OBLIGATIONS ON THE PART OF NIKON PROVIDED , HOWEVER, THAT IF THE
DISCLAIMER OF IMPLIED WARRANTIES IS INEFFECTIVE UNDER APPLICABLE LAW , THE DURATION OF ANY IMPLIED
WARRANTIES ARISING BY OPERATION OF LAW SHALL BE LIMITED TO THE LIFETIME OF THE PRODUCT, SEVEN YEAR OR
ONE YEAR TIME PERIOD STATED ABOVE THAT APPLIES FROM THE DATE OF PURCHASE OR SUCH LONGER PERIOD AS
MAY BE REQUIRED BY APPLICABLE LAW .
NIKON HEREBY DISCLAIMS ANY AND ALL LIABILITY FOR CONSEQUENTIAL, INCIDENTAL , SPECIAL , INDIRECT,
EXEMPLARY OR PUNITIVE DAMAGES ARISING OUT OF OR IN CONNECTION WITH ANY BREACH OF THIS WARRANTY OR
ANY OTHER CLAIM WITH RESPECT TO THIS BINOCULAR, RANGEFINDING BINOCULAR OR FIELDSCOPE, INCLUDING BUT
NOT LIMITED TO , CLAIMS OF NEGLIGENCE, STRICT LIABILITY IN TORT OR BREACH OF CONTRACT.
SOME STATES DO NOT ALLOW (A ) LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR (8) THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES , SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY HAVE OTHER RIGHTS WHICH
VARY FROM ST ATE TO STATE.
To obtain performance of the warranty obligations, the original consumer purchaser must return this Nikon product
together with this warranty form and the purchase receipt displaying the purchase date to the appropriate Nikon service
facility. The current address of Ni kon 's service facility within the United States can be obtained by visiting
www . nikonusa . com / service or by calling 1-800-645-6687 .
In returning this Nikon product for repair or replacement or refund under this warranty, the original consumer purchaser
must prepay all postage , shipping transportation, insurance and delivery costs , and the Nikon product must be delivered
in either its original carton or a similar package affording an equal degree of protection. Nikon will not be responsible for
any loss or damage incurred in connection with the return of this Nikon product.
THIS WARRANTY FORM MAY NOT BE REPRODUCED OR COPIED AND WILL BE VALID ONLY WITH AUTHENTIC
BINOCULARS , RANGEFINDING BINOCULARS OR FIELDSCOPES SOLD BY NIKON AND PURCHASED FROM A NIKON
AUTHORIZED DEALER.
WU7Y-BF (1909V1)
