iPIX® Photography with Nikon Digital Cameras i
TABLE OF CONTENTS
1 • Welcome to iPIX® Imaging . . . . . . . . . . . . . . . . . . . . 1
Supported Camera Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
The iPIX Picture-taking Process . . . . . . . . . . . . . . . . . . . . . . . . 2
Minimum Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 • Installing Your Software . . . . . . . . . . . . . . . . . . . . . . 5
Step 1: Install iPIX Software . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Step 2: Install Adobe Acrobat Reader . . . . . . . . . . . . . . . . . . . . 7
3 • Preparing for Photography . . . . . . . . . . . . . . . . . . . . 9
Photography Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Assembling Your iPIX Camera Equipment. . . . . . . . . . . . . . . . 12
4 • Setting up Your Camera . . . . . . . . . . . . . . . . . . . . . 15
Nikon Coolpix 700. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Nikon Coolpix 800. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Nikon Coolpix 900. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Nikon Coolpix 950. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5 • Taking Your Pictures . . . . . . . . . . . . . . . . . . . . . . . . 23
Photography Tips for iPIX Images . . . . . . . . . . . . . . . . . . . . . . 24
Step 1: Set the Auto Exposure Lock. . . . . . . . . . . . . . . . . . . . . 26
Step 2: Set the White Balance . . . . . . . . . . . . . . . . . . . . . . . . . 28

iPIX® Photography with Nikon Digital Cameras
ii
Step 3: Take the First Picture. . . . . . . . . . . . . . . . . . . . . . . . . . 30
Step 4: Take the Second Picture . . . . . . . . . . . . . . . . . . . . . . . 31
Step 5: Finish Your Photo Session. . . . . . . . . . . . . . . . . . . . . . 31
6 • Downloading Images . . . . . . . . . . . . . . . . . . . . . . . . 33
Option 1: Serial or USB Cables . . . . . . . . . . . . . . . . . . . . . . . . 34
Option 2: PCMCIA Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Option 3: USB Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Option 4: Parallel Port Card Reader . . . . . . . . . . . . . . . . . . . . . 38

iPIX® Photography with Nikon Digital Cameras 1
. . . .
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Welcome to iPIX®Imaging
Thank you for your purchase of an iPIX® Camera Kit featuring the Nikon
Coolpix digital camera. With your kit, you can shoot and build immersive
iPIX images in a matter of minutes. iPIX images enable you to “step
inside” an environment—exploring up, down, and all around. It is a solu-
tion that has proven valuable for many markets, including real estate,
travel, publishing, education, training, and journalism.
This book describes the steps to set up your equipment, establish settings
on your camera to optimize it for iPIX photography, and download your
images to your computer.
Two of the most important camera kit components are the fisheye lens and
rotator. The fisheye lens attaches to your camera and broadens the field of
view (FOV) of your camera’s fixed lens. The rotator lets you turn your
camera exactly 180°—capturing one 180°picture, or “hemisphere.” Two
hemispheres are used to create an iPIX image.

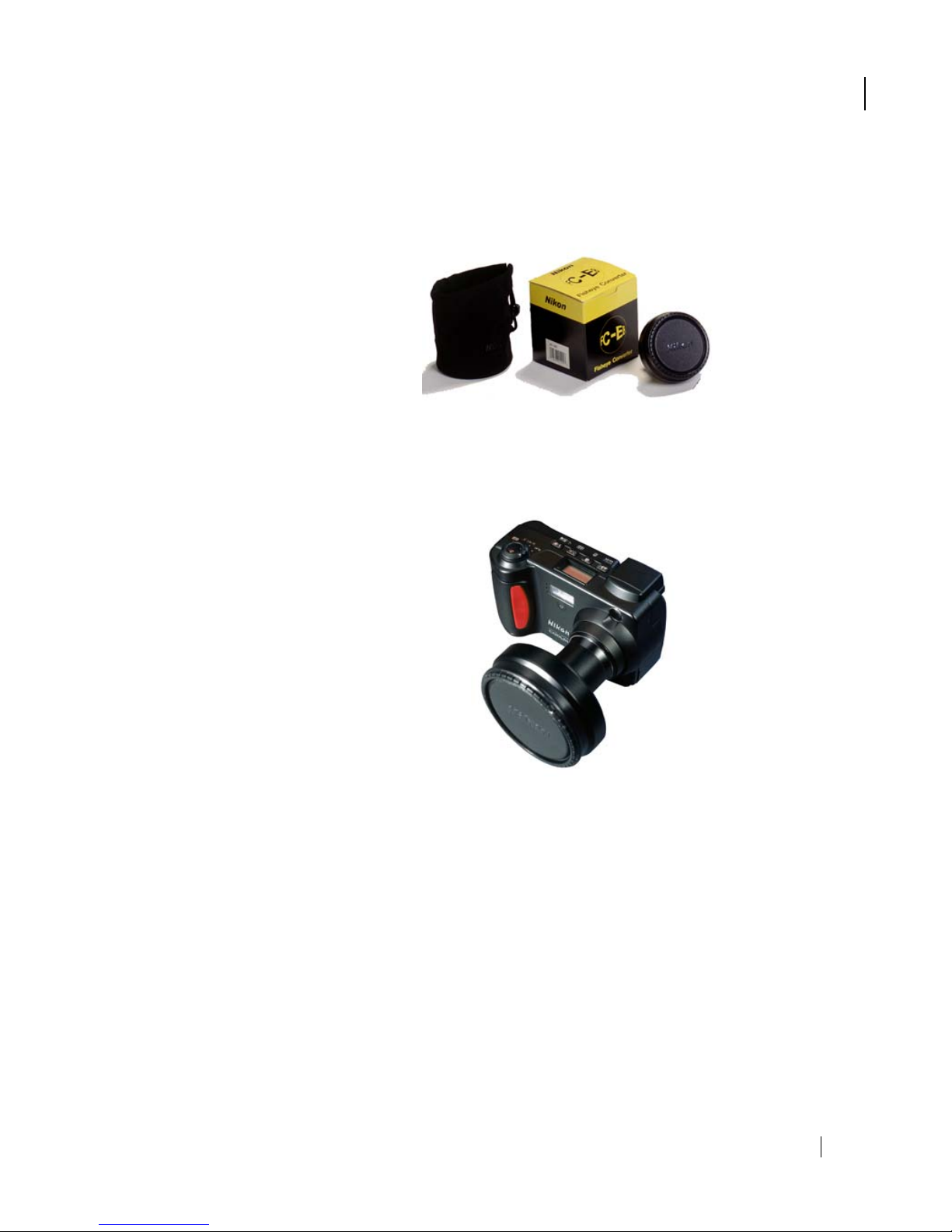

The Fisheye Lens
attaches to the
camera’s fixed lens.

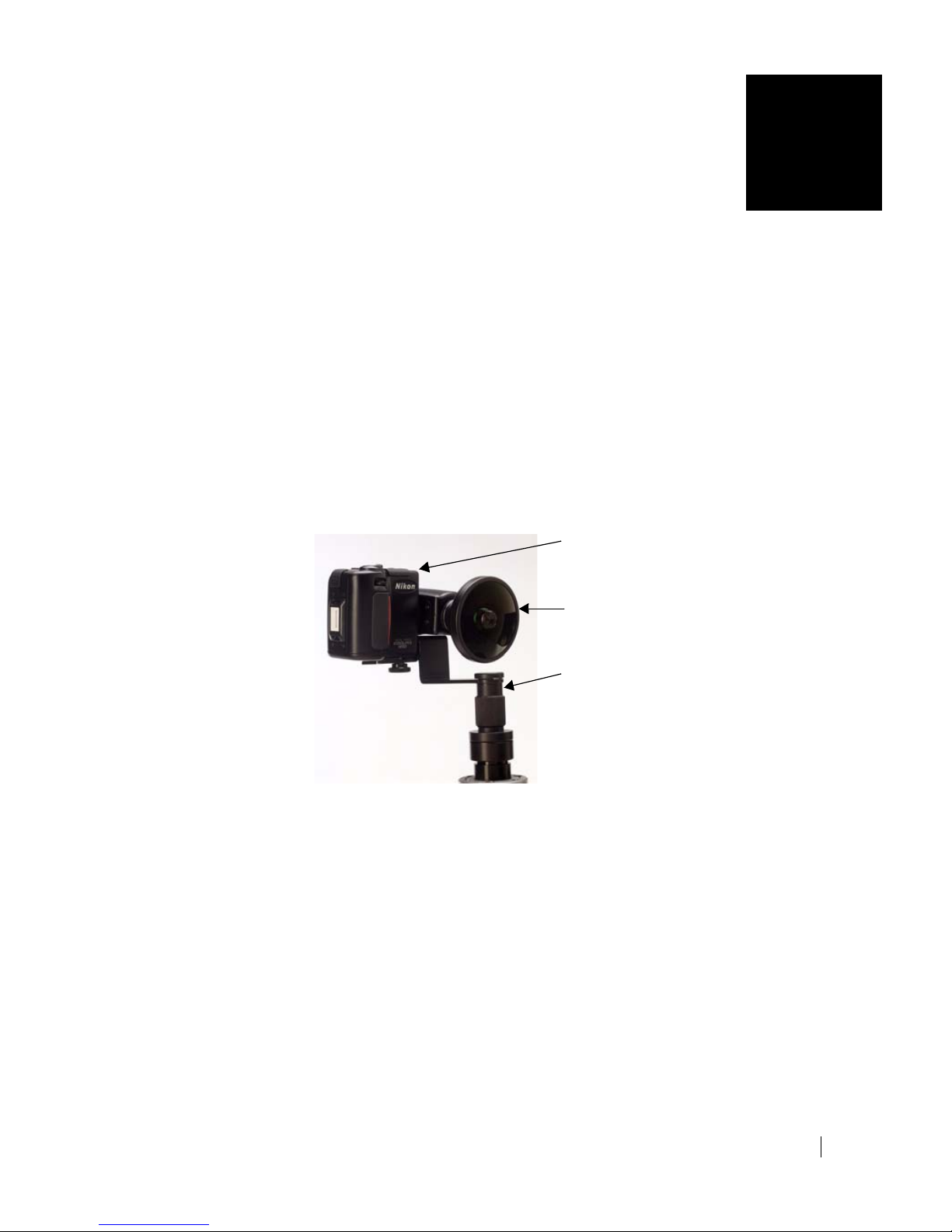

The fisheye lens and rotator attach to the camera. The rotators are customized for each
camera model.
The Rotator attaches
to the camera base
and the tripod.
1

iPIX® Photography with Nikon Digital Cameras
2
1 - WELCOME TO IPIX® IMAGING
Supported Camera Models
Supported Camera Models
iPIX photography supports eight Nikon Coolpix digital camera models,
including the 700, 800, 880, 885, 900, 950, 990, and 995. This photogra-
phy guide covers the Coolpix 700, 800, 900, and 950 models. Contact
Internet Pictures on the World Wide Web at http://www.ipix.com for
guides for camera models not listed here.
The iPIX Picture-taking Process
This iPIX Photography guide explains how to set up your camera and take

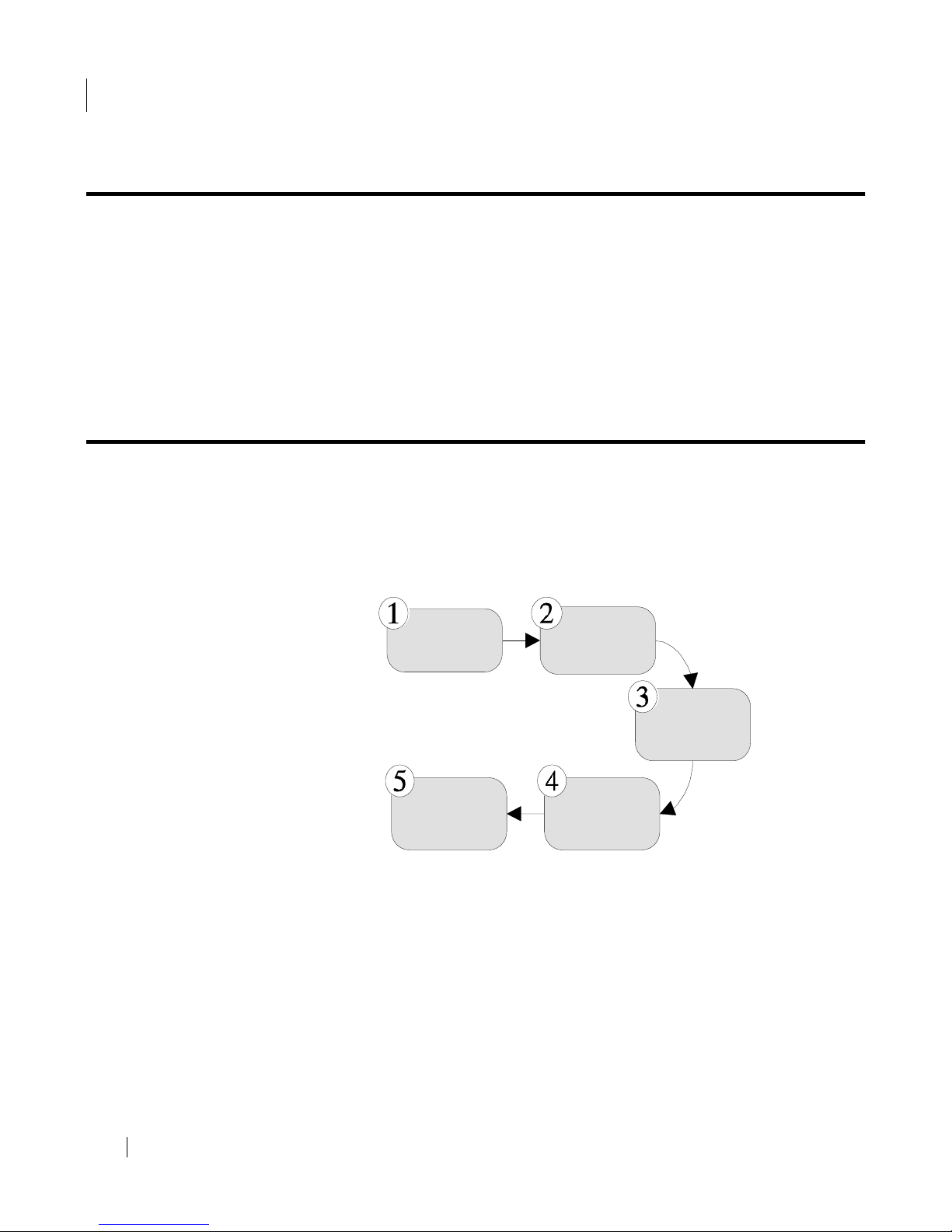

pictures for iPIX image creation. The picture taking process is illustrated
below.
1. Select a location and place the camera close to an area of interest.
2. Take the first picture using the settings outlined in this Guide.
3. Rotate the camera 180°.
4. Take the second picture.
5. Download the images to your computer.
Select a location Take the
firstpicture
Rotate the
cam era
Take the
second picture
Download
images

1 - WELCOME TO IPIX® IMAGING
Minimum Requirements
iPIX® Photography with Nikon Digital Cameras 3
Minimum Requirements
The minimum system requirements will depend upon the software you
purchased. Your iPIX software manual contains complete details.
Personal Computer Requirements
To use this kit and all included software
with your personal computer, you will need:
• One free serial port, USB port, or a
PCMCIA Type II card slot.
• Microsoft Windows 95, 98, 2000, ME,
XP, or Windows NT 4.0 or later.
• Quad-speed or faster CD-ROM drive.
• Pentium 133 MHZ or faster processor (166 MHz or faster recom-
mended).
• 32 MB RAM (64 MB recommended).
• 75 MB or more free hard disk space.
• Video display capable of 800 x 600 pixels or higher with 256 colors
(65,535 colors or higher recommended).

iPIX® Photography with Nikon Digital Cameras
4
1 - WELCOME TO IPIX® IMAGING
Technical Support
Macintosh Computer Requirements
To use this kit and all included software with
your Macintosh computer, you will need:
• One free serial port on your computer,
USB port, or a PCMCIA Type II card slot
To use the USB connectivity option, System 8.6
or later must be installed on your computer.
• System 8.1 with Appearance Manager
installed, System 8.6 or later recom-
mended.
• QuickTime 4.0 or later installed.
• Quad-speed or faster CD-ROM drive.
• PowerPC 603e 180 Mhz or faster processor.
• 64 MB of physical RAM.
• 60 MB of free hard disk space.
• Video display capable of 640 x 480 pixels or higher with 256 colors
(thousands of colors or better recommended).
Technical Support
Technical support is available for assistance with any iPIX product by vis-
iting Internet Pictures Corporation’s Web site located at
http://www.ipix.com/support/support.shtml or by calling toll-free (888)
425-0048.

iPIX® Photography with Nikon Digital Cameras 5
. . . .
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing Your Software
Your iPIX® Camera Kit includes three or more CD-ROMs: iPIX Software,
Nikon Coolpix Reference Manuals, and Nikon View software, depending
upon your camera model.
•iPIX Software. Your iPIX software creates interactive, spherical
images by aligning and seaming, two opposing hemispheres taken
with a fisheye lens-equipped digital camera.
•iPIX Viewer Software. The iPIX CD includes the iPIX Viewer, a
standalone application for viewing iPIX images. The Viewer software
also comes with Internet browser plug-ins for Netscape Navigator/
Communicator, and Microsoft Internet Explorer.
•Nikon Reference Manuals CD. The Nikon Reference CD contains elec-
tronic versions of the available camera documentation. This CD also
contains the installation program for Adobe Acrobat Reader. Adobe
Acrobat Reader allows you to view, navigate, and print PDF files.
•Nikon View. The Nikon View software allows your computer and the
Nikon Coolpix camera to communicate. The Nikon View software also
lets you view the images on your camera and download them to your
hard drive.
2

iPIX® Photography with Nikon Digital Cameras
6
2 - INSTALLING YOUR SOFTWARE
Step 1: Install iPIX Software
Step 1: Install iPIX Software
The iPIX Viewer and iPIX Plug-ins are installed during this process. The
exact steps may vary. Please refer to your iPIX User Manual for detailed
instructions.
Windows Installation
This procedure will walk you through installing the iPIX software on your
computer.
1. Insert the iPIX CD into your CD-ROM drive. The Setup program
should start automatically.
If the program does not start, click on the Start button on the Windows
Task Bar. Select Run. Type D:\setup.exe (where D: is the letter of your CD-
ROM drive) and press the Enter key on your keyboard.
2. Select the iPIX software you wish to install.
3. Follow the on-screen instructions.
Macintosh Installation
This procedure will install the iPIX software on your computer.
iPIX software on the Macintosh requires the Appearance Manager and
QuickTime. If you do not have these items on your computer, the
Installation program will automatically install them. After the installation
is completed, you may need to restart your computer.
1. Close any open applications and insert the iPIX CD into your CD-
ROM drive.
2. Double-click the iPIX icon when it appears on the desktop, then open
the Setup icon.
3. Select the iPIX software you wish to install.
4. Follow the on-screen instructions.

2 - INSTALLING YOUR SOFTWARE
Step 2: Install Adobe Acrobat Reader
iPIX® Photography with Nikon Digital Cameras 7
Step 2: Install Adobe Acrobat Reader
Adobe Acrobat Reader software is used to read the electronic copy of the
software manual included with your iPIX software. This step is optional.
Windows Installation
1. Turn on your computer and place the iPIX CD in your CD-ROM
drive. The setup screen should start automatically.
2. Select the Install Acrobat Reader option.
3. Follow the on-screen directions.
Macintosh Installation
1. Turn on your computer and place the iPIX CD into your CD-ROM
drive.
2. Double-click on the iPIX CD icon when it appears on your desktop.
3. Double-click on the Setup icon to start the setup screen.
4. Select the Install Acrobat Reader option to begin.
5. Follow the on-screen directions.

iPIX® Photography with Nikon Digital Cameras
8
2 - INSTALLING YOUR SOFTWARE
Step 2: Install Adobe Acrobat Reader

iPIX® Photography with Nikon Digital Cameras 9
. . . .
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparing for Photography
This chapter will walk you through preparing your digital camera for
iPIX® photography. Some steps are specific to particular camera models.
These sections are labeled with the camera model number in the heading.
Before you work with your camera, familiarize yourself with your new
equipment. Most kits will include software, rotator, fisheye lens, and fish-
eye lens adapter for your camera. Other optional items, like additional
memory cards, memory card readers, tripods, etc., may be included in your
kit.
Turning the Camera Off
Before changing batteries and inserting or removing the memory card,
make sure that your camera is turned off. To turn your Nikon digital cam-
era off, switch the camera’s mode dial to the OFF position.

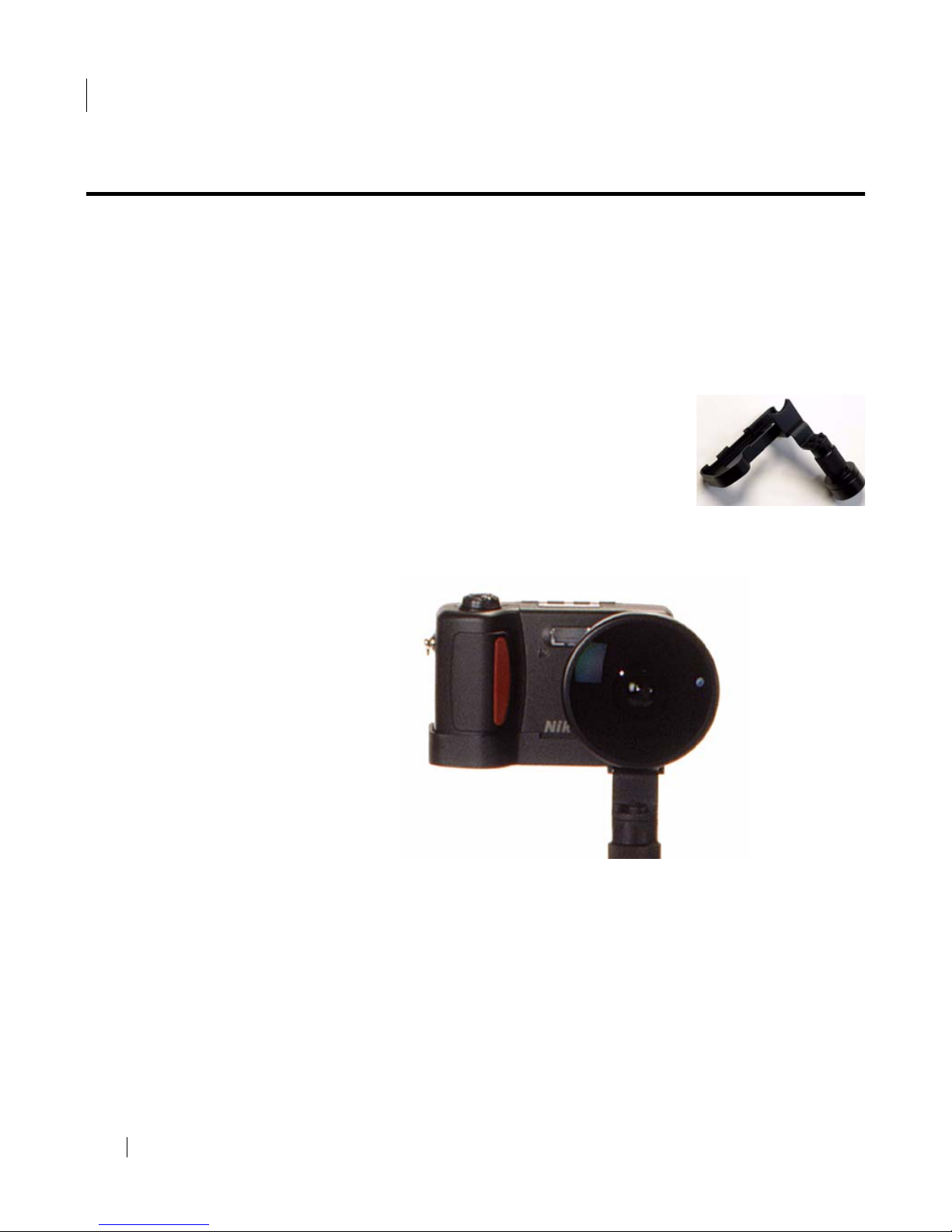

Fisheye lens and adapter
Customized rotator for
this digital camera model.
Every digital camera supported by
Internet Pictures uses a custom-
designed fisheye lens, rotator, and
lens adapter, like the one shown.
Supported digital camera
3

iPIX® Photography with Nikon Digital Cameras
10
3 - PREPARING FOR PHOTOGRAPHY
Photography Preparations
Photography Preparations
The following instructions in this section will work with any supported
Nikon Coolpix digital camera models.
Step 1: Insert the Batteries
1. Remove the batteries from the kit.
If your kit comes with rechargeable batteries, charge the nickel metal
hydride (NiMH) batteries before using them in the camera. Only use the
charger with NiMH batteries.
2. Open the battery compartment on the underside of the camera by
pressing the button and sliding the cover out.
3. Slide the battery compartment door out, and lift it up.
4. Insert the batteries according to the inner diagram.
5. Push the flap down and slide it in.
Battery
compartment
with batteries.

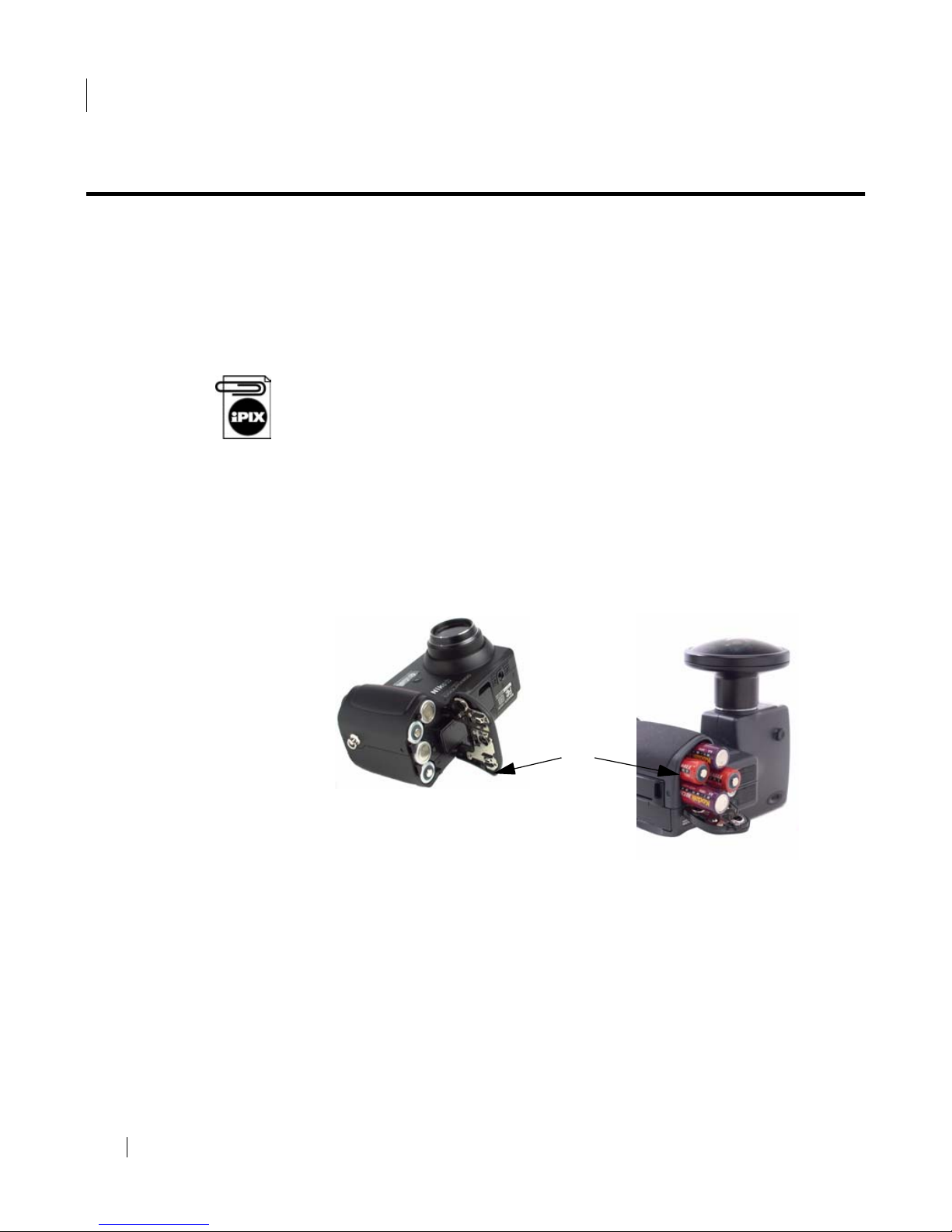

Nikon 800
The Nikon Coolpix 800 and 950 digital cameras
with the battery compartments open.
Nikon 950

3 - PREPARING FOR PHOTOGRAPHY
Photography Preparations
iPIX® Photography with Nikon Digital Cameras 11
Step 2: Insert the Memory Card

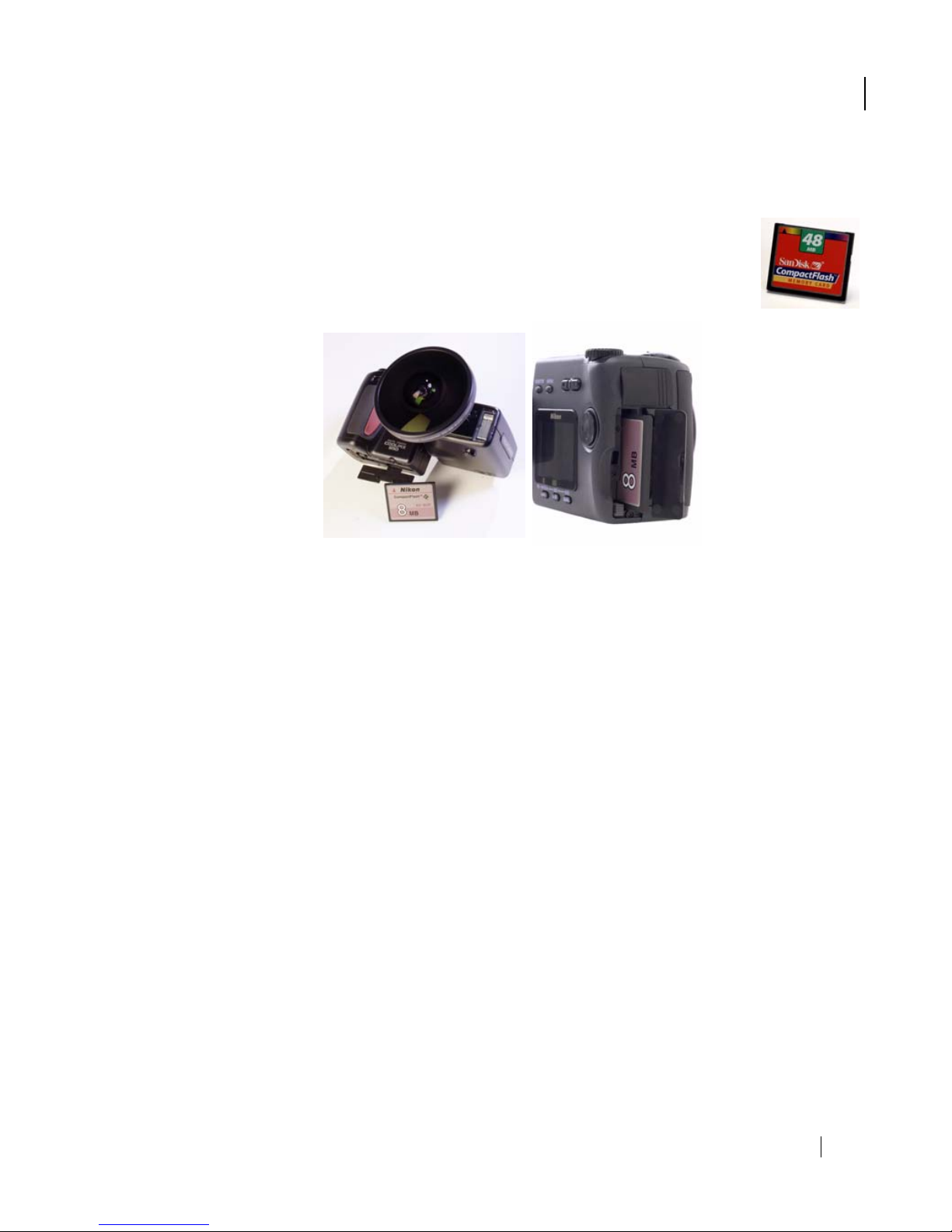

1. Locate the memory card. Some kits include a larger
memory card, like the one shown at right
2. Remove the card from its plastic case.
3. Open the memory card door.
4. Gently insert the card.
5. As you insert the card, the Card Release button to the left side will
move up.
6. After the card release button pops up, fold the button down.
7. Close the door.
The memory card door is on the underside or side of the camera,
depending upon your camera model.

iPIX® Photography with Nikon Digital Cameras
12
3 - PREPARING FOR PHOTOGRAPHY
Assembling Your iPIX Camera Equipment
Assembling Your iPIX Camera Equipment
Careful assembly of your camera equipment and tripod will ensure high
iPIX image quality. Make sure your tripod is firmly set up and that you
pay close attention to avoid bumping or moving it between pictures.
Step 1: Assemble the Tripod and Rotator
1. Remove the rotator.
2. Extend each tripod leg by starting at the bot-
tom, loosening the twist bolts, and extending
it to its full length.
3. Tighten the bolt.
4. Repeat the process for the remaining legs.
5. Turn the base of the rotator clockwise to firmly attach it to the tripod.

3 - PREPARING FOR PHOTOGRAPHY
Assembling Your iPIX Camera Equipment
iPIX® Photography with Nikon Digital Cameras 13
Step 2: Attach the Fisheye Lens Adapter
1. Remove the fisheye lens with attached adapter from the case.
2. Remove the back lens cap from the fisheye converter lens, being careful
not to touch the lens glass.
3. Leave the front fisheye lens cap on until you are ready to shoot.
4. Attach the back of the fisheye converter lens to the threaded camera
lens. Do not over tighten.

iPIX® Photography with Nikon Digital Cameras
14
3 - PREPARING FOR PHOTOGRAPHY
Assembling Your iPIX Camera Equipment
Step 3: Attach the Camera to the Rotator
1. Place the camera on the rotator.
2. Align the threaded mount on the bottom of the camera with the
thumb screw on the rotator.
3. The camera body will sit differently on the rotator depending upon
your camera model. The front of the camera lens should sit directly
over the rotator’s center.
4. Gently turn the thumb screw on the rotator clockwise to secure the
camera. Do not over tighten.
5. Turn the rotator until it clicks softly into place.
6. Rotate the camera clockwise by gripping the rotator base until it clicks
into place.
To avoid image misalignment or camera/lens damage, rotate the camera
clockwise using the rotator base only. Whenever you rotate the camera,
make sure the rotator remains securely attached to the tripod.

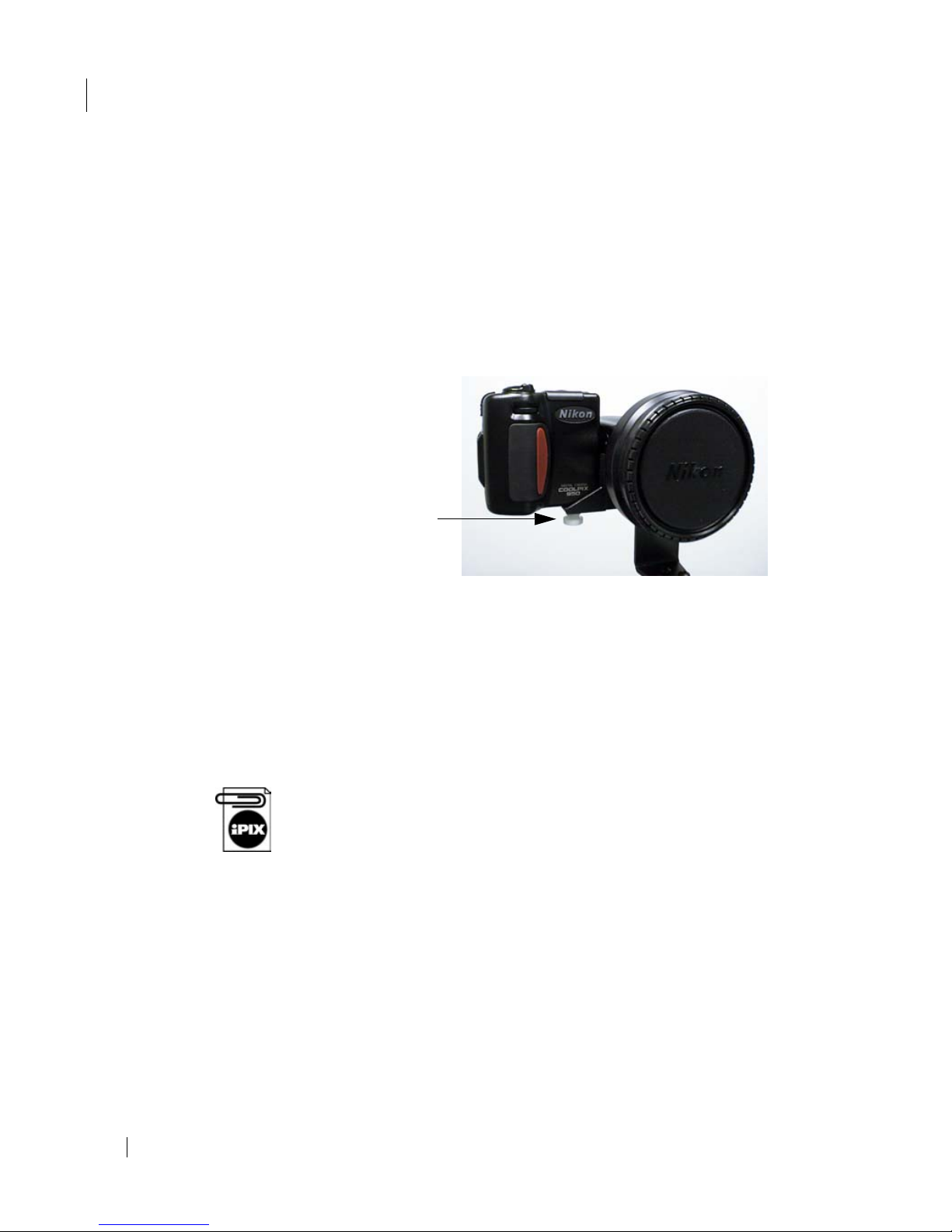

Thumb screw
The rotator cradles and supports the camera body. The camera
should have very little movement once it is securely fastened to
the rotator.
