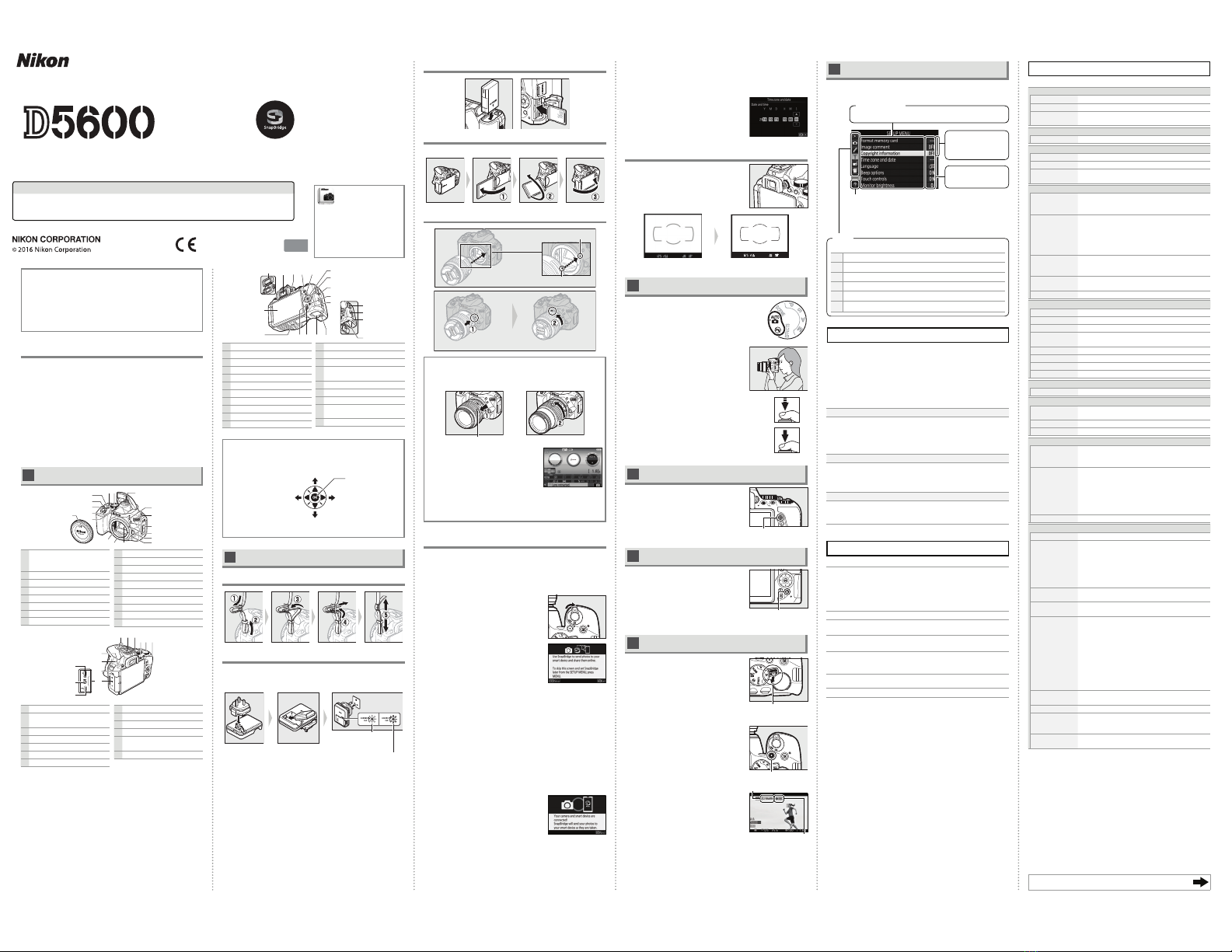

Nikon N1538 User manual
32
47 33 34 35 36
37
39
40
38
414244 43 51
50
49
48
46
45
32 Viewnder eyepiece
33 Diopter adjustment control
34 Kbutton
35 Pbutton
36 Multi selector
37 J(OK) button
38 N-Mark (NFC antenna)
39 Obutton
40 Memory card access lamp
41 Battery-chamber cover latch
42 Battery-chamber cover
43 W/Qbutton
44 Xbutton
45 Tripod socket
46 Touch-sensitive vari-angle
monitor
47 Rubber eyecup
48 HDMI connector cover
49 Memory card slot cover
50 Power connector cover for
optional power connector
51 Battery latch
A The Multi Selector
In this manual, operations using the multi selector are represented by
1, 3, 4, and 2icons.
1: Press the multi selector up
4: Press the multi
selector left
2: Press the multi selector
right
3: Press the multi selector
down
Jbutton (select)
BQuick Start Guide
Attach the Camera Strap
Charge the Battery
If a plug adapter is supplied, raise the wall plug and connect the
plug adapter as shown below at left, making sure the plug is fully
inserted. Insert the battery and plug the charger in.
Battery charging
Charging complete
Insert the Battery and a Memory Card
Open the Monitor
Open the monitor as shown. Do not use force.
Attach a Lens
Mounting mark (camera)
Mounting mark (lens)
Rotate the lens as shown until it clicks into place.
A Lenses with Retractable Lens Barrel Buttons
Before using the camera, unlock and extend the lens. Keeping the
retractable lens barrel button pressed (q), rotate the zoom ring as
shown (w).
Retractable lens barrel button
Pictures can not be taken when the lens is
retracted; if an error message is displayed as
a result of the camera having been turned on
with the lens retracted, rotate the zoom ring
until the message is no longer displayed.
A Removing Lenses
To remove the lens, turn the camera o and press and hold the
lens-release button on the front of the camera while rotating
the lens in the direction opposite that shown above.
Camera Setup
❚❚ Setup from a Smartphone or Tablet
1
Download and install the SnapBridge app.
The app is available free from the Nikon website
(http://snapbridge.nikon.com), the Apple App Store®, and
GooglePlay™.
2
Turn the camera on.
A language-selection dialog will be
displayed; press 1and 3to highlight
a language and press Jto select.
3
Press Jwhen the dialog at right is
displayed.
4
Pair the camera and the smart device.
• Android devices with NFC support: After checking that NFC is
enabled on the smart device, touch the camera H(N-Mark)
to the NFC antenna on the smart device to launch the
SnapBridge app.
• iOS devices and Android devices without NFC support: Press the
camera Jbutton. The camera will wait for a connection;
launch the SnapBridge app on the smart device and follow
the on-screen instructions to tap the name of the camera you
want to pair with.
5
Check the authentication code.
Press Jon the camera and tap PAIR on the smart device (the
button may vary with the smart device).
6
Press Jwhen the dialog at right is
displayed.
If the camera displays Unable to
connect., the display will change after
a short pause. Return to Step 4.
7
Follow the on-screen instructions.
Follow the instructions displayed by the camera and smart
device to complete the setup process.
❚❚ Setup from the Camera Menus
1
Turn the camera on.
A language-selection dialog will be displayed; press 1and 3
to highlight a language and press Jto select.
2
Press Gand set the camera clock.
After setting time zone, date format,
and daylight saving time options, use
the multi selector and Jbutton to set
the camera clock.
Focus the Viewnder
After removing the lens cap, rotate the
diopter adjustment control until the AF
area brackets are in sharp focus. When
operating the control with your eye to
the viewnder, be careful not to put your
ngers or ngernails in your eye.
Viewnder not in focus Viewnder in focus
C“Point-and-Shoot” Modes (iand j)
1
Rotate the mode dial to ior j.
2
Frame the photograph.
3
Press the shutter-release button halfway to
focus.
4
Smoothly press the shutter-release button
the rest of the way down to take the
photograph.
DViewing Photographs
Pressing Kdisplays a picture in the
monitor.
Kbutton
EDeleting Unwanted Photographs
Note that photographs can not be recovered
once deleted.
• Press the Obutton. A conrmation dialog
will be displayed; press the Obutton
again to delete the image and return to
playback. Obutton
• To exit without deleting the picture, press K.
FRecording Movies
1
Rotate the live view switch.
The view through the lens will be
displayed in the monitor.
Live view switch
2
Press the shutter-release button halfway to focus.
3
Press the movie-record button to
start recording.
Movie-record button
A recording indicator and the time
available are displayed in the monitor.
Time remaining
Recording indicator
4
Press the movie-record button again to end recording.
5
Rotate the live view switch to exit live view.
GCamera Menus
Most shooting, playback, and setup options can be accessed from
the camera menus. To view the menus, press the Gbutton.
Help icon
If the help icon is displayed, you can press the W(Q)
button to view help for the currently selected item.
Choose from the following menus:
DPlayback
CShooting
ACustom Settings
BSetup
NRetouch
mRecent Settings / OMy Menu
Tabs
Options in current menu.
Menu options
Slider shows
position in current
menu.
Current settings are
shown by icons.
Caring for the Camera
❚❚ Storage
When the camera will not be used for an extended period, turn the camera
o and remove the battery. Do not store in locations that:
• are poorly ventilated or subject to humidities of over 60%
• are next to equipment that produces strong electromagnetic elds, such
as televisions or radios
• are exposed to temperatures above 50°C (122°F) or below –10°C (14°F)
❚❚ Cleaning
Camera Body
Use a blower to remove dust and lint, then wipe gently with a soft, dry
cloth. After using the camera at the beach or seaside, wipe o sand or salt
with a cloth lightly dampened in distilled water and dry thoroughly.
Important: Dust or other foreign matter inside the camera may cause
damage not covered under warranty.
Lens, Mirror, and Viewnder
These glass elements are easily damaged. Remove dust and lint with a
blower. If using an aerosol blower, keep the can vertical to prevent the
discharge of liquid. To remove ngerprints and other stains, apply a small
amount of lens cleaner to a soft cloth and clean with care.
Monitor
Remove dust and lint with a blower. When removing ngerprints and
other stains, wipe the surface lightly with a soft cloth or chamois leather.
Do not apply pressure, as this could result in damage or malfunction.
* Do not use alcohol, thinner, or other volatile chemicals.
Troubleshooting
❚❚ Battery/Display
The camera is on but does not respond: Wait for recording to end. If the problem
persists, turn the camera o. If the camera does not turn o, remove and
reinsert the battery or, if you are using an AC adapter, disconnect and
reconnect the AC adapter. Note that although any data currently being
recorded will be lost, data that have already been recorded will not be
aected by removing or disconnecting the power source.
Viewnder is dark: Insert a fully-charged battery.
Displays turn o without warning: Choose longer delays for Custom Setting c2
(Auto o timers).
Viewnder display is unresponsive and dim: The response times and brightness
of this display vary with temperature.
Fine lines are visible around active focus point or display turns red when focus point is
highlighted: These phenomena are normal for this type of viewnder and
do not indicate a malfunction.
❚❚ Shooting (All Modes)
Camera takes time to turn on: Delete les or folders.
Specications
❚❚ Nikon D5600 Digital Camera
Type
Type Single-lens reex digital camera
Lens mount Nikon F mount (with AF contacts)
Eective angle of view Nikon DX format; focal length equivalent to approx. 1.5×
that of lenses with FX format angle of view
Eective pixels
Eective pixels 24.2 million
Image sensor
Image sensor 23.5 × 15.6 mm CMOS sensor
Total pixels 24.78 million
Dust-reduction System Image sensor cleaning, Image Dust O reference data
(CaptureNX-D software required)
Storage
Image size (pixels) • 6000 × 4000 (Large)
• 4496 × 3000 (Medium)
• 2992 × 2000 (Small)
File format • NEF (RAW): 12- or 14 bit, compressed
• JPEG: JPEG-Baseline compliant with ne (approx.
1:4), normal (approx. 1:8), or basic (approx. 1:16)
compression
• NEF (RAW)+JPEG: Single photograph recorded in both NEF
(RAW) and JPEG formats
Picture Control System Standard, Neutral, Vivid, Monochrome, Portrait,
Landscape, Flat; selected Picture Control can be
modied; storage for custom Picture Controls
Media SD (Secure Digital) and UHS-I compliant SDHC and SDXC
memory cards
File system DCF 2.0, Exif 2.3, PictBridge
Viewnder
Viewnder Eye-level pentamirror single-lens reex viewnder
Frame coverage Approx. 95% horizontal and 95% vertical
Magnication Approx. 0.82× (50mm f/1.4 lens at innity, –1.0m–1)
Eyepoint 17mm (–1.0m–1; from center surface of viewnder
eyepiece lens)
Diopter adjustment –1.7–+0.5m–1
Focusing screen Type B BriteView Clear Matte MarkVII screen
Reex mirror Quick return
Lens aperture Instant return, electronically controlled
Lens
Autofocus support Autofocus is available with AF-S, AF-P, and AF-I lenses.
Shutter
Type Electronically-controlled vertical-travel focal-plane
shutter
Speed /–30 s in steps of / or /EV; Bulb; Time
Flash sync speed X = /s; synchronizes with shutter at /s or slower
Release
Release mode 8(single frame), !(continuous L), 9(continuous H),
J(quiet shutter release), E(self-timer); interval timer
photography supported
Frame advance rate • !: Up to 3fps
• 9: Up to 5fps (JPEG and 12-bit NEF/RAW) or 4fps
(14-bit NEF/RAW)
Note: Frame rates assume continuous-servo AF, manual or
shutter-priority auto exposure, a shutter speed of /s
or faster, Release selected for Custom Setting a1 (AF-C
priority selection), and other settings at default values.
Self-timer 2s, 5s, 10s, 20s; 1–9 exposures
Exposure
Metering mode TTL exposure metering using 2016-pixel RGB sensor
Metering method • Matrix metering: 3D color matrix metering II (type G,
E, and D lenses); color matrix metering II (other CPU
lenses)
• Center-weighted metering: Weight of 75% given to 8-mm
circle in center of frame
• Spot metering: Meters 3.5-mm circle (about 2.5% of
frame) centered on selected focus point
Range (ISO100, f/1.4
lens, 20°C/68°F)
• Matrix or center-weighted metering: 0–20EV
• Spot metering: 2–20EV
Exposure meter
coupling
CPU
Mode Auto modes (iauto; jauto, ash o); programmed
auto with exible program (P); shutter-priority auto (S);
aperture-priority auto (A); manual (M); scene modes
(kportrait; llandscape; pchild; msports; nclose
up; onight portrait; rnight landscape; sparty/
indoor; tbeach/snow; usunset; vdusk/dawn; wpet
portrait; xcandlelight; yblossom; zautumn colors;
0food); special eects modes (%night vision; Ssuper
vivid; Tpop; Uphoto illustration; 'toy camera eect;
(miniature eect; 3selective color; 1silhouette;
2high key; 3low key)
Exposure compensation Can be adjusted by –5–+5EV in increments of / or /EV
in P, S, A, M, h, and %modes
Exposure lock Luminosity locked at detected value with A(L) button
ISO sensitivity
(Recommended
Exposure Index)
ISO 100–25600 in steps of /EV. Auto ISO sensitivity
control available
Active D-Lighting YAuto, ZExtra high, PHigh, QNormal, RLow,
!O
• Read this manual thoroughly before using the camera.
• To ensure proper use of the camera, be sure to read “For Your Safety”
(overleaf).
• After reading this manual, keep it in a readily accessible place for
future reference.
No reproduction in any form of this manual, in whole or in part (except
for brief quotation in critical articles or reviews), may be made without
written authorization from NIKON CORPORATION.
Package Contents
❏ D5600 camera
❏ DK-25 rubber eyecup
❏ BF-1B body cap
❏ EN-EL14a rechargeable Li-ion
battery (with terminal cover)
❏ AN-DC3 strap
❏ User’s Manual (this sheet)
❏ Warranty
❏ MH-24 battery charger (plug adapter supplied in countries or
regions where required; shape depends on country of sale)
Purchasers of the lens kit option should conrm that the package
also includes a lens. Memory cards are sold separately. Cameras
purchased in Japan display menus and messages in English and
Japanese only; other languages are not supported. We apologize
for any inconvenience this may cause.
AThe Camera Body
14
12
13
1516
8
9
11
10
18
67
3
4
5
2
1
17
1 AF-assist illuminator
Self-timer lamp
Red-eye reduction lamp
2 Power switch
3 Shutter-release button
4 E/Nbutton
5 Movie-record button
6 Live view switch
7 Mode dial
8 Built-in ash
9 M/Ybutton
10 Eyelets for camera strap
11 Fn button
12 Mounting mark
13 Lens release button
14 s/Ebutton
15 Mirror
16 Lens mount
17 CPU contacts
18 Body cap
29
30
31
28
27
26
20 2119
22 23 24
25
19 Stereo microphone
20 Accessory shoe (for optional
ash units)
21 Eye sensor
22 R(information) button
23 Command dial
24 A/Lbutton
25 Connector cover
26 Gbutton
27 Speaker
28 Focal plane mark (E)
29 USB connector
30 Connector for external
microphone
31 Accessory terminal
Continued overleaf
D5600 Model Name: N1538
Nikon User Support for India and Australia
Contact a Nikon representative for
technical assistance with the operation
of your Nikon product or products.
For information on the Nikon
representatives in your area, visit
http://www.nikon-asia.com/support.
Nikon Manual Viewer 2
Install the Nikon Manual Viewer 2
app on your smartphone or tablet
to view Nikon digital camera
manuals, anytime, anywhere.
Nikon Manual Viewer 2 can be
downloaded free of charge from
the App Store and Google Play.
DIGITAL CAMERA
En
Printed in Thailand
6MB36911-01
User’s Manual
About the Reference Manual
For more information on using your Nikon camera, download a pdf copy of the caera Reference
Manual from the website listed below.
http://downloadcenter.nikonimglib.com/
Focus
Autofocus Nikon Multi-CAM 4800DX autofocus sensor module with
TTL phase detection, 39 focus points (including 9 cross-
type sensors), and AF-assist illuminator (range approx.
0.5–3m/1ft 8in.–9ft10 in.)
Detection range –1–+19EV (ISO 100, 20°C/68°F)
Lens servo • Autofocus (AF): Single-servo AF (AF-S); continuous-servo AF
(AF-C); auto AF-S/AF-C selection (AF-A); predictive focus
tracking activated automatically according to subject
status
• Manual focus (MF): Electronic rangender can be used
Focus point Can be selected from 39 or 11 focus points
AF-area mode Single-point AF, 9-, 21-, or 39- point dynamic-area AF,
3D-tracking, auto-area AF
Focus lock Focus can be locked by pressing shutter-release button
halfway (single-servo AF) or by pressing A(L) button
Flash
Built-in ash i, k, p, n, o, s, w, S, T, U, ': Auto ash with auto
pop-up
P, S, A, M, 0: Manual pop-up with button release
Guide Number Approx. 12/39, 12/39 with manual ash (m/ft, ISO 100,
20°C/68°F)
Flash control TTL: i-TTL ash control using 2016-pixel RGB sensor is
available with built-in ash; i-TTL balanced ll-ash for
digital SLR is used with matrix and center-weighted
metering, standard i-TTL ash for digital SLR with spot
metering
Flash mode Auto, auto with red-eye reduction, auto slow sync, auto
slow sync with red-eye reduction, ll-ash, red-eye
reduction, slow sync, slow sync with red-eye reduction,
rear-curtain with slow sync, rear-curtain sync, o
Flash compensation Can be adjusted by –3–+1EV in increments of / or /EV
in P, S, A, M, and hmodes
Flash-ready indicator Lights when built-in ash or optional ash unit is fully
charged; blinks after ash is red at full output
Accessory shoe ISO 518 hot-shoe with sync and data contacts and safety
lock
Nikon Creative Lighting
System (CLS)
Nikon CLS supported
Sync terminal AS-15 sync terminal adapter (available separately)
White balance
White balance Auto, incandescent, uorescent (7 types), direct sunlight,
ash, cloudy, shade, preset manual, all except preset
manual with ne-tuning.
Bracketing
Bracketing types Exposure, white balance, and ADL
Live view
Lens servo • Autofocus (AF): Single-servo AF (AF-S); full-time-servo AF
(AF-F)
• Manual focus (MF)
AF-area mode Face-priority AF, wide-area AF, normal-area AF, subject-
tracking AF
Autofocus Contrast-detect AF anywhere in frame (camera selects
focus point automatically when face-priority AF or
subject-tracking AF is selected)
Automatic scene
selection
Available in iand jmodes
Movie
Metering TTL exposure metering using main image sensor
Metering method Matrix
Frame size (pixels) and
frame rate
• 1920 × 1080; 60p (progressive), 50p, 30p, 25p, 24p
• 1280 × 720; 60p, 50p
Actual frame rates for 60p, 50p, 30p, 25p, and 24p are
59.94, 50, 29.97, 25, and 23.976fps respectively; options
support both ★high and normal image quality
File format MOV
Video compression H.264/MPEG-4 Advanced Video Coding
Audio recording format Linear PCM
Audio recording device Built-in or external stereo microphone; sensitivity
adjustable
ISO sensitivity ISO 100–25600
Other options Time-lapse movies
Monitor
Monitor 8.1cm/3.2-in. (3:2), approx. 1037k-dot (720 × 480 ×
3 = 1,036,800dots), TFT vari-angle LCD touch screen
with 170° viewing angle, approx. 100% frame coverage,
brightness adjustment, and eye-sensor controlled on/o
Playback
Playback Full-frame and thumbnail (4, 12, or 80 images or
calendar) playback with playback zoom, playback zoom
cropping, playback face zoom, movie playback, photo
and/or movie slide shows, histogram display, highlights,
photo information, location data display, auto image
rotation, picture rating, and image comment (up to 36
characters)
Interface
USB Hi-Speed USB with Micro-USB connector; connection to
built-in USB port is recommended
HDMI output Type C HDMI connector
Accessory terminal • Wireless remote controllers: WR-1, WR-R10 (available
separately)
• Remote cords: MC-DC2 (available separately)
• GPS units: GP-1/GP-1A (available separately)
Audio input Stereo mini-pin jack (3.5mm diameter); supports
optional ME-1 stereo microphones
Wireless/Bluetooth
Wireless • Standards: IEEE 802.11b, IEEE 802.11g
• Operating frequency: 2412–2462 MHz (channels 1–11)
• Authentication: Open system, WPA2-PSK
Bluetooth Communication protocols: Bluetooth Specication Version 4.1
Range (line of sight) Approximately 10m (32ft) without interference; range
may vary with signal strength and presence or absence
of obstacles
NFC
Operation NFC Forum Type 3 Tag
Supported languages
Supported languages Arabic, Bengali, Bulgarian, Chinese (Simplied and
Traditional), Czech, Danish, Dutch, English, Finnish,
French, German, Greek, Hindi, Hungarian, Indonesian,
Italian, Japanese, Korean, Marathi, Norwegian, Persian,
Polish, Portuguese (Portugal and Brazil), Romanian,
Russian, Serbian, Spanish, Swedish, Tamil, Telugu, Thai,
Turkish, Ukrainian, Vietnamese
Power source
Battery One EN-EL14a rechargeable Li-ion battery
AC adapter EH-5b/EH-5c AC adapter; requires EP-5A power
connector (available separately)
Tripod socket
Tripod socket / in. (ISO 1222)
Dimensions/weight
Dimensions (W×H×D) Approx. 124 × 97 × 70mm (4.9 × 3.9 × 2.8in.)
Weight Approx. 465g (1lb 0.4oz) with battery and memory card
but without body cap; approx. 415g/14.7oz (camera
body only)
Operating environment
Temperature 0°C–40°C (+32°F–104°F)
Humidity 85% or less (no condensation)
❚❚ MH-24 Battery Charger
Rated input AC 100 – 240 V, 50/60 Hz, 0.2 A maximum
Rated output DC 8.4 V/0.9 A
Supported batteries Nikon EN-EL14a rechargeable Li-ion batteries
Charging time Approx. 1 hour and 50minutes at an ambient
temperature of 25°C (77°F) when no charge remains
Operating temperature 0°C – 40°C (+32°F – 104°F)
Dimensions (W×H×D) Approx. 70 × 26 × 97mm (2.8 × 1.0 × 3.8 in.), excluding
plug adapter
Weight Approx. 96 g (3.4 oz), excluding plug adapter
The symbols on this product represent the following:
mAC, pDC, qClass II equipment (The construction of the product is double-
insulated.)
❚❚ EN-EL14a Rechargeable Li-ion Battery
Type Rechargeable lithium-ion battery
Rated capacity 7.2V/1230mAh
Operating temperature 0°C – 40°C (+32°F – 104°F)
Dimensions (W×H×D) Approx. 38 × 53 × 14mm (1.5 × 2.1 × 0.6in.)
Weight Approx. 49g (1.7oz), excluding terminal cover
A Battery Life
The movie footage or number of shots that can be recorded with fully-
charged batteries varies with the condition of the battery, temperature,
the interval between shots, and the length of time menus are displayed.
Sample gures for EN-EL14a (1230 mAh) batteries are given below.
• Photographs, single-frame release mode (CIPA standard): Approximately
970shots
• Movies: Approximately 70 minutes at 1080/60p
❚❚ AF-P DX NIKKOR 18–55mm f/3.5–5.6G VR
Type Type G AF-P DX lens with built-in CPU and F mount
Focal length 18 – 55mm
Maximum aperture f/3.5 – 5.6
Lens construction 12 elements in 9 groups (2 aspherical lens elements)
Angle of view 76° – 28° 50´
Focal length scale Graduated in millimeters (18, 24, 35, 45, 55)
Distance information Output to camera
Zoom Manual zoom using independent zoom ring
Focusing Autofocus controlled by stepping motor; separate focus
ring for manual focus
Vibration reduction Lens shift using voice coil motors (VCMs)
Minimum focus distance 0.25m (0.9ft) from focal plane at all zoom positions
Diaphragm blades 7 (rounded diaphragm opening)
Diaphragm Fully automatic
Aperture range • 18mm focal length: f/3.5–22
• 55mm focal length: f/5.6–38
The minimum aperture displayed may vary depending
on the size of the exposure increment selected with the
camera.
Metering Full aperture
Filter-attachment size 55mm (P = 0.75 mm)
Dimensions Approx. 64.5 mm maximum diameter ×62.5 mm
(distance from camera lens mount ange when lens is
retracted)
Weight Approx. 205 g (7.3oz)
❚❚ AF-P DX NIKKOR 70–300mm f/4.5–6.3G ED VR and AF-P DX NIKKOR 70–300mm
f/4.5–6.3G ED
Type Type G AF-P DX lens with built-in CPU and F mount
Focal length 70 – 300mm
Maximum aperture f/4.5 – 6.3
Lens construction 14 elements in 10 groups (including 1 ED lens element)
Angle of view 22° 50´ – 5° 20´
Focal length scale Graduated in millimeters (70, 100, 135, 200, 300)
Distance information Output to camera
Zoom Manual zoom using independent zoom ring
Focusing Autofocus controlled by stepping motor; separate focus
ring for manual focus
Vibration reduction (AF-
P DX NIKKOR 70–300mm
f/4.5–6.3G ED VR only)
Lens shift using voice coil motors (VCMs)
Minimum focus distance 1.1 m (3.7 ft) from focal plane at all zoom positions
Diaphragm blades 7 (rounded diaphragm opening)
Diaphragm Fully automatic
Aperture range • 70mm focal length: f/4.5–22
• 300mm focal length: f/6.3–32
The minimum aperture displayed may vary depending
on the size of the exposure increment selected with the
camera.
Metering Full aperture
Filter-attachment size 58 mm (P = 0.75 mm)
Dimensions Approx. 72mm maximum diameter × 125mm (distance
from camera lens mount ange)
Weight • AF-P DX NIKKOR 70–300mm f/4.5–6.3G ED VR: Approx. 415 g
(14.7oz)
• AF-P DX NIKKOR 70–300mm f/4.5–6.3G ED: Approx. 400 g
(14.2oz)
❚❚ AF-S DX NIKKOR 18–140mm f/3.5–5.6G ED VR
Type Type G AF-S DX lens with built-in CPU and F mount
Focal length 18 – 140mm
Maximum aperture f/3.5 – 5.6
Lens construction 17 elements in 12 groups (including 1 ED lens element,
1aspherical lens element)
Angle of view 76° – 11° 30´
Focal length scale Graduated in millimeters (18, 24, 35, 50, 70, 140)
Distance information Output to camera
Zoom Manual zoom using independent zoom ring
Focusing Nikon Internal Focusing (IF) System with autofocus
controlled by Silent Wave Motor and separate focus ring
for manual focus
Vibration reduction Lens shift using voice coil motors (VCMs)
Minimum focus distance 0.45m (1.48ft) from focal plane at all zoom positions
Diaphragm blades 7 (rounded diaphragm opening)
Diaphragm Fully automatic
Aperture range • 18mm focal length: f/3.5–22
• 140mm focal length: f/5.6–38
The minimum aperture displayed may vary depending
on the size of the exposure increment selected with the
camera.
Metering Full aperture
Filter-attachment size 67mm (P = 0.75mm)
Dimensions Approx. 78mm maximum diameter × 97 mm (distance
from camera lens mount ange)
Weight Approx. 490g (17.3oz)
• Unless otherwise stated, all measurements are performed in conformity
with Camera and Imaging Products Association (CIPA) standards or
guidelines.
• All gures are for a camera with a fully-charged battery.
• Nikon reserves the right to change the appearance and specications of the
hardware and software described in this manual at any time and without
prior notice. Nikon will not be held liable for damages that may result from
any mistakes that this manual may contain.
❚❚ Trademark Information
IOS is a trademark or registered trademark of Cisco Systems, Inc., in the United
States and/or other countries and is used under license. Windows is either a
registered trademark or a trademark of Microsoft Corporation in the United
States and/or other countries. Mac, OS X, Apple®, App Store®, the Apple logos,
iPhone®, iPad®, and iPod touch® are trademarks of Apple Inc. registered in the
U.S. and/or other countries. Android is a trademark of Google Inc.The Android
robot is reproduced or modied from work created and shared by Google and
used according to terms described in the Creative Commons 3.0 Attribution
License. PictBridge logo is a trademark. The SD, SDHC, and SDXC logos are
trademarks of the SD-3C, LLC. HDMI, the HDMI logo and High-Denition
Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC.
Wi-Fi and the Wi-Fi logo are trademarks or registered trademarks of the
Wi-Fi Alliance. N-Mark is a trademark or registered trademark of NFC
Forum, Inc., in the United States and/or other countries.
The Bluetooth® word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc. and any use of such marks by Nikon Corporation is
under license.
All other trade names mentioned in this manual or the other
documentation provided with your Nikon product are trademarks or
registered trademarks of their respective holders.
“Made for iPod,”“Made for iPhone,” and“Made for iPad” mean that an
electronic accessory has been designed to connect specically to iPod,
iPhone, or iPad, respectively, and has been certied by the developer
to meet Apple performance standards. Apple is not responsible for the
operation of this device or its compliance with safety and regulatory
standards. Please note that the use of this accessory with iPod, iPhone,
or iPad may aect wireless performance.
❚❚ Conformity Marking
The standards with which the camera complies can be viewed using the
Conformity marking option in the setup menu.
❚❚ FreeType License (FreeType2)
Portions of this software are copyright © 2012 The FreeType Project
(http://www.freetype.org). All rights reserved.
❚❚ MIT License (HarfBuzz)
Portions of this software are copyright © 2016 The HarfBuzz Project
(http://www.freedesktop.org/wiki/Software/HarfBuzz). All rights reserved.
For Your Safety
To prevent damage to property or injury to yourself or to others, read “For Your Safety”
in its entirety before using this product.
Keep these safety instructions where all those who use this product will read them.
DANGER: Failure to observe the precautions marked with this icon carries a high
risk of death or severe injury.
WARNING: Failure to observe the precautions marked with this icon could result in
death or severe injury.
CAUTION: Failure to observe the precautions marked with this icon could result in
injury or property damage.
WARNING
• Do not use while walking or operating a motor vehicle.
Failure to observe this precaution could result in accidents or other injury.
• Do not disassemble or modify this product. Do not touch internal parts that
become exposed as the result of a fall or other accident.
Failure to observe these precautions could result in electric shock or other injury.
• Should you notice any abnormalities such as the product producing smoke,
heat, or unusual odors, immediately disconnect the battery or power source.
Continued operation could result in re, burns or other injury.
• Keep dry. Do not handle with wet hands. Do not handle the plug with wet hands.
Failure to observe these precautions could result in re or electric shock.
• Do not let your skin remain in prolonged contact with this product while it is on
or plugged in.
Failure to observe this precaution could result in low-temperature burns.
• Do not use this product in the presence of ammable dust or gas such as
propane, gasoline or aerosols.
Failure to observe this precaution could result in explosion or re.
• Do not directly view the sun or other bright light source through the lens or camera.
Failure to observe this precaution could result in visual impairment.
• Do not aim the ash or AF-assist illuminator at the operator of a motor vehicle.
Failure to observe this precaution could result in accidents.
• Keep this product out of reach of children.
Failure to observe this precaution could result in injury or product malfunction. In
addition, note that small parts constitute a choking hazard. Should a child swallow
any part of this product, seek immediate medical attention.
• Do not entangle, wrap or twist the straps around your neck.
Failure to observe this precaution could result in accidents.
• Do not use batteries, chargers, or AC adapters not specically designated
for use with this product. When using batteries, chargers, and AC adapters
designated for use with this product, do not:
-Damage, modify, forcibly tug or bend the cords or cables, place them under
heavy objects, or expose them to heat or ame.
-Use travel converters or adapters designed to convert from one voltage to
another or with DC-to-AC inverters.
Failure to observe these precautions could result in re or electric shock.
• Do not handle the plug when charging the product or using the AC adapter
during thunderstorms.
Failure to observe this precaution could result in electric shock.
• Do not handle with bare hands in locations exposed to extremely high or low
temperatures.
Failure to observe this precaution could result in burns, or frostbite.
CAUTION
• Do not leave the lens pointed at the sun or other strong light sources.
Light focused by the lens could cause re or damage to product’s internal parts.
When shooting backlit subjects, keep the sun well out of the frame. Sunlight
focused into the camera when the sun is close to the frame could cause re.
• Turn this product o when its use is prohibited. Disable wireless features when
the use of wireless equipment is prohibited.
The radio-frequency emissions produced by this product could interfere with
equipment onboard aircraft or in hospitals or other medical facilities.
• Remove the battery and disconnect the AC adapter if this product will not be
used for an extended period.
Failure to observe this precaution could result in re or product malfunction.
• Do not touch moving parts of the lens or other moving parts.
Failure to observe this precaution could result in injury.
• Do not re the ash in contact with or in close proximity to the skin or objects.
Failure to observe this precaution could result in burns or re.
• Do not leave the product where it will be exposed to extremely high
temperatures, for an extended period such as in an enclosed automobile or in
direct sunlight.
Failure to observe this precaution could result in re or product malfunction.
DANGER (Batteries)
• Do not mishandle batteries.
Failure to observe the following precautions could result in the batteries leaking,
overheating, rupturing, or catching re:
- Use only rechargeable batteries approved for use in this product.
- Do not expose batteries to ame or excessive heat.
- Do not disassemble.
- Do not short-circuit the terminals by touching them to necklaces, hairpins, or
other metal objects.
- Do not expose batteries or the products in which they are inserted to powerful
physical shocks.
• Do not attempt to recharge EN-EL14a rechargeable batteries using chargers not
specically designated for this purpose.
Failure to observe this precaution could result in the batteries leaking, overheating,
rupturing, or catching re.
• If battery liquid comes into contact with the eyes, rinse with plenty of clean
water and seek immediate medical attention.
Delaying action could result in eye injuries.
WARNING (Batteries)
• Keep batteries out of reach of children.
Should a child swallow a battery, seek immediate medical attention.
• Do not immerse batteries in water or expose to rain.
Failure to observe this precaution could result in re or product malfunction.
Immediately dry the product with a towel or similar object should it become wet.
• Discontinue use immediately should you notice any changes in the batteries,
such as discoloration or deformation. Cease charging EN-EL14a rechargeable
batteries if they do not charge in the specied period of time.
Failure to observe these precautions could result in the batteries leaking,
overheating, rupturing, or catching re.
• Prior to disposal, insulate battery terminals with tape.
Overheating, rupture, or re may result should metal objects come into contact
with the terminals. Recycle or dispose of batteries in accord with local regulations.
• If battery liquid comes into contact with a person’s skin or clothing, immediately
rinse the aected area with plenty of clean water.
Failure to observe this precaution could result in skin irritation.
Notices
• No part of the manuals included with this product may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form,
by any means, without Nikon’s prior written permission.
• Nikon reserves the right to change the appearance and specications of the hardware
and software described in these manuals at any time and without prior notice.
• Nikon will not be held liable for any damages resulting from the use of this product.
• While every eort has been made to ensure that the information in these manuals
is accurate and complete, we would appreciate it were you to bring any errors
or omissions to the attention of the Nikon representative in your area (address
provided separately).
Notice for Customers in Canada
CAN ICES-3 B / NMB-3 B
Notices for Customers in Europe
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
This symbol indicates that electrical and electronic equipment is to be
collected separately.
The following apply only to users in European countries:
• This product is designated for separate collection at an appropriate
collection point. Do not dispose of as household waste.
• Separate collection and recycling helps conserve natural resources and
prevent negative consequences for human health and the environment
that might result from incorrect disposal.
• For more information, contact the retailer or the local authorities in
charge of waste management.
This symbol on the battery indicates that the battery is to be collected
separately.
The following apply only to users in European countries:
• All batteries, whether marked with this symbol or not, are designated for
separate collection at an appropriate collection point. Do not dispose of
as household waste.
• For more information, contact the retailer or the local authorities in
charge of waste management.
Notices for Customers in the U.S.A.
The Battery Charger
IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS
DANGER—TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY
FOLLOW THESE INSTRUCTIONS
For connection to a supply not in the U.S.A., use an attachment plug adapter
of the proper conguration for the power outlet if needed.This power unit is
intended to be correctly oriented in a vertical or oor mount position.
Federal Communications Commission (FCC) Radio Frequency Interference Statement
D5600
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules.These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
CAUTIONS
Modications
The FCC requires the user be notied that any changes or modications made to this
device that are not expressly approved by Nikon Corporation may void the user’s
authority to operate the equipment.
Interface Cables
Use the interface cables sold or provided by Nikon for your equipment. Using other
interface cables may exceed the limits of Class B Part 15 of the FCC rules.
Notice for Customers in the State of California
WARNING: Handling the cord on this product may expose you to lead, a chemical
known to the State of California to cause birth defects or other reproductive harm.
Wash hands after handling.
Nikon Inc., 1300 WaltWhitman Road, Melville, New York 11747-3064, U.S.A.
Tel.: 631-547-4200
Notice Concerning Prohibition of Copying or Reproduction
Note that simply being in possession of material that has been digitally copied or
reproduced by means of a scanner, digital camera, or other device may be punishable
by law.
• Items prohibited by law from being copied or reproduced
Do not copy or reproduce paper money, coins, securities, government bonds, or
local government bonds, even if such copies or reproductions are stamped“Sample.”
The copying or reproduction of paper money, coins, or securities which are
circulated in a foreign country is prohibited.
Unless the prior permission of the government has been obtained, the copying or
reproduction of unused postage stamps or post cards issued by the government is
prohibited.
The copying or reproduction of stamps issued by the government and of certied
documents stipulated by law is prohibited.
• Cautions on certain copies and reproductions
The government has issued cautions on copies or reproductions of securities issued
by private companies (shares, bills, checks, gift certicates, etc.), commuter passes,
or coupon tickets, except when a minimum of necessary copies are to be provided
for business use by a company. Also, do not copy or reproduce passports issued by
the government, licenses issued by public agencies and private groups, ID cards,
and tickets, such as passes and meal coupons.
• Comply with copyright notices
Under copyright law, photographs or recordings of copyrighted works made
with the camera can not be used without the permission of the copyright holder.
Exceptions apply to personal use, but note that even personal use may be restricted
in the case of photographs or recordings of exhibits or live performances.
Disposing of Data Storage Devices
Please note that deleting images or formatting memory cards or other data storage
devices does not completely erase the original image data. Deleted les can
sometimes be recovered from discarded storage devices using commercially available
software, potentially resulting in the malicious use of personal image data. Ensuring
the privacy of such data is the user’s responsibility.
Before discarding a data storage device or transferring ownership to another person,
erase all data using commercial deletion software, or format the device and then
completely rell it with images containing no private information (for example,
pictures of empty sky). Be sure to also replace any pictures selected for preset manual.
Before discarding the camera or transferring ownership to another person, you
should also use the Wi-Fi > Reset connection settings option in the camera setup
menu to delete any personal network information. Care should be taken to avoid
injury when physically destroying data storage devices.
AVC Patent Portfolio License
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-
COMMERCIAL USE OF ACONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC
VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY ACONSUMER ENGAGED IN APERSONAL AND
NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM AVIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO.
NOLICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED
FROM MPEG LA, L.L.C. SEE http://www.mpegla.com
Use Only Nikon Brand Electronic Accessories
Nikon cameras are designed to the highest standards and include complex electronic
circuitry. Only Nikon brand electronic accessories (including chargers, batteries, AC
adapters, and ash accessories) certied by Nikon specically for use with this Nikon
digital camera are engineered and proven to operate within the operational and
safety requirements of this electronic circuitry.
The use of non-Nikon electronic accessories could damage the
camera and may void your Nikon warranty. The use of third-party
rechargeable Li-ion batteries not bearing the Nikon holographic
seal shown at right could interfere with normal operation of the
camera or result in the batteries overheating, igniting, rupturing, or leaking.
For more information about Nikon brand accessories, contact a local authorized
Nikon dealer.
D Use Only Nikon Brand Accessories
Only Nikon brand accessories certied by Nikon specically for use with
your Nikon digital camera are engineered and proven to operate within
its operational and safety requirements. THE USE OF NON-NIKON ACCESSORIES
COULD DAMAGE YOUR CAMERA AND MAY VOID YOUR NIKON WARRANTY.
A Before Taking Important Pictures
Before taking pictures on important occasions (such as at weddings
or before taking the camera on a trip), take a test shot to ensure that
the camera is functioning normally. Nikon will not be held liable for
damages or lost prots that may result from product malfunction.
A Life-Long Learning
As part of Nikon’s “Life-Long Learning”commitment to ongoing product
support and education, continually-updated information is available
on-line at the following sites:
• For users in the U.S.A.: http://www.nikonusa.com/
• For users in Europe and Africa: http://www.europe-nikon.com/support/
• For users in Asia, Oceania, and the Middle East: http://www.nikon-asia.com/
Visit these sites to keep up-to-date with the latest product information,
tips, answers to frequently-asked questions (FAQs), and general advice
on digital imaging and photography. Additional information may be
available from the Nikon representative in your area. See the following
URL for contact information: http://imaging.nikon.com/
Bluetooth and Wi-Fi (Wireless LAN)
This product is controlled by the United States Export Administration Regulations
(EAR). The permission of the United States government is not required for export to
countries other than the following, which as of this writing are subject to embargo or
special controls: Cuba, Iran, North Korea, Sudan, and Syria (list subject to change).
The use of wireless devices may be prohibited in some countries or regions. Contact
a Nikon-authorized service representative before using the wireless features of this
product outside the country of purchase.
Notice for Customers in the U.S.A. and Canada
This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
FCC WARNING
The FCC requires the user to be notied that any changes or modications made to
this device that are not expressly approved by Nikon Corporation may void the user’s
authority to operate the equipment.
FCC Radio Frequency Interference Statement
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Co-location
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
Nikon Inc., 1300 WaltWhitman Road, Melville, New York 11747-3064, U.S.A.
Tel.: 631-547-4200
FCC/IC RF Exposure Statement
The available scientic evidence does not show that any health problems are
associated with using low power wireless devices.There is no proof, however, that
these low power wireless devices are absolutely safe. Low power wireless devices emit
low levels of radio frequency energy (RF) in the microwave range while being used.
Whereas high levels of RF can produce health eects (by heating tissue), exposure
of low-level RF that does not produce heating eects causes no known adverse
health eects. Many studies of low-level RF exposures have not found any biological
eects. Some studies have suggested that some biological eects might occur, but
such ndings have not been conrmed by additional research. The D5600, which is
equipped with a LBEE5UW1FS (FCC ID:VPYLB1FS / IC ID:772C-LB1FS) Wireless LAN
Module, has been tested and found to comply with FCC/IC radiation exposure limits
set forth for an uncontrolled environment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency
(RF) Exposure rules. Please refer to the SAR test report that was uploaded to FCC
website.
Notices for Customers in Europe
Hereby, Nikon Corporation, declares that the D5600 is in compliance with
the essential requirements and other relevant provisions of Directive
1999/5/EC. The declaration of conformity may be consulted at
http://imaging.nikon.com/support/pdf/DoC_D5600.pdf
Notice for Customers in Singapore
Trade Name:
Model: D5600
This device complies with radio-frequency regulations. The content of certication
labels not axed to the device is given below.
Complies with
IDA Standards
DA103423
Notice for Customers in Jordan
Notice for Customers in the United Arab Emirates
Security
Although one of the benets of this product is that it allows others to freely connect
for the wireless exchange of data anywhere within its range, the following may occur
if security is not enabled:
• Data theft: Malicious third-parties may intercept wireless transmissions to steal user
IDs, passwords, and other personal information.
• Unauthorized access: Unauthorized users may gain access to the network and alter
data or perform other malicious actions. Note that due to the design of wireless
networks, specialized attacks may allow unauthorized access even when security is
enabled.
• Unsecured networks: Connecting to open networks may result in unauthorized
access. Use secure networks only.
Your images. The world. Connected
Welcome to SnapBridge — Nikon’s new family of services to enrich
your image experience. SnapBridge eliminates the barrier between
your camera and compatible smart device, through a combination
of Bluetooth® low energy (BLE) technology and a dedicated app. The
stories you capture with your Nikon camera and lenses are
automatically transferred to the device as they are taken. They can
even be uploaded effortlessly to cloud storage services, inviting
access across all your devices. You can share your excitement, when
and where you want.
Download the SnapBridge app to get started!
Take advantage of the wide-ranging
convenience by downloading the
SnapBridge app onto your smart device
now. Through a few simple steps, this app
connects your Nikon cameras with a
compatible iPhone®, iPad® and/or
iPod touch® or smart devices running on
the AndroidTM operating system. The app
is available free from the website
(http://snapbridge.nikon.com), Apple
App Store® and Google PlayTM.
For the latest information on SnapBridge, visit the Nikon website for your
area (0xxi).
D5600 Model Name: N1538
i
The exciting image experience that SnapBridge offers…
A range of services that enriches your imaging life,
including:
Automatic picture transfer from camera to smart
device thanks to the constant connection between
the two devices — making online photo sharing
easier than ever
Upload of photos and thumbnail images to the
NIKON IMAGE SPACE cloud service
•Camera remote control
•Imprinting up to two pieces of credit
information (e.g. copyright, comments,
text and logos) on pictures
•Automatic update of camera’s date and
time info and location info
•Receive camera’s firmware updates
Nikon D5600, AF-P DX NIKKOR 18–55mm f/3.5–5.6G VR
ii
To get the most from your camera, please be sure to read all
instructions thoroughly and keep them where they will be read
by all who use the product.
Symbols and Conventions
To make it easier to find the information you need, the following
symbols and conventions are used:
Menu items, options, and messages displayed in the camera monitor are
shown in bold.
Camera Settings
The explanations in this manual assume that default settings are used.
DThis icon marks cautions; information that should be
read before use to prevent damage to the camera.
AThis icon marks notes; information that should be read
before using the camera.
0This icon marks references to other pages in this
manual.
Nikon Manual Viewer 2
Install the Nikon Manual Viewer 2 app on your smartphone or
tablet to view Nikon digital camera manuals, anytime,
anywhere. Nikon Manual Viewer 2 can be downloaded free of
charge from the App Store and Google Play. Download of the
app and any product manuals requires an Internet
connection, for which fees may be levied by your phone or
Internet service provider.
AFor Your Safety
Before using the camera for the first time, read the safety instructions
in “For Your Safety” (0xiii–xvi).
iii
For Your Safety........................................................................... xiii
Notices........................................................................................ xvii
Bluetooth and Wi-Fi (Wireless LAN)...................................... xxii
Introduction 1
Getting to Know the Camera...................................................... 1
The Camera Body .................................................................................. 1
The Mode Dial ........................................................................................ 4
The Viewfinder ....................................................................................... 5
The R(Info) Button.............................................................................. 6
The PButton ......................................................................................... 12
The Monitor ................................................................................. 13
Using the Touch Screen.................................................................... 15
Touch-Screen Photography ............................................................ 17
Viewing Pictures .................................................................................. 23
Using the Menus.................................................................................. 25
First Steps 26
Attach the Camera Strap .................................................................. 26
Charge the Battery.............................................................................. 26
Insert the Battery and a Memory Card......................................... 27
Open the Monitor ............................................................................... 29
Attach a Lens ........................................................................................ 30
Camera Setup ....................................................................................... 33
Focus the Viewfinder ......................................................................... 41
Tutorial 42
Camera Menus: An Overview ................................................... 42
The Battery Level and Number of Exposures Remaining ... 46
Table of Contents
iv
Basic Photography and Playback 47
“Point-and-Shoot” Modes (iand j)..................................... 47
Basic Playback............................................................................. 56
Deleting Unwanted Photographs................................................. 57
Matching Settings to the Subject or Situation
(Scene Mode) 58
kPortrait........................................................................................ 59
lLandscape ................................................................................. 59
pChild ............................................................................................ 59
mSports .......................................................................................... 60
nClose up...................................................................................... 60
oNight Portrait............................................................................ 60
rNight Landscape ..................................................................... 61
sParty/Indoor ............................................................................. 61
tBeach/Snow.............................................................................. 61
uSunset ......................................................................................... 62
vDusk/Dawn ............................................................................... 62
wPet Portrait ................................................................................ 62
xCandlelight ................................................................................. 63
yBlossom ...................................................................................... 63
zAutumn Colors......................................................................... 63
0Food.............................................................................................. 64
v
Special Effects 65
%Night Vision.............................................................................. 65
SSuper Vivid................................................................................ 66
TPop ............................................................................................ 66
UPhoto Illustration.................................................................... 66
'Toy Camera Effect .................................................................. 67
(Miniature Effect ...................................................................... 67
3Selective Color ........................................................................ 67
1Silhouette.................................................................................. 68
2High Key .................................................................................... 68
3Low Key...................................................................................... 68
Options Available in Live View ...................................................... 70
More on Photography 75
Choosing a Release Mode......................................................... 75
Continuous Shooting (Burst Mode)........................................ 76
Quiet Shutter Release................................................................ 78
Self-Timer Mode ......................................................................... 79
Focus............................................................................................. 82
Focus Mode .......................................................................................... 82
AF-Area Mode ...................................................................................... 87
Focus Lock............................................................................................. 93
Manual Focus ....................................................................................... 95
Image Quality and Size ............................................................. 98
Image Quality....................................................................................... 98
Image Size ........................................................................................... 100
Using the Built-in Flash ........................................................... 101
Auto Pop-up Modes......................................................................... 101
Manual Pop-up Modes ................................................................... 103
ISO Sensitivity ........................................................................... 107
Interval Timer Photography................................................... 109
Restoring Default Settings ..................................................... 115
vi
P, S, A, and M Modes 118
Shutter Speed and Aperture ................................................. 118
Mode P(Programmed Auto) ........................................................ 119
Mode S(Shutter-Priority Auto) .................................................... 121
Mode A(Aperture-Priority Auto)................................................. 122
Mode M(Manual).............................................................................. 123
Long Time-Exposures (MMode Only) ....................................... 125
Exposure.................................................................................... 128
Metering.............................................................................................. 128
Autoexposure Lock.......................................................................... 130
Exposure Compensation ............................................................... 132
Flash Compensation ....................................................................... 134
Preserving Detail in Highlights and Shadows.................... 136
Active D-Lighting ............................................................................. 136
High Dynamic Range (HDR) ......................................................... 138
White Balance........................................................................... 140
Fine-Tuning White Balance .......................................................... 143
Preset Manual.................................................................................... 145
Bracketing................................................................................. 151
Picture Controls ....................................................................... 155
Selecting a Picture Control ........................................................... 155
Modifying Picture Controls........................................................... 157
Creating Custom Picture Controls ............................................. 161
vii
Recording and Viewing Movies 164
Recording Movies .................................................................... 164
The PButton....................................................................................... 166
Movie Settings ................................................................................... 168
Time-Lapse Movies .................................................................. 171
Viewing Movies ........................................................................ 176
Editing Movies .......................................................................... 178
Trimming Movies.............................................................................. 178
Saving Selected Frames ................................................................. 182
Playback and Deletion 184
Full-Frame Playback ................................................................ 184
Thumbnail Playback ........................................................................ 185
Calendar Playback ............................................................................ 186
The PButton....................................................................................... 187
Photo Information ................................................................... 188
Taking a Closer Look: Playback Zoom.................................. 196
Protecting Photographs from Deletion ............................... 200
Rating Pictures.......................................................................... 201
Rating Individual Pictures.............................................................. 201
Rating Multiple Pictures ................................................................. 202
Selecting Photos for Upload .................................................. 203
Selecting Individual Photos .......................................................... 203
Selecting Multiple Photos ............................................................. 204
Deleting Photographs............................................................. 205
During Playback ................................................................................ 205
The Playback Menu.......................................................................... 206
Slide Shows ............................................................................... 208
Slide Show Options.......................................................................... 209
viii
Connections 210
Installing ViewNX-i.................................................................. 210
Copying Pictures to the Computer ...................................... 211
Printing Photographs ............................................................. 214
Connecting the Printer................................................................... 214
Printing Pictures One at a Time................................................... 215
Printing Multiple Pictures.............................................................. 216
Viewing Pictures on TV........................................................... 218
Camera Menus 220
DThe Playback Menu: Managing Images................................ 220
Playback Menu Options................................................................. 220
Playback Folder ......................................................................... 221
Playback Display Options ...................................................... 221
Image Review............................................................................. 221
Auto Image Rotation ............................................................... 222
Rotate Tall.................................................................................... 222
CThe Shooting Menu: Shooting Options................................. 223
Shooting Menu Options ................................................................ 223
Reset Shooting Menu.............................................................. 225
Storage Folder ........................................................................... 225
File Naming................................................................................. 227
NEF (RAW) Recording.............................................................. 227
ISO Sensitivity Settings........................................................... 228
Color Space ................................................................................. 230
Long Exposure NR .................................................................... 230
High ISO NR................................................................................. 231
Vignette Control........................................................................ 231
Auto Distortion Control.......................................................... 232
Optical VR .................................................................................... 232
ix
ACustom Settings: Fine-Tuning Camera Settings........................ 233
Custom Settings................................................................................ 234
Reset Custom Settings ............................................................ 235
a: Autofocus ................................................................................... 235
a1: AF-C Priority Selection...................................................... 235
a2: Number of Focus Points................................................... 236
a3: Built-in AF-assist Illuminator .......................................... 237
a4: Rangefinder.......................................................................... 237
a5: Manual Focus Ring in AF Mode..................................... 238
b: Exposure..................................................................................... 239
b1: EV Steps for Exposure Cntrl............................................ 239
b2: ISO Display............................................................................ 239
c: Timers/AE Lock ......................................................................... 239
c1: Shutter-Release Button AE-L .......................................... 239
c2: Auto off Timers.................................................................... 240
c3: Self-Timer .............................................................................. 241
d: Shooting/Display..................................................................... 241
d1: Exposure Delay Mode....................................................... 241
d2: File Number Sequence..................................................... 242
d3: Viewfinder Grid Display ................................................... 243
d4: Date Stamp........................................................................... 243
d5: Reverse Indicators.............................................................. 245
e: Bracketing/Flash ...................................................................... 246
e1: Flash Cntrl for Built-in Flash/Optional Flash............. 246
e2: Auto Bracketing Set........................................................... 251
f: Controls........................................................................................ 252
f1: Assign Fn Button ................................................................. 252
f2: Assign AE-L/AF-L Button................................................... 254
f3: Assign Touch Fn................................................................... 255
f4: Reverse Dial Rotation......................................................... 256
x
BThe Setup Menu: Camera Setup.............................................. 257
Setup Menu Options....................................................................... 257
Format Memory Card .............................................................. 259
Image Comment ....................................................................... 260
Copyright Information............................................................ 261
Time Zone and Date ................................................................ 262
Language..................................................................................... 262
Beep Options.............................................................................. 263
Touch Controls .......................................................................... 263
Monitor Brightness................................................................... 263
Info Display Format.................................................................. 264
Auto Info Display ...................................................................... 265
Info Display Auto Off ............................................................... 265
Image Dust Off Ref Photo ...................................................... 266
Flicker Reduction ...................................................................... 268
Slot Empty Release Lock......................................................... 268
Location Data............................................................................. 269
Remote Control ......................................................................... 270
Airplane Mode ........................................................................... 271
Connect to Smart Device ....................................................... 271
Send to Smart Device (Auto) ................................................ 272
Wi-Fi............................................................................................... 272
Bluetooth..................................................................................... 273
Eye-Fi Upload ............................................................................. 274
Conformity Marking................................................................. 276
Firmware Version...................................................................... 276
xi
NThe Retouch Menu: Creating Retouched Copies....................... 277
Retouch Menu Options .................................................................. 277
Creating Retouched Copies .......................................................... 278
NEF (RAW) Processing ............................................................. 280
Trim ................................................................................................ 282
Resize............................................................................................. 283
D-Lighting.................................................................................... 285
Quick Retouch ............................................................................ 286
Red-Eye Correction................................................................... 286
Straighten .................................................................................... 287
Distortion Control ..................................................................... 287
Perspective Control.................................................................. 288
Fisheye .......................................................................................... 288
Filter Effects................................................................................. 289
Monochrome.............................................................................. 290
Image Overlay ............................................................................ 291
Color Outline............................................................................... 293
Photo Illustration....................................................................... 294
Color Sketch ................................................................................ 294
Miniature Effect.......................................................................... 295
Selective Color............................................................................ 296
Painting......................................................................................... 298
Side-by-side Comparison ....................................................... 298
mRecent Settings/OMy Menu ............................................. 300
Choosing a Menu.............................................................................. 300
mRecent Settings ............................................................................ 301
OMy Menu......................................................................................... 301
xii
Technical Notes 305
Compatible Lenses.................................................................. 305
Compatible CPU Lenses................................................................. 305
Compatible Non-CPU Lenses....................................................... 308
The Nikon Creative Lighting System (CLS) ......................... 315
Other Accessories .................................................................... 321
Attaching a Power Connector and AC Adapter .................... 325
Caring for the Camera ............................................................ 327
Storage................................................................................................. 327
Cleaning............................................................................................... 327
Image Sensor Cleaning .................................................................. 328
Caring for the Camera and Battery: Cautions .................... 333
Available Settings.................................................................... 338
Troubleshooting...................................................................... 340
Battery/Display.................................................................................. 340
Shooting (All Modes) ...................................................................... 341
Shooting (P, S, A, M)........................................................................... 345
Playback............................................................................................... 346
Bluetooth and Wi-Fi (Wireless Networks)................................ 348
Miscellaneous.................................................................................... 348
Error Messages......................................................................... 349
Specifications ........................................................................... 356
Lens Kits .................................................................................... 369
AF-P DX NIKKOR 18–55mm f/3.5–5.6G VR .............................. 369
AF-P DX NIKKOR 70–300mm f/4.5–6.3G ED VR and
AF-P DX NIKKOR 70–300mm f/4.5–6.3G ED....................... 375
AF-S DX NIKKOR 18–140mm f/3.5–5.6G ED VR ..................... 380
Memory Card Capacity ........................................................... 387
Battery Life................................................................................ 388
Index .......................................................................................... 390
xiii
To prevent damage to property or injury to yourself or to others, read “For
Your Safety” in its entirety before using this product.
Keep these safety instructions where all those who use this product will read
them.
For Your Safety
DANGER: Failure to observe the precautions marked with this icon carries a
high risk of death or severe injury.
WARNING: Failure to observe the precautions marked with this icon could
result in death or severe injury.
CAUTION: Failure to observe the precautions marked with this icon could
result in injury or property damage.
WARNING
• Do not use while walking or operating a motor vehicle.
Failure to observe this precaution could result in accidents or other injury.
• Do not disassemble or modify this product. Do not touch internal parts
that become exposed as the result of a fall or other accident.
Failure to observe these precautions could result in electric shock or other
injury.
• Should you notice any abnormalities such as the product producing
smoke, heat, or unusual odors, immediately disconnect the battery or
power source.
Continued operation could result in fire, burns or other injury.
• Keep dry.
Do not handle with wet hands.
Do not handle the plug with
wet hands.
Failure to observe these precautions could result in fire or electric shock.
• Do not let your skin remain in prolonged contact with this product
while it is on or plugged in.
Failure to observe this precaution could result in low-temperature burns.
• Do not use this product in the presence of flammable dust or gas such
as propane, gasoline or aerosols.
Failure to observe this precaution could result in explosion or fire.
xiv
• Do not directly view the sun or other bright light source through the
lens or camera.
Failure to observe this precaution could result in visual impairment.
• Do not aim the flash or AF-assist illuminator at the operator of a motor
vehicle.
Failure to observe this precaution could result in accidents.
• Keep this product out of reach of children.
Failure to observe this precaution could result in injury or product
malfunction.
In addition, note that small parts constitute a choking hazard.
Should a child swallow any part of this product, seek immediate medical
attention.
• Do not entangle, wrap or twist the straps around your neck.
Failure to observe this precaution could result in accidents.
• Do not use batteries, chargers, or AC adapters not specifically
designated for use with this product.
When using batteries, chargers,
and AC adapters designated for use with this product, do not:
- Damage, modify, forcibly tug or bend the cords or cables, place them
under heavy objects, or expose them to heat or flame.
- Use travel converters or adapters designed to convert from one
voltage to another or with DC-to-AC inverters.
Failure to observe these precautions could result in fire or electric shock.
• Do not handle the plug when charging the product or using the AC
adapter during thunderstorms.
Failure to observe this precaution could result in electric shock.
• Do not handle with bare hands in locations exposed to extremely high
or low temperatures.
Failure to observe this precaution could result in burns, or frostbite.
CAUTION
• Do not leave the lens pointed at the sun or other strong light sources.
Light focused by the lens could cause fire or damage to product’s internal
parts.
When shooting backlit subjects, keep the sun well out of the frame.
Sunlight focused into the camera when the sun is close to the frame could
cause fire.
xv
• Turn this product off when its use is prohibited. Disable wireless
features when the use of wireless equipment is prohibited.
The radio-frequency emissions produced by this product could interfere
with equipment onboard aircraft or in hospitals or other medical facilities.
• Remove the battery and disconnect the AC adapter if this product will
not be used for an extended period.
Failure to observe this precaution could result in fire or product
malfunction.
• Do not touch moving parts of the lens or other moving parts.
Failure to observe this precaution could result in injury.
• Do not fire the flash in contact with or in close proximity to the skin or
objects.
Failure to observe this precaution could result in burns or fire.
• Do not leave the product where it will be exposed to extremely high
temperatures, for an extended period such as in an enclosed
automobile or in direct sunlight.
Failure to observe this precaution could result in fire or product
malfunction.
DANGER (Batteries)
• Do not mishandle batteries.
Failure to observe the following precautions could result in the batteries
leaking, overheating, rupturing, or catching fire:
- Use only rechargeable batteries approved for use in this product.
- Do not expose batteries to flame or excessive heat.
- Do not disassemble.
- Do not short-circuit the terminals by touching them to necklaces,
hairpins, or other metal objects.
- Do not expose batteries or the products in which they are inserted to
powerful physical shocks.
• Do not attempt to recharge EN-EL14a rechargeable batteries using
chargers not specifically designated for this purpose.
Failure to observe this precaution could result in the batteries leaking,
overheating, rupturing, or catching fire.
• If battery liquid comes into contact with the eyes, rinse with plenty of
clean water and seek immediate medical attention.
Delaying action could result in eye injuries.
xvi
WARNING (Batteries)
• Keep batteries out of reach of children.
Should a child swallow a battery, seek immediate medical attention.
• Do not immerse batteries in water or expose to rain.
Failure to observe this precaution could result in fire or product
malfunction. Immediately dry the product with a towel or similar object
should it become wet.
• Discontinue use immediately should you notice any changes in the
batteries, such as discoloration or deformation.
Cease charging
EN-EL14a rechargeable batteries if they do not charge in the specified
period of time.
Failure to observe these precautions could result in the batteries leaking,
overheating, rupturing, or catching fire.
• Prior to disposal, insulate battery terminals with tape.
Overheating, rupture, or fire may result should metal objects come into
contact with the terminals.
Recycle or dispose of batteries in accord with
local regulations.
• If battery liquid comes into contact with a person's skin or clothing,
immediately rinse the affected area with plenty of clean water.
Failure to observe this precaution could result in skin irritation.
This manual suits for next models
1
Table of contents
Other Nikon Digital Camera manuals
Nikon
Nikon D4s User manual
Nikon
Nikon CoolPix 4100 User manual
Nikon
Nikon D300S User manual
Nikon
Nikon COOLPIX L28 User manual
Nikon
Nikon CoolPix S8200 User manual
Nikon
Nikon Coolpix 950 User manual
Nikon
Nikon CoolPix L24 User manual
Nikon
Nikon Coolpix S4100 User manual
Nikon
Nikon COOLPIX AW120 User manual
Nikon
Nikon S5100 User guide
Nikon
Nikon MD-E User manual
Nikon
Nikon COOLPIX L1 User manual
Nikon
Nikon Coolpix S200 User manual
Nikon
Nikon CoolPix S51c User manual
Nikon
Nikon Nuvis 75 User manual
Nikon
Nikon S620 User manual
Nikon
Nikon 1 AW1 User manual
Nikon
Nikon D3500 User manual
Nikon
Nikon CoolPix S2 User manual
Nikon
Nikon CoolPix P6000 User manual
