EzFold DW-FDB03 User manual

EzFold Scooter
Instruction Manual

Thank you for purchasing the EzFold Scooter！
Proper use of this product is the prerequisite to ensure safety,
convenience and durability
Please read this instruction carefully before using, and be sure to
master the matters marked with the mark ★
Catalogue
1 . Product drawing
2 . Install
3 . Opening and folding indication picture
4 . Accessories description
5 . Parameters
6. Product standard configuration
7. Inspection and maintenance before driving
8. Battery instruction
9 . Attentions for safe driving
10. Eliminate of frequent malfunction
11. Friendly reminder

1
Product drawing
1.Key switch 12. Pedal plate
2.Shifter 13.Brake apparatus
3.Electric quantity display 14. Motor
4.Forward and reverse switch 15. Reflector
5.Handlebar 16. Rear Fender
6.Brake 17 .Battery
7.Horn switch 18. Battery box
8.Quick release 19 .Charge port
9.Headlamp 20 .Armrest
10. Front Fender 21.Backrest
11. Front wheel 22. Cushion

2

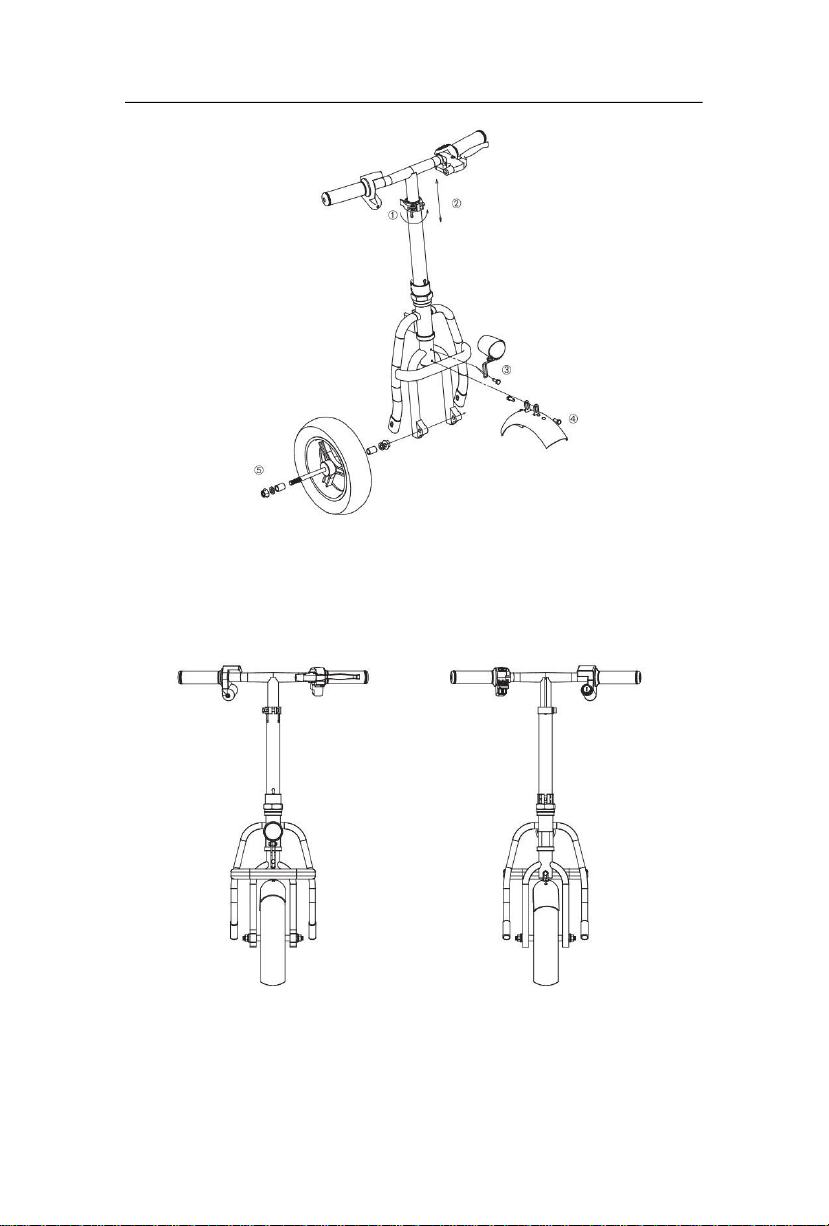

①Open the quick release
②Can be adjusted up and down
③Install the headlamp (follow the arrow)
④Install the nasonry (follow the arrow)
⑤Install the wheel (follow the arrow)
Face side install finish Back side install finish

3

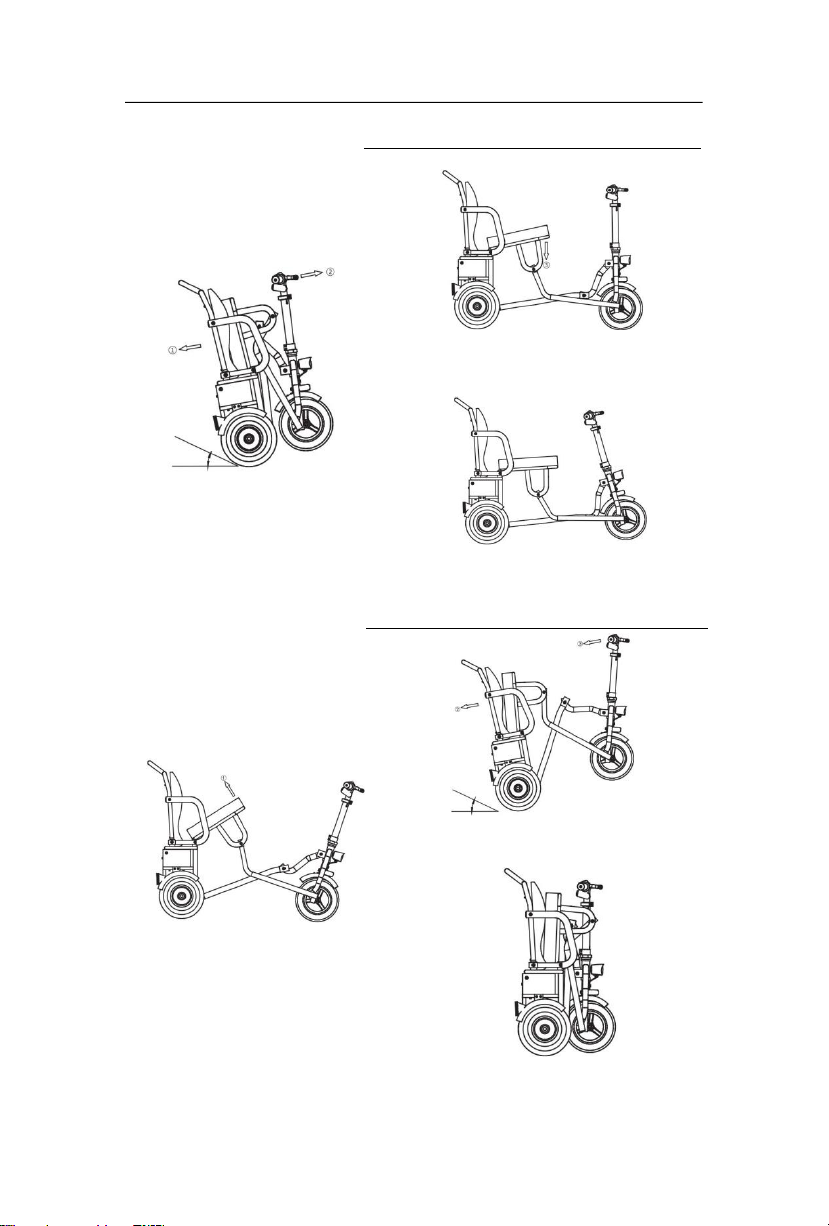

Opening the EzFold Scooter
①Tilt the body
② Forward the handlebar
(direction as the picture)
③Press down the cushion
(as the picture)
Finish the opening
Folding the EzFold Scooter
②Tilt the body
③Pull back the handlebar
①Lift the cushion up
(direction asthe picture)
Finish the folding

4

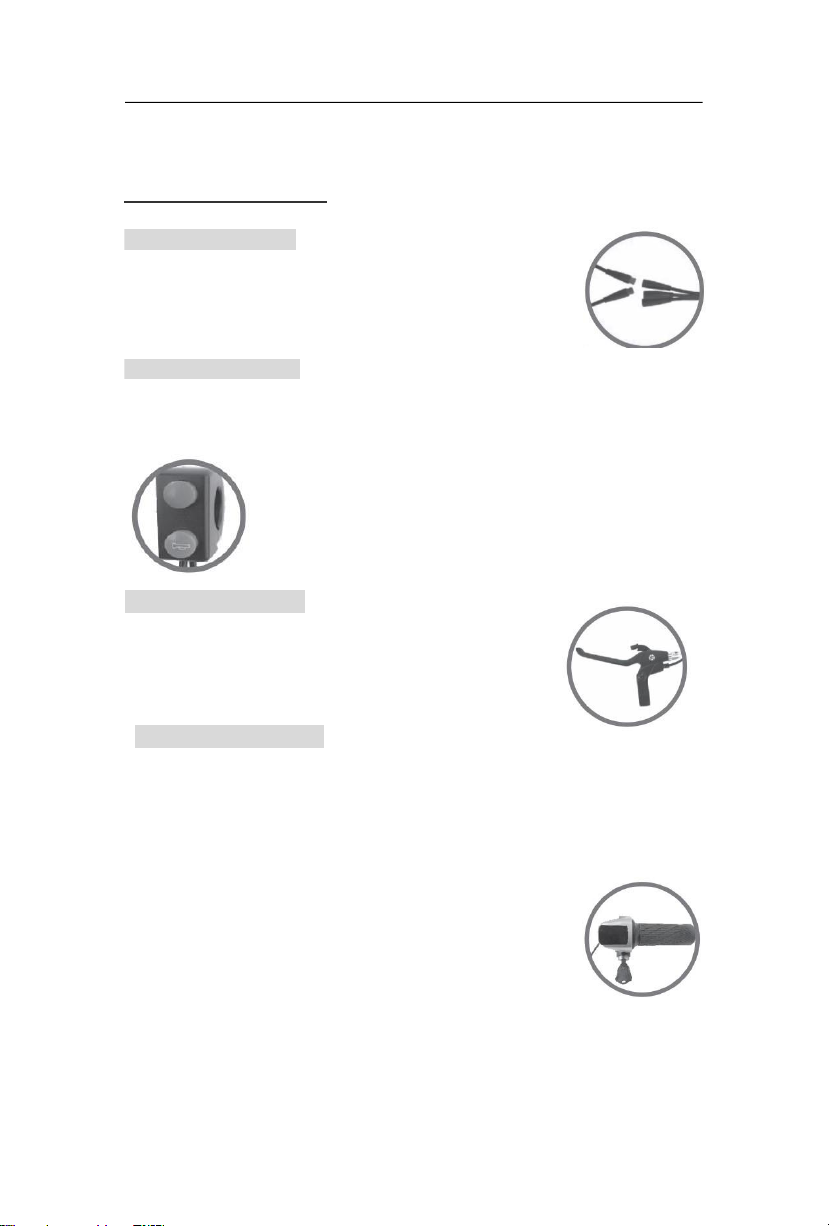

Accessories description
Electric switch headlights, horns, forward and back switch buttons are
designedtobeanti-slip, ergonomics for andeasy operation
(top) Red button : pressing the red button will put the EzFold
scooter in reverse mode
Green button : headlamp on/off switch
Brake handle
Aluminum alloy, anti-rust break handle. Always use
break when stopping your scooter
Electronic accelerator handle
The ergonomic non-slip accelerator handle: by turning the handle down
the EzFold Scooter will accelerate and be letting go th EzFold will come
to a stop. Note: Always use the break handle in addition to letting to of
the accelerator when coming to a stop.
3 key Modes
1. Off
2. On
3. on with headlamp
Waterproof plug wire
Most plugs on the EzFold Scooter are waterproof
and are easy to replace,
Electric control switch

5
Specifications
Model
Specifications
DW-FDB03
DW-FDB02
DW-FDB01
Open size
34" x 20"x 39"
34" x 20"x 39"
Fold size
34" x 20" x 18"
34" x 20" x 18"
Total Weight
46 lbs.
46 lbs.
Frame
Aluminum alloy
Aluminum alloy
Front wheel
8 inch solid tire
8 inch solid tire
Rear wheel
8 inch solid tire
8 inch solid tire
Suspension
Front wheel shock
absorption
Front wheel shock
absorption
Brake
Electromagnetic +
hand break brake
Electronic brake +
hand brake
Maximum load
weight
250 lbs.
250 lbs.
Motor
24V 300W
(Rear axle motor)
24V 300W
Lithium Battery
24V 8AH
(detachable battery box)
24V 8AH
(detachable battery box)
Forward speed
10 m.p.h
10 m.p.h.
Reverse speed
3.5 m.p.h
3.5 m.p.h
Mileage
/Driving distance
15 Miles
15 Miles
Climbing angles
12°
≤12°

6
Product standard configuration
Portable electric
folding scooter
Installation tool
Charger
Instructions
1 unit
1unit
1unit
1unit
The above data are for reference only. The technical data of this product
series are subject to change without prior notice In actual use, due to
different road conditions, climate and driving speed, data such as
charging time and driving range are different
Inspection and maintenance before driving
In order to ensure that you get maximum use and safety for your EzFold
Scooter, please check and maintain the product according to the following
requirements before using.
1. Check whether the battery is full of electricity to ensure that all
cables are properly connected.
2. Check whether the brake system is sensitive and effective.
3. Check whether the tire pressure is normal
4. Before driving, please correct the front wheel and tighten the handle
fastening handle.
5. The handlebar and the moving clearance of each part, should be
inspect fastening and lubricate irregularly

7
Battery Instruction
★ Improper use will shorten the service life of the battery, and may lead
to the fever of the battery, Fire, or even explosions. Please read the
following notes carefully:
★Do not separate and disconnect the battery. There are protective
circuit function parts inside the battery pack. Dis-assembly will
damagethese parts;
★ It is strictly prohibited to short circuit the positive and negative
terminals of the battery, Once a short circuit is found ,it will cause the
battery heat, fire and other dangers;
★ Do not burn or heat the battery. Heating or burning the battery will
melt the insulation, thus causing the battery fire, explosion and other
dangers;
★ Do not immerse the battery in water or in a humidity environment,
The water in the battery pack is easy to cause the short circuit of the
protective circuit board in the battery pack, Thus causing short circuit
heating and other dangers;
★You must charge the battery with a charger that matches the battery,
Otherwise, abnormal chemical reactions will occur in the battery,
causing the battery to heat up, burn and other dangers;
★ It is strictly prohibited to use a hammer or other hard objects to hit
the battery, cutting the battery with sharp tools, When the battery is

8
damaged, it may cause short circuit, thus causing fire and other dangers;
★ If the battery is damaged or leaked, and the leakage material enters
the eyes carelessly, please don't rub it with your hands, wash it with
clean water immediately, and go to the doctor as soon as possible;
★ Do not mix lithium ion batteries made by different manufacturers or
with different capacity. If so, it may cause heat, fire and other dangers in
the process of charging and discharging;
★ The battery needs to be fully charged in time (within 3 days) after use,
If the battery pack is not used for a long time, it must be fully charged
every two months, otherwise the battery will be damaged easily;
★ Do not exceed the battery charging time (generally within 10 hours),
for fear that the danger of overheating. If the battery charging exceeds
the specified time and is not fully charged, please stop charging;
★Don't put the battery where a child can touch so as to avoid danger;
★ Do not store the battery in microwave or high pressure environment
so as to avoid danger.

9
Attentions for safe driving
In order to ensure that you can use this Ezfold Scooter properly and
safely, please be sure to follow the following requirements for
proper operation:
★ Before driving for the first time, be sure to test drive you Ezfold in
the open field. Only then drive it on a pedestrian sidewalk ,
after mastering acceleration, deceleration, braking, perfectly
★ Follow traffic rules and maintain moderate speed; Driving at top
speed will not only dramatically increase power consumption and
reduce range, but also reduce safety
★ When driving in a crowded indoor environment, such as a
supermarket, you must keep a low speed to control the braking
distance. When turning, the speed must not exceed 1.2 mph
★ It should not be used in rainy days, and wading should be avoided
as far as possible. When wading through, the wading depth should
not exceed 1" and the speed should not exceed 1 m.p.h.
★ With the power switch key, in the non-driving state, the power
switch must be closed and the key pulled out, to prevent children
and others from wrong operation

10
Eliminate of frequent malfunction
Malfunction
Reason
solution
Adjuster shifter out
of order or
Significant
reduction of
1. battery cable is loose
2. Shortage power
3. Spring failure of Adjuster
shifter
1.Tighten the battery cable
2.full recharge the battery
3.change the spring or shifter
maximum speed
1. Power line damaged or
1.Repair the power cord or
Charger cannot be
charged normally
socket off
2.Charger fuse fusing
3.The battery terminal is
tighten the socket
2.Replace fuse of the same
model
disconnected
3.Plug in all the connections
1. Tire pressure is insufficient
1. Properly inflate tires;Adjust
the tightness of brake cable
properly
2. Avoid long and high speed
driving and frequent braking;It is
normal for power consumption
to increase in uphill and upwind
conditions
3. Replace or repair batteries
or brake disc adjustment is too
Charging is
tight
normal,but driving
2. Long time driving at high
mileage is not
speed or travel uphill, adverse
enough
wind, brake start too frequently
3. Battery aging or damage
1. Loose or detached
connection of battery, motor,
1. Check the battery, motor,
drive motor doesn't
controller and other cables
controller and other cables, and
work properly
2. Can not maintain the
reconnect firmly
average speed of driving,
2.Keep the control shifter clean
control shifter is damage
to avoid stained.
caused by pollution

11
beb
★Batteries, chargers, motors, controllers and control shifter should be
repaired by professional technicians or after-sales maintenance units
★ The above data are for reference only. The technical data of this
product series are subject to change without prior notice
★ In actual use, due to different road conditions, climate, driving speed,
charging time, mileage and other data are different
Specification is based solely on actual products; Subject
to change without prior notice.
Safety reminder
★ When the scooter starts, please slow down the throttle to
prevent the front wheel from skidding
★ When the scooter climbing the slope , please lean forward to
Keep the center of gravity steady and prevent scooter from
turning over after climbing the slope
★ When the scooter is turning, please slow down and avoid
turning over
★ in the normal using of the scooter, please check whether the
screw loose or off periodically
★ Please drive as little as possible when the road is slippery in
rainy days
