NAMI ELECTRIC BURN-E User manual

user manuel

English version

TABLE OF CONTENTS
INTRODUCTION�����������������������������������������������������������������������5
Who is NAMI?���������������������������������������������������������������������������������������������������������������������������� 5
Before you begin��������������������������������������������������������������������������������������������������������������������7
FEATURES OF THE NAMI BURN-E
ELECTRIC SCOOTER������������������������������������������������������������ 8
Overview��������������������������������������������������������������������������������������������������������������������������������������8
Driving elements�����������������������������������������������������������������������������������������������������������������10
Technical specics������������������������������������������������������������������������������������������������������������� 11
HOW TO SET UP THE SCOOTER����������������������������������12
Description of the folding system������������������������������������������������������������������������12
How to fold and unfold the scooter���������������������������������������������������������������������13
Assembly of the scooter�����������������������������������������������������������������������������������������������14
Dashboard power supply��������������������������������������������������������������������������������������������15
Maintenance of the scooter��������������������������������������������������������������������������������������16
SAFETY INSTRUCTIONS AND WARNINGS����������� 18
BATTERY������������������������������������������������������������������������������������20
Loading��������������������������������������������������������������������������������������������������������������������������������������� 20
Storage��������������������������������������������������������������������������������������������������������������������������������������� 20
Warnings������������������������������������������������������������������������������������������������������������������������������������21
DASHBOARD��������������������������������������������������������������������������22
Description of the different pictograms��������������������������������������������������������22
Description of displayed values�������������������������������������������������������������������������� 25
Settings�������������������������������������������������������������������������������������������������������������������������������������� 26
List of error codes�������������������������������������������������������������������������������������������������������������� 29
Default settings������������������������������������������������������������������������������������������������������������������ 20
Basic settings�������������������������������������������������������������������������������������������������������������������������31
TRAVELOGUE�������������������������������������������������������������������������62


WHO IS NAMI?
New Age Mobility Innovation� These four words sum up NAMI’s
ambition to design, develop and manufacture high-end
electric mobility vehicles�
New and innovative, this brand was created in 2020 to give
a boost to the electromobility market�
Power, reliability, design.
We have redened the criterias for the mobility of tomorrow.
USER MANUAL - EN
5

You are about to explore a new way of
riding on two wheels with your NAMI Burn-e
scooter. And we are delighted that you are
ready to live this experience!
6
USER MANUAL - EN

BEFORE
YOU
BEGIN
If in 1915, in New York, we climbed on the two wheels
imagined by Autoped company to avoid running out of
gas, in the 21st century, the electric scooter has become
a “fun“ way to get around and which makes us “win” of
time ”on daily trips*“� Fast, solid and reliable, the NAMI
brand is aimed at all users looking for new sensations in
urban space�
Before you get started, here are some useful
instructions to read and follow to get the most
out of your Burn-e’s features�When opening
the box, please inspect the contents and verify
that all of the following are present:
• Burn-e scooter
• 2 chargers 2.8 A
• tool kit
To unpack the product, please remove the upper protection
that wraps your scooter, then lift it by holding it by both
ends of the frame� For convenience, you can ask a second
person to help you� Once the scooter is out of the box, make
sure the kickstand is unfolded�
*Study carried out by 6t-bureau de recherche in 2019
USER MANUAL - EN
7

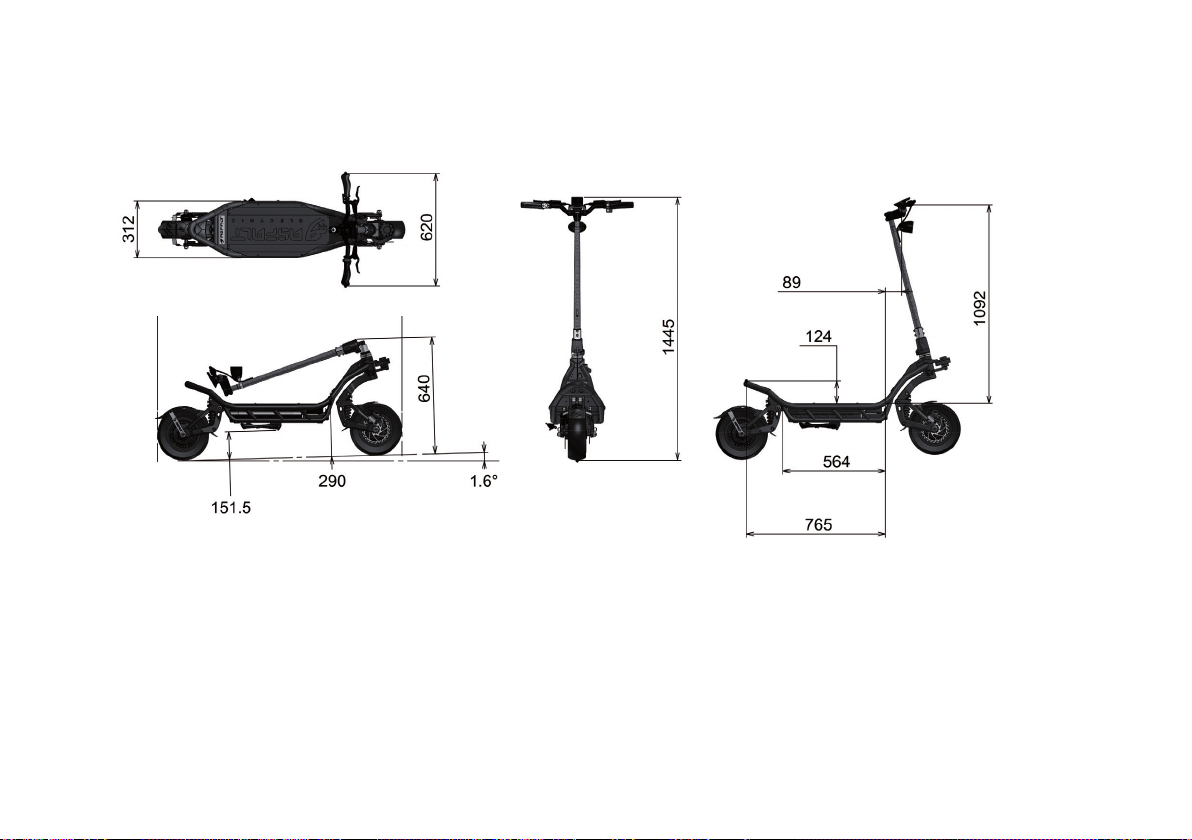

Length:
1346 mm
Width:
312 mm for the frame,
620 mm for the
handlebars
Height:
1445mm from the
handlebars to
the ground,
640mm when folded to
the ground,
1090 mm from the
handlebars to the bridge
Ground clearance:
150 mm
Standing deck area:
564mm x 312mm,
length 766mm,
rear footrest included
Rake: 76
Tire size:
283mm when inated
Suggested PSI:
50 on both tires
FEATURES OF THE NAMI BURN-E ELECTRIC SCOOTER
Overview
8
USER MANUAL - EN

FEATURES OF THE NAMI BURN-E ELECTRIC SCOOTER

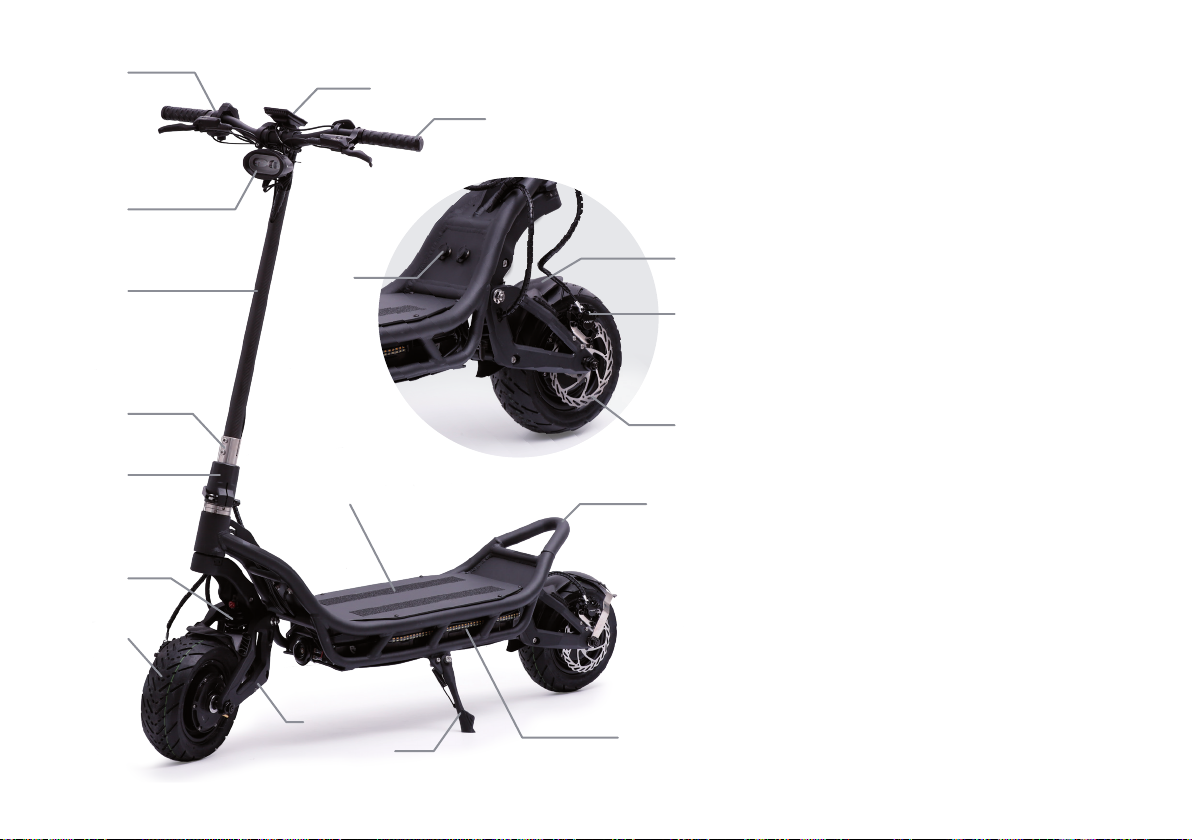

Overview
1- Horn
2- Front light
3- Dashboard
4- Handlebar
5- Steering column
6- Lock system
7- Folding system
8- Suspension
9- Wheel
10 - Swim arm
11 - Kickstand
12 - Rear / Side light system + indicator
13 - Footrest
14 - Platform
15 - Charging port
16 - Brake disc
17 - Brake caliper
18 - Mudguard
1
2
515
6
7
8
9
3
4
13
16
17
18
12
14
11
10
USER MANUAL - EN
9

1- Right switch
(Lights / Turn signals / Horn)
2 - Accelerator
3- Left hand switch
(Power / Instrument panel adjustment system)
4- Rear brake lever (left)
5- Front brake lever (right)
FEATURES OF THE NAMI BURN-E ELECTRIC SCOOTER
Driving elements
5
3
1
2
4
10
USER MANUAL - EN

FEATURES OF THE NAMI BURN-E ELECTRIC SCOOTER
Technical specics
FRAME
One piece aviation aluminum
welding frame / Solution and
aging heat treatment
SWIM ARM, FRONT SUSPENSION
HOLDER, FOLDING LOCK
One piece 6082 aviation
aluminum forging
BATTERY
72V 35AH 18650 panasonic cell
WEIGHT KG
47
MAX SPEED KM/H
100
RANGE WITH AVERAGE
SPEED AROUND 30KM/H
150
MOTOR
1500Wx2 with hall sensor /
Peak at 4200Wx2
CONTROLLER
12 mosfet / 50a max
current controller x2 / Sine
wave, ip65 / All waterproof
connection
BRAKE
Front and Rear Nutt full
hydraulic brake with 160mm
rotor and cooling n pad
SUSPENSION
165mm length KKE hydraulic
coil shock with rebound
adjustment
DASHBOARD
Smart display with riding
mode setting ability /
Parameters setting for each
controller is independent
Smart cruise control / Over
heat protection build in / IP65
LIGHT AND HORN
2000 lumen front led light, /
Side LED strip integrated with
turn signal / Motorcycle horn /
IP55
CABLE SYSTEM AND IP RATING
Quick connection for all
electric component, for the
cables near handle bar and
under the deck / IP 55 for the
whole scooter
FOLDING SYSTEM
Patent designed thread
lock taper folding system /
304 stainless steel folding
parts
HANDLEBAR
31�8mm diameter / 620mm
length handle bar
TIRE
11 inch tubeless tire 90/65-
6�5 / Street or off road
tire available
CHARGER
Standard 2x 3a quick
charger / Dual charging port
in the scooter
MAIN DIMENSION
Overall size:
1346mm x 620mm x 1446 mm
Hanlde bar to deck, 1090mm
in height
Deck cover:
564x312mm, 766mm in length
include rear foot rest
Ground clearence:
150mm min at kickstand
base,Top of the deck to the
ground 292mm
FOLDING SIZE
1346mm x 620mm x 640mm
PACKAGE SIZE
1405mm x 355mm x 690mm
USER MANUAL - EN
11

HOW TO SET UP THE SCOOTER
Description of the folding system
Folding lock Steering
column base
Folding support base Quick release
12
USER MANUAL - EN

HOW TO SET UP THE SCOOTER

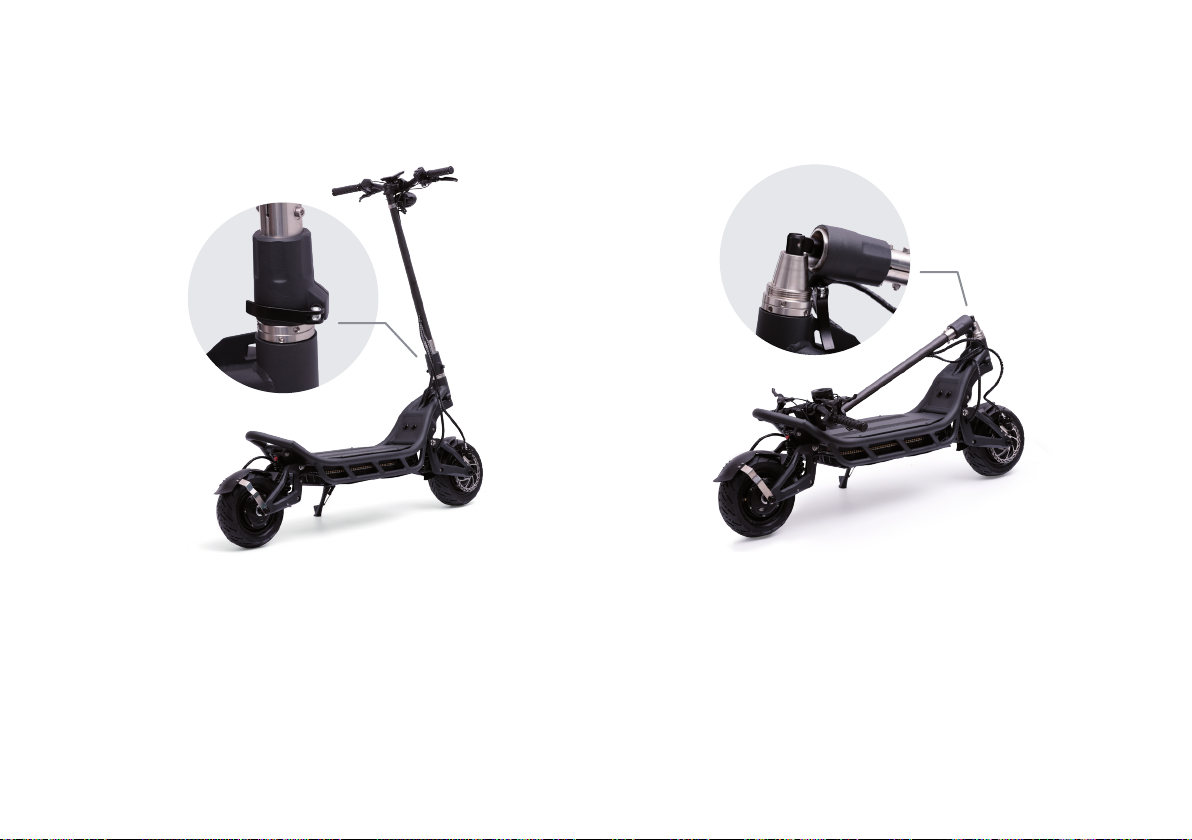

How to fold and unfold the scooter
TO FOLD THE SCOOTER:
1. Unlock the quick release of the foldind lock�
2. Unscrew the folding lock and slide it off
from the folding support base�
3. Lower the steering column�
TO UNFOLD THE SCOOTER:
1. Pull the steering column up at his maximum level�
2. Slide the folding lock to the folding support base,
and screw it strongly�
3. Lock the quick release on the folding lock�
USER MANUAL - EN
13

HOW TO SET UP THE SCOOTER
Assembly of the scooter
MAKE SURE THE KICKSTAND IS UNFOLDED BEFORE
PREPARING THE FOLLOWING SETUP:
1. Position the handlebars using the
stem in the axis of the steering
column�
2. Tighten the four M5 screws of the
stem as tight as possible�
3. Find the correct angle and position
of the brake lever by tightening the
screw with the 4mm Allen key�
REPRODUCE THESE PREVIOUS SETUP FOR THE
FOLLOWING ITEMS:
• the dashboard support
• the dashboard switch
• the accelerator and the lighting
• horn switch�
Then tighten them correctly using the
supplied tool kit�
IF ANY OF THE ITEMS MENTIONED ARE MISSING, IMMEDIATELY CONTACT THE STORE
WHERE YOU PURCHASED THIS SCOOTER�
14
USER MANUAL - EN

HOW TO SET UP THE SCOOTER
Dashboard power supply
POWER BUTTON:
press for 1 second to start Burn-e,
To change the value in section B,
press once�
MODE BUTTON:
press for 3 seconds, activate the
USB port in the dashboard, so
that the USB mark shows up�
BUTTON:
press for 1 second to activate
the turbo� Press once to change
driving mode�
BUTTON:
press for 1 second to activate
the cruise control� Press once to
change driving mode�
When the resettable information is displayed, press +and -
simultaneously for 1 second to reset the value�
The dashboard is delivered with a control unit located on the
handlebar with 4 buttons:
USER MANUAL - EN
15

HOW TO SET UP THE SCOOTER
Maintenance of the scooter
HOW TO ADJUST THE SUSPENSIONS
You can adjust in two different ways:
• Preload adjustment: you can adjust it by the lock nut under
the suspension spring� Screw it in for more hardness when
starting the rebound, or unscrew it for less hardness when
starting the rebound�
• Rebound adjustment: use the red ring on the top of the spring
(see attached photo)� It adjusts the speed at which hydraulic
oil moves as damping�
Srefers to slower hydraulic displacement, which is more
hard felling�
Frefers to a faster hydraulic displacement which means a
feeling of solfter�
16
USER MANUAL - EN

HOW TO SET UP THE SCOOTER
Maintenance of the scooter
HOW TO ADJUST THE BREAKS
1. please check if the disc is well balanced
2. please check if the disc pad is in the well condition with enough
thickness to provide the braking power needed
3. please adjust the brake pad postion via the two srews on the caliper Screw 1 Screw 2
• Your tires are tted with pressure valves.
Use them to re-inate your tires to a
maximum of 50 psi�
• Any repair must be carried out by a
professional and / or ofcial distributor
of the NAMI Electric brand�
• Never perform maintenance on the
displayed battery is on or charging�
• Clean any stains from your scooter with
a damp cloth�
• Do not use alcohol, gasoline, kerosene,
or other corrosive and volatile
chemical cleaners�
• Do not wash off with water�
• Make sure that the scooter is switched
off and unplugged during cleaning and
that no water drop or trace of moisture
enters the charging port�
USER MANUAL - EN
17

SAFETY INSTRUCTIONS AND WARNINGS
• Please comply with the trafc laws and related
regulations of the country in which you are driving�
• The speed of the scooter is limited to 25km/h�
• The use of new electric mobility devices is subject to
maximum speed�
• Check that the regulations in your country are in line
with this speed limit�
• Any modication to the scooter resulting in an increase
in the maximum speed is prohibited, and will void your
entire warranty�
• The age of riding an electric scooter varies by country�
• Please take note of the legislation in force in the country
where you wish to drive�
• According to European Standard EN 17128: 2020, the user
must be at least 12 years old�
• For your safety, be sure to wear a full face helmet and
other protective gear for the knees, elbows, hands,
upper body�
• Make sure you have the right shoes for riding the
scooter� Wearing shoes at all times is compulsory�
• At night, consider wearing retro-reective gear and any
signage accessories�
• Watch out for the rotating parts of the scooter�
• Pay attention to the position of your body and your
clothing when driving: if any of your fabrics curl up on
any of the rotating parts of the vehicle such as the
engine, disc, section folding, suspension or front / rear
fork this can cause serious injury�
• Do not make any modications to the scooter or the
spare parts by yourself�
• This creates a risk of accident and malfunction of
the scooter�
• Do not ride two people on the electric scooter�
• NAMI electric vehicles are designed for one person�
• Always handle the electric scooter with care to
avoid injury�
• Watch out for weather conditions: watch out for the
humidity level on the road�
• Burn-e is water resistant, but for your safety and to
ensure the life of your vehicle, it is recommended not to
be used in rainy conditions�
• Do not immerse the scooter in water�
• Before each use, check the general condition of the
scooter, such as wear of the tires and brake pads as well
as their proper functioning�
• Remember to check that the screws are tightened
as much as possible� Make sure the folding system is
securely locked�
• The maximum payload allowed on the scooter is 150 kg�
18
USER MANUAL - EN

SAFETY ADVICES
As with any mechanical component, a vehicle is subject to high stress and wear.
Various materials and components can react to wear or fatigue differently. If you exceed the expected life of a component, it can suddenly rupture and risk
injury to the user. Cracks, scratches and discolorations in high stress areas indicate that the component has exceeded its service life and should be replaced.
»EN 17128: 2020 (E) 63 city traffic means crossing many obstacles, such as sidewalks or steps. It is recommended to avoid show jumping. It is important to
anticipate and adapt your trajectory and speed to those of a pedestrian before crossing these obstacles. It is also recommended to get out of the vehicle
when these obstacles become dangerous because of their shape, their height or the risk of skidding they present. Keep the plastic protection out of the reach
of children to avoid any risk of suffocation. For inflatable tires, take the time to learn the basics of the practice to prevent a serious accident from occurring
in the first few months. Avoid high traffic areas or congested areas; in all cases, anticipate its trajectory and speed while respecting the highway code, the
pedestrian code and the most vulnerable people; signal their presence when approaching a pedestrian or cyclist who may not have seen or heard the vehicle;
walk through protected passages; in all cases, pay attention to yourself and others; do not divert the vehicle from its initial use; this vehicle is not intended for
acrobatic use; beware, the brake may heat up when used. Do not touch it after use; regularly check the tightening of the various bolted elements, in particular
the wheel axles, the folding system, the steering system and the brake axle; eliminate the sharp edges generated by use; do not modify or modify the vehicle,
including the steerer tube and sleeve, stem, folding mechanism and rear brake.
SAFETY INSTRUCTIONS AND WARNINGS
REMINDER OF THE PRECAUTIONS BEFORE DRIVING:
• Always wear a helmet and other body protection� Drive safely�
• Get to know your vehicle and practice riding the electric scooter before you hit the road� Remember to select the driving mode that suits you�
In order to deal with sudden situations, be prepared to slow down by holding the brake at all times�
• Before turning, consider slowing down�
• During road obstacles, be sure to slow down�
• Do not take stony paths or roads in poor condition�
• Learn how to use the front brake: most of the braking power comes from the front brake�
• Be careful because there is a risk of burns due to the heat of the engine and the brakes (in particular the brake disc and its caliper) after use�
• Please always use two hands to hold the handlebars and pay attention to road conditions as well as trafc conditions.
• Do not ride with the kickstand down�
• Do not wear earbuds, headphones or earphones while driving�
• Never drive under the inuence of drugs or alcohol. Stay in control of your actions on the road.
• You are fully responsible for physical and material injuries in the event of an accident�
• Always obey the laws of the country in which you are driving�
USER MANUAL - EN
19

BATTERY
Loading Storage
1. Switch off the scooter before charging it�
2. Locate the charging port
3. Open the charging port
4. Connect the charger
5. Connect the charger to a 220V electrical outlet
The charger led is red when charging. It turns
green when the battery is fully charged.
The charging time with a charger is 12:30�
The charging time with two chargers is 6 hours�
• Your battery is made up of lithium-ion cells�
• It should always be stored away from moisture
and at an ideal temperature of 20 ° C�
• If you are not using it, be sure to charge
it regularly�
• The battery must be recycled at the end of its
life to limit its environmental impact� Your seller
or place of sale will indicate a collection point�
For more informations please visit our website :
www�nami-electric�com�
20
USER MANUAL - EN
Other manuals for BURN-E
1
Table of contents
Languages:
Other NAMI ELECTRIC Scooter manuals
