rPP PCD
PHASE ADAPTIVE DIMMING POWER PACK
FAMILY INSTRUCTIONS
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: [phone] www.acuitycontrols.com © 2022 Acuity Brands Lighting, Inc. All rights reserved. Rev. 11/03/2022
912-00296-001 - FULL
READ AND FOLLOW ALL SAFETY INSTRUCTIONS!
SAVE THESE INSTRUCTIONS AND DELIVER TO OWNER AFTER INSTALLATION
IMPORTANT SAFEGUARDS
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED
INCLUDING THE FOLLOWING:
• DO NOT USE OUTDOORS.
• DO NOT MOUNT NEAR GAS OR ELECTRIC HEATERS.
• EQUIPMENT SHOULD BE MOUNTED IN
LOCATIONS AND AT HEIGHTS WHERE IT WILL NOT
READILY BE SUBJECTED TO TAMPERING BY
UNAUTHORIZED PERSONNEL.
• THE USE OF ACCESSORY EQUIPMENT NOT
RECOMMENDED BYTHE MANUFACTURER MAY
CAUSE AN UNSAFE CONDITION.
TITLE 20/24
√ Do not exceed maximum wattage, ratings, or published
operation conditions of product.
√ Do not overload.
√ Follow all manufacturer’s warnings, recommendations
and restrictions to ensure proper operation of product.
• To reduce the risk of death, personal injury or property damage from re, electric shock, falling parts, cuts/abrasions, and other hazards please read all warnings and instructions
included with and on the xture box and all xture labels.
• Before installing, servicing, or performing routine maintenance upon this equipment, follow these general precautions.
• Installation and service should be performed by a qualied licensed electrician.
• Maintenance should be performed by qualied person(s) familiar with the products’construction & operation & any hazards involved. Regular maintenance programs recommended.
• To be installed to a circuit with overvoltage control to Overvoltage category Cat.III or less, minimum suppression rating 6.0 kV for a 600 V ac rms system voltage
• DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so that no parts should have been damaged during transit. Inspect to conrm. Any part damaged
or broken during or after assembly should be replaced.
CAUTION: RISK OF PRODUCT DAMAGE
√ Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding equipment should be worn
during all installation or servicing of the unit.
√ Do not touch individual electrical components, as this can cause ESD and aect product performance.
√ Do not stretch or use cable sets that are too short or are of insucient length.
√ Do not tamper with contacts.
√ Do not modify the product.
√ Do not change or alter internal wiring or installation circuitry.
√ Do not use product for anything other than its intended use.
WARNING - RISK OF BURN or FIRE
CAUTION - RISK OF INJURY
√ Wear gloves and safety glasses at all times when
installing, servicing or performing maintenance.
WARNING - RISK OF ELECTRIC SHOCK
√ Disconnect or turn o power before installation or servicing.
√ Verify that supply voltage is correct by comparing it with the
product information.
√ Make all electrical and grounded connections in accordance with
the National Electrical Code (NEC) and any applicable local code
requirements.
√ All wiring connections should be capped with UL approved
recognized wire connectors.
√ All unused connector openings must be capped.
C US LISTED
WARRANTY
5-year limited warranty.
Full warranty terms located at: www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Specications subject to change without notice.
Actual performance may dier as a result of end-user environment and application.
Contains FCC ID: 2ADCB-RMODIT3
Contains IC: 6715C-RMODIT3
IFT #: RCPNLNL20-2057
Acuity Brands Lighting Inc. RMODIT3
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible
que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o
dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su
operación no deseada.
In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the radiator shall not be less than
20cm during normal operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed
to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
1. Turn off power at circuit breaker.
2. Install electrical box in accordance with state, local, and national electrical codes and
requirements.
3. Remove lock washer and nut from the power pack.
4. Insert the chase nipple into a ½” knock-out.
5. Slide on the lock washer and tighten the nut to firmly secure the power pack to the junction box.
6. Wire per the installation table shown to the right following state, local, and national codes and
requirements.
7. For Chicago Plenum models only: connect the antenna with the gasket to the inside of the sealed
box with the retaining nut on the outside of the box.
8. Install electrical box cover plate before restoring power.
INSTALLATION INSTRUCTIONS WIRING LEGEND
Description Wire Color
All Units
Controlled Load Hot , 120-277VAC Blue
Ground Green
Non-Emergency (Normal) Units
Normal Power Hot (Unswitched) ,120-277VAC Black (fused)
Normal Power Neutral White
EM Units
Emergency Power Hot (Unswitched) , 120-277VAC Black (fused)
Emergency Power Neutral White
ER Units
Emergency Power Hot (Unswitched) , 120-277VAC Red (fused)
Emergency Power Neutral White with red stripe
Normal Power Sense Hot (Unswitched) ,120-277VAC Black
Normal Power Sense Neutral White

2 of 3
rPP PCD
PHASE ADAPTIVE DIMMING POWER PACK
FAMILY INSTRUCTIONS
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: [phone] www.acuitycontrols.com © 2022 Acuity Brands Lighting, Inc. All rights reserved. Rev. 11/03/2022
912-00296-001 - FULL

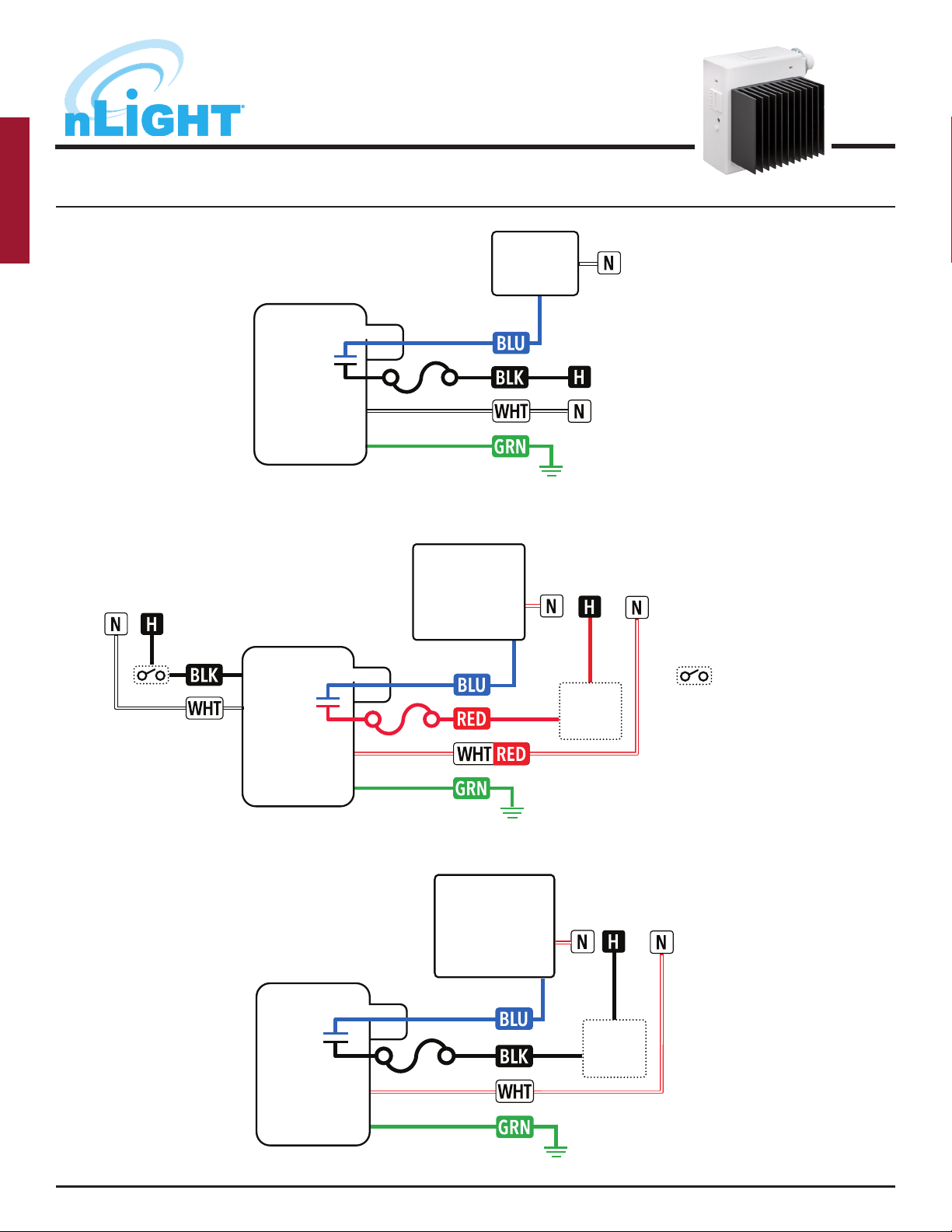

WIRING (Do Not Wire Hot)
rPP PCD EFP G2
rPP PCD EFP CP G2
Legend
BLK
– Unswitched Hot 120-277
WHT – Neutral
BLU – Switched Output
GRN – Ground
rPP PCD EFP G2
}Normal
LOAD
*
rPP PCD ER EFP G2
120 V -
277 V
}
Normal
}
Emergency
rPP PCD ER EFP G2
rPP PCD ER EFP CP G2
Emergency Load
Legend
RED – 120-277 Emergency Hot
WHT/RED – Emergency Neutral
BLK – Unswitched Norm. Hot
WHT – Norm. Neutral
BLU – Switched Output
GRN – Ground
- Optional Test Switch
(by others)
rPP PCD EM EFP G2
120 V -
277 V
}
rPP PCD EM EFP G2
rPP PCD EM EFP CP G2
Emergency Legend
BLK - 120-277 Emer
gency Hot
WHT – Emergency Neutral
BLU – Switched Output
GRN – Ground
Emergency Load

3 of 3
rPP PCD
PHASE ADAPTIVE DIMMING POWER PACK
FAMILY INSTRUCTIONS
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: [phone] www.acuitycontrols.com © 2022 Acuity Brands Lighting, Inc. All rights reserved. Rev. 11/03/2022
912-00296-001 - FULL
PRODUCT DIMENSIONS
4.82
3.94
3.53
4.72
1.87
4.72"
4.82"
6.0"
3.50"
1.86"
3.53"
