NNNN Comium 30P User manual
V1.1Powered surface-mounted loudspeaker
Comium 30P
COMIUM 30 Powered V1.1 EN
Professional audio EN
Version 1.1
Updated versions uploaded to www.nnnn.no
©2021 by NNNN AS ; all rights reserved
Keep this document with the product or
in safe storage so it is readily available if
needed.
This document should accompany the
product if it is ever resold.
NNNN AS
Syretårnet 43, 3048 Drammen, Norway
T +47 982 89 816
Comium 30P owner’s manual
2
COMIUM 30 Powered V1.1 EN
Material damage
Loudspeakers contain magnets which may
damage electronic equipment such as hard
drives, bank cards, and video monitors.
Please store and transport such equipment
separately or within appropriate distance to
the loudspeakers.
Do not use this equipment near water.
Do not block any ventilation openings.
Do not install near any heat sources such
as radiators, heat registers, stoves or other
apparatus that produce heat.
Refer all servicing to qualified NNNN service
personnel.
Personal injury
Never stand in the immediate vicinity of loud-
speakers driven at a high level. Professional
loudspeaker systems are capable of causing
sound pressure levels detrimental to human
health. Even seemingly non-critical sound
levels (from approx. 95 dB SPL) can cause
hearing damage if people are exposed to it
for longer periods of time.
In order to prevent accidents when deploying
loudspeakers on the ground or when flown,
please take note of the following:
When setting up the loudspeakers or loud-
speaker stands, make sure they are standing
on a firm surface. If you place several
systems on top of one another, use appropri-
ate securing gear to prevent movement.
Only use accessories which have been
tested and approved by NNNN for assembly
and mobile deployment. Pay attention to
the correct application and maximum load
capacity of the accessories as detailed in our
rigging manuals.
Ensure that all third party hardware, fixings
and fasteners used for installation or mobile
deployment are of an appropriate size and
load safety factor. Pay attention to the man-
ufacturers’ instructions and to the relevant
safety guidelines.
Be careful of pinching and other physical
hazards when deploying or transporting
equipment.
Regularly check the loudspeaker cabinets
and accessories for visible signs of wear and
tear, and replace them when necessary.
Regularly check all load bearing bolts in the
mounting devices.
Safety
4
COMIUM 30 Powered V1.1 EN

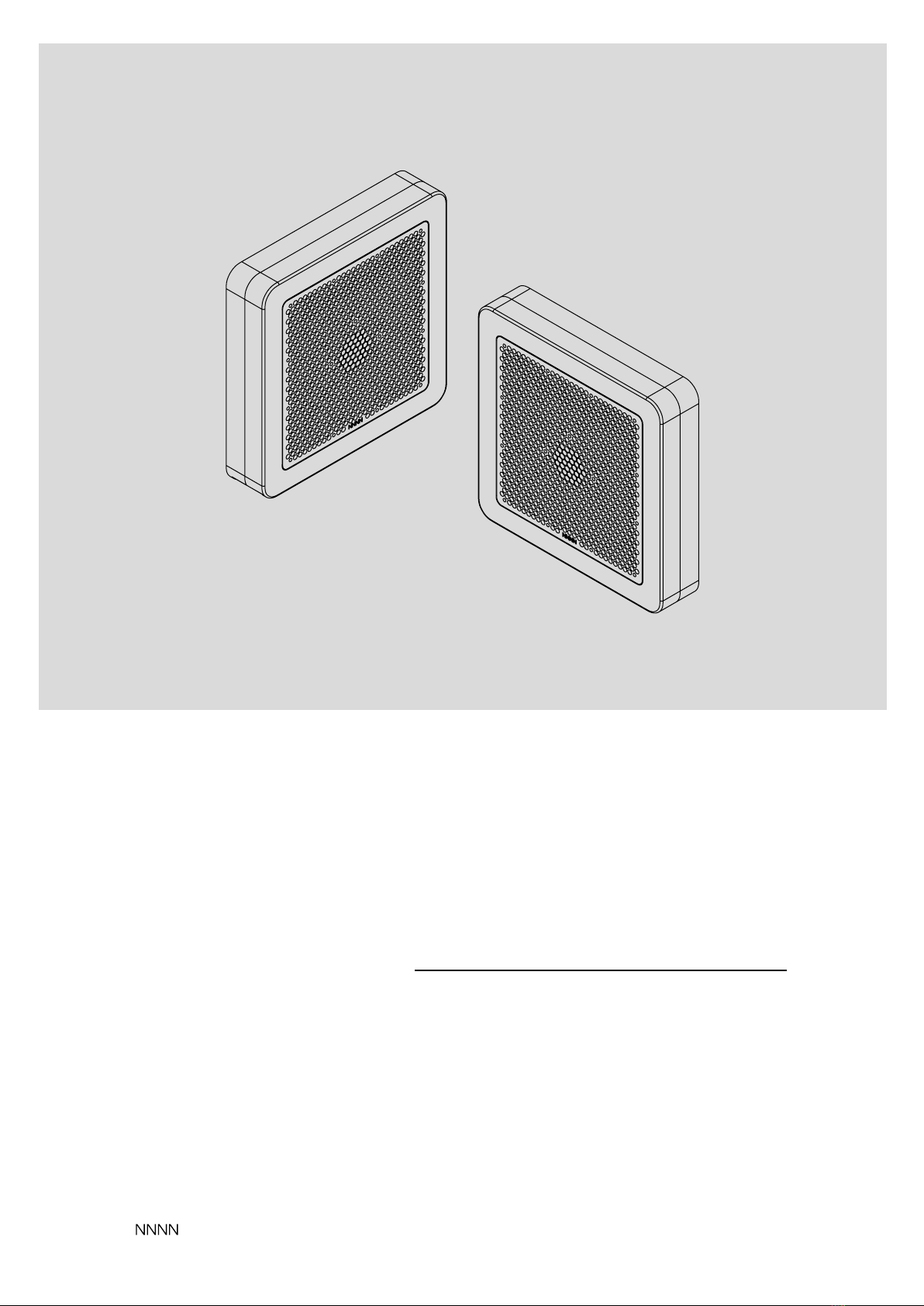

The Comium 30P is a surface mounted point source
for a wide range of applications. It is capable of
providing high-quality bass output in spaces that
would normally miss out on this important aspect due
to space and interior requirements. The Comium 30P
combines 8” and 1” drivers in a compact combined
horn and transmission line cabinet.
Full range
The Comium 30P has a low frequency extension
similar to a medium sized home theater subwoofer
despite it’s compact form factor. Bass is an important
part of how we experience sound with both our ears
and body. For both music and film, a proper low
frequency reproduction is often what separates a
great sound system from a decent one. This is as true
for custom installation as it is for a home audio setup.
Product
Description
5
COMIUM 30 Powered V1.1 EN
High tech
The technology employed in the
Comium 30P enables high sensitivity,
good impulse response and low
distortion level across the loudspeak-
er’s full frequency range.
Installation
The Comium 30P is a sur-
face-mounted point source which
can be attached with a WESA mount
or with screws through the dedicated
holes for more permanent installa-
tion. The potentiometers and signal
connections are easily accessible
Materials
The Comium 30P is designed to be
light and sturdy. The cabinet is made
of plywood that is covered with a
scratch, and impact resistant polyu-
rethane coating. The grilles and input
panel are made of coated aluminium.
6
COMIUM 30 Powered V1.1 EN
The COMIUM 30P is driven by a built in amplifier
module with COMIUM 30P presets loaded into the
internal DSP. The loudspeaker must exclusively be
powered through a IEC C14 connection to earth
connected mains sockets in electrical networks
compliant to IEC 364 or similar rules. It is absolutely
necessary to verify this fundamental requirement of
safety and, in case of doubt, this requires an accurate
investigation by qualified personnel.
The DSP has two Neutrik Combo and one XLR thru
connector. The Neutrik Combos connect to XLR or
Jack plugs. The DSP also includes three dials - two for
respective input gain and one for master volume.
Combo (XLR+Jack)
Master vol.
Input gain
Power: IEC C14 AMP
DSP
XLR thru
Combo (XLR+Jack)
Input gain
Pot.
Pot.
Pot.
ComboXLR
Master
volume
Input
gain
Input
gain
ComboI EC C14
Electroacoustics
7
COMIUM 30 Powered V1.1 EN
System data
Loudspeaker data
Frequency response (± 3 db)
Max cont. SPL (1m, 2Pi)
Nominal dispersion
Nominal impedance
Mains power
Amplifier
Idle power consumption
full output power consumption
Connections
Components
30 - 22000 Hz
114 dB
90° radial
HF 8 ohms
LF 8 ohms
50/60 Hz 100-240 V
245 + 175 W Class D
0.23 W
68 W
2 × Combo (XLR + Jack)
1 × XLR
1 × IEC C14
1 × 1”
1 × 8”
Specifications
Comium 30P
8
COMIUM 30 Powered V1.1 EN
Height
Width
Depth
Weight
Enclosure material
Enclosure type
Measurements
Physical data
120 mm
592 mm
592 mm
592 mm / 23.3”
592 mm / 23.3”
120 mm /4.8 ”
15.6 kg / 34.4 lbs
MDF
Transmission line + horn
9
COMIUM 30 Powered V1.1 EN
This declaration applies to loudspeakers
manufactured by NNNN AS. A more detailed
document may be found at nnnn.no.
NNNN AS declares that all versions of the
following product(s):
Comium 30P
We declare that these product(s) are in
conformity with the provisions of the
respective EC directives including all
applicable amendments.
2014/35/EU, Low Voltage Directive
2011/65/EU, RoHS
2014/30/EU, Electromagnetic Compatibility
NNNN AS accept responsibility for this
declaration
EU conformity
10
COMIUM 30 Powered V1.1 EN
Electrical and electronic equipment must be disposed of
separately from normal waste at the end of its opera-
tional lifetime. Please dispose of this product according
to the respective national regulations or contractual
agreements. If there are any further questions concern-
ing the disposal of this product, please contact NNNN.
WEEE statement
11
COMIUM 30 Powered V1.1 EN
NNNN AS Comium 30P owner’s manual V1.1
nnnn.no
