Opus One C 5064 User manual
Bookshelf Bluetooth 50W Speaker Pair
USER MANUAL
C 5064
This Opus One Bookshelf Speaker Pair will enhance your experience of TV, movies and games. The speakers are equipped with digital
signal processing (DSP) and dynamic range control (DRC) to prevent distortion. Featuring solid MDF construction with a stylish wood
nish, the trapezoidal enclosure and front facing bass reex port helps to direct sound outward from its 116mm (4”) bass driver and 13mm
silk dome. Fitted with RCA stereo inputs allowing connection to analog audio sources. USB Connection provided for playback or MP3 les
from a USB drive/memory stick. Alternatively, users can pair their compatible smart devices through with Bluetooth connection for instant
audio streaming. Side mount level, bass and treble controls make adjustments easy.
The speakers feature optical input for digital audio. Sold in pairs.
Size:................................................................14.6 x 16.4 x 240 cm
Channel:.....................................................................................2.0
Power Output:.........................................................L/R:25W+25W
Signal to noise ratio:...............................................L/R: ≥85dB (A)
Input:.................................................Bluetooth, RCA, Optical, USB
Input Sensitivity:...................................LINE IN1: R/L: 500±50mV
...................................LINE IN2: R/L: 700±50mV
.......................................OPT: R/L: 500±50mFFS
..............................Bluetooth: R/L: 700±50mFFS
Noise Level:.....................................................................≤25dB (A)
Adapter Power:.......................................19V DC / 1.89A (Adapter)
DSP:..........................................Movie / Music / News Audio Mode
Material:....................................................MDF/ABS + Fabric cloth
Frequency Response:................................................40HZ-20KHZ
Bass Unit:...............................................................4 inch (116mm)
Tweeter Unit:.......................................Φ13mm silk dome tweeter
C 5064 Bookshelf Bluetooth 50W Speaker Pair
Introduction
Features
• Stylish MDF Construction
• Compact Sleek Design
• USB Connection
• Combined power of 50W
• Digital Signal Processing
• 10m Bluetooth distance
Specications
Box Contents
1x Active Speaker
1x Passive Speaker
1x Remote control
1x Dual RCA to dual RCA audio Cable
1 x 3.5mm to dual RCA audio connecting cable
1 x Optical Cable
1 x Speaker Connecting Manual
1x AC adaptor
1x User Manual
C 5064 Bookshelf Bluetooth 50W Speaker Pair
Bookshelf Bluetooth 50W USB Speaker Pair
USER MANUAL
C 5064

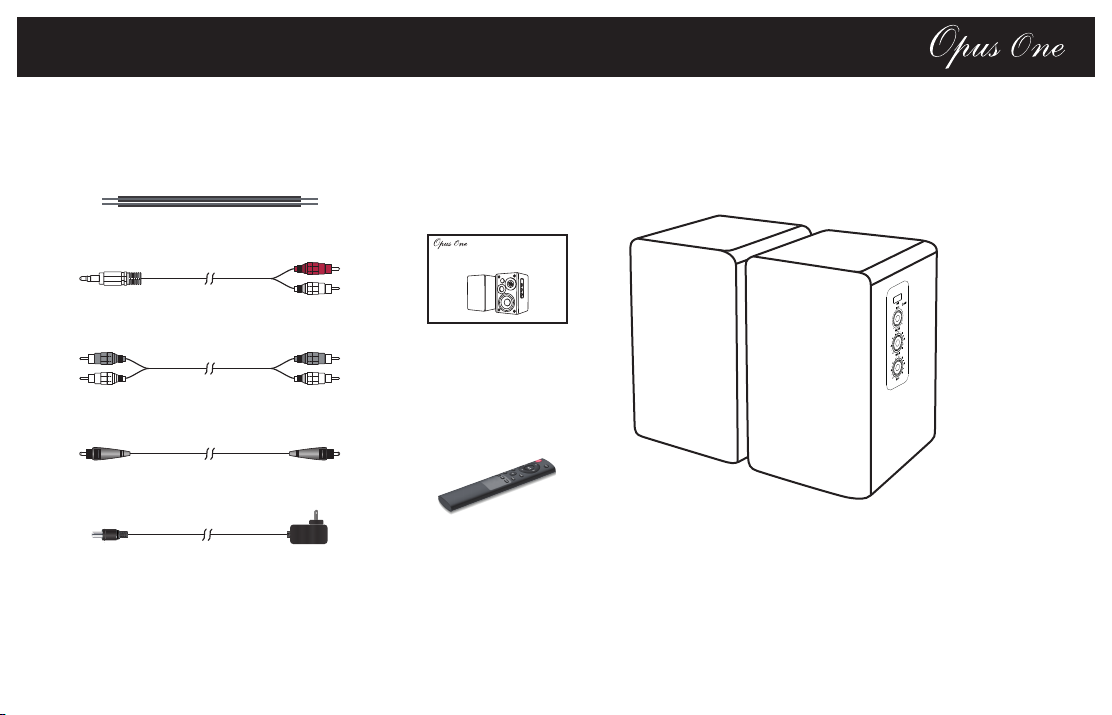

Box Contents Diagram
Remote control
User manual
RCA to RCA audio cable (1.5M / 5ft)
3.5mm-RCA audio cable (1.5M / 5ft)
Fiber optic input cable (1. 5M / 5ft)
Speaker connecting cable (2. 5M / 8.2ft)
Power adapter
Passive speaker
Active speaker
C 5064 Bookshelf Bluetooth 50W Speaker Pair
Speaker Controls
4. Master volume control / input selection
Press in to navigate between audio sources:
Line in 1 -> Line in 2 -> Optical -> Bluetooth -> USB
5. Treble dial
6. Bass dial
7. Line in 1 input port
1. Infrared receiver
2. USB input port
3. LED indicator
Light Blue: Line in 1
Orange: Line in 2
Blue: Bluetooth
White: Optical
Purple: USB
8. Line in 2 input port
9. Optical input port
10. Speaker output
11. Power switch
12. Power cord
12
4
5
6
7
9
11
8
10
12
3
C 5064 Bookshelf Bluetooth 50W Speaker Pair
Remote Control
Note:
1. Previous Track & Next Track only works under Bluetooth or USB mode.
2. Insert 2 x AAA batteries before using.
1. Power ON/OFF
2. Mute/Unmute
3. Volume increase
4. Pause and play
5. Previous track
6. Next track
7. Volume decrease
8. Optical mode
9. Line in 1 mode
10. Bluetooth input (Press and hold to
disconnect Bluetooth devices)
11. USB mode
12. Line in 2 mode
13. Recommended audio mode-MOVIE
14. Recommended audio mode-DIALOG
15. Recommended audio mode-MUSIC
1
3
5 6
4
9
12
14
2
7
8
11
13
15
10
C 5064 Bookshelf Bluetooth 50W Speaker Pair
Connections
1. Connect the speakers with the included
speaker connecting cable.
2. Connect to power source, power on the
speaker, then the indicator is Iit.
C 5064 Bookshelf Bluetooth 50W Speaker Pair
1. Press the master volume control on the active speaker or press the "LINE 1/LINE2" button on
the remote control to select LINE IN input. The indicator turns to Light Blue(Line in 1) or Orange (Line in 2).
2. Using audio cable to connect audio source to the speaker.
3. Play from your device and adjust the volume accordingly.
Line in Input
LINE1 LINE2
Or
C 5064 Bookshelf Bluetooth 50W Speaker Pair
PAGE 07 SR01 Bookshelf Speaker

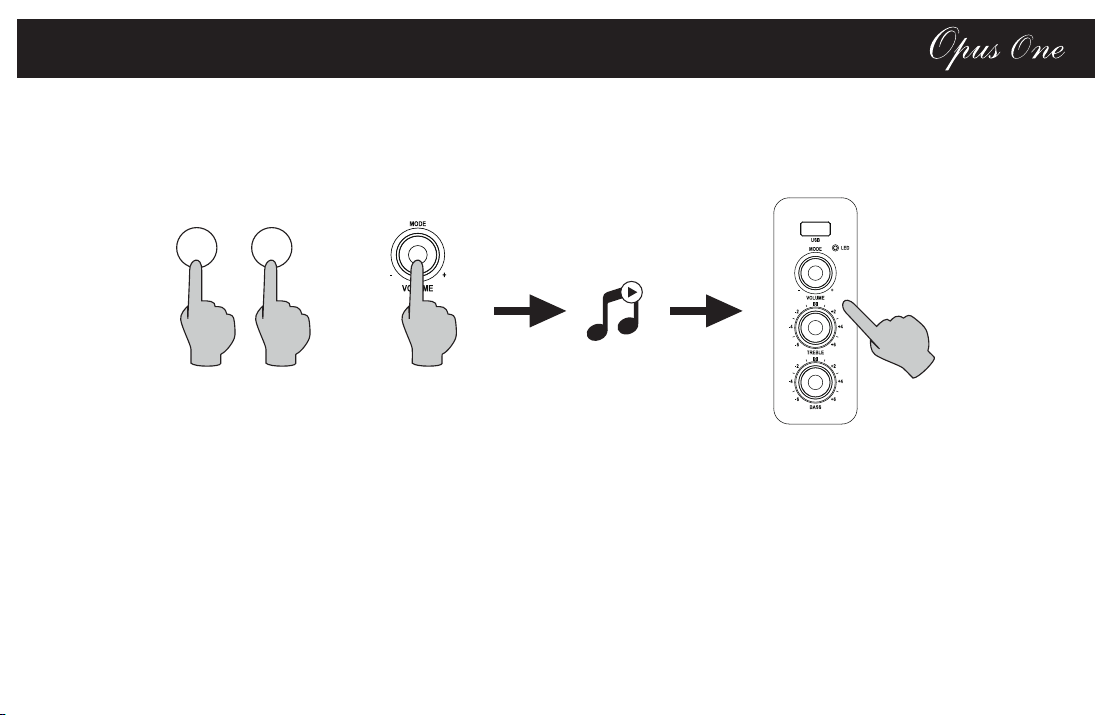

1. Press the master volume control on the active speaker or press the "OPT" button
on the remote control to select the optical input. The indicator turns to White(Optical).
2. Sing optical cable (optical cable included) to connect audio sources to your speaker.
3. Play from your devices and adjust the volume accordingly.
Optical Input
Or
OPT
C 5064 Bookshelf Bluetooth 50W Speaker Pair

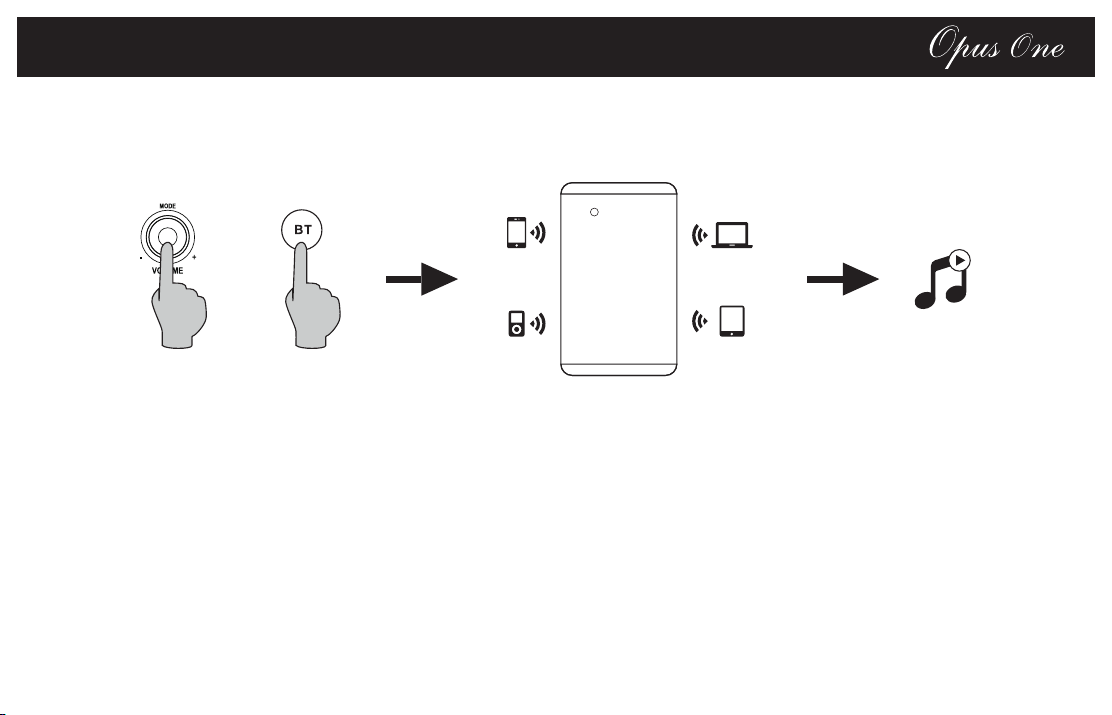

Pairing:
1. Turn on speaker and switch to Bluetooth mode by pressing the Bluetooth button on the remote control or press the master volume control on back panel of
the active speaker, The indicator turns to blue.
2. Go to setup section on your source devices (mobile phones, tablets, etc )and search for nearby Bluetooth devices, you will find “C5064”
in the ist.
3. Pair your device with "C5064".
4. Play audio tracks on your device and adjust the volume to a desired level.
5. To disconeect Bluetooth, press and hold the master volume control for about 2 seconds.
Note:
1. Bluetooth connectivity and compatibility may be different among different source devices, depending on the software versions of source devices.
2. To enjoy the full Bluetooth functions of this product, please ensure your mobile device supports ADP and AVRCP profile.
3. PIN code for connection is "0000" if needed.
Bluetooth Input
Or
C 5064 Bookshelf Bluetooth 50W Speaker Pair
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety.
When the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenient receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged In any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
Special note: When placing your unit on a lacquered
or natural finish, protect your furniture with a cloth or
other protective material.
FCC Warnings
WARNING: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user's authority to operate
the equipment.
NOTE: The equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection ainst
harmful interference in a residential installlation. This
equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the eauipment off and on. the user
is encouraged to try to correct the interference by one or
more of the folg measures:
Important Safety Instructions
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the eguipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Additional Warnings
The apparatus shall not be exposed to dripping or splashing
and that no objects filled with liquids, such as vases, shall
be placed on apparatus.
Battery shall not be exposed to excessive heat such as
sunshine, fire or the light.
Caution marking is located at the rear or bottom of the
apparatus.
he marking information is located at the rear or bottom of
apparatus.
C 5064 Bookshelf Bluetooth 50W Speaker Pair
Troubleshooting
Problem Solution
No sound
Cannot connect via Bluetooth
The SR01 Bookshelf Speaker does not turn on
Check if the power indicator light is ON.
Try to turn up the volume using either the master volume control or remote control.
Ensure the audio cables are firmly connected and the input is set correctly on the speakers.
Check if there is signal output from the audio source.
Make sure the speaker is switched to Bluetooth input, in other audio input mode Bluetooth can not be paired or connected.
Effective Bluetooth transmission range is 10 meters, please make sure operation is within the range.
Try another Bluetooth device for connection.
Check if mains power is connected. or if the wall outlet is switched on.
Disconnect from any Bluetooth device by press and hold the volume dial in Bluetooth mode, then try again.
C 5064 Bookshelf Bluetooth 50W Speaker Pair
If this item was purchased directly from Altronics please make a warranty claim by:
1. FOR MAIL ORDER CUSTOMERS (includes school and trade orders),
a)Ringing us on 1300 797 007 and quoting your Tax invoice number.
b)Upon contacting Altronics, we will issue an R.A. (Return Authorisation). As Altronics have a
number of service agents throughout Australia, a copy of the R.A. will be emailed, faxed or mailed
to you with full instructions of how and where to send the goods. The freight for shipping goods back
to Altronics for all repairs is at the customers expense.
c) A copy of the R.A. form, (or at the very minimum, the R.A. number) must accompany the goods to effect the repair.
d) Altronics will pay the return freight to the customer where the warranty claim has been accepted.
e) Please quote the R.A. number in any correspondence to us.
2. FOR OVER THE COUNTER PURCHASES; to make a warranty claim, please return the goods to us in any of our stores,
with a copy of your proof of purchase (tax invoice).
a) Upon leaving the goods at one of our stores, an R.A. (return authorisation) number will be issued to you.
b) Once repaired, you will be contacted, advising that the goods are ready to be collected from the store.
Altronic Distributors warrants this product for 12 months from date of purchase from Altronics or its resellers to the consumer. If this item is part of an installation or another product,
please contact the installer or supplier for your warranty.
During the warranty period, we undertake to repair or replace your product at no charge if found to be defective due to a manufacturing fault. The warranty excludes damage by
misuse or incorrect installation (i.e. failure to install and operate device according to specications in the supplied instruction manual), neglect, shipping accident, or no fault found,
nor by use in a way or manner not intended by the supplier.
For repair or service please contact your PLACE OF PURCHASE.
It is at Altronics discretion as to whether the goods will be repaired or replaced (whilst under warranty); and as to whether identical goods will be used to replace the item due to
changes of models / products.
Note: Under no circumstances should you attempt to repair the device yourself or via a non-authorised Altronics service centre, as this will invalidate the warranty!
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
NOT FIELD SERVICEABLE.
Distributed by Altronic Distributors Pty. Ltd. Perth. Western Australia.
Phone: 08 9428 2199
Internet: www.altronics.com.au
Other Opus One Speakers manuals
