NNNN GAGE 60A User manual

GAGE 60A
Powered Coaxial Point Source
Owner’s Manual 1.0

Version 1.0
Updated versions uploaded to www.nnnn.no
© 2023 by NNNN AS ; all rights reserved
Keep this document with the product or in safe storage so it is readily available if needed.
This document should accompany the
product if it is ever resold.
NNNN AS
Syretårnet 43, 3048 Drammen, Norway
T +47 982 89 816
2

Contents
1 Safety Precautions..............................................................
2 Gage 60 …………………..........................................................
2.1 Product Description................................................
2.2 Technical Specifications......................................
2.3 Connections & Indicators.....................................
3 Configurations……...........................................................
4 Declarations of Conformity...........................................
3
4
5
5
5
6
7-8
9

1 Safety
Personal injury
This box can be LOUD! Always be cautious when
working with high output loudspeakers, do not
stand in close proximity when driven at high volume.
Even volume levels considered low can damage
hearing with excessive continuous exposure.
When rigging your speakers, make sure that they are
placed on a stable foundation. Whether they are
flown, on a pole or placed on top of other
equipment, take care to assure a mechanically
stable set-up.
Only use the accessories provided by NNNN for
flying the loudspeaker. Be mindful to check weight
restrictions, safety guidelines and installation
procedures for third party accessories used for
installing.
Be careful to avoid pinching or carrying to much
weight when transporting or deploying equipment.
Remember to check the loudspeaker regularly for
any wear and tear and replace loudspeakers when
necessary.
All load bearing bolts and fixtures must be checked
regularly, and thread locking compound must be
used where appropriate.
Material Damage
Fun facts (as long as they do not afflict you, if this
occurs they will lose the fun, and be just facts.):
Loudspeakers contain magnets, they have some
interesting properties that could be detrimental to
other equipment in their vicinity. Hard drives, bank
cards and video monitors can be damaged by being
exposed to these magnets.
Do not put the speakers in water. Especially if they
are plugged into power. Electricity and water do not
always go well together.
Avoid installing the loudspeaker near heat sources
such as stoves, radiators or direct sunlight.
Refer all servicing to qualified NNNN service
personnel.
4

2 Gage 60
2.1 Product description
The Gage 60 is a horn-loaded coaxial point source
with a ported low-frequency extension.
Compact, loud and clear.
The frequency response of the Gage 60 extends
from 60Hz to 20kHz. Allowing stand alone use, or
used with support from a subwoofer. Pairs well with
the Devor series subwoofers, as well as Trada 30
and Trent 35. Visit www.nnnn.no for more
information.
The cabinet is made of high quality birch plywood,
coated with a durable textured paint. There are two
M10 threaded inserts in the top of the cabinet for
attaching the SMB:G60 mounting bracket.
On the sides of the cabinet there are handles for
easy handling. The bottom side of the cabinet is
equipped with a pole mounting flange that
accommodates a Ø35mm pole.
5

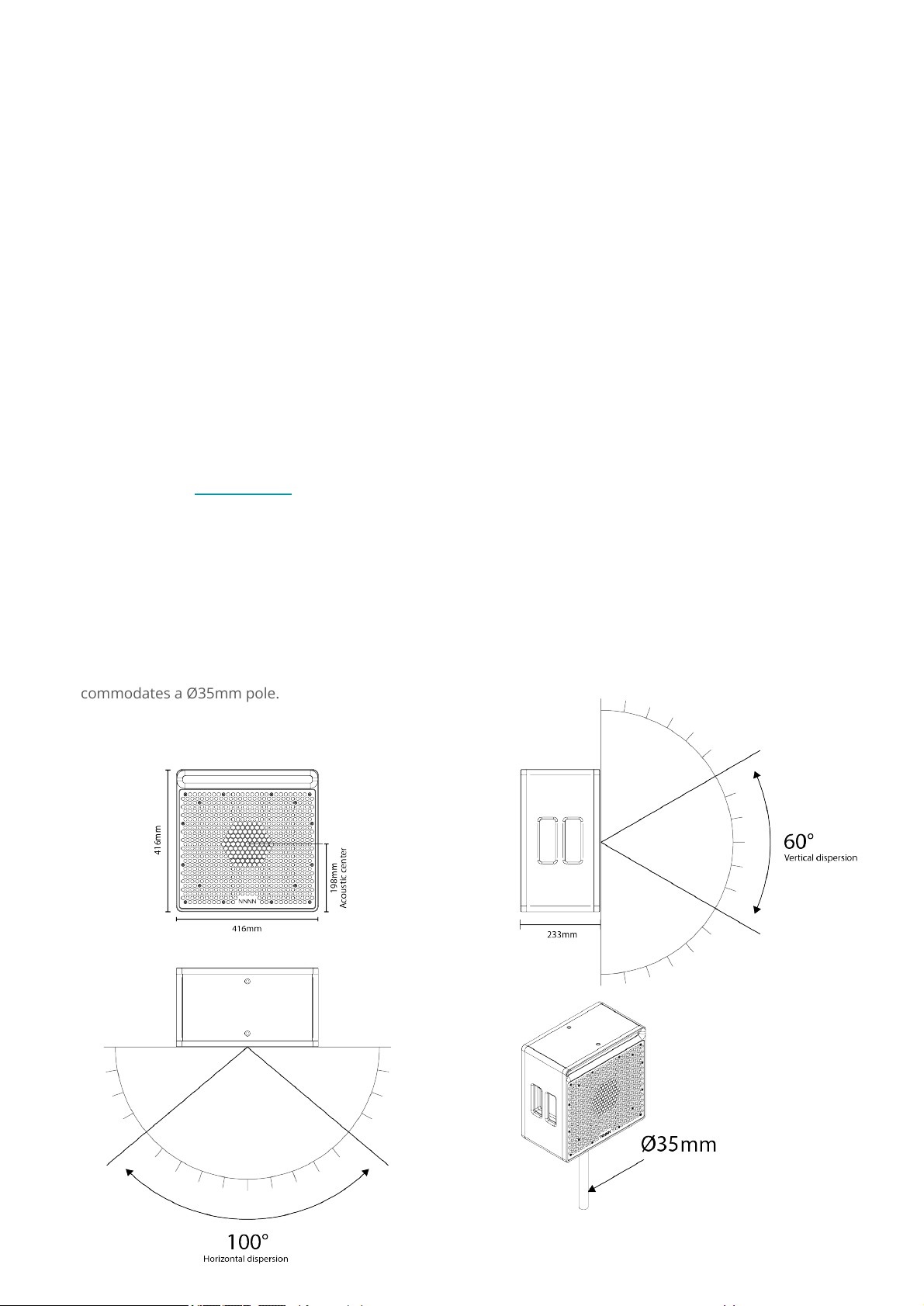

2.2 Technical Specifications
Frequency response extended
(-6 +3dB):
Frequency response horn assisted
(±3dB):
Max SPL average:
Peak SPL music:
Approx. Horizontal dispersion:
Approx. Vertical dispersion:
60-20 000Hz
150-20 000 Hz
>125dB
>140dB
100°
60°

2 Gage 60

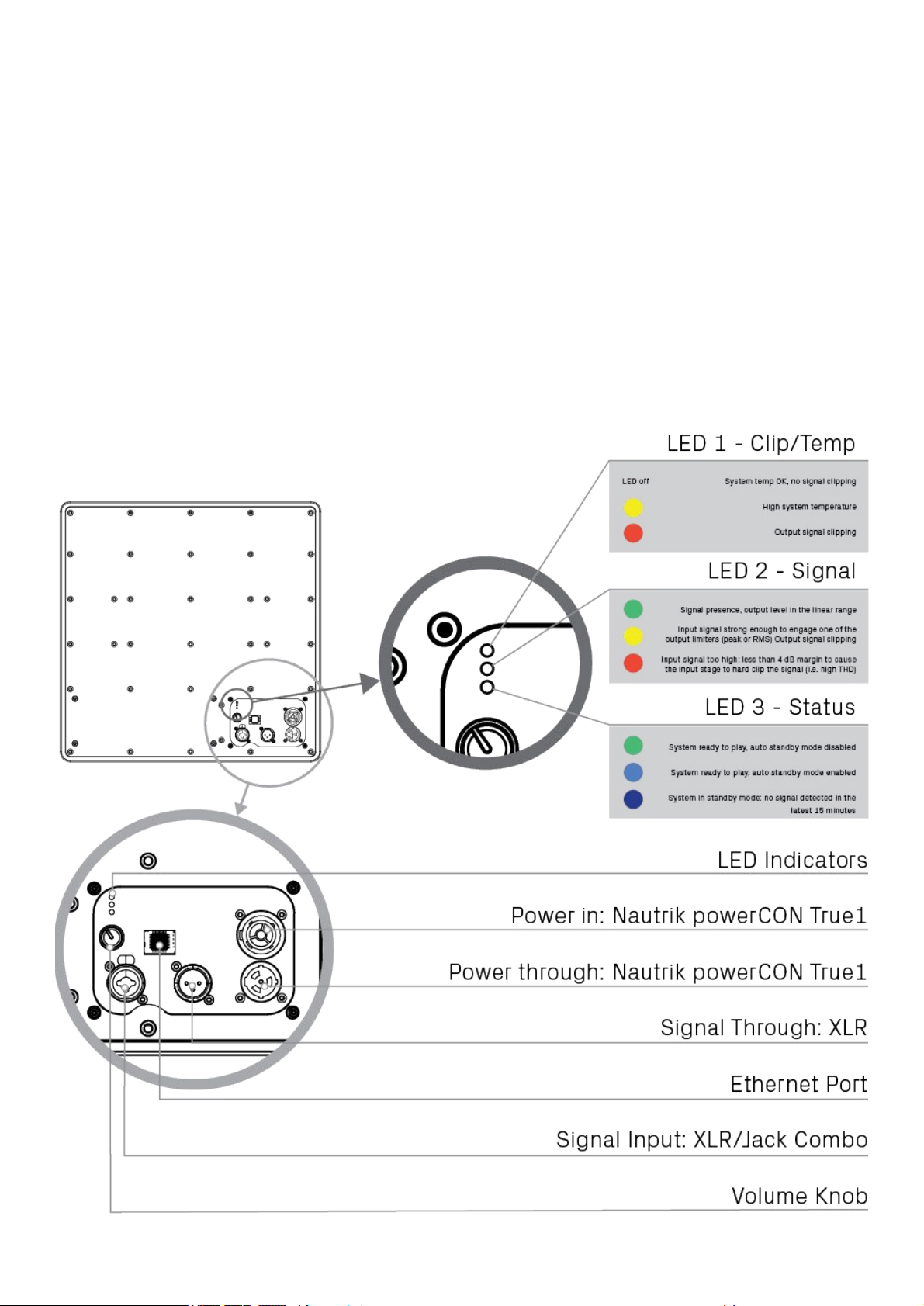

2.3 Connections & Indications
The GAGE 60 has a single XLR Jack Combo input,
and a XLR passthrough output. In addition there is
a volume knob, power in and through and LED
indicators displaying the state of the internal DSP.
6

3 Configurations

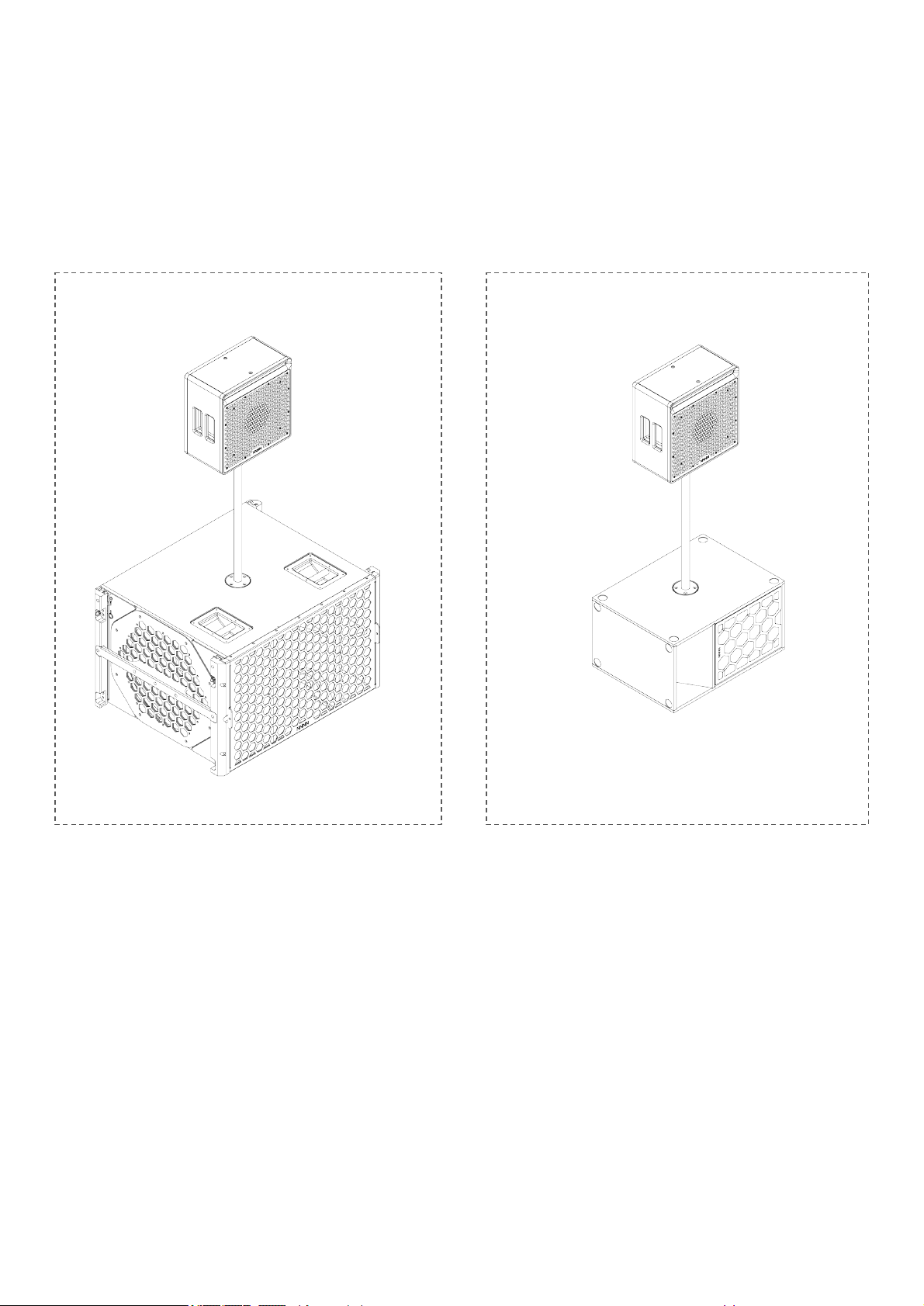

Gage 60 & Trada 30
Gage 60 paired with the Trada 30 offers a full range
sound, with substantial bass energy.
7
Gage 60 & Trent 35
Gage 60 paired with the Trent 35 offers a full range
sound, in a compact and portable package.

3 Configurations
8
Gage 60 & Devor Series
Gage 60 paired with the Devor series subwoofers
offer exceptional sound quality in a full range
system.

4 Accessories
9
Mounting bracket
Gage 60 paired with the SMB:G60 Single Mounting
Bracket accommodates ceiling suspension in a
variety of angles. This is the recommended
installation for permanent installs.
Tilt angles:
15°, 10°, 5°, 0°, +5°(upwards)
NB!
Use thread locking compound when attaching the
SMB:60 mounting bracket to ensure a secure
installation.
Protective cover
Protect your Gage 60 with the CVR:G60 Protective
cover. Soft cover that leaves handles and pole
mounting flange exposed for easy handling.
CVR:G60
SMB:G60

4 Declarations of Conformity
10
EU conformity
This declaration applies to the self powered
loudspeakers manufactured by NNNN.
We declare that under our sole responsibility the
products:
Model Names: Gage 60A
Intended use: Professional Audio
Are in conformity with the provisions of the
following EC Directives, including all
amendments, and with national legislation
implementing these directives:
- 2006/95/EC Low Voltage Directive
- 2004/108/EC Electromagnetic Compatibility
Directive
- 2002/95/CE RoHs Directive
The following harmonized standards are applied:
- EN 55103-1
- EN 61000-3-2
- EN 61000-3-3
- EN 55103-2
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-4-11 f EN 60065
Weee statement
The Waste Electrical and Electronic Equipment
Directive (WEEE Directive) aims to minimise the
impact of electrical and electronic goods on the
environment.
In the unlikely event of an NNNN product being
eligible for disposal, electrical and electronic
equipment must be disposed of separately from
normal waste at the end of its operational
lifetime. Please dispose of this product according
to the respective national regulations or
contractual agreements. If there are any further
questions concerning the disposal of this product,
please contact NNNN.

11

12

4 Declarations of Conformity
13
EU conformity
This declaration applies to the self powered
loudspeakers manufactured by NNNN. listed below:
Gage 60A
In accordance with the following
Low Voltage Directive 2014/35/EU.
Electromagnetic Compatibility Directive 2014/30/EU.
Restriction of Hazardous Substances (RoHS)
Directive 2011/65/EU.
We declare that the listed products are in conformity
with the applicable requirements of the following
documents:
Low Voltage Directive: EN62368-1:2020+A11:2020
Electromagnetic Compatibility:
EN 55032:2015+A1:2020
EN 550305:2017+A11:2020 RoHS: EN 63000:2018
Weee statement
The Waste Electrical and Electronic Equipment
Directive (WEEE Directive) aims to minimise the
impact of electrical and electronic goods on the
environment.
In the unlikely event of an NNNN product being
eligible for disposal, electrical and electronic
equipment must be disposed of separately from
normal waste at the end of its operational
lifetime. Please dispose of this product according
to the respective national regulations or
contractual agreements. If there are any further
questions concerning the disposal of this product,
please contact NNNN.

14

15

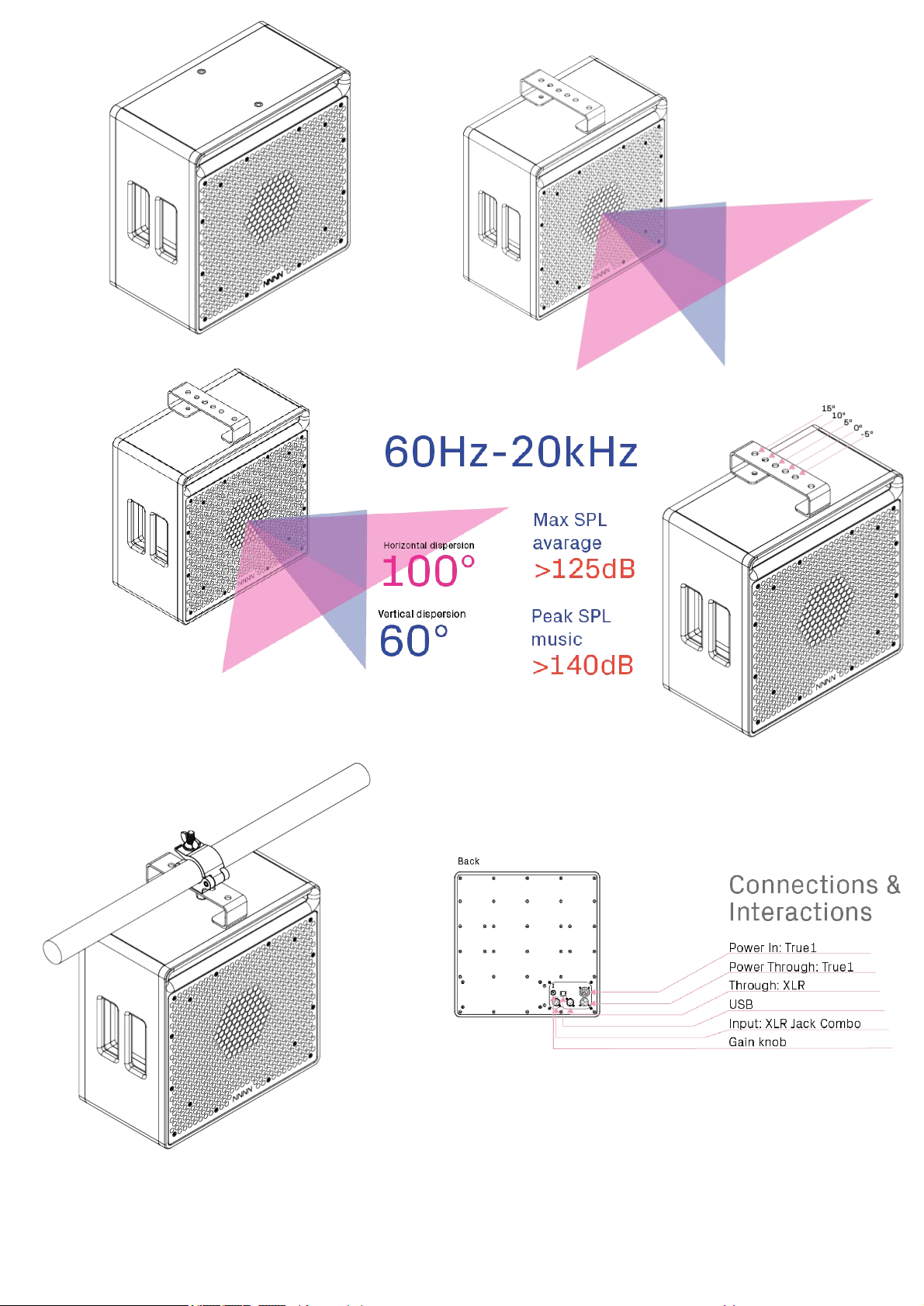

2 Gage 60
2.1 Product description
The Gage 60 is a horn-loaded coaxial point source
with a ported low-frequency extension.
Compact, loud and clear.
The frequency response of the Gage 60 extends
from 60Hz to 20kHz. Allowing stand alone use, or
used with support from a subwoofer. Pairs well with
the Devor series subwoofers, as well as Trada 30
and Trent 35. Visit www.nnnn.no for more
information.
The cabinet is made of high quality birch plywood,
coated with a durable textured paint. There are two
M10 threaded inserts in the top of the cabinet for
attaching the SMB:G60 mounting bracket.
On the sides of the cabinet there are handles for
easy handling. The bottom side of the cabinet is
equipped with a pole mounting flange that
accommodates a Ø35mm pole.
16
2.2 Technical Specifications
Frequency response extended
(-6 +3dB):
Frequency response horn assisted
(±3dB):
Max SPL average:
Peak SPL music:
Approx. Horizontal dispersion:
Approx. Vertical dispersion:
60-20 000Hz
150-20 000 Hz
>125dB
>140dB
100°
60°

Connections & Indicators
Power in: True1
17
Power Through: True1
Signal Through: XLR
USB
Signal Input: XLR/Jack Combo
Volume Knob
The GAGE 60 has a single XLR Jack Combo input, and a XLR
Through. The signal passes through the DSP unaltered. In
addition there is a volume knob, power in and through, a
LED indicators
