NNNN GAGE 30A User manual

GAGE 30A
Premium Full Range Loudspeaker
Owner’s Manual 1.0

Version 1.0
Updated versions uploaded to www.nnnn.no
© 2023 by NNNN AS ; all rights reserved
Keep this document with the product or in safe storage so it is readily available if needed.
This document should accompany the
product if it is ever resold.
NNNN AS
Syretårnet 43, 3048 Drammen, Norway
T [phone]
[email protected]
2

Contents
1 Safety Precautions..............................................................
2 Gage 30 …………………..........................................................
2.1 Product Description................................................
2.2 Technical Specifications......................................
2.3 Connections & Indicators.....................................
2.4 Dispersion……………………………………………………….
2.5 Rigging specifications………………………………………
3 Configurations…….........................................................
4 Accessories………………………………………………………………..
5 Declarations of Conformity...........................................
3
4
5
5
5
6
7
8
9-10
11
12

1 Safety
Personal injury
This box can be LOUD! Always be cautious when
working with high output loudspeakers, do not
stand in close proximity when driven at high volume.
Even volume levels considered low can damage
hearing with excessive continuous exposure.
When rigging your speakers, make sure that they are
placed on a stable foundation. Whether they are
flown, on a pole or placed on top of other
equipment, take care to assure a mechanically
stable set-up.
Only use the accessories provided by NNNN for
flying the loudspeaker. Be mindful to check weight
restrictions, safety guidelines and installation
procedures for third party accessories used for
installing.
Be careful to avoid pinching or carrying to much
weight when transporting or deploying equipment.
Remember to check the loudspeaker regularly for
any wear and tear and replace loudspeakers when
necessary.
All load bearing bolts and fixtures must be checked
regularly, and thread locking compound must be
used where appropriate.
Material Damage
Loudspeakers contain magnets, they have some
interesting properties that could be detrimental to
other equipment in their vicinity. Hard drives, bank
cards and video monitors can be damaged by being
exposed to these magnets.
Do not put the speakers in water. Especially if they
are plugged into power. Electricity and water do not
always go well together.
Avoid installing the loudspeaker near heat sources
such as stoves, radiators or direct sunlight.
Refer all servicing to qualified NNNN service
personnel.
4

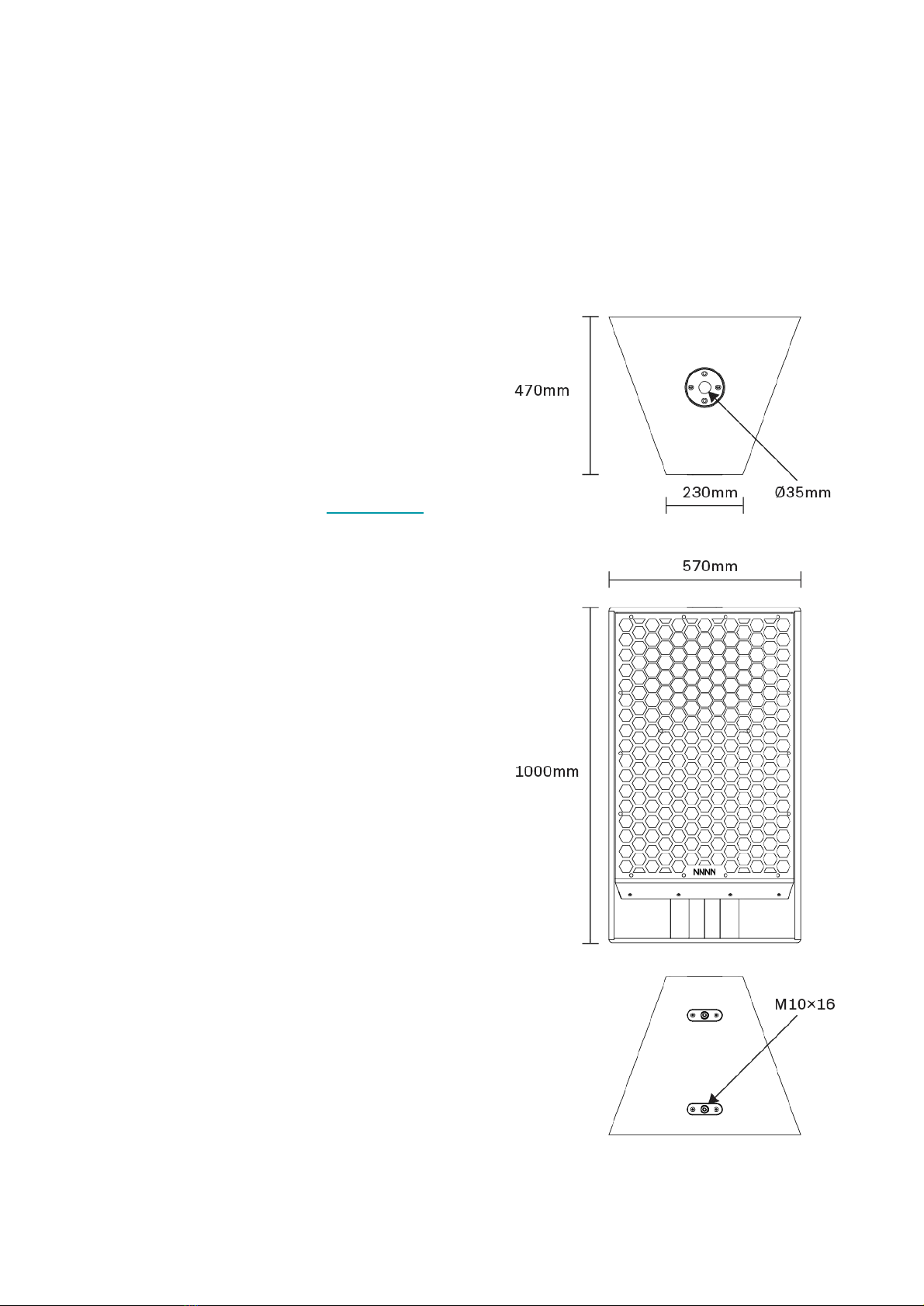

2 Gage 30
2.1 Product description
The Gage 30 is a high quality full range loudspeaker,
with horn loading in the top range and a ported
low-frequency extension.
Precise, Powerful and clear.
The frequency response of the Gage 30 extends
from 30Hz to 20kHz. The Gage 30 can be used
standalone, but also excels in combination with a
subwoofer. Pairs well with the Devor series
subwoofers, as well as Trada 30. Visit www.nnnn.no
for more information.
The cabinet is made of high quality birch plywood,
coated with a durable textured paint. There are
three M10 threaded attachment points, two on the
top of the cabinet as well as one on the back.
On the sides of the cabinet there are handles for
easy handling. The bottom side of the cabinet is
equipped with a pole mounting flange that
accommodates a Ø35mm pole.
5
2.2 Technical Specifications
Frequency response extended
(-6 +3dB):
Frequency response horn assisted
(±3dB):
Max SPL average:
Peak SPL music:
Approx. Horizontal dispersion:
Approx. Vertical dispersion:
Nominal impedance 18” Woofer:
Nominal impedance 1.4” HF:
30-20 000 Hz
150-20 000 Hz
>130dB
>149dB
60°
40°
8 Ohm
8 Ohm

2 Gage 30
2.3 Connections & Indicators
The GAGE 30A has a single XLR Jack Combo input,
and a XLR passthrough output. In addition there is
a volume knob, power in and through and LED
indicators displaying the state of the internal DSP
as well as preset indicator LEDs.
6

7
2 Gage 30
2.4 Dispersion

8
2 Gage 30

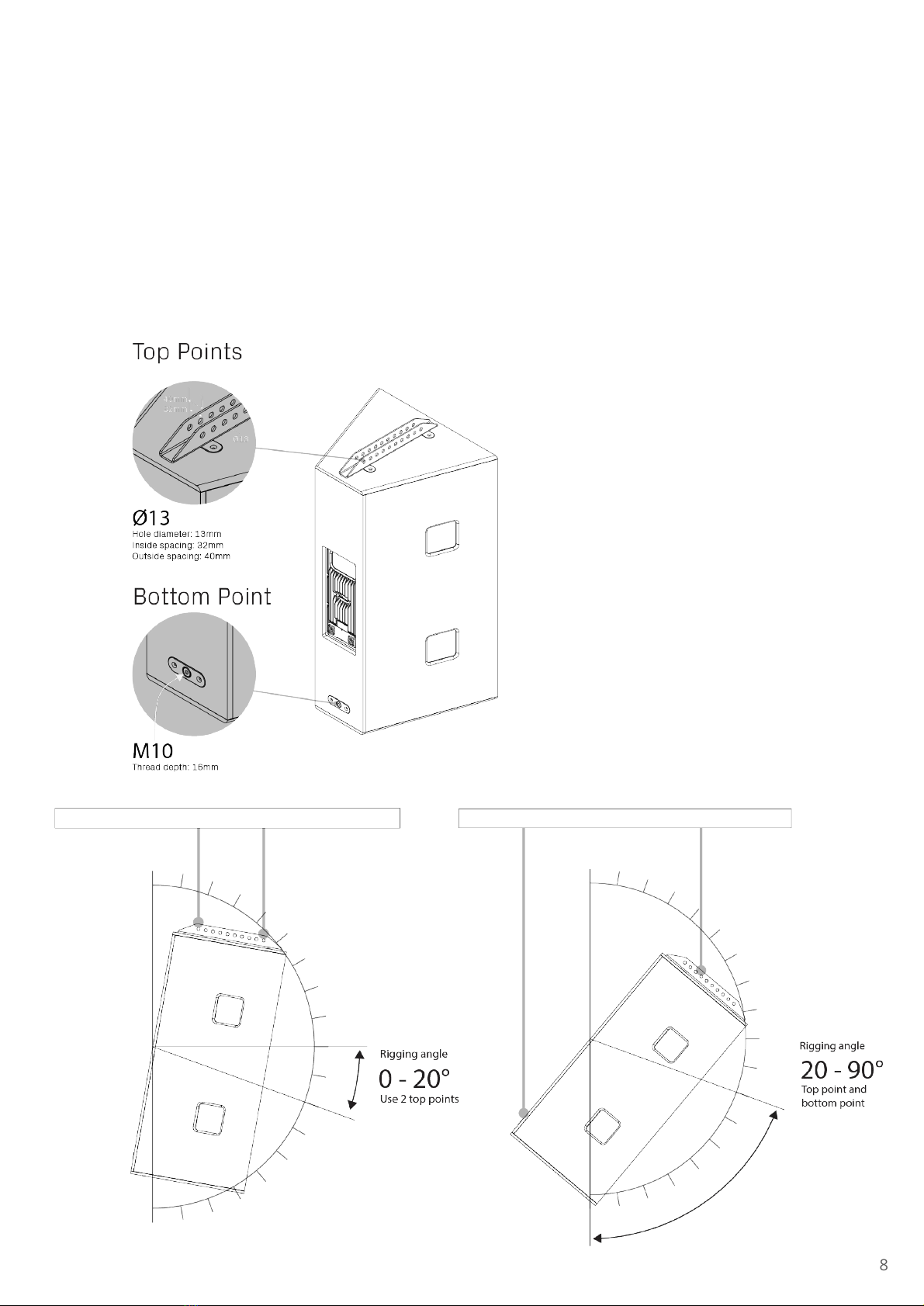

2.5 Rigging Specifications

3 Configurations
Gage 30 Stand alone
Gage 30 stand alone offers powerful full range
sound in an easy to use setup.
9
Gage 30 & Trada 30
Gage 30 paired with the Trada 30 offers a full range
sound, with extensive low end. This is a powerful
setup.

3 Configurations
10
Gage 30 Suspended
Gage 30 can be suspended as a single unit, or as a
cluster of two or three units using the NNNN
suspension brackets. See the next page for
accessory overview.
Gage 30 Bass support
Gage 30 pairs well with Trada 30, Devor 30, Devor 23
& Devor 16 subwoofers.

4 Accessories
11
Mounting brackets
Gage 30 can be suspended as a single unit, in pairs
or in threes. Each mounting brackets accommodates
one scenario.
The double and triple brackets include one bracket
for mounting on top of the speaker in addition to a
smaller bracket placed on the back of the speaker
near the bottom.
The single bracket does not include a bracket for the
rear of the speaker as the connection point on the
speaker can be used directly in this configuration.
NB!
Use thread locking compound when attaching the
brackets to the loudspeakers to ensure a secure
installation.
SFA:G30
DFA:G30
TFA:G30

4 Declarations of Conformity
12
EU conformity
This declaration applies to the self powered
loudspeakers manufactured by NNNN.
We declare that under our sole responsibility the
products:
Model Names: Gage 30A
Intended use: Professional Audio
Are in conformity with the provisions of the
following EC Directives, including all
amendments, and with national legislation
implementing these directives:
- 2006/95/EC Low Voltage Directive
- 2004/108/EC Electromagnetic Compatibility
Directive
- 2002/95/CE RoHs Directive
The following harmonized standards are applied:
- EN 55103-1
- EN 61000-3-2
- EN 61000-3-3
- EN 55103-2
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-4-11 f EN 60065
Weee statement
The Waste Electrical and Electronic Equipment
Directive (WEEE Directive) aims to minimise the
impact of electrical and electronic goods on the
environment.
In the unlikely event of an NNNN product being
eligible for disposal, electrical and electronic
equipment must be disposed of separately from
normal waste at the end of its operational
lifetime. Please dispose of this product according
to the respective national regulations or
contractual agreements. If there are any further
questions concerning the disposal of this product,
please contact NNNN.
