Nobacco GIANT User manual

GIANT
NOBACCO
USER MANUAL

Thank you for selecng the NOBACCO GIANT.
Please read the manual supplied and make su-
re that you have fully understood it before u-
sing the product. If you require any addional
informaon about the product or its use, plea-
se consult your local reseller or visit NOBAC-
CO’s official website at www.nobacco.world.
Welcome to the next level of vaping power
and precision with NOBACCO GIANT, powered
by Innokin’s AETHON, Temperature Control
Technology. NOBACCO GIANT is powered by
the ultra-fast, advanced AETHON chipset for
150 Was of pure power. Choose your favorite
temperature control coils or vape in waage
mode and get ready for an amazing vaping
experience with no more dry hits! Pure power,
total control, great vapor producon!
PACKAGE CONTENTS*
1 x NOBACCO GIANT
1 x USB cable
User manual
*The company reserves the right to change
the contents and characteriscs of the pa-
ckage or/and the product without any prior
noce.
DEVICE CHARACTERISTICS
- Aethon temperature control chipset
- 510 stainless steel connector with
self-adjustable pin
- Micro USB port (5V/2A) with pass through
charging system
- OLED display screen
- Operang modes: Waage (W) /
Temperature control (Ni, Ti, SS)
- Direct current - Steady power output
- Precision temperature control
- Balanced even coil heat-up
- Ultra-low external heat generaon
- Dry hit detecon & prevenon
- Ultra-low standby power consumpon
SPECIFICATIONS
Dimensions: 87.3mm x 47.6mm x 23.8 mm
Baery: Build-in 4000mAh
1 2

Maximum working current: 30A
Maximum output voltage: 7.5V
Atomizer resistance: 0.1Ω (Minimum)
Standby current: 200uA max
Operang waage range: 6 - 150W [0.5 wa
increments (6W - 100W) / 1 wa increments
(100W - 150W)]
Operang temperature range: 150 - 315 °C
(5°C increments) / 300 - 600 °F (5°F
increments)
Temperature control mode: Ni (0.1 - 1Ω) / Ti
(0.1 - 0.5Ω) / SS316L (0.2 - 1.5Ω)
OPERATION GUIDE

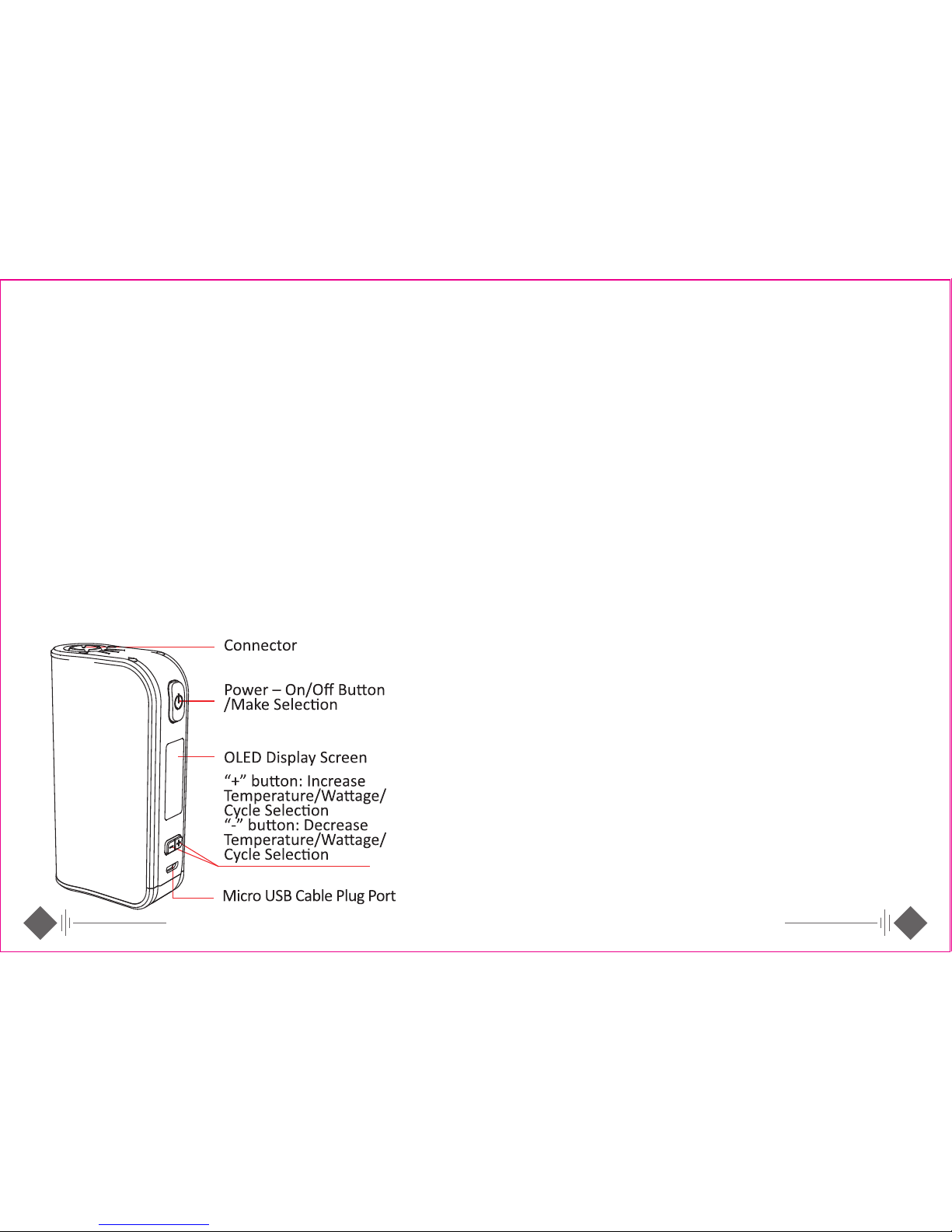

The NOBACCO GIANT has three buons:
Power buon, “+” buon and “-” buon.
Power Buon: Power / On/Off Buon / Make
Selecon
“+” Buon: Increase Temperature / Waage /
Cycle Selecon
“-” Buon: Decrease Temperature / Waage /
Cycle Selecon
The large OLED screen displays all important
formaon.
POWER ON/OFF THE NOBACCO GIANT
ON/OFF Power Buon: Click the power but-
ton three (3) mes quickly to power on the
device.
The main LED light will blink from red to yel-
low to green, aer which NOBACCO GIANT
will enter standby mode. The final color of the
LED will indicate the current baery power le-
vel.
To POWER OFF the NOBACCO GIANT:
When NOBACCO GIANT is not in use, click the
power buon three mes to power off the
3 4

device.
IMPORTANT
Always power off the device when it is not
being used or when it is going to be stored in
a pocket, bag or purse.
USE
Check that the device is charged and
funconing properly.
Screw an atomizer on the device without
using exceeding force and then inhale gently
by pressing the fire buon of the device. For
peak performance you are advised to start
your draw one (1) second aer you press the
fire buon and leave it one (1) second prior to
the end of your inhale.
Power on NOBACCO GIANT by pressing the
power buon three (3) mes.
The screen will display the last selected
sengs. Click the power buon once to bring
up the Coil Selecon screen:

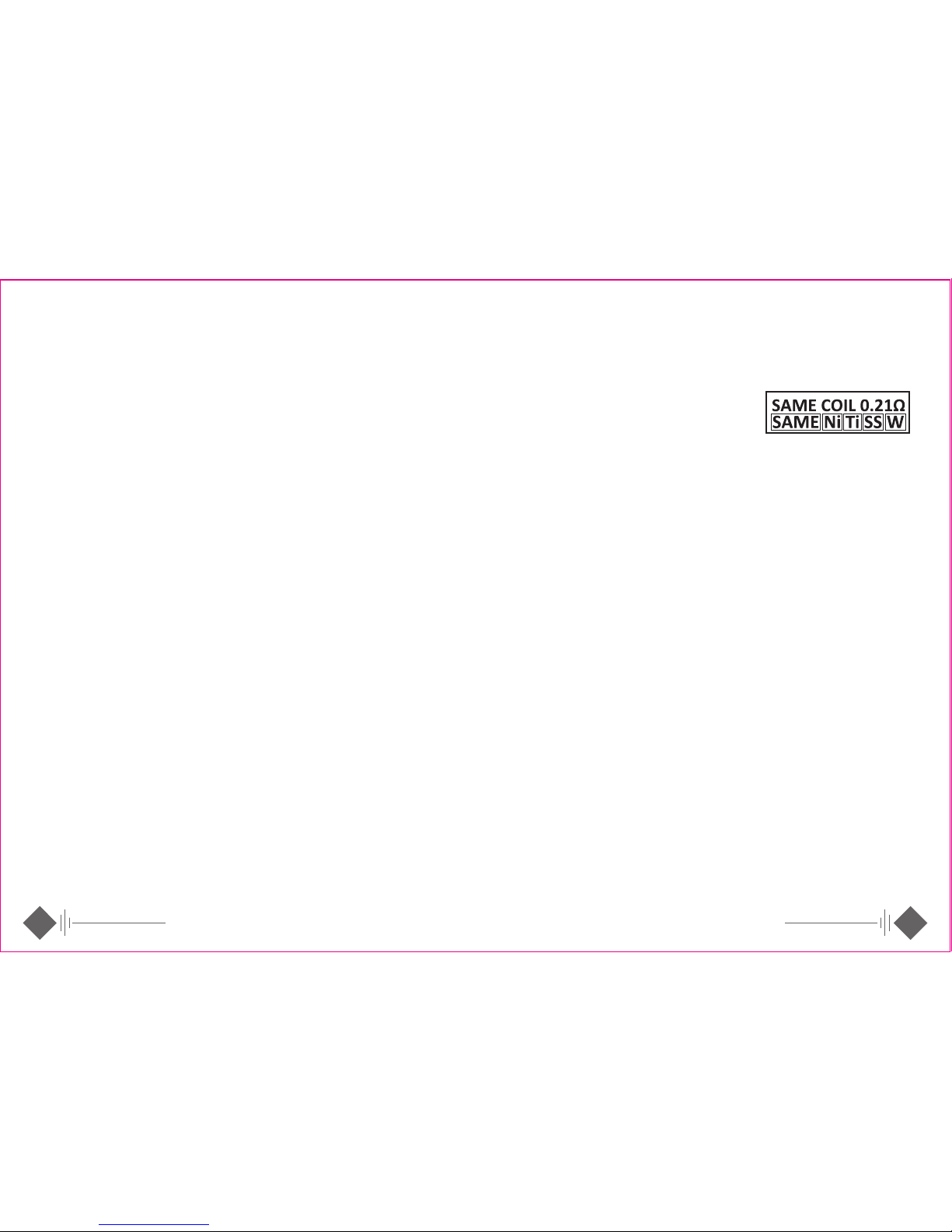

COIL MODE SELECTION SCREEN
<SAME> - Same coil head with previous
sengs
<Ni> - Ni200 - Nickel Coil
<Ti> - Titanium Coil
<SS> - Stainless Steel 316L Coil
<W> - Waage Mode
Ni Mode: You MUST choose the Ni mode
when using a Ni200 coil in the tank.
Ti Mode: You MUST choose the Ti mode when
using a Titanium coil in the tank.
Stainless Steel Mode: It’s recommended to
choose the SS mode when using a Stainless
Steel 316L coil in the tank.
W Mode: Variable Waage Mode.
IMPORTANT
Temperature Control funcons are only avai-
lable with T.C. compable coils heads.
You must select the correct coil type. Set the
temperature or waage level according to the
aached coil head’s recommended range.
Do not set the temperature higher than re-
commended or you may damage the coil
5 6

If the waage is decreased below 6 was, it
will cycle up to 150 was. If the waage is
increased above 150 was, it will cycle down
to 6 was. Press the power buon to lock the
set waage and acvate the device.
CALIBRATION AND COIL SELECTION
IMPORTANT
For accurate calibraon the coil must be at
room temperature. If a coil has been heated
then it must be cooled down to room tempe-
rature before calibraon. E-liquids should be
room temperature for accurate calibraon.
There are two ways to select the correct coil
mode:

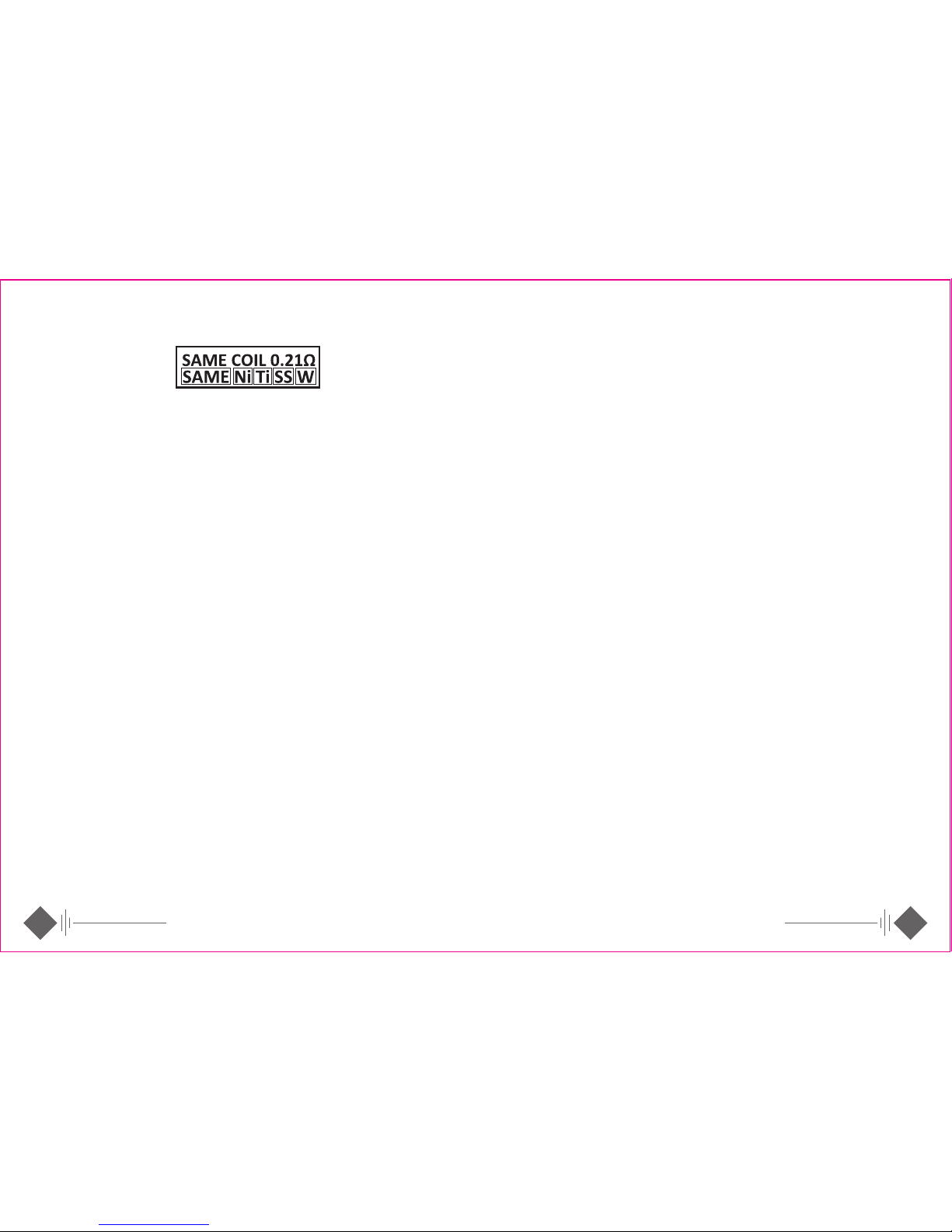

Calibraon & Coil Selecon Method #1
Aach a new tank or detach and re-aach a
tank. When the power buon is pressed the
OLED screen will display:
Press the “+” or “-” buon to cycle coil types
through Ni (Ni200), Ti (Titanium), SS (Stainless
Steel), W (Waage Mode).
When the desired mode is selected press the
head. If the coil head is damaged, or tastes
burnt, replace the coil head immediately.
The ideal temperature or waage varies ac-
cording to coil head, e-liquid, tank airflow and
personal preference. Start at the low end of
the recommended coil head temperature or
waage range and increase the set tempera-
ture or waage unl you find your perfect va-
pe temperature and flavor.
You must select the correct coil mode before
vaping.
ADJUST VARIABLE WATTAGE
When the device is in variable waage mode
press and hold the “+” or “-” buon and the
set waage will flash. Release the buon and
press the “+” or “-” buon again to increase
or decrease the waage.
Waage can be adjusted from 6 to 150 was
in 0.5 wa increments, between 6W - 100W,
and in 1 wa increments, between
100W-150W, by pressing and holding the “+”
or “-” buon. Hold the buon down to quickly
increase or decrease the set waage.
7 8

wer buon to lock the set temperature and a-
cvate the device.The Fahrenheit temperature
range can be adjusted from 300 - 600°F in 5°F
increments. Hold the “+” or “-” buon and the
tempera- ture seng will flash. Release the
buon and press it again to quickly increase or
decrease the set Fahrenheit temperature.
When the °F seng is increased above 600°F
decreased below 300°F the device will switch
to °C mode. Press the power buon to lock
the set temperature and acvate the device.
PreBoost Ramp-Up Technology
Select the waage the AETHON chip will use
to heat the coil to the target temperature.
Press and hold the power buon and “-” but-
ton for 3 seconds to enter PreBoost RampUp
Waage selecon mode. The PreBoost
RampUp seng in the lower le corner will
flash. Press the “+” or “-” buons to cycle
from 25 - 150W and press the power buon
to set the RampUp waage.
Ohms Meter, Baery Level Indicator & Puff
power buon to select Coil Type and acvate
the device.
Coil Selecon Method #2
Press and hold the power buon and the“+”
buon together for 3 seconds; connue hol-
ding the buons to cycle through coil types:
Ni (Ni200), Ti (Titanium), SS (Stainless Steel),
W (Waage Mode). The top le corner will
display the coil type. Release the buons to
select the correct coil type.
To adjust the set temperature and switch
between Fahrenheit °F and Celsius °C:
Celsius temperature range can be adjusted
from between 150 - 315°C in 5°C increments.
Hold the “+” or “-” buon and the tempera-
ture seng will flash. Release the buon and
press it again to quickly increase or decrease
the set Celsius temperature.
When the °C temperature is cycled above
315°C or below 150°C then the device will
switch to °F temperature mode. Press the po-
910

micro USB charging cable to the charging port
of your device. Connect the other end of the
micro USB charging cable to the USB port of a
computer or a compable wall charger.
5V/2A Fast Charging is supported with high
quality cerfied CE/UL/FCC wall charger.
DO NOT CHARGE THE DEVICE UNATTENDED
“VAPE WHILE CHARGING” TECHNOLOGY
The NOBACCO GIANT is recharged with a
micro USB cable. When plugged into a
suitable power source the device can be
vaped and charged at the same me with
Innokin’s “Vape while charging” pass-through
technology.
IMPORTANT
A baery should never be totally discharged
for a period of me. However, if the baery is
totally discharged it must be recharged to at
least 1 bar before vaping with “Vape while
Counter
With an atomizer aached, hold both the “+”
and “-” buons simultaneously and the
secondary screen will display the precise
resistance of the aached atomizer, the
baery voltage and the number of puffs since
the device was last turned off.
BATTERY CAPACITY INDICATION AND
CHARGING
Baery capacity is displayed via green,
yellow and red LED:
Green = Almost fully charged.
Yellow = Half power.
Red = Low power.
Charge the NOBACCO GIANT.
When the device has been powered on, hold
the power buon down to acvate it. The co-
lor of the LED, when the buon is pressed,
indicates the current power level.
When the device is fully recharged the LED
light will power off.
To charge NOBACCO GIANT, connect your
11 12

me atomizer Ohms detecon. If the resistan-
ce of the atomizer is lower than 0.07Ω, the
LED will light solidly for 5 seconds, the Ohms
bar will blink and the device will not power

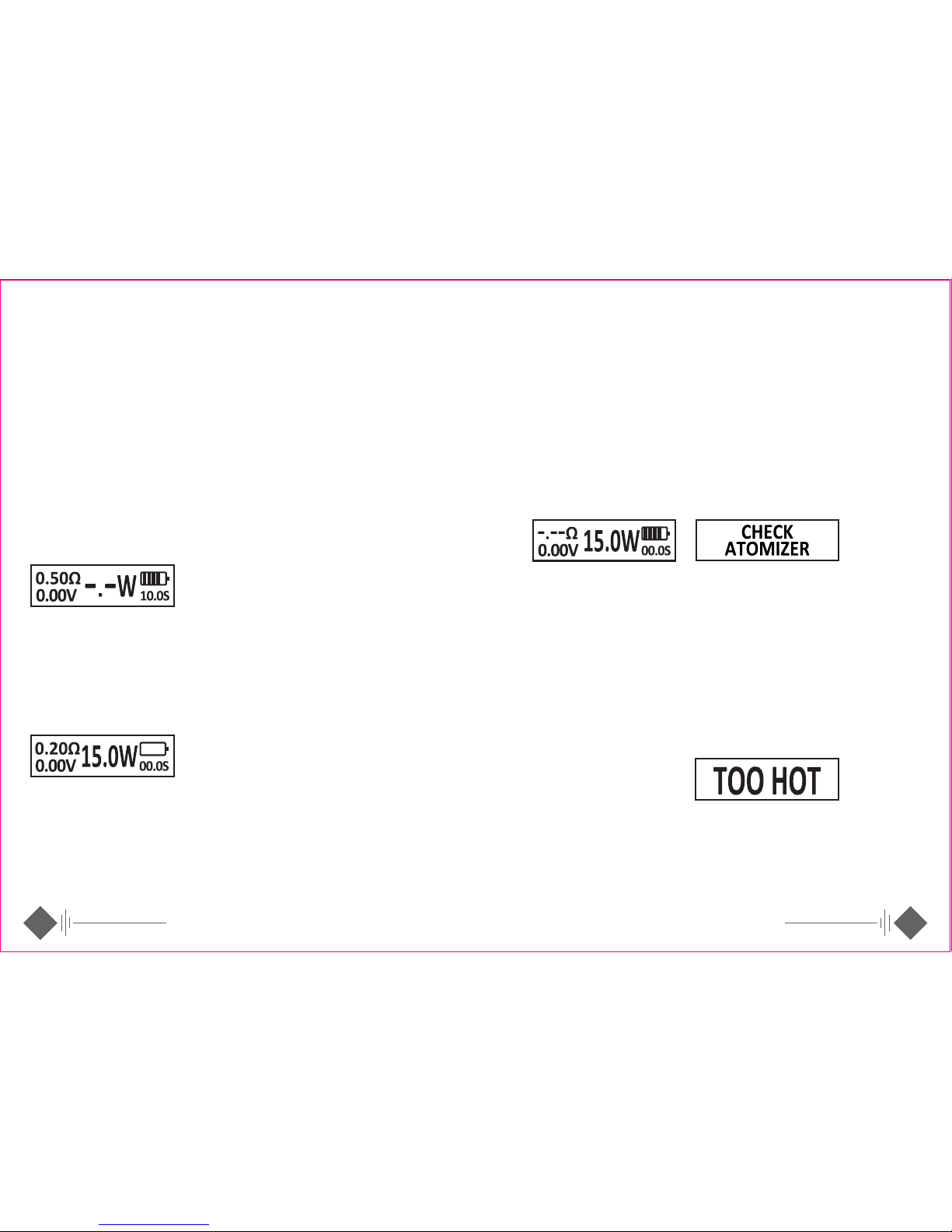

on. Check Atomizer:
If there is no atomizer aached, or the
atomizer is not connected properly, or
resistance is 3.5 Ohm or above, the OLED
screen will display “CHECK ATOMIZER”.
Over-Discharge Protecon:
The product monitors baery voltage and will
automacally powers off if the baery is
over-discharged.
Overheat Protecon:
The NOBACCO GIANT features automac real-
me PCB Chipset temperature detecon. The
screen will display “TOO HOT” if the PCB is o-
verheated.
OLED screen orientaon:
Hold “+” and “-” buon for 3 seconds to flip
the horizontal orientaon of the OLED screen.
Remember last Temperature or Waage
charging” pass-through technology. Ensure the
OLED baery power level has at least 1 bar
remaining before using the “vape while charging”
funcon.
INTEGRATED SAFETY
15 seconds Cut-off:
If the power buon is held for 15 seconds or lon-
ger, the product LED will flash 10 mes and the
device will stop operang unl the power buon
is released and pressed again.
Low Voltage Warning:
The red LED and baery bar will blink 8 mes
when the baery capacity is lower than 6.6V and
the device will automacally power off. Recharge
the device immediately to maintain baery health.
Short Circuit/Atomizer Protecon:
Short Circuit/Atomizer Protecon protects the
product against shorted atomizers and will stop
the device from funconing in unsafe condions.
The NOBACCO GIANT features automac real-
15 14

se keep it away from children and/or pets.
• Do not immerse the device into any liquids
or allow it to get wet.
• Do not carry or store the device with other
sharp metal objects.
• Do not short circuit the negave (-) and
posive (+) pole of the device.
• Do not use excessive force when aaching
the atomizer on the device as it may damage
the threads of both.
• Use only the dedicated for device parts and
accessories to avoid any malfuncon.
• This product is not sold or marketed as a
smoking cessaon device
• Please obey the local laws and/or
regulaons pertaining to the use of vaping
devices.
STORAGE
• Keep the device away from children and mi-
nors.
• Keep the device away from very high or very
low temperatures and/or humid environ-
ments.
seng:
When the device is turned off it will remem-
ber the current temperature or waage set-
ng and it will retain the seng when the
de-vice is powered back on.
Dry Hit Detecon & Prevenon:
If there is insufficient e-liquid in the coil, or if
the coil is not primed, the device’s output will
drop to a low waage temperature
maintenance mode.
PRECAUTIONS
• In an event of drop, impact or crush, exami-
ne that the product has no visible damage
prior to use. All parts of the device must be
securely and firmly aached to each other. It
should not be used if it has cracked or defor-
med parts. Defecve parts must be replaced
before use.
• Do not pierce or, in any way, damage the de-
vice’s housing. If the device’s housing is da-
maged, in any way, directly contact NOBAC-
CO Company.
• This device may include small parts, so plea-
17 18

WARNINGS FOR RISK GROUPS
If the product is used with e-liquid contain-
ing nicone.
Do not inhale the vapor if you are allergic to
nicone or any other substance of the vapor.
If you experience any health issues or feel dis-
comfort during the usage of electronic cigaret-
te, seek medical advice.
Smoking or using electronic cigarees is not
suggested during pregnancy or breaseeding.
Consult a doctor prior to use during pregnan-
cy. Using electronic cigarees from an early a-
ge may cause serious health issues. Nicone
can be very dangerous or even lethal, if used
or digested by children.
CONTRAINDICATIONS
If the product is used with e-liquid
containing nicone.
Usage is not suggested to people who are
hypersensive to nicone or other included
contents during pregnancy and lactaon or
suffer from cardiopulmonary insufficiency.
• If you are not planning to use the device for
a long period of me, disconnect the atomi-
zer and fully charge the baery. Repeat char-
ging once every month.
SAFETY INSTRUCTIONS
If the product is used with e-liquid
containing nicone.
The e-liquid is not intended for digeson. Do
not allow the e-liquid to come in contact with
your skin. Keep the device in accordance to
common hygiene regulaons. Seek medical at-
tenon if you feel nausea or experience vomi-
ng while using the device. E-liquids indented
for electronic cigarees must not be combi-
ned with other liquids or substances.
Do not use the product while driving. To avoid
nicone overdose, electronic cigarees should
not be used simultaneously with other nico-
ne products (cigarees, cigars, gums, patches,
nasal spray etc.). Do not dispose e-liquid in
the environment and sewage systems.
SALES IS PROHIBITED TO UNDERAGE PEOPLE
This device is not intended to non-smokers and youth
19 20

leness and hypertension, spasms, fague, bra-
dysphygmia, low blood pressure, respiratory
or muscle paralysis. Side effects may appear,
typically, within 30 minutes to 2 hours aer
o-ral exposure or may appear instantly aer
nicone inhalaon. Nicone is a highly
addicve substance.
If you experience any possible side effect,
stop using nicone product and seek
medical aenon or contact your doctor.
If a child under age of 12 accidentally digests
nicone product, IMMEDIATELY seek
medical aenon or contact your doctor.
Poison Center phone number in Greece:
([phone]
Poison Center phone number in Cyprus:
1401
Nicone must be used with cauon by people
who have been diagnosed with: mild to severe
liver disease, severe kidney disease, cardiac
disease, including angina pectoris and heart
failure, high blood pressure, cardiac or pulse
arrhythmia, paents who have recently
suffered from heart aack or stroke, hyperthy-
roidism, diabetes, inflammaon of the eso-
phagus, inflammaon of the stomach mucosa
(gastris), stomach ulcer, duodenal ulcer, skin
problems, long-term or chronicle throat is-
sues, inhalaon difficules due to bronchis,
emphysema or asthma.
SIDE EFFECTS
If the product is used with e-liquid
containing nicone.
Possible side effects that might occur to some
consumers due to the nicone toxicity, while
using e-liquid containing nicone, include so-
lely or in combinaon: nausea and voming,
sleep disorders, head ache, chest pain, gastro-
intesnal disorders, dizziness, terror, transpi-
raon, cardiac arrhythmia or tachycardia, pa-
21 22

purchase. Under this warranty, we will replace
or repair, free of charge, any defecve materi-
als. This warranty does not cover misuse, un-
authorized modificaons and external uses
such as acts of nature. This warranty does not
cover normal wear and tear. In such a case,
the service department will inform you of the
exact cost pertaining to the repair of your de-
vice and will request your ap¬proval before
proceeding to any further acon. For more in-
formaon about the warranty period, please
visit the product’s official webpage at
www.nobacco.world or ask your local reseller.
NOBACCO COMPANY CANNOT BE HELD RE-
SPONSIBLE FOR DAMAGES THAT MAY OCCUR
DUE TO INAPPROPRIATE USE OF THE DEVICE
OR INCORRECT COMPLIANCE WITH THE PRO-
CEDURES DE¬SCRIBED IN THE USER MANUAL
No part of this guide may be reproduced,
translated or transmied in any form or by
any means without the prior wrien
permission of NOBACCO Company.
MANUFACTURER
Shenzhen Innokin Technology Co., Ltd
Address: Building 6, Xinxinan Industrial Park,
Xinsha
Road, Shajing, Bao’an District, 518104,
Shenzhen, China
Landline: [phone]
Email: inf[email protected]
CONTACT AFFILIATE
NOBACCO S.A.
Address: 23 Tzavella St, Halandri, Greece, ZIP
CODE 15231
Landline: ([phone]
E-mail: [e-mail]
WARRANTY
This equipment has been tested and found to
be free of defects in materials and workman-
ship that result in failure during normal usage.
This warranty is extended to the original end-
user purchaser, beginning at the me of retail
23 24
