Nobeltec WAAS GPS-18W User manual

Nobeltec®
WAAS GPS-18W™
User’s Guide

ii
Safety Warnings
ATTENTION:
READ CAREFULLY PRIOR TO INSTALLATION
All personnel engaged in the installation, operation, and maintenance of electronic
equipment, or those who are engaged in training personnel on electronic equipment,
have a duty to remain aware of the following safety precautions:
• Never assume the power to the Nobeltec WAAS GPS-18W Receiver is off. Always
consult your ship's wiring schematics.
• Always disconnect the power when not in use.
• Power down before you change any hardware devices. A power surge could
damage the electronic components of your system.
• Use a ground mat to prevent static electricity discharges.
• Do not rely solely on safety devices to protect you and your system from surges.
NOTE: Jeppesen is not liable for errors contained herein, nor incidental or consequential
damages in connection with use of this material.
Nobeltec WAAS GPS-18W
Product Support
Jeppesen's® Nobeltec® WAAS GPS-18W™ is believed to be accurate and reliable, but
can be misinterpreted. For this reason, we suggest that you carefully read through
this User’s Guide and make sure you understand its contents before using the
Nobeltec WAAS GPS-18W Receiver. For safe navigation, compare information received
from your WAAS GPS-18W to all available navigation input received from other
navigation hardware that you carry on board.
WARNING: DO NOT OPEN the Nobeltec WAAS GPS-18W Receiver. There are no serviceable
parts inside. Please contact Jeppesen for service options. Any unauthorized repair could result in
damage to the unit, which will not be covered by the warranty.
If you have a question about this product, please first review this User’s Guide. If you
cannot find the answer you are looking for, contact Jeppesen Customer Support.
Nobeltec WAAS GPS-18W Product Box Contents
• The Nobeltec WAAS GPS-18W Receiver
• 15 meter 8x28 AWG cable with bare wires
• Mounting Template Sheet
• Nobeltec WAAS GPS-18W User's Guide (this manual)

iii
Nobeltec WAAS GPS-18W
Table of Contents
Safety Warnings.............................................................................................ii
Product Support...........................................................................................................................ii
Nobeltec® WAAS GPS-18W™ Product Box Contents.................................................................ii
Chapter 1. Welcome ......................................................................................1
Nobeltec WAAS GPS-18W Product Description ........................................................................1
What is WAAS?..............................................................................................................................1
GPS Dimensions ...........................................................................................................................2
Technical Specifications ..............................................................................................................2
Chapter 2. Hardware Installation .................................................................3
Choosing a Mounting Location for the Nobeltec WAAS GPS-18W ........................................3
Installing the WAAS GPS-18W ....................................................................................................3
Wiring the WAAS GPS-18W to the DB-9 Connector.................................................................4
Chapter 3. Setting Up the WAAS GPS-18W ...................................................5
Initializing the GPS ......................................................................................................................5
Software Interface .......................................................................................................................6
Legal Disclaimer & Limited Warranty............................................................7
Jeppesen Contact Information....................................................................10

iv Nobeltec WAAS GPS-18W

1
Nobeltec WAAS GPS-18W
Welcome 1
Thank you for purchasing Jeppesen's®
Nobeltec® WAAS GPS-18W Receiver!
The WAAS GPS-18W is based on an 18-
channel GPS engine that delivers location
accuracy within 3 meters by decoding GPS
correction signals from satellite-based
WAAS (Wide Area Augmentation System).
The GPS engine, interface electronics,
and passive antenna are enclosed inside
durable waterproof plastic housing. This
superior-quality GPS provides advanced,
state-of-the-art positioning performance
and plug-and-play use with Nobeltec
Navigation Software charting programs.
Nobeltec Navigation Software (Visual
Navigation Suite™ or Admiral™, sold
separately), interfaced with the WAAS
GPS-18W on your onboard computer,
intelligently interprets and displays GPS
data in an easy-to-comprehend onscreen
format, providing you with the ability to
make safer and more prudent navigation
decisions in shorter periods of time.
This User's Guide covers the key
installation information for the Nobeltec
WAAS GPS-18W. It is written for an
audience assumed to have a mid-level,
pre-existing knowledge of PC operation
and the principles of marine navigation,
as well as previous marine equipment
installation experience.
This document should in no way be used
to replace actual navigation training and
experience.
Nobeltec® WAAS GPS-18W™ Product Description
What is WAAS?
WAAS consists of a network of ground reference stations across the United States that
monitor GPS satellite data. The master stations collect data from the reference stations
and create a GPS correction message, taking into account selective availability (SA),
GPS satellite orbit and clock drift, and signal delays caused by the atmosphere and
ionosphere. The “corrected”differential messages are then broadcast through two
Geostationary Earth Orbit (GEO) satellites on the same frequency as the GPS signal. The
result is a DGPS system that delivers superior accuracy (<3 meters).
Fig. 1 - WAAS System

2Nobeltec WAAS GPS-18W
Chapter 1 Welcome
Physical Characteristics
Color Ivory white.
Dimensions 97mm in diameter x
32mm in height
(flush mounted)
61.5mm on flag-pole
mount.
Weight 160 grams (without
cable).
Cable white 15 meter 8x28
AWG cable with bare
wires
Electrical Characteristics
Input Voltage 10 Vdc to 35 Vdc
unregulated
Power Consumption 1.2 W max
Electrical Interface TTL voltage levels, RS-
232 polarity
Performance
Receiving Method 18 channels parallel
Receiving Frequency 1575.42MHz (L1, C/A
code)
Receiving Sensitivity Less than -130 dBm
Time to First Fix (TTFF)
Hot start 11 seconds (typical)
Warm start 37 seconds (typical)
Cold start 44 seconds (typical)
Accuracy
Position Less than 10m (2drms)
GPS: (SA=OFF;
PDOP<3)
Less than 8m (2drms):
DGPS: (SA=OFF;
PDOP<3)
Velocity Less than 1m/s (rms)
Dynamics
Acceleration Less than 1g
Velocity Less than 350Km/h
DGPS format RTCM SC-104,
4800bps; WAAS
Output format NMEA-0183 Baud rate
4800 N81
NMEA Output GGA, GLL, VTG, RMC,
GSA, GSV, PKODG,1,
PKODG,7, PKODG,16
Geodetic Datum WGS84
Environmental Characteristics
OperatingTemperature 0° C~ +60° C
StorageTemperature -20° C~ +85° C
Relative Humidity 95% non-condensing
Water Resistance 100% waterproof
Technical Specifications
Fig. 2 - GPS Antenna Dimensions
GPS Dimensions

3
Nobeltec WAAS GPS-18W 3
Choosing a Mounting Location for the WAAS GPS-18W
Choose a location for the WAAS GPS-18W antenna that has a clear view of the sky.
Ensure that there are no major obstructions, overhanging items, or fixtures in immediate
proximity to the antenna.
Your WAAS GPS-18W antenna relies on direct“line of sight” satellite reception. If you are
unsure that the chosen location is suitable it may be advisable to mount the antenna in
a temporary manner to verify correct operation.
Installing the WAAS GPS-18W
The Nobeltec WAAS GPS-18W is designed for easy flush mounting.
TIP: This step requires a drill with 4mm and 16mm drill-bit sizes and RTV marine silicone.
1. Place the mounting template on the mounting location you have selected.
2. Following the instructions from the mounting template, drill a 0.63" (16 mm) hole
and three 0.155" (4 mm) holes in your mounting location as shown in Figure 3.
3. Remove the template and thread the provided cable through the central hole.
4. Apply a small coat of RTV (marine silicone) to the underside of the antenna.
5. Place the antenna in the prepared location and then secure it down from
underneath using the three included M3 screws.
TIP: The 1", 14TPI thread used on the antenna is a standard thread used on many marine
industry mounting brackets and the swivel joints commonly used for angled surfaces. Be aware,
there may be some extra thread when you tighten the antenna to the mounting bracket. DO NOT BE
CONCERNED - tighten the antenna until it stops rotating on the antenna mounting bracket. DO NOT
OVERTIGHTEN.
Hardware Installation 2
Fig. 3 - Installing GPS Antenna - Cross-Section

Nobeltec WAAS GPS-18W
Wiring the WAAS GPS-18W to the DB-9 Connector
TIP: This step requires a soldering iron and solder.
1. Solder the Brown TX wire directly to Pin 2.
2. Solder the Green RX wire to Pin 3.
3. Splice the Black wire. Solder ½ of the spliced Black wire to Pin 5 and ½ of the
spliced Black wire to a common ground on your electronics panel.
5. Connect the Red wire directly to your 12V electronics panel with a 1A fuse, either
in line or on the panel.
6. Check your solder connections carefully to verify that all wires are connected to
the proper pin numbers and that no solder is touching any other pin.
REMEMBER: The remaining wires (shown in Figure 5 with an * next to them) DO NOT get
connected to the DB-9 connector.
4
Chapter 2 Hardware Installation
Fig. 4 - Installing GPS Antenna - Side View

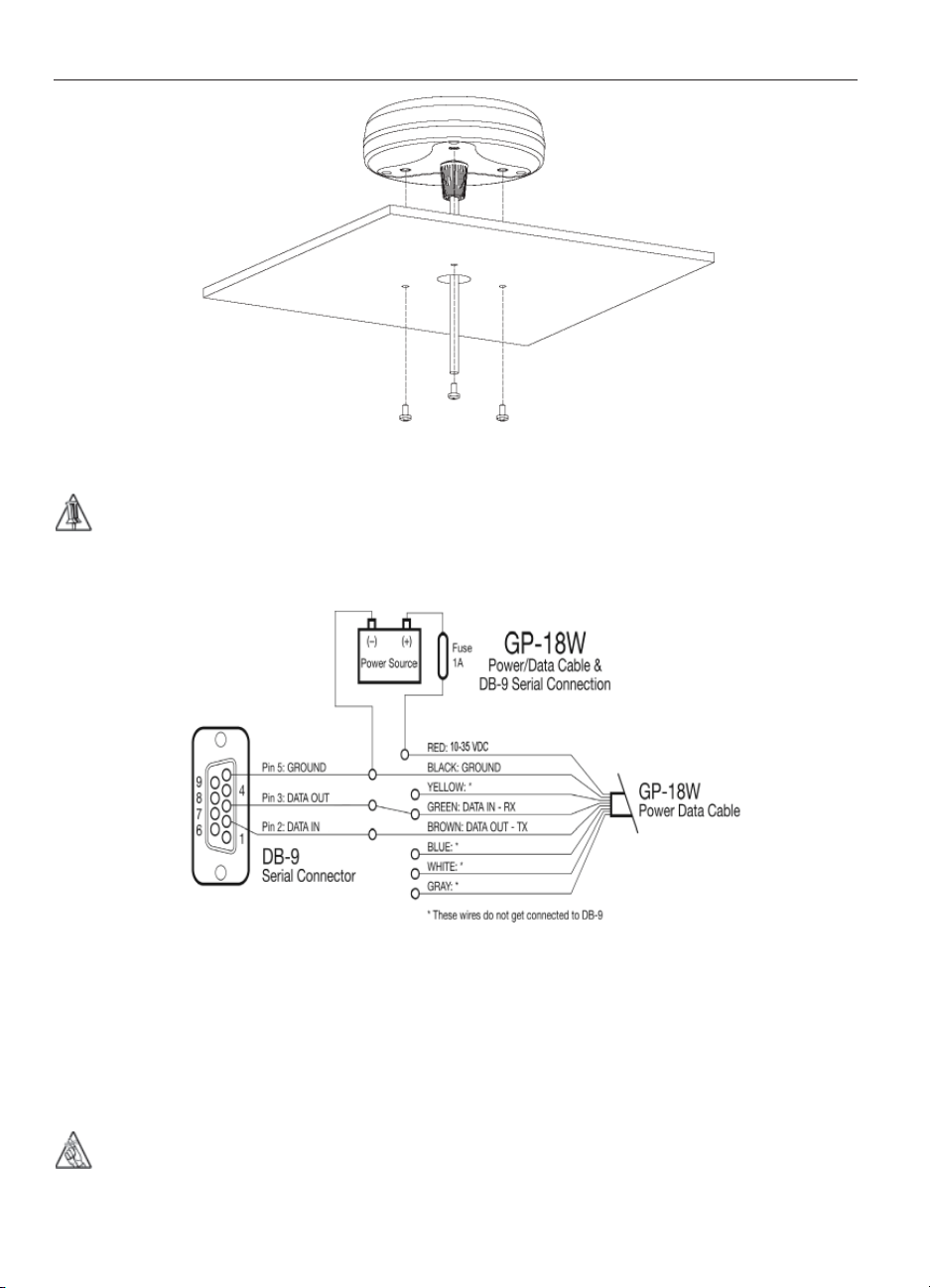

Fig. 5 - Diagram for GPS-18W with DB-9 Connector

5
Nobeltec WAAS GPS-18W
Initializing the GPS
Use the following steps to initialize the GPS:
1. From your desktop, select Start | Programs | Nobeltec | GPS Port Setup Wizard.
2. The Nobeltec GPS Port Setup Wizard will launch.
3. Verify that the Nobeltec GPS-18W is connected, as well as any other NMEA output
devices previously connected, such as a heading sensor. Click Next.
4. Confirm data in the list as shown in Figure 7, then click Next.

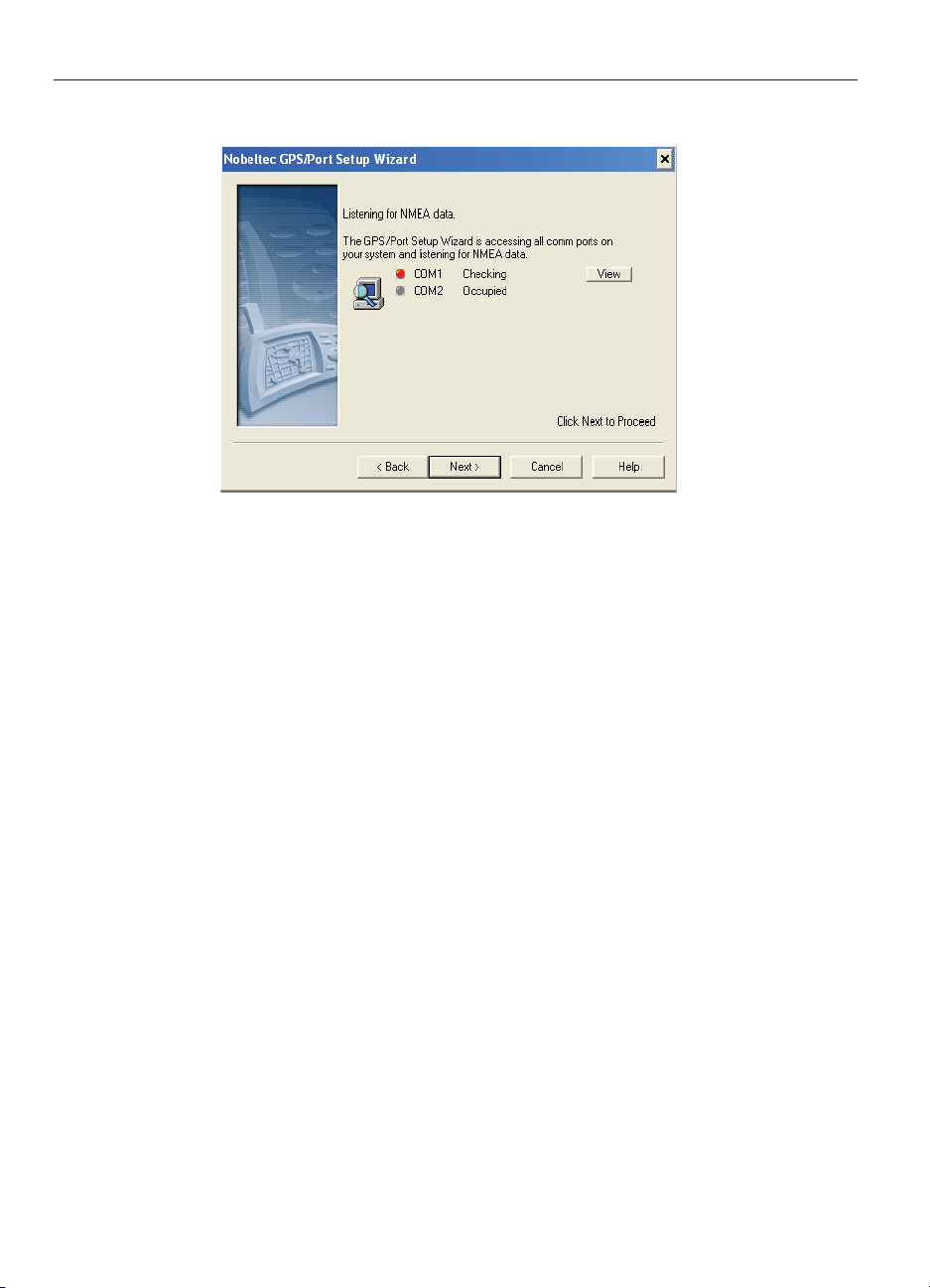

Fig. 6 - GPS Port Setup Wizard
Fig. 7- Nobeltec GPS Port Setup Wizard
Setting Up the WAAS GPS-18W 3

6Nobeltec WAAS GPS-18W
Chapter 3 Setting Up the WAAS GPS-18W
5. The GPS Port Setup Wizard will detect the connected devices and list them in the
COM port list.
6. Select Next and confirm that NMEA data is coming through the computer.
7. Click Finish to complete the process.
Software Interface
The GPS product interface protocol design is based on the National Marine Electronics
Association’s ASCII interface specification (NMEA 0183). These standards are defined in
NMEA 0183 Version 3.1. For more information see www.nmea.org.
Fig. 8 - Nobeltec GPS Port Setup Wizard

7
Nobeltec WAAS GPS-18W
Jeppesen® does not warrant that the Nobeltec® WAAS GPS-18W™ is error-free or that it
is compatible with products manufactured by any other company than Jeppesen.
The Nobeltec WAAS GPS-18W works in conjunction with Nobeltec Navigation Software,
as well as other digitized chart data and electronic information, which may contain
errors. Jeppesen does not warrant the accuracy of such information, and you are
advised that errors in such information may cause the Nobeltec WAAS GPS-18W to
malfunction or give incorrect readings.
Jeppesen is not responsible for damages or injuries caused by your use of or inability
to use the Nobeltec WAAS GPS-18W correctly; by the interaction of the Nobeltec WAAS
GPS-18W with products manufactured by any other agency; or by errors in any data or
other information utilized by the Nobeltec WAAS GPS-18W provided by third parties.
WARNING: Nautical navigation is an inherently dangerous undertaking and should be engaged
in only by persons trained and experienced in navigation. The Nobeltec WAAS GPS-18W is intended
for use only by persons trained in navigation and only as a navigational aid, not as the sole method
of navigation.
NOTE: The information in this manual and the specifications included herein are subject to
change without notice. Jeppesen shall not be liable for technical or editorial statements, errors or
omissions contained herein, nor for incidental or consequential damages resulting from furnishing,
performance or use of this material or any version of any Nobeltec software program.
LIMITED WARRANTY
1. WARRANTY LIMITATION:
Jeppesen warrants the Nobeltec WAAS GPS-18W to be free from defects in materials
and workmanship for a period of One (1) Year, except in jurisdictions where such
limitation is proscribed by law. This warranty applies to the original purchaser and
any subsequent owner during the warranty period, commencing on the date of sale
of the unit to the initial purchaser.
Jeppesen may choose, at its option, to repair or to replace a defective product or
any part of the product Jeppesen finds to be defective due to faulty material(s)
or workmanship. Jeppesen will perform all such repairs and / or replacements at
no charge or at a pro-rated charge, excluding freight costs incurred in shipping to
the factory. Return shipments from Jeppesen to points within the United States
are made via ground transportation, freight prepaid. Special shipping charges
(overnight, etc.) are the responsibility of the owner.
If Jeppesen repairs or replaces a product, the warranty is not extended. Jeppesen
owns all replaced parts and products.
7
Legal Disclaimer & Limited Warranty

8Nobeltec WAAS GPS-18W
Frequently Asked Questions
Q: My WAAS GPS-18W is plugged into my PC, but I am not picking up any targets.
What could be wrong?
A: Make sure that all cables are connected properly and securely, and that power is
coming into the receiver. If you have power, the lights on the front of the receiver
should be on. Additionally, make sure that you have correctly configured Nobeltec
Navigation Software to operate with the WAAS GPS-18W (see the Nobeltec
Navigation Software User's Guide, Target Tracking - AIS chapter). If all cables
are connected properly, you may want to verify that your 9-pin NMEA cable is
transmitting data by connecting it to another device that you know accepts NMEA
0183 data, such as a GPS.
Q: I was tracking a target on my screen and it suddenly disappeared. What
happened to it?
A: Target data is broadcast, typically, at expected intervals. When Nobeltec Navigation
Software hasn't received an updated message from an AIS target for a period
of time, the target will move into an "unknown" state before leaving the screen
altogether. However, if you experience lost targets on a consistent basis, please
contact Nobeltec's Technical Support Department for further information.
Q: I'm not seeing any AIS targets onscreen. What's wrong?
A: If you have properly configured and installed your WAAS GPS-18W and your
Nobeltec Navigation Software (sold separately), it may be that there are no AIS-
transmitting vessels within range.
8
Warranty
To be covered by this warranty, the Nobeltec WAAS GPS-18W must have been in
normal use. The warranty does not apply to units with defects caused by improper
installation, physical damage, abuse, tampering, lightning or other abnormal
electrical discharge, or to units with defaced or altered serial numbers, or to units
repaired by unauthorized persons or repaired in a manner that violates Jeppesen’s
recommended service procedures.
Jeppesen shall not be liable for direct, incidental, special or consequential damages
or economic loss, even if caused by the negligence or fault of Jeppesen, except in
jurisdictions where such limitation is proscribed by law.
All repairs and replacements made under this warranty must be performed
as directed by Jeppesen (see the GETTING SERVICE section of this warranty).
Performance of unauthorized warranty work elsewhere is not sanctioned, nor will
Jeppesen pay for such repairs. Jeppesen will not be responsible for payment of any
charges imposed by a Nobeltec dealer or any other party for services requested by
and / or performed for a Nobeltec WAAS GPS-18W owner in connection with this
warranty. Such services might include removal of the unit from a vessel, inspection,
packaging, handling, reinstallation and the like.
Jeppesen assumes no responsibility for any consequential losses of any nature with
respect to any of its products or services sold, rendered or delivered. The foregoing
is the only warranty expressed or implied. No other warranty exists.
2. GETTING SERVICE:
a) Obtain a Return Material Authorization (RMA) Number from Nobeltec
Customer Service (see Back Cover for contact information).
Prior to calling for an RMA, ready the following information:
· The product Serial Number
· Date and place of purchase (you will need proof of purchase for service)
· Installation and use history
It is prudent to record the above information at the time of installation and to
update your records any time the product is serviced. Note: Jeppesen will not
repair any product unaccompanied by an RMA.
b) Return the product (along with a copy of your proof of purchase and the
RMA number issued to you by Customer Service) to the place where it was
purchased. If your supplier cannot be contacted or cannot supply service for
any reason, contact Jeppesen (see Back Cover for contact information).
3. RETURNING MATERIAL TO JEPPESEN:
Return your product to Jeppesen ONLY if you cannot receive service from your
original dealer as described in Step 2 – GETTING SERVICE on this page.
From North America only:
a) Contact Jeppesen to obtain an RMA number (see Step 2a above)
b) Pack the unit securely, in the original box if possible

9
Nobeltec WAAS GPS-18W 9
Warranty
Include on the package label:
√ The Return Mailing Address where the repaired unit can be sent
√ The RMA number
√ Jeppesen’s address (unless instructed to send elsewhere by a Jeppesen
Customer Service employee):
Nobeltec by Jeppesen – ATT: Service
15160 NW Laidlaw Road, Suite 100
Portland, Oregon 97229 USA
c) Include inside the package a Cover Letter including:
√ The RMA number
√ Your contact telephone number
√ A copy of your dated proof of purchase
√ A complete description of the problem, including when it happens, what
precedes it, and any steps you have already taken to correct it
d) Ship the unit prepaid:
· COD shipments will be refused
· Shipments without an RMA number will be refused
NOTE: Return shipments from Jeppesen (within 3-6 weeks) to points within
the United States are made via ground transportation, freight prepaid. Special
shipping charges (overnight, etc.) are the responsibility of the owner.
4. DOCUMENTATION LIMITATION: The information in this document is subject to
change without notice and does not represent a commitment on the part of
Jeppesen, who shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from
furnishing this material; or the performance or use of this product.
Jeppesen reserves the right to change product specification without notice.
Information in this document may change without notice. No part of this document
may be reproduced or transmitted by any means, for any purpose, without prior
written permission from Jeppesen.
The words WAAS GPS-18W™, Nobeltec®, and Jeppesen® are trademarks of Jeppesen.
Other trademarks mentioned but not specifically referenced here are the property
of their respective companies.

10 Nobeltec WAAS GPS-18W
Nobeltec® by Jeppesen®
15160 NW Laidlaw Road – Suite 100
Portland, Oregon 97229 USA
Customer Support Phone Numbers
North America: 800 732 2800 6 AM - 7 PM MT
Europe: [phone] AM - 5 PM CET
All Other Locations: [phone] AM - 7 PM MT
Sales Phone Numbers
All Locations: 800 598 4976 / [phone] AM - 4:30 PM PT
Fax: [phone]
Email: [email protected]om (Sales) / suppor[email protected] (Support)
www.nobeltec.com
Printed in USA
Press Date: December 2005
© 2005 Jeppesen Sanderson, Inc. All rights reserved.

11
Nobeltec WAAS GPS-18W

NTMMA090 rev 12/2005
