Noble House Home Furnishings SQUARE PERGOLA User manual

DO NOT USE THE PERGOLA DURING INCLEMENT WEATHER.
ENSURE ALL CHILDREN ARE SUPERVISED, AT ALL TIMES, DURING USE OF
UNATTENDED CHILDREN MUST NOT BE ALLOWED TO USE THIS PERGOLA.
DO NOT HANG ANY HEAVY OBJECT(s) ONTO ANY PART OF THE PERGOLA.
USE STEP LADDERS ONLY TO ASSEMBLE THIS PERGOLA.
IN THE PROCESS OF ASSEMBLY, IF YOU SHOULD ACCIDENTALLY LOSE ANY
IN THE PROCESS OF ASSEMBLY, IF YOU SHOULD ACCIDENTALLY DAMAGE
SQUARE PERGOLA
Please look into the Hardware Box in Carton 3 of 3 for all hardware.
CAUTION : IT IS RECOMMENDED THAT YOU :
1. )
2. )
3. )
4. )
5. )
6. )
DO NOT REPLACE WITH YOUR OWN HARDWARE.
7. )
DO NOT PROCEED WITH THE ASSEMBLY.
Note 1: Post Mounting Hardware is NOT included in this kit.
Please confirm with your Local Hardware Stores to determine the correct hardware.
1 OF 34
FACE 2
FACE 3
FACE 4
FACE 1
.
.
PERGOLA.
HARDWARE,
THE WOOD,

2 OF 34
CAUTION :
1. )
2. )
These Parts - would require your actions to JOIN / CONNECT, to become Components.
The Components will then be ASSEMBLED to form the Pergola.
hours to fully assemble the Pergola.
It is recommended that you check the Serviceability and Condition of the Step Ladders
before use.
This is especially required during lifting of heavy or large parts and or the long Joists.
the Garden Stakes into the ground.
Pergola is assembled closest to this ideal location.
By selecting your ideal location, this would minimize moving about the Pergola upon partial
and completion of assembly.
or damage(s) to the Pergola.
as recommended here below.
This would allow for quick and easy retrieval during the assembly.
This Pergola consists of MANY PARTS.
3. )
Team work - We recommend 4 to 5 adults partners and this assembly may require 3 to 4
Before assembling, check all available parts and hardware are complete and intact.
4. )
Step Ladders ( not provided ) are required at some stage in the Assembly Process. 5. )
Exercise Caution during and throughout the entire assembly process. 6. )
Do Exercise Safety at all times when using the Step Ladders and or Hammer when staking 7. )
We recommend you to SELECT your ideal location to set up the Pergola and that the entire
8. )
The assembly in your ideal location would minimize injury to you and or your partners, and
9. )
The measurement on ground is as indicated with inner distance between Pillar Base is 6.51
feet and Diagonally is 8.26 feet.
Upon selecting your ideal location, ensure the ground is firm, flat and even surface.
10. )
We recommend you to display and / or layout the parts / components in a "bundle manner"
11. )
Ensure NO ONE other than those Partners should be allowed in the work-assembly area. 12. )
It is highly recommended that you read and familiarise yourself with this Assembly Instructions
before you proceed to assemble this Pergola.

3 OF 34
1.
2.
3.
4.
MAINTENANCE INSTRUCTIONS:
It is recommended that you conduct a Routine Maintenance Check as below:
Check all Nuts and Bolts once every 3 month after Installation and tighten as required.
Note: Don’t overtight, which may lead to cracking of wood.
Inspect the wood parts monthly. Check for any sharp edges, lift in grains or splinters.
If found, a light sanding is necessary, followed by the application of sealant.
This may prevent further lift and splinters or any other weather-related damages.
If the rest had happend, please find the extra hardware bag to replace the corresponding parts.
If the situation is special and can not be replaced, please contact customer service for assistance.
To increase the longevity of the wooden pergola, consider staining and sealing at least once
a year.
Stain and sealant adds a layer of protection to the wood, protecting from UV rays, temperature
changes, and helps to maintain the natural wood color.

Parts List:
A1 4
Pillar
No. Picture Description Qty
A2
Pillar Base : Foot Base
(with pre-attached Wooden Dowel)
4
4 OF 34
Bundle I. ) Parts of Pillars.
all 4 ( four ) pcs of Pillars, complete with Foot Bases. These would look
Please ensure all Bolts and Screws are FULLY tighten after these are
Upon completion of Bundle Part I assembly, you would have assembled
Note 2:
as above.
assembled.

B1 4
First Outer Joist
B2
B3
4
4
Inner, Outer and Roof Slat Joists.
5 OF 34
B4 4
B5 12
First Inner Joist
Second Outer Joist
Second Inner Joist
Roof Slat
B6 Joinery - Big Joist 28
Bundle II. ) Parts of Joists to the Pillars and Roof Slat Joists.
Each JOIST would need 2 pcs of Joinery - Big Joists ( B6 ) to complete the
Note 3:

6 OF 34
B5
Outer Joists and Inner Joists of four faces and Roof Slats Joists, complete with
Roof Slat Joist
B5 B6
B2
Inner Joist
(for Faces 2 & 4)
B2 B6
X 2
B3
Outer Joist
(for Faces 1 & 3)
B3 B6
X 2
X 6
Outer Joist
(for Faces 2 & 4)
B1B1 B6
X 2
B4
Inner Joist
(for Faces 1 & 3)
B4 B6
X 2
These would look as above.
Please ensure all Bolts and Screws are FULLY tighten after these are assembled.
Note 4:
Upon completion of Bundle Part II assembly, you would have assembled all
Joinery - Big Joists ( B6).

Component IV. ) Angle Braces.
D8
Angle Brace (with pre-
attached Wooden Dowel)
Component V. ) Cleat.
E8
Cleat
7 OF 34
Bundle III. ) Roof Lock Slats Joists .
16
Roof Lock Slat
C2 16
Joinery - Small Joist
C1
x 8
complete Roof Lock Slat Joists.
Roof Lock Slats (C1), complete with Joinery - Small Joists (C2) .
Please ensure all Bolts and Screws are FULLY tighten after these are assembled.
Note 5:
Each ROOF LOCK SLAT would need 2 pcs of Joinery - Small Joists ( C2 ) to
Upon completion of Bundle Part III assembly, you would have assembled all
Note 6:
These would look as above.

8 OF 34
During assembly you only need to reference the part number as detailed in each step.
This will facilitate you finding the correct hardware.
The above illustrated Garden Stake Hardware - NOT provided.
The above illustrated Garden Stake is for Grass Ground Surface only.
for the other surfaces you intend to fix / hoist up the Pergola.
10
11
12
Hardware List:
1
Picture Description QTY No.
38
Screw
(M4x50mm)
210
Bolt
(M6x35mm)
392
Bolt
(M6x48mm)
438
Bolt
(M6x52mm)
538
Screw
(M6x50mm)
638
Screw
(M6x60mm)
710
Sleeve Nuts
(M6x18mm)
9134
Allen Wrench
(M4 x 80mm) 8
16 (Not
provided)
Garden Stake
(M10 x 300 mm)
Not
provided
Screw Driver
Screw
(M6x70mm)
814
Screw
(M7x90mm)
Quantity in the Hardware List included extra hardware for each type of hardware.
Note 7:
This PERGOLA must be affixed / used on a FLAT / NONE SLOPED GARDEN
Note 8:
Pillar Mounting Hardware to Concrete Flooring is NOT included/ NOT provided
Note 9:
Please confirm with your Local Hardware Stores to determine the correct hardware
Note 10:
GROUNDS.
in this kit.

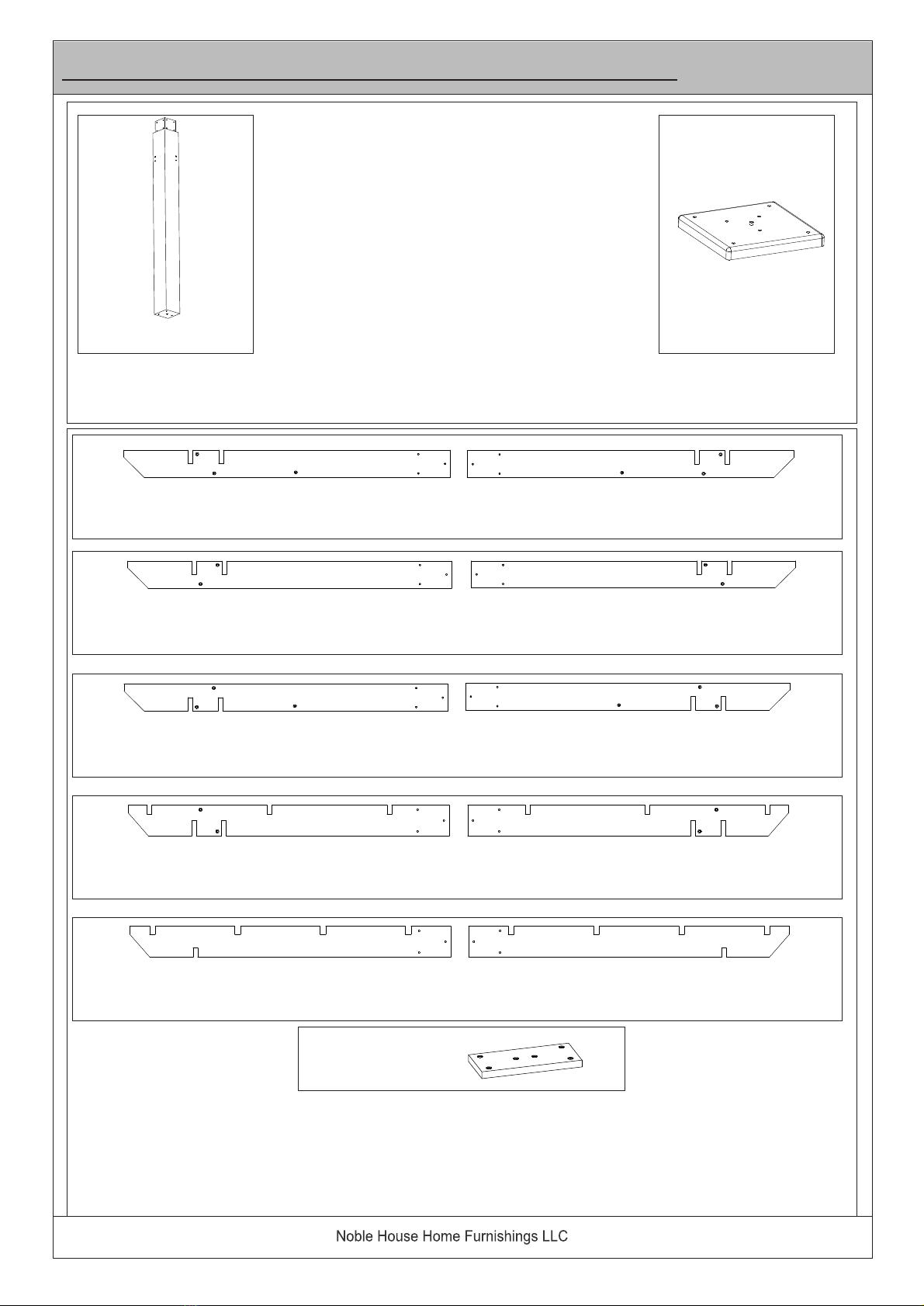

Assembly Preparation - Components:
Parts of PILLARS.
A1 x 4 A2 x 4
You would have assembled all 4 ( four ) pcs of Pillars,
complete with 4 Foot Bases.
B6 x 28
B4
B5
x 2
x 6
B4
B5
B1
x 2
B1
B3
x 2
B3
Upon completion of assembly, you will have 2 pcs of B1 Component.Upon completion of assembly, you will have 2 pcs of B1 Component.Upon completion of assembly, you will have 2 pcs of B1 Component.
B2
x 2
B2
Upon completion of assembly, you will have 2 pcs of B2 Component.
Upon completion of assembly, you will have 2 pcs of B3 Component.
Upon completion of assembly, you will have 2 pcs of B4 Component.
Upon completion of assembly, you will have 6 pcs of B5 Component.
Parts of Outer - Inner Joists and Roof Slat Joists.
You would have assembled all 4 ( four ) pcs of each First Outer Joist,
pcs of Roof Slat complete with 28( twenty- eight) Joinery - Big Joist ( B6).
These would look as pictures above.
First Inner Joist, Second Outer Joist, Second Inner Joist, and 12 ( twelve)
9 OF 34

Parts of Roof Lock Slats Joists
C1 C1
C2 x 16
x 8
11
10
9
8
7
6
5
4
3
2
1x 38
x 10
x 92
x 38
x 38
x 38
x 10
x 14
x 134
x 8
x 16 (Not
provided)
HARDWARE PACK
Component - Cleats
E x 8
D x 8
Component - Angle Braces
Upon completion of assembly, you will have 8 pcs of C1 component.
10 OF 34

The above image - OVERVIEW - gives you an overview on all the parts that needs
to be joined and or connected to become components that will facilitate towards the
Assembly Steps:
OVERVIEW .
Face 1 - Outer Joist
(B3)
Face 1 - Inner Joist
(B4)
Joinery - Big Joist (B6)
Face 4 -
Outer Joists (B1)
Cleat (E)
Face 3 - Outer Joist
(B3)
Joinery - Small Joist (C2)
Angle Brace
(D)
Roof Lock Slat
(C1)
Face 4 -
Inner Joist (B2)
Face 3 - Inner Joist
(B4)
Roof Slat Joist
(B5)
FRONT
Pillar ( A1 )
Pillar Base :
Foot Base( A2 )
Face 2 - Outer Joist
(B1)
Face 2 - Inner Joist
(B2)
FACE 3
FACE 2
FACE 1
FACE 4
assembly, to become a complete Pergola.
11 OF 34

Step 1
1. )
2. )
Unpack and place all parts on a Clean and Non-Marring Surface.
Place all parts in "group / bundle" as recommended above in the above
3. )
Parts and Components introduction.
That you identify and mark your ideal location where to place / position
By so doing, would mean minimal moving about of the partial and or fully
assembled Components and Pergola.
this Pergola.
Moving about the partially assembled Components and or the assembled
Pergola may bring about injury and or damage(s) to the Pergola.
As the Pergola is tall, wide and heavy, we recommend:
.
Assemble on a clean non-
-5 adults in the assembly.
c
y
.
12 OF 34

SAFETY REMINDER :
Upon completion at Step 2 above, you would have assembled all 4 ( four ) Pillars, complete with
Foot Bases.
Here below in Step 3, 4, 5 & 6 involves the assembly of the INNER and OUTER Joist to the Pillars.
The function of the Inner and Outer Joists will be attached to the top of the pillars to become the
core support for the Roof Lock Slats.
13 OF 34
Before moving on to the next part of the Pergola assembly, go back and check and
ENSURE ALL SCREWS at ALL ASSEMBLY POINTS on ALL 4 (four) Pillars, are FULLY
SECURED AND FULLY TIGHTENED into position AT ALL POINTS.
Step 2
Here in Step 2, is a single-man job, in the assembly of the Foot Base to the Pillar.
Keeping the Pillar in the same propped position from picture above, proceed to attach the Foot Base ( A2 ).
For ease of assembly, place a box or an object to prop up the Pillar, as shown above.
There are 2 sub steps as below:
2.1 Position the pre-attached Wooden Dowel in FOOT BASE (A2) into the Pillar.
2.2 Secure the FOOT BASE ( A2 ) to the Pillar with Screws (⑧).
Using the Allen Wrench (⑩), secure and tighten all 3 ( three ) Screws (⑧). into the base of the Pillar,
as shown above.
Repeat this Step 2 for the remaining 3 (three) Pillars.
Upon completion of assembly Step 2 here, is that you now have 4 ( four ) Pillars, fully assembled with Pillar
with Foot Base.
Ensure all the Screws at these Foot Bases are FULLY SECURED AND TIGHTENED.
To assist the flow of assembly into a Pergola, you may place each Pillar to the previously marked
locations.
A2
Box
A2
A2
Upper
Lower
A1
A1 A1
10
8
A2
A1
2.1 2.2
There are a total of 3 Screws to be affixed per Foot Base (A2).

14 OF 34
Step 3

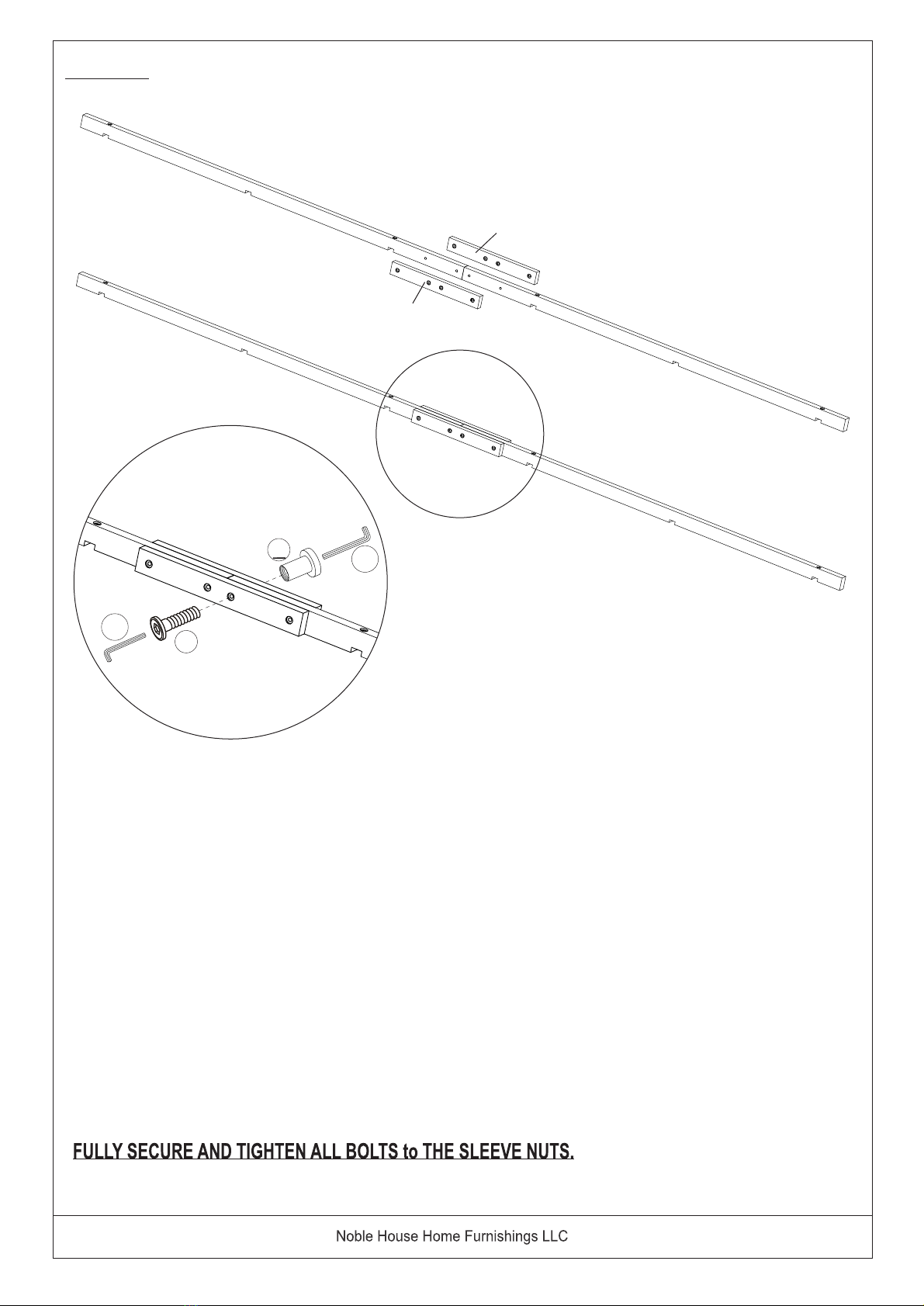

Here in Step 3, will require your adult partners and you to connect 02 ( two ) pcs of Joists together to form the
Face 1 - Inner Joist.
Sandwich the 2 (two) pcs of Second Inner Joists with 2 ( two ) pcs of Joinery - Big Joist ( B6 ), as shown above.
Using Allen Wrenches ( ⑩ ), turn in Bolts ( ③ ) and Sleeve Nuts ( ⑨ ) as shown above.
Upon completion of this Face 1 - Inner Joist, place this to the location of Face 1 - Inner Joist area, in your
Repeat this step with the Face 3 - Inner Joist.
B4
B4
B4
B4 B6
B6
3
10
10
9
There are a total of 6 Bolts and 6 Sleeve Nuts to connect and "sandwich" the 2 (two) Second Inner Joists.
2 ( two) pcs of SECOND INNER JOISTS (B4) are to be connected together.
marked location.

15 OF 34
Step 4
Here in Step 4, will require your adult partners and you to connect 02 ( two ) pcs of Joists together to form the
Face 1 - Outer Joist.
Sandwich the 2 (two) pcs of Second Outer Joists with 2 ( two ) pcs of Joinery - Big Joist ( B6 ), as shown above.
Using Allen Wrenches ( ⑩ ), turn in Bolts ( ③ ) and Sleeve Nuts ( ⑨ ) as shown above.
Upon completion of this Face 1 - Outer Joist, place this to the location of Face 1 - Outer Joist area, in your
Repeat this step with the Face 3 - Outer Joist.
B3
B3
B3
B3 B6
B6
3
10
10
9
There are a total of 6 Bolts and 6 Sleeve Nuts to connect and "sandwich" the 2 (two) Second Outer Joists.
2 ( two) pcs of SECOND OUTER JOISTS (B3) are to be connected together.
marked location.

16 OF 34
Step 5
3
10
10
9
Here in Step 5, will require your adult partners and you to connect 02 ( two ) pcs of Joists together to form the
Face 2 - Inner Joist.
2 ( two) pcs of FIRST INNER JOIST (B2) are to be connected together.
Sandwich the 2 (two) pcs of First Inner Joist with 2 ( two ) pcs of Joinery - Big Joist ( B6 ), as shown above.
Using Allen Wrenches ( ⑩ ), turn in Bolts ( ③ ) and Sleeve Nuts ( ⑨ ) as shown above.
Upon completion of this Face 2 - Inner Joist, place this to the location of Face 2 - Inner Joist area, in your
marked location.
Repeat this step with the Face 4 - Inner Joist.
B2
B2
B2
B2
B6
B6
There are a total of 6 Bolts and 6 Sleeve Nuts to connect and "sandwich" the 2 (two) First - Inner Joist.
FULLY SECURE AND TIGHTEN ALL BOLTS to THE SLEEVE NUTS.

17 OF 34
Step 6
Here in Step 6, will require your adult partners and you to connect 02 ( two ) pcs of Joists together to form the
Face 2 - Outer Joist.
2 ( two) pcs of FIRST OUTER JOIST (B1) are to be connected together.
Sandwich the 2 (two) pcs of First Outer Joist with 2 ( two ) pcs of Joinery - Big Joist ( B6 ) as shown above.
Using Allen Wrenches ( ⑩ ), turn in Bolts ( ③ ) and Sleeve Nuts ( ⑨ ) as shown above.
Upon completion of this Face 2 - Outer Joist, place this to the location of Face 2 - Outer Joist area, in your
marked location.
Repeat this step with Face 4 - Outer Joist.
B1
B1
B1
B1
B6
B6
3
10
10
9
There are a total of 6 Bolts and 6 Sleeve Nuts to connect and "sandwich" the 2 (two) First Outer Joists.

Step 7
18 OF 34
B5
B5
B6
B6
B5
B5
3
10
10
9
Here in Step 7, will require your adult partners and you to connect 02 ( two ) pcs of Joists together to form the
Roof Slat Joists.
2 ( two) pcs of ROOF SLATS (B5) are to be connected together.
Sandwich the 2 (two) pcs of Roof Slat with 2 ( two ) pcs of Joinery - Big Joist ( B6 ), as shown above.
Using Allen Wrenches ( ⑩ ), turn in Bolts ( ③ ) and Sleeve Nuts ( ⑨ ) as shown above.
Upon completion of this Roof Slat Joists, place this to the location of Roof Slat Joists area, in your
marked location.
Repeat this step with remaining 5 (five) Roof Slat Joists.
There are a total of 6 Bolts and 6 Sleeve Nuts to connect and "sandwich" the 2 (two) Roof Slats.
The completion of assembly Step 7 here, is that you now have 6 ( six ) Roof Slat Joists.

4
10
10
9
Step 8
C1
C1
C2
Here in Step 8, will require your adult partners and you to connect 02 ( two ) pcs of Joists together to form the
Roof Lock Slat Joists.
2 ( two) pcs of ROOF LOCK SLATS (C1) are to be connected together.
Sandwich the 2 (two) pcs of Roof Lock Slat with 2 ( two ) pcs of Joinery - Small Joist ( C6 ), as shown above.
Using Allen Wrenches ( ⑩ ), turn in Bolts ( ④ ) and Sleeve Nuts ( ⑨ ) as shown above.
Upon completion of this Roof Lock Slat Joists, place this to the location of Roof Lock Slat Joists area,
in your marked location.
Repeat this step with remaining 7 (seven) Roof Lock Slats.
19 OF 34
There are a total of 4 Bolts and 4 Sleeve Nuts to connect and "sandwich" the 2 (two) Roof Lock Slats.
The completion of assembly Step 8 here, is that you now have 8 ( eight ) Roof Lock Slat Joists.
C2

20 OF 34

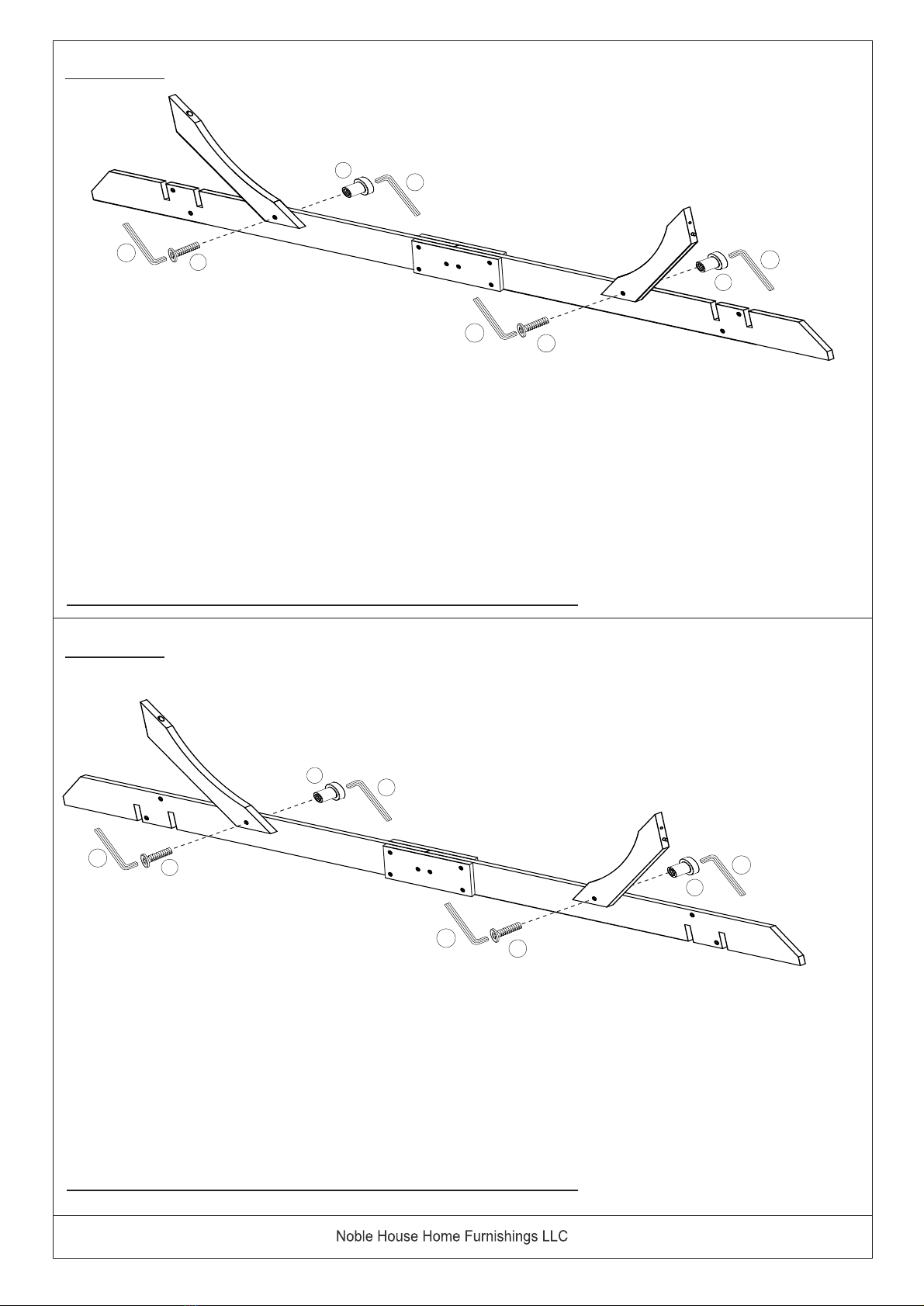

Step 9
Here in Step 9, is the attachment of 2 (two) pcs of Angle Brace to the Outer Joists, completed in Step 4.
Face 1 & 3 holds the Same Outer Joists with Angle Brace.
There are a total of 2 Bolts and 2 Sleeve Nuts to connect 2 (two) pcs of Angle Brace to the Outer Joist,
Using the Allen Wrenches (⑩), turn in Bolts ( ② ) and Sleeve Nuts ( ⑨ ) as shown above.
Step 10
10
2
9
10
10
2
9
10
D
D
B1B1
B1
B6
10
2
9
10
10
2
9
10
D
D
B3B
B3
B6
as detailed above.
FULLY SECURE AND TIGHTEN ALL BOLTS to THE SLEEVE NUTS.
Here in Step 10, is the attachment of 2 (two) pcs of Angle Brace to the Outer Joists, completed in Step 6.
Face 2 & 4 holds the Same Outer Joists with Angle Brace.
There are a total of 2 Bolts and 2 Sleeve Nuts to connect 2 (two) pcs of Angle Brace to the Outer Joist,
Using the Allen Wrenches (⑩), turn in Bolts ( ② ) and Sleeve Nuts ( ⑨ ) as shown above.
as detailed above.
FULLY SECURE AND TIGHTEN ALL BOLTS to THE SLEEVE NUTS.
