SERVICE MANUAL LCD Television
N4BVA
Give complete “SERVICE REF. NO.” for parts order or
servicing.It is shown on the rating label at the cabinet
back of the unit.
This T.V. receiver will not work properly in for-
eign countries where the television transmission
system and power source differ from the design
specifications. Refer to the specification table.
Product Code:113004620
Original Version
Chassis Series: UH1-L
ECO
MAIN/SUBCHANGE
BACK
PIP
BASS
SOUND
VIDEO MODE
POWER
RECALL
DISPLAY
MUTE
AUDIO MODE
SLEEP
ZOOM
SURROUND
CH
CH
Model No. 37LC804H
Service Ref. No. 37LC804H-00
(Argentina)
FILE NO.
Contents
Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chassis Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . 4
IC Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
IC7200 Port Functions . . . . . . . . . . . . . . . . . . . . . 12-14
CPU (IC8000) Port Functions . . . . . . . . . . . . . . . . 15-16
On-screen Service Menu System . . . . . . . . . . . . . 17-24
Service Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . 25
Mechanical Disassembly . . . . . . . . . . . . . . . . . . . 26-31
Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . 32-33
Chassis Electrical Parts List . . . . . . . . . . . . . . . . 34-53

Safety Notice
-2-
Safety Precautions
The following precautions must be observed.
1: Comply with all caution and safety-related notes provided on the cabinet back, cabinet bottom, inside the
cabinet or on the chassis.
2: When replacing a chassis in the cabinet, always be certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers or shields, barriers, etc..
DO NOT OPERATE THIS TELEVISION WITHOUT THE PROTECTIVE SHIELD IN POSITION AND PROPERLY
SECURED.
3: Before replacing the cabinet cover, thoroughly inspect the inside of the cabinet to see that no stray parts or
tools have been left inside.
Before returning any television to the customer, the service personnel must be sure that it is completely safe to
operate without danger of electrical shock.
Product Safety Notice
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list
in this manual be used for component replacement designated by mark . No deviations from resistance
wattage or voltage ratings may be made for replacement items designated by mark .

Specifications
-3-
Power Source AC 110 - 220 Volts, 50/60Hz
Receiving System PAL-N/N, PAL-M/M, NTSC-M/M
Channel Coverage ANTENNA mode
VHF: CH02 - CH13
UHF: CH14 - CH69
CATV mode
VHF band: CH01-CH13
MID band: CH14-CH22
SUPER band: CH23-CH36
HYPER band: CH37-CH64
ULTRA band: CH65-CH94 and CH100-CH125
Low MID band: CH95-CH99
Aerial Input Impedance 75 Ω
LCD Panel
Screen Size (Measured Diagonally):37 inches
Picture Resolution: WXGA 1366 (Horiz.) x 768 (Vert.) pixels
Brightness: 500 cd/m2
Audio Output (RMS) 10W+10W
Speakers 6 cm x 12 cm x 2 pcs.
Input and Output Terminals
AV1 Input Video:Composite video Input (RCA Jack) x 1
S-Video Input (SeparatedY/C) DIN 4-pin Jack x 1
Audio:L/R Stereo Input (RCA Jack) x 1 set
AV2 Input Video:Component Y, CB,CRInput (RCA Jack) x 1 set
Audio:L/R Stereo Input (RCA Jack) x 1 set
HDMI Input HDMI Terminal 19 pin x 1
Computer Input Video Input:D-SUB 15 pin x 1
Audio Input:Mini stereo jack x 1
Output Terminals
Video Monitor Output: Phono jack x 1
Audio Monitor Output: L/R Stereo Output (Phone Jack) x 1 set
Headphone Jack: Mini stereo jack x 1
Dimensions 1069 (W) X 642 (H) X 279 (D) mm (Included Swivel Stand)
Weight approx. 29.5 kg (Included Swivel Stand)
Environmental Considerations
Operating Temperature 0˚C ~ 40˚C (32˚F ~ 104˚F)
Operating Humidity 20 ~ 80%
Storage Temperature -10˚C ~ 50˚C (14˚F ~ 122˚F)
Storage Humidity 20 ~ 80%
Specifications subject to change without notice.

-4-
Chassis Block Diagram
A201
TUNER
LCD PANEL
(WXGA)
K7205
72
17
7
6
71
ASSY, PWB, MAIN
12
10
8
15
IC7201
SDRAM
160~171
VIDEO MONITOR OUT
AUDIO MONITOR OUT-L
MONITOR OUT
AUDIO MONITOR OUT-R
46
51
61 IC1200
AV SW
TV CVBS
AUDIO-R
AUDIO-L 70
AV1 VIDEO IN
AV1 AUDIO IN-L
AV1 AUDIO IN-R
6
7
9
S-VIDEO
AV1 IN
(K1001)
Y
C
Y IN (AV1)
C IN (AV1)
S IN (AV1)
COMPONENTY IN
AV2TERMINAL (K1003)
(K1002)
AV1 IN
14
17
COMPONENT CRIN
COMPONENT CBIN
AV2 AUDIO IN-L
AV2 AUDIO IN-R
COMPONENTY IN
COMPONENT CRIN
COMPONENT CBIN 30
28
33
AV2 VIDEO IN
PC (VGA)
INPUT
(K7200)
25/23/20
18/19
R/G/B
HORIZ. SYNC. / VERT. SYNC
DVI
INPUT 8/9
207/208/2/3/5/6/
IC7200
LCDTV Controller
with
Dual LVDS Transmitter
PC AUDIO INPUT
(K7204)
PC L/R
PC L/R
22/24
188~191
1~4
5/8
IC7209
STEREO D/A CONVERTER
HDMI L/R
29/31
HDMI L/R
IC2203
DIGITAL
VIDEO
DECODER
43~47, 50~52 54~61
CVBS
C
Y7
8
17
64
62
60
59
61 L
R
IC150
AUDIO
CONTROL/3D SURROUND
32
17L
R
26
IC101
AUDIO AMP.
9
13
SP
K1330
HEADPHONE
JACK
15/16
24/25
SP
27/28
L
R
PH-L/R
81~153
IC8000
CPU
IC8011
EEPROM IC8002
EEPROM
73 74
SDA
SCL
65
29 30
SDAE
SCLE
65
D1901 LED
(TIMER)
U1901
RC
RECEIVER
RC-IN
ASSY,PWB, KEY
POWER KEY IN KEY IN
SW1950~ SW1956
K19K
K8002
95 78
75
L
R
76
K19A
K8000
D1902 LED (POWER)
ASSY,PWB, LED
55~58
72~75
46~49
69~71
RESET
12
28TV-SYNC TO IC8000
(PIN-45)
IC003
SYNC. SEPARATION
45
TV-SYNC
38
P-FAIL-2
37
P-FAIL-1
43
POWER ON
89
P-FAIL-3
FAN CONTROL
4
SDA
SCL
42
43
4/10
T-SDA
T-SCL
5/9
T-SDA
T-SCL
35 36
SDA
SCL
29
28
MCU BUS
3
1
IC1709
18
20
19
22
21
IC8600
CLOSED CAPTION
PROCESSOR BLK
B
G
R59
60
57
58
15

-5-

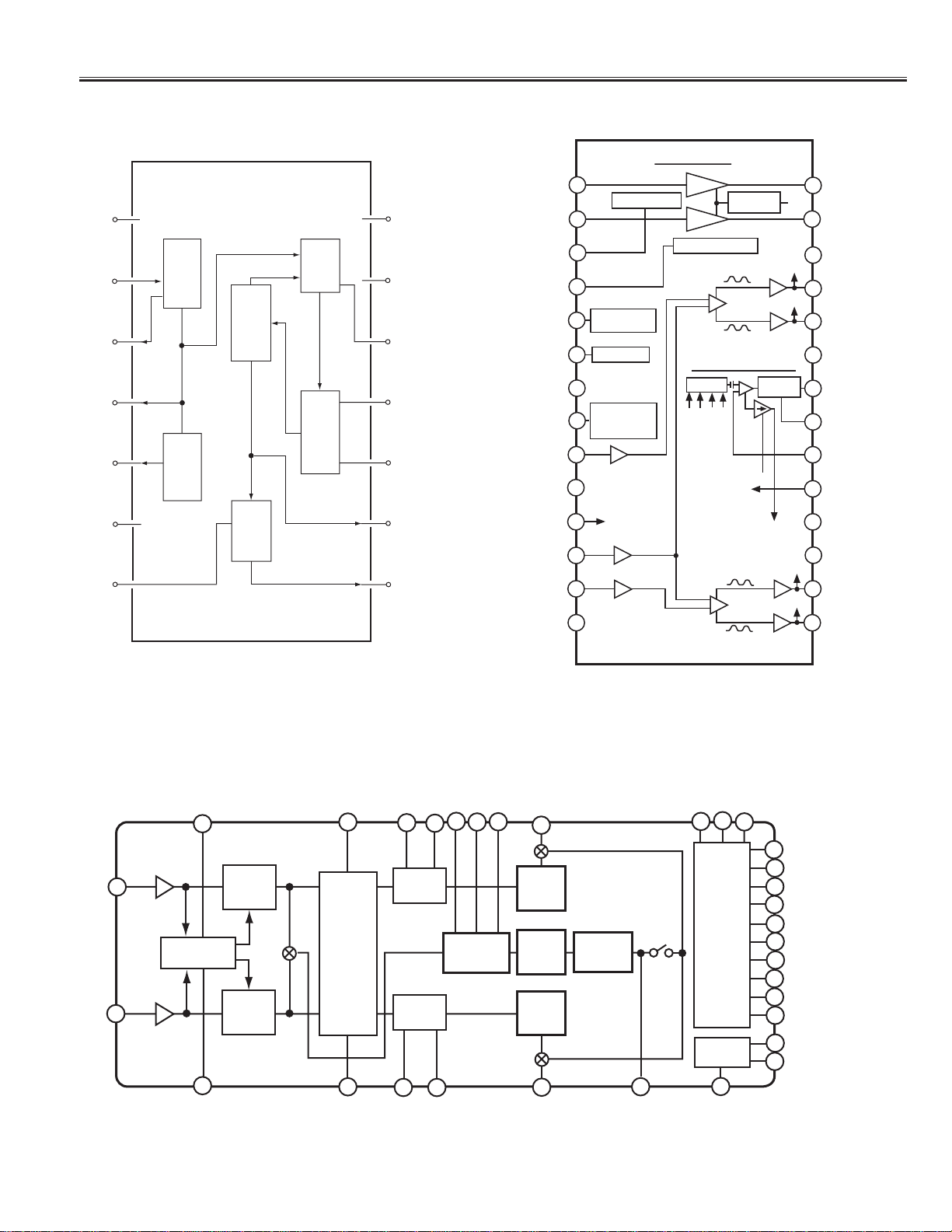

IC Block Diagrams (On the ASSY, PWB, MAIN)
IC101 < AUDIO AMP. > LA4919N-E
2
1
3
4
6
5
7
8
10
9
12
13
14
17
18
19
20
21
22
23
26
HP IN1
Headphone Block
27
Ripple filter
Ripple filter
Voltage
Regulator Vcc
28
VG=6dB
VG=6dB
H/P Standby SW
15
16
A
B
AMP. Standby
SW
Output
amplifier
Output
amplifier
Nonlinear
amplifier
24
25
Muting circuit
used at power
on
Intput
amplifier
H. L. S
Switching regulator Block
Switching
Drive
ABCD
*H. L. S
Higher Level
Signal Selector
Headphone stage
Input amplifier stage
Switching regulator stage
Power TR stage
VCC
C
D
Output
amplifier
Output
amplifier
Nonlinear
amplifier
OUT1+
OUT1 -
Output amplifier
stage
11 REF amplifier
Input amplifier
HP IN2 HP OUT2
HP OUT1
HP D.C
HP Standby
AMP Standby
D.C
DDL
ON TIME
IN2
PRE GND
PRE VCC
IN-VREF
IN1
POWER GND
POWER GND
SW GND
SWB
SWE
SW OUT
OUT2+
OUT2 -
NC
14
AFC
VCC
13 AFC CTL
12 VCO OUT
11 VCO IN
10 HD OUT
9DET OUT
8
32fH VCO
LOCK
DET
COUNT
DOWN
SYNC
SEP V. SEP
NC
1VIDEO IN
2F.B CLAMP
3SYNC OUT
4VD OUT
5GND EXC
67
IC003 < Sync. Separation> LA7217M-T
IC150 < Audio Control/ 3D Surround>NJW1167V
6
8
1
7
20
10
25
22
AGC
BIAS
VOL 1
19
18
14 13
16
15
17
30
21
23
24
12
11
INa
AGC1
TONE Ha
TONE La
OUT a
CVA
CVB
CTH
CTL
CSR
SCL
SDA
V+
GND
VREF
OUT b
SR-FIL
TONE Hb
TONE Lb
5
2
34
INb
29
28
27
SS-FIL
26
9
PORT1
OUTw
32 VOL 1
eala
&
SIMULATED
STEREO
TONE
TONE
LPF
VOL 2
VOL 2
VOL 2
AGC2
31
LF1
LF2
LF3
Trimmer
ADR
CVW
PORT0
AUX0
AUX1
IIC BUS
INTERFACE

-6-
IC Block Diagrams (On the ASSY, PWB, MAIN)

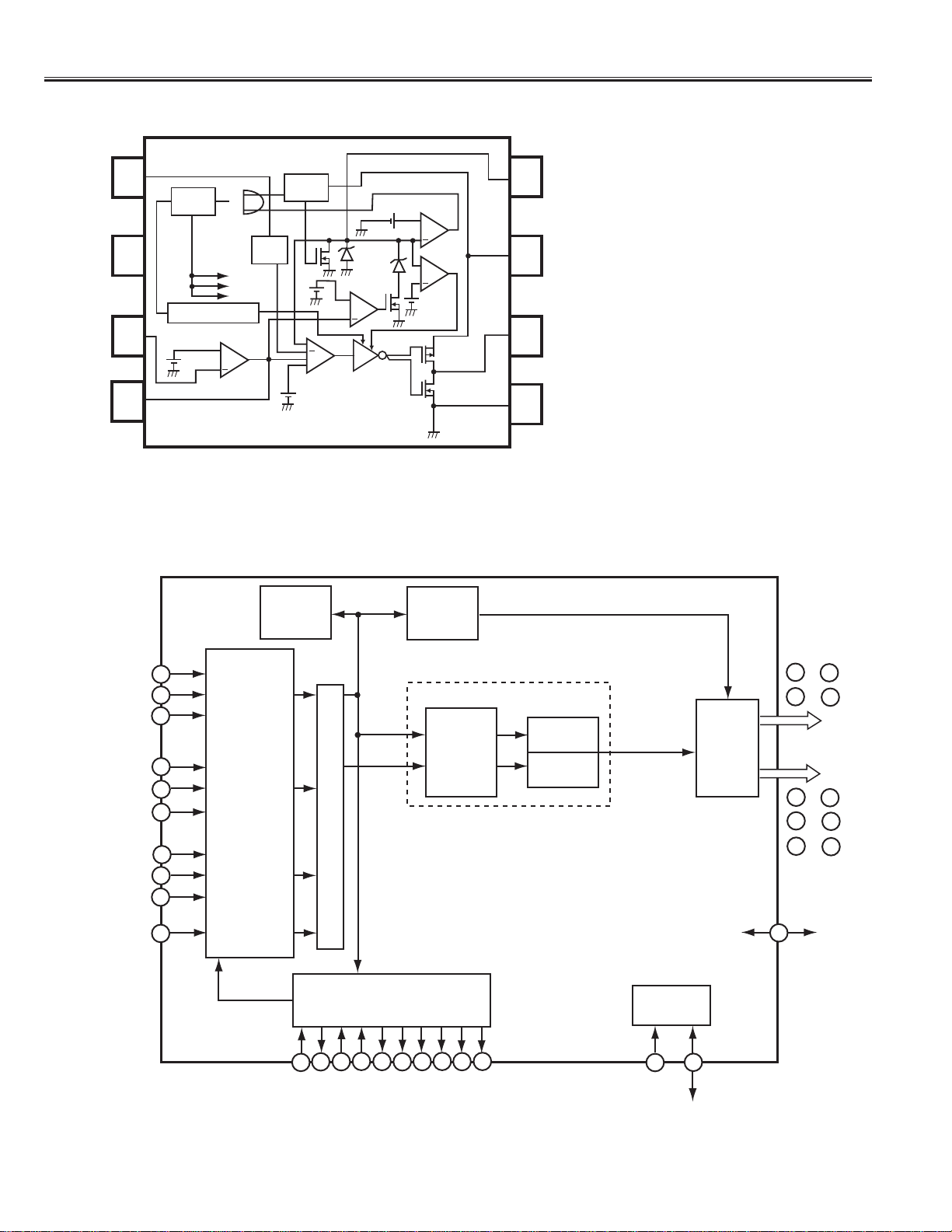

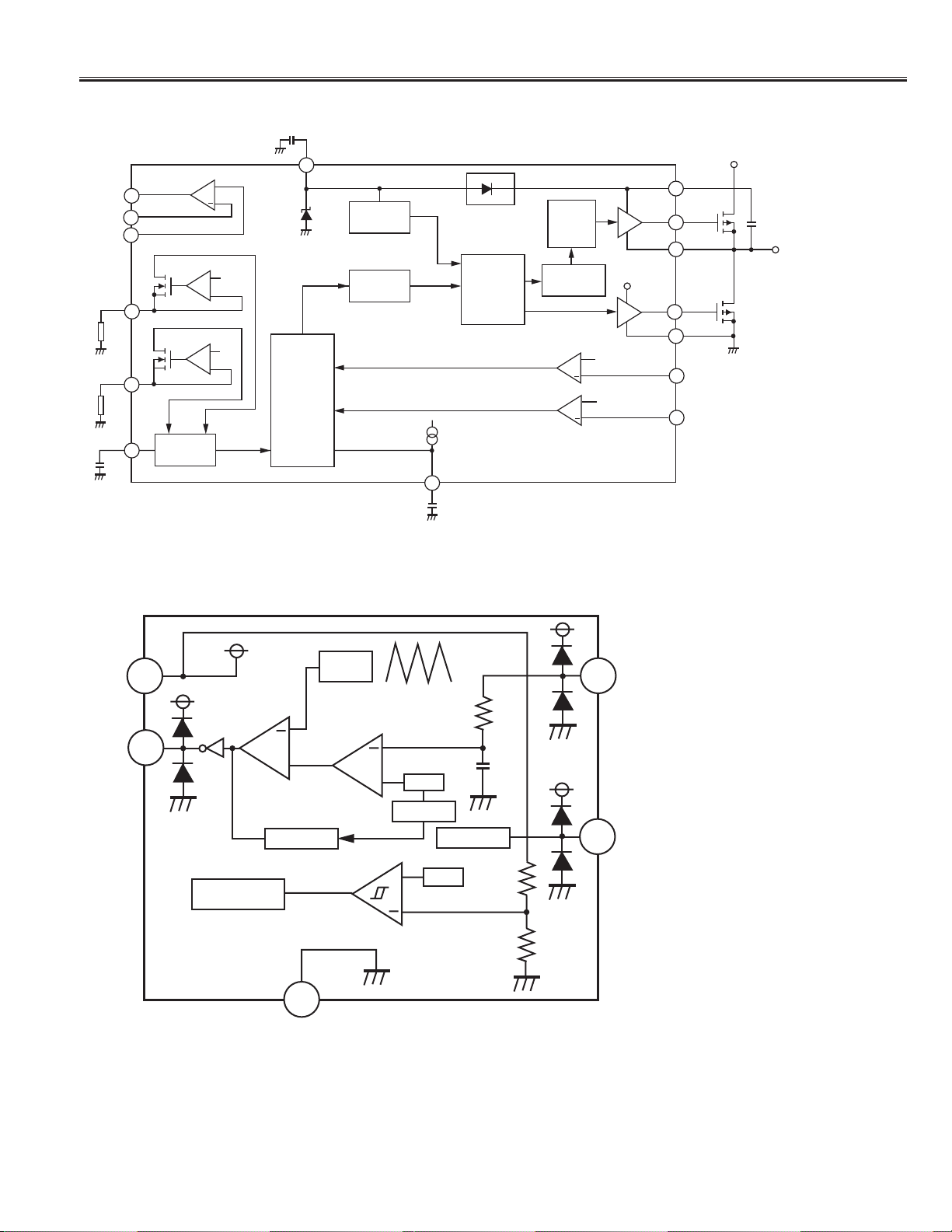

IC1651 < 1 ch Power Controller by the PWM Switching System > FA7700V-TE1
+
+
1
2
3
4
8
7
6
5
RT
REF
IN-
FB GND
OUT
VCC
CS
VREF
OSC
UVLO
Power Good Signal
BIAS
VREF
2.2V
+
ERROR.
AMP. PWM
+
+
+
+
0.3V ON/OFF
ON/OFF OFF
2.2V
1.5V S.C. DET
S.C.P
5.5V1.5V
IC2203 < Digital Video Decoder > TVP5147PFP
8
1
7
74
72 37
73
71
23
40
VI_1_A
2
29
36
9
Analog
Front End
33
35
Clamping
AGC
2 x 11-Bit
ADC
80
18
16
17
VI_1_C
VI_1_B
Copy
Protection
Detector
VBI
Data
Processor
M
U
X
Timing Processor
with Sync. Detector Host
Interface
28
Output
Formatter
Composite and S-Video processor
Y/C
Separation
5-line
Adaptive
Comb
Luma
Processing
Chroma
Processing
Sampling
Clock
VI_2_A
VI_2_C
VI_2_B
VI_3_A
VI_3_C
VI_3_B
VI_4_A
CVBS/Y
CVBS/
C/Pb
CVBS/
Y
CVBS/
C/Pr
CVBS/Y
Y
C
GPIO
75
34
XTAL1
XTAL2
PWDN
RESETB
DATACLK
AVID
FID
VS/VBLK
HS/CS
GLCO
SCL
SDA
Y (9~0)
C (9~0)
54
43 ~
50 ~
47 ,
66 ,
57 ~
63 ~
60 ,
70
69 ~

-7-
IC Block Diagrams (On the ASSY, PWB, MAIN)

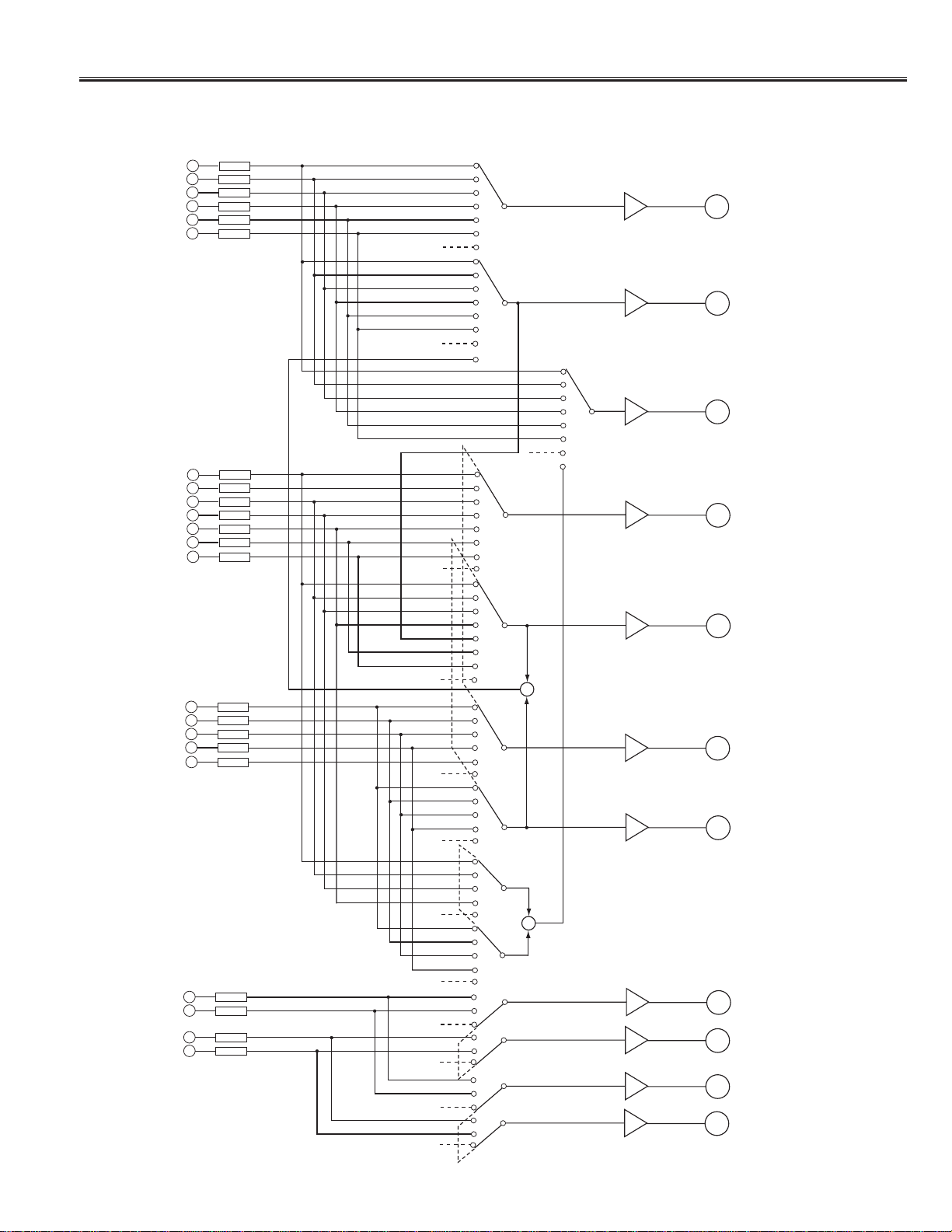

IC1200 < AV Switch> LA79500E
VIDEO BLOCK
TV1 71 CLAMP
TV2 75 CLAMP
CV1 78 CLAMP
CV2 6CLAMP
CV3 14 CLAMP
CV4 34 CLAMP MUTE 0 or 6dB AMP.
VOUT1
64
MUTE 0 or 6dB AMP.
VOUT2
56
MUTE
0 or 6dB AMP.
VOUT3
46
Y1 80 CLAMP
Y2 8CLAMP
Y3 16 CLAMP
Y4 36 CLAMP
YCOMB 65 CLAMP
Y5 21 CLAMP
MUTE
MUTE
0 or 6dB AMP.
Y/VOUT1
62
+
0 or 6dB AMP.
Y/VOUT2
54
Y6 28 CLAMP
0 or 6dB AMP.
COUT1
60
C1 2BIAS
C2 10
C3 18
C4 38
MUTE
CCOMB 68
MUTE 0 or 6dB AMP.
COUT2
52
MUTE
MUTE
+
PR5 25 CLAMP
PR6 32 CLAMP
PB5 23 CLAMP
CLAMP
MUTE
MUTE
MUTE
MUTE
0 or 6dB AMP. PROUT1
57
0 or 6dB AMP. PBOUT1
58
0 or 6dB AMP. PROUT2
49
0 or 6dB AMP. 50
BIAS
BIAS
BIAS
BIAS
PBOUT2
PB6 30

IC Block Diagrams (On the ASSY, PWB, MAIN)
-8-
IC1200 < AV Switch> LA79500E
AUDIO BLOCK
TV1L 70 BIAS
TV2L 74
V1L 79
V2L 7
V3L 15
V4L 35 MUTE 0 or 6dB AMP.
LOUT1
61
MUTE 0 or 6dB AMP.
LOUT2
53
MUTE
0 or 6dB AMP.
LOUT3
47
BIAS
BIAS
BIAS
BIAS
BIAS
CP5L 22
CP6L 29 BIAS
BIAS
TV1R 72 BIAS
TV2R 76
V1R 1
V2R 9
V3R 17
V4R 37 MUTE 0 or 6dB AMP.
ROUT1
59
MUTE 0 or 6dB AMP.
ROUT2
51
MUTE
0 or 6dB AMP.
ROUT3
45
BIAS
BIAS
BIAS
BIAS
BIAS
CP5R24
CP6R31 BIAS
BIAS

IC Block Diagrams (On the ASSY, PWB, MAIN)
-9-
IC7209 < Stereo D/A Converter > CS4334-KSZ
6
1
7
AOUTL
2
8
3
4
AOUTR
Interpolator
Host
Interface
5
VA
∆∑
Modulation
Interpolator
Serial Input
Interface De-emphasis
MCLK
∆∑
Modulation DAC
Analog
Low-Pass
Filter
Analog
Low-Pass
Filter
LRCK
DEM/SCLK
SDATA
AGND
Voltage Reference
DAC

IC Block Diagrams (On the ASSY, PWB, POWER)
-10-
IC602 MR4010-7101
IC601 < Transition-mode PFC Controller > L6562D
INV
+
UNTERNAL
SUPPLY 7V
6
8
1
7
5
234
Vcc
GND
COMP MULT CS
GD
ZCD
VOLTAGE
REGULATOR
MULTIPLIER AND
THD OPTIMIZER
OVERVOLTAGE
DETECTION
+
25V +
R2
R1
VREF2
UVLO
2.1V
1.6V
ZERO CURRENT
DETECTOR
+
DISABLE
40K
5µF
R
S
Q
DRIVER
STARTER
Start
stop
15V
Vcc
(Zero Current Detector)
VIN
1
7
5
2
3
4
VUL
GND
VCC Collector
Emitter/OCL
F/B
Z/C
+
R
SQQ1
9
Start-up
Circuit
++
Vcc(start-up off)
/Vcc(start-up on)
Start-up circuit
UVLO comparator
Latch circuit
reset comparator UVLO
comparator
+
VOVP
Vcc(start)
/Vcc(stop)
OVP
comparator
Thermal Shutdown
Circuit
Zero Current
Detection Circuit
+
Turn-on
Dead Timer
Standby
Circuit
R
SQ
Soft Drive
Circuit
+
On width
Timer
IF/B
Vref
(Zero Current
Detection
Terminal)
(Feed Back
Terminal)
+
OCP threshold compatator
VTH (OCL)
+
VTH (Burst Limit)
Burst mode OCP
threshold compatator Re-start
Timer

IC Block Diagrams (On the ASSY, PWB, POWER)
-11-
IC603 < High Voltage Resonant Controller > L6598D
1
7
5
4
Vs
OPOUT
9
BBOTSTRAP
DRIVER
+
6
8
10
11
14
15
16
12
OP AMP
Rfmin
VREF
Ifmin
VREF
Ifstart
2
Rfstart
VCO
3
Cf
CONTROL
LOGIC
+
+
Css
Iss
UV
DETECTION
DRIVING
LOGIC
DEAD
TIME
LEVEL
SHIFTER
HGV
DRIVER
LVG DRIVER
Vthe2
HVG
Vthe1
OUT
Vboot
H.V.
LOAD
EN1
EN2
GND
LVG
CBOOT
Vs
IC606 R1224N102G-TR-FA
+
EXT
1
5
2
3
4
VIN
CE
GND
VFB
+
OSC
+
AMP
UVLO Vref
Chip Enable
Vref
Soft Start
Protection

Pin No. Pin Name Pin Type Function
67 HWRESET Schmitt Trigger Input w/5V-tolerant Hardware Reset, active high
75-72 DBUS[3:0] I/O w/5V-tolerant MCU 4-bit DDR Direct bus; 4mA driving strength
69 ALE I w/5V-tolerant MCU Bus ALE, active high
70 RDZ I w/5V-tolerant MCU Bus RDZ, active high
71 WRZ I w/5V-tolerant MCU Bus WRZ, active high
68
INT Output MCU Bus Interrupt; 4mA driving strength
MCU Interface
Pin No. Pin Name Pin Type Function
38 RMID Mid-Scale Voltage Bypass
39 REFP Internal ADC Top De-coupling Pin
40 REFM Internal ADC Bottom De-coupling Pin
11 REXT Analog External resister 390 ohm to AVDD_DVI
36 HSYNC0 Schmitt Trigger Input w/5V-tolerant Analog HSYNC Input from Channel 0
37
VSYNC0 Schmitt Trigger Input w/5V-tolerant Analog VSYNC Input from Channel 0
27 BIN0M Analog Input Reference Ground for Analog Blue Input from Channel 0
28 BIN0P Analog Input Analog Blue Input from Channel 0
29 GIN0M Analog Input Reference Ground for Analog Green Input from Channel 0
30 GIN0P Analog Input Analog Green Input from Channel 0
31 SOGIN0 Analog Input Sync On Green Input from Channel 0
32 RIN0M Analog Input Reference Ground for Analog Red Input from Channel 0
33 RIN0P Analog Input Analog Red Input from Channel 0
18 HSYNC1 Schmitt Trigger Input w/5V-tolerant Analog HSYNC Input from Channel 1
19 VSYNC1 Schmitt Trigger Input w/5V-tolerant Analog VSYNC Input from Channel 1
20 BIN1P Analog Input Analog Blue Input from Channel 1
21 BIN1M Analog Input Reference Ground for Analog Blue Input from Channel 1
22 SOGIN1 Analog Input Sync On Green Input from Channel 1
23 GIN1P Analog Input Analog Green Input from Channel 1
24 GIN1M Analog Input Reference Ground for Analog Green Input from Channel 1
25 RIN1P Analog Input Analog Red Input from Channel 1
26 RIN1M Analog Input Reference Ground for Analog Red Input from Channel 1
Analog Interface
Pin No. Pin Name Pin Type Function
207 DVI_R+ Input DVI Input Channel Red +
208 DVI_R- Input DVI Input Channel Red -
2DVI_G+ Input DVI Input Channel Green +
3DVI_G- Input DVI Input Channel Green -
5DVI_B+ Input DVI Input Channel Blue +
6DVI_B- Input DVI Input Channel Blue -
8DVI_CK+ Input DVI Input Clock +
9DVI_CK- Input DVI Input Clock -
DVI Interface
Pin No. Pin Name Pin Type Function
53 VI_CK Input w/ 5V-tolerant Digital Video Input Clock
48-41,61-54 VI_DATA[15:0] Input w/ 5V-tolerant Digital Video Input Data[15:0]
Video Interface
IC7200 (LCD TV Controller with Dual LVDS Transmitter) Port Functions
-12-

-13-
IC7200 (LCD TV Controller with Dual LVDS Transmitter) Port Functions
Pin No. Pin Name Pin Type Function
188 AUMCK Output Audio Master Clock Output
189 AUSD Output Audio Serial Data Output; 4mA driving strength
190 AUSCK Output Audio Serial Clock Output; 4mA driving strength
191 AUWS Output Word Select Output; 4mA driving strength
192 AUMUTE Output Audio Output Mute Control
193 SPDIFO Output S/PDIF Audio Output; 4mA driving strength
196 AIMCK Input Audio Master Clock Input
197 AISD Input Audio Serial Data Input
198 AISCK Input Audio Serial Clock Input
199 AIWS Input Word Select Input
Digital Audio Interface
Pin No. Pin Name Pin Type Function
171 LVA0M Output A-Link Negative LVDS Differential Data Output
170 LVA0P Output A-Link Positive LVDS Differential Data Output
169 LVA1M Output A-Link Negative LVDS Differential Data Output
168 LVA1P Output A-Link Positive LVDS Differential Data Output
167 LVA2M Output A-Link Negative LVDS Differential Data Output0
166 LVA2P Output A-Link Positive LVDS Differential Data Output
161 LVA3M Output A-Link Negative LVDS Differential Data Output
160 LVA3P Output A-Link Positive LVDS Differential Data Output
165 LVACKM Output A-Link Negative LVDS Differential Data Output
164 LVACKP Output A-Link Positive LVDS Differential Data Output
187 LVB0M Output B-Link Negative LVDS Differential Data Output
186 LVB0P Output B-Link Positive LVDS Differential Data Output
181 LVB1M Output B-Link Negative LVDS Differential Data Output
180 LVB1P Output B-Link Positive LVDS Differential Data Output
179 LVB2M Output B-Link Negative LVDS Differential Data Output
178 LVB2P Output B-Link Positive LVDS Differential Data Output
175 LVB3M Output B-Link Negative LVDS Differential Data Output
174 LVB3P Output B-Link Positive LVDS Differential Data Output
177 LVBCKM Output B-Link Negative LVDS Differential Data Output
176 LVBCKP Output B-Link Positive LVDS Differential Data Output
LVDS Interface
Pin No. Pin Name Pin Type Function
200 PWM0 Output GPO with PWM Function; 4mA driving strength
201 PWM1 Output GPO with PWM Function; 4mA driving strength
78 GPO[1] I/O GPO / FIELD Input; 4mA driving strength
77 GPO[2] I/O GPO / Digital VSYNC Input; 4mA driving strength
76 GPO[3] I/O GPO / DE Input; 4mA driving strength
52 GPO[4] I/O GPO / Secondary Video Clock Input; 4mA driving strength
51 GPO[5] I/O GPO / Digital HSYNC Input; 4mA driving strength
GPO Interface

-14-
Pin No. Pin Name Pin Type Function
104 MVREF Input Reference Voltage for DDR SDRAM Interface
105 MCLKE Output DRAM Memory Clock Enable
106 MCLKZ Output DRAM Memory Clock Complementary / Input (for differential clocks)
107 MCLK Output DRAM Memory Clock
112 RASZ Output Row Address Strobe, active low
115 CASZ Output Column Address Strobe, active low
116 WEZ Output Write Enable, active low
101, 133 DQM[1:0] Output Data Mask Byte Enable
81, 100, 134, 153 DQS[3:0] Output Data Strobe
110, 111 BADR[1:0] Output Memory Bank Address
130-127, 124-117 MADR[11:0] Output Memory Address
82-85, 88-99, MDATA[31:0] I/O Memory Data
135-138, 141-152
DRAM Interface
Misc. Interface
Power Pins
Pin No. Pin Name Pin Type Function
203 XIN Crystal Oscillator Input Crystal Oscillator Input
202 XOUT Crystal Oscillator Output Crystal Oscillator Output
14 DDCD_DA I/O w/ 5V-tolerant HDCP Serial Bus Data / DDC Data of DVI port; 4mA driving strength
15 DDCD_CK Input w/ 5V-tolerant HDCP Serial Bus Clock / DDC Clock of DVI Port
158 BYPASS For External Bypass Capacitor
62 VCTRL Output Regulator Control
Pin No. Pin Name Pin Type Function
4, 10 ADD_DVI 3.3V Power DVI Power
17, 34 ADD_ADV 3.3V Power ADC Power
12 ADD_PLL 3.3V Power PLL Power
109 ADD_PLL2 3.3V Power PLL Power
49 ADD_APLL 1.8V Power Audio PLL Power
204 ADD_MPLL 3.3V Power PLL Power
86, 102, 113, VDDM 3.3V Power (SDR SDRAM) DRAM Interface Power
125, 139, 154 2.5V Power (DDR DDRAM)
66, 162, 182 VDDP 3.3V Power Digital Output Power
63, 79, 131, 156 VDDC 1.8V Power Digital Core Power
173, 185, 195
1, 7, 13, 16, 35, GND Ground Ground
50, 64, 65, 80,
87, 103, 108, 114,
126, 132, 140, 155,
157, 159, 163, 172,
183, 184, 194, 205,
206
IC7200 (LCD TV Controller with Dual LVDS Transmitter) Port Functions

-15-
CPU (IC8000) Port Functions
Pin No. Pin Name Function Description
1P96/ANEX1/SOUT4
2P95/ANEX0/CLK4
3P9
4/DA1/TB4IN
4P9
3/DA0/TB3IN FANCTR FAN CONTROL
5P9
2/TB2IN/SOUT3
6 P91/TB1IN/SIN3
7P9
0/TB0IN/CLK3 BLKON
8BYTE This pin selects width of an external databus.This input is ”L” to selected 16-bit width.
9 CNVss CNVSS This pin input is ”L” to select MCU operation in Single-chip.
10 P87/XCIN P-EN
11 P86/XCOUT RST_MST MST RESET PIN
12 RESET MCU_RST Active “L”
13 XOUT Clock output
14 Vss GND
15 XIN Clock input
16 Vcc VCC 5V Standby
17 P85/NMI
18 P84/INT2MCUIR Remote control input pin
19 P83/INT1ARST1 Main Decode (Tvp5147) Reset pin
20 P82/INT0CPU74
21 P81/TA4IN/U RL-MUTE
22 P80/TA4OUT/U PWR-0N1 Power On/Off
23 P77/TA3IN
24 P76/TA3OUT LINE-OFF Power line-off Detect Pin
25 P75/TA2IN/W
26 P74/TA2OUT/W
27 P73/CTS2/RTS2/TA1IN/V PLUG_DVI
28 P72/CLK2/TA1OUT/V DPU_IN
29 P71/RxD2/TA0IN/TB5IN SCLE IIC-SCL(EEPROM)
30 P70/TxD2/SDA/TA0OUT SDAE IIC-SDA(EEPROM)
31 P67/TxD1TXD TXD UART communication for Mcu programming Mode
32 P66/RxD1RXD RXD UART communication for Mcu programming Mode
33 P65/CLK1SCLK SCLK Input communication for Mcu programming Mode
34 P64/CTS1/RTS1/CLKS1BUSY BUSY Output communication for Mcu programming Mode
35 P63/TxD0TSDA
36 P62/RxD0TSCL
37 P61/CLK0P-FAIL 1 Power fail Detect1 (for 2.5V, 3.3V, 5V). It could active power protect when the volt under 2.5V.
38 P60/CTS0/RTS0P-FAIL 2 Power fail Detect2 (only for 3.3V)
39 P57/RDY/CLKOUT
40 P56/ALE
41 P55/HOLD
42 P54/HLDA
43 P53/BCLK PWR-0N Power On/Off
44 P52/RD
45 P51/WRH/BHE TV-SYNC
46 P50/WRL/WR 5VSTB 5V Standby
47 P47/CS3 WRZ MCU Bus WRZ output (Active=High)
48 P46/CS2 RDZ MCU Bus RDZ output (Active=High)
System Control (CPU: IC8000)
M30624

CPU (IC8000) Port Functions
-16-
Pin No. Pin Name Function Description
49 P45/CS1 ALE MCU Bus ALE output (Active=High)
50 P44/CS0
51 P43/A19 DRC_ON
52 P42/A18
53 P41/A17
54 P40/A16
55 P37/A15 BUD3 MCU 4bit DDR Direct bus
56 P36/A14 BUD2 MCU 4bit DDR Direct bus
57 P35/A13 BUD1 MCU 4bit DDR Direct bus
58 P34/A12 BUD0 MCU 4bit DDR Direct bus
59 P33/A11
60 P32/A10
61 P31/A9DVD_SW
62 Vcc2 VCC2 5V_Standby
63 P30/A8(/-/D7)AV1_S
64 Vss VSS GND
65 P27/A7(/D7/D6)
66 P26/A6(/D6/D5)
67 P25/A5(/D5/D4)AMP_MUTE1
68 P24/A4(/D4/D3)
69 P23/A3(/D3/D2)
70 P22A2(/D2/D1)
71 P21/A1(/D1/D0)
72 P20/A0(/D0/-)
73 P17/D15/INT5 SCL IIC-BUS SCL
74 P16/D14/INT4 SDA IIC-BUS SDA
75 P15/D13/INT3 POWER_SW Power Switch Input
76 P14/D12 LED1 Stand-by and Power LED Output
77 P13/D11 FAN Lock FAN Lock
78 P12/D10 OFF TIMER_LED OFF TIMER LED output
79 P11/D9LED2
80 P10/D8
81 P07/D7
82 P06/D6
83 P05/D5
84 P04/D4
85 P03/D3
86 P02/D2
87 P01/D1
88 P00/D0
89 P107/AN7/KI3FAIL3 Power Failure
90 P106/AN6/KI2M-AFT Tuner AFT input pin
91 P105/AN5/KI1
92 P104/AN4/KI0TSENSE Temp. Sensor1 connected to Thermistor
93 P103/AN3
94 P102/AN2
95 P101/AN1KEY-IN Key Board Input
96 AVss AVSS GND
97 P100/AN0
98 VREF Vcc
99 AVcc AVcc 5V_Standby
100 P97/ADTRG/SIN4

CH
CH
SERVICE 0.14 00
INDEX 1 CTI DELAY-TVPAL-N
IC TVP15147
ADDR 2D
DATA 00 00000000
-17-

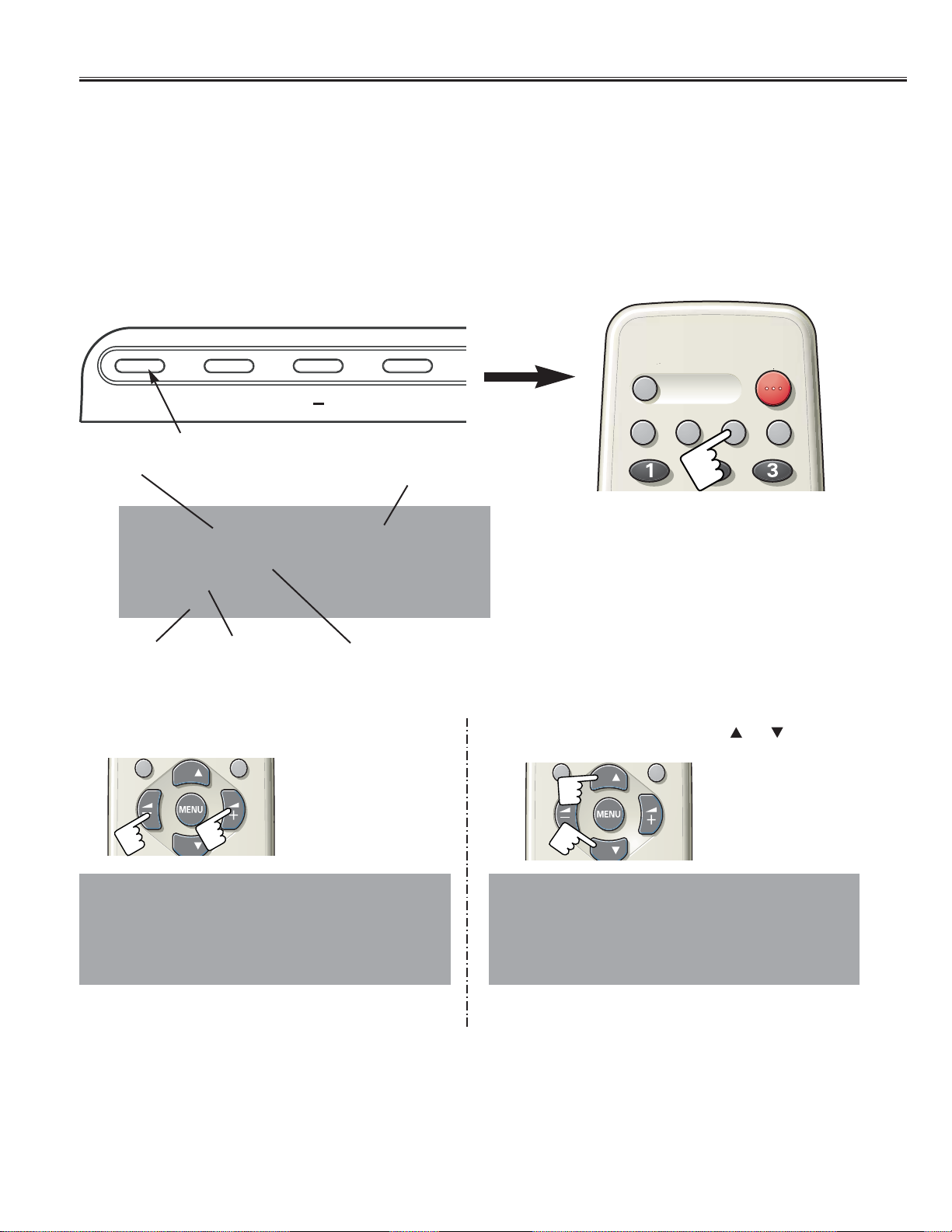

On-screen Service Menu System
VIDEO MODE
POWER
RECALL
DISPLAY
MUTE
AUDIO MODE
General
This set has an On-screen Service Menu System included in the CPU that allows remote operation for most of the
service adjustments.
■ How to select the service item and adjust data:
On-screen Service Menu System
Quick operation is needed to enter Service Mode.
■ How to enter the Service Menu
1. Press and hold the MENU button on top controls.
2. Keep pressing the MENU button and press the MUTE button on the remote control, and the service mode menu will
be displayed.
[ Service Mode Menu ]
VIDEO MODE VOLUME +
MENU
MENU
To select service item
1) Select “INDEX” line and press +or - button. To adjust data:
1) Select “DATA”line by pressing or button.
■ To exit service mode
To exit service mode, turn the TV off by pressing the POWER ON/OFF button on the top controls
or remote control.
Note: The all adjusted data in service mode will be memorized into EEPROM automatically.
Data Value Target IC
Sub Address of IC
Item No. Item Name
CH
CH
SERVICE 2.06 00
INDEX 2 CTI DELAY-VideoPAL-N
IC TVP15147
ADDR 2D
DATA 00 00000000
SERVICE 2.06 00
INDEX 2 CTI DELAY-VideoPAL-N
IC TVP15147
ADDR 2D
DATA 00 00000000
2) Press +or - button to adjust data.

-18-
On-screen Service Menu System
■ Service Adjustment Data Table
Item Item Name Initial Target IC Description
No. Data
1CTI DELAY-TVPAL-N 00 TVP5147 TV(PAL-N) DELAY CTI
2CTI DELAY-VideoPAL-N 00 TVP5147 VIDEO(PAL-N) DELAY CTI
3CTI DELAY-S-PAL-N 00 TVP5147 S-VIDEO(PAL-N) DELAY CTI
4CTI DELAY-TVN 00 TVP5147 TV (NTSC) DELAY CTI
5CTI DELAY-VideoN 00 TVP5147 VIDEO (NTSC)DELAY CTI
6CTI DELAY-S-N 00 TVP5147 S-VIDEO (NTSC) DELAY CTI
7CTI DELAY-TVAL-M 00 TVP5147 TV (PAL-M) DELAY CTI
8CTI DELAY-VideoPAL-M 00 TVP5147 VIDEO(PAL-M) DELAY CTI
9CTI DELAY-S-PAL-M 00 TVP5147 S-VIDEO(PAL-M) DELAY CTI
10 00 TVP5147
11 00 TVP5147
12 00 TVP5147
13 SET DELAY-TVPAL-N 00 TVP5147 TV(PAL-N) DELAY SET
14 SET DELAY-VideoPAL-N 00 TVP5147 VIDEO(PAL-N) DELAY SET
15 SET DELAY-S-PAL-N 00 TVP5147 S-VIDEO(PAL-N) DELAY SET
16 SET DELAY-TVN 00 TVP5147 TV (NTSC) DELAY SET
17 SET DELAY-VideoN 00 TVP5147 VIDEO(NTSC) DELAY SET
18 SET DELAY-S-N 00 TVP5147 S-VIDEO(NTSC) DELAY SET
19 SET DELAY-TVPAL-M 00 TVP5147 TV(PAL-M) DELAY SET
20 SET DELAY-VideoPAL-M 00 TVP5147 VIDEO(PAL-M) DELAY SET
21 SET DELAY-S-PAL-M 00 TVP5147 S-Video(PAL-M) DELAY SET
22 00 TVP5147
23 00 TVP5147
24 00 TVP5147
25 PEAK GAIN-TV 00 TVP5147 RF INPUT
26 PEAK GAIN-OTHER 01 TVP5147 EXCEPT RF INPUT
27 TRAP-TV 04 TVP5147 RF INPUT
28 TRAP-OTHER 00 TVP5147 EXCEPT RF INPUT
29 CTI GAIN-TV 00 TVP5147 RF INPUT
30 CTI GAIN-OTHER 00 TVP5147 EXCEPT RF INPUT
31 CTI SLICE LEVEL-TV 00 TVP5147 RF INPUT
32 CTI SLICE LEVEL-OTHER 00 TVP5147 EXCEPT RF INPUT
33 BRIGHTNESS-TV B0 TVP5147 RF INPUT
34 BRIGHTNESS-AV B0 TVP5147 EXCEPT RF INPUT
35 CONTRAST-TV 78 TVP5147 RF INPUT
36 CONTRAST-AV 78 TVP5147 EXCEPT RF INPUT
37 COLOUR-TV 80 TVP5147 RF INPUT
38 COLOUR-AV 80 TVP5147 EXCEPT RF INPUT
39 HUE-TV 00 TVP5147 RF INPUT (NTSC)
40 HUE-AV 00 TVP5147 EXCEPT RF INPUT (NTSC)
41 HUE-OTHER 00 TVP5147 OTHER
42 C-BPF-TVPAL-N 08 TVP5147 RF INPUT
43 C-BPF-OTHERP-N 0E TVP5147 EXCEPT RF INPUT
44 C-BPF-TVN 02 TVP5147 RF INPUT
45 C-BPF-OTHER-N 02 TVP5147 EXCEPT RF INPUT
46 C-BPF-TVPAL-M 08 TVP5147 RF INPUT
47 C-BPF-OTHER-M 0E TVP5147 EXCEPT RF INPUT
48 02 TVP5147
49 02 TVP5147
50 COL-KILLER GAIN-TV 04 TVP5147 RF INPUT
51 COL-KILLER GAIN-OTHER 04 TVP5147 EXCEPT RF INPUT
52 575i SUB-CONT 2A MST5151A DVD INPUT, Input Video Format: 575i
53 575i SUB-BRIGHT 48 MST5151A
54 575i SUB-COLOR 28 MST5151A
55 575i SUB-TINT 00 MST5151A
56 575i SUB-SHARP 00 MST5151A
57 575p SUB-CONT 00 MST5151A DVD INPUT, Input Video Format: 575p
58 575p SUB-BRIGHT 00 MST5151A
59 575p SUB-COLOR 00 MST5151A
60 575p SUB-TINT 00 MST5151A
61 575p SUB-SHARP 00 MST5151A

-19-
On-screen Service Menu System
Item Item Name Initial Target IC Description
No. Data
62 480i SUB-CONT 00 MST5151A DVD INPUT, Input Video Format: 480i
63 480i SUB-BRIGHT 00 MST5151A
64 480i SUB-COLOR 00 MST5151A
65 480i SUB-TINT 00 MST5151A
66 480i SUB-SHARP 00 MST5151A
67 480p SUB-CONT 00 MST5151A DVD INPUT, Input Video Format: 480p
68 480p SUB-BRIGHT 00 MST5151A
69 480p SUB-COLOR 00 MST5151A
70 480p SUB-TINT 00 MST5151A
71 480p SUB-SHARP 00 MST5151A
72 1080i(60) SUB-CONT 00 MST5151A DVD INPUT, Input Video Format: 1080(60)i
73 1080i(60) SUB-BRIGHT 00 MST5151A
73 1080i(60) SUB-COLOR 00 MST5151A
75 1080i(60) SUB-TINT 00 MST5151A
76 1080i(60) SUB-SHARP 00 MST5151A
77 1080i(50) SUB-CONT 00 MST5151A DVD INPUT, Input Video Format: 1080(50)i
78 1080i(50) SUB-BRIGHT 00 MST5151A
79 1080i(50) SUB-COLOR 00 MST5151A
80 1080i(50) SUB-TINT 00 MST5151A
81 1080i(50) SUB-SHARP 00 MST5151A
82 720p SUB-CONT 00 MST5151A DVD INPUT, Input Video Format: 720p
83 720p SUB-BRIGHT 00 MST5151A
84 720p SUB-COLOR 00 MST5151A
85 720p SUB-TINT 00 MST5151A
86 720p SUB-SHARP 00 MST5151A
87 1080P (50) SUB-CONT 00 MST5151A DVD INPUT, Input Video Format: 1080p(50)
88 1080P (50) SUB-BRIGHT 00 MST5151A
89 1080P (50) SUB-COLOR 00 MST5151A
90 1080P (50) SUB-TINT 00 MST5151A
91 1080P (50) SUB-SHARP 00 MST5151A
92 1080P (60) SUB-CONT 00 MST5151A DVD INPUT, Input Video Format: 1080p(60)
93 1080P (60) SUB-BRIGHT 00 MST5151A
94 1080P (60) SUB-COLOR 00 MST5151A
95 1080P (60) SUB-TINT 00 MST5151A
96 1080P (60) SUB-SHARP 00 MST5151A
97 PC SUB-CONT 00 MST5151A PC INPUT
98 PC SUB-BRIGHT 00 MST5151A
99 PC SUB-COLOR 00 MST5151A
100 PC SUB-TINT 00 MST5151A
101 PC SUB-SHARP 00 MST5151A
102 HDMI SUB-CONT 00 MST5151A HDMI INPUT
103 HDMI SUB-BRIGHT 00 MST5151A
104 HDMI SUB-COLOR 00 MST5151A
105 HDMI SUB-TINT 00 MST5151A
106 HDMI SUB-SHARP 00 MST5151A
107 AVPAL-N SUB-CONT 00 MST5151A INPUT SWITCH: VIDEO (PAL-N)
108 AVPAL-N SUB-BRIGHT 00 MST5151A
109 AVPAL-N SUB-COLOR 00 MST5151A
110 AVPAL-N SUB-TINT 00 MST5151A
111 AVPAL-N SUB-SHARP 00 MST5151A
112 AVN SUB-CONT 00 MST5151A INPUT SWITCH:VIDEO (NTSC)
113 AVN SUB-BRIGHT 00 MST5151A
114 AVN SUB-COLOR 00 MST5151A
115 AVN SUB-TINT 00 MST5151A
116 AVN SUB-SHARP 00 MST5151A
117 AVPAL-M SUB-CONT 00 MST5151A INPUT SWITCH:VIDEO (PAL-M)
118 AVPAL-M SUB-BRIGHT 00 MST5151A
119 AVPAL-M SUB-COLOR 00 MST5151A
120 AVPAL-M SUB-TINT 00 MST5151A
121 AVPAL-M SUB-SHARP 00 MST5151A
122 S(50) SUB-CONT 00 MST5151A INPUT SWITCH: S-VIDEO (PAL)

-20-
On-screen Service Menu System
Item Item Name Initial Target IC Description
No. Data
123 S(50) SUB-BRIGHT F0 MST5151A INPUT SWITCH: S-VIDEO (PAL)
124 S(50) SUB-COLOR 00 MST5151A
125 S(50) SUB-TINT 00 MST5151A
126 S(50) SUB-SHARP 00 MST5151A
127 S(60) SUB-CONT 00 MST5151A INPUT SWITCH: S-VIDEO (NTSC)
128 S(60) SUB-BRIGHT 00 MST5151A
129 S(60) SUB-COLOR 00 MST5151A
130 S(60) SUB-TINT 00 MST5151A
131 S(60) SUB-SHARP 00 MST5151A
132 RFPAL-N-CONT 00 MST5151A INPUT SWITCH: RF (PAL-N)
133 RFPAL-N-BRIGHT F0 MST5151A
134 RFPAL-N-COLOR 00 MST5151A
135 RFPAL-N-TINT 00 MST5151A
136 RFPAL-N SUB-SHARP 00 MST5151A
137 RFN-SUB-CONT 00 MST5151A INPUT SWITCH: RF (NTSC)
138 RFN-SUB-BRIGHT 00 MST5151A
139 RFN-SUB-COLOR 00 MST5151A
140 RFN-SUB-TINT 00 MST5151A
141 RFN-SUB-SHARP 00 MST5151A
142 RFPAL-M SUB-CONT 00 MST5151A INPUT SWITCH: RF (PAL-M)
143 RFPAL-M SUB-BRIGHT 00 MST5151A
144 RFPAL-M SUB-COLOR 00 MST5151A
145 RFPAL-M SUB-TINT 00 MST5151A
146 RFPAL-M SUB-SHARP 00 MST5151A
147 White-575i R FE MST5151A DVD INPUT: 575i
148 White-575i G FE MST5151A
149 White-575i B FE MST5151A
150 Black-575i R 0B MST5151A
151 Black-575i G 10 MST5151A
152 Black-575i B 10 MST5151A
153 White-575p R 00 MST5151A DVD INPUT: 575p
154 White-575p G 00 MST5151A
155 White-575p B 00 MST5151A
156 Black-575p R 00 MST5151A
157 Black-575p G 00 MST5151A
158 Black-575p B 00 MST5151A
159 White-480i R 00 MST5151A DVD INPUT: 480i
160 White-480i G 00 MST5151A
161 White-480i B 00 MST5151A
162 Black-480i R 00 MST5151A
163 Black-480i G 00 MST5151A
164 Black-480i B 00 MST5151A
165 White-480p R 00 MST5151A DVD INPUT: 480p
166 White-480p G 00 MST5151A
167 White-480p B 00 MST5151A
168 Black-480p R 00 MST5151A
169 Black-480p G 00 MST5151A
170 Black-480p B 00 MST5151A
171 White-1080I-60 R 00 MST5151A DVD INPUT: 1080i (60)
172 White-1080I-60 G 00 MST5151A
173 White-1080I-60 B 00 MST5151A
174 Black-1080I-60 R 00 MST5151A
175 Black-1080I-60 G 00 MST5151A
176 Black-1080I-60 B 00 MST5151A
177 White-1080I-50 R 00 MST5151A DVD INPUT: 1080i (50)
178 White-1080I-50 G 00 MST5151A
179 White-1080I-50 B 00 MST5151A
180 Black-1080I-50 R 00 MST5151A
181 Black-1080I-50 G 00 MST5151A
182 Black-1080I-50 B 00 MST5151A
183 White-720P R 00 MST5151A DVD INPUT: 720P
