NOCO Genius Genius 2D Technical manual

READ AND UNDERSTAND ALL SAFETY INFORMATION BEFORE USING TH IS
PRODUCT. Failureto follow these safety instructions may result in ELECTRICAL
SHOCK , EXPLOSION, FIRE, wh i ch may result in a SERIOUS INJURY , DEATH, or
PROPERTY DAMAGE.
Electrical Shock. Product is an electrical device that can shock and cause serious injury. Do
not cut power cords. Do not submerge in water orget wet.
Explosion. Unmonitored, incompatible, ordamaged batteries can explode ifused with product.
Do not leave product unattended while in use. Do not attempt to charge a damaged or frozen
battery. Use product only with batteries ofrecommended voltage. Operate product in well
ventilated areas.
Fire. Product is an electrical device that emits heat and is capableof causing burns. Do not
cover product. Do not smoke or use any source ofelectrical spark or fire when operating
product. Keep product away from combustible materials.
Eye Injury. Wear eye protection when operaNng product. Batteries can explode and cause
flying debris. Battery acid can cause eye and skin irritation. In the case ofcontamination of eyes
or skin , flush affected area with running clean water and contact poison control immediately.
Explosive Gases. Working in the vicinity ofa lead-acid is dangerous. Batteries generate
explosive gases during normal battery operation. To reduce risk ofbattery explosion, follow
al lsafety information instructions and those published by the battery manufacturer and
manufacturer of any equipment intended to be used in the vicinity of battery. Review cautionary
markings on these products and on engine .
For more information
and support visit:

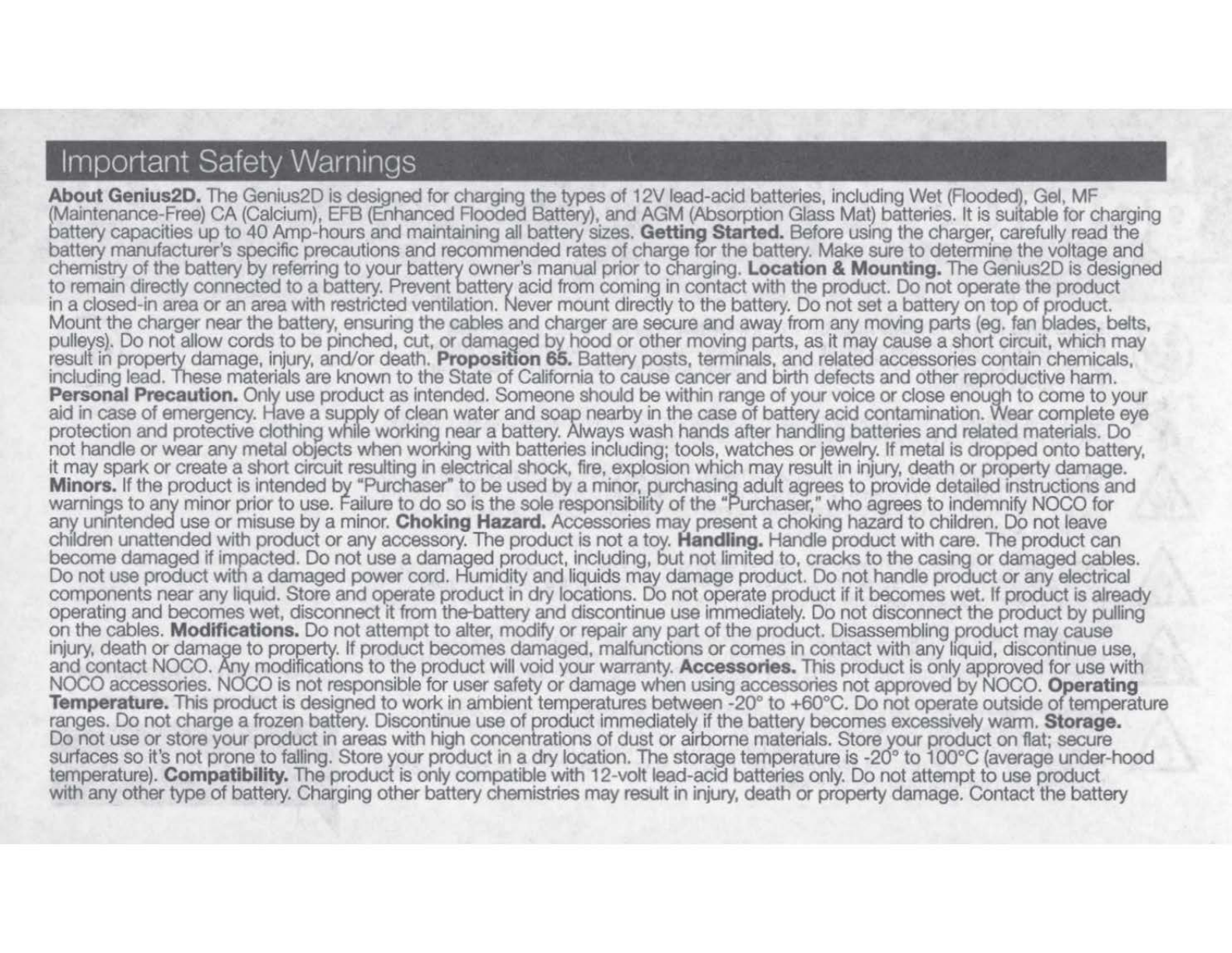

ln1portant Safety Warnings
About Genius2D. The Genius2D is designed for charging the types of 12Vlead-acid batteries, including Wet (Flooded), Gel, MF
(Maintenance-Free) CA (Calcium), EFB (Enhanced Flooded Battery), and AGM (Absorption Glass Mat) batteries. It is suitable for charging
battery capacities up to 40 Amp-hours and maintaining all battery sizes. Getting Started. Before using the charger, carefully read the
battery manufacturer's specific precautions and recommended rates of charge for the batte~. Make sure to determine the voltage and
chemistry ofthe battery by referring to your battery owner's manual prior to charging. Location & Mounting. The Genius2D is designed
to remain directly connected to a battery. Prevent battery acid from coming in contact with the product. Do not operate the product
in aclosed-in area or an area with restricted ventilation. Never mount directlyto the battery. Do not set abattery on top ofproduct.
Mount the charger near the battery, ensuring the cables and charger are secure and away from any moving parts (eg. fan blades, belts,
pulleys). Do not allow cords to be pinched, cut, or damai;Jed by hood or other moving parts, as it may cause ashort circuit, which may
result in property damage, injury, and/or death. Proposition 65 . Battery posts, terminals, and related accessories contain chemicals,
including lead. These materials are known to the State of California to cause cancer and birth defects and other reproductive harm.
Personal Precaution. Onlv use product as intended. Someone should be within range ofyour voice orclose enough to come to your
aid in case of emergency. Have a supply of clean water and soap nearby in the case ofbattery acid contamination. Wear complete eye
protection and protective clothing while working near a battery. Always wash hands after handling batteries and related materials. Do
not handle or wear any metal obJects when working with batteries including; tools, watches or jewelry. If metal is dropped onto battery,
it may spark or create ashort circuit resulting in electrical shock, fire, explosion which may result in injury, death orproperty damage.
Minors. If the product is intended by •Purchaser" to be used by a minor, purchasing adult agrees to provide detailed instructions and
warnings to any minor prior to use. Failure to do so is the sole responsibility ofthe "Purchaser," who agrees to indemnify NOCO for
any unintended use or misuse by a minor. Choking Hazard. Accessories may present achoking hazard to children. Do not leave
children unattended with product or any accessory. The product is not a toy. Handling. Handle product with care. The product can
become damaged if impacted. Do not use a damaged product, including, but not limited to, cracks to the casing or damaged cables.
Do not use product with adamaged powercord. Humidity and liquids may damage product. Do not handle product or any electrical
components near any liquid. Store and operate product in dry locations. Do not operate product if it becomes wet. If product is already
operating and becomes wet, disconnect it from the-battery and discontinue use immediately. Do not disconnect the product by pulling
on the cables. Modifications. Do not attempt to alter, modify or repair any part ofthe product. Disassembling product may cause
injury, death ordamage to prope~. If product becomes damaged, malfunctions orcomes in contact with any hquid, discontinue use,
and contact NOCO. Any modifications to the product will void your warranty. Accessories. This product is only approved for use with
NOCO accessories. NOCO is not responsible for user safety or damage when using accessories not approved by NOCO. Operating
Temperature. This product is designed to work in ambient temperatures between -20° to +60°C. Do not operate outside of temperature
ranges. Do not charge a frozen battery. Discontinue use ofproduct immediately ifthe battery becomes excessively warm. Storage.
Do not use or store your product in areas with high concentrations of dust or airborne materials. Store your product on flat; secure
surfaces so it's not prone to falling. Store yourproduct in a dry location. The storage temperature is -20° to 100°c (average under-hood
temperatu r e). Compatibility. The product is only compatible with 12-volt lead-acid batteries only. Do not attempt to use product
with any other type of battery. Charging other battery chemistries may result in injury, death orproperty damage. Contact the battery

manufacturer prior to attempting to charge the battery. Do not charge pacemakers orother medical devices. Consult with your physician
priorto use if you have any medical device including pacemakers. If you suspect the product is interfering with a medical device, stop
using the product immediately and consult your physician. Medical Conditions. If you have any medical condition that you believe
could be affected by product, including but not limited to; seizures, blackouts, eyestrain or headaches, consult your physician priorto
use of product. Cleaning. Power off tfle product before attempting any maintenance or cleaning. Clean and dry product immediately
if it comes in contact with liquid or any type of contaminant. Use a soft, lint-free (microfiber) cloth. Avoid getting moisture in openings.
Explosive Atmospheres. Obey all signs and instructions. Do not operate product in any area with a potentially explosive atmospflere,
including fueling areas or areas which contain chemicals orparticles such as grain, dust or metal powders. High-Consequence
Activities. This product is not intended for use where the failure ofthe product could lead to injury, death or severe environmental
damage. Radio Frequency Interference. Product is designed, tested, and manufactured to comply with regulations governing radio
frequency emissions. Such emissions from the product can negatively affect the operation ofother electronic equipment, causing them
to malfunction. Model Number: Genius2D This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: {1) this device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 ofthe FCC Rules. These limits are designed toprovide reasonable protection against harmful
interference when the equipment is operated in acommercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in aresidential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his/her own expense.
How To Use
Charging Modes.
The Genius2D has two (2) automatic modes, and will begin chargin~ when both the battery and power are connected. Do not operate
the charger until you con~rm the Genius20 charger is compatible with your battery type and voltage. Below is a brief description:
Mode
Standby
12V
NORM
Explanation
The charger is connected to AC power but no battery is detected, and the charger is not charging. Energy Save is
activated during this mode, drawing microscopic power from the electrical outlet.
-----------~-----~------~
For charging 12-volt Wet Cell, Gel Cell, Enhanced Flooded, Maintenance-Free, Calcium batteries and AGM.

On-Board Mounting.
Mount the charger near the battery, ensuring the cables and charger are secure and away from any moving parts {eg. fan blades, belts,
pulleys}. Secure the provided mounting bracket to the vehicle's chassis using the two included self-tapping screws. For best results,
mark the position using the bracket, and pre-drill two small pilot holes. Once the bracket is secured, use the velcro strap to secure the
Genius20 in place.
Connecting to the Battery.
Do not connect the AC power plu~ until all otherconnections are made. Identify the correct polarity ofthe battery tenninals on the
battery. Do not make any connections to the carburetor, fuel lines, or thin, sheet metal parts. The below instructions are for anegative
ground system {most common}. Ifyour vehicle is a positive ground system {very uncommon), follow the below instructions in reverse
order.
1.) Connect the positive {red) eyelet terminal connector to the positive (POS,P,+) battery tenninal.
2.) Connect the negative {black) eyelet terminal connector to the negative {NEG,N,-) battery terminal.
3.) Connect the battery charger's AC power plug into asuitable electrical outlet.
Begin Charging.
1 .} Verify the voltage and chemistry of the battery.
2.) Confinn that you have connected the eyelet tenninal connectors properly and the AC power plug is plugged into an electrical outlet.
3.) All LEDs will flash momentarily, then the charger will begin charging without user intervention.
4.) The charger can now be left connected to the battery at all times to provide maintenance charging.

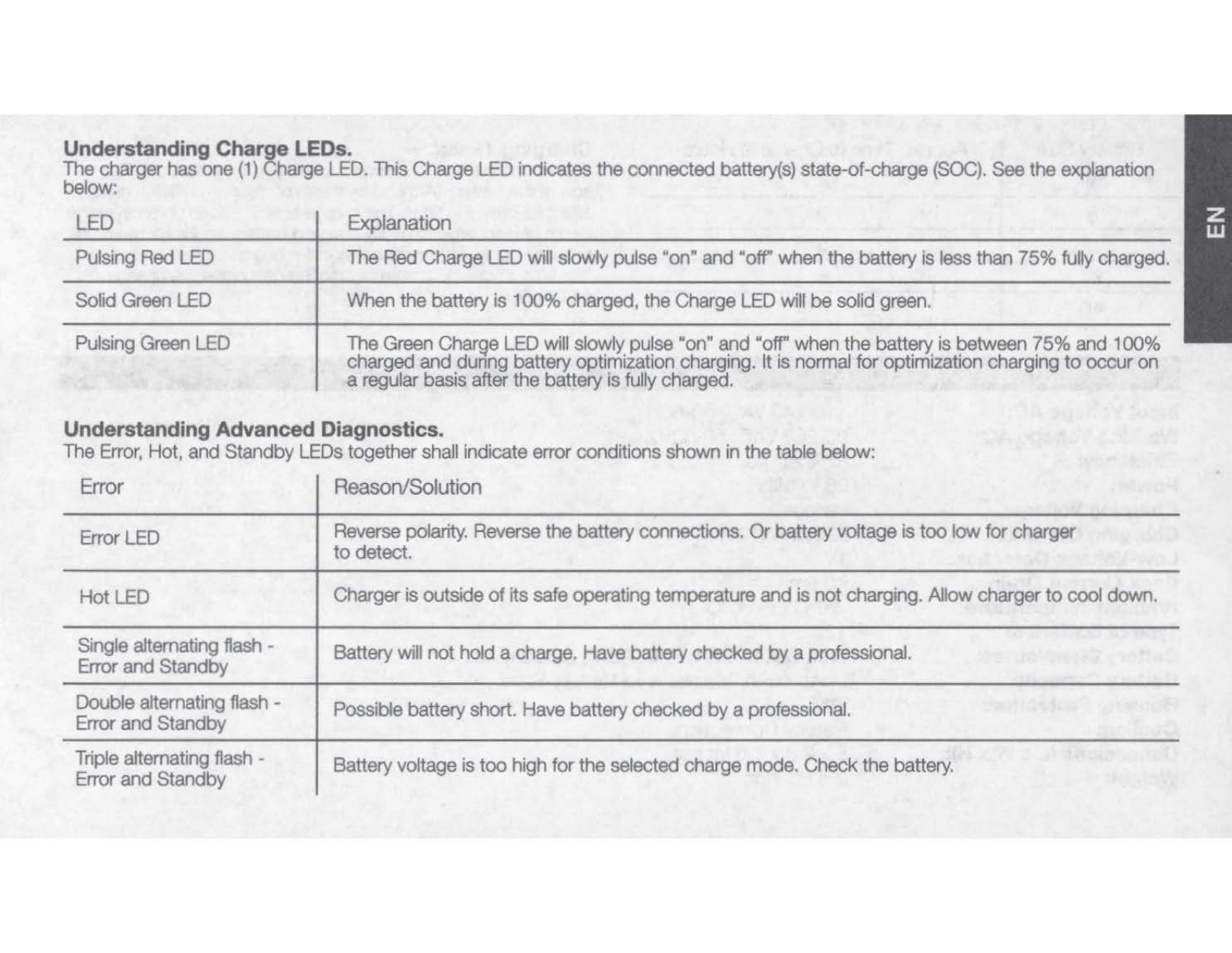

Understanding Charge LEDs.
The charger has one (1) Charge LED. This Charge LED indicates the connected battery(s} state-of-charge (SOC}. See the explanation
below:
LED
Pulsing Red LED
Solid Green LED
Pulsing Green LED
Explanation
The Red Charge LED will slowly pulse "on" and "off" when the battery is less than 75% fully charged.
When the battery is 100% charged, the Charge LED will be solid green.
The Green Charge LED will slowly pulse "on" and "off'' when the battery is between 75% and 100%
charged and dunng battery optimization charging. It is normal for optimization charging to occur on
a regular basis after the battery is fully charged.
Understanding Advanced Diagnostics.
The Error, Hot, and Standby LEDs together shall indicate error conditions shown in the table below:
Error Reason/Solution
Error LED
Hot LED
Single alternating flash -
Error and Standby
Double alternating flash -
Error and Standby
Triple alternating flash -
Error and Standby
Reverse polarity. Reverse the battery connections. Or battery voltage is too low for charger
to detect.
Charger is outside ofits safe operating temperature and is not charging. Allow charger to cool down.
Battery will not hold a charge. Have battery checked by a professional.
Possible battery short. Have battery checked by a professional.
Battery voltage is too high for the selected charge mode. Check the battery.

Battery Size
Ah
Approx. Time to Charge In Hours Charging Times.
8
12
24
40
12V
2
3
6
10
The estimated time to charge a battery is shown below. The
size ofthe battery (Ah) and its depth ofdischarge (DOD) greatly
affect its charging time. The charge time is based on an average
depth of discharge to a fully charged battery and is for reference
purposes only. Actual data may differ due to battery conditions.
The time to charge a normally discharged battery is based on
a50% DOD.
Technical Specifications.
Input Voltage AC:
Working Voltage AC:
Efficiency:
Power:
Charging Voltage:
Charging Current:
Low-Voltage Detection:
Back Current Drain:
Ambient Temperature:
Type of Batteries:
Battery Chemistries:
Battery Capacity:
Housing Protection:
Cooling:
Dimensions (L x W x H):
Weight:
110-240 VAC, 50-60Hz
90-264 VAC, 50-60Hz
87% Approx.
28WMax
Various
2000mA (12V)
1V
<0.5mA
-20°C to +60°C
12V
Wet, Gel, MF, CA, EFB, AGM, Calcium
Up to 40Ah, Maintains All Battery Sizes
IP65
Natural Convection
5 x 2.3 x 1.5 i nc hes
0.5 Po u nds

NOCO warrants that this product (the "Product") will be free from defects in material and workmanship for aperiod of Three (3) years from
the date of purchase (the "Warranty Period"). For defects reported during the Warranty Period, NOCO will, at its discretion, and subject to
NOCO's technical support analysis, either repair or replace defective prooucts. Replacement parts and products will be new or serviceably
used, comparable in function and performance to the original part and warranted for the remainder ofthe original Warranty Period.
NOCO'SUABILllY HEREUNDER IS EXPRESSLY LIMITED TO REPLACEMENT OR REPAIR. TO THE MAXIMUM EXTENT PERMITTED BY
LAW, NOCO SHALL NOT BE LIABLE TO ANY PURCHASER OF THE PRODUCT OR ANY THIRD PARlY FOR ANY SPECIAL, INDIRECT,
CONSEQUENTIAL OR EXEMPLARY DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST PROFITS, PROPERlY DAMAGE OR
PERSONAL INJURY, RELATED IN ANY WAY TO THE PRODUCT, HOWSOEVER CAUSED, EVEN IF NOCO HAD KNOWLEDGE OF THE
POSSIBILITY OF SUCH DAMAGES. THE WARRANTIES SET FORTH HEREIN ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS,
IMPLIED, STATUTORY OR OTHERWISE, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, AND THOSE ARISING FROM COURSE OF DEALING, USAGE OR TRADE PRACTICE. IN
THE EVENT THAT ANY APPLICABLE LAWS IMPOSE WARRANTIES, CONDITIONS OR OBLIGATIONS THAT CANNOT BE EXCLUDED
OR MODIFIED, THIS PARAGRAPH SHALL APPLY TO THE GREATEST EXTENT ALLOWED BY SUCH LAWS.
This Warranty is made solely for the benefit of the original purchaser of the Product from NOCO or from a NOCO approved reseller
or distributor and is not assignable or transferable. To assert a warranty claim, the purchaser must: (1) request and obtain a return
merchandise authorization ("AMA") number and return location information (the "Return Location") from NOCO Support by emailing
[email protected] or by calling 1.800.456.6626; and (2) send the Product, including RMA number, and receipt to the Return Location. DO
NOT SEND IN PRODUCT WITHOUT FIRST OBTAINING AN RMA FROM NOCO SUPPORT.
The original purchaser is responsible (and must prepay) all packaging and transportation costs to ship products for warranty service.
NOTWITHSTANDING THE ABOVE, THIS HASSLE-FREE WARRANTY IS VOID AND DOES NOT APPLY TO PRODUCTS THAT: (a) are
misused, mishandled, subjected to abuse or careless handling, accident, improperly stored, or operated under conditions of extreme
voltage, temperature, shock, or vibration beyond NOCO's recommendations for safe and effective use; (b) improperly installed, operated
or maintained; (c) are/were modified without the express written consent of NOCO; (d) have been disassembled, altered or repaired by
anyone other than NOCO; (e) the defects ofwhich were reported after the Warranty Period.
THIS HASSLE-FREE WARRANTY DOES NOT COVER: {1) normal wear and tear; (2) cosmetic damage that does not affect functionality;
or (3) Products where the NOCO serial number is missing, altered, or defaced.

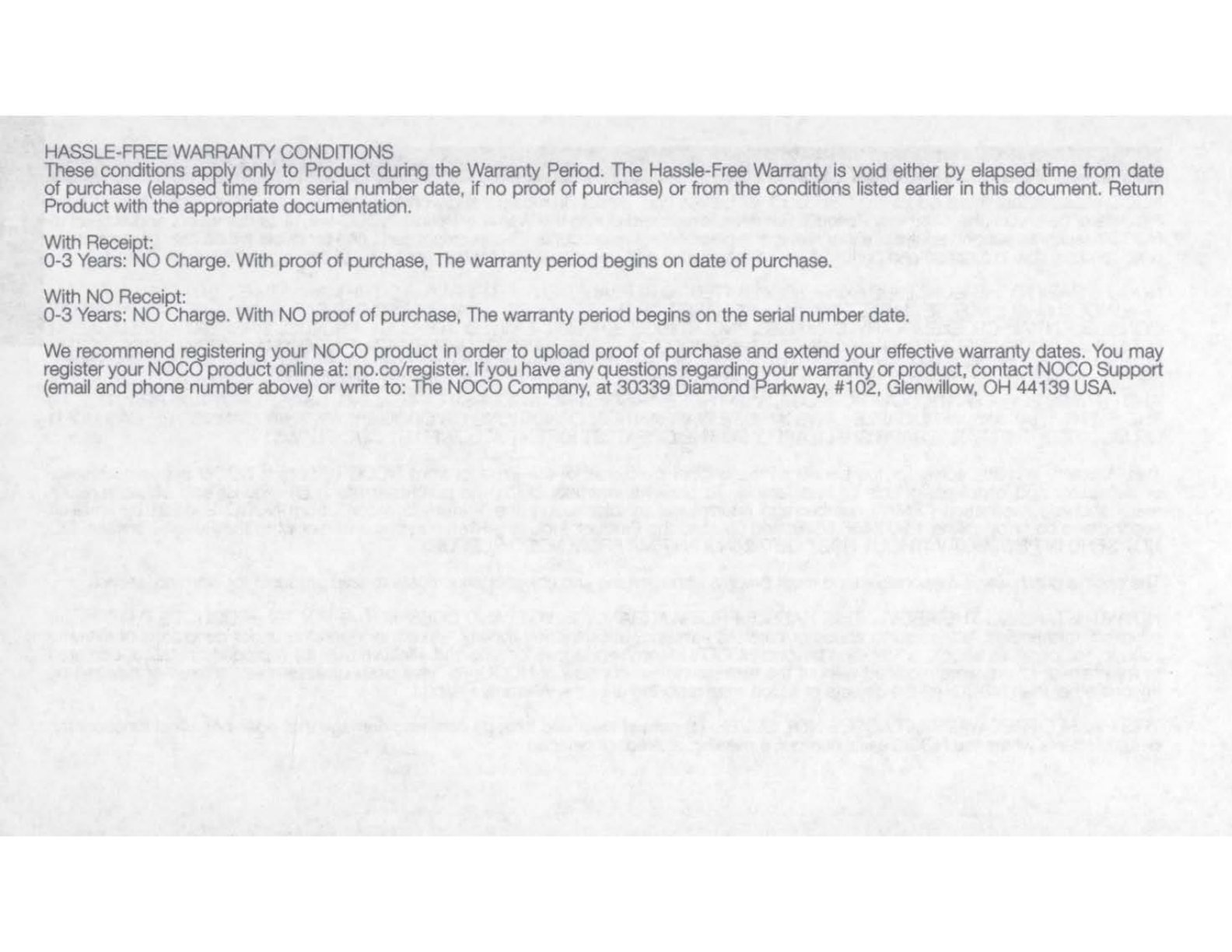

HASSLE-FREE WARRANTY CONDITIONS
These conditions app!}' only to Product during the Warranty Period. The Hassle-Free Warran~ is void either by el~sed time from date
of purchase (elapsed time from serial number date, if no proof of purchase) or from the conditions listed earlier in this document. Return
Product with the appropriate documentation.
With Receipt:
0-3 Years: NO Charge. With proof of purchase, The warranty period begins on date of purchase.
With NO Receipt:
0-3 Years: NO Charge. With NO proofof purchase, The warranty period begins on the serial number date.
We recommend registering your NOCO product in order to upload proof of purchase and extend your effective warranty dates. You may
registeryour NOCO productonline at: no.co/register. Ifyou have any questions regardingyourwarranty orproduct, contact NOCO Support
(email and phone number above) orwrite to: The NOCO Company, at 30339 Diamond Parkway, #102, Glenwillow, OH 44139 USA.

Wicked Smart.®
NOCO®
G2D.07312018A

GENIUS2D
CHARGE FULLY DRAINED BATTERIES.
ATVs, Lawn Mowers, Motorcycles, Cars, Trucks, Boats, RVs, Tractors, Equipment, And More.
Introducing the GENIUS2D, one of our most powerful, highest-performing, energy-ecient, and compact chargers yet. The GENIUS2D is
a 2-amp direct-mount battery charger and battery maintainer engineered to be securely mounted near the battery. It is designed for all
types of 12-volt lead-acid batteries, including flooded, gel, AGM and other maintenance-free batteries.
12V 2A
TM
BATTERY CHARGER
MAINTAINER
+
Auto | Marine | RV | Powersport | Lawn & Garden
Lead Acid
24/7
Provides all-season, all-weather
charging for a healthy battery. Leave
plugged in 24/7 with no worries of
overcharging. Automatically returns
to its last selected mode.
Extend the life of your battery.
Optimize performance without
overcharging. Safely leave connected
indefinitely.
Weather-resistant on-board charger,
built to survive harsh conditions, like
engine compartments. Simply plug
into a standard extension cord when
parked.
MAINTAIN. WORRY-FREE.CHARGE.
Fully charge batteries on cars, boats,
equipment, and more. Works with
most lead-acid batteries.
DIRECT MOUNT.

Retail Packaging:
Dimensions: 5.00”x2.30”x1.50”
Weight: 0.50lbs
UPC: 0-46221-18013-8
Inner Carton:
Dimensions: 6.77”x4.09”x4.53”
Weight: 1.26lbs
Master Carton:
Dimensions: 17.24”x14.25”x9.84”
Weight: 21.65lbs
Quantity: 16
UCC: 10046221180135
Units Per Pallet:
NA - 480 Units
International - 384 Units
What’s In The Box
Battery Size
(for reference,
results may vary)
12Ah
8Ah
3
Approx. Charge Time in Hours
2
24Ah 6
40Ah 10
• GENIUS2D Smart Charger
• Mounting Bracket
• Self-tapping Screws
• Secure Velcro Strap
• User Guide & Warranty
Charging Times
12V
Input Voltage AC: 120-240 VAC, 50-60Hz
VariousCharging Voltage:
Charger Type: Smart Charger
5.0 x 2.3 x 1.5 InchesDimensions (LxWxH):
0.50 lbs
Natural Convection
Up to 40Ah, Maintains All Battery Sizes
IP65
Unit Weight:
Cooling:
Battery Capacity:
Housing Protection:
Working Volatge AC:
Power:
Back Current Drain:
Ambient Temperature:
90-264 VAC, 50-60Hz
28W Max
<0.5mA
-20°C to +60°C, -4°F to +140°F
Low-Voltage Detection: 1V
1.6in
(40.6mm)
AC Cable: 24in
(609.6mm)
DC Cable: 24in
(609.6mm)
3.5in
(88.9mm)
5.0in
(127mm)
3.0in
(76.2mm)
Technical Specifications
12VType of Batteries:
2000mA (12V)Charging Current:
Chemistry: Wet, Gel, MF, CA, EFB, AGM
Patented Technology
Patented: visit no.co/patents
WHAT'S IN THE BOX.
Mounting Strap
Temperature LED
Error LED
Mounting Bracket
18 AWG Cable
24" (25.4 mm)
Charge LED
Power LED 3/8" Eyelet Connectors
Self-tapping Screws
User Guide
Strain Relief
24" (25.4 mm)
