NOCO Genius G15000 User manual

Welcome. Thank you for buying the NOCO Genius®
G15000. Read and understand the User Guide before
operating the charger. For questions regarding our
chargers, view our comprehensive support information at
www.no.co/support. To contact NOCO for personalized
support (not available in all areas), visit www.no.co/connect.
What’s In The Box.
• G15000 Smart Charger
• (1) Battery Clamp Connectors
• (1) Eyelet Terminal Connectors
• User Guide
• Information Guide and Warranty
User Guide
G15000V2.0
PRIOR TO USE, READ AND UNDERSTAND
PRODUCT SAFETY INFORMATION.
Failure to follow the instructions may result
in ELECTRICAL SHOCK, EXPLOSION,
or FIRE, which may result in SERIOUS
INJURY, DEATH, DAMAGE TO DEVICE or
PROPERTY. Do not discard this information.
DANGER

Contacting NOCO.
About G15000. The NOCO Genius®G15000 represents
some of the most innovative and advanced technology
on the market, making each charge simple and easy. It is
quite possibly the safest and most efcient charger you will
ever use. The G15000 is designed for charging all types of
12V lead-acid and 12V lithium-ion batteries, including Wet
(Flooded), Gel, MF (Maintenance-Free), CA (Calcium), EFB
(Enhanced Flooded Battery), AGM (Absorption Glass Mat),
and LIB (Lithium Ion) batteries. It is suitable for charging
battery capacities from 25 to 400 Amp-Hours
and maintaining all battery sizes.
Getting Started. Before using the charger, carefully
read the battery manufacturer’s specic precautions and
recommended rates of charge for the battery. Make sure
to determine the voltage and chemistry of the battery by
referring to your battery owner’s manual prior to charging.
Mounting. The G15000 has four (4) external holes for
mounting. Mount the charger in a desired location with
#10 self-drill screws. Make sure there are no obstructions
behind the mounting surface. It is important to keep in mind
the distance to the battery. The DC cable length from the
charger, with either the battery clamp or eyelet terminal
connectors, is approximately 75-inches (1,900mm).
Charging Modes. The G15000 has nine (9) modes:
Standby, 12V NORM, 12V COLD/AGM, 24V NORM, 24V
COLD/AGM, 12V LITHIUM, 12V AGM+, 13.6V SUPPLY,
and 12V REPAIR, plus JumpCharge for engine starting.
Some charge modes must be pressed and held for three
(3) seconds to enter the mode. These “Press and Hold”
modes are advanced charging modes that require your full
attention before selecting. “Press and Hold” are indicated
on the charger by a red line. It is important to understand
1.800.456.6626
[email protected]
30339 Diamond Parkway, #102
Glenwillow, OH 44139
United States of America
Phone:
Email:
Mailing Address:

222
the differences and purpose of each charge mode.
Do not operate the charger until you conrm the
appropriate charge mode for your battery. Below is a
brief description:
Mode Explanation
12V
NORM
Standby
12V
COLD/
AGM
14.8V | 15A | 50-400Ah Batteries
24V
NORM
29V | 7.5A | 25-200Ah Batteries
29.6V | 7.5A | 25-200Ah Batteries
No Power
14.5V | 15A | 50-400Ah Batteries
24V
COLD/
AGM
In Standby mode, the charger is not
charging or providing any power to
the battery. Energy Save is activated
during this mode, drawing microscopic
power from the electrical outlet. When
selected, an orange LED will illuminate.
For charging 12-volt Wet Cell, Gel Cell,
Enhanced Flooded, Maintenance-Free
and Calcium batteries. When selected,
a white LED will illuminate.
For charging 12-volt batteries in cold
temperatures below 50ºF (10ºC) or
AGM batteries. When selected, a blue
LED will illuminate.
For charging 24-volt Wet Cell, Gel Cell,
Enhanced Flooded, Maintenance-Free
and Calcium batteries. When selected,
a white LED will illuminate.
For charging 24-volt batteries in cold
temperatures below 50ºF (10ºC) or
AGM batteries. When selected, a blue
LED will illuminate.

Using 12V Lithium. [Press & Hold]
12V Lithium charge mode is designed for 12-volt
lithium-ion batteries only, including lithium iron phosphate.
CAUTION. USE THIS MODE WITH CARE. THIS MODE
IS FOR 12-VOLT LITHIUM BATTERIES ONLY. LITHIUM-
ION BATTERIES ARE MADE AND CONSTRUCTED
IN DIFFERENT WAYS AND SOME MAY OR MAY NOT
CONTAIN A BATTERY MANAGEMENT SYSTEM (BMS).
CONSULT THE LITHIUM BATTERY MANUFACTURER
BEFORE CHARGING AND ASK FOR RECOMMENDED
CHARGING RATES AND VOLTAGES. SOME LITHIUM-ION
BATTERIES MAY BE UNSTABLE AND UNSUITABLE FOR
CHARGING.
Mode Explanation
12V
AGM+
13.6V
SUPPLY
12V
LITHIUM
15.5V | 15A | 50-400Ah Batteries
13.6V | 5A | Max 6A
14.2V | 15A | 50-400Ah Batteries
16.5V | 1.5A | Any Capacity
Press & Hold
Press & Hold
Press & Hold
Press & Hold
12V
REPAIR
For charging 12-volt advanced AGM
batteries, which requires a higher than
normal charging voltage. When selected,
a blue LED will illuminate.
Converts to a DC power supply for
powering any 12VDC device, like a tire
inator, oil changer, or as a memory
retainer when replacing a battery. When
selected, a red LED will illuminate.
For charging 12-volt lithium-ion batteries,
including lithium iron phosphate. When
selected, a blue LED will illuminate.
An advanced battery recovery mode
for repairing and storing, old, idle,
damaged, stratied or sulfated batteries.
When selected, a red LED will illuminate
and ash

444
Using 12V AGM+. [Press & Hold]
12V AGM+ charge mode is designed for 12-volt
advanced AGM batteries only. Advanced AGM batteries
are a new battery technology typically found in start-
stop micro-hybrid vehicles. These batteries accept a
higher than normal charging voltage around 15.5-volts.
12V AGM+ charge mode is NOT suitable for traditional
AGM batteries. Consult the battery manufacturer before
using this mode.
CAUTION. USE THIS MODE WITH CARE. THIS
MODE IS FOR 12-VOLT LEAD-ACID ADVANCED
AGM BATTERIES ONLY. THIS MODE USES A HIGH
CHARGING VOLTAGE AND MAY CAUSE SOME
WATER LOSS IN WET (FLOODED) CELL BATTERIES
OR OVERCHARGE IN SOME BATTERIES.
Using 13.6V Supply. [Press & Hold]
13.6V Supply converts the charger to a constant
current, constant voltage DC power supply. It can be
used to power 12VDC devices, including; tire inators,
oil changers, coffee pots, seat heaters and more. As a
power supply, it can also be used to retain a vehicle’s
on-board computer settings during battery repair or
replacement. 13.6V Supply provides 13.6-volts at 5A
with overload protection at 6A (Max).
CAUTION. THIS MODE IS FOR 12-VOLT LEAD-ACID
BATTERIES ONLY. PRIOR TO USE, READ YOUR
12VDC DEVICE MANUAL TO DETERMINE IF IT IS
SUITABLE FOR USE WITH THIS MODE. BOTH THE
SPARK PROOF AND REVERSE POLARITY SAFETY
FEATURES ARE DISABLED IN THIS MODE. DO NOT
ALLOW THE POSITIVE AND NEGATIVE BATTERY
CLAMP OR EYELET TERMINAL CONNECTORS TO
TOUCH OR CONNECT TO EACH OTHER AS THE
CHARGER COULD GENERATE SPARKS. CHECK THE
POLARITY OF THE BATTERY TERMINALS BEFORE
USING THIS MODE.

Using 12V Repair. [Press & Hold]
12V Repair is an advanced battery recovery mode for
repairing and storing, old, idle, damaged, stratied or
sulfated batteries. Not all batteries can be recovered.
Batteries tend to become damaged if kept at a low charge
and/or never given the opportunity to receive a full charge.
The most common battery problems are battery sulfation
and stratication. Both battery sulfation and stratication
will articially raise the open circuit voltage of the battery,
causing the battery to appear fully charged, while providing
low capacity. Use 12V Repair in attempt to reverse these
problems. For optimal results, take the 12-volt battery
through a full charge cycle, bringing the battery to full
charge, before using this mode. 12V Repair can take up
to four (4) hours to complete the recovery process and will
return to Standby when completed.
CAUTION. USE THIS MODE WITH CARE. THIS MODE
IS FOR 12-VOLT LEAD-ACID BATTERIES ONLY. THIS
MODE USES A HIGH CHARGING VOLTAGE AND MAY
CAUSE SOME WATER LOSS IN WET (FLOODED) CELL
BATTERIES. BE ADVISED, SOME BATTERIES AND
ELECTRONICS MAY BE SENSITIVE TO HIGH CHARGING
VOLTAGES. TO MINIMIZE RISKS TO ELECTRONICS,
DISCONNECT THE BATTERY BEFORE USING THIS
MODE.
JumpCharge.
JumpCharge is an innovative new feature for jumpstarting
low-voltage or dead vehicle batteries. The JumpCharge
process is much different than your traditional battery
charger with an “engine start” feature. JumpCharge uses
precision charge control to avoid overloading the battery
that shortens the life of your battery.
To operate JumpCharge, the charger must be connected
to a 12-volt battery with the Battery Clamp Connectors
connected. Press the JumpCharge button to begin
jumpstarting your vehicle.

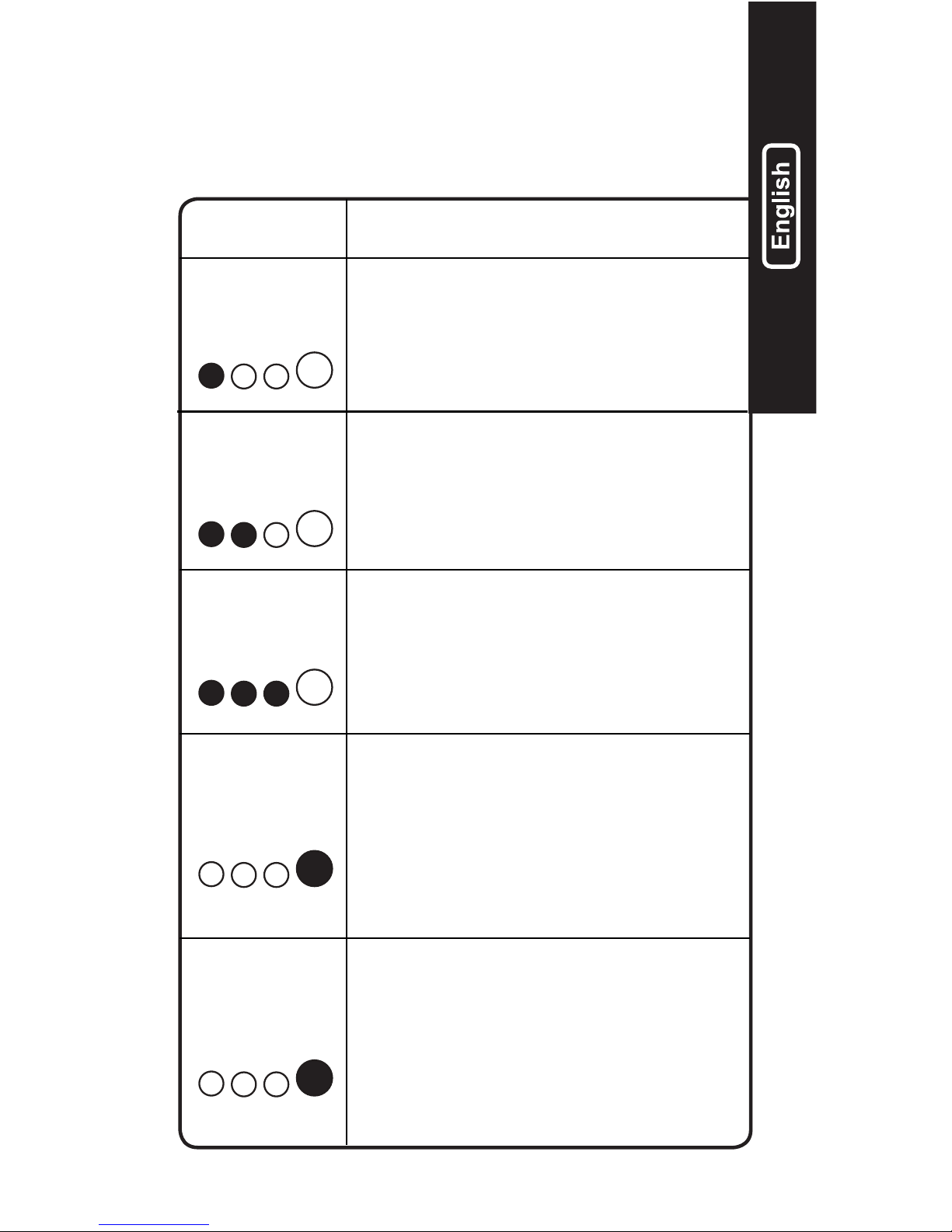

Once initiated, the Charge LEDs will begin showing the
progress of the JumpCharge from 25% to 100%. When
using this mode, the Charge LEDs do not display the

666
battery’s state-of-charge (SOC), only the JumpCharge
progress. Once the 100% green LED is illuminated solid,
and the 25%, 50% and 75% Charge LEDs are “off”, the
JumpCharge process is completed and your are ready to
start your vehicle. For optimal results, allow JumpCharge
to complete its ve (5) minute charge.
If unsuccessful when starting your vehicle, let the battery
rest for fteen (15) minutes and try JumpCharge again.
Most vehicles will start with one (1) JumpCharge, but
larger vehicles with dual battery systems, may require
an additional JumpCharge. If when pressing the
JumpCharge button, an Error Condition (Error LED and
Standby LED ashing) illuminates, the battery is below
2-volts. To JumpCharge a battery below 2-volts, press
and hold the JumpCharge button for three (3) seconds,
and JumpCharge will being jumpstarting your battery.
CAUTION. USE THIS MODE WITH CARE. THIS MODE
IS FOR 12-VOLT LEAD-ACID BATTERIES ONLY. DO
NOT USE JUMPCHARGE MORE THAN TWO (2) TIMES
WITHIN A TWENTY-HOUR (24) HOUR PERIOD. IF TWO
(2) JUMPCHARGES CANNOT SUCCESSFULLY START
YOUR VEHICLE, HAVE YOUR BATTERY EVALUATED
BY A LOCAL BATTERY STORE.
Connecting to the Battery.
Do not connect the AC power plug until all other
connections are made. Identify the correct polarity of
the battery terminals on the battery. The positive battery
terminal is typically marked by these letters or symbol
(POS,P,+). The negative battery terminal is typically
marked by these letters or symbol (NEG,N,-). Do not
Mode Explanation
Delivers 20A for ve (5) minutes to
jumpstart your dead vehicle battery.
When selected, a white LED will
illuminate. (RED Manual Mode)
5Min | 20A | 50-400Ah Batteries
Jump
CHARGE

make any connections to the carburetor, fuel lines, or
thin, sheet metal parts. The below instructions are for a
negative ground system (most common). If your vehicle is a
positive ground system (very uncommon), follow the below
instructions in reverse order.
1.) Connect the positive (red) battery clamp or eyelet
terminal connector to the positive (POS,P,+) battery
terminal.
2.) Connect the negative (black) battery clamp or eyelet
terminal connector to the negative (NEG,N,-) battery
terminal or vehicle chassis.
3.) Connect the battery charger’s AC power plug into a
suitable electrical outlet. Do not face the battery when
making this connection.
4.) When disconnecting the battery charger, disconnect
in the reverse sequence, removing the negative rst (or
positive rst for positive ground systems).
Begin Charging.
1.) Verify the voltage and chemistry of the battery.
2.) Conrm that you have connected the battery clamps or
eyelet terminal connectors properly and the AC power plug
is plugged into an electrical outlet.
3.) The charger will begin in Standby mode, indicated by
an orange LED. In Standby, the charger is not providing
any power.
4.) Press the mode button to toggle to the appropriate
charge mode (press and hold for three seconds to enter an
advanced charge mode) for the voltage and chemistry of
your battery.
5.) The mode LED will illuminate the selected charge mode
and the Charge LEDs will illuminate (depending on the
health of the battery) indicating the charging process has
started.
6.) The charger can now be left connected to the battery at
all times to provide maintenance charging.

888
Understanding Charge LEDs.
The charger has four (4) Charge LEDs per bank - 25%,
50%, 75% and 100%. These Charge LEDs indicate the
connected battery(s) state-of-charge (SOC). See the
explanation below:
LED Explanation
Maintenance
Green LED
25%
Red LED
The 25% Charge LED will slowly
pulse “on” and “off”, when the
battery is less than 25% fully
charged. When the battery is 25%
charged, the red Charge LED will
be solid.
50%
Red LED
During maintenance charging, the
100% Charge LED will pulse “on”
and “off” slowly. When the battery
is topped off and fully charged
again, the 100% Charge LED will
turn solid green. The charger can
be left connected to the battery
indenitely.
75%
Orange LED
The 50% Charge LED will slowly
pulse “on” and “off”, when the
battery is less than 50% fully
charged. When the battery is 50%
charged, the red Charge LED will
be solid.
The 75% Charge LED will slowly
pulse “on” and “off”, when the
battery is less than 75% fully
charged. When the battery is 75%
charged, the orange Charge LED
will be solid.
The 100% Charge LED will slowly
pulse “on” and “off”, when the
battery is less than 100% fully
charged. When the battery is fully
charged, the green LED will be
solid, and the 25%, 50% and 75%
Charge LEDs will turn “off”.
100%
Green LED
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%

Understanding Advanced Diagnostics.
Advanced Diagnostics is used when displaying Error
Conditions. It will display a series of blink sequences
that help you identify the cause of the error and potential
solutions.
All Error Conditions are displayed with the Error LED and
Standby LED ashing back and forth. The
number of ashes between each pulse denotes a
potential Error Condition (except reverse polarity and
low-voltage battery).
Error Reason/Solution
Single
Flash
Battery will not hold a charge.
Have battery checked by a
professional.
Possible battery short.
Have battery checked by a
professional.
Battery voltage is too high for
the selected charge mode.
Check the battery and charge
mode.
Error LED
Solid Red
Reverse polarity. Reverse the
battery connections.
Battery voltage is too low for
charge to detect or charger
is in supply. Jumpstart the
battery to raise the battery
voltage.
Double
Flash
Triple
Flash
Standby
Solid Orange

101010

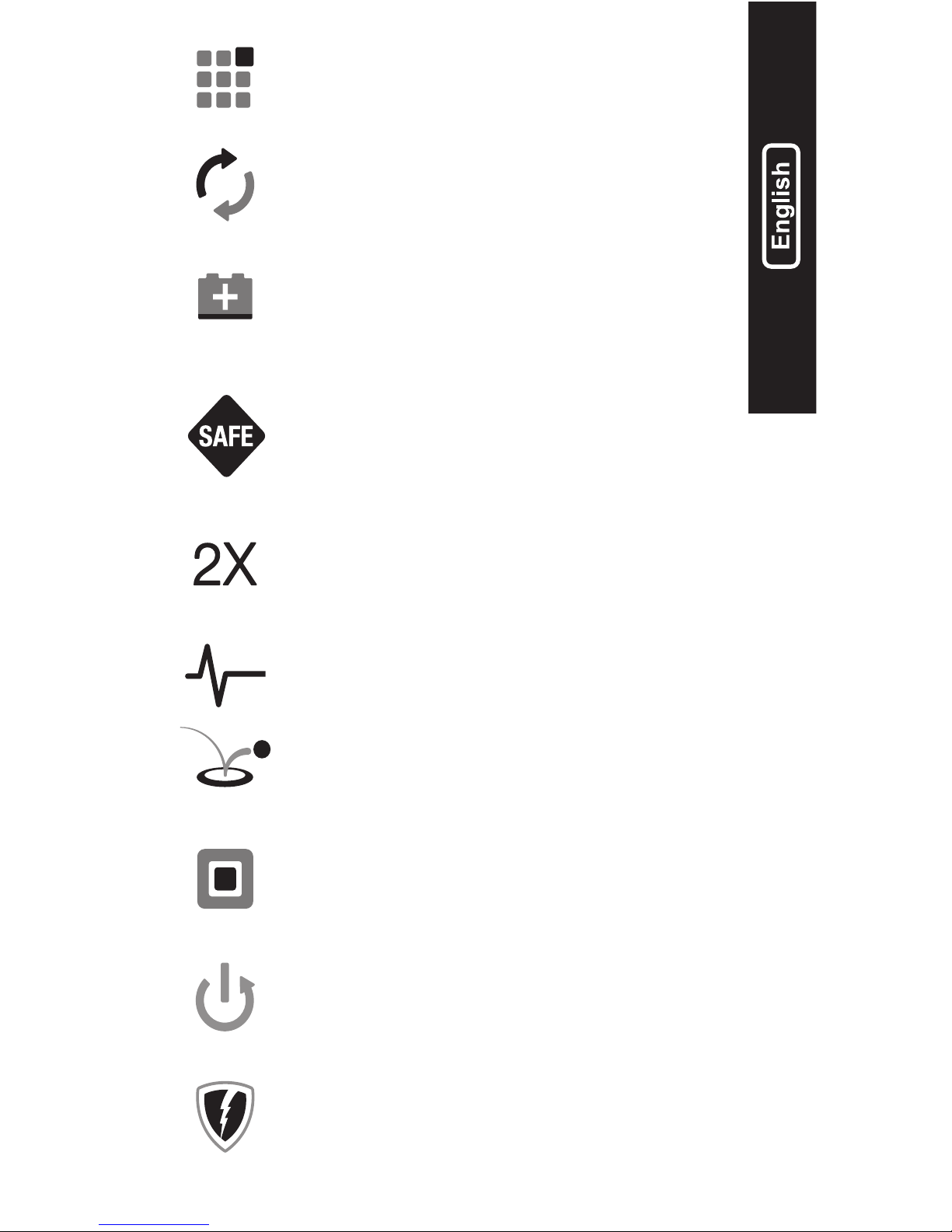

Memory
Returns to last selected mode when
restarted
Interactive
Alters the charging process based on
organic battery feedback
Recovery
Applies a high-voltage pulse charge when
low-voltage, sulfation or lost capacity is
detected
Safe
Protects against reverse polarity, sparks,
overcharging, overcurrent, open-circuits,
short-circuits and overheating
Fast
Charges two times faster than traditional
battery chargers
Compensation
Adjusts for varying A/C line voltage for
consistent charging
Rugged
Dirt, water, UV, impact and crush resistant
Compact
High-frequency energy conversion for
ultra-compact, lightweight and portable
charger
Start-Stop
Counteracts increased cyclic energy
demands placed on batteries in micro-
hybrid vehicles
Firewall
Multi-level safety barrier that prevents
abnormal and unsafe conditions

Optimization
Stabilizes internal battery chemistry for
increased performance and longevity
Maintenance Plus
Keeps the battery fully charged without
overcharging allowing the charger to be safely
connected indenitely
Energy Save
Minimizes energy consumption when full
power is not needed
Load Tracking
Charge LEDs dynamically track the
batteries state-of-charge when a load
outpaces the charge current
Diagnostics
Intuitive visual diagnostic tool for detecting
reverse polarity, low-voltage or damaged
batteries
CANBUS
Automatically enables the charging port to
charge CANBUS systems
Thermal Monitor
Internal temperature sensors adjust charge
based on ambient climate

121212

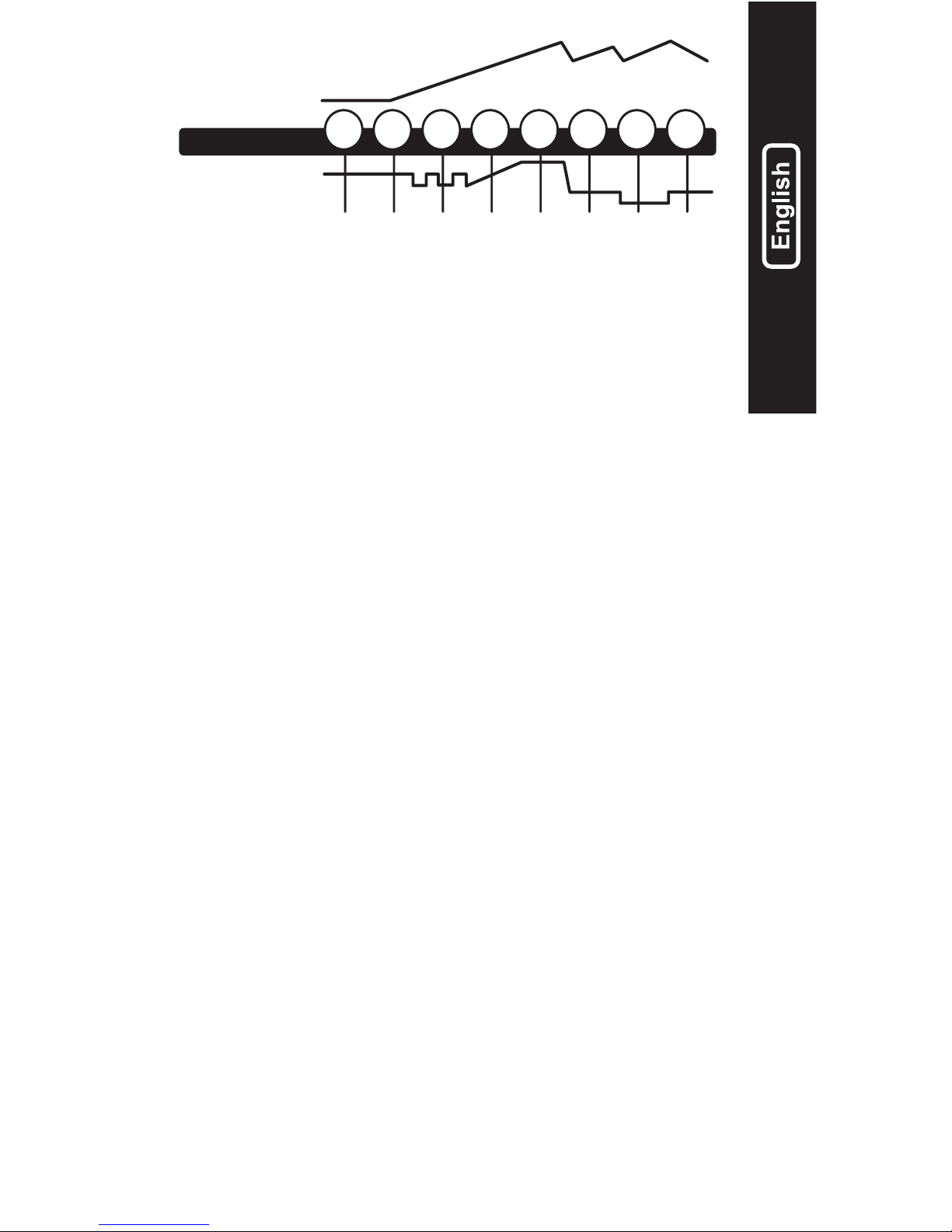

Charging Steps.
Step 1 & 2: Analyze & Diagnose
Checks the battery’s initial condition, including voltage,
state-of-charge and health, to determine if the battery is
stable before charging.
Step 3: Recovery
Initializes the Recovery desulfation process (if needed)
for deeply discharged or sulfated batteries by pulsing
small amounts of current.
Step 4: Initialize
Starts the charging process with a gentle (soft) charge.
Step 5: Bulk
Begins the Bulk charging process based on the
condition of the battery and returns 80% of the battery’s
capacity.
Step 6: Absorption
Brings the charge level to 90% by delivering small
amounts of current to provide a safe, efcient charge.
This limits battery gassing and is essential to prolonging
battery life.
Step 7: Optimization
Finalizes the charging process and brings the battery
to maximum capacity. In this step, the charger utilizes
multi-layered charging proles to fully recapture capacity
and optimize the specic gravity of the battery for
increased run time and performance. The charger will
switch to Maintenance if the battery tells the charger that
more current is needed.
1 2 3 4 5 6 7 8
Analyze
Step
Voltage (V)
Current (A)
Initialize
Diagnose
Bulk
Optimization
Recovery
Absorption
Maintenance

Battery Size Approx. Time to Charge In Hours
12V
50
75
100
150
200
1.7
2.5
3.3
5.0
6.7
3.3
5.0
6.7
10.0
13.3
24VAh
Step 8: Maintenance
Continuously monitors the battery to determine when
a maintenance charge should be initiated. If the battery
voltage falls below its target threshold, the charger will
restart the Maintenance cycle until voltage reaches its
optimal state and then discontinues the charge cycle. The
cycle between Optimization and Maintenance is repeated
indenitely to keep the battery at full charge. The battery
charger can be safely left connected indenitely without
the risk of overcharging.
Charging Times.
The estimated time to charge a battery is shown below.
The size of the battery (Ah) and its depth of discharge
(DOD) greatly affect its charging time. The charge time is
based on an average depth of discharge to a fully charged
battery and is for reference purposes only. Actual data
may differ due to battery conditions. The time to charge a
normally discharged battery is based on a 50% DOD.

141414
110-120 VAC, 50-60Hz
85-130 VAC, 50-60Hz
85% Approx.
255W Max
Various
15A (12V), 7.5A (24V),
2V (12V), 14V (24V)
<5mA
0°C to +40°C
8 Step, Smart Charger
12V & 24V
Wet, Gel, MF, CA, EFB,
AGM & LIB
50-400Ah (12V), 25-200Ah
(12V), Maintains
All Battery Sizes
IP44
Fan Cooled
10.56 x 4.84 x 2.76 Inches
3.93 Pounds
Input Voltage AC:
Working Voltage AC:
Efciency:
Power:
Charging Voltage:
Charging Current:
Low-Voltage Detection:
Back Current Drain:
Ambient Temperature:
Charger Type:
Type of Batteries:
Battery Chemistries:
Battery Capacity:
Housing Protection:
Cooling:
Dimensions (L x W x H):
Weight:
Technical Specications.

16
Bienvenue. Merci pour l’achat d’un NOCO Genius®
G15000. Veuillez lire et comprendre le manuel
d’utilisation avant d’utiliser l’appareil. Pour toutes
questions concernant nos chargeurs, veuillez consulter
nos informations exhaustives à l’adresse www.no.co/
support. Pour contacter NOCO an d’avoir un service
personnalisé (n’existe pas dans toutes les régions),
consultez l’adresse www.no.co/connect.
Contenu de la boîte.
• G15000 Chargeur intelligent à
• (1) Bride de serrage HD pour batterie
• (1) Connecteurs de borne à œil
• Manuel d’utilisation
• Guide d’utilisation et garantie
Manuel d’utilisation
G15000V2.0
AVANT TOUTE UTILISATION -
VEUILLEZ LIRE ET COMPRENDRE
LES INDICATIONS DE SÛRETÉ.Ne
pas respecter ces instructions peut
conduire à un CHOC ÉLECTRIQUE, UNE
EXPLOSION, UN INCENDIE pouvant
causer des BLESSURES GRAVES, LA
MORT ou ENDOMMAGER L’APPAREIL
ou d’autres OBJETS. N’ignorez pas les
informations contenues ici.
DANGER

Contacter NOCO.
À propos de G15000.Le NOCO Genius®G15000
dispose des technologies parmi les plus innovantes et
avancées du marché, rendant chaque chargement simple
et facile. C’est très probablement un des chargeurs les plus
sûrs et les plus efcaces que vous utiliserez. Le G15000 est
conçu pour charger plusieurs batteries de 12 V plombacide
et 12 V lithium-ions, y compris des batteries humides, à gel,
MF (sans entretien), CA (Calcium), EFB (Enhanced Flooded
Battery), AGM (Absorption Glass Mat), LIB (Lithium Ion). Il
est adapté au chargement de batteries d’une capacité de
25 à 400 ampères-heures et à l’entretien des batteries de
toute tailles.
Premiers pas. Avant d’utiliser le chargeur, veuillez lire
attentivement les indications du fabricant et les taux de
chargement recommandés pour la batterie. Soyez certains de
déterminez le voltage et la composition chimique de la batterie
en consultant le guide d’utilisation avant tout chargement.
Montage. Le G15000 dispose de quatre (4) oeillères
de xation. Fixez le chargeur à l’endroit souhaité avec six
vis. Assurez-vous qu’il n’y a pas d’obstructions derrière la
surface de montage. Il est important de garder à l’esprit la
distance jusqu’à la batterie. La longueur du câble DC depuis
le chargeur, avec soit la bride de serrage ou le connecteur
de borne à œil, est approximativement de 1900 mm (75
pouces).
Modes de chargement. Le G15000 dispose de neuf
(9) modes : Veille, NORMAL 12V, FROID/AGM 12V, NORMAL
24V, FROID/AGM 24V, LITHIUM 12V, AGM+ 12V, 13.6V
SUPPLY et RÉPARATION 12V en plus de JumpCharge pour
démarrer un moteur. Pour déclencher certains modes de
chargement, il faut appuyer pendant trois (3) secondes pour
déclencher le mode. Ces modes “appuyer et maintenir”
sont des modes de chargement avancés qui retiendront
1.800.456.6626
[email protected]
30339 Diamond Parkway, #102
Glenwillow, OH 44139
United States of America
Téléphone :
E-Mail :
Adresse postale :

18
toute votre attention avant de les déclencher. “Appuyer
et charger” sont indiqués sur le chargeurs sur une ligne
rouge. Il est important de comprendre les différences et
les avantages de chaque mode de chargement. Il est
important de charger jusqu’à ce que vous conrmiez le
mode de chargement de votre batterie. Ci-dessous se
trouve une brève description :
Mode Explication
NORME
12V
Veille
FROID/
AGM
12V
14.8V | 15A | 50-400Ah Batterie
NORME
24V
29V | 7.5A | 25-200Ah Batterie
29.6V | 7.5A | 25-200Ah Batterie
Pas de courant
14.5V | 15A | 50-400Ah Batterie
FROID/
AGM
24V
En mode veille, le chargeur ne charge
pas ou ne fournit aucune électricité à la
batterie. Le mode économie d’énergie
est activé durant ce mode et s’alimente à
très petites doses sur la prise de courant.
Lorsqu’il est choisi, un LED orange
s’allume.
Pour charger une batterie humide, à gel,
EFB (enhanced ooded batteriy), sans
entretien et au calcium. Lorsqu’il est
choisi, un LED blanc s’allume.
Pour charger des batteries de 12 volts
à des températures en-dessous de 10°
C ou des batteries AGM. Lorsqu’il est
choisi, un LED bleu s’allume.
Pour charger une batterie 24 volt
humide, à gel, EFB (enhanced ooded
batteriy), sans entretien et au calcium.
Lorsqu’il est choisi, un LED blanc
s’allume.
Pour charger des batteries de 24 volts
à des températures en-dessous de 10°
C ou des batteries AGM. Lorsqu’il est
choisi, un LED bleu s’allume.

Utilisation du mode lithium 12V.
Appuyer & maintenir
Le mode de chargement lithium 12V est conçu pour
des batteries 12 volts à lithium ions, y compris lithium fer
phosphate.
ATTENTION. UTILISEZ CE MODE AVEC PRÉCAUTION.
CE MODE EST UNIQUEMENT ADAPTÉ À DES BATTERIES
PLOMBACIDE 12 VOLT. LES BATTERIES LITHIUM-IONS
SONT FABRIQUÉES DE MANIÈRES DIFFÉRENTES ET
CERTAINES CONTIENNENT OU NON DES SYSTÈMES
DE GESTION DE BATTERIES (BMS). CONSULTEZ
LE FABRICANT DE BATTERIES LITHIUM AVANT DE
CHARGER ET RENSEIGNEZ-VOUS SUR LES TAUX
Mode Explication
AGM+
12V
ALIMENTATION
13.6 V
LITHIUM
12V
15.5V | 15A | 50-400Ah Batterie
13.6V | 5A | Max 6A
14.2V | 15A | 50-400Ah Batterie
16.5V | 1.5A | Tous les Capacités
RÉPARATION
12 V
Pour charger des batteries AGM 12 volt
qui requièrent une tension de chargement
supérieure à la normale. Lorsqu’il est
choisi, un LED bleu s’allume.
Convertit vers une alimentation DC pour
alimenter n’importe quel appareil de 12V
en courant direct, tel un goneur de pneu,
un changeur d’huile ou bien comme
sauvegarde mémoire au moment de
changer une batterie. Lorsqu’il est choisi,
un LED rouge s’allume.
Pour charger des batteries 12 volt lithium-
ions, y compris lithium fer phosphate.
Lorsqu’il est choisi, un LED bleu s’allume.
Un mode batterie avancé de récupération
pour réparer, sauvegarder et stocker des
batteries sulfatées ou stratiées, vieilles,
inutilisées ou endommagées. Lorsqu’il
est choisi, un LED rouge s’allumera et
clignotera.
Appuyer &
maintenir
Appuyer &
maintenir
Appuyer &
maintenir
Appuyer &
maintenir
