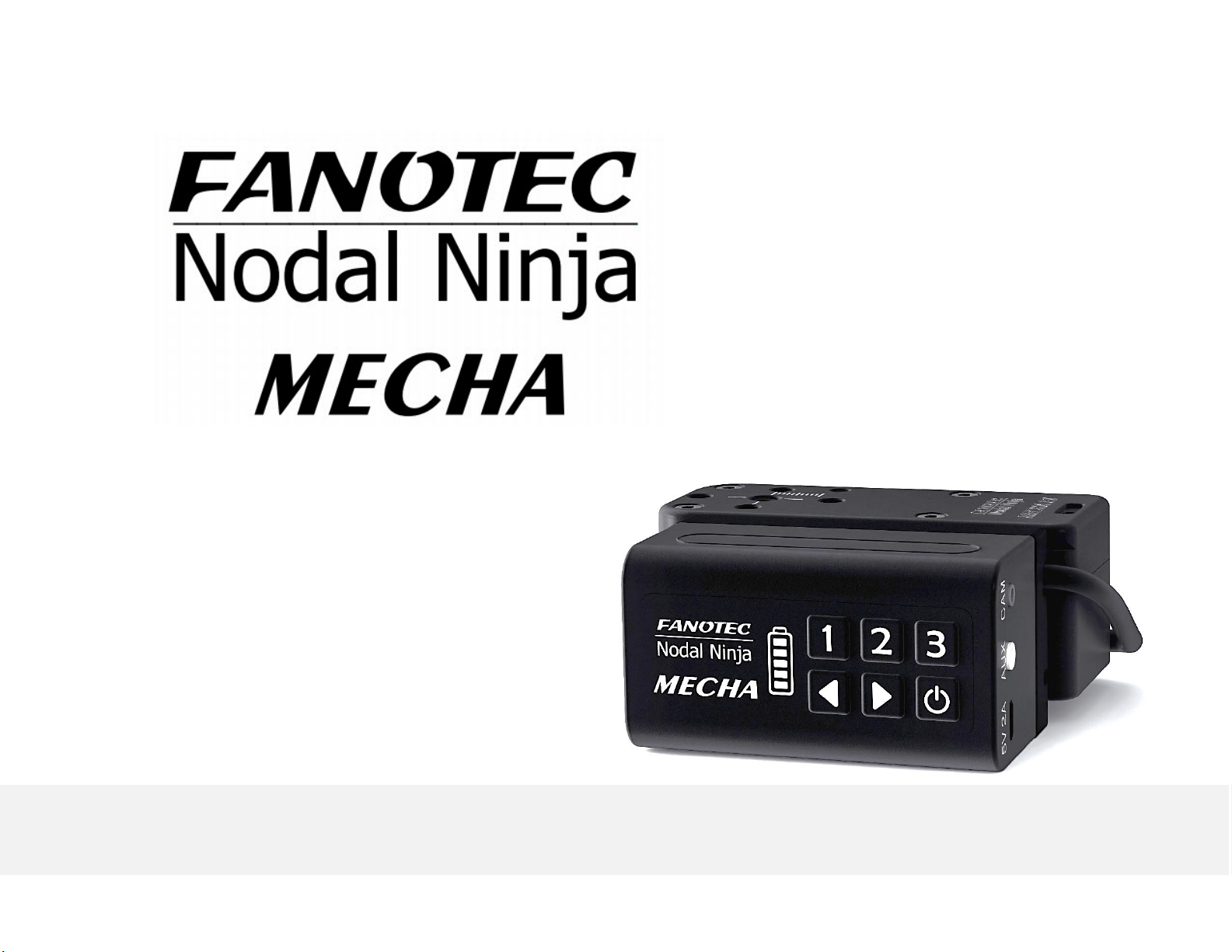

E1 Rotator +

Single Axis Controller C1

QUICK REFERENCE GUIDE

Package Content

Body

Features

Basic Operation

Version 0.2.1

Info, Links & Specs

________________________________________________________________________________________________________________________

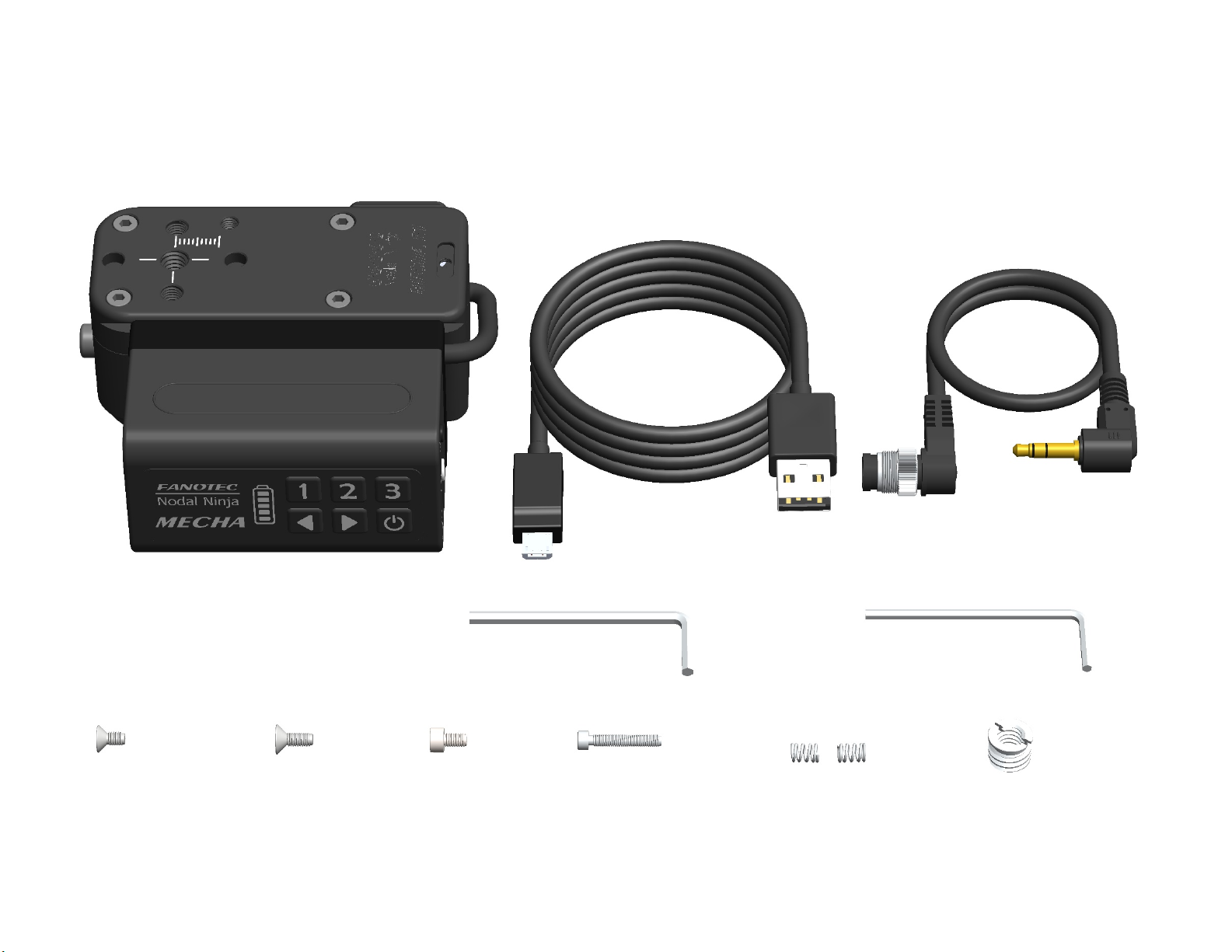

Mecha E1& C1

USB Micro B Cable Shutter Cable

2.5 mm Hex Key

2.0 mm Hex Key

M3x5

M3x6

M3x5

M2.5x16

Springs x 2 3/8” to 1/4” adapter

PACKAGE CONTENTS

________________________________________________________________________________________________________________________

1. Rotator Serial Number

2. C1-E1 Support Arm

3. Controller Serial Number

4. Single Axis Controller C1 (F9910)

5. Power / Status LED Indicator

6. Programmable Buttons

7. Power Button

8. Micro B USB Charging Port

9. Multi-Function AUX Port

10. Camera Trigger Port

11. Controller to Rotator Cable

12. M5 Sockets

13. Anti-Twist Sockets

14. 1/4”-20Socket

15. M4 Socket

16. Mecha E1 Rotator Module (F9900)

17. Friction Ring Tension Screw

18. Lower Rotator Friction Ring

19. Anti-Rotation Lock Button

20. 3/8”-16 Socket

BODY

________________________________________________________________________________________________________________________

Mecha = Precision built with the highest quality components.

Use for consistent single row 360's (dual axis controllers coming soon).

Other uses include turntable, HDR bracketing, time-lapse video and later use

with Fanotec Carbon Fiber Slide Rails and cables.

The rotators are modular and can be used with different controllers supporting

1 to 4 axis.

Mecha's features justify doing price comparisons against higher end units

costing thousands of dollars.

Out the box Mecha is pre configured with 3 presets and ready to shoot.

Load 1 = executes 4 shots around.

Load 2 = executes 6 shots around.

Load 3 = executes 8 shots around.

The unit is able to operate with or without web browser controller.

Attach camera to Mecha by use of the sync cable.

Turn on, press #1 >(right arrow) , shooting sequence begins to the right begins

with 4 shots around.

Turn on, press #2 < (left arrow) shooting sequence begins to the left begins

with 6 shots around, etc.

Using the controller with Wi-Fi interface to a mobile/PC device browser offers

access to over 50 tools for status displays, customizing shoots, and setting up

presets as needed.

Some features include:

Assign a total number of shots around 2-360.

Rotate left or right.

Tool for testing No Parallax Point (NPP) in live view.

HDR bracketing of shots in a set (1-7, + custom)

Control Auto Focus time in milliseconds.

Set a delay for Wake up

Set a delay for Before exposure

Set a delay for Exposure

Set a delay for After exposure

Rewind to initial position (useful to avoid cable wrap with some configurations)

On/off repeat number of sequences + length of delay between sequences.

Create up to 3 custom profiles which can be assigned to the 3 physical

Buttons on controller, no need for an interface to use them.

Cancel operation smoothly.

Emergency stop.

Ability to take extra shots step by step for patching in a panorama.

Support for partial panoramas and repeated as desired.

Can operate both in AP or STA mode, allows the use in the studio or in

the field as multiple stations some of which can be dedicated for use as

a turntable, others for panoramas, and others for rail and video with

upcoming accessories.

Turntable set with the desired speed (RPM) and smooth acceleration.

Visual feedback of the current shoot/position in set with time estimation

until completion.

Firmware update is via WiFi through the Internet.

May be used with a power bank for extended use.

Gesture support for fine-tuning of the initial position or for extra shots.

FEATURES

________________________________________________________________________________________________________________________

Power / Status LED Indicator

The combinations of buttons will show the following:

121< Show Mecha ID.

123< Show MAC address.

323< Show Full IP address.

321< Show Last part of the IP address.

Power Button: Hold down for approximately 5

seconds to turn on/off. While turned on press

briefly for battery status.

Presets buttons. Comes preprogrammed with:

#1=4 stops, #2=6 stops, #3=8 stops.

Arrows designate direction of rotation.

symbol “>” = right arrow, symbol “<” = left arrow

To execute a preset push buttons:

1< or 1> left or right.

2< or 2> left or right.

3< or 3> left or right.

23< Disable/Enable motor. When the motor is disabled, the power LED will

blink rarely, it blinks also in U.I.

32123< Update the firmware, if possible. Mecha needs to be connected to a

WiFi with internet access before entering the code.It will show "..." if it cannot

find any update, or "!!!" if Internet is not available for Mecha.

5V 2A = Micro B USB Charging Port. Plug in Micro BUSB cable to

charge the Mecha. Use an appropriate power source. 5Volts

2Amp input.

AUX = Multi-function Auxiliary Port. Currently available function

is shutter release confirmation by using signal from camera hot-

shoe. Other functions will be available in the future.

CAM =Camera Port. Plug in a specific shutter cable for the

camera in use. This allows for triggering the shutter

automatically.

Make sure power is turned off

before mounting on a tripod.

Anti-Rotation Lock Button.

When mounting to a tripod

depress the button allowing to

tighten the Mecha. Once

tightened

make sure the

button is not depressed.

BASIC OPERATION

________________________________________________________________________________________________________________________

BASIC OPERATION

- continued pg 2

Web APP connection via WiFi:

To connect to the web app:

Make sure the unit is turned on.

On a mobile device/PC select MECHA-XXXXXX in the WiFi network list.

Enter the password 12345678.

On the browser URL enter 192.168.8.1

Ring, Row and Turn buttons are the options for the type of images required.

Test and Config buttons requires admin credentials.

Update button is for firmware update. Follow the prompts to connect to a WiFi

connection. When completed reboot the unit.

Sample page. (Ring page)

________________________________________________________________________________________________________________________

BASIC OPERATION

- continued pg 3

Page Navigation

1. Toggles feature description

2. Allows user to choose menu size from simple to advance

3. Switch between menus (Ring, Row, Turn, Home)

4. Mecha ID

5. Refresh rate of the motor/controller status

6. Rotator in use (E1, E2, P1)

7. Current angle position

8. Current status (shots remaining, position, repeat set)

9. Battery percentage

10. Toggles gesture mode. Click on screen and drag.

11. Current time

12. Current date, time remaining

13. Current rotation degree interval

14. Seconds remaining in current delay

15. Slider to manually rotate in degrees relative

to its current position

________________________________________________________________________________________________________________________

BASIC OPERATION

- continued pg 4

Clicking on the INFO button will toggle description for all the controls.

________________________________________________________________________________________________________________________

ORE

NFO

INKS

PECS

Specifications:

NCR18650GA high capacity lithium-ion batteries, 7.2v, 3350mAh, 12Wh.

(Always observe proper safety precautions when using products with lithium-ion batteries).

Total weight of Mecha Rotator E1 + Single Axis Controller C1 approx. 17.35 oz (492g).

Supports up to 3.3lbs (1.5 kg) vertical loading, including pano-head, and 1.0Nm turning torque (center of gravity is 8cm from pivot).

Mecha support safe links:

•Accessing the Web Control Interface of Mecha - http://bit.ly/mecha-access

•How to update Mecha Controller firmware - http://bit.ly/mecha-firmware

•Support Questions and assistance - http://bit.ly/mecha-forum

How we will assign versions for the Mecha E1 Rotator with Controller C1 QRG.

•v0.1 First draft released to get the user up and running with basic functionality.

•v0.1.1 / v0.1.2 / v0.1.3 etc. - Minor tweaks to text and images may occur which do not affect performance.

•v0.2 / v0.3 / v0.4 etc. - Changes or additional features added which may affect or enhance the actual operation. (important update)

•v1,0 The QRG has reached a level that we feel covers most of the basic functionality.

•v1.1.1 / v1.1.2 / v1.1.3 etc. - Minor tweaks to text and images may occur which do not affect performance.

•v1.1 / v1.2 / v1.3 etc. - Changes or additional features added which may affect or enhance the actual operation. (important update)

•v2 - Major update (important)

To view the latest revision of this Quick Reference Guide scan the QR Code or visit:

https://www.nodalninja.com/Manuals/MECHA_E1_C1_QRG.pdf

We will also be publishing “Feature Highlight” supplements. These supplements will

provide detailed explanations of some of the features find on the Controller.

Feature Highlights:

Finding the No-Parallax Point Using Live NPPscan the QR Code or visit:

http://www.nodalninja.com/Manuals/Finding-the-No-Parallax-Point-Using-Live-NPP.pdf

Developed and manufactured by Fanotec sold by Nodal Ninja.

Nodal Ninja, 3454 N. San Marcos Pl. Ste #9, Chandler AZ 85225 USA ph 480-659-9899

Authorized dealers visit: https://shop.nodalninja.com/find-a-dealer.html

For dealer inquiries send email: nodalninja@gmail.com
