Sony HKC-7080 Manual

CCD MODIFICATION UNIT
HKC-7080
INSTALLATION AND MAINTENANCE MANUAL
1st Edition (Revised 1)

!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
DieAnleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt dieAngaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien.Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.

1 (E)
HKC-7080
Table of Contents
Manual Structure
Purpose of this manual ........................................................................................ 5 (E)
Contents ............................................................................................................... 5 (E)
Related manuals................................................................................................... 6 (E)
1. Installation
1-1. Configuration of HKC-7080 .................................................................1-1 (E)
1-2. Installation Procedures ..........................................................................1-1 (E)
1-3. Replacing CCD Unit .............................................................................1-1 (E)
1-3-1. Description on CCD Block Number ....................................1-1 (E)
1-3-2. Replacing CCD Unit ............................................................1-2 (E)
1-3-3. Disconnecting/Connecting Flexible Card Wire ...................1-4 (E)
1-4. Modifying Board...................................................................................1-5 (E)
1-4-1. Modifying VDA-31 Board ...................................................1-5 (E)
1-4-2. Modifying VA-158 Board....................................................1-6 (E)
1-4-3. Modifying IF-569 Board ......................................................1-7 (E)
1-4-4. Modifying SG-226 Board ....................................................1-8 (E)
1-4-5. Replacing ROM ...................................................................1-8 (E)
1-4-6. Switch Setting of AT-104 Board..........................................1-8 (E)
2. Electrical Alignment
2-1. Preparation ............................................................................................2-1 (E)
2-1-1. Equipment Required.............................................................2-1 (E)
2-1-2. Switch Setting of IF-569 Board ...........................................2-1 (E)
2-1-3. Clearing the Reference File..................................................2-1 (E)
2-1-4. Presetting the Operator File .................................................2-1 (E)
2-2. VA Gain Adjustment.............................................................................2-2 (E)
2-3. White Shading Adjustment ...................................................................2-2 (E)
2-4. Black Shading Adjustment....................................................................2-4 (E)
2-5. ND Offset Adjustment ..........................................................................2-4 (E)
2-6. Storing the Reference File.....................................................................2-5 (E)
2-7. Storing the Operator File.......................................................................2-6 (E)

2 (E) HKC-7080
3. Setup Menu
3-1. Setup Menu ...........................................................................................3-1 (E)
3-1-1. Operation Menu ...................................................................3-3 (E)
3-1-2. Paint Menu ...........................................................................3-7 (E)
3-1-3. Maintenance Menu .............................................................3-11 (E)
3-1-4. File Menu ...........................................................................3-14 (E)
3-1-5. Diag Disp Menu .................................................................3-15 (E)
3-1-6. SYS Config Menu ..............................................................3-16 (E)
4. Spare Parts
4-1. Notes on Repair Parts ............................................................................4-1 (E)
4-2. Exploded View ............................................................................................4-2
4-3. Electrical Parts List .....................................................................................4-3
5. Semiconductor Pin Assignments
6. Block Diagrams
Block Diagram Index ..................................................................................6-1
CCD Block ..................................................................................................6-2
PA-173 ........................................................................................................6-3
DU-1............................................................................................................6-3
TG-209 ........................................................................................................6-4
DR-376 ........................................................................................................6-5
7. Schematic Diagrams
Schematic Diagram Index ...........................................................................7-1
Location of Printed Circuit Boards .............................................................7-1
TG-209 ........................................................................................................7-3
DR-376 ........................................................................................................7-4
DU-1............................................................................................................7-7
PA-173 ........................................................................................................7-8
DR-308 ......................................................................................................7-10
CN-1367 ....................................................................................................7-11
CN-1756 ....................................................................................................7-12

3 (E)
HKC-7080
8. Board Layouts
Board Layout Index.....................................................................................8-1
TG-209 ........................................................................................................8-3
DR-376........................................................................................................8-5
DU-1............................................................................................................8-7
PA-173 ........................................................................................................8-9
DR-308......................................................................................................8-11
CN-1367....................................................................................................8-11
CN-1756....................................................................................................8-11

5 (E)
HKC-7080
Purpose of this manual This manual is the installation and maintenance manual for CCD Modification Unit
HKC-7080.
This manual describes the information items necessary when the unit is supplied and
installed, and items that premise the service based on the components parts such as
schematic diagrams, board layouts and spare parts lists, assuming use of system and
service engineers.
Contents The following are summaries of all the sections for understanding the contents of
this manual.
Section 1 Installation
Describes the components that constitute the unit and the procedures to install the
HKC-7080 in the HD color camera HDC-700.
Section 2 Electrical Alignment
Describes electrical adjustment necessary after the HKC-7080 is installed in the
HDC-700.
Section 3 Setup Menu
Describes the setup menu for the modified HDC-700.
Section 4 Spare Parts
Describes electrical parts list for every circuit board.
Section 5 Semiconductor Pin Assignments
Describes function diagrams and pin names of semiconductors used in the unit.
Section 6 Block Diagrams
Describes CCD overall block diagram and block diagrams for every circuit board.
Section 7 Schematic Diagrams
Describes schematic diagrams for every circuit board.
Section 8 Board Layouts
Describes board layouts for every circuit board.
Manual Structure

6 (E) HKC-7080
Related manuals Besides this installation and maintenance manual the following manuals are avail-
able for this unit.
..
..
.HDC-700 Operation Manual (Supplied with HDC-700)
This manual is necessary for application and operation of the HDC-700.
..
..
.HDC-700 Maintenance Manual (Supplied with HDC-700)
This manual describes the information items necessary when the HDC-700 is
supplied and installed, items on maintenance, and items that premise the service
based on the components parts such as alignment, schematic diagrams, board
layouts and spare parts lists, assuming use of system and service engineers. When
servicing the modified camera, see the HKC-7080 installation and maintenance
manual and HDC-700 maintenance manual together.

1-1 (E)
HKC-7080
The HKC-7080 is the modification unit for the HDC-700. By installing the HKC-7080 in the HDC-700, it
can be obtained for the HD signal having 1920 x1080 effective picture elements. To install proceed as
follows.
1-1. Configuration of HKC-7080
Description Q’ty Remarks
CCD unit 1
ROM M27V201-HDCA750-V4.03 and up 1 For IC24/SG-226 board
ROM M27V201-HDC750-V4.03 and up 1 For IC26/IF-569 board
Modification board (with jumper wires) 1 Used when modifying the VA-158 board
Jumper wires 2 Used when modifying the IF-569 and SG-226 boards
Installation and maintenance manual 1
1-2. Installation Procedures
This section explains briefly on installation and modification procedures. For more details, refer to the
corresponding section.
1. Replacing CCD unit (Refer to Section 1-3.)
2. Modifying board (Refer to Sections 1-4-1 to 1-4-4.)
3. Replacing ROM (Refer to Section 1-4-5.)
4. Setting switch (Refer to Section 1-4-6.)
5. Electrical alignment (Refer to Section 2.)
1-3. Replacing CCD Unit
1-3-1. Description on CCD Block Number
Every CCD unit has its own ID number called CCD block number. It shows the CCD block type and
serial number for the CCD block.
The CCD block number label is put in the CCD unit.
Section 1
Installation
Ex.) AGAxxxxx
Serial number for CCD block
CCD block type

1-2 (E) HKC-7080
Flexible card wire
Connector
Filter disk unit
Screws
1-3-2. Replacing CCD Unit
c
Never remove or install the CCD unit with the power turned on. Because touching internal harness to the
cabinet or other printed circuit boards during replacement causes shorts or electric hazards.
Prior to replacement, be sure to disconnect the optical cable or the cable connected at the DC IN connec-
tor in addition to turning off the power switch.
1. Open the right and left side panels.
2. Loosen the two screws and disconnect the connector.
3. Disconnect the flexible card wire.
n
Refer to Section 1-3-3 before disconnecting or connecting the flexible card wire.
1-3. Replacing CCD Unit

1-3 (E)
HKC-7080
CCD unit
PWH4 x8
PWH4 x8
CN12/MB-666

4. Disconnect the connector CN12 from the MB-666 board.
5. Loosen the four screws and pull out the CCD unit.
6. Install the HKC-7080 in the reverse order of removal.
m
.Be very careful not to touch the surface of the filter disk unit when installing the HKC-7080.
.Be sure to remove the dust protection cover from the HKC-7080 previously.
1-3. Replacing CCD Unit

1-4 (E) HKC-7080

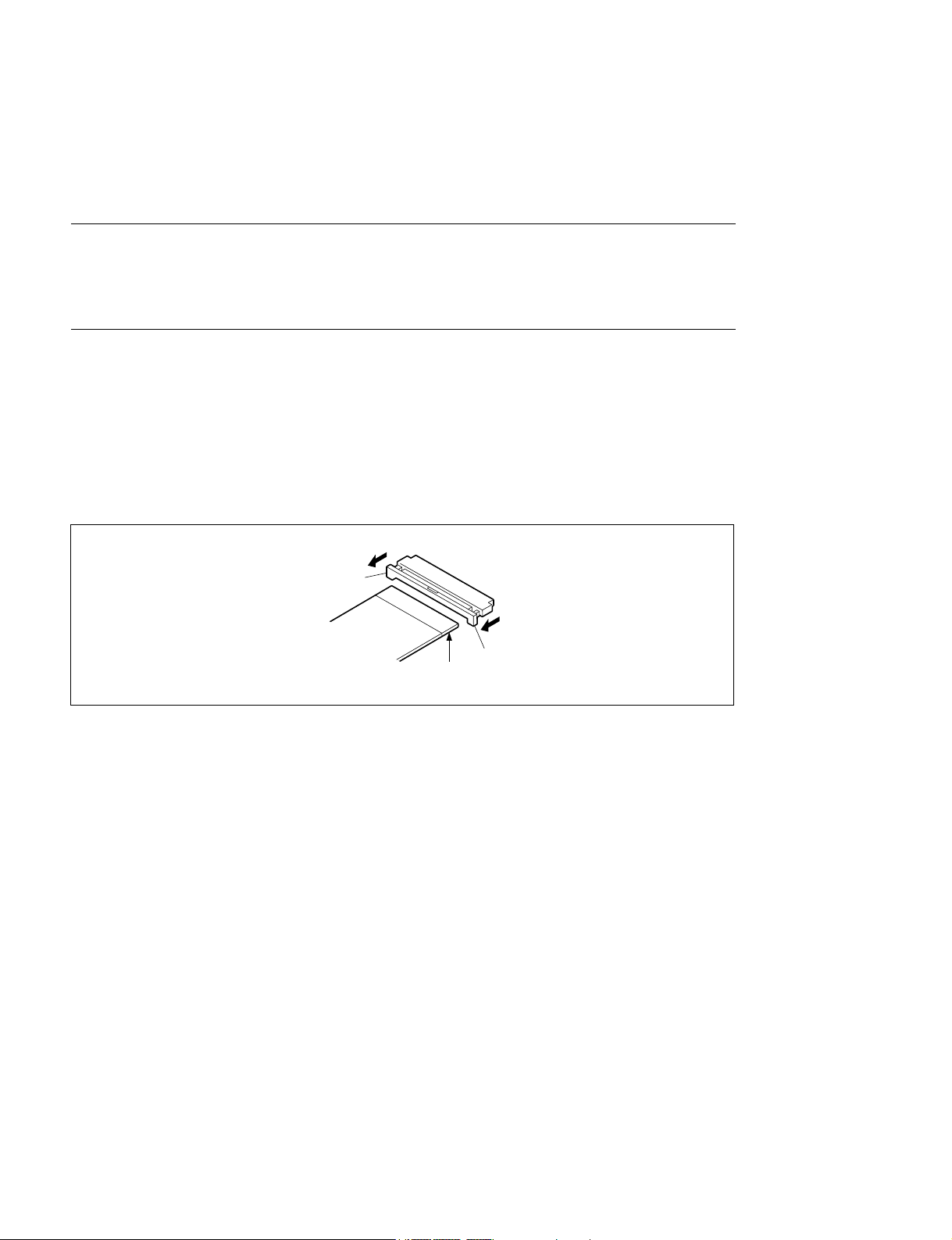

1-3-3. Disconnecting/Connecting Flexible Card Wire
The flexible card wire is used between the MB-666 board and the DR-264 board. Take extreme care not
to break the flexible card wire.
Disconnecting
1. Turn off the power.
2. Slide portions A in the direction of the arrow to unlock and pull out the flexible card wire.
Connecting
m
.Be careful not to insert the flexible card wire obliquely.
.Check that the conductive surface of the flexible card wire is not soiled with dust.
1. Slide portions A in the direction of the arrow and insert the flexible card wire as far as it will go with
the conductive surface down.
2. Slide portions A in the reverse direction to lock.
A
Conductive
surface
A
1-3. Replacing CCD Unit

1-5 (E)
HKC-7080
R122
R215
R219
R229
R322
VDA-31 (B SIDE)
A
B
C
D
E
F
G
H
54321
R113
R213
R216 R217
R218
R313
A
B
C
D
E
F
G
H
54321
VDA-31 (A SIDE)
1-4. Modifying Board
1-4-1. Modifying VDA-31 Board
Parts Required
Prepare the following resistors because they are not supplied with the unit.
Description Q’ty Sony Part No.
Res, metal chip 15 Z1 1-218-648-11
Res, metal chip 18Z1 1-218-650-11
Res, metal chip 30 Z1 1-218-655-11
Res, metal chip 180 Z1 1-218-674-11
Res, metal chip 820 Z1 1-218-690-11
Res, metal chip 13 kZ1 1-218-719-11
Res, metal chip 1 kZ1 1-218-692-11
Res, metal chip 2.2 kZ1 1-218-200-11
Modification Procedures
1. Remove the VDA-31 board.
2. Desolder the following eleven resistors:
R113, R122, R213, R215, R216, R217, R218, R219, R229, R313, R322
3. Solder an 1 kZmetal film resistor at the trace of R113.
4. Solder a 2.2 kZmetal film resistors at the traces of R122, R229 and R322.
5. Solder a 13 kZmetal film resistor at the trace of R213.
6. Solder an 180 Zmetal film resistor at the trace of R215.
7. Solder an 820 Zmetal film resistors at the traces of R216 and R313.
8. Solder a 30 Zmetal film resistor at the trace of R217.
9. Solder a 15 Zmetal film resistor at the trace of R218.
10. Solder an 18 Zmetal film resistor at the trace of R219.
1-4. Modifying Board

1-6 (E) HKC-7080
1-4-2. Modifying VA-158 Board
Parts Required
Description Q’ty Remarks
Modification board (with jumper wires) 1 Supplied with HKC-7080
Sony bond SC608LVZ _Sony Part No. 7-432-912-52
Res, metal chip 20 kZ3 Sony Part No. 1-218-723-91
Res, metal chip 51 kZ2 Sony Part No. 1-218-733-11
Modification Procedures
1. Remove the VA-158 board.
2. Solder the jumper wires from the modification board to the positions specified by the figure.
3. Stick the modification board on the VA-158 board with Sony bond as shown in the figure.
(Shaded portions)
4. Desolder the following five resistors.
R102, R104, CR106, R108, R109
5. Solder 20 kZmetal film resistors at the traces of R102, R104, and R106.
6. Solder 51 kZmetal film resistors at the traces of R108 and R109.
The HDC-700 with the following serial number needs the additional modification as follows.
HDC-700 (UCJ): Serial No.10001 to 10043
Description Q’ty Remarks
Res, metal chip 100 kZ1 Sony Part No. 1-218-740-11
Res, metal chip 150 kZ3 Sony Part No. 1-218-744-11
7. Desolder the following four resistors.
R110, R300, R500, R700
8. Solder an 100 kZmetal film resistor at the trace of R110.
9. Solder 150 kZmetal film resistors at the traces of R300, R500, and R700.
1-4. Modifying Board
D
E
F
G
H
LKJCB A
1
2
3
4
5
6
7
VA-158 (B SIDE)
C2 R8
R9 R5
R104
R102 R106
R110
R109
R108
R300R500R700

1-7 (E)
HKC-7080
A
B
C
D
E
F
G
H
54321
IC100
IC36
IF-569 (B SIDE)
1
11
33
34
44
109 144
72 37
36
1
73
108
2212
23
1-4-3. Modifying IF-569 Board
Perform the following modification only when the suffix number of the IF-569 board is -11 or -12.
Parts Required
Description Q’ty Remarks
Jumper wire 1 l = 30 mm
Sony bond SC608LVZ _Sony Part No. 7-432-912-52
Modification Procedures
1. Remove the IF-569 board.
2. Solder the jumper wire between pin 119 of IC100 and pin 16 of IC36.
3. Stick the jumper wire with Sony bond as shown in the figure. (Shaded portion)
1-4. Modifying Board

1-8 (E) HKC-7080
1234
TO Pin 119/IC65
1
2
3
4
5
ABC
IC71
23 33
11
12
22
44
34
1
SG-226 (B SIDE)
IC65
TO Pin 36/IC71
1
2
3
4
5
ABC
144 109
37
36
1
73
108
72
SG-226 (A SIDE)
1-4. Modifying Board
1-4-4. Modifying SG-226 Board
Perform the following modification only when the suffix number of the SG-226 board is -11, -12 or -13.
Parts Required
Description Q’ty Remarks
Jumper wire 1 l = 100 mm
Sony bond SC608LVZ _Sony Part No. 7-432-912-52
Modification Procedures
1. Remove the SG-226 board.
2. Solder the jumper wire between pin 119 of IC65 and pin 36 of IC71.
3. Stick the jumper wire with Sony bond as shown in the figure. (Shaded portion)
1-4-5. Replacing ROM
Replace the two ROMs IC24 on the SG-226 board and IC26 on the IF-569 board with new ROMs
supplied with HKC-7080.
By replacing the ROMs, the contents of setup menu changes. For more details regarding the setup menu,
refer to Section 3.
1-4-6. Switch Setting of AT-104 Board
Open the left side panel, and set the switch S1 on the AT-104 board as shown in the figure.

2-1 (E)
HKC-7080
Section 2
Electrical Alignment
This section explains adjustment items required after the
HKC-7080 is installed.
Perform the following adjustments with setup menu.
Regarding the setup menu operation, refer to Section 3.
2-1. Preparation
2-1-1. Equipment Required
Measuring equipment
.Oscilloscope (band-width: more than 300 MHz)
Tektronix 2465B or equivalent
.HDTV analog waveform monitor
Tektronix 1735HD/1730HD or equivalent
Peripheral equipment
.HD camera control unit HDCU-700A
.Master setup unit MSU-700 (HKCF-700 should
has been installed.)
Tools
.Extension board EX-512
Sony Part No. A-8273-247-A
.Pattern Box PTB-500
Sony Part No. J-6029-140-B
.Gray scale chart (16:9)
Sony Part No. J-6394-080-A
12345678
2-1-2. Switch Setting of IF-569 Board
1. Turn off the power, then remove the IF-569 board.
2. Set the switch S1 on the IF-569 board as shown below.
3. Restore the IF-569 board, then turn on the power. (The
data stored inside the RAM will be cleared.)
4. Restore the switch setting of S1 on the IF-569 board as
shown below.
2-1-3. Clearing the Reference File
Perform the following operation with setup menu.
MENU: File
PAGE: Reference File
ITEM: Clear File
(Press the MENU SELECT switch toward the ENTER to
clear the reference file.)
2-1-4. Presetting the Operator File
Perform the following operation with setup menu.
MENU: Operation
PAGE: Operator File
ITEM: Preset
(Press the MENU SELECT switch toward the ENTER to
preset the operator file.)
12345678

2-2 (E) HKC-7080
A

10uS
50m B
W
L
A
2-2. VA Gain Adjustment
Equipment: Oscilloscope
Object: Grayscale chart
Preparations
.Extend the VA-158 board.
.Shoot the grayscale chart which is well-maintained
(reflectance of 89.9%) so that the chart frame is aligned
with the underscanned monitor frame.
(F8, 2000 lx, 3200 K)
.Settings for MSU-700
CLOSE button →OFF (dark)
ECS/SHUTTER ON button →OFF (dark)
Adjustment Procedures
1. VA OUT R level adjustment
Test Point: TP17/extension board
Adjustment Point: 1RV300/VA-158
Specification: A = 400 ±4 mV
2. VA OUT G level adjustment
Test Point: TP11/extension board
Adjustment Point: 1RV500/VA-158
Specification: A = 400 ±4 mV
3. VA OUT B level adjustment
Test Point: TP5/extension board
Adjustment Point: 1RV700/VA-158
Specification: A = 400 ±4 mV
Resetting after Adjustment
.Return the switches to their previous positions.
2-3. White Shading Adjustment
Equipment: Analog waveform monitor
Test Point: TEST OUT connector
Object: Full white pattern
Note
When performing the white shading adjustment, make sure
the following conditions are proper. If not, adjustment can
not be complete.
.White pattern is not uneven.
.Luminance is correctly adjusted.
.Iris and zoom control of the lens are correctly adjusted.
Preparations
.Connect the waveform monitor to the TEST OUT
connector of the unit.
.Setting for MSU-700
KNEE OFF button →OFF (lit)
.Shoot the fully occupied white area of the white pattern
on the underscanned monitor frame.
.Iris of the lens: A = 600 ±20 mV (at F5.6 to F8)
(If a lens aperture is greater than F8, adjust the light
amounts with shutter.)
.Lens Focus: ∞
.Lens Extender/Shrinker: x2, x0.8 →OFF
.Set the setup menu as follows.
MENU: Operation
PAGE: Battery/D56
ITEM: Lens File
(Select the file in accordance with the lens attached. If
there is no appropriate file, select NO OFFSET, then
change the name of lens with MSU.)
2-2. VA Gain Adjustment
2-3. White Shading Adjustment

2-3 (E)
HKC-7080
2-3. White Shading Adjustment
Adjustment for Lens Extender/Shrinker
When using the lens extender or lens shrinker, perform the
following adjustments after the completion of lens file
store.
8. (Using the lens extender)
Set the setup menu as follows.
MENU: Operation
PAGE: Battery/D56
ITEM: Lens File
(Select the file in accordance with the lens attached. If
there is no appropriate file, select NO OFFSET, then
change the name of lens with MSU.)
9. Lens extender (x2) →ON
10. Repeat procedures 3 to 7, then perform the lens file
store again.
11. Lens extender (x2) →OFF
12. (Using the lens shrinker)
Set the setup menu as follows.
MENU: Operation
PAGE: Battery/D56
ITEM: Lens File
(Select the file in accordance with the lens attached. If
there is no appropriate file, select NO OFFSET, then
change the name of lens with MSU.)
13. Lens shrinker (x0.8) →ON
14. Repeat procedures 3 to 7, then perform the lens file
store again.
15. Lens shrinker (x0.8) →OFF
Resetting after Adjustment
.R/G/B button/rear panel →OFF
Adjustment Procedures
1. Adjust the white balance.
WHITE button/MSU-700 →ON (lit)
2. Set the waveform monitor as follows.
.LUM mode
.VOLTFULL SCALE range →0.5
3. R button/rear panel →ON
4. If the shading is monitored, proceed as follows
MSU menu operation:
.MAINTENANCE button →ON (lit)
.Touch panel operation
[Adjusting] →[White|Shading] → [R]
.Adjustment Items: H Saw, H Para, V Saw, V Para
5. R button/rear panel →OFF
G button/rear panel →ON
Adjust for G-ch in the same manner.
6. G button/rear panel →OFF
B button/rear panel →ON
Adjust for B-ch in the same manner.
7. Adjust the white balance.
WHITE button/MSU-700 →ON (lit)
Lens File Store
MSU menu operation:
.FILE button →ON (lit)
.Touch panel operation
[Lens|File] →[Lens|Store] →[Store]
(H SAW) (H PARA)
(V SAW) (V PARA)

2-4 (E) HKC-7080
2-4. Black Shading Adjustment
Equipment: Analog waveform monitor
Test Point: TEST OUT connector
Preparations
.Connect the waveform monitor to the TEST OUT
connector of the unit.
.Close the lens iris.
Adjustment Procedures
1. R button/rear panel →ON
2. MSU menu operation:
.MAINTENANCE button →ON (lit)
.Touch panel operation
[Adjusting] →[White|Shading] → [R]
.Adjustment Items: H Saw, H Para, V Saw, V Para
3. R button/rear panel →OFF
G button/rear panel →ON
Adjust for G-ch in the same manner.
4. G button/rear panel →OFF
B button/rear panel →ON
Adjust for B-ch in the same manner.
OHB File Store
MSU menu operation:
.FILE button →ON (lit)
.Touch panel operation
[OHB|File] →[OHB|Store] →[Store]
Resetting after Adjustment
.R/G/B button/rear panel →OFF
2-4. Black Shading Adjustment
2-5. ND Offset Adjustment
2-5. ND Offset Adjustment
Equipment: Analog waveform monitor
Object: Full White Pattern
Preparations
.Connect the waveform monitor the TEST OUT connec-
tor.
.Shoot the fully occupied white area of the white pattern

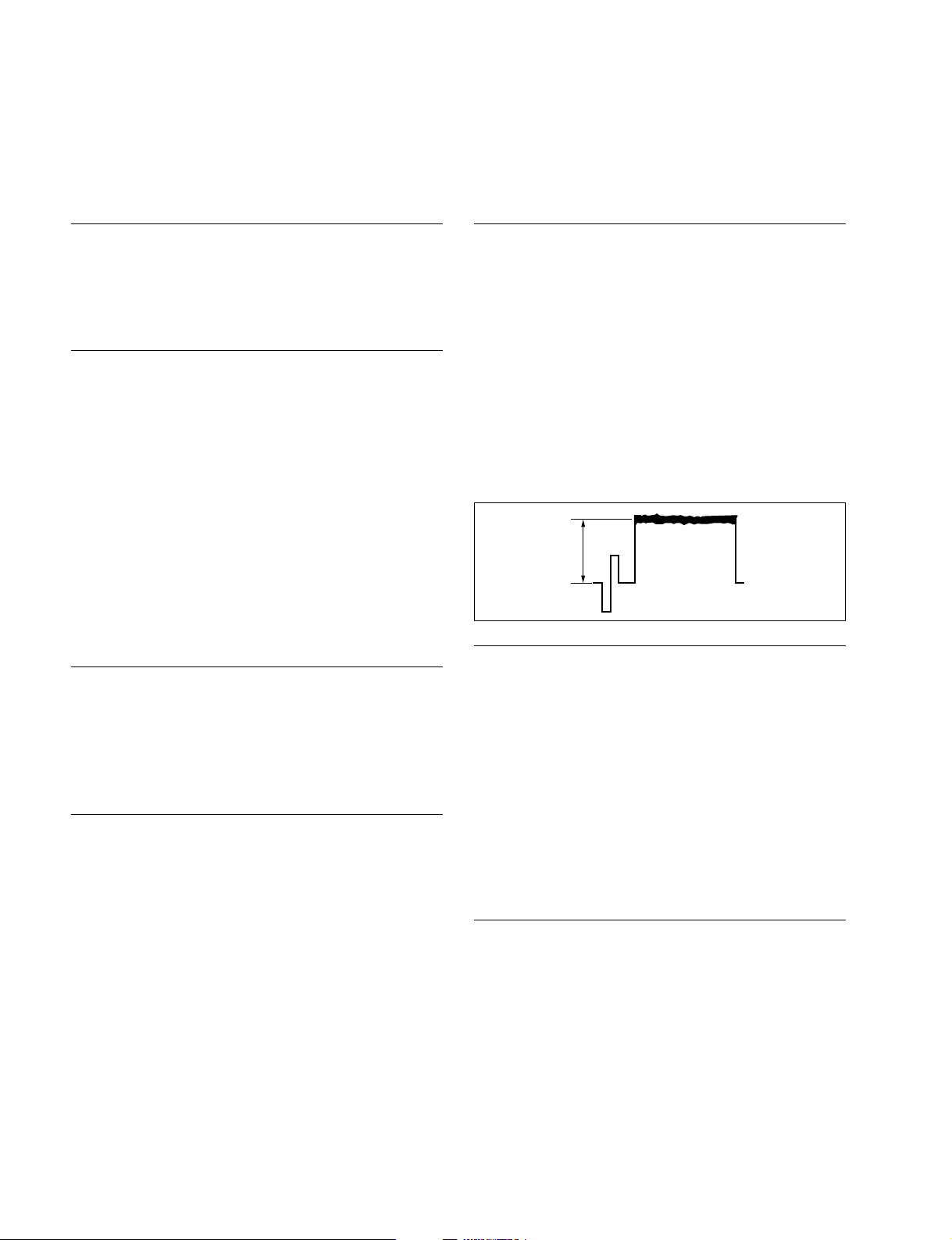

on the underscanned monitor frame.
.Setting for MSU-700
AUTO button (Iris control block) →ON (lit)
.Iris of the lens: A = 600 ±20 mV
.Set the setup menu as follows.
MENU: Maintenance
PAGE: ND Offset
ITEM: ND OFST Store →Enable
Adjustment Procedures
1. FILTER CTRL button/MSU-700 →ON (lit)
2. Select the ND 1 filter.
ND 1 button/MSU-700 →ON (lit)
3. Adjust the white balance.
WHITE button/MSU-700 →ON (lit)
4. After the white balance adjustment is complete, switch
the filter from ND 1 to ND 2 and adjust the white
balance for the ND 2 filter.
5. Switch the filter from ND2 to ND3 to ND4 to ND5,
and adjust the white balance for each.
OHB File Store
1. MSU menu operation:
.FILE button →ON (lit)
.Touch panel operation
[OHB|File] →[OHB|Store] →[Store]
2. When the store operation is complete, the message
“OHB File Stored” is displayed.
A

