Nokia Lumia 510 User manual

User Guide
Nokia Lumia 510
Issue 1.0 EN

Contents
Safety 4
Get started 5
Keys and parts 5
Back, start, and search key 6
Insert the SIM card 6
Charge your phone with a USB charger 8
Antenna locations 8
Switch the phone on 9
Windows Live ID 10
Copy contacts 10
Lock keys and screen 11
Connect the headset 12
Change the volume 12
Set up sync with computer 13
Icons shown on your phone 13
Basics 15
Get to know your phone 15
Personalise your phone 19
Extend battery life 22
Save on data roaming costs 23
Write text 23
Clock 27
Nokia account 28
People & messaging 29
Calls 29
Contacts 31
Social networks 34
Messages 35
Mail 39
Camera 44
Take a photo 44
Use different scene modes 45
Record a video 45
Camera tips 46
Save location info to your photos and
videos 46
Share your photos and videos 46
Manage your shots 47
Maps & navigation 51
Switch location services on 51
Nokia Maps 51
Nokia Drive 54
Positioning methods 58
Internet 59
Define internet connections 59
Connect your computer to the web 59
Web browser 60
Search the web 62
Close all internet connections 62
Entertainment 63
Watch and listen 63
FM radio 63
Sync music between your phone and PC 64
Marketplace 65
Games 66
Office 69
Microsoft Office Mobile 69
Write a note 72
Make a calculation 72
Calendar 73
User Guide
Nokia Lumia 510
© 2012–2013 Nokia. All rights reserved.
2

Phone management & connectivity 75
Keep your phone up to date 75
Memory and storage 76
Security 79
Wi-Fi 80
Bluetooth 81
Access codes 83
Help and support 84
Product and safety information 85
© 2012–2013 Nokia. All rights reserved.
3

Safety
Read these simple guidelines. Not following them may be dangerous or illegal.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile phone use is not allowed or when it may cause interference
or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or
blasting areas. Obey all instructions in restricted areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first
consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved by Nokia for use with this device.
Third-party chargers that comply with the IEC/EN 62684 standard, and that can connect to
your device micro USB connector, may be compatible. Do not connect incompatible products.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
GLASS PARTS
The device screen is made of glass. This glass can break if the device is dropped on a hard
surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of
the device or attempt to remove the broken glass from the device. Stop using the device until the
glass is replaced by qualified service personnel.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Exercise caution when holding your device near your ear while the loudspeaker is in use.
© 2012–2013 Nokia. All rights reserved.
4

Get started
Get to grips with the basics and have your phone up and running in no time.

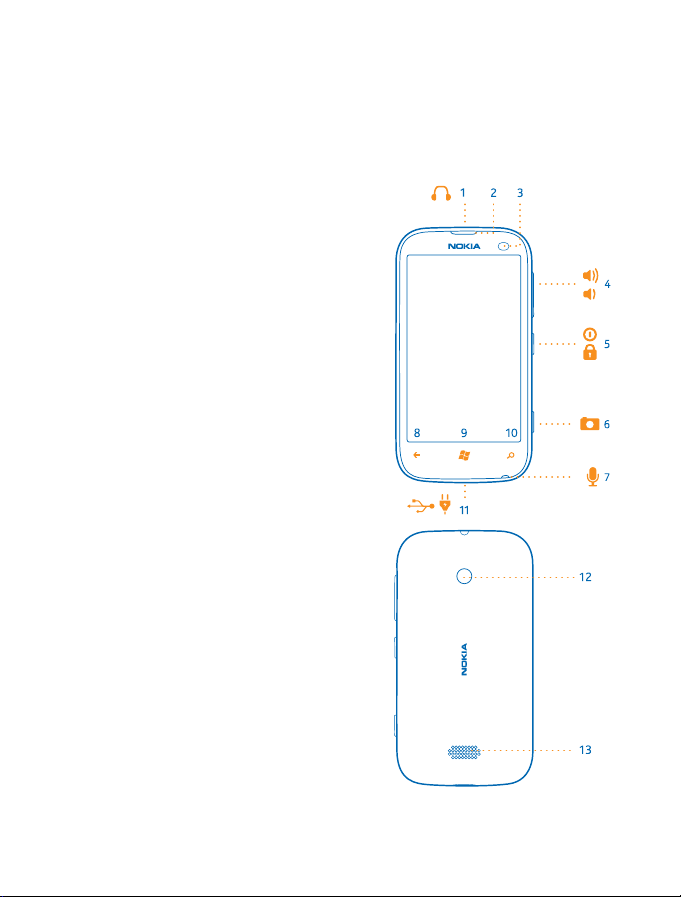

Keys and parts
Explore the keys and parts of your phone.
1 Connector for headphones and
loudspeakers (3.5 mm)
2Earpiece
3 Proximity sensor. Do not cover, for
example, with protective film or tape.
4Volumekeys
5 Power/Lock key
6 Camera key
7Microphone
8 Back key
9Startkey
10 Search key
11 Micro-USB connector. Used also to charge
the battery.
12 Camera lens
13 Loudspeaker
© 2012–2013 Nokia. All rights reserved.
5

Back, start, and search key
The back, start, and search keys help you navigate your phone.
• To switch between open apps, press and hold , swipe left or right, and tap the app you want.
• To go back to the previous screen you were in, press . Your phone remembers all the apps and
websites you've visited since the last time your screen was locked.
• To go to the start screen, press . The app you were in remains open in the background.
• To control your phone with your voice, press and hold , and say a voice command.
This feature is not available in all languages. For more info on feature and service availability, see
the How-to section at www.windowsphone.com.
• To search the web, press .
Insert the SIM card
Read on to learn how to put your SIM card in your phone.
Important: This device is designed to be used with a mini-UICC SIM card, also known as a micro-
SIM card only. A micro-SIM card is smaller than the standard SIM card. Use of incompatible SIM
cards may damage the card or the device, and may corrupt data stored on the card.
Do not use SIM cards that have been modified to fit the micro-SIM slot. To replace a standard SIM
card with a micro-SIM card, contact your service provider.
Do not attach any stickers to the card.
1. Put your fingernail in the gap on the lower right edge of the phone, and carefully lift and remove
the back cover.
2. If the battery is in the phone, lift it out.
© 2012–2013 Nokia. All rights reserved.
6

3. Push the card in, contact area face down.
4. Line up the battery contacts, and put the battery in.
5. Put the cover back on.
Remove the SIM card
Remove the back cover and battery, and pull the card out.
© 2012–2013 Nokia. All rights reserved.
7

Charge your phone with a USB charger
Your battery has been partially charged at the factory, but you may need to recharge it before you
can switch the phone on for the first time.
Make sure you use a compatible USB charger to charge your phone.
1. Plug the charger into a wall outlet, then connect the USB cable to your phone.
2. When the battery is full, disconnect the charger from the phone, then from the wall outlet.
You don't need to charge the battery for a specific length of time, and you can use the phone while
it's charging.
If your phone is off when you start charging, it automatically switches on.
If the battery is completely discharged, it may take several minutes before the charging indicator is
displayed or before any calls can be made.
Tip: You can use USB charging when a wall outlet is not available. Data can be transferred while
charging the device. The efficiency of USB charging power varies significantly, and it may take
a long time for charging to start and the device to start functioning.
First connect the USB cable to the computer, then to your phone. When the battery is full, first
disconnect the USB cable from your phone, then from the computer.
Antenna locations
Learn where the antennas are located on your phone to get the best possible performance.
Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the
communication quality and may reduce battery life due to higher power level during operation.
© 2012–2013 Nokia. All rights reserved.
8

The antenna areas are highlighted.
Switch the phone on
Are you ready? Switch your phone on, and start exploring it.
Press and hold the power key until the phone vibrates.
Switch the phone off
Press and hold the power key, and drag the lock screen down.
© 2012–2013 Nokia. All rights reserved.
9

Windows Live ID
With a Windows Live ID (also called Microsoft account), you can access all Windows Live and Zune
services with a single username and password on your computer or phone. You can also use the same
username and password to access Xbox Live services on your Xbox.
With your Windows Live ID, you can, for example:
• Download content from Marketplace
• Back up your contacts in Windows Live
• Upload, store, and share pictures and documents on SkyDrive
• Get your gaming achievements on your phone, and add to them when you play games on your
phone
• Keep track of and lock your lost phone with Find My Phone
To learn more about Windows Live ID and Windows Live services, go to www.live.com.
Copy contacts
Have your nearest and dearest instantly at your fingertips. Use the Contacts Transfer app to easily
copy your contacts from your old phone.
© 2012–2013 Nokia. All rights reserved.
10

Your old phone needs to support Bluetooth. The contacts on your old phone need to be stored in the
phone memory, not on the SIM. The app does not work with all phone models.
1. On your old phone, switch Bluetooth on.
2. On the start screen of your new phone, swipe left to the apps menu, and tap Contacts Transfer.
3. Tap continue, and switch Bluetooth on.
4. Select your old phone from the list of found devices, and follow the instructions shown on both
phones.
Tip: If you have previously backed up your contacts in Windows Live, you can also import them
to your phone straight from the service.
If your contacts are written in a language that is not supported by your new phone, the contact
information may not be shown correctly.
Lock keys and screen
Want to avoid accidentally making a call when your phone is in your pocket or bag?
To lock the keys and screen of your phone, press the power key.
Unlock the keys and screen
Press the power key, and drag the lock screen up.
© 2012–2013 Nokia. All rights reserved.
11

Set the keys and screen to lock automatically
Tap Settings > lock+wallpaper > Screen times out after, and select the length of time after which
the keys and screen are locked automatically.
Connect the headset
Enjoy your favourite music, or free your hands for other things when in a call.
Connect the headset to your phone.
Do not connect products that create an output signal, as this may damage the device. Do not connect
any voltage source to the audio connector. If you connect an external device or headset, other than
those approved for use with this device, to the audio connector, pay special attention to volume
levels.
Change the volume
Trouble hearing your phone ringing in noisy environments, or calls too loud? You can change the
volume to your liking.
Use the volume keys.
The volume keys control all sounds, including the volume of alarms and reminders.
Tip: When you change the volume, you can also switch your phone to silent or normal mode. On
the volume control bar at the top of the screen, tap , , or .
© 2012–2013 Nokia. All rights reserved.
12

Set up sync with computer
Keep your stuff with you – with the Zune PC app, you can sync your music, videos, and photos between
your phone and your compatible computer. You can also back up and update your phone with the
latest software, to improve performance and get new features.
1. Download and install the latest version of Zune on your PC from www.zune.net.
Tip: If you're using an Apple Mac, download Windows Phone 7 Connector for Mac from the Mac
App Store.
2. Make sure your phone is not locked with a security code.
3. Connect your phone to your computer with a compatible USB cable, and follow the instructions
shown on your computer.
4. To change Zune sync settings, on your computer, select SETTINGS.
If you have previously used another app, such as Nokia Ovi Suite or Nokia Suite, to sync your files
between your phone and computer, you can set Zune to sync files to the same folders you have used
earlier, and have your music and other content easily synced to your new phone.
Icons shown on your phone
The bar at the top of the screen tells you the current time, battery and signal strength, and much
more.
Tip: To see hidden icons, tap the status bar.
Signal strength
Battery power level
The battery is charging.
Battery saver mode is switched on.
Your calls are forwarded to another number or your voice mailbox.
There is no SIM card in your phone.
Your SIM card is locked.
© 2012–2013 Nokia. All rights reserved.
13

A Bluetooth device is connected to your phone.
A Wi-Fi connection is available.
A Wi-Fi connection is active.
An app or service is using your location info.
Your phone is roaming and not on your home mobile network.
Vibrate mode is switched on.
Flight mode is switched on.
Silent mode is switched on.
The type of mobile network you're currently connected to may be shown with a single letter, a
combination of letters, or a combination of letters and numbers. For example, , depending on
your network service provider.
The icons may vary depending on your region or network service provider.
© 2012–2013 Nokia. All rights reserved.
14

Basics
Learn how to get the most out of your new phone.
Get to know your phone
Your phone has two main views, making it easy for you to keep up with what is going on and what's
where.

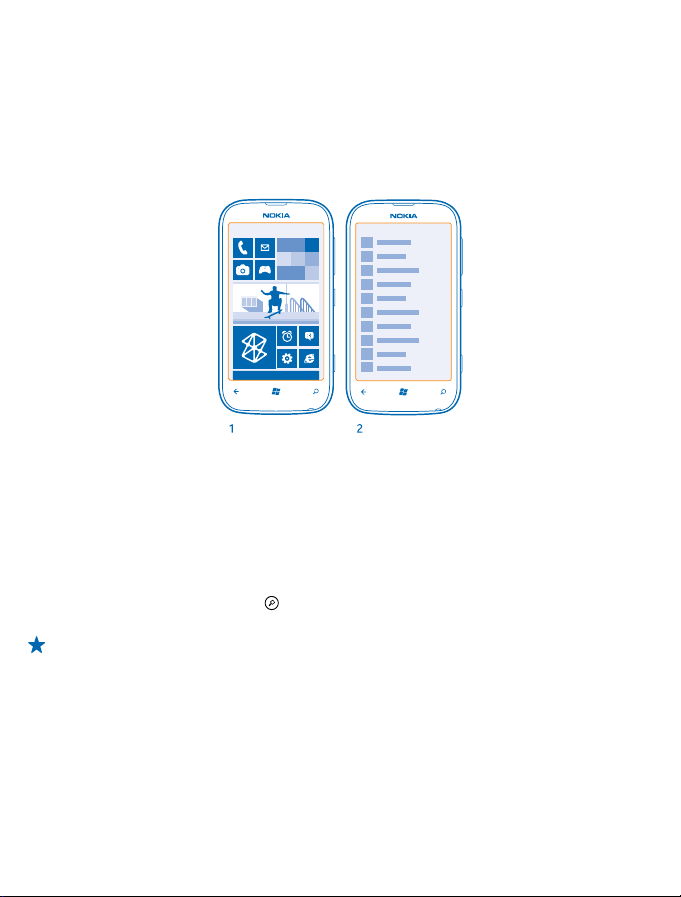

Start screen (1): Animated live tiles show missed calls and received messages, the latest news and
weather forecasts, and more.
You can rearrange and resize the tiles, and pin contacts, apps, feeds, mailboxes, websites, and other
favourites. Updates of your pinned contacts are shown on the tile, and you can view your contacts'
details directly from the start screen.
Apps menu (2): All your apps are listed here, all neatly ordered.
Got a lot of apps? To look up one, tap . If you've got loads of apps, letters of the alphabet show up
in the list to help you search. Tap any letter in the list, and tap the first letter of the app you want.
Tip: You can also search inside an app, such as Marketplace.
Switch between views
If you don't have all the apps you need on your start screen, you can find them from the apps menu.
Simply swipe left or right between the views.
© 2012–2013 Nokia. All rights reserved.
15

Tip: If you've got lots of different things to do, it's easy to switch between the tasks at hand.
Press and hold , swipe to the app you want, and tap the app. Some apps may not show up
here. To view all running apps, go to the apps menu, tap Settings, swipe left, and tap
background tasks.
Use the touch screen
Explore your phone with a tap, swipe or drag.
1. To use your phone, simply tap or tap and hold the touch screen.
2. To open further options, place your finger on an item until the menu opens.
Example: To open an app or other item, tap the app or item. To edit or delete a calendar
appointment, tap and hold the appointment, and select the appropriate option.
© 2012–2013 Nokia. All rights reserved.
16

Tap and hold to drag an item
Place your finger on the item for a second or two, and slide your finger across the screen.
Swipe
Place a finger on the screen, and slide your finger in the desired direction.
© 2012–2013 Nokia. All rights reserved.
17

Example: Swipe left or right between the start screen and the apps menu, or between different
views in the hubs. To quickly scroll through a long list or menu, slide your finger quickly in a
flicking motion up or down the screen, and lift your finger. To stop the scrolling, tap the screen.
Zoom in or out
Place two fingers on an item, such as a map, photo, or web page, and slide your fingers apart or
together.
© 2012–2013 Nokia. All rights reserved.
18

Use your phone in flight mode
In places where you don't want to make or receive calls, you can still access your music, videos, and
offline games if you switch flight mode on.
Flight mode closes connections to the mobile network and switches your phone's wireless features
off. Comply with the instructions and safety requirements given by, for example, an airline, and any
applicable laws and regulations. Where allowed, you can connect to a Wi-Fi network to, for example,
browse the internet or switch Bluetooth on in flight mode.
1. On the start screen, swipe left, and tap Settings > flight mode.
2. Switch Status to On .
Control your phone with your voice
Got your hands full, but need to use your phone? You can use your voice to make a call, send a text
message, search the web, or open an app.
This feature is not available in all languages. For information on the supported languages, go to
www.microsoft.com/windowsphone/en-us/howto/wp7/basics/feature-and-service-
availability.aspx.
1. Press and hold .
2. Say a voice command into your phone.
Example: To check your schedule, say Open calendar.
Tip: For more examples of voice commands, say Help.
Personalise your phone
Learn how to personalise the start screen, and how to change ringtones.
Personalise the start screen
Would you like to have only your most-used apps on the start screen? You can pin your favourite
apps, websites, and much more to the start screen, and move or resize tiles as you like.
1. To pin an app, swipe left to go to the apps menu.
© 2012–2013 Nokia. All rights reserved.
19

2. Tap and hold the app, and tap pin to Start.
Pin a contact
Tap People, tap and hold the contact, and tap pin to Start.
When you pin a contact, their feed updates are displayed on the tile, and you can call them directly
from the start screen.
Pin a website
Go to a website, and tap > pin to start.
Move a tile
Tap and hold the tile, drag and drop it to the new location, and tap the screen.
Resize or unpin a tile
To resize, tap and hold the tile, and tap the arrow icon.
To unpin the tile, tap and hold the tile, and tap .
© 2012–2013 Nokia. All rights reserved.
20
