Nolan NSTX5C2XXX User manual

Bluetooth Wireless
Stereo Transmitter Plus
(TX Plus)
P/N NSTX5C2XXX
USER GUIDE
Declaration of Conformity
We declare that product NSTX5C2XXX conforms to
the R&TTE Directive 1999/5/RC.
FCC ID:TNZNSTX5C2XXX
0678
.

GETTING STARTED
Remove all components from the package. Items in the pack
include: – Bluetooth stereo transmitter, User Guide. Please
check the contents carefully and contact your local dealer
immediately if there are any shortages.

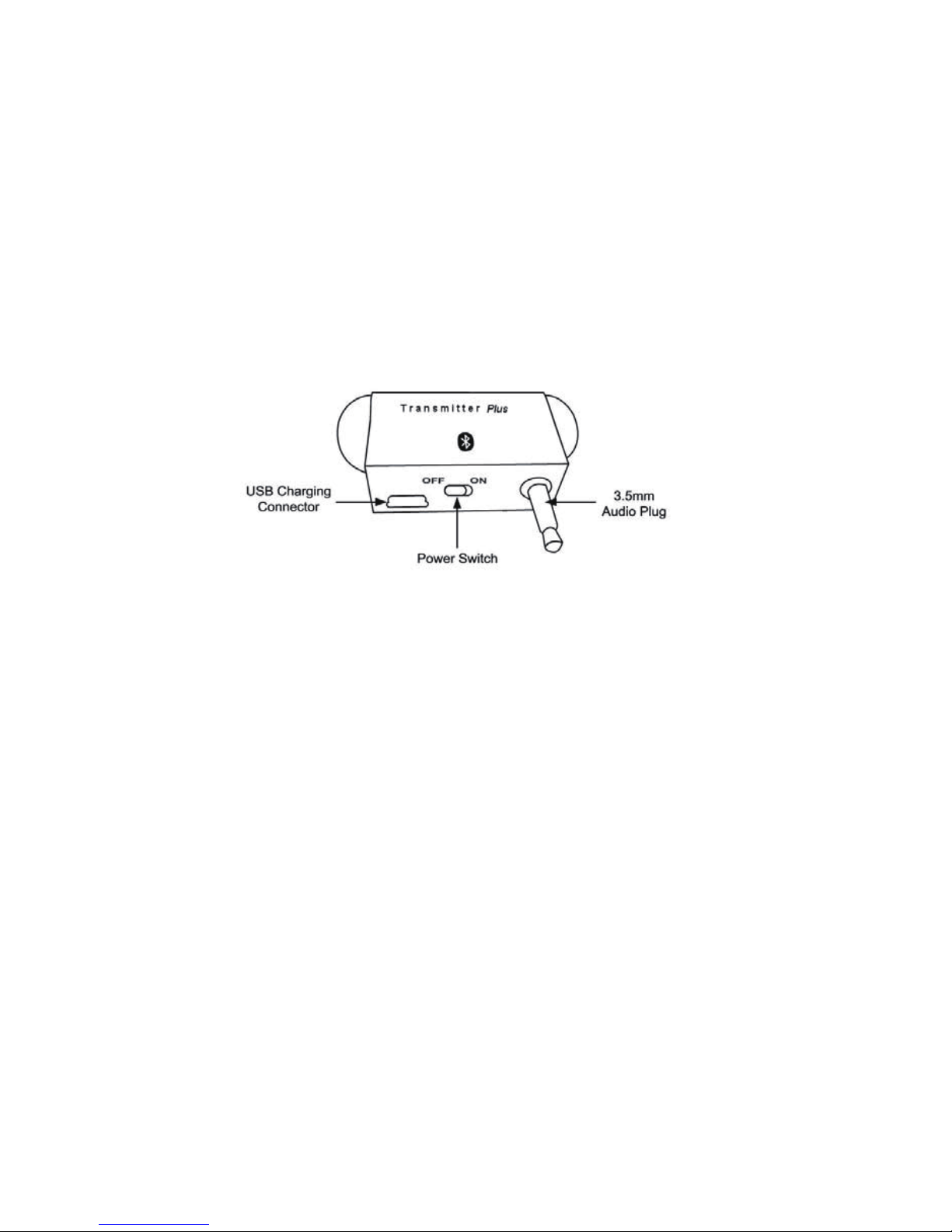

GETTING TO KNOW YOUR TX
This Bluetooth Stereo transmitter Plus (TX) offers the latest
innovation in Bluetooth technology. It can transfer stereo audio
from music or audio players such as MP3 players or Apple iPod,
iPad to Bluetooth stereo headset/receiver wirelessly and freely. It
also plays as a USB audio dongle when connected to the PC
CHARGING THE TX
Before using the TX, you must charge it for approximately two
hours. After fully charged, the battery provides up to 6 hours of
music transfer time.
To Charge the TX
1. Plug the USB charging cable into TX mini USB connector.
2. Plug the other side of the USB charging cable into a
powered USB connector. When charging, the amber LED
will be lighted
3. Unplug the USB charging cable from Tx when charging
finished, the amber LED will turn off
PAIR TX TO YOUR BLUETOOTH STEREO HEADSET/ AUDIO
RECEIVER
Pairing is the process of linking the TX with your Bluetooth
stereo headset/receiver. Before you using the TX with
Bluetooth stereo headset/ audio receiver, you should pair both
devices. After pairing completed, you can use the TX only with
the paired Bluetooth stereo headset/ audio receiver. If you
wish to use the TX with a different Bluetooth stereo headset/
audio receiver, you need to redo the pairing process with the
new devices. In this case, the TX will no longer work with the
previous Bluetooth stereo headset/ audio receiver. Before you
commence pairing the TX, ensure that the battery is fully
charged.

To pair the Bluetooth receiver device
1. When the Blue LED on TX is flashing in fast speed, the
TX is in pairing mode.
2. Turn on the Bluetooth stereo headset/ audio receiver
and place it within 10 meters to the Tx
3. Place the Bluetooth stereo headset/ audio receiver into
pairing mode. Refer to the Bluetooth stereo headset/
audio receiver user guide for instructions for this feature.
4. If you want to pair with another device, you should
turned off the paired device first, and follow the step 2
and 3 to let the new device into paring mode. TX will try
to pair with the new device after it gets the power off
indication from the last paired device.
Tips: TX supports four sets of pin code:”0000, 1111, 1234,
8888”, and also support simple security pair. It covers the
popular stereo headset/ receiver.
If disconnection or lost link occurs, it maybe due to the
following reason
a) The range is over 10 meters between both Bluetooth
stereo headset/ audio receiver and the Bluetooth TX.
b) Bluetooth stereo headset/ audio receiver disconnected
the link for some certain conditions.
c) Either device has been switched off.
Note: The TX, in normal operation, should maintain the
connection with the Bluetooth stereo headset/ audio receiver
at all times once the pairing mode and connection has been
established between the two devices.
POWERING YOUR TX
As a so-called easy control device, power on/off TX is the
only operation for TX, and all the needed operation will be
done by TX itself automatically.
To turn on your TX - Move the Power button to “On”, the
blue LED will be in flashing to indicate TX turned on.
To turn off your TX - Move the power button to “Off”, the
blue LED will be off.
Note: If any thing unexpected happened, and the music can’t
transfer out from TX, user should restart the TX (by power off
and power on).
USING TX TO TRANSFER AUDIO OR MUSIC
1. With the TX turned on, plug your TX into the audio jack.
2. Place your stereo headset/ audio receiver within 10
meters to TX.
3. With the Bluetooth stereo headset/ audio receiver paired
with TX. The TX will connect to your headset/ audio
receiver. The blue LED will flash in middle speed to
indicate TX is transferring audio.
4. If the connection lost by out of range, take the Bluetooth
stereo headset/ audio receiver back to TX within 10
meters. TX will reconnect it automatically.

Tips: The auto-reconnection function will just effect in 15
seconds after the connection lost. If a new Bluetooth stereo
headset/ audio receiver is available (in pairing mode), TX will
try to pair with it and continuous the audio/music transfer with
the new paired Bluetooth stereo headset/ audio receiver.
Otherwise TX will goes into idle mode to save power, the blue
LED will flash in slow speed.
USING TX with WIRELESS TALKING
When you have successfully connected TX and Bluetooth
stereo headset/ audio receiver, press the talk button on your
Bluetooth stereo headset/ audio receiver, TX will receive the
MIC voice from Bluetooth stereo headset/ audio receiver. So
you get a 2 ways audio/voice communication at the same
time and enjoy the wireless talking freely. After finishing voice
talking, you can press talk button on stereo headset/audio
receiver to finish talking function.
Tips: To use wireless talking, your Bluetooth stereo headset/
audio receiver should have a microphone and support the
phone call function. And to make the wireless talking, you
need to use the “voice dial function” on your Bluetooth stereo
headset/ audio receiver, please refer the user guide of your
Bluetooth stereo headset/ audio receiver
SPECIAL USB AUDIO DONGLE MODE
Tx support a special USB audio dongle mode, it
connects through USB cable with PC and works as an
USB audio device, transmits the audio from PC directly,
the audio jack is not needed to use, if your stereo
headset/ receiver support the remote control function,
Tx can receive these commands and send to PC, to
control your PC music player software or SKYPE.
To set the TX into USB audio dongle mode
To enable the special USB audio dongle mode, you need to
do same operations step by step.
1. Put the power switch to OFF position.
2. Then connect the USB cable from PC to TX’s USB
connector, the amber LED will turn on to indicate
charging.
3. Put the power switch to ON position, after a while, the
amber LED is of and blue LED is begin to flash.
It shows the TX is on USB audio dongle mode, and you PC
will recognize an USB AUDIO DEVICE is plugging in. Then
the TX is start to search, pair and connect to you stereo
headset/ receiver automatically.
TX in USB audio dongle also supports wireless talking, and
when the SKYPE in the PC has incoming our outgoing call,
the TX will into wireless talking function automatically.
During the USB audio dongle mode, the TX has been
charged by PC via USB cable at same time.

VISUAL INDICATION
LED can also indicate the status of TX
Statues indication
paring or
connecting to
the other device
Blue LED High speed flash, which
flashes 5 times per second
Connected, or
audio or music
transferring to
the other device
Blue LED Middle speed flash, which
flashes once per second
Wireless talking Blue and amber LED flashing together
Idle mode Blue LED Low speed, which flashes
once per 5 seconds
POWER state of TX
Statues indication
Charging Amber LED Solid On
Charging
finished
Amber LED OFF
Battery Low Amber LES slow flash
TROUBLE SHOOTING
Please note that you should also be familiar with the
operation of your Bluetooth stereo headset/ audio receiver.
Please read your Bluetooth stereo headset/ audio receiver
user guide carefully. Please note that the TX will only work
with Bluetooth stereo headset/ audio receiver or receiver with
support the Bluetooth AV profiles.
Symptom/Problem Solution
When power on Tx, no
LED flashes
Check battery power.
Consult authorized dealer
Tx powers on with
blue LED quick
flashing but no
connection to
Bluetooth stereo
headset/ audio
receiver
Check power of your
Bluetooth stereo headset/
audio receiver
Check the pin code of you
Bluetooth stereo headset/
audio receiver, refer to the
user guide of your stereo
headset/ audio receiver
Ensure Rx & phone are within
range

CUSTOMER SERVICE INFORMATION
For other Nolan Bluetooth products or support, please
view our website – www.nolan-sys.com or email
[email protected] or contact your local representative.
DISCLAIMER
Whilst every effort has been made to ensure that the
information in this manual is accurate and complete, no
liability will be accepted for any errors and/or omissions
made. The manufacturer reserves the right to make
changes and improvements to the specifications and
features of the hardware and firmware of the products
described in this document without prior notice.
Reproduction, transfer, distribution or storage of part or all
of the contents in this document in any form is prohibited
without prior permission of the manufacturer. All
trademarks acknowledged.
