NOOA TMB-988 User manual

Instruction Manual
Wrist Blood Pressure Monitor
Model: TMB-988 Ref: NOTMB988
We recommend that you spend some time reading this instruction manual
in order to fully understand all the operational features it offers.Read all the
safety instructions carefully before use and keep this instruction manual for
future reference.
Congratulations on the purchase of your new NOOA Wrist Blood Pressure
Monitor.
Version:1.0
PO#2B1030 TMB-988 说明书(英语-挪威语-芬兰-丹麦)(A0)
印色：封面：CMYK
内页：单黑
材质：80g书写纸
尺寸：85*110 mm

Table of Contents

INTRODUCTION ...............................................................2
PRODUCT OVERVIEW ......................................................... 4
Safety Information
LCD Display
Monitor
Includes
BEFORE YOU START .......................................................... 5
Installing and Replacing the Batteries
Setting Date, Time and Measurement Unit
MEASUREMENT ............................................................... 9
Tie the Cuff
Start the Measurement
DATA MANAGEMENT 11
Recalling the Records
Deleting the Records
INFORMATION FOR USER..................................................... 13
Tips for Measurement
Care and Maintence
ABOUT BLOOD PRESSURE.................................................... 15
What are systolic pressure and diastolic pressure?
What is the standard blood pressure classification?
Why does my blood pressure fluctuate throughout the day?
Why do I get a different blood pressure at home compared to the hospital?
Is the result the same if measuring on the right wrist?
TROUBLESHOOTING ......................................................... 17
SPECIFICATIONS ............................................................. 18
CONTACT INFORMATION...................................................... 19
COMPLIED EUROPEAN STANDARDS LIST...................................................20
EMC GUIDANCE ...................................................... 21
..........................................................
General Description
Table of Contents
1
Table of Contents

The signs below might be in the user manual, labeling or other component.
They are the requirement of standard and using.
Safety Information
Features:
Systolic blood pressure
Diastolic blood pressure
Pulse rate
Historic record of up to 60 measurements
Symbol for “THE INSTRUCTION
MANUAL MUST BE READ”
Symbol for “COMPLIES WITH
MDD 93/42/EEC REQUIREMENTS”
Symbol for “MANUFACTURER”
Symbol for “SERIAL NUMBER”
Symbol for “TYPE BF APPLIED
PARTS”
Symbol for “ENVIRONMENT
PROTECTION - Electrical waste
products should not be disposed of
with household waste. Please recycle
where facilities exist. Check with your
local authority or retailer for recycling
advice”
Symbol for “Authorised Representative
in the European Community
EC REP
Symbol for “MANUFACTURE
DATE”
General Description
The product features blood pressure measurement, pulse rate measurement and
stores the results. The design provides you with two years of reliable service.
Readings taken by this product are equivalent to those obtained by a trained
observer using the cuff and stethoscope auscultation method.
This manual contains important safety and care information, and provides
step by step instructions for using the product.
Read the manual thoroughly before using the product.
2
INTRODUCTION

CAUTION
This product is intended for adult use only.
This product is intended for non-invasive measuring and monitoring of arterial blood pressure. It is
not intended for the use on extremities other than the wrist or for functions other than obtaining a
blood pressure measurement.
Do not confuse self-monitoring with self-diagnosis. This product allows you to monitor your blood
pressure. Do not begin or end medical treatment without asking a physician for treatment advice.
If you are taking medication, consult your physician to determine the most appropriate time to
measure your blood pressure. Never change a prescribed medication without consulting your
physician.
If the cuff pressure exceeds 40 kPa (300 mmHg), the product will automatically deflate. Should the
cuff not deflate when pressures exceeds 40 kPa (300 mmHg), detach the cuff from the wrist and
press the START/STOP button to stop inflation.
To avoid errors in measurement, carefully read this manual before using the product.
The product is not AP/APG equipment and not suitable for use in the presence of a flammable
anesthetic mixture with air of with oxygen or nitrous oxide.
The operator shall not touch output of batteries and the patient simultaneously.
Check that the product's functions carefully and ensure that it is in a proper working
condition before being used.
This product is contraindicated for any female subject who may be suspected of, or is pregnant.
Besides providing inaccurate readings, the effects of this product on the fetus are unknown.
Please use ACCESSORIES and detachable parts specified/ authorised by MANUFACTURER.
Otherwise, it may cause damage to the product or danger to the user / patients.
Manufacturer will make available on request circuit diagrams, component parts list etc.
This product is not suitable for continuous monitoring during medical emergencies or operations.
Otherwise, the patient’s wrist and fingers will become anaesthetic, swollen and even purple due to a
lack of blood.
Read the instruction manual and use the product properly. Otherwise,
the performance and lifetime of the product will be impacted and reduced.
During use, the patient will be in contact with the cuff. The materials of the cuff have been tested and
found to comply with requirements of ISO 10993-5:2009 and ISO 10993-10:2010. It will not cause
any potential alergic reaction or contact injury.
The product doesn’t need to be calibrated whith the two years of reliable service.
Please dispose of ACCESSORIES, detachable parts, and the ME EQUIPMENT according to the
local guidelines.
When the product was used to measure patients who have common arrhythmias such as atrial or
ventricular premature beats or atrial fibrillation, the best result may occur with deviation. Please
consult your physician about the result.
Do not use the product under the conditions of strong electromagnetic field (e.g. medical RF
equipment) that radiates interference signal or electrial fast transient/ burst signal.
3
INTRODUCTION

Systolic
blood pressure High pressure result
Diastolic
blood pressure Low pressure result
Pulse Pulse/minute; heartbeats/minute
mmHg Measurement unit the blood pressure
(1mmHg=0.133kPa)
kPa Measurement unit of the blood pressure
(1kPa=7.5mmHg)
Current time
Shocking
reminding Shocking will result in inaccurate
Irregular heartbeat
Low battery
Batteries are low and need to be replaced
Grade The grade of the blood pressure
LCD Display
SYMBOL DESCRIPTION EXPLANATION
Month/Day,Hour/Minute
Heartbeat Heartbeat detection during the measurement
Memory Display the serial number of the
measurement
Irregular heartbeat detection
4
PRODUCT OVERVIEW

CUFF
(Type BF applied part)
BATTERY
COMPARTMENT
Monitor
Component List:
1. PCBA;
2. Air Pipe;
3. Pump;
4. Valve;
5. Cuff.
Includes
1) Wrist Blood Pressure Monitor
(Model: TMB-988 Ref: NOTMB988)
2) 2×AAA batteries
3) Instruction Manual
LCD DISPLAY
GRADE
TIME
SYSTOLIC
DIASTOLIC
MEM BUTTON
SET BUTTON
START/STOP BUTTON
PULSE RATE
5
PRODUCT OVERVIEW

•Slide off the battery cover.
•Install the batteries by matching the correct polarity, as
shown below. Always use the correct battery type (2 x AAA batteries).
•Replace the cover.
Installing and Replacing the Batteries
Remove batteries if the product is not likely to be used for some time.
The old batteries are harmful to the environment, do not dispose them with other daily
trash.
Remove the old batteries from the product and follow your local recycling guidelines.
Replace the batteries when:
the display shows
the display dims.
the display does not light up.
Do not dispose of batteries in fire. Batteries may explode or leak.
CAUTION
6
BEFORE YOU START

7
BEFORE YOU START
Setting Date, Time and Measurement Unit
It is important to set the clock before using your blood pressure
monitor, so that a time stamp can be assigned to each record that is
stored in the memory.
and the time format is: 24 H/12 H)
(The setting range of the year is : 2010 -2050,

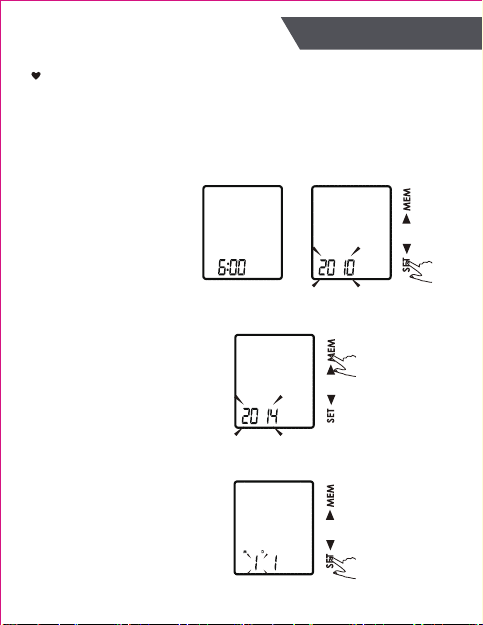

1.
2. Press the MEM button to
change the [YEAR]. Each
press will increase the
numeral by one in a cycling
manner.
3.When you get to the correct
year, press the SET button to
confirm.
When the monitor is off,
press the SET button, it
will display the time.Then
press and hold the SET
button for 3 seconds to
enter the mode for year
setting.

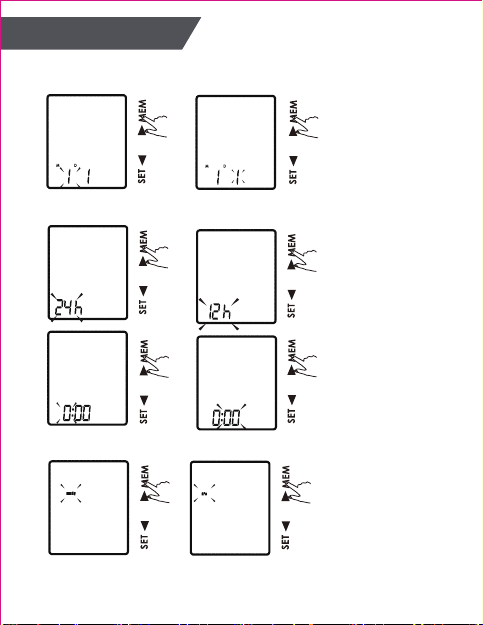

4.Repeat steps 2 and 3 to set the [MONTH] and [DAY].
5.Then the monitor will divert to time setting. Select the time format. Repeat steps
2 and 3 to set the time format , [HOUR] and [MINUTE].
6.Repeat steps 2 and 3 to confirm the measurement unit.
7.After confirming the meausrement unit, the LCD display will
display all the settings you have done one by one and then
the monitor will shut off.
8
BEFORE YOU START

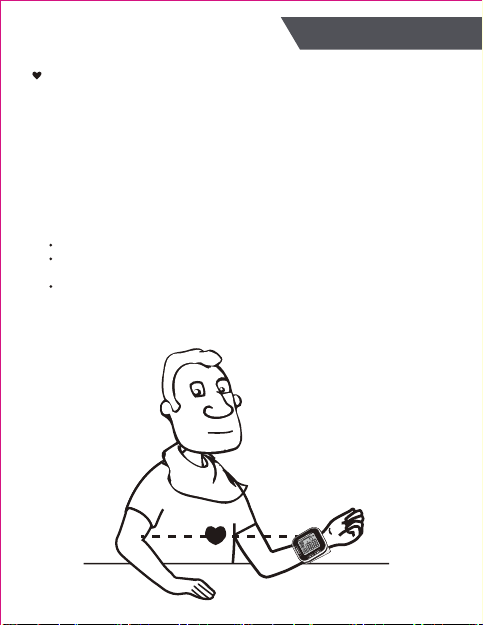

Tie the Cuff
1.Remove all accessories (watch, bracelet, etc) from your wrist. If your
physician has diagnosed you with poor circulation in your wrist, use the
other one.
2.Roll or push up your sleeve to expose the skin.
3.Apply the cuff to your wrist with your palm facing up.
4. Position the edge of the cuff about 1-1.5 cm from wrist joints.
5. Fasten the wrist cuff around your wrist, leaving no extra room between the cuff
and your skin. If the cuff is too loose, the measurement will not be accurate.
Rest for 5 minutes before measuring.
Wait at least 3 minutes between measurements. This allows your blood
circulation to recover.
For a meaningful comparison, try to measure under similar conditions. For
example, take daily measurements at approximately the same time, on the same
wrist, or as directed by a physician.
9
MEASUREMENT

1.When the monitor is off, press the
START/STOP button to turn on
the monitor, and it will finish the
whole measurement.
Adjust the zero.
LCD display
Inflating and measuring.
Display and save the
result.
Start the Measurement
2. Press the START/STOP button to
power off, otherwise it will turn off
within 1 minute.
10
MEASUREMENT

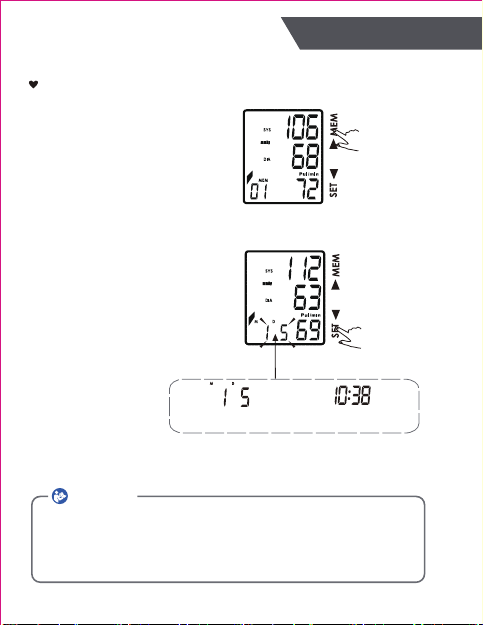

Recalling the Records
1.
2. Press the MEM or SET button
to get the record you want.
The most recent record (1) is shown first. Each new measurement
is assigned to the first (1) record. All other records are pushed back
one digit (e.g., 2 becomes 3, and so on), and the last record (60) is
dropped from the list.
CAUTION
The date and time of the
record will be displayed
alternately.
UP
DOWN
The corresponding
time is 10:38.
The corresponding
date is 5th January.
When the monitor is off,
press the MEM button to
show the latest measurement
on record.
If there is no operation, the blood pressure monitor will turn off within 1minute.3.
11
DATA MANAGEMENT

1.
2.
3.
Press the SET button to confirm
deleting and the monitor will display
“dEL dOnE” and then turn off.
If you did not get the correct measurement, you can delete all the
results by following steps below .
Deleting the Records
If there are no records when you press
the MEM button. This display will
show "---".
In the memory mode, press and hold
the MEM button for 3 seconds, the
display will show a flashing “dEL ALL”.
Note: To exit out of delete mode
without deleting any records,
press the START/STOP button
before pressing the SET button to
confirm any delete commands.
12
DATA MANAGEMENT

13
INFORMATION FOR USER
Tips for Measurement
In a very cold environment
Immediate measurement
after tea, coffee, smoking
When talking or moving
your fingers
When you want to
discharge urine
Measurements may be inaccurate if taken in the following
circumstances.
Within 1 hour
after dinner or drinking
Within 20 minutes
after taking a bath

Care and Maintence
In order to get the best performance, please follow the
instructions below.
Store in a dry place and avoid the sunshine
Avoid intense shaking and collisions
Use a damp cloth to remove dirt
Avoid touching water,and clean
it with a dry cloth if it gets wet
Avoid dusty and environments
with unstable temperatures
Avoid washing the cuff
CAUTION
• If you have any problems with this product, such as setting up, maintaining or using,
please contact the SERVICE PERSONNEL of NOOA. Don’t open or repair the
device by yourself.
• Please report to NOOA if any unexpected operation or events occur.
14
INFORMATION FOR USER

When ventricles contract and pump blood
out of the heart, blood pressure reaches its
maximum value, the highest pressure in the
cycle is known as systolic pressure. When
the heart relaxes between heartbeats, the
lowest blood pressure is diastolic pressure.
What are systolic pressure and diastolic pressure?
What is the standard blood pressure classification?
press
artery vein
blood discharging
Systolic
relax
blood entering
Diastolic
SYS
DIA
<120
<80
120~129
80~84
130~139
85~89
140~159
90~99
160~179
100~109
>180
>110
Level
Blood
Pressure
(mmHg)
The blood pressure classification
published by World Health Organization
(WHO) and International Society of
Hypertension (ISH) in 1999 is as follows:
CAUTION
Only a physician can tell your normal BP range.
Please contact a physician if your measuring
result falls out of the range. Please note that only
a physician can tell whether your blood pressure
value has reached a dangerous point.
Optimal Normal High-normal Mild Moderate Severe
CAUTION
Irregular Heartbeat Detector
The appearance of the IHB icon indicates that a pulse irregularity consistent with an
irregular heartbeat was detected during measurement. Usually this is NOT a cause
for concern. However, if the symbol appears often, we recommend you seek medical
advice. Please note that the product does not replace a cardiac examination, but
serves to detect pulse irregularities at an early stage.
An irregular heartbeat is detected when a heartbeat rhythm varies while the product is
measuring the systolic and diastolic blood pressure. During each measurement, this
product records the heartbeat intervals and works out the standard deviation. If the
calculated value is larger than or equal to 15, the irregular heartbeat symbol appears
on the symbol when the measurement results are displayed.
15
ABOUT BLOOD PRESSURE

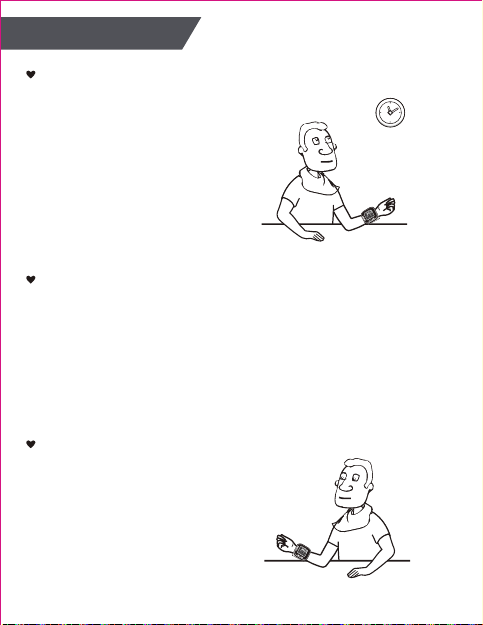

Why does my blood pressure
fluctuate throughout the
day?
1. Individual blood pressure varies
multiple times everyday. It is also
affected by the way you tie your cuff
and your measurement position, so
please take your measurements
under the same conditions.
2. If you take medicine, your pressure
will vary more.
3. Wait at least 3 minutes before taking
another measurement.
Why do I get a different
blood pressure at home
compared to the hospital?
Blood pressure is different even
throughout the day due to weather,
emotion, exercise etc, Also, there is
the “white coat” effect, which means
blood pressure usually increases in
clinical settings.
What you need to pay attention
to when you measure your
blood pressure at home:
If the cuff is tied properly.
If the cuff is too tight or too loose.
If the cuff is tied on the wrist.
If you feel anxious.
Taking 2-3 deep breaths before
beginning will be better for measuring.
Advice: Relax yourself for 4-5 minutes
until you calm down.
Is the result the same if
measuring on the right
wrist?
Using either wrist is okay, but there
will be some different results for
different people. We suggest you
measure the same wrist every time.
16
ABOUT BLOOD PRESSURE

This section includes a list of error messages and frequently
asked questions for problems you may encounter with your wrist
blood pressure monitor. If the product is not operating as you
think it should, check here before arranging for servicing.
PROBLEM SYMPTOM CHECK THIS REMEDY
No power
Low
batteries
Error
message
Display is dim or
will not light up.
Batteries are exhausted. Replace with new batteries
Insert the batteries
correctly
Replace with new batteries
Batteries are inserted
incorrectly.
The display shows Batteries are low.
E 1 shows The cuff is not secure. Refasten the cuff and then
measure again.
E 2 shows The cuff is very tight Refasten the cuff and then
measure again.
E 3 shows The pressure of the
cuff is excess.
Relax for a moment
and then measure again.
E 10 or
E 11 shows
The monitor detected
motion while measuring.
Movement can affect the
measurement.Relax for a
moment and then
measure again.
E 20 shows
E 21 shows Relax for a moment and
then measure again.
EExx,shows on
the display.
A calibration error
occurred. Retake the measurement.
If the problem persists,
contact the retailer.
The measurement
process does not detect
the pulse signal.
Loosen your clothing on
the wrist and then
measure again.
Measure incorrectly.
beginning will be better for measuring.
17
TROUBLESHOOTING

Power supply Battery powered mode:
2*AAA batteries (3V DC)
Display mode Digital LCD V.A.35mm×41mm
Measurement mode Oscillographic testing mode
Measurement range
Accuracy
Normal working condition
Storage & transportation
condition
Measurement perimeter
of the wrist About 13.5cm-21.5cm
Net Weight Approx.100g(Excluding the dry cells)
External dimensions
Attachment
Approx.73mmx67.5mmx22.5mm
2*AAA batteries,user manual
Mode of operation Continuous operation
Degree of protection Type BF applied part
Protection against
ingress of water IP22
Software version
Product classification
V01
Internally Powered ME Equipment
WARNING: No modification of this equipment is allowed.
Pressure:
5℃-40℃within±0.4kPa(3mmHg)
pulse value:±5%
Temperature:5℃to 40℃
Relative humidity: ≤85%RH
Atmospheric pressure: 86kPa to 106kPa
Temperature:-20℃to 60℃
Relative humidity: 10%RH to 93%RH
Atmospheric pressure: 50kPa to 106kPa
Rated cuff pressure:
0kPa - 40kPa (0mmHg~300mmHg)
Measurement pressure: 5.3kPa-30.7kPa
(40mmHg-230mmHg)
pulse value: (40-199) beat/minute
18
SPECIFICATIONS
