Norcold 2117 User manual

PART NO.6303673
NORCOLD 06/25/2008
PARTS LIST
MODELS
2117IM
2117IMD
2117IMBK
2117IMBKD
2117IMSS
2117IMSSD
2117IMWPM
2117 SERIES

2117 SERIES PARTS LIST - PAGE 2

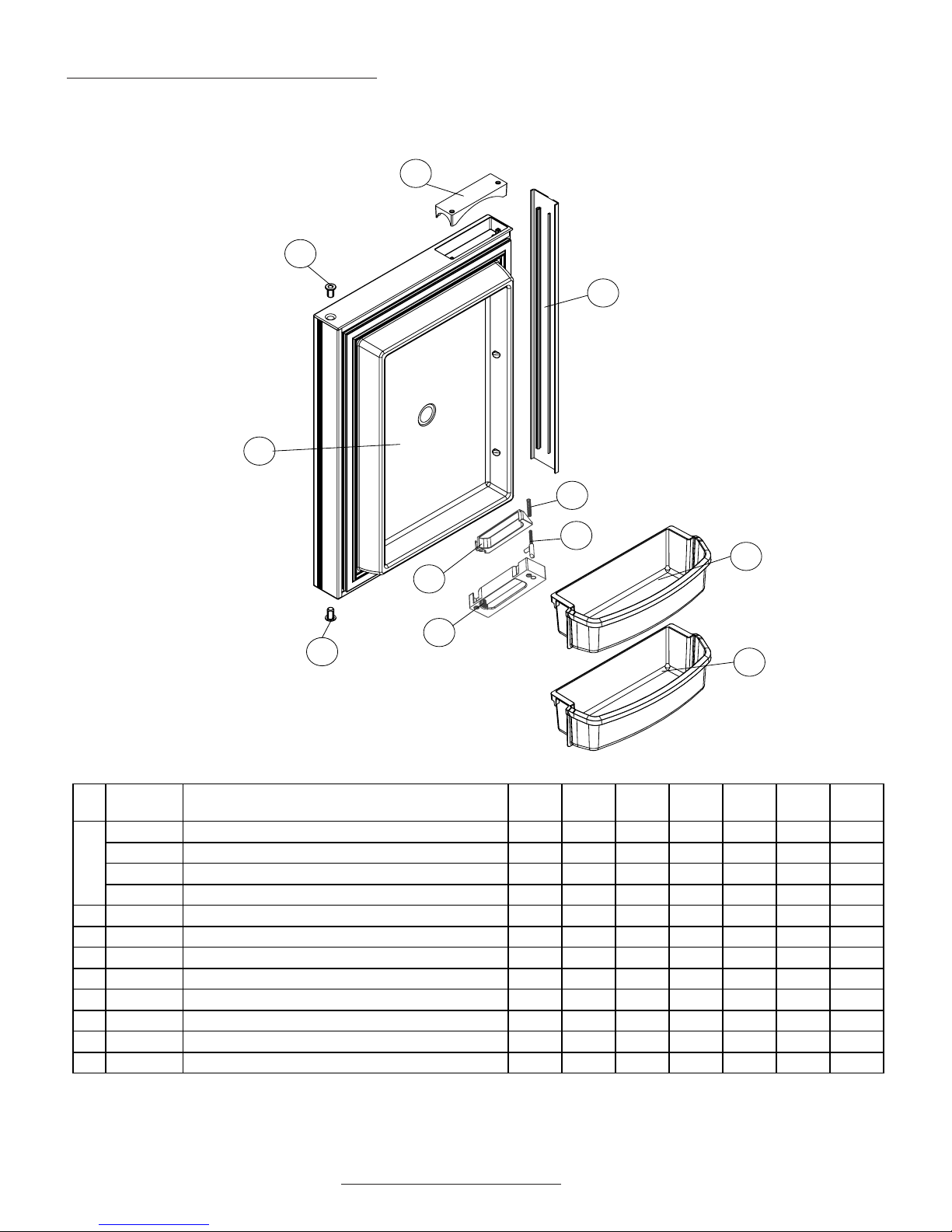

DOOR - UPPER RH - 2117 SERIES
4
1
2
2
3
5
6
7
8
9
7
NO. PART # DESCRIPTION 2117
IM
2117
IMD
2117
IMBK
2117
IMBKD
2117
IMSS
2117
IMSSD
2117
IMWPM
1 630245 DOOR LINER WITH HANDLE-UPPER/RH/PANEL X X
632803 DOOR INER WITH HANDLE-UPPER/RH/BLACK X X
630250 DOOR LINER WITH HANDLE-UPPER/RH/WRAP/SS X X
63035101 DOOR LINER WIT H HANDL E-UPPER/RH/WRAP/WPM X
2 627744 HINGE BUSHING-PANEL DOORS X X
3 627712 DOOR HANDLE HOUSING- UPPER RH/L OWER L H X X X X X X X
4 628017 DOOR HANDLE- UPPER RH/LOWER LH X X X X X X X
5627805SPRING-COMPRESSION XXXXXXX
6 628616 DOOR HANDLE LATCH PIN- UPPER RH/LOWER LH X X X X X X X
7628035BIN-DOORSHELF/SMALL XXXXXXX
8 627423 PANEL RETAINER-UPPER X X
9 627871 COV ER-HANDL E POCKET - UPPER RH X X X X X X X
NOTE: DOOR L INERS ASSEM BL IES ARE NOT SHIPPED WITH DOOR BINS.

2117 SERIES PARTS LIST - PAGE 3

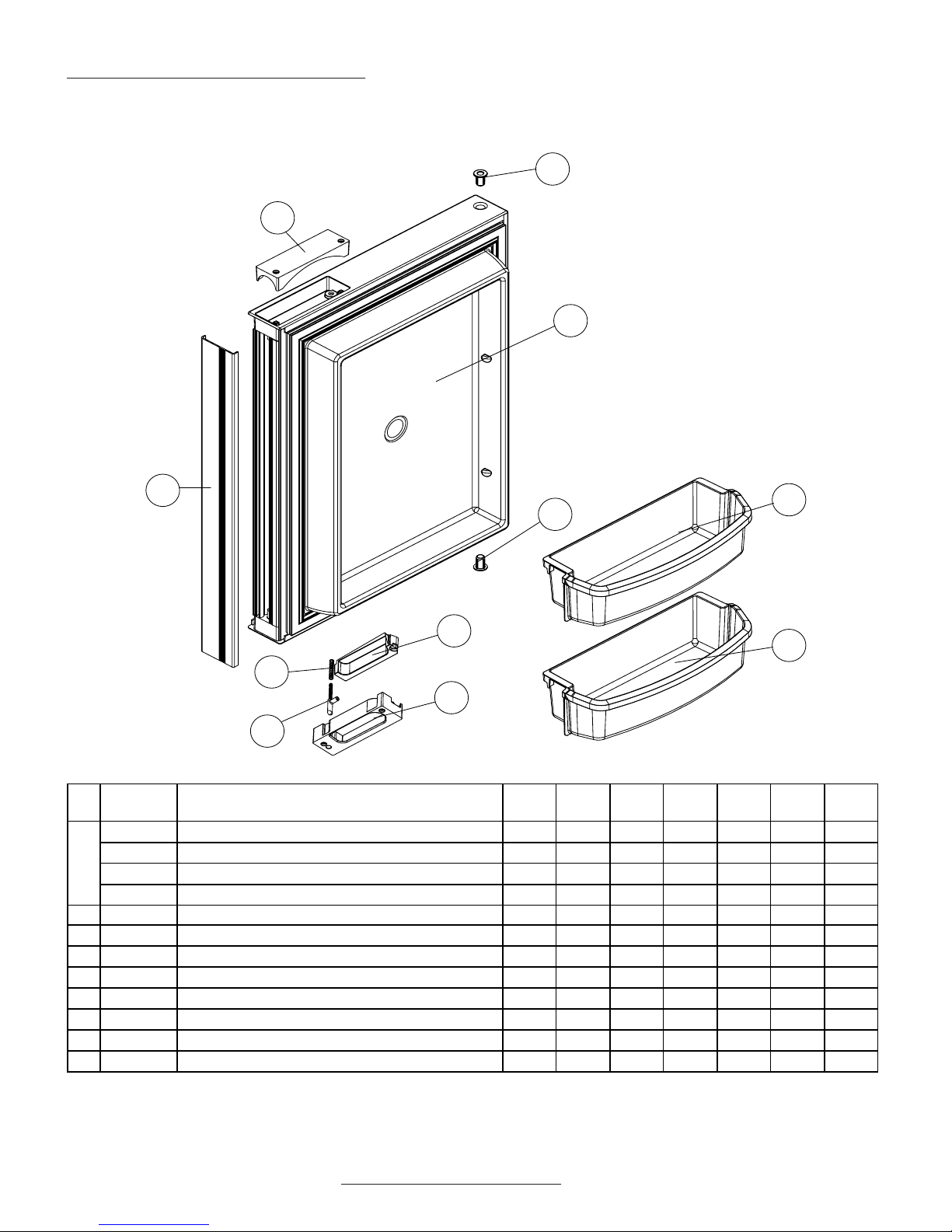

DOOR - UPPER LH - 2117 SERIES
1
2
2
3
3
4
5
6
7
8
9
NO. PART # DESCRIPTION 2117
IM
2117
IMD
2117
IMBK
2117
IMBKD
2117
IMSS
2117
IMSSD
2117
IMWPM
1 630244 DOOR LINER WITH HANDLE-UPPER/LH/PANEL X X
632804 DOOR LINER WITH HANDLE-UPPER/LH/BLACK X X
630249 DOOR LINER WITH HANDLE-UPPER/LH/WRAP/SS X X
63035001 DOOR LINER WIT H HANDL E-UPPER/L H/WRAP/WPM X
2 627744 HINGE BUSHING-PANEL DOORS X X
3628035BIN-DOORSHELF/SMALL XXXXXXX
4 627713 DOOR HANDLE HOUSING- UPPER LH/LOWER RH X X X X X X X
5 628018 DOOR HANDLE- UPPER L H/LOWER RH X X X X X X X
6627805SPRING-COMPRESSION XXXXXXX
7 628615 DOOR HANDLE LATCH PIN- UPPER LH/LOWER RH X X X X X X X
8 627423 PANEL RETAINER-UPPER X X
9627870COVER-HANDLEPOCKET-UPPERLH XXXXXXX
NOTE: DOOR LINERS ASSEM BL IES ARE NOT SHIPPED WIT H DOOR BINS.

2117 SERIES PARTS LIST - PAGE 4
DOOR - LOWER RH - 2117 SERIES
1
2
3
4
5
6
7
7
8
9
9
NO. PART # DESCRIPTION 2117
IM
2117
IMD
2117
IMBK
2117
IMBKD
2117
IMSS
2117
IMSSD
2117
IMWPM
1 630247 DOOR LINER WITH HANDLE-LOWER/RH/PANEL X X
632805 DOOR LINER WITH HANDLE-LOWER/RH/BL ACK X X
630252 DOOR LINER WITH HANDLE-LOWER/RH/WRAP/SS X X
63035301 DOOR LINER WIT H HANDL E-L OWER/RH/WRAP/WPM X
2 627713 DOOR HANDLE HOUSING- UPPER LH/LOWER RH X X X X X X X
3 628018 DOOR HANDLE- UPPER L H/LOWER RH X X X X X X X
4627805SPRING-COMPRESSION XXXXXXX
5 628615 DOOR HANDLE LATCH PIN- UPPER LH/LOWER RH X X X X X X X
6 627424 PANEL RETAINER-LOWER X X
7628035BIN-DOORSHELF/SMALL XXXXXXX
8 628036 BIN-DOOR SHELF/GALLON X X X X X X X
9 627744 HINGE BUSHING-PANEL DOORS X X
NOTE: DOOR LINERS ASSEM BL IES ARE NOT SHIPPED WIT H DOOR BINS.

2117 SERIES PARTS LIST - PAGE 5

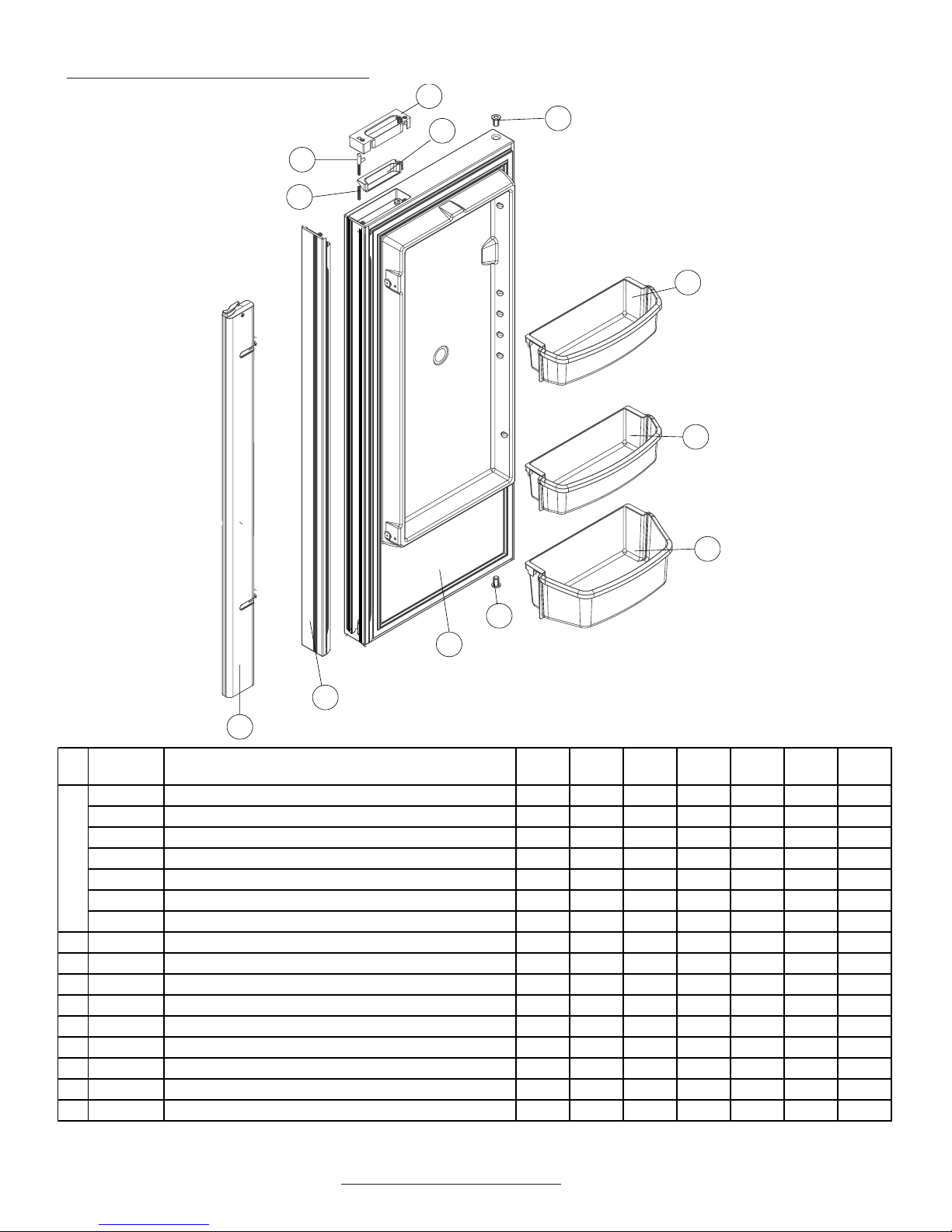

DOOR - LOWER LH - 2117 SERIES
1
2
3
4
4
2
5
6
7
8
9
10
NO. PART # DESCRIPTION 2117
IM
2117
IMD
2117
IMBK
2117
IMBKD
2117
IMSS
2117
IMSSD
2117
IMWPM
1 630246 DOOR LINER WITH HANDLE-LOWER/LH/PANEL X
630248 DOOR LINER WITH HANDLE-LOWER/LH/PANEL/DISP X
632806 DOOR LINER WITH HANDL E-LOWER/L H/WRAP/BLACK X
632807 DOOR LINER WITH HANDL E-LOWER/L H/WRAP/DISP/BL K X
630251 DOOR LINER WITH HANDL E-LOWER/L H/WRAP/SS X
630253 DOOR LINER WITH HANDL E-LOWER/L H/WRAP/SS/DISP X
63035201 DOOR L INER WIT H HANDLE- LOWER/L H/WRAP/WPM X
2 627744 HINGE BUSHING- PANEL DOORS X X
3628036BIN-DOORSHELF/GALLON XXXXXXX
4628035BIN-DOORSHELF/SMALL XXXXXXX
5 627712 DOOR HANDLE HOUSING-UPPER RH/L OWER LH X X X X X X X
6628017DOORHANDLE-UPPERRH/LOWERLH XXXXXXX
7627805SPRING-COMPRESSION XXXXXXX
8 628 616 DOOR HA NDL E L A T C H PI N- UPPER RH/ L OWER L H X X X X X X X
9 631031 FLAPPER ASSY-2117 X X X X X X X
10 627424 PANEL RETAINER-LOWER X X
NOTE: DOOR L INERS ASSEM BL IES ARE NOT SHIPPED WITH DOOR BINS AND FLAPPER ASSEM BL Y.

2117 SERIES PARTS LIST - PAGE 6

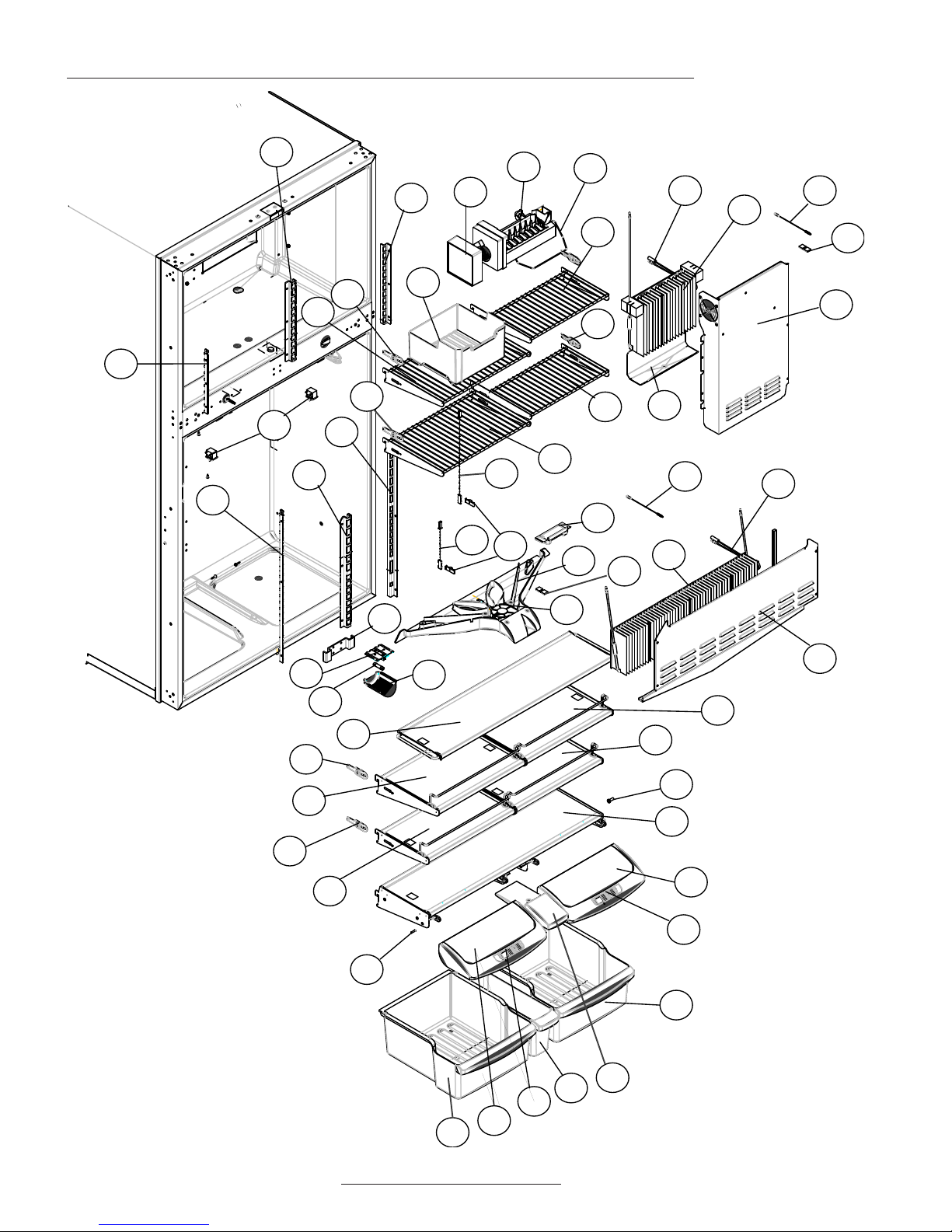

CABINET ASSEMBLY- FRONT VIEW (INTERIOR PARTS) - 2117 SERIES
12
2
3
3
45
1
6
7
7
8
9
10
11
12
13
14
15
17
19
20
21
25
26
27
28
29
33
35
37
38
39
40
41
42
42
8
9
43
44
18 16
17
21
22
22
22
11
16
22
22
23
24
30
31
32
34
36

2117 SERIES PARTS LIST - PAGE 7
CABINET ASSEMBLY- FRONT VIEW (INTERIOR PARTS)- 2117 SERIES
.
.
NO. PART # DESCRIPTION
NON
DISPENSER
(IM)
WITH
DISPENSER
(IMD)
1 627866 CRISPER X X
2 627868 CRISPER LID-FLIP TOP X X
3 628829 VENT-CRISPER LID X X
4 628640 BIN-BEVERAGE CAN X X
5 628856 COVER-BEVERAGE BIN X X
6 628553 CRISPER COVER ASSY-GLASS SHELF X X
7 62947 3 SPA C ER- NYL ON/ CRISPER COV ER A SSY X X
8 628080 SHELF ASSY-GLASS/SHALLOW X X
9 628055 SHELF ASSY-GLASS/DEEP X X
NS 629478 WIRE-FOOD FENCE (PART OF 628080 & 628055) X X
NS 629477 SLIDER-FOOD FENCE (PART OF 628080 & 628055) X X
10 630210 SHROUD FOAM ASSY-FRESHFOOD FIN ASSY X X
11 628794 FIN ASSY-FRESH FOOD (WITH THERMOSTAT) X X
12 628647 THERMOSTAT-FIN ASSY/FRESH FOOD X X
13 630364 BLOWER HOUSING WITH FOAM-FRESH FOOD X X
14 628525 FAN-BLOWER/FRESH FOOD X X
NS 628780 V ENT- BL OWER HOUSING/FRESH FOOD ( NOT SHOWN) X X
NS 628799 BRACKET-FAN/FREEZER (NOT SHOWN) X X
15 628076 GUIDE BLOCK X X
16 630241 BRACKET-THERMISTOR MOUNTING/AIR X X
17 629491 THERMISTOR-ROD/AIR X X
18 620528 THERMISTOR-CONDENSER X X
19 629408 THERMISTOR-FREEZER X X
20 628786 SHELF ASSY-WIRE/FREEZER X X
21 628787 SHELF ASSY-WIRE/FREEZER/SHORT X X
22 629447 RETAINER-SHELF X X
23 61689122 CLIP-THERMISTER MOUNTING/FIN X X
24 628802 SHROUD ASSY-FREEZER/FINS X X
25 628650 FIN ASSY-FREEZER (WITH THERMOSTAT/HEATER/DRIP TRAY) X X
26 627873 THERMOSTAT-FIN ASSY/FREEZER X X
27 61656922 SHUT OFF ARM/IM X X
28 621266 ICE MAKER X X
29 61656822 COVER-FRONT/ICE MAKER X X
30 630219 DRIP TRAY-INSIDE/CABINET/FREEZER (SERIAL# 11323165 & ABOVE
)
XX
NS 632699 KIT-SERVICE-HEATER TUBE (SERIAL# 11323164 & BELOW) X X
31 619007 BIN-ICE/CRISPER/CLEAR/WDL/SDL X X
32 628056 SHELF ASSY-WIRE/FREEZER X X
33 628506 SHELF SUPPORT-FREEZER-RH SIDE X X
34 628507 SHELF SUPPORT-FREEZER-CENTER X X
35 628788 SHELF SUPPORT-FREEZER/LH SIDE X X
36 623918 SWITCH-LIGHT X X
37 628503 SHELF SUPPORT-FRESH FOOD-LH SIDE X X
38 628504 SHELF SUPPORT-FRESH FOOD-CENTER X X
39 628505 SHELF SUPPORT-FRESH FOOD-RH SIDE X X
40 628839 SHELF SUPPORT-FRESH FOOD/CENTER/CRISPER AREA X X
41 61629722 LAMP BRACKET ASSY X X
42 632545 LAMP-DC LIGHT BULB X X
43 621827 COVER-LAMP BRACKET X X
44 628045 SHELF ASSY-GLASS/FULL X X
NS 628831 DRIP TRAY-INSIDE/CABINET/FRESH FOOD (NOT SHOWN) X X
NS 630649 HOUSING FOAM STRIP ASSY-FAN/FREEZER (NOT SHOWN) X X
NS 628508 FAN- DC/FREEZER (NOT SHOWN) X X
NS - NOT SHOWN

2117 SERIES PARTS LIST - PAGE 8

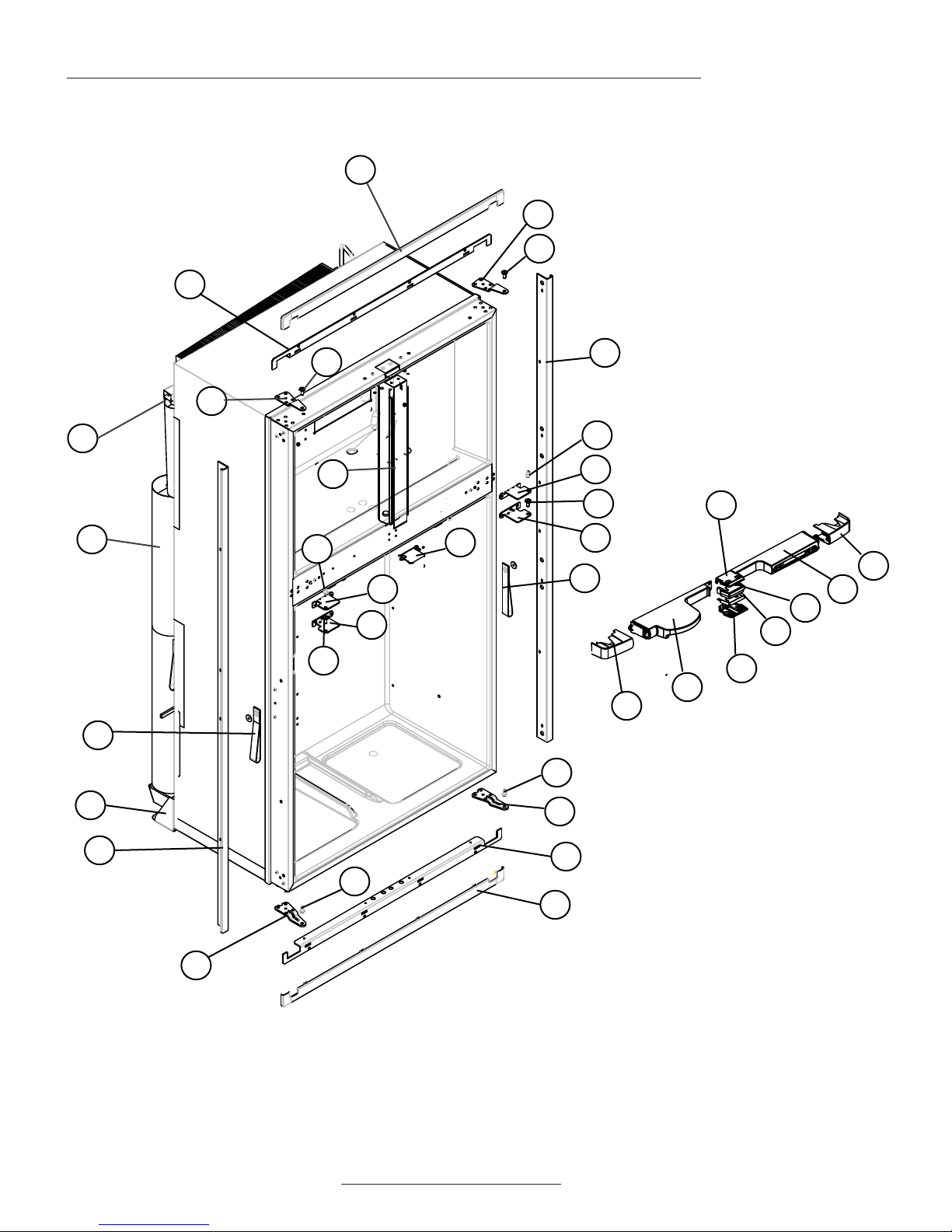

CABINET ASSEMBLY- FRONT VIEW (EXTERIOR PARTS) - 2117 SERIES
1
2
3
3
4
45
6
6
7
7
8
89
10
12
13
15
16
1
2
5
4
4
6
6
9
10
11
14
16
17
18
19
20
21
12

2117 SERIES PARTS LIST - PAGE 9
CABINET ASSEMBLY- FRONT VIEW (EXTERIOR PARTS) - 2117 SERIES
NO. PART # DESCRIPTION
NON
DISPENSER
(IM)
WITH
DISPENSER
(IMD)
1 627852 TRIM PIECE-TOP/BOTTOM/SET X X
2 630363 BRACKET FOAM ASSY-TOP/BOTTOM MOUNTING X X
3 627736 HINGE-UPPER X X
4 627778 HINGE PIN-UPPER X X
5 630362 TRIM PIECE FOAM TAPE ASSY-CABINET/SIDE X X
6 627777 HINGE PIN-LOWER X X
7 627739 HINGE-CENTER-UPPER RH/LOWER LH X X
8 627738 HINGE-CENTER-UPPER LH/LOWER RH X X
9 628818 STRAP ASSY-CABINET HANDLING X X
10 628579 COVER-HINGE-SNAP ON X X
11 628565 HOUSING-DISPENSER X
NS 628568 CONT ROL BOX-DUM M Y ( NOT SHOWN) X
12 628577 STRIKE PLATE X X
13 628576 COVER-STRIKE PLATE/BOTTOM X X
14 628575 COVER-STRIKE PLATE/TOP X X
15 628570 CONTROL ASSY-OPTICAL/2117 SERIES X X
16 627740 HINGE-BOTTOM X X
17 627849 BRACE-BACK X X
18 630746 NSC SYSTEM PACK-2117 SERIES X X
19 629099 CAP-HEAT DEFLECTOR X X
20 628047 DIVIDER ASSY-FREEZER-VERTICAL X X
21 628076 GUIDE BLOCK-FLAPPER/2117 X X
NS 627752 RAIL-BOTTOM SUPPORT (NOT SHOWN) X X
NS - NOT SHOWN

2117 SERIES PARTS LIST - PAGE 10
COOLING UNIT AREA - REAR VIEW - 2117 SERIES
1
2
2
3
4
5
6
7
8
9
10
11
NO. PART # DESCRIPTION
NON
DISPENSER
(IM)
WITH
DISPENSER
(IMD)
1 632304 NSC SYSTEM PACK-2117 SERIES (BACKER HEATER) X X
2 623442 FAN-EXTERNAL DC/HIGH VELOCITY X X
NS 628747 BRACKET-DC FAN X X
3 630775 HEATER-AC COOLING UNIT SERIAL# 11255149 & BELOW) X X
630813 HEATER-AC/BACKER (COOLING UNIT SERIAL# 11255150 & ABOVE) X X
NS 630776 WIRE-JUMPER/AC HEATER (BLUE OR BLACK HEATER LEAD) X X
NS 629479 WIRE-JUM PER/AC HEATER ( YELLOW WIRE) X X
4 630280 KIT-TEMPERATURE SWITCH CANISTER ASSEMBLY X X
5 618902 BASE-BURNER BOX X X
6 618910 COV ER A SSY- BURNER BOX X X
7 629490 DRIP CUP-REAR/CABINET X X
8 622391 DRAIN HOSE ASSY X X
9 629099 CAP-HEAT DEFLECTOR X X
10 628599 BAFFLE/WIRE ASSY-DIFFUSER X X
11 629484 BRACKET-SYSTEM TIE DOWN X X
NS - NOT SHOWN

2117 SERIES PARTS LIST - PAGE 11
CONTROL PARTS - REAR VIEW - 2117 SERIES
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
21
22
12
NO. PART # DESCRIPTION
NON
DISPENSER
(IM)
WITH
DISPENSER
(IMD)
1 618902 BASE- BURNER BOX X X
2 618910 COV ER ASSY- BURNER BOX X X
3 629424 ELECTRODE-SPARK/SENSE X X
4 630360 KIT-BURNER ORIFICE ADAPTER ASSY/2117 SERIES X X
5 628741 GAS VALVE-SOLENOID X X
6 624681 BRACKET- M OUNTING/GAS V AL V E X X
7 628921 BURNER T UBE X X
8 630202 WIRE-INPUT/OV ER TEM PERATURE/THERM AL SWIT CH WIRES X X
9 628678 COV ER- POWER BOARD/LARGE X X
10 628668 BOARD-AUTO DEFROST X X
11 628661 POWER BOARD X X
12 629479 WIRE-JUMPER/AC HEATER (YELLOW WIRE) X X
629480 WIRE-JUMPER/AC/BLACK X X
13 628675 BASE-POWER BOARD/LARGE X X
14 620240 THERMOSTAT-IM HEATER ASSY X X
15 621755 CORD- AC POWER/ICE M AKER/WHITE X X
16 61554422 CORD-AC POWER/BLACK X X
17 624516 WAT ER V AL V E- DISPENSER/DUAL PORT X
618253 WATER VALVE-SINGLE PORT X
NS 625856 WATER V A LV E/HEAT ER ASSY- DISPENSER X
18 626802 WIRE-JUM PER-WIRE HARNESS/DISPENSER X
19 626804 HEATER-WATER VALVE/DISPENSER X
20 622991 NUT-COMPRESSION/PLASTIC/WATER VALVE FITTING/IM X X
21 625880 NUT-COMPRESSION 5/16"/DISPENSER X
22 624503 BRACKET-WATER VALVE/DISPENSER X
NS = NOT SHOWN

2117 SERIES PARTS LIST - PAGE 12
WATER DISPENSER PARTS - 2117 SERIES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

2117 SERIES PARTS LIST - PAGE 13
WATER DISPENSER PARTS- 2117 SERIES
NO. PART # DESCRIPTION 2117
PANEL
2117
WRAP
1 629486 BACKSPLASH ASSY X X
2 627570 BACKSPLASH/CLIP ASSY X X
3 618182 SPRING-COMPRESSION X X
4 624391 PADDLE X X
5 625241 DRAIN GRID X X
6 625385 DRIP CUP-INSIDE X X
7 625366 DRIP TRAY-OUTSIDE X X
8 625528 CONNECTOR-UNION X X
9 628811 COVER ASSY-WATER RESERVOIR X X

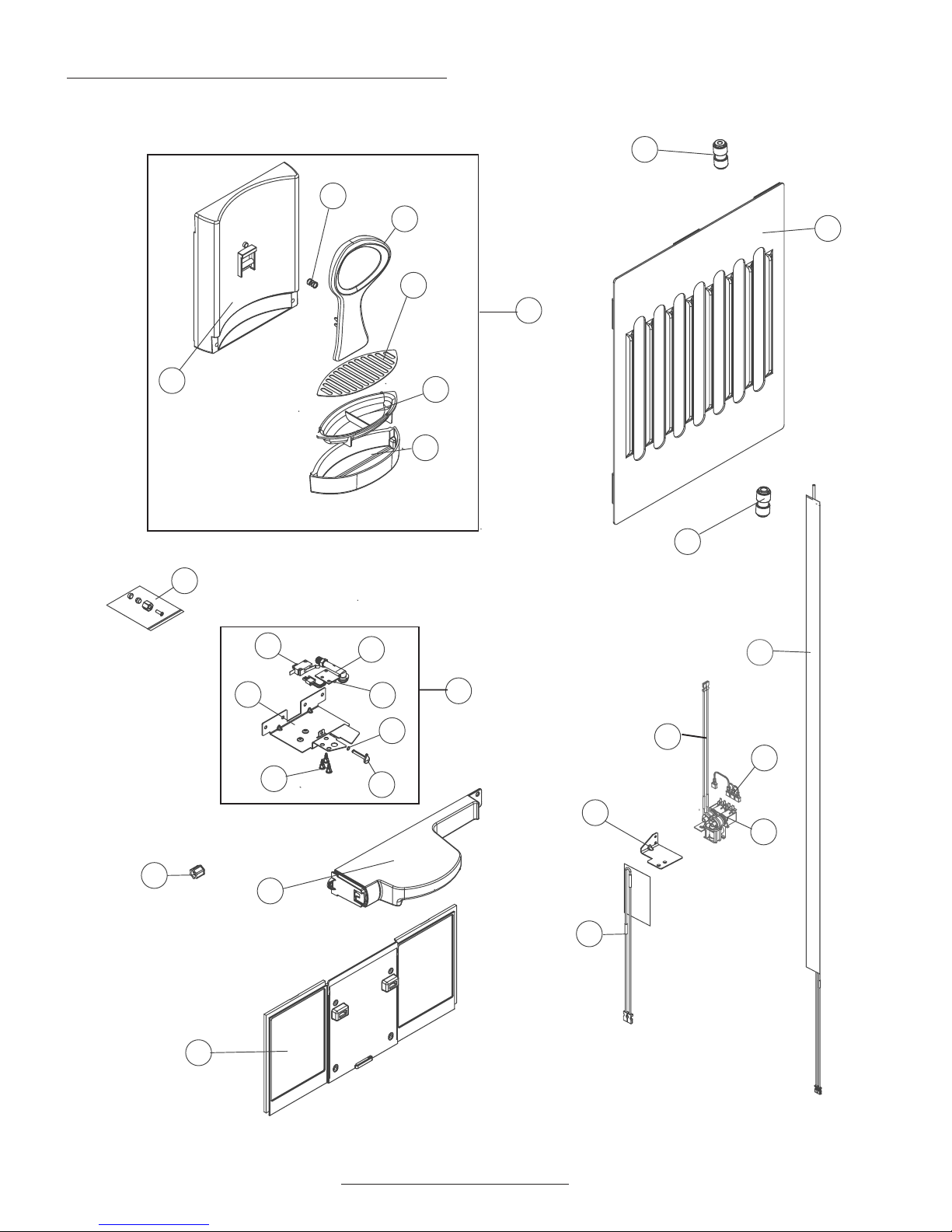

NS 628805 WATER RESERV OIR ( NOT SHOWN) X X
10 625881 CONNECTOR-5/16" UNION X X
11 625879 WATER TUBE/HEATER ASSY X X
12 626802 JUMPER-WIRE HARNESS X X
13 624516 WAT ER V ALV E- DUAL PORT X X
14 626804 HEATER-WATER VALVE X X
625856 WATER VALVE/HEATER ASSY (NO. 13 AND NO. 14) X X
15 624503 BRACKET-WATER VALVE X X
16 629401 HEATER-WATER LINE X X
17 628827 TRIM PANEL-PANEL DOORS X
628635 TRIM PANEL-WRAP DOORS X
18 628565 HOUSING X X
19 625880 NUT-COMPRESSION 5/16" X X
20 628567 WAT ER DISPENSER BRACKET ASSY X X
21 626820 SPIGOT X X
22 627143 BOARD-LED X X
23 628916 RING-RETAINING X X
24 628578 PLUNGER X X
25 625006 FASTENER-LED BOARD X X
26 628566 BRACKET-WATER DISPENSER X X
27 624574 SWITCH X X
28 625882 KIT-IM TUBE FITTINGS (COMBINATION OF A, B, C, & D) X X
A 61692622 SL EEV E- BALL/.25"/T UBE COM PRESSION RING/BRASS X X
B 622846 NUT-BRASS/GARDEN HOSE ADAPTER X X
C 623181 SL EEV E-BAL L/.25"/T UBE COM PRESSION RING/PL AST IC X X
D 622835 INSERT- BRASS/.40" OEM WATER LINE/IM X X
NS 630248 DOOR LINER WITH HANDLE/LOWER/LH/PANEL X
NS 630253 DOOR L INER WITH HANDLE/LOWER/L H/WRAP/DISP/SS X
NS 63035401 DOOR L INER WITH HANDLE/LOWER/L H/WRAP/DISP/WPM X
NS - NOT SHOWN

2117 SERIES PARTS LIST - PAGE 14

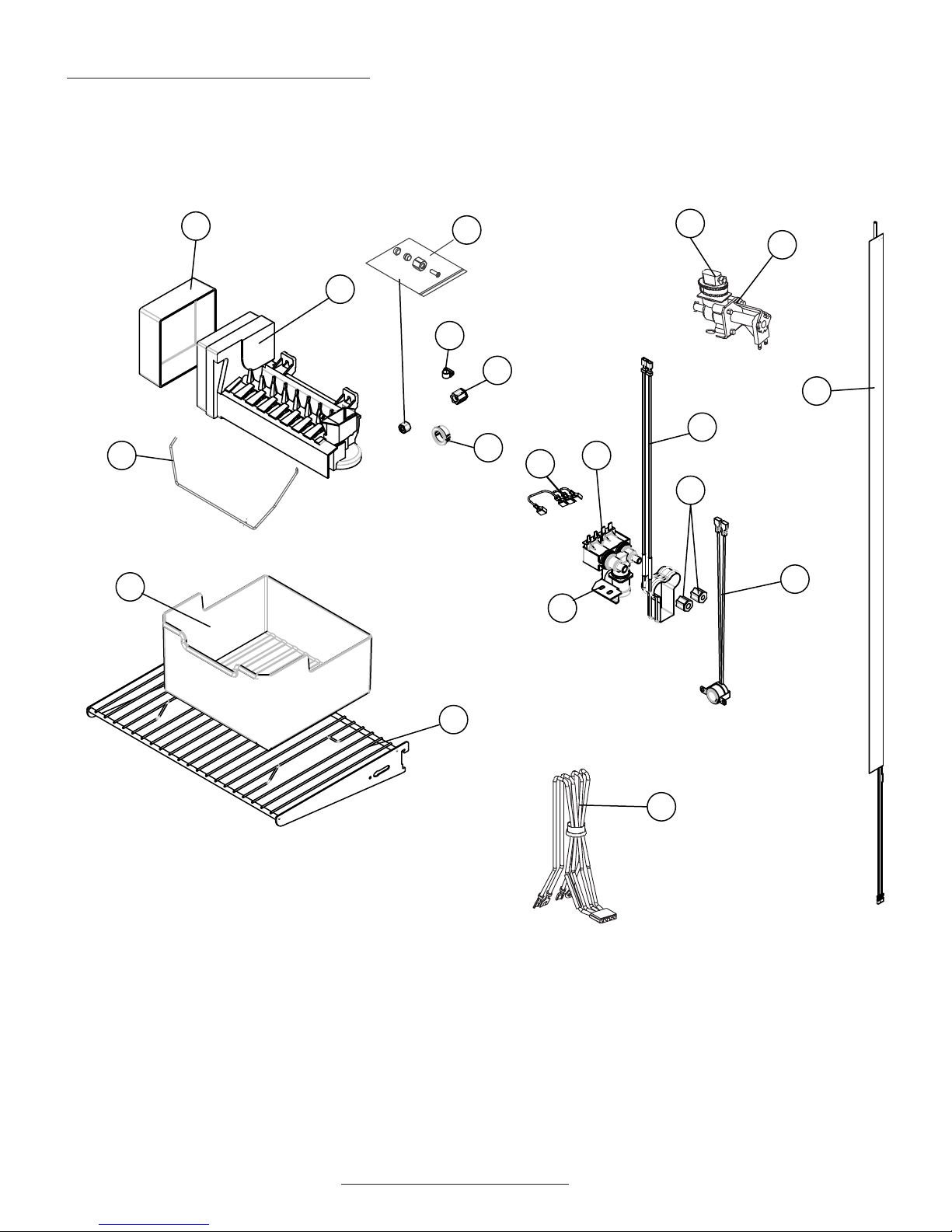

ICE MAKER PARTS - 2117 SERIES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

2117 SERIES PARTS LIST - PAGE 15
ICE MAKER PARTS - 2117 SERIES
NO. PART # DESCRIPTION
NON
DISPENSER
(IM)
WITH
DISPENSER
(IMD)
1 621266 ICE MAKER X X
2 61656822 COVER-FRONT/ICE M AKER X X
3 61656922 SHUT OFF ARM/ICE M AKER X X
4 623182 KIT- OEM WATER T UBE FITTINGS ( COM BINATION OF A, C & D) X
625882 KIT - OEM WAT ER TUBE FITTINGS ( COM BINATION OF A, B, C, & D) X
A 61692622 SL EEV E- BAL L/.25"/TUBE COM PRESSION RING/BRASS X X
B 622846 NUT-BRASS/GARDEN HOSE ADAPTER X
C 623181 SL EEV E- BAL L/.25"/T UBE COM PRESSION RING/PL AST IC X X
D 622835 INSERT- BRASS/.40" OEM WAT ER LINE/IM X X
5 61690822 CLAM P-TUBING/IM X X
6 622991 NUT-COMPRESSION/PLASTIC/WATER VALVE FITTING/IM X X
7 61541422 BUSHING- SNAP X X
8 61679622 GARDEN HOSE ADAPTER-ST RAIGHT /IM X
9 618253 WATER V ALV E- SINGL E PORT /WIT H BRACKET X
10 624516 WATER V AL V E-DISPENSER/DUAL PORT X
11 626802 JUMPER-WIRE HARNESS X X
12 624503 BRACKET-WATER VALVE X
13 620240 THERMOSTAT-IM HEATER ASSY X X
14 625880 NUT-COMPRESSION 5/16" X
15 626804 HEATER-WATER VALVE X
16 621429 WATER TUBE/HEATER ASSY/FOR ICE MAKER X
625879 WATER TUBE/HEATER ASSY/FOR ICE MAKER/DISPENSER X
17 628580 WIRING HARNESS-ICE MAKER X X
18 628056 SHELF ASSY-WIRE/FREEZER X X
19 619007 BIN-ICE/CRISPER/CLEAR/WDL/SDL X X
NS 621755 CORD-AC POWER/ICE MAKER/WHITE (NOT SHOWN) X X
NS = NOT SHOWN
