Norcold 442 User manual

PART NO. 619717
NORCOLD03/25//2008
442 443
PARTS LIST
400 SERIES
452 453
462 463
482 483

400 SERIES PARTS LIST - PAGE 2

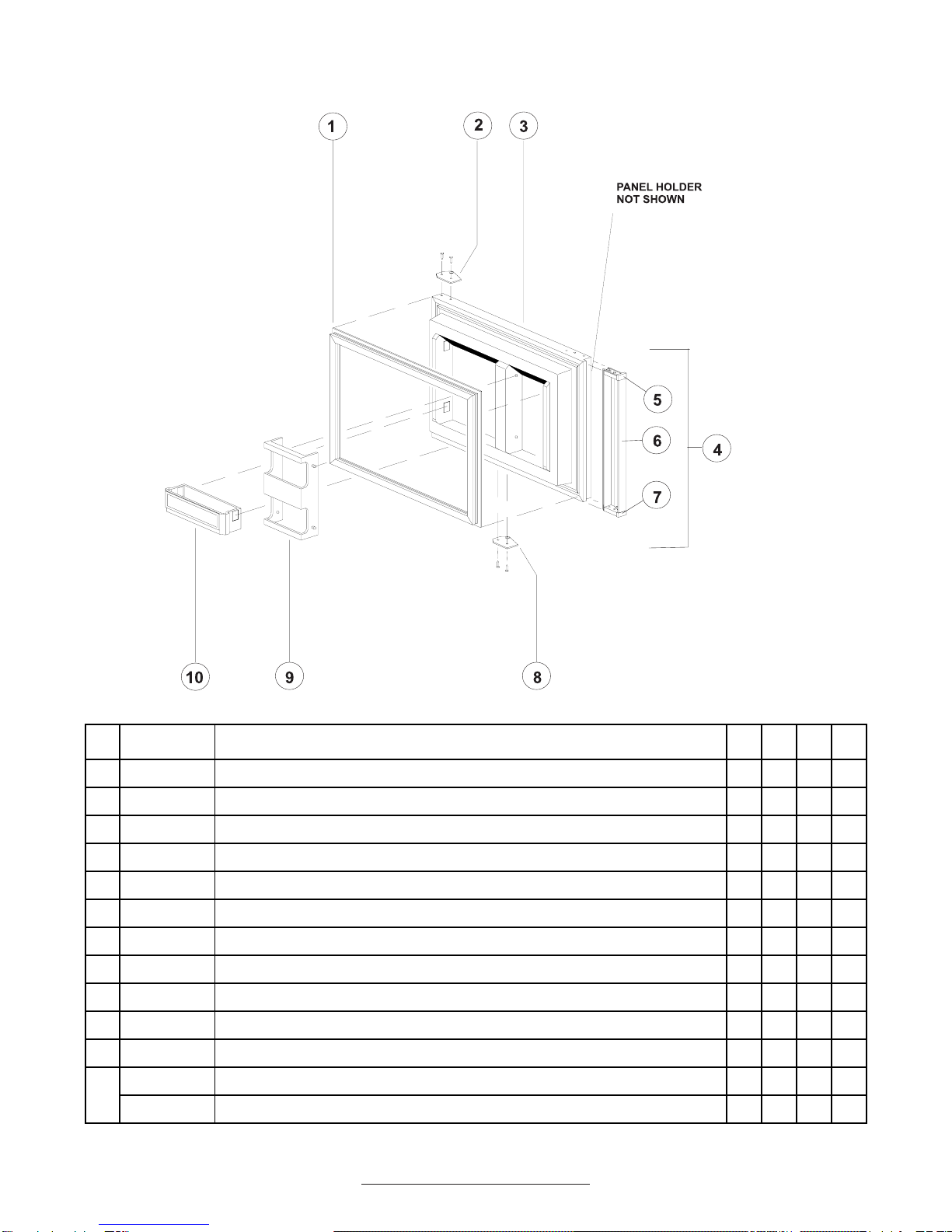

DOOR - UPPER (FREEZER) - 462, 463, 482, 483
NO. PART # DESCRIPTION 462 463 482 483
1 61567830 DOOR GASKET-UPPER/GRAY X X X X
2 61631330 HINGEPLATE-BLACK/RHTOP/LHBOTTOM/PLASTIC X X X X
3 61581838-B DOOR LINER ASSY-FOAMED/UPPER/BLACK/WHITE (USE 61689938) X X X X
NS 61592930 PANEL HOLDER-BLACK/UPPER DOOR (NOT SHOWN) X X X X
4 61649038 DOOR HANDLEASSY-UPPER/BLACK X X X X
5 61593830 ENDCAP-BLACK/STOP CATCH X X X X
6 61648222 DOOR HANDLE-UPPER X X X X
7 61593730 ENDCAP-BLACK/SPRING CATCH X X X X
NS 61558822 SPRING-DOOR HANDLE (NOT SHOWN) X X X X
8 61631430 HINGEPLATE-BLACK/LHTOP/RH BOTTOM/PLASTIC X X X X
9 61580525 JUICERACK-WHITE X X X X
10 61564040 BIN-DOOR SHELF/GRAY/NO BORDER (USE61564025) X X X X
61564025 BIN-DOORSHELF/WHITE X X X X

400 SERIES PARTS LIST - PAGE 3
DOOR - FRESH FOOD - 400 SERIES

400 SERIES PARTS LIST - PAGE 4
DOOR - FRESH FOOD - 400 SERIES
NO. PART # DESCRIPTION 442 443 452 453 462 463 482 483
1 61640030 DOORGASKET-GRAY X
61568030 DOORGASKET-LOWER/GRAY X X
61567930 DOORGASKET-LOWER/GRAY X
2 61631330 HINGE PLATE-BLACK/RH TOP/LH BOTTOM/PLASTIC X X X X
3 61639338 DOORLINERASSY-FOAMED/BLACK FRAME/WHITELINER X
61581738-B DOOR LINER ASSY-FOAMED/LOWER/BLACK/WHITE X X
61581938-B DOOR LINER ASSY-FOAMED/LOWER/BLACK/WHITE LINER (USE61690038) X
NS 61639830 PANEL HOLDER-BLACK(NOT SHOWN) X
NS 61593030 PANEL HOLDER-BLACK/LOWER DOOR X
NS 61593130 PANEL HOLDER-BLACK/LOWER DOOR X X
4 61639638 DOOR HANDLE ASSY-BLACK X
61648838 DOORHANDLE ASSY-LOWER/BLACK X X
61648938 DOORHANDLE ASSY-LOWER/BLACK (USE61743738) X
5 61593830 END CAP-BLACK/STOP CATCH X X X X
6 61648122 DOORHANDLE X
61648422 DOORHANDLE-LOWER X X
61648322 DOORHANDLE-LOWER (USE61743722) X
7 61593730 END CAP-BLACK/SPRING CATCH X X X X
NS 61558822 SPRING-DOOR HANDLE (NOT SHOWN) X X X X
8 61631430 HINGE PLATE-BLACK/LH TOP/RH BOTTOM/PLASTIC X X X X
9 61579440 BIN-MILK/GRAY/NO BORDER (USE61579425) 2 2 2
61579425 BIN-MILK/WHITE (SEE BLOCKS FOR QUANTITY USED) 2 2 2
10 61564040 BIN-DOOR SHELF/GRAY/NO BORDER (USE 61564025) 5 6 4 6
61564025 BIN-DOOR SHELF/WHITE (SEE BLOCKS FOR QUANTITY USED) 5 6 4 6
11 61580440 DAIRY KEEPER-GRAY/NO BORDER/EARLY MODELS ONLY (NOT SHOWN) N/A N/A N/A N/A

400 SERIES PARTS LIST - PAGE 5

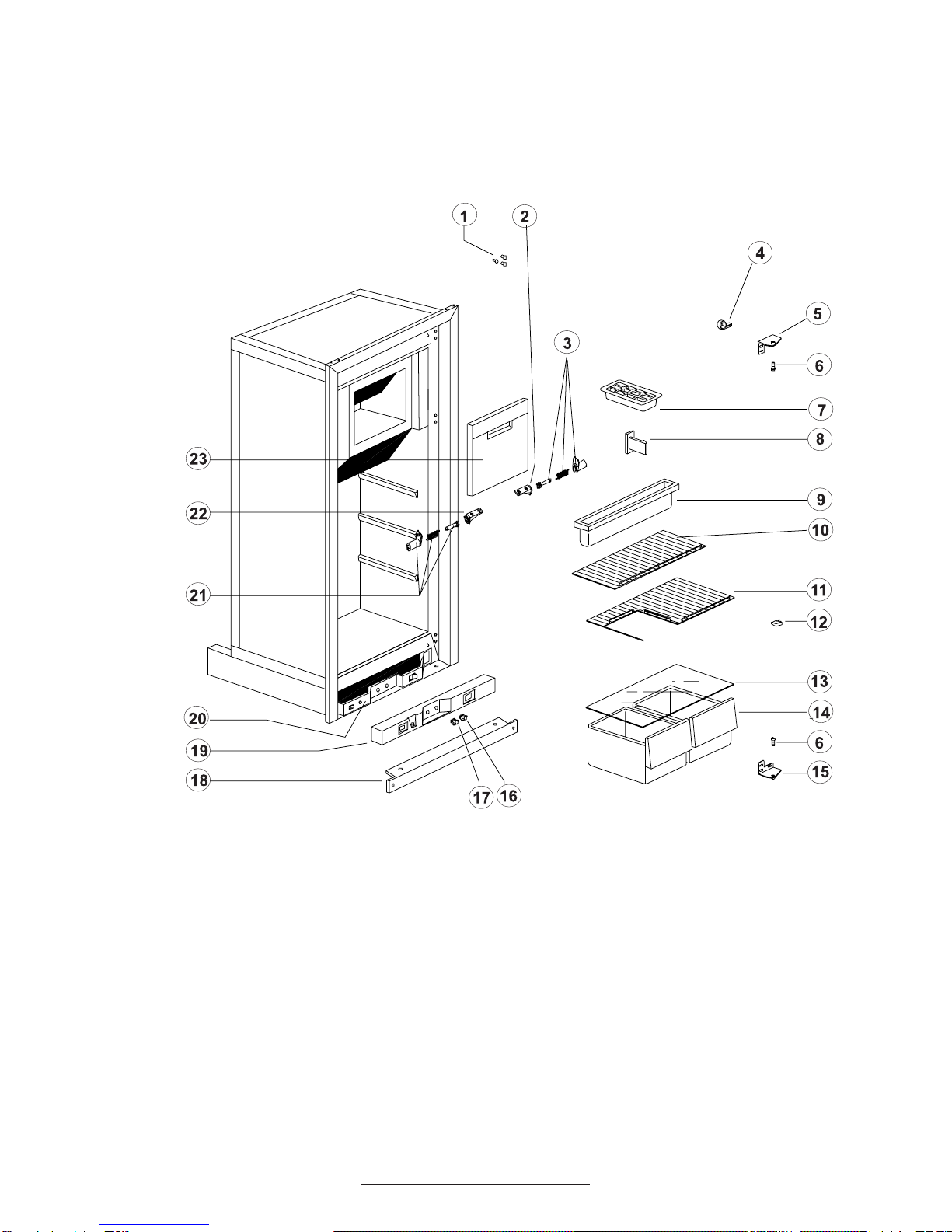

CABINET ASSEMBLY - FRONT VIEW - 442, 443, 452, 453

400 SERIES PARTS LIST - PAGE 6
CABINET ASSEMBLY - FRONT VIEW - 442, 443, 452, 453
NO. PART # DESCRIPTION 442 443 452 453
1 61582030 HOLEPLUG-BLACK/HINGEHOLES X X X X
2 61632930 MOUNTING CLIP-RH/WHITE/EVAPORATOR DOOR X X X X
3 619041 SPRING HOLDER ASSY-RH/EVAP DOOR/SILVER SPRING X X X X
4 61728722 CLIP-FIN XXXX
5 61580830 HINGEBRACKET-RHTOP/LHBTM/BLACK X X X X
6 61578130 HINGEPIN-BLACK/MALE X X X X
NS 61580630 HINGE PIN-BLACK/TOP/BOTTOM HINGE/FEMALE (NOT SHOWN) X X X X
7 61630422 ICECUBETRAY-PLASTIC X X X X
8 61578522 DOORLATCH XXXX
9 61619930 DRIP TRAY-INSIDE X X X X
10 618054 SHELF-WIRE/TOP/FLIPPER X X
61563722 SHELF-WIRE/TOP WITH LH RISER (USE618651) X X
618062 SHELF-WIRE/TOP/RH RISER (USE618651) X X
NS 618065 CAP-CLEAR/FOR FLIPPER SHELF (NOT SHOWN) X X X X
11 618053 SHELF-WIRE/LOWER X X
618055 SHELF-WIRE/CUT OUT XX
NS 61580222 RETAINER-WIRE SHELF (NOT SHOWN) X X
NS 61622722 RETAINER-WIRE SHELF (NOT SHOWN) X X
12 61580322 RETAINER-GLASS SHELF XX
13 61564122 CRISPER COVER-GLASS SHELF X X
14 61571340 CRISPER-GRAY/NO BORDER OR WHEAT FIELD (USE61571325) X X
61571325 CRISPER-WHITE XX
15 61580930 HINGEBRACKET-LH TOP/RH BTM/BLACK X X X X
16 61641822 KNOB-SELECTOR X X X X
17 61642322 KNOB-THERMOSTAT X X X X
18 61622130 FRONT COVER-BLACK/REPLACEABLEBOTTOM TRIM X X X X
19 61644022 CONTROL PANEL-BOTTOM/EG2 X X
61631122 CONTROL PANEL-BOTTOM/EG3 X X
NS 61651722 GASKET-CONTROL COVER (NOT SHOWN) X X X X
20 61631222 BRACKET-CONTROL MOUNTING/FRONT X X X X
21 619042 SPRING HOLDER ASSY-LH/EVAP DOOR/YELLOW SPRING X X X X
22 61633030 MOUNTING CLIP-LH/WHITE/EVAPORATORDOOR X X X X
23 61620738 EVAPORATORDOOR ASSY-WHITE/WITHOUT DECAL X X X X
NS 61618730 DOOR GASKET-EVAPORATOR/GRAY (NOT SHOWN) X X X X
NS 61579730 CAP-SNAP ON/BLACK/INSTALLATIONHOLES (NOT SHOWN) X X X X

400 SERIES PARTS LIST - PAGE 7

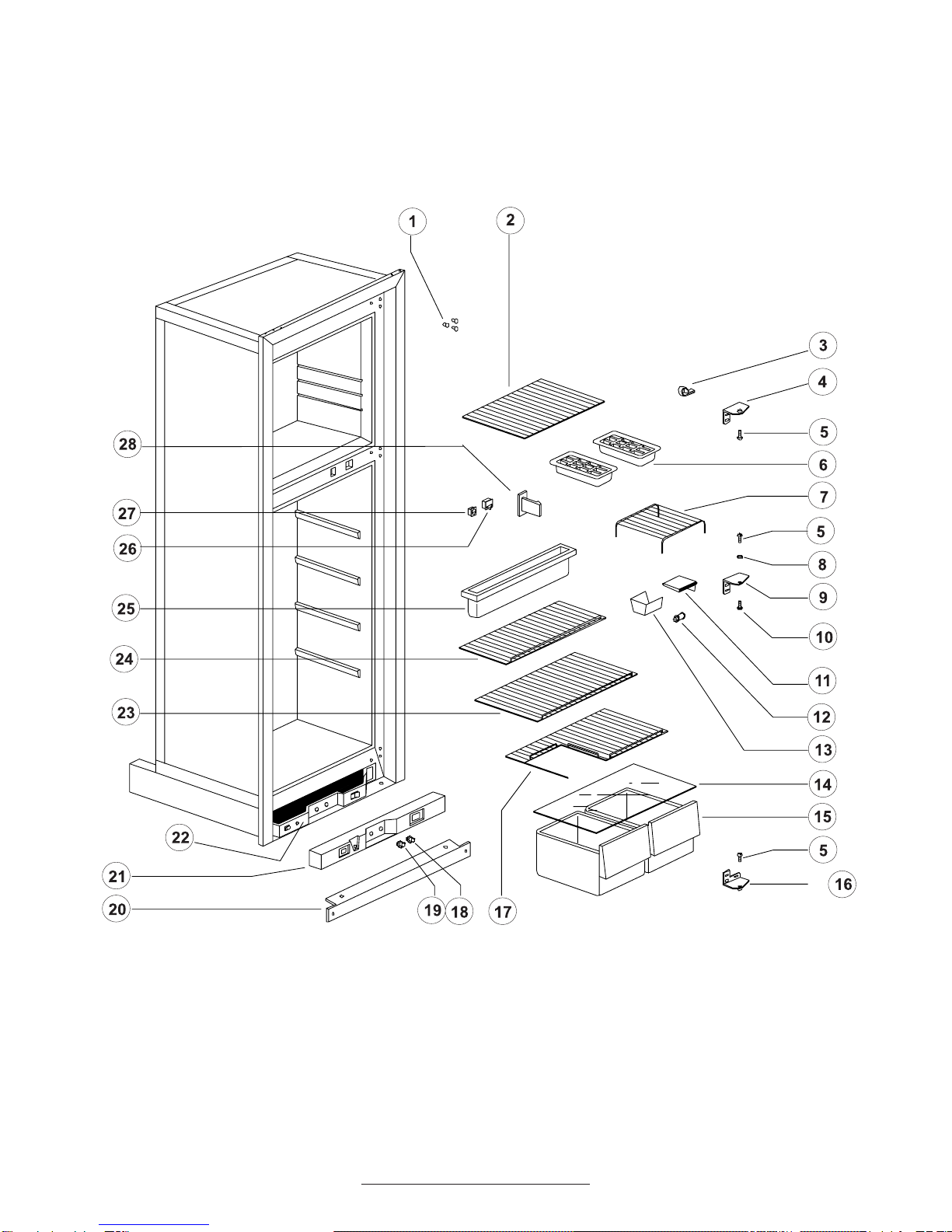

CABINET ASSEMBLY - FRONT VIEW - 462, 463, 483, 483

400 SERIES PARTS LIST - PAGE 8
CABINET ASSEMBLY - FRONT VIEW - 462, 463, 483, 483
NO. PART # DESCRIPTION 462 463 482 483
1 61582030 HOLEPLUG-BLACK/HINGEHOLES X X X X
2 618057 SHELF-WIRE/FREEZER (USE618650) X X X X
3 61728722 CLIP-FIN XXXX
4 61580830 HINGEBRACKET-RHTOP/LHBTM/BLACK X X X X
5 61578130 HINGEPIN-BLACK/MALE X X X X
NS 61580630 HINGE PIN-BLACK/TOP/BOTTOM HINGE/FEMALE (NOT SHOWN) X X X X
6 61630422 ICECUBETRAY-PLASTIC X X X X
7 61523622 SHELF-WIRE/EVAPORATOR(OLDER MODELS) X X X X
NS 61542422 CAP-EVAPORATORSHELF (NOT SHOWN) X X X X
8 61580722 HINGEBUSHING-AT CENTER HINGE X X X X
9 61566530 HINGEBRACKET-BLACK/CENTERHINGE X X X X
10 61566730 HINGE PIN SHAFT-BLACK/AT CENTER HINGE X X X X
11 61629722 LAMP BRACKET ASSY X X X X
12 61628922 LAMP-GE#214-2/DC LIGHT BULB X X X X
13 61627922 COVER-LAMP (USE621827) X X X X
14 61564122 CRISPERCOVER-GLASS SHELF X X X X
NS 61580322 RETAINER-GLASS SHELF (NOT SHOWN) X X X X
15 61571340 CRISPER-GRAY/NO BORDER OR WHEAT FIELD (USE61571325) X X X X
61571325 CRISPER-WHITE XXXX
16 61580930 HINGEBRACKET-LH TOP/RH BTM/BLACK X X X X
17 618055 SHELF-WIRE/CUT OUT X X X X
NS 61580222 RETAINER-WIRESHELF (NOT SHOWN) X X X X
18 61641822 KNOB-SELECTOR X X X X
19 61642322 KNOB-THERMOSTAT X X X X
20 61622130 FRONT COVER-BLACK/REPLACEABLEBOTTOM TRIM X X X X
21 61644022 CONTROL PANEL-BOTTOM/EG2 X X
61631122 CONTROL PANEL-BOTTOM/EG3 X X
22 61631222 BRACKET-CONTROL MOUNTING/FRONT X X X X
NS 61651722 GASKET-CONTROL COVER (NOT SHOWN) X X X X
23 618052 SHELF-WIRE/MIDDLE X X X X
24 618062 SHELF-WIRE/TOP/RHRISER(USE618651) X X X X
NS 618065 CAP-CLEAR/FOR FLIPPER SHELF (NOT SHOWN) X X X X
25 61572830 DRIP TRAY-INSIDE/WHITE X X X X
NS 61505122 HOSECLAMP (NOT SHOWN) X X X X
NS 61591422 DRAIN HOSE-23" (NOT SHOWN)(USE622390) X X
NS 61509522 DRAIN HOSE (NOT SHOWN)(USE618217) X X
26 61581022 LIGHT SWITCH-BLACK X X X X
27 61525922 ROCKER SWITCH-BLACK/3 POSITION X X X X
NS 617723 COVER-HUMIDITY SWITCH (NOT SHOWN) X X X X
28 61578522 DOOR LATCH XXXX

400 SERIES PARTS LIST - PAGE 9

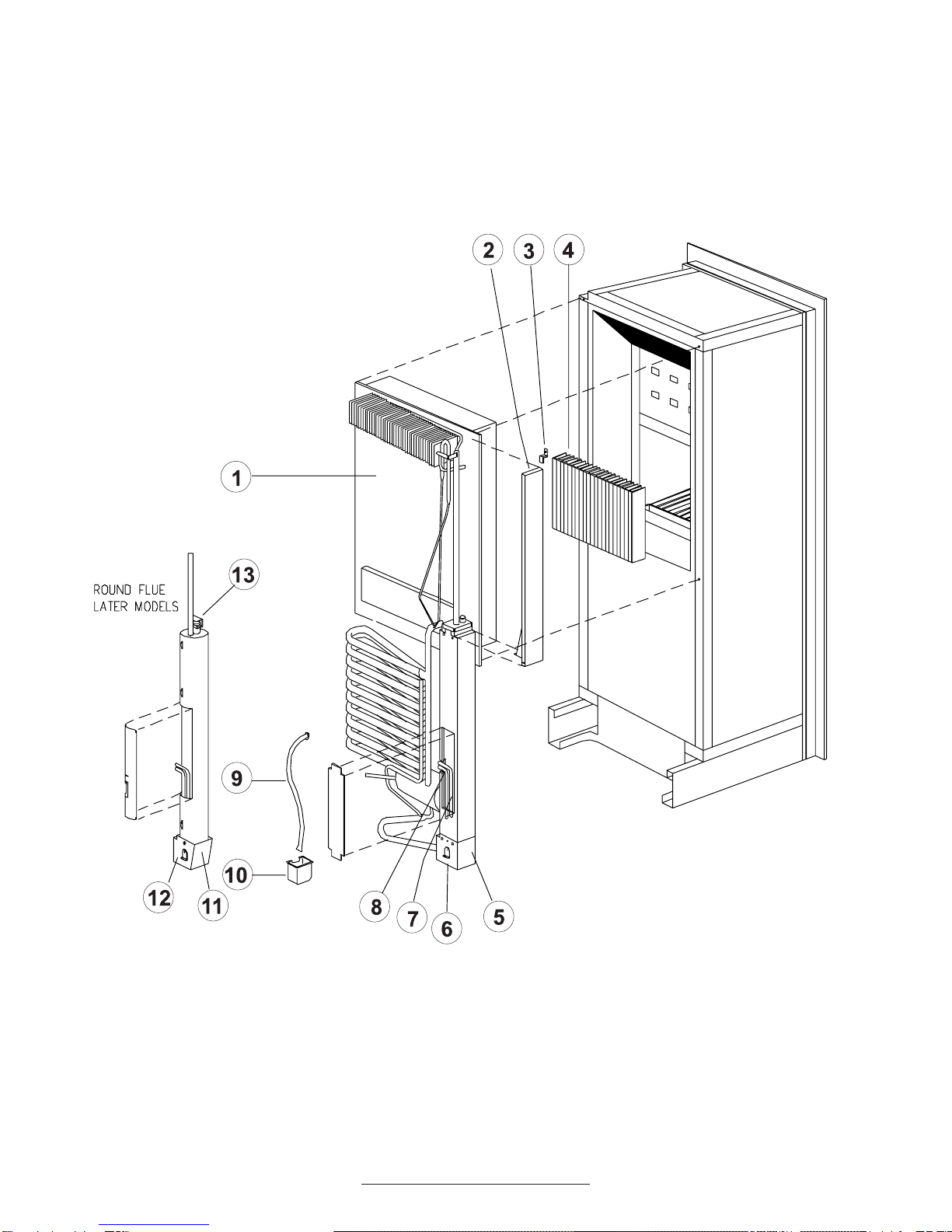

CABINET ASSEMBLY - REAR VIEW - COOLING UNIT AREA - 400 SERIES

400 SERIES PARTS LIST - PAGE 10
CABINET ASSEMBLY - REAR VIEW - COOLING UNIT AREA - 400 SERIES
NO. PART # DESCRIPTION 442 443 452 453 462 463 482 483
1 61687040 NSC SYSTEM PACK-COOLING UNIT/NA4 X
61687140 NSC SYSTEM PACK-COOLING UNIT/NA6 X
632311 NSC SYSTEM PACK-COOLING UNIT/NA8 (BACKERHEATER) X
632318 NSC SYSTEM PACK-COOLING UNIT/NA10 (BACKERHEATER) X
NS 61679437 BAFFLE DIFFUSER/WIREASSY (NOT SHOWN)(USE61632010/61679022) X
NS 61679337 BAFFLE DIFFUSER/WIREASSY (NOT SHOWN)(USE61632010/61679022) X
NS 61679237 BAFFLE DIFFUSER/WIREASSY (NOT SHOWN)(USE618111) X X
2 61664922 FLUE EXTENSION-HORIZONTAL BURNER X
61669437 FLUE EXTENSION-HORIZONTAL BURNER X
61669537 FLUE EXTENSION-HORIZONTAL BURNER X X
61669637 FLUE EXTENSION-HORIZONTAL BURNER X
3 61463322 CLIP-FLUECONNECTOR X X
61589610 CLIP-FLUE CONNECTOR/HORIZONTAL BURNER X X
4 61686823 FINS XXXX
5 61570310 BASE-BURNER COVER/HRZL BURNER/SQUARE END X X X X
6 61760337 COVER ASSY-BURNER BOX/400 SERIES X
61712637 COVER ASSY-BURNER BOX X X X
7 61562622 HEATER-DC/150W/14VDC EG3 EG3
626832 HEATER-DC (COOLING UNIT SERIAL# 11231023 & BELOW) EG3
HEATER-DC (COOLING UNIT SERIAL# 11232007 & BELOW) EG3
630812 HEATER-DC (COOLING UNIT SERIAL# 11231024 & ABOVE) EG3
HEATER-DC (COOLING UNIT SERIAL# 112320087 & ABOVE) EG3
8 61562522 HEATER-AC/200W/110VAC X X
61731122 HEATER-AC/200W/200V/USEDINEUROPE(EV MODELS) X X
621702 HEATER-AC (COOLING UNIT SERIAL# 11231023 & BELOW) X
HEATER-AC (COOLING UNIT SERIAL# 11232007 & BELOW) X
630811 HEATER-AC (COOLING UNIT SERIAL# 11231024 & ABOVE) X
HEATER-AC (COOLING UNIT SERIAL# 112320087 & ABOVE) X
61731222 HEATER-AC/300W/200V/USEDINEUROPE(EV MODELS) X X
9 61591422 DRAINHOSE-23" (USE622390) X
61509522 DRAIN HOSE(USE618217) X
10 61710922 DRIP CUP-REAR/METAL (USE622546) X X
NS 61505122 HOSECLAMP (NOT SHOWN) X X
11 61760122 BASE-BURNER BOX/ROUND CANISTER X
61695322 BASE-BURNER BOX XXX
12 61760337 COVER ASSY-BURNER BOX/400 SERIES X
61712637 COVER ASSY-BURNER BOX X X X
13 61695022 CAP-HEAT DEFLECTOR X X X X

400 SERIES PARTS LIST - PAGE 11

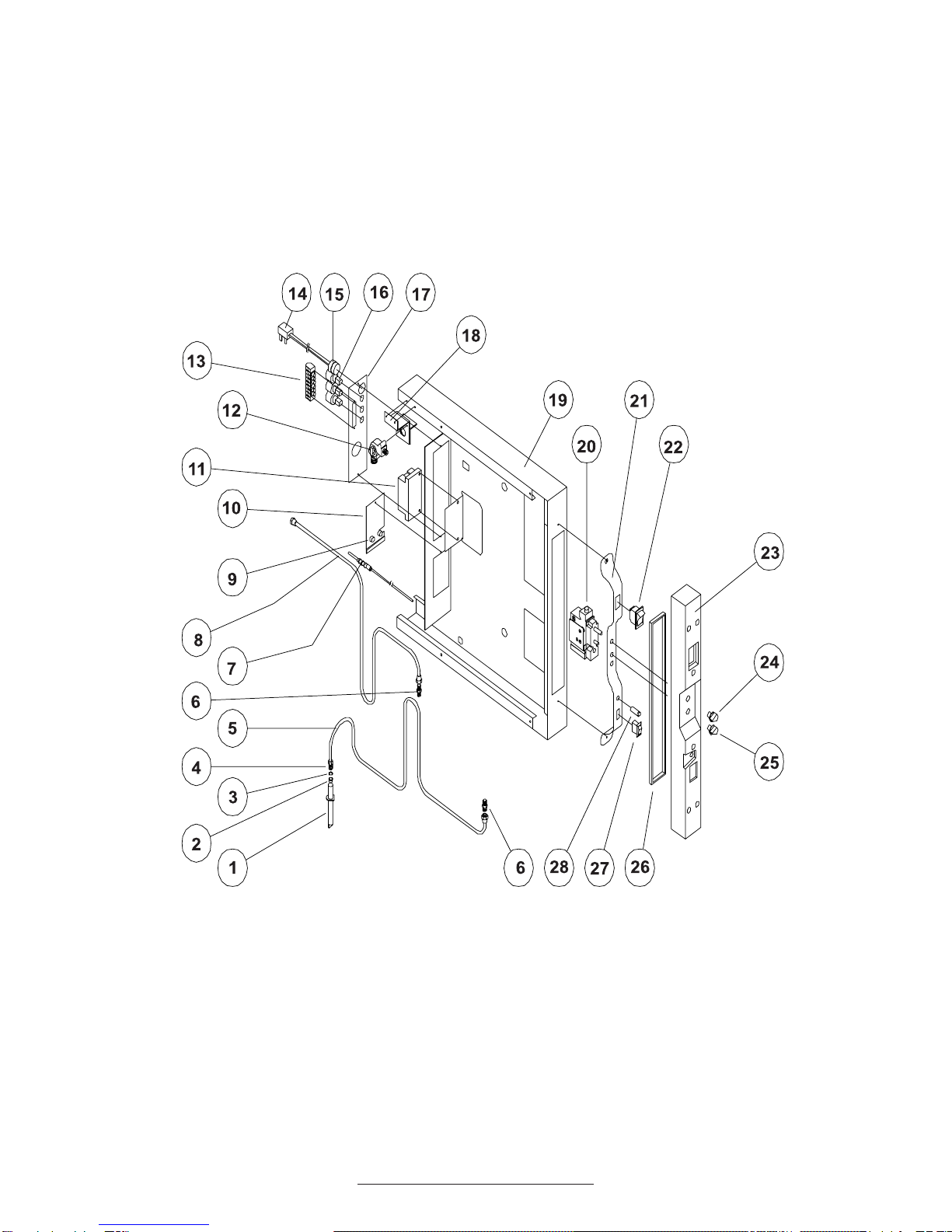

BOTTOM PAN/CONTROL ASSEMBLY - 400 SERIES

400 SERIES PARTS LIST - PAGE 12
BOTTOM PAN/CONTROL ASSEMBLY - 400 SERIES
Continued on Page 13
NO. PART # DESCRIPTION 442 443 452 453 462 463 482 483
1 61705222 BURNERASSY-5 SLOT X X X X
2 61454322 ORIFICE-LP#11/.0115 (USE618866) X
61452122 ORIFICE-LP#14 (USE618866) X X
61452222 ORIFICE-LP#16 (USE618865) X X
3 61475122 ORIFICEGASKET X X X X
4 61448622 FITTING-FOR BURNER TUBE (USE 61692622 & 61692722) X X X X
61692722 FITTING-GAS TUBECONNECTION X X X X
61692622 SLEEVE-BALL/.25"/TUBECOMPRESSION RING/BRASS X X X X
5 61638422 BURNERTUBE X
61648622 BURNER TUBE X
61641622 BURNER TUBE X
61643522 BURNER TUBE X
6 61546822 CONNECTOR-MALE X X X X
7 61436322 THERMOCOUPLE X X X X
8 61638522 INLET TUBE XXXX
9 61436622 BUSHING-OPEN/CLOSED/3/8" X X X
10 61639122 COVER PLATE-BURNER TUBE X X X X
11 61746122 RELIGHTER-WITH GROUND WIRE X X X X
12 61692322 MANUAL SHUT OFF VALVEASSY X X X X
13 61638822 TERMINAL BLOCK-EG2 EG2 EG2 EG2 EG2
61638922 TERMINAL BLOCK-EG3 EG3 EG3 EG3 EG3
NS 61647122 COVER-TERMINAL BLOCK(NOT SHOWN) X X X X
14 61646222 CORD-AC POWER X X X X
15 61395922 BUSHING-RELIEF X X X X
16 61638722 FUSEHOLDER XXXX
NS 61446022 FUSE-GLASS/15 AMP/EG3 (NOT SHOWN) EG3 EG3
NS 61440522 FUSE-GLASS/20 AMP (NOT SHOWN) EG3 EG3
NS 61654622 FUSE-GLASS/3 AMP/32V OR LESS (NOT SHOWN) X X X X
NS 61611622 FUSE-GLASS/5 AMP/110 VOLT (NOT SHOWN) X X X X
17 61639010 COVER PLATE-RELIGHTER X X X X
18 61639222 BRACKET-MANUAL SHUT OFF VALVE X X X X
19 61772022 BOTTOM PAN-SUPPORT ASSY X X X X

400 SERIES PARTS LIST - PAGE 13
BOTTOM PAN/CONTROL ASSEMBLY - 400 SERIES Continued from Page 12
NO. PART # DESCRIPTION 442 443 452 453 462 463 482 483
20 624274 KIT-COMBINATIONCONTROL WITHFITTINGS (CONTACT NORCOLDRECALL) X X X X
21 61631222 BRACKET-CONTROL MOUNTING/FRONT X X X X
22 61694822 SWITCH-EG3/3 POSITION EG3 EG3 EG3 EG3
23 61644022 CONTROL PANEL-BOTTOM/EG2 EG2 EG2 EG2 EG2
61631122 CONTROL PANEL-BOTTOM/EG3 EG3 EG3 EG3 EG3
24 61641822 KNOB-SELECTOR X X X X
25 61642322 KNOB-THERMOSTAT X X X X
26 61651722 GASKET-CONTROL COVER (NOT SHOWN) X X X X
27 61649722 SWITCH-INDICATOR X X X X
28 61609022 INDICATORLIGHT-FLAME X X X X
NS 61607822 ELECTRODEASSY-SPARK/SENSE1/8" (NOT SHOWN) X X X X
NS 61692222 ELECTRODE-SPARK/SENSE/SINGLE ELECTRODE/0.25" (NOT SHOWN) X X X X
NS 61644122 WIRING HARNESS-EG2 (NOT SHOWN) EG2 EG3
NS 61638622 WIRING HARNESS-EG3 (NOT SHOWN) EG3 EG3
NS 61645822 WIRING HARNESS-EG2 (NOT SHOWN) EG2 EG2
NS 61645922 WIRING HARNESS-EG3 (NOT SHOWN)(USE61645822) EG3 EG3
