Nordic ID EXA51 User manual

2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
NORDIC ID EXA51
NORDIC ID EXA51e
USER GUIDE

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 2 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
TABLE OF CONTENTS
GETTING STARTED ..........................................................................................................................................4
1.1. GENERAL.............................................................................................................................................................4
1.2. DIFFERENCES BETWEEN NORDIC ID EXA51 AND NORDIC ID EXA51E..........................................4
1.3. VARIANTS ...........................................................................................................................................................4
NORDIC ID EXA51 VARIANTS........................................................................................................4
NORDIC ID EXA51E VARIANTS .....................................................................................................5
1.4. AVAILABLE ACCESSORIES .............................................................................................................................5
1.5. INBOX CONTENT .............................................................................................................................................5
1.6. FEATURES OVERVIEW ....................................................................................................................................6
1.7. INSTALLING BATTERY.....................................................................................................................................8
1.8. CHARGING .........................................................................................................................................................9
NORDIC ID EXA51 CHARGING ......................................................................................................9
HOST DEVICE CHARGING............................................................................................................ 10
1.8.2.1. WIRELESS CHARGING................................................................................................................ 10
1.8.2.2. CHARGING VIA USB ................................................................................................................... 11
BATTERY CHARGING..................................................................................................................... 13
1.9. FASTENING ..................................................................................................................................................... 14
QUAD LOCK®FASTENING........................................................................................................... 14
MAGNET FASTENING.................................................................................................................... 15
SCREW FASTENING ....................................................................................................................... 16
1.10. CONNECTIONS .......................................................................................................................................... 17
CONNECTING WITH HOST DEVICE VIA HID MODE......................................................... 17
PAIRING NORDIC ID EXA51 WITH A HOST DEVICE.......................................................... 17
CONFIGURING HID MODE WITH BARCODE....................................................................... 17
1.10.3.1. CONFIGURING HID MODE VIA APPLICATION ................................................................ 18
1.11. OPERATING WITH HID MODES ............................................................................................................ 18
HID BARCODE ENABLED........................................................................................................... 18
HID RFID ENABLED ..................................................................................................................... 18
BOTH: HID BARCODE & HID RFID ENABLED. ..................................................................... 18
1.12. USING THE READER.................................................................................................................................. 19
KEYS AND BUTTONS .................................................................................................................. 19
1.12.1.1. TRIGGER BUTTON .................................................................................................................... 19
1.12.1.2. POWER KEY................................................................................................................................ 19
1.12.1.3. UNPAIR A BLUETOOTH DEVICE KEY.................................................................................. 19
LED INDICATORS ......................................................................................................................... 20
1.12.2.1. READ/HID/CONFIGURABLE LED ......................................................................................... 20
1.12.2.2. BLUETOOTH LED...................................................................................................................... 20

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 3 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
1.12.2.3. POWER LED................................................................................................................................ 20
ANTENNAS..................................................................................................................................... 21
SOFTWARE...................................................................................................................................................... 23
2.1. NORDIC ID RFID DEMO APPLICATIONS ................................................................................................ 23
NORDIC ID RFID DEMO FOR ANDROID.................................................................................. 23
NORDIC ID RFID DEMO FOR IOS .............................................................................................. 23
2.2. APPLICATION DEVELOPMENT.................................................................................................................. 23
NUR API IN GENERAL .................................................................................................................... 23
APPLICATION DEVELOPMENT................................................................................................... 24
2.3. FIRMWARE UPDATE..................................................................................................................................... 25
SERVICE AND SUPPORT.............................................................................................................................. 25
WARRANTY..................................................................................................................................................... 26
RELATED DOCUMENTS AND CONTENT................................................................................................ 26
ABOUT NORDIC ID ....................................................................................................................................... 26
VERSION HISTORY........................................................................................................................................ 27

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 4 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
GETTING STARTED
1.1. GENERAL
Nordic ID EXA51 and Nordic ID EXA51e do provide UHF RFID reader capabilities and optional 1D/2D
barcode scanning functionalities for host devices. The Nordic ID EXA51 and Nordic ID EXA51e are used
with the host devices via Bluetooth®Low Energy wireless technology. Nordic ID EXA51 text is used in
the user guide to cover both products unless otherwise stated.
1.2. DIFFERENCES BETWEEN NORDIC ID EXA51 AND NORDIC ID
EXA51e
Differences between Nordic ID EXA51 and Nordic ID EXA51e have been listed in the following table.
FEATURE
NORDIC ID EXA51
NORDIC ID EXA51e
UHF RFID module
NUR-10W
NUR2-1W
Supported standard
ISO 18000-63 (EPC Class 1
Gen2v2) AES authentication in
accordance with ISO/IEC
29167-10 supported
ISO 18000-63 (EPC Class 1
Gen2v2)
Nominal reading distance
Up to 7m
Up to 10m
Nominal reading speed
200 tags/s
Up to 1000 tags/s
Usage time
Up to 24h
Up to 14h
1.3. VARIANTS
NORDIC ID EXA51 VARIANTS
The Nordic ID EXA51 is available in 8 different variants that are
CODE
FREQUENCY
2D IMAGER
WIRELESS
CHARGING
QUAD LOCK®
IWA00001
868MHz
Yes
No
Yes
IWA00002
915MHz
Yes
No
Yes
IWA00003
868MHz
No
No
Yes
IWA00004
915MHz
No
No
Yes
IWA00005
868MHz
Yes
Yes
No
IWA00006
915MHz
Yes
Yes
No
IWA00007
868MHz
No
Yes
No
IWA00008
915MHz
No
Yes
No

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 5 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
NOTE! Quad Lock®universal adaptor is sold separately
NORDIC ID EXA51e VARIANTS
The Nordic ID EXA51e is available in 8 different variants that are
CODE
FREQUENCY
2D IMAGER
WIRELESS
CHARGING
QUAD LOCK®
IWA00014
868MHz
Yes
No
Yes
IWA00015
915MHz
Yes
No
Yes
IWA00016
868MHz
No
No
Yes
IWA00017
915MHz
No
No
Yes
IWA00021
868MHz
Yes
Yes
No
IWA00018
915MHz
Yes
Yes
No
IWA00019
868MHz
No
Yes
No
IWA00020
915MHz
No
Yes
No
1.4. AVAILABLE ACCESSORIES
CODE
DESCRIPTION
ACN00155
Nordic ID EXA51/Medea Desktop Charger DC USB Out
CWH00036
Nordic ID EXA51/Medea Micro-USB cable for device and desktop charger
(Length 1.8m, type A-Male –type Micro-B-Male –connectors)
ACN00162
Host device installation kit for Nordic ID EXA51. The kit includes counter parts
of magnets (2 pcs) and screws (2pcs) (Minimum order quantity 10 pcs)
ACP00097
Quad Lock Universal Adaptor v1. The Quad Lock Universal Adaptor with 3M™
adhesive is a super thin adaptor that is compatible with all Quad Lock™ mounts.
The Quad Lock Universal Adaptor designed to be used only once, it is not re-
stick-able (link to product page)
1.5. INBOX CONTENT
The Nordic ID EXA51 inbox contains following items
•The Nordic ID EXA51
•Battery (installed)
•Counter parts of magnets for magnet fastening of host device
•Screws for screw fastening
•Safety and regulations guide
•Business card with link to quick guide

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 6 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
1.6. FEATURES OVERVIEW
Picture 1 Key features of wireless charging variant

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 7 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
Picture 2 Key features of Quad Lock variant

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 8 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
1.7. INSTALLING BATTERY
Picture 3 Installing battery

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 9 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
1.8. CHARGING
NORDIC ID EXA51 CHARGING
The Nordic ID EXA51 can be charged via cradle and USB charger. Maximum charging power via the cradle
is 10W (5V @ 2A). Charging time from 0 –100% via the cradle is about 5h. The USB charger needs to
have a micro USB connector and recommended charging power is 10W (5V @ 2A).
Charging status is indicated by Power LED. Please see section 1.12.2.3 for information how the Power
LED functions in different situations.
Picture 4 Charging of the Nordic ID EXA51 via cradle

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 10 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
NOTE! The cradle is sold separately by Nordic ID. The USB charger is not
included in the Nordic ID EXA51 inbox and is not sold by Nordic ID.

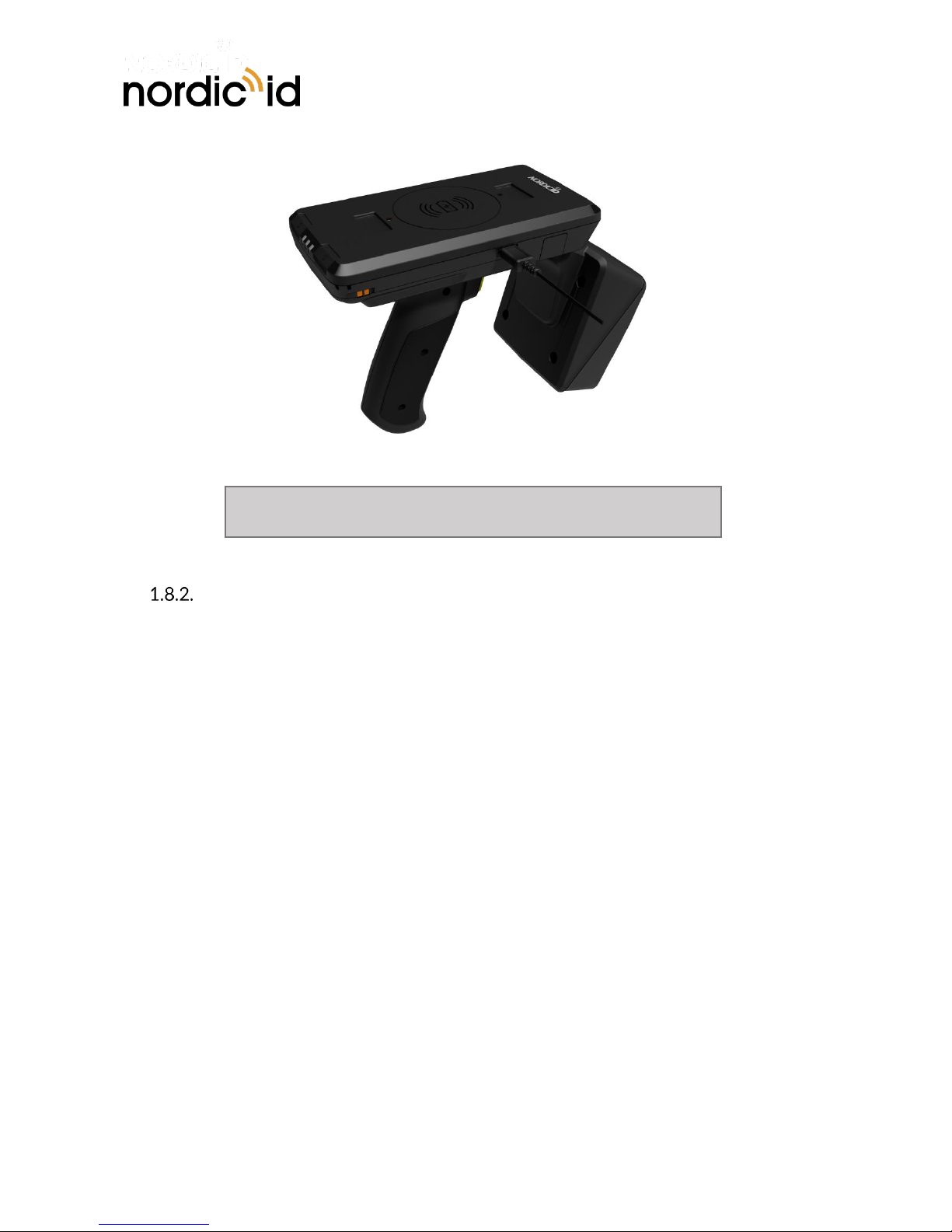

Picture 5 Charging of the Nordic ID EXA51 via USB charger
HOST DEVICE CHARGING
Host device attached on the Nordic ID EXA51 can be charged via wireless charging or USB from the
cradle.
1.8.2.1. WIRELESS CHARGING
Wireless charging is based on inductive charging technology and is compliant with Qi v1.2 specification.
With the inductive charging technology, the power is transmitted between a transmitter and receiver
coils placed closely together. The Nordic ID EXA51 acts as a transmitter and host device acts as a receiver.
The coils of the transmitter and receiver must be aligned well to make the connection. Charging efficiency
greatly depends on how well the coils are aligned. The wireless charging may not work or may work
unreliably if the coils are misaligned. Please see section 1.6 for information about the coil location of the
Nordic ID EXA51. When wireless charging is powered from the battery of the Nordic ID EXA51 then
wireless charging is disabled in following cases:
•Battery level of the Nordic ID EXA51 is < 10%
•The Nordic ID EXA51 goes to sleep mode
Please note that the Nordic ID EXA51 does not go into sleep mode and will keep wireless charging
enabled when charged via the cradle or USB charger. Maximum charging power via the wireless charging
when the Nordic ID EXA51 is charged is 5W. Maximum charging power via the wireless charging when
the Nordic ID EXA51 is not charged is 2.5W 5W (wireless charging power is delivered from the battery
of the Nordic ID EXA51).

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 11 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
NOTE! Host device needs to support Qi based inductive wireless charging technology in order
to charge from the Nordic ID EXA51. Please contact your device manufacturer in order to
make sure wireless charging is supported.
Picture 6 Wireless charging of host device
1.8.2.2. CHARGING VIA USB
Host device can be charged via the cradle using a proper USB cable (the cradle contains an USB type-A
connector). Maximum charging power via the cradle depends on charge level of the Nordic ID EXA51
battery. Maximum 7W charging power can be achieved when the battery of the Nordic ID EXA51 is
full/almost full. When the Nordic ID EXA51 charges at full power then the maximum charging power of
host device is limited to 4W.

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 12 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
Picture 7 USB charging of host device

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 13 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
BATTERY CHARGING
The battery or spare battery of the Nordic ID EXA51 can be charged in the cradle. Please note that when
USB charging from the cradle is used, spare battery charging of the cradle is disabled. Please find more
information about the how charging from the Picture 8 Battery charging in cradle.
Picture 8 Battery charging in cradle

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 14 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
NOTE! Quad Lock®universal adaptor is sold separately
1.9. FASTENING
The Nordic ID EXA51 provides three different fastening methods for host devices. The fastening methods
are Quad Lock, magnets, and screw fastenings.
QUAD LOCK®FASTENING
The Quad Lock fastening uses popular and easy to use Quad Lock fastening system. The Quad Lock
fastening system provides strong and secure fastening and is suitable for different kind of host devices.
Please visit Quad Lock web page for more information about different adapters.
Fastening of the host device on the Nordic ID EXA51 with the Quad Lock fastening system is easy. The
first step is to attach a Quad Lock adapter on the host device. Second step is to fasten the host device on
the Nordic ID EXA51 by attaching and locking the Quad Lock fastening system.
Picture 9 The first installation

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 15 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
MAGNET FASTENING
The magnet fastening is a tight but effortless option to fasten the host device on the Nordic ID EXA51.
Using magnet fastening is easy. The first step is to place the counter parts of magnets to the recesses
located on the top cover of the Nordic ID EXA51 (Note! protective tape should be pointing outwards
from the Nordic ID EXA51). The second step is to remove protective tape from the counter parts of
magnets. The third step is to place the host device on top of the Nordic ID EXA51 and ensure that the
magnet counter parts are securely attached to the host device.
Picture 10 The first installation

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 16 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
SCREW FASTENING
The screw mounting is a robust option to mount a host device on the Nordic ID EXA51. This option
requires a protective case or cover for the host device which is screwed on the Nordic ID EXA51. The
first step is to screw the case/cover to screw holes of the Nordic ID EXA51. The distance between the
screw holes is 68mm and the diameter of each screw is 3.5mm. The second step is to place the host
device into the case/cover.
Picture 11 The first installation

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 17 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
NOTE! Bluetooth Low Energy needs to be supported by host device
NOTE! When the Nordic ID EXA51 is configured for HID mode: remember that you will
need to reconnect the Nordic ID EXA51 after using non-HID applications (such as Nordic
ID RFID Demo). This will enable the HID mode again. The easiest way to do this is turn
off/on Bluetooth of host device.
NOTE! XXXXX is a serial number of the Nordic ID EXA51
1.10. CONNECTIONS
The Nordic ID EXA51 supports only Bluetooth Low Energy Class 2 connection for host devices.
Supported Bluetooth Low Energy versions are 4.0 –4.2 and supported profiles are GATT and HID.
CONNECTING WITH HOST DEVICE VIA HID MODE
In this mode, the Nordic ID EXA51 functions and communicates in a similar manner as a keyboard.
Therefore, the device will work with any application that supports an active cursor on input fields, for
example web browser applications. When operating in HID mode, the Nordic ID EXA51 needs to be
paired with the host device and configured for the HID mode.
PAIRING NORDIC ID EXA51 WITH A HOST DEVICE
1. Turn Bluetooth of the host device ON.
NOTE: Android 6.0 or newer needs location to be enabled also
2. Power on the Nordic ID EXA51 by pressing the power button for 2...3 seconds
3. Open Bluetooth connection settings of host device and you should see “EXA51 XXXXXX” in the list
4. Select “EXA51 XXXXXX” from the list in order pair your host device with the Nordic ID EXA51
CONFIGURING HID MODE WITH BARCODE
Read barcode below to configure the Nordic ID EXA51 to desired HID mode. Make sure device is not
connected with Bluetooth while configuring with barcodes.
•HIDMODE0 = All HID modes disabled
•HIDMODE1 = HID barcode enabled
•HIDMODE2 = HID RFID enabled

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 18 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
NOTE! XXXXX is a serial number of the Nordic ID EXA51
1.10.3.1. CONFIGURING HID MODE VIA APPLICATION
1. Install Nordic ID RFID Demo application (see section 2.1)
2. Connect your device
3. Turn on HID mode, RFID and/or barcode mode in reader settings
4. Close application and make sure Bluetooth connection is closed
5. Reboot your EXA51 device by pressing the power button for 2...3 seconds.
1.11. OPERATING WITH HID MODES
HID BARCODE ENABLED
Reading Barcode:
•Pressing trigger down barcode aimer starts Releasing trigger scanning start
•When tag found, result is sent to HID immediately
•Pressing trigger down during scan scanning aborted
HID RFID ENABLED
Reading RFID tags:
•Pressing trigger down RFID reading starts
•Reader read tags in memory as long trigger is kept down. Short beep when new tags found
•Releasing trigger Reading stops and tags in memory will be transmitted to HID. Short beep when
single tag sent. If no tags found, double low note beeps.
BOTH: HID BARCODE & HID RFID ENABLED.
Activate Barcode reader:
•Trigger click (short press (<350ms) and released immediately) Barcode scanning start immediately
without aiming.
•Trigger press and keeping down at least 350ms Barcode aimer starts Trigger released 
scanning starts.
Activate RFID reader:
•Pressing trigger “double click” and keeping down RFID reading start. Searching tags. Beep when
tags found.
•Releasing trigger Reading stop and tags in memory will be transmitted to HID. Short beep when
single tag sent. If no tags found, double low note beeps.

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 19 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
NOTE! Button usage depends on the application in use.
NOTE! Reader can be powered down even though it has an active Bluetooth connection
by pressing power button down at least 7 seconds
•Pressing trigger during tag sending aborted.
•Pressing trigger during barcode scanning aborted.
1.12. USING THE READER
KEYS AND BUTTONS
The Nordic ID EXA51 includes two capacitive buttons and one physical button for user interactions.
Location of the keys can be seen in the Picture 12.
Picture 12 Location of capacitive keys
1.12.1.1. TRIGGER BUTTON
The trigger button is located on the pistol grip and it can be used to start/stop UHF RFID/barcode
scanning and turn reader on. When turning the reader on the trigger button needs to be pressed 0.5
seconds until blue LED starts blinking before it triggers. This ensures that accidental presses are avoided.
Depending on the application in use, the trigger button starts/stops UHF RFID or barcode reading. By
default, the first press of the button starts the reading and the second press of the button stops it.
1.12.1.2. POWER KEY
Power key turns reader On/Off. The power key needs to be pressed for about 2…3 seconds until red led
turns to green before it triggers, this ensures that accidental presses are avoided. The power key is
disabled when Nordic ID EXA51 has an active Bluetooth connection with host device.
1.12.1.3. UNPAIR A BLUETOOTH DEVICE KEY
If the Nordic ID EXA51 is paired to the host device, it stores information about the paired devices and
tries to connect automatically when turned on. Using the “Unpair a Bluetooth device” key clears paired
device from the Nordic ID EXA51 memory.
Unpairing:

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office [phone] | Fax + 358 2 727 7720 | [e-mail] 20 / 27
2017-09-22
Nordic ID EXA51 and Nordic ID EXA51e User Guide
Version 1.7
NOTE! The “Unpair a Bluetooth device” key is disabled when Nordic ID EXA51 has an
active Bluetooth connection with host device
•Make sure device is disconnected.
•Press and keep “Unpair” button down at least 3 second.
•When device beeps three times, pairing is cleared. Device may reboot.
LED INDICATORS
The Nordic ID EXA51 includes three LEDs for user indications. Location of the LEDs can be seen from
the Picture 13.
Picture 13 Location of LEDs
1.12.2.1. READ/HID/CONFIGURABLE LED
By default, Read/HID/Configurable LED indicates whether RFID or barcode reading is active. The
Read/HID/Configurable LED can be configured via API if needed.
1.12.2.2. BLUETOOTH LED
The Bluetooth LED indicates whether the Bluetooth connection is On/Off or in search mode.
1.12.2.3. POWER LED
The Power LED indicates whether the reader is On/Off it also indicates the battery level of the reader.
The battery level is indicated by the colour of the Power LED.
