NORDICCO NORTHERN AIR MINI User manual

INSTALLATION MANUAL
INSTALLATIONSMANUAL
INSTALLATIONSHANDBUCH
NORDICCO NORTHERN AIR®MINI
ENGLISH - DANSK - DEUTSCH
Vers. 2.0

Content/Indholdsfortegnelse/Inhaltsverzeichnis
English............................................................................................................................. 1
Caution & Safety ........................................................................................................................... 1
Introduction................................................................................................................................... 2
Pre-Installation .............................................................................................................................. 5
Installing the fan ........................................................................................................................... 8
Information..................................................................................................................................14
Dansk ............................................................................................................................ 16
Generel sikkerhedsinformation ................................................................................................16
Introduktion.................................................................................................................................17
Før installationen ........................................................................................................................20
Installation af ventilatoren .........................................................................................................23
Information..................................................................................................................................29
Deutsch ......................................................................................................................... 31
Allgemeine Sicherheitsinformationen .....................................................................................31
Introduktion.................................................................................................................................32
Vor der Installation .....................................................................................................................35
Installation des Ventilators.........................................................................................................38
Information..................................................................................................................................44
EN: Please read this manual carefully before use. Use the product accordingly and store this manual in a safe place.
In order to protect your rights and interests,please make sure to note deal records such as the purchase date, dealer’s
name, etc. on the guarantee. For installation methods not included in this manual, please consult a structural
engineer.
DA: Læs og forstå venligst denne manual før brug. Brug produktet i overensstemmelse hermed, og opbevar denne
vejledning et sikkert sted. For at beskytte dine rettigheder og interesser, skal du sørge for at notere
aftaleregistreringer såsom købsdato, forhandlerens navn osv. på garantien. For installationsmetoder, der ikke er
inkluderet i denne vejledning, bedes du kontakte en bygningsingeniør.
DE: Vor Gebrauch lesen Sie bitte dieses Handbuch sorgfältig durch. Verwenden Sie das Produkt entsprechend und
bewahren Sie diese Anleitung an einem sicheren Ort auf. Um Ihre Rechte und Interessen zu wahren, vermerken Sie
bitte unbedingt Geschäftsunterlagen wie Kaufdatum, Händlername etc. auf der Garantie. Für Installationsmethoden,
die nicht in diesem Handbuch enthalten sind, wenden Sie sich bitte an einen Statiker.


NORTHERN AIR
®
MINI FAN Installation Manual
1
English
Caution & Safety
WARNING - TO REDUCE THE RISK OF ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
1. Installation work and electrical wiring must be performed by qualified person(s) in accordance with all
applicable codes and standards.
2. Do not damage existing wiring and other hidden utilities/devices when cutting or drilling into a wall or ceiling.
3. Use this unit only in the manner intended by the manufacturer. If you have questions, contact Nordicco A/S or
a distributor. Mounting of and replacement of parts of the suspension system must be performed by the
manufacturer, its service agent, or suitably qualified persons.
4. Do not operate any fan with a damaged cord or plug. Please contact manufacturer and qualified technician
for examination and/or repair.
5. Before servicing or cleaning unit, turn off all the power switches to prevent power from being switched on
accidentally. When the circuit breaker cannot be locked, securely fasten a prominent warning device, such as
a tag, to the service panel.
6. Nordicco A/S provides installation guide for mounting fans; however, it is the sole responsibility of the building
owner and installer to ensure the safety of the mounting system, that the building structure is sound, and that
the installation complies with all federal, state, and local codes.
7. While turning on power to the fan, please use it with caution. DO NOT connect the fan to a
damaged/dangerous power source. DO NOT attempt to resolve electrical problems by yourself. Please send
the fan back to authorized service center if examination and/or repair is needed. If there is any question with
installation, please contact customer service.
8. When service or replacement of a fan component requires the removal or disconnection of a safety device,
the safety device is to be reinstalled or remounted as previously installed.
9. Do not bend the airfoils when installing, servicing, or cleaning the fan. Do not insert foreign objects between
rotating airfoils.
10. This appliance is suitable for use in countries and regions with hot and humid climates but can also be used
in other countries and regions.
11. (For EU region) This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
12. (For EU region) Children shall not play with the appliance.
13. (For EU region) Cleaning and user maintenance shall not be made by children without supervision.
14. (For other than EU region) The appliance is not to be used by persons (including children) with reduced
physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given
supervision or instruction.
15. Nordicco A/S product warranty will not cover equipment damage or failure that is caused by improper
installation or use.
16. If unusual oscillating movement is observed, immediately stop using the fan and contact the manufacturer, the
distributor, or suitably qualified persons.
17. NORTHERN AIR®MINI controller is equipped with a memory function. After disconnecting power, it still
remembers the previous operation mode. Once turning on power to the fan, it also keeps previous operation
mode.

NORTHERN AIR
®
MINI FAN Installation Manual
2
Introduction
Thanks for choosing our products. The NORTHERN AIR®MINI fan is an efficient, economical, and stylish choice. It's
energy-saving, eco-friendly design brings excellent airflow to your space. We assure you this appliance will make
your space more comfortable in the near future.

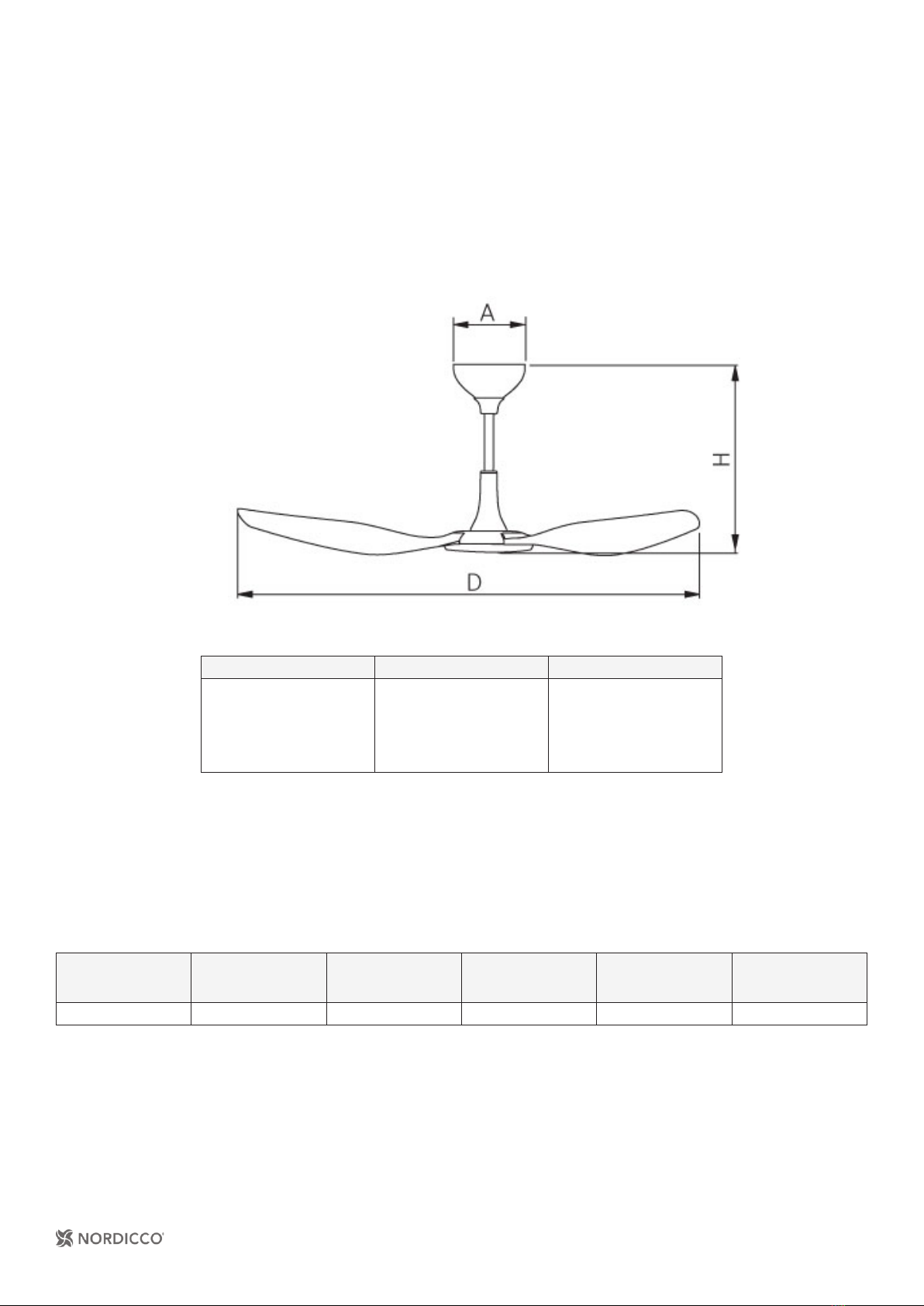

Fan Outline
D
H
A
5 ft / 1,5 m 1.7 ft / 525 mm 0.65 ft / 200 mm
Product Specifications
NORTHERN AIR®MINI fan -5 ft (1.5 m)
Input Voltage (VAC)
Input
Frequency
(Hz)
Maximum Rated
Power
(W)
Maximum Rated
Current (A)
Maximum RPM
(RPM)
Noise
(dB(A))
220-240
50/60
50
0.43
120
<35


NORTHERN AIR
®
MINI FAN Installation Manual
3
Installation Precautions
1. Installation of this fan requires a proper platform which can support the weight of fan plus installers, such as an aerial
work platform.
2. Please switch off all power before installation to avoid the risk of electric shock.
3. All wiring construction must comply with the national electrical codes, standards, and the local electrical law, and
must be installed by professional technicians or personnel.
4. An earth leakage circuit breaker (<30 mA) should be installed between the appliance and the power switch.
5. The power switch must be fitted with a fuse (≥20 A).
6. The yoke must be securely mounted to the ceiling or beam.
7. Do not damage electrical wiring and other hidden utilities/devices during installation.
8. To avoid fire or other hazards, make sure that the wires are completely inside, no wire is to be exposed outside the
fan.
9. Do not bend the airfoils when installing the fan.
10. The fan model covered by the installation instructions must comply with this installation manual and all national/local
electrical codes to avoid personal injury or property damage.
11. Please ensure that this application is equipped with AC single phase 220-240 V before installation.
12. All fan parts must be ≥ 2 ft (0.6 m) from all obstructions. The fan installation area must be free of obstructions such
as lights, cables, sprinklers, or other building structure components.
13. The distance should be at least 0.98 ft (0,3 m) from the top of the winglet to the ceiling and with no obstructions in
this area.
14. The fan must be installed so that it is at least 8.17 ft (2,5 m) above the floor.
15. Multiple fans must be spaced at a center-to-center distance that is no less than 2,5x the fan diameter.
16. The fan should not be located near air supply outlets or exhaust inlets of other HVAC equipment. Air supply
outlets/inlets can be configured to deliver air away from the fan and outside the swept area of the fan.
17. If the fan is mounted at the same level or higher than an HVAC diffuser, the winglets must be at a distance that is at
least 1,5x the measure of the fan’s diameter. If the fan is mounted below an HVAC diffuser, the winglets must be at
a distance that is at least 2x the measure of the fan’s diameter.
18. Please contact local fire experts regarding requirements for the minimum clearance to combustibles.
19. The fan inlet or other return air point that produces negative pressure should be bigger than 1x the diameter of the
ceiling fan. This system will reduce the airflow of the fan.
20. Proper systems orientation will provide an enhancement to the Indoor Air Quality and occupant comfort. Please
refer to the illustration below.


NORTHERN AIR
®
MINI FAN Installation Manual
4

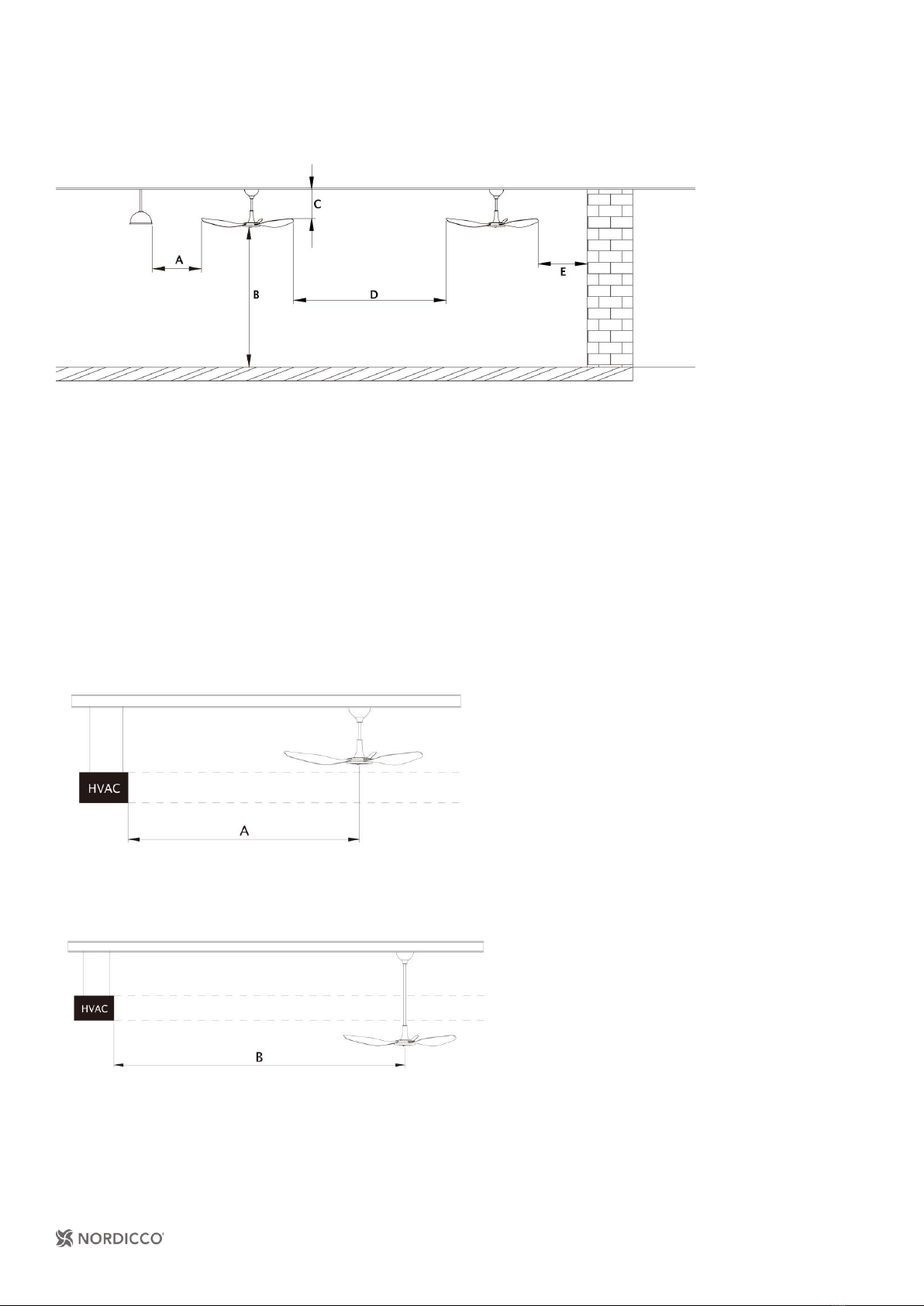

The Placement & Clearance between Fan and Obstructions
A. The tip of an airfoil needs at least 2 ft (0,6 m) distance to any equipment/obstacles.
B. The fan needs at least 8.17 ft (2,5 m) distance to the floor.
C. The tip of the airfoil needs at least 0.98 ft (0,3 m) distance from beam / ceiling and no obstacles.
D. Spacing between fans must be at least 2,5x diameter of the fans.
E. Distance to a wall must be at least 2 ft (0,6 m).
The Placement & Clearance between Fan and HVAC Diffuser
•If the fan position is above the HVAC outlet
A: The distance between the center of the
fan and the HVAC equipment needs to be
at least 1,5x diameter.
•If the fan position is below the HVAC outlet
B: The distance between the center of the
fan and the HVAC equipment needs to be
at least 2x diameter.

NORTHERN AIR
®
MINI FAN Installation Manual
5
Pre-Installation
Inside the box
Motor*1 Fixed Bracket*1 Yoke*1
Extension Tube Unit*1 Canopy*1 Circuit Box Unit*1
Remote Control *1
Airfoil Bolt Kit (M6 20L Bolt Kit) Closed-End Wire Connector*6 Standard Allen Wrench Kit
Airfoil *3

NORTHERN AIR
®
MINI FAN Installation Manual
6
Tools Required for Installation
Yoke Installation Mechanical Installation Electrical Installation
-Secure the yoke to the
mounting structure with
suitable hardware (We
recommend M6 bolt kits)
-Guy wire cutter
-Torque wrench 4.9-24.51 Nm. (50-250
Kgf.cm) for inspection purpose
-Standard Allen wrench set
-Standard wrench/socket set
-Level
-Utility Knife
-Multimeter
-Crimping Pliers
-Pair if #10 to #24 AWG
strippers
-Diagonal Pliers

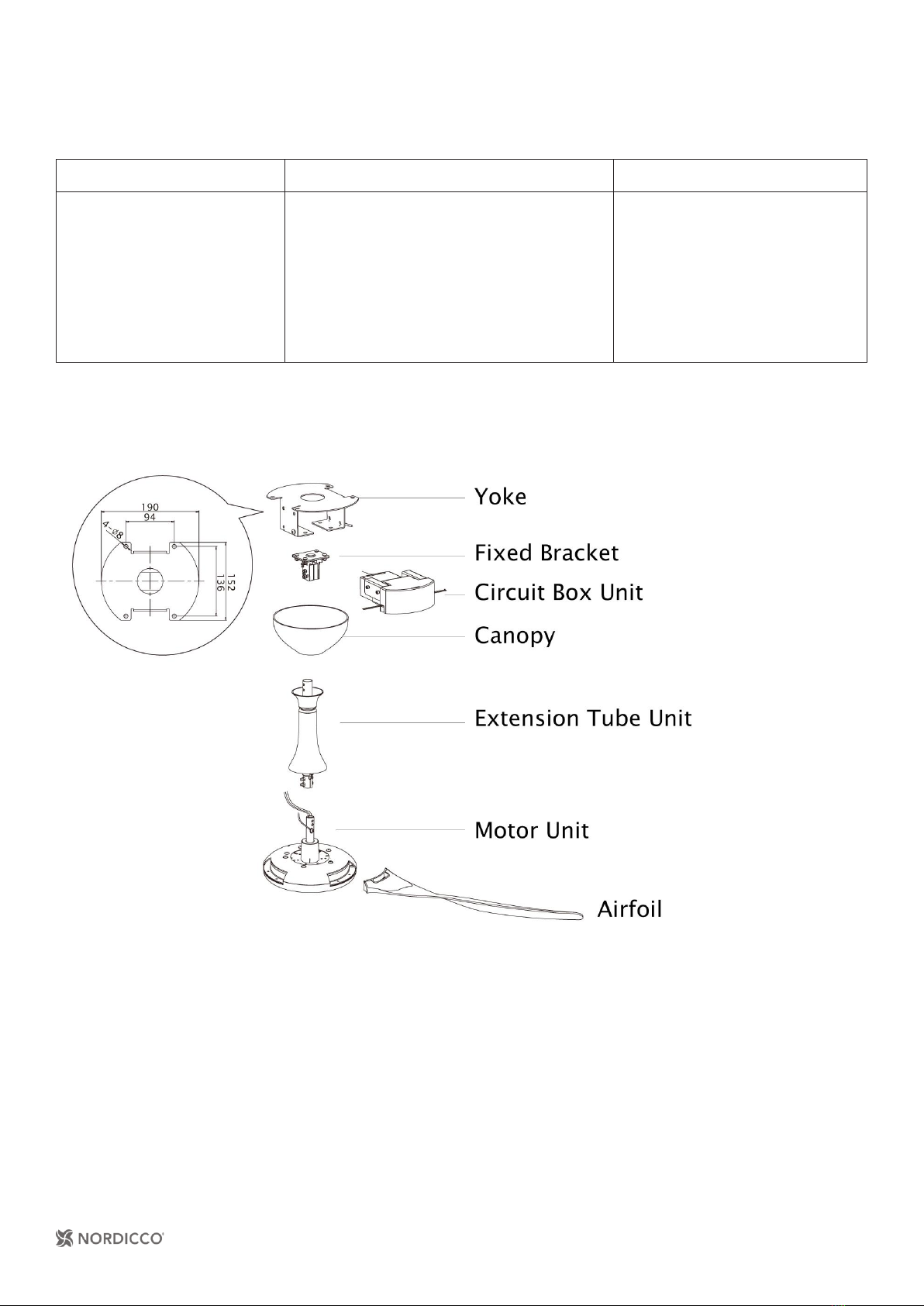

Fan Diagram

NORTHERN AIR
®
MINI FAN Installation Manual
7
Pre-Installation Checklist
Equipped with appropriate mounting kit for roof pitch.
The fan is designed to be installed on straight ceilings.
The mounting structure is approved by structural engineers.
The mounting system must be able to withstand the torque generated by the fan.
Familiarity with the functions of the safety cable.
For the fan installation, the fan blades should be at least 8.17 feet (2,5 meters) above the ground.
(Please refer to section “The Placement & Clearance between Fan and Obstructions ”)
For the fan installation, the distance between the blades and other objects/building structure should
be at least 2 feet (0,6 meters).
(Please refer to section “The Placement & Clearance between Fan and Obstructions ”)
The center-to-center distance between two fans should be at least 2,5 times the diameter of the fans.
(Please refer to section “The Placement & Clearance between Fan and Obstructions ”)
When installing the fan, make sure the fan is not affected by high winds from HVAC systems or garage
doors. (Please refer to section “The Placement & Clearance between Fan and HVAC Diffuser ”)
The yoke size should match mounting structure.
(Please refer to section “Fan Diagram”)
The power supply unit complies with the specification of the frequency converter, and the wires pass
through the fan installation position.
For power requirements, please refer to voltage sticker on the fan.

NORTHERN AIR
®
MINI FAN Installation Manual
8
Installing the fan
Installation Method
1-1 Secure yoke to the mounting structure with
suitable hardware.
* We recommend M6 bolt kits.
2-1 Take out the motor unit and the extension
tube unit. Loosen the bolt kits of the
extension tube unit.
2-2¨Pass through the extension tube unit with
motor wire and safety cable.
2-3 Insert the shaft of the motor between two
extension tube clamps, then secure the
safety cable and two extension tube clamps
with the shaft.
*Recommended Tightening Torque:
5 Nm. (50 Kgf.cm)
* Make sure the extension tube unit is horizontally and
vertically level.
3-1 Take out the canopy, make the extension
tube unit pass through the hole of canopy.
3-2 Assemble fixed bracket to extension tube
unit as shown.
*Recommended Tightening Torque:
5 Nm. (50 Kgf.cm)

NORTHERN AIR
®
MINI FAN Installation Manual
9

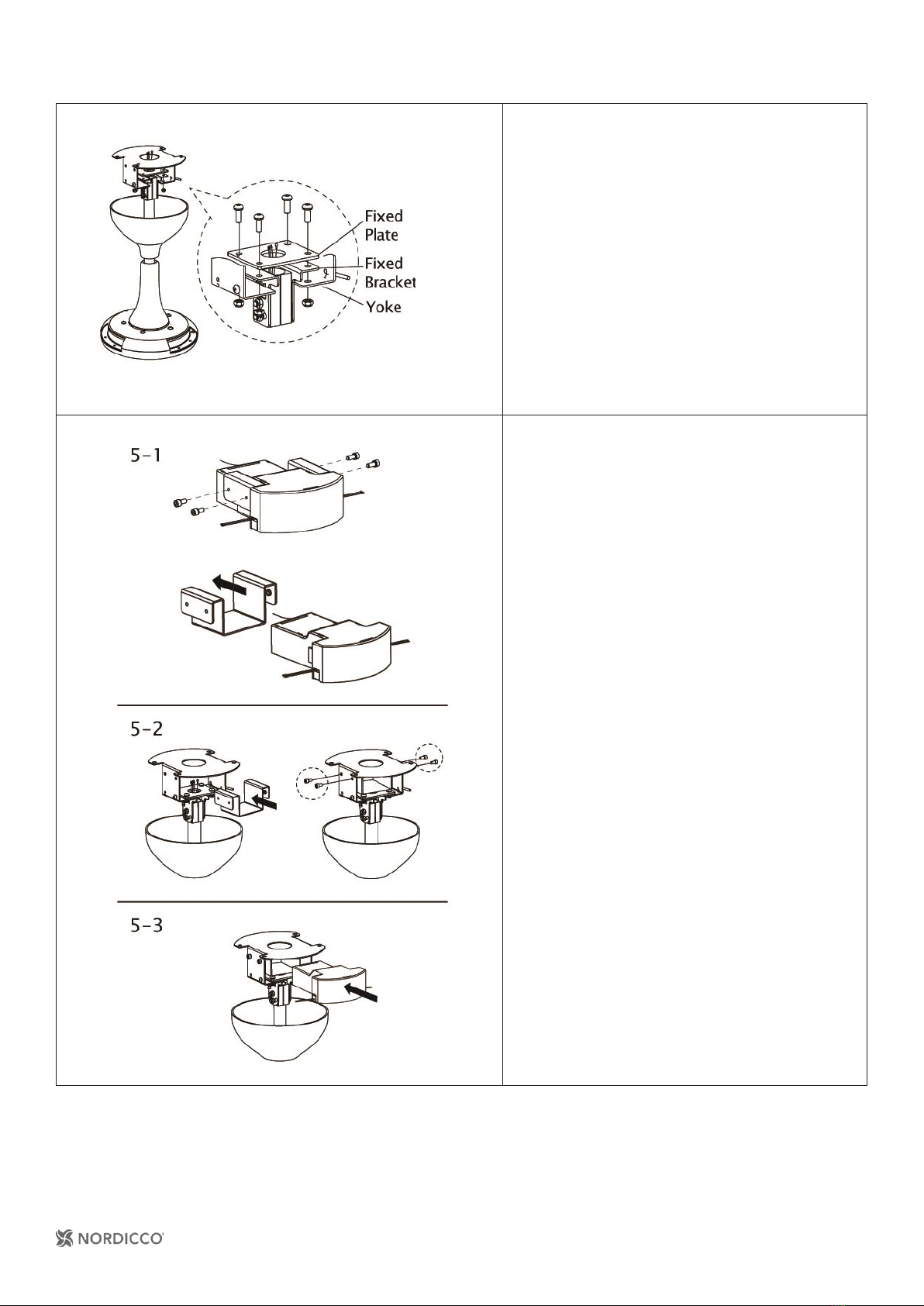

4-1 Slide the motor unit into the yoke.
4-2 Secure all fixed bracket parts in sequence.
*Recommended Tightening Torque:
5 Nm. (50 Kgf.cm)
5-1 Separate circuit box unit and bracket.
5-2 Slide the bracket into yoke then secure it.
*Recommended Tightening Torque:
5 Nm. (50 Kgf.cm)
5-3 Slide the circuit box into bracket as shown.

NORTHERN AIR
®
MINI FAN Installation Manual
10
*The antenna must not be entangled with any wires and
covered in canopy.

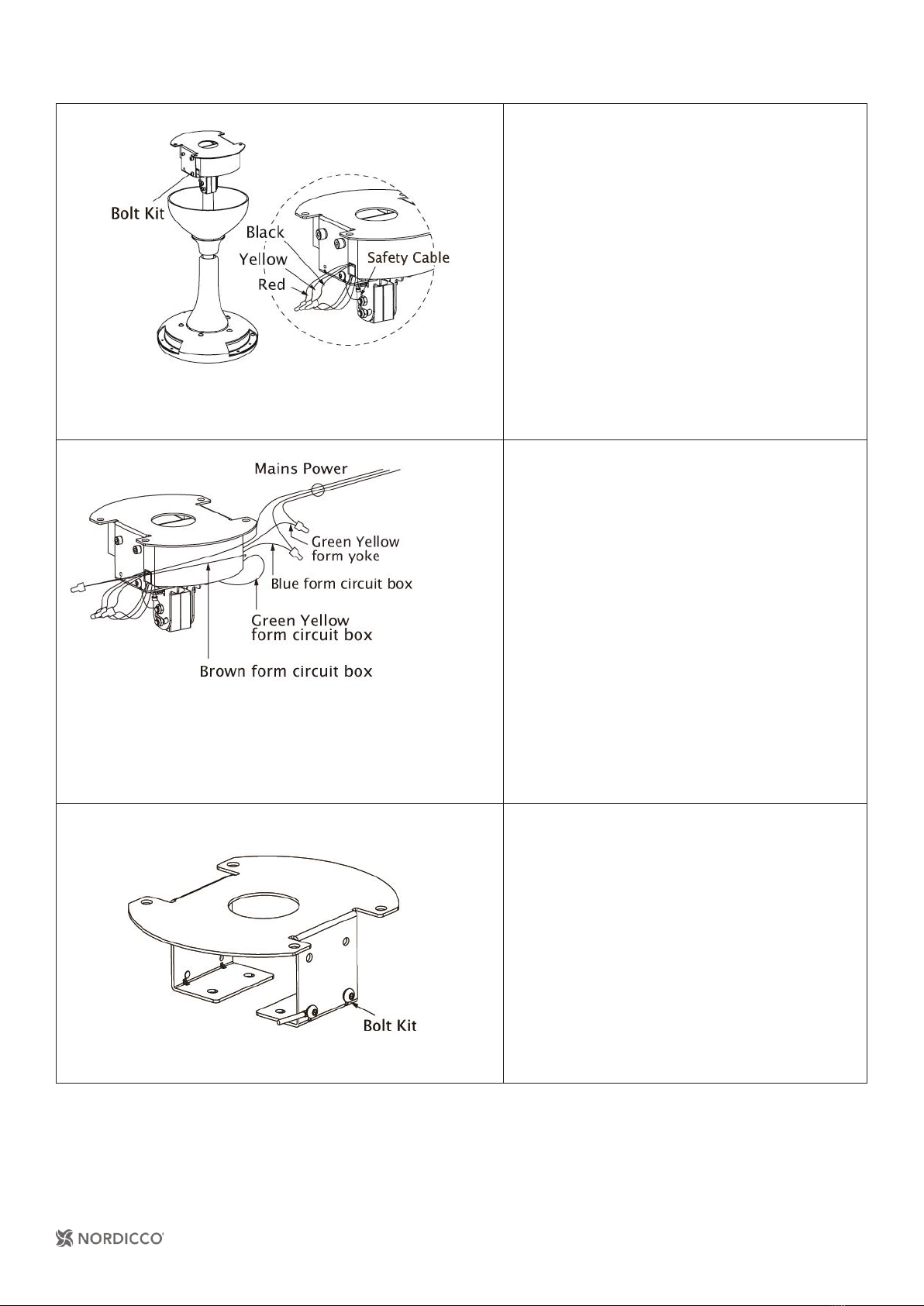

6-1 Use a wire connector to connect the
corresponding red/yellow/black wires both
from the circuit box and the motor.
6-2 Install the safety cable to the yoke with bolt
kit.
*Recommended Tightening Torque:
5 Nm. (50 Kgf.cm)
*As shown in the figure, after the wiring is completed,
the live wire (L), the neutral wire (N) and the earth wire
(E) should be at both side of the Circuit Box.
7-1 Use a wire connector to connect the indoor
wiring with brown/blue wires of the circuit
box, as well as the earth wire of yoke as
shown.
Please refer to ‘’Wiring Diagram’’ later in the
manual further down.
•Live wire: Brown Wire
•Neutral wire: Blue Wire
•Earth wire: Green Yellow Wire
8-1 Loosen and use bolt kit of the yoke. Secure
the circuit box’s earth wire with the yoke.

NORTHERN AIR
®
MINI FAN Installation Manual
11
*Make sure all wires and safety cable are tucked in the
canopy.
9-1 Loosen attach bolt kits on yoke, raise the
canopy, then secure it to the fixed bracket.
10-1 Align two mounting holes in each airfoil
with the motor and secure it with airfoil
bolt kit.
*Recommended Tightening Torque: 5 Nm.
(50 Kgf.cm)

NORTHERN AIR
®
MINI FAN Installation Manual
12
Fan Connection
Warning
•To avoid the risk of electric shock, please make sure that the wiring is in good electrical
condition and all electricity supply should be disconnected. Above wiring should be
implemented by a qualified electrician.
•To avoid the risk of electric shock, please make sure that all wires are insulated properly
before the fan is turned on.
•NORTHERN AIR®MINI warranty will not cover equipment damage or failure caused by
improper installation.
•NORTHERN AIR®MINI installation should follow national electrical codes and standards.
Power Requirements
This appliance connecting to AC single phase 220-240 V. Please see the voltage sticker on this fan, avoid any
voltage transform in case of danger/damage during installation.
Wiring Color Codes
Earth Wire
(E or PE)
Live Wire
(L or L1)
Neutral Wire
(N or L2)
North America GREEN BLACK WHITE
All Other Regions GREEN YELLOW BROWN BLUE

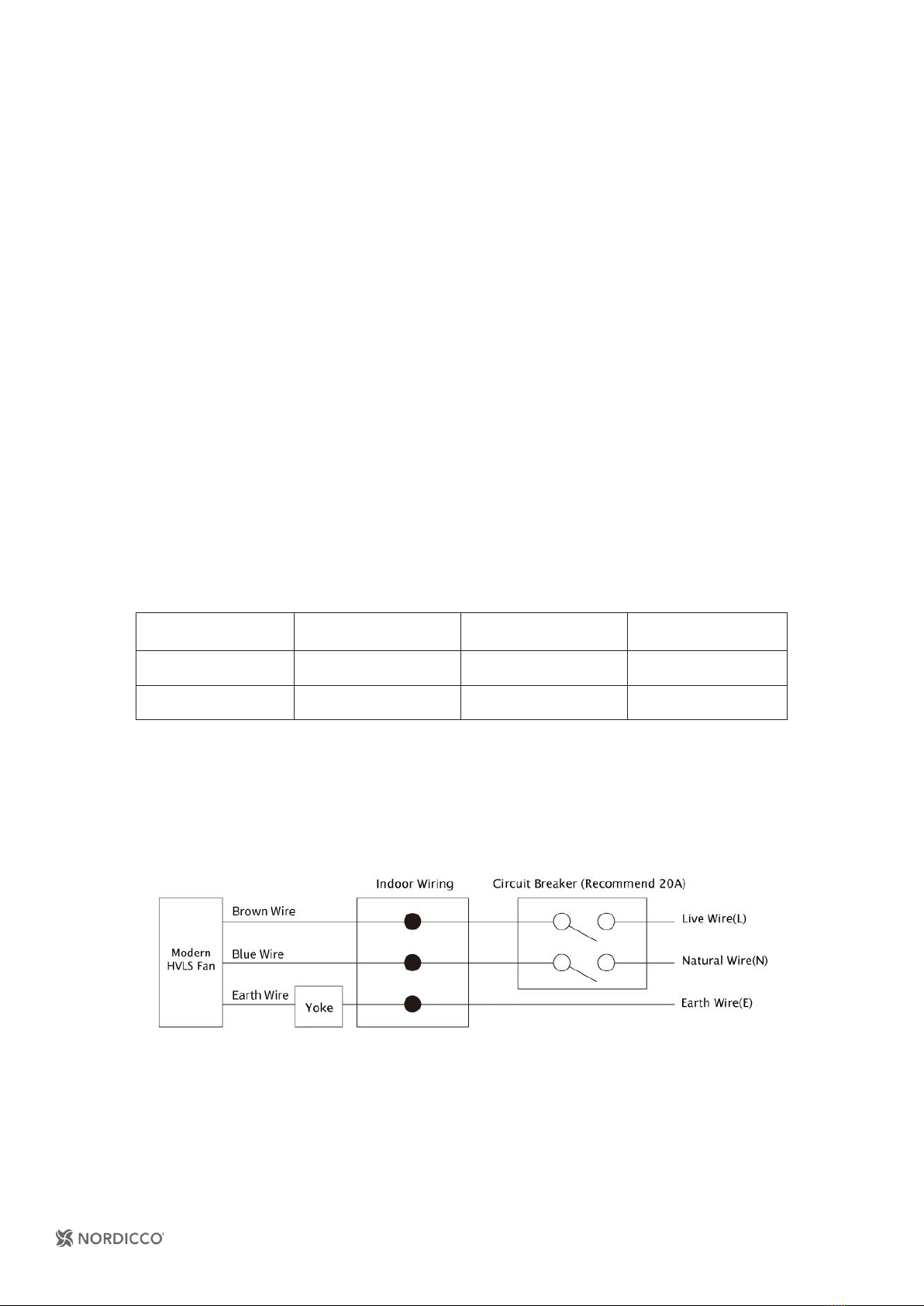

Wiring Diagram
Caution: When connecting to indoor wiring, make sure there is an all-pole disconnecting switch as the
figure shows.
NORTHERN AIR® MINI FAN

NORTHERN AIR
®
MINI FAN Installation Manual
13

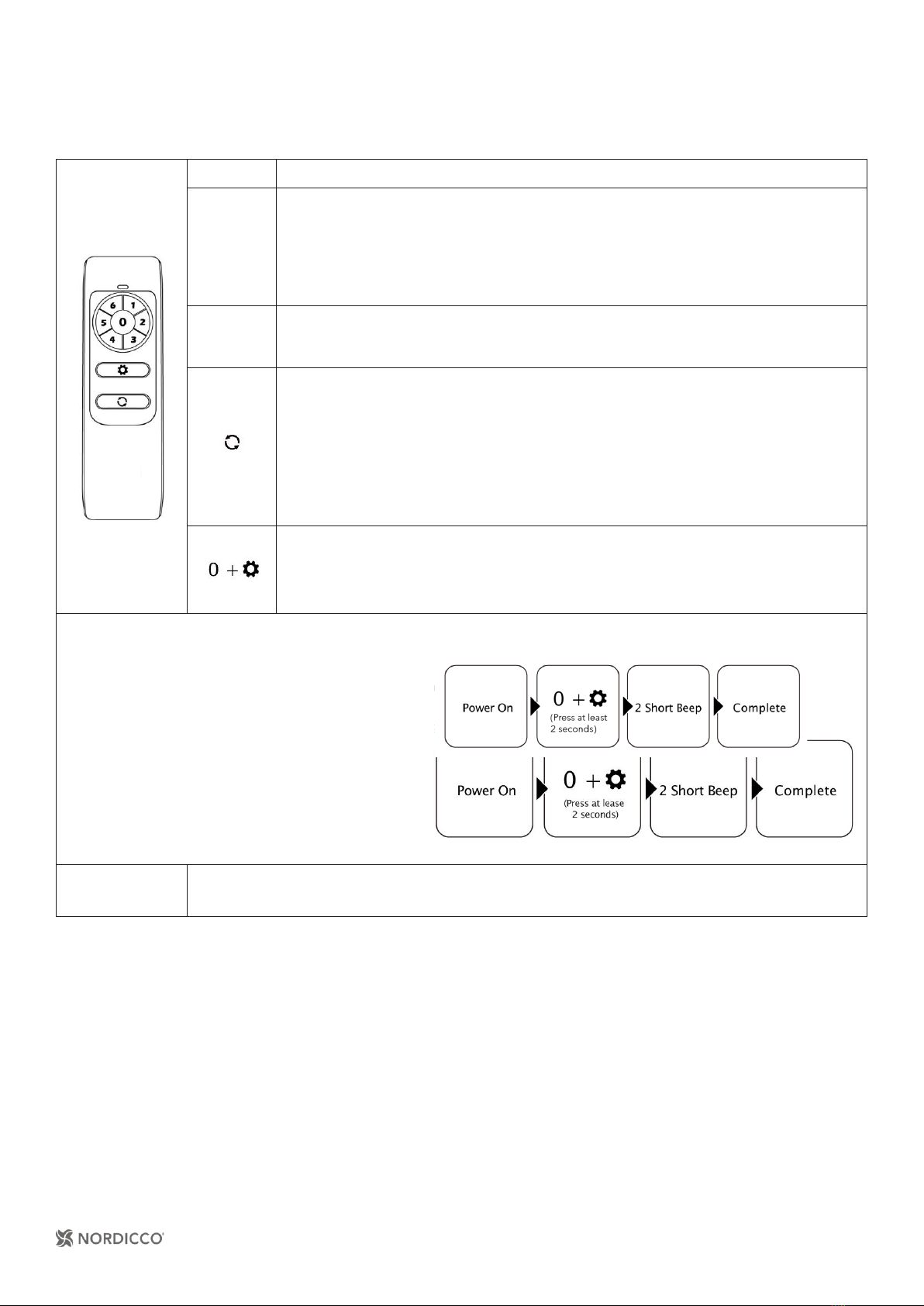

RF Remote Control
BUTTON FUNCTION
1-6
Press each button to turn on the fan, then you can set air volume.
The numbers increase air volume from low to high in numerical order (1 is the lowest,
6 is the highest volume).
Press each button and the fan will give a short beep indicating that you activated the
fan successfully.
0Press the button to turn off the fan. It will give a short beep after the fan
is successfully turned off.
Press the button to switch the fan direction. It will give 1 beep to indicate you
successfully pressed the button.
Forward: The airflow moves downwards. Looking up from the ground the
rotation is counterclockwise.
Reverse: The airflow moves upwards. Looking up from the ground the
rotation is clockwise.
Press these two buttons at same time to enter the pairing process. Default
is forward. The fan should rotate counterclockwise when viewed from
the ground.
Remote Control Pairing
-Make sure the wiring of the fan is installed as per
previous instructions.
-After turning on power, it must enter the pairing
process in one minute.
-Please follow the pairing steps as shown in
figure.
-If you fail to pair, please turn off power and
restart the above process 1 minute later.
Please repeat the process if the remote control
or the circuit box is changed.
Remark １.Remote control has paired with circuit box before shipment.
Battery Installation
-Remove the battery cover and install two AAA batteries.
-Remove the batteries when not used for a long time. Please recycle the used batteries.
Operation Precautions
1. Make sure the airfoils are standstill before you turn on the fan every time.
2. Press “0 “to turn off the fan, DO NOT touch the fan and airfoils once they are in standstill.
3. Once you press any button, the fan will receive the final order and spin direction. DO NOT touch the fan
and airfoils during the procedure.

NORTHERN AIR
®
MINI FAN Installation Manual
14
Information
Troubleshooting
▲WARNING –Any fan component replacement, removal or disconnection of a safety devices, all safety
devices must be reinstalled with former settings.
▲WARNING –Please use this unit in accordance with manufacturer instructions. If you have any questions,
please contact NORDICCO®.
▲WARNING –Turn the power off before performing maintenance or cleaning the unit. Make sure the
power cannot be accidentally switched on during this procedure.
Some issues can be resolved without further instruction. Refer to the tips below before contacting Customer
Service.
Symptom Possible Solutions
Abnormal sound from the fan.
Airfoil noise occurs when airfoils are not
tightened to the specified torque.
Turn off fan power, and then tighten the airfoil fasteners to 5
Nm (50 Kgf.cm).
If the abnormal sound still occurs, please confirm if the airfoils
are not contacting each other.
If they are, please contact customer service.
The fan is standstill. Verify the following：
1. Power supply is fully functional.
2. Press the remote control, make sure all buttons and light
signals are functional.
3. Verify the 2 short beeps after the power set-up is
functional.
4. Please check and make sure that the pairing of the
remote control and the fan is successful.
If the fan still does not start, please contact customer service.
Maintenance
WARNING –TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
1. Turn the power off before maintaining or cleaning unit.
2. Any fan component replacement, removal or disconnection of a safety device, all safety devices must be
reinstalled as formerly setting.
3. Please schedule an annual maintenance to ensure the fan’s safety and efficient operation.
4. Ensure the fan spin direction is proper, the fan should rotate in a counterclockwise direction (View from the
ground).
5. Please use a gentle cleaner or degreasing agent when dusting the motor. DO NOT use chlorine-based cleaning
products in case of toxic/fatal fumes exposure.

NORTHERN AIR
®
MINI FAN Installation Manual
15
6. Check and make sure all the connections such as safety cables and mounting parts are tightened. Also make
sure the mounting system is securely tightened. Any wobbling should not occur when you switch on the fan. If
any wobbling problem is noticed, make sure the mounting structure is strong enough to support the fan and the
wire, make sure you used and tightened your wires. If the wires were not installed, Nordicco A/S recommends
the wire installation to be performed followed by another check. Please contact customer service if any wobbling
persists.
7. If the bolt kits are loosened during maintenance, please re-apply the anaerobic adhesive.
8. If you have any questions, please contact Customer Service, see contact information on the last page.
WARNING – DO NOT use any damaged fan components. Please contact Customer Service.
Warranty
Purchase Date DD MM YY
Serial Number
Retailer's Stamp We offer a standard 2-year warranty of our product starting from your purchase
date.
The following scenarios are excluded from our warranty service.
1. Damage due to improper installation.
2. Damage due to retrofit.
3. Damage due to force majeure: Nature, actions of third parties
4. Damage due to misuse, abuse, accident.
5. Damage due to improper transportation.
6. The warranty document, purchase date or purchase confirmation (invoice) from an
authorized dealer cannot be provided by the customer.
Electrical Appliance
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your
local government for information regarding the collection systems available. If electrical appliances are disposed of
in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging
your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take
back your old appliance for disposal at least for free of charge.

NORTHERN AIR
®
MINI FAN Installation Manual
16
Dansk
Generel sikkerhedsinformation
ADVARSEL – FOR AT REDUCERE RISIKOEN FOR ELEKTRISK STØD ELLER PERSONSKADER, SKAL FØLGENDE
OVERHOLDES:
1. Installationsarbejde og elektriske ledninger skal udføres af kvalificerede fagperson(er) i overensstemmelse
med alle gældende regler og standarder.
2. Beskadig ikke eksisterende ledninger og andre skjulte hjælpemidler/enheder, når du skærer eller borer i en
væg eller et loft.
3. Brug kun dette system på den måde, som producenten har tiltænkt. Har du spørgsmål, kontakt Nordicco A/S
eller en forhandler. Montering af ophængningssystemet og udskiftning af dele af sikkerhedsophænget skal
udføres af producenten, dennes serviceagent eller passende kvalificerede personer.
4. Betjen ikke ventilatoren med en beskadiget ledning eller stik. Kontakt venligst producenten og kvalificeret
tekniker for undersøgelse og/eller reparation.
5. Inden servicering eller rengøring af systemet skal alle strømafbrydere slukkes for at forhindre, at strømmen
tændes ved et uheld. Når afbryderen ikke kan låses, skal du fastgøre en fremtrædende advarselsanordning,
såsom et mærke, sikkert til servicepanelet.
6. Nordicco A/S leverer installationsvejledning til montering af ventilatoren; det er dog bygningsejerens og
installatørens ansvar at sikre monteringssystemets sikkerhed, at bygningsstrukturen er forsvarlig og at
installationen overholder alle nationale og lokale regler.
7. Når du tænder for strømmen til ventilatoren, skal du bruge den med forsigtighed. Tilslut IKKE ventilatoren til
en beskadiget/farlig strømkilde. Forsøg IKKE selv at løse elektriske problemer. Send venligst ventilatoren
tilbage til et autoriseret servicecenter, hvis undersøgelse og/eller reparation er nødvendig. Hvis der er
spørgsmål til installationen, bedes du kontakte kundeservice.
8. Når service eller udskiftning af en ventilatorkomponent kræver af- eller frakobling af en sikkerhedsanordning,
skal sikkerhedsanordningen geninstalleres eller genmonteres som tidligere installeret.
9. Bøj ikke vingerne ved installation, servicering eller rengøring af ventilatoren. Indfør ikke fremmedlegemer
mellem roterende vinger.
10. Dette system er velegnet til brug i lande og regioner med varmt og fugtigt klima, men kan også bruges i andre
lande og regioner.
11. for EU-regionen) Dette system kan bruges af børn fra 8 år og derover og personer med nedsatte fysiske,
sensoriske eller mentale evner eller manglende erfaring og viden, hvis de har fået opsyn eller instruktion i
brugen af systemet på en sikker måde og forstår de involverede farer.
12. (for EU-region) Børn må ikke lege med apparatet.
13. (for EU-region) Rengøring og brugervedligeholdelse må ikke udføres af børn uden opsyn.
14. (for andre end EU-regionen) Systemet må ikke bruges af personer (inklusiv børn) med nedsatte fysiske,
sensoriske eller mentale evner eller manglende erfaring og viden, medmindre de er blevet under opsyn eller
instruktion.
15. Nordicco A/S produktgaranti dækker ikke udstyrsskade eller fejl, der er forårsaget af forkert installation eller
brug.
16. Hvis der observeres usædvanlige svingende bevægelser, skal du straks stoppe med at bruge ventilatoren og
kontakte producenten, distributøren eller passende kvalificerede personer.
17. NORTHERN AIR® MINI fjernbetjeningen er udstyret med en hukommelsesfunktion. Efter at have afbrudt
strømmen, husker den stadig den tidligere driftstilstand. Når den først tænder for strømmen til ventilatoren,
beholder den også tidligere driftstilstand.

NORTHERN AIR
®
MINI FAN Installation Manual
17
Introduktion
Tak for at vælge vores produkter. NORTHERN AIR® MINI ventilatoren er et effektivt, økonomisk og stilfuldt valg. Det
er energibesparende, har et miljøvenligt design og skaber en fremragende luftstrøm i dit rum. Denne ventilator vil
gøre dit lokale mere behageligt i den nærmeste fremtid.
Fan Outline
D
H
A
1,5 m/5 ft. 525 mm / 1.7 ft. 200 mm / 0.65 ft.
Produkt specifikationer
NORTHERN AIR® MINI ventilator –1,5 m (5 ft.)
Indgangsspænding
(VAC)
Input
Frekvens
(Hz)
Maksimal nominel
effekt
(W)
Maksimal
mærkestrøm (A) Maksimal RPM (RPM) Støj
(dB(A))
220-240 50/60 50 0.43 120 <35

NORTHERN AIR
®
MINI FAN Installation Manual
18
Generel sikkerhedsinformation
1. Installation af denne ventilator kræver en ordentlig platform, som kan bære vægten af ventilatoren plus installatører,
såsom en arbejdsplatform.
2. Sluk for al strøm før installation for at undgå risikoen for elektrisk stød.
3. Al ledningskonstruktion skal overholde de nationale elektriske regler, standarder og den lokale elektriske
lovgivning og skal installeres af professionelle teknikere eller personale.
4. En fejlstrømsafbryder (<30 mA) skal installeres mellem apparatet og strømafbryderen.
5. Strømafbryderen skal være forsynet med en sikring (≥20 A).
6. Yoken skal være sikkert monteret til loftet eller bjælken.
7. Beskadig ikke elektriske ledninger og andre skjulte hjælpemidler/enheder under installationen.
8. For at undgå brand eller andre farer skal du sørge for, at ledningerne er helt inde, ingen ledning må blotlægges
uden for ventilatoren.
9. Bøj ikke vingerne, når ventilatoren installeres.
10. Ventilatormodellen, der er omfattet af installationsvejledningen, skal overholde denne installationsvejledning og
alle nationale/lokale elektriske forskrifter for at undgå personskade eller ejendomsskade.
11. Sørg for, at denne applikation er udstyret med AC enfaset 220-240 V før installation.
12. Alle ventilatordele skal være ≥ 0,6 m (2 ft.) fra alle forhindringer. Ventilatorinstallationsområdet skal være fri for
forhindringer såsom lys, kabler, sprinklere eller andre bygningskonstruktionskomponenter.
13. Afstanden skal være mindst 0,3 m (0,98 ft.) fra toppen af vingen til loftet og uden forhindringer i dette område.
14. Ventilatoren skal installeres, så den er mindst 2,5 m (8,17 ft.) over gulvet.
15. Flere ventilatorer skal placeres med en center-til-center afstand, der ikke er mindre end 2,5x ventilatorens diameter.
16. Ventilatoren bør ikke placeres i nærheden af lufttilførselsudtag eller udsugningsindtag fra andet HVAC-udstyr.
Lufttilførselsudtag/-indtag kan konfigureres til at levere luft væk fra ventilatoren og uden for ventilatorens
dækningsområde.
17. Hvis ventilatoren er monteret på samme niveau eller højere end en HVAC-diffuser, skal vingerne være i en afstand,
der er mindst 1,5x mål for ventilatorens diameter. Hvis ventilatoren er monteret under en HVAC-diffuser, skal
vingerne være i en afstand, der er mindst 2x mål for ventilatorens diameter.
18. Kontakt venligst lokale brandeksperter vedrørende krav til minimumsafstand til brændbart materiale.
19. Ventilatorindtaget eller andet returluftpunkt, der producerer undertryk, skal være større end 1x diameteren af
loftsventilatoren. Dette system vil reducere ventilatorens luftstrøm.
20. Korrekt systemorientering vil give en forbedring af den indendørs luftkvalitet og brugerkomfort. Se venligst
illustrationen nedenfor.
