NordicTrack Gxr 4.2 Bike User manual

Serial Number
Decal
Model No. NTEVEX74913.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
USER’S MANUAL
CUSTOMER SERVICE
UNITED KINGDOM
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
CASTLEFORD
WF10 5QJ
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
www.iconeurope.com

2
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
NORDICTRACK is a registered trademark of ICON IP, Inc.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
MAINTENANCE AND TROUBLESHOOTING.....................................................22
EXERCISE GUIDELINES ....................................................................24
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS .................................................. Back Cover
RECYCLING INFORMATION ......................................................... Back Cover

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. Use the exercise bike only as described in
this manual.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 300 lbs.
(136 kg).
11. Be careful when mounting and dismounting
the exercise bike.
12. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
13. Always keep your back straight while using
the exercise bike; do not arch your back.
14. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary
NORDICTRACK®GXR 4.2 exercise bike. Cycling is an
effective exercise for increasing cardiovascular tness,
building endurance, and toning the body. The GXR 4.2
exercise bike provides an impressive selection of fea-
tures designed to make your workouts at home more
effective and enjoyable.
For your benet, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Seat
Heart Rate Monitor
Seat Handle
Pedal/Strap
Wheel
Leveling Foot
Handlebar
Backrest Accessory Tray
Length: 4 ft. 4 in. (132 cm)
Width: 2 ft. 1 in. (64 cm)

5
M8 x 16mm
Screw (60)–10
M8 Split
Washer (61)–12
M6 Washer
(66)–4
M4 x 16mm
Screw (56)–4
M10 x 95mm Screw (62)–4
M6 x 50mm Screw (65)–4 M8 x 45mm Screw (63)–2
M4 x 22mm
Screw (90)–4
M6 x 20mm
Screw (88)–4
M6 Split
Washer
(50)–4
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

6
2. Set a sturdy piece of packing material under the
front of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Identify the Front Stabilizer (2). Note: The Front
Stabilizer has wheels; the Rear Stabilizer (not
shown) does not have wheels.
Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 95mm Screws (62).
Remove the packing material.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
62
2
1
2
Wheel
1. Go to www.iconsupport.eu on your computer
and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Service
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Service (see the front cover of this
manual) and register your product.
1

7
3. Set a sturdy piece of packing material under the
rear of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Orient the Rear Stabilizer (3) so that the welded
tubes are facing away from the Frame (1).
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 95mm Screws (62).
Remove the packing material.
3
3
62
1
Welded
Tubes
4. Slide the Shield Cover (5) upward onto the
Upright (4).
Have a second person hold the Shield Cover (5)
around the Upright (4) until you complete step 5.
Tip: Avoid pinching the wires inside the
Frame (1). Slide the Upright (4) onto the Frame.
Attach the Upright (4) with five M8 x 16mm
Screws (60) and five M8 Split Washers (61).
4
60
60
60
61
61
61
4
5
1
Avoid pinching
the wires

8
5. Locate the wire tie inside the Upright (4). Then,
locate the Main Wire (76), the Seat Pulse Wire
(75), and the Frame Pulse Wire (91) inside the
Frame (1).
Tie the lower end of the wire tie to the ends of
the Wires (75, 76, 91).
Then, pull the other end of the wire tie upward
until the Wires (75, 76, 91) are routed through
the Upright (4).
Then, slide the Shield Cover (5) downward and
press it onto the Right and Left Front Shields
(21, 22).
5
76
75
21
4
5
Wire Tie
Wire
Tie
1
22
6. Tip: Avoid pinching the wires. Attach the
Handlebar (6) to the Upright (4) with four
M6 x 20mm Screws (88) and four M6 Split
Washers (50).
6
6
88
50
4
Avoid pinching
the wires
91

9
7. While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Main Wire (76), the Seat Pulse
Wire (75), and the Frame Pulse Wire (91).
Insert the excess wire into the Upright (4).
Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four M4 x
16mm Screws (56).
7
74
75
91
76
56
Avoid pinching
the wires
8. Identify the Right and Left Handlebar Covers
(8, 9).
Attach the Right and Left Handlebar Covers (8,
9) around the Handlebar (6) and the Upright (4)
with four M4 x 22mm Screws (90).
8
6
4
90
8
9
90

10
9. Attach the Seat (15) to the Seat Carriage (11)
with four M6 x 50mm Screws (65) and four M6
Washers (66) (only two of each are shown).
Note: The Screws and Washers may be preat-
tached to the underside of the Seat.
9
15
11
65
66
66

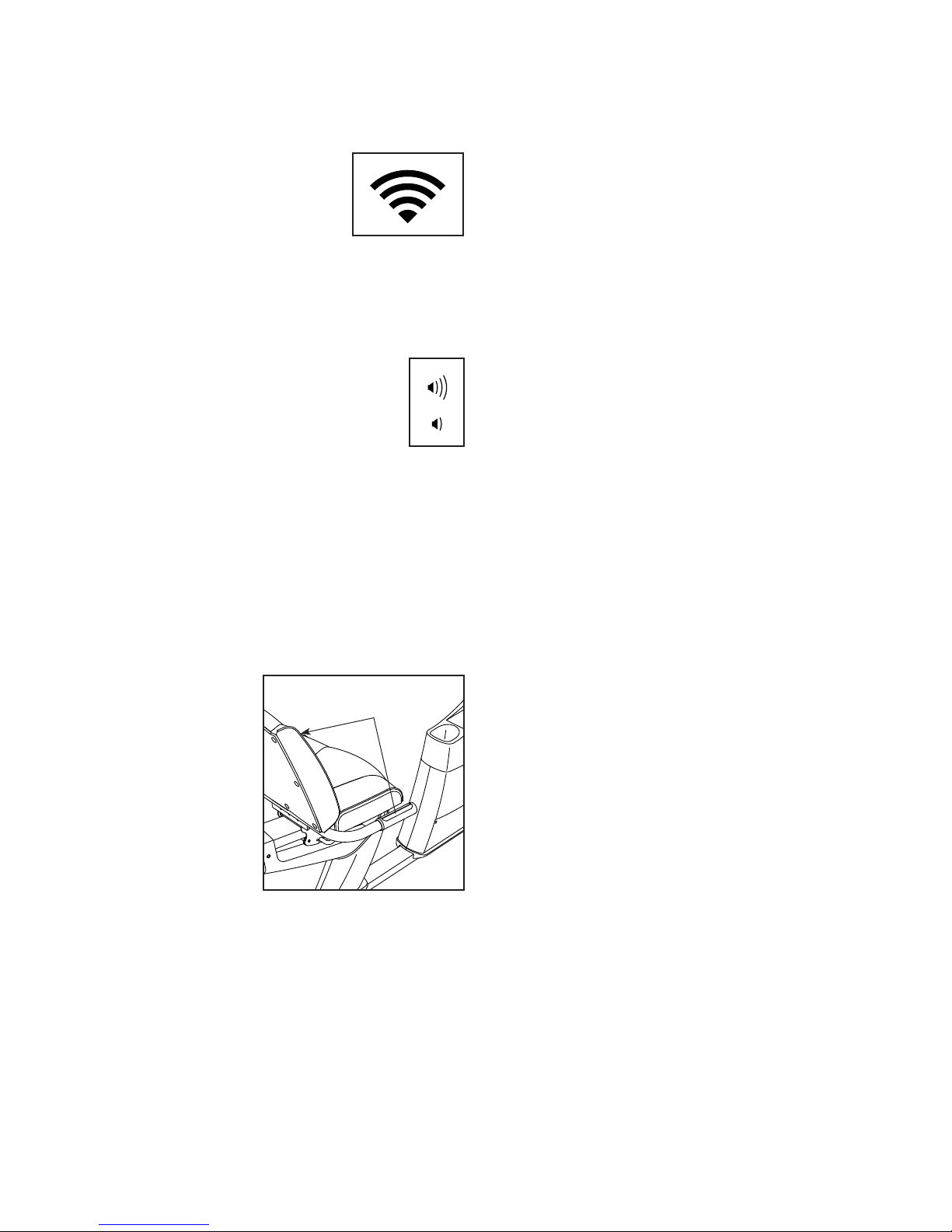

10. Attach the Backrest (13) to the Seat Carriage
(11) with five M8 x 16mm Screws (60) and five
M8 Split Washers (61).
Tip: It may be helpful to adjust the seat dur-
ing this step. See HOW TO ADJUST THE
SEAT on page 13.
10
13
11
61
60
