Nordtronic Abra User manual

1
OFF
2

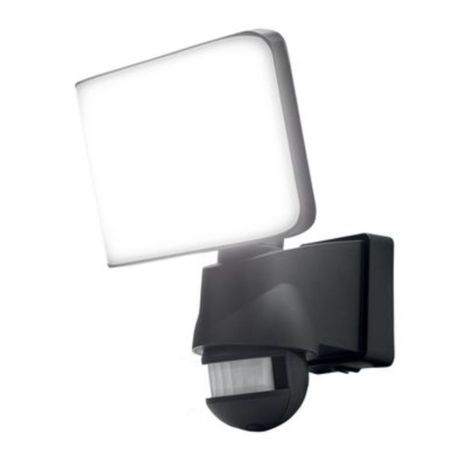

Abra Floodlight with sensor
6
ON
3
1
2
229 mm
201 mm
34 mm
51 mm
285 mm
298 mm
40 mm
55 mm
0-24 m
0-12 m
4
5
20W
50W
Monteringsvejledning/ Monteringsanvisning/ Montasjeanvisning/
Installation instructions/ Installationsanleitung/ Asennusohje
05221014, 05251014 04-2019
Find the updated manual on our website - www.nordtronic.com
With reservation for typing errors
Nordtronic A/S | Flade Engvej 4 | DK - 9900 Frederikshavn | Denmark | CVR: 29808708 | Tel: [phone] | www.nordtronic.com
220 -240
VAC
20W
50W
4000
Kelvin
1800
Lumen CRI>80 100%
100%
15000x
On
Off
RoHS

a. One sensor (MASTER) controls several SLAVES (Max 180W for Abra 20W/ Max 150W for Abra 50W)
b. MASTER - MASTER connection with sensor (Max 180W for Abra 20W/ Max 150W for Abra 50W)
L-OUT black
L-IN brown
N blue
E
yellow/green
AC220-240V
L
N
E
Terminal
Box Terminal Box Terminal Box
4 PIN terminal
AC220-240V
L brown
N blue
E
yellow/green
L brown
N blue
E
yellow/green
3 PIN terminal
AC220-240V
L
L
E
N
N
E
L-OUT
L
L
E
N
N
E
L-IN
E
N
L
N
E
AC220-240V
L
N
E
Terminal
Box Terminal Box Terminal Box
4 PIN terminal
AC
220
-
240
V
L-OUT
L
E
N
N
E
L-IN
E
N
L-OUT black
L-IN brown
N blue
E
yellow/green
L-OUT black
L-IN brown
N blue
E
yellow/green
Max 180W for Abra 20W/ Max 150W for Abra 50W
Max 180W for Abra 20W/ Max 150W for Abra 50W
L
L-OUT
4 PIN terminal
AC
220
-
240
V
L-OUT
L
E
N
N
E
L-IN
E
N
L
L-OUT
L-OUT black
L-IN brown
N blue
E
yellow/green
L-OUT black
L-IN brown
N blue
E
yellow/green
