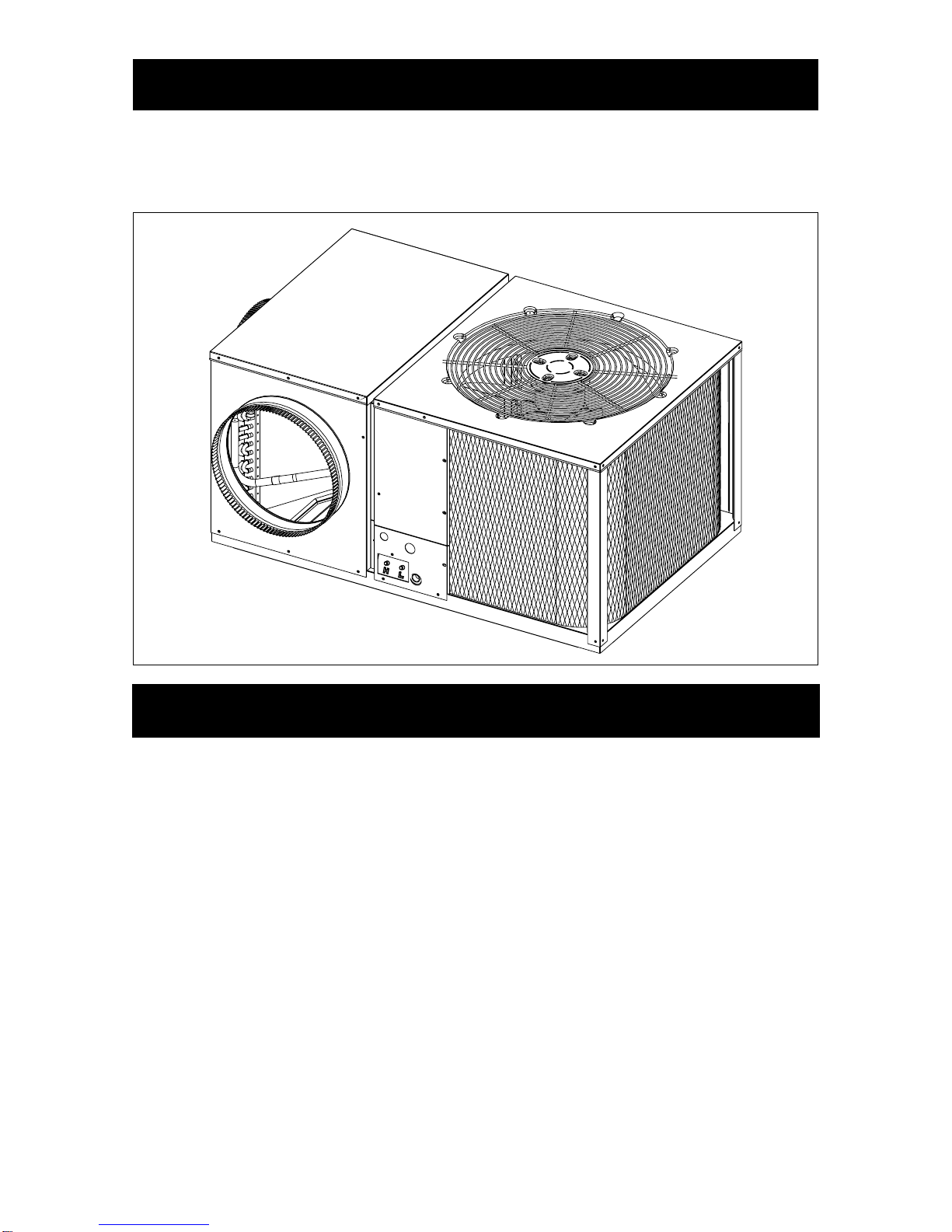

Nordyne Q3B Series User manual

USER'S MANUAL AND INSTALLATION
INSTRUCTIONS
Q3B (A,C) Series 10 and 12 SEER
Single Package Heat Pump
INTRODUCTION
Your heat pump is a unique, all weather com-
fort-control system appliance. The basic op-
eration of the heating/cooling system is de-
scribed on page 2 of this manual. The surpris-
ing fact that heat exists in air even at below-
freezingtemperaturesisactuallythebasiclaw
of physics which the heat pump uses to
provide energy saving heating comfort. At
outdoor temperatures of 47° Fahrenheit (or 8°
IMPORTANT
Read this owner information to become familiar with the capabilities and use of
yourappliance. Keepthiswithliteratureofotherapplianceswhereyouhaveeasy
access to it in the future. If a problem occurs, check the instructions and follow
recommendationsgiven. Ifthesesuggestionsdon’teliminateyourproblem,call
yourinstallingcontractorordistributorinyourarea.
Celsius), your heat pump can deliver approxi-
mately2to3unitsofheatenergypereachunit
of electrical energy used, as compared to a
maximum of only 1 unit of heat energy pro-
duced with conventional heating systems.
During the cooling season, the heat pump
reverses the flow of the heat-absorbing refrig-
erant to become an energy-efficient, central
air conditioner.
Single Package Heat Pump

2
Your heat pump will heat and cool your home
year round, saving your energy dollars. During
the summer, a heat pump performs like any
normal air conditioner. That is, the excess heat
energy inside the home is absorbed by the
refrigerant and exhausted outside the home.
Duringthewintermonths,aheatpumpperforms
like an air conditioner running in reverse. That
is, available heat energy outside the home is
absorbed by the refrigerant and exhausted
inside the home. This is an efficient heating
means because you only pay for “moving” the
heat from the outdoors to the indoor area. You
do not pay to generate the heat, as is the case
with more traditional furnace designs.
OPERATINGINSTRUCTIONS
To Operate Your Heat Pump in Cooling —
1. Set the thermostat system switch to COOL
and the thermostat fan switch to AUTO.
(See Figure 1)
2. Set the thermostat temperature selector to
thedesiredcoolingtemperature.Theoutdoor
unitfan,theindoorblower,andthecompressor
will all cycle on and off to maintain the indoor
temperature at the desired cooling level.
To Shut Off Air Conditioner
1. Turn the system switch to "Heat" or "Off."
2. Turn the thermostat to the desired heating
temperature setting.
To Operate Your Heat Pump For Heating —
1. Set the thermostat system switch to HEAT
and the thermostat fan switch to AUTO.
(See Figure 1)
2. Set the thermostat temperature selector to
thedesiredheatingtemperature.Theoutdoor
unitfan,theindoorblower,andthecompressor
will all cycle on and off to maintain the indoor
temperature at the desired heating level.
Defrost — During cold weather heating
operation,theoutdoorunitwilldevelopacoating
of snow and ice on the heat transfer coil. This
is normal and the unit will periodically defrost
itself. During the defrost cycle, the outdoor fan
willstop, while the compressor continuesto run
andheattheoutdoorcoil,causingthesnowand
ice to melt. During defrost, there may be some
steam rising from the outdoor unit as the warm
coil causes some melted frost to evaporate.
BEFORE YOU CALL A SERVICEMAN
Check your system at the start of each air
conditioning season. Make sure it's working
correctly, clean or change filters and make any
needed adjustments.
In addition, follow these simple rules:
1. Never run your system without a filter. If
youdo, the coolingcoils will collect dirt and
may become clogged.
2. Leave thermostat set at the comfort level
you wish. Let it control the operation of the
air conditioning system. If room temp is
unsatisfactory, gradually raise the setting
until comfort is restored.
3. It takes longer for an air conditioner to cool
your dwelling than it does for your furnace
to heat it. So . . . don't turn the unit on and
expect an immediate drop in temperature.
Ifyourhomeishotandhumid,thetempera-
ture will drop slowly.
4. Check your filters every 30 days to see if
they are dirty. To keep them clean, use a
mild solution of detergent and water on
washable types. Replace non washable
filters.
5. Keep your outdoor condenser coil clean.
(You can hose it down when it gets dirty.)
If your air conditioner isn't working:
1. Make sure the fuses are not blown or that
your circuit breakers are on.
SECTION1.OWNERINFORMATION

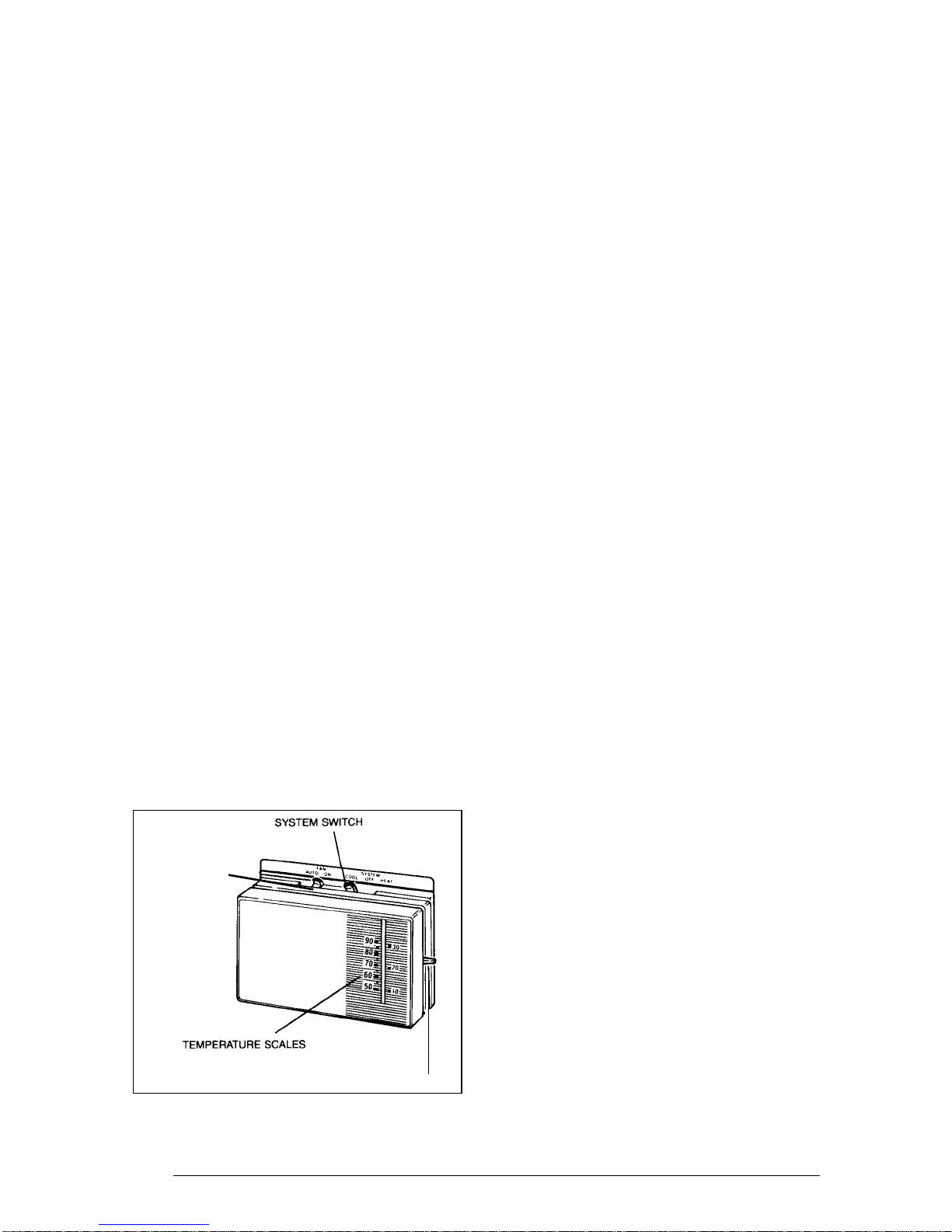

Figure 1. Typical Heat/Cool Thermostat
FAN SWITCH
TEMPERATURESELECTOR

3
2. See that your thermostat is set at the
desiredtemperatureandthatyoursystem's
switch is on "Cool."
3. For best air flow, make sure your return
grille is not covered and that the filter is
clean.
4. Check the outdoor condenser coil and
make sure it is clean and not clogged with
grass or leaves.
Ifyour airconditioner stillisn't working,call your
nearest distributor.
SECTION2.INSTALLER
INFORMATION
GENERAL
Read the following instructions completely
before performing the installation.
These instructions are for the use of qualified
personnel specially trained and experienced in
the installation of this type of equipment and
related system components. Some states re-
quire installation and service personnel to be
licensed. Unqualified individuals should not
attempt to interpret these instructions or install
this equipment.
The single packaged heat pumps are designed
for outdoor installation only and can be readily
connected into the high static duct system of
a home. The only connections needed for
installation are the supply and return ducts, the
line voltage, and thermostat wiring.
The single package heat pump is completely
assembled,factorywired,andfactoryruntested.
The units are ready for easy and immediate
installation.
Use of components other than those specified
may invalidate ARI Certification, Code Agency
Listing, and limited warranty on the heat pump.
PRE-INSTALLATION CHECK
Beforeany installationisattempted, thecooling
load of the area to be conditioned must be
calculated and a system of the proper capacity
selected. Itis recommendedthat thearea tobe
conditioned be completely insulated and vapor
sealed.
The installer should comply with all local codes
and regulations which govern the installation of
this type of equipment. Local codes and regu-
lations take precedence over any recommen-
dationscontainedinthese instructions.Consult
local building codes and the National Electrical
Code (ANSI CI) for special installation require-
ments.
The electrical supply should be checked to
determine if adequate power is available. If
there is any question concerning the power
supply, contact the local power company.
Inspecting Equipment: All units are securely
packed at the time of shipment and, upon
arrival, should be carefully inspected for dam-
age. Claims for damage (apparent or con-
cealed) should be filed immediately with the
carrier.
INSTALLATION
(For Platinum Series ready homes)
1. LOCATE THE 40 AMP BRANCH CIR-
CUITDISCONNECT RECEPTACLE AND
DISCONNECT COVER LOCATED OUT-
SIDE ON ONE OF THE OUTER WALLS
OF THE HOME.
Locate the unit within the reach of the Power
Cord assembly and branch circuit receptacle.
• Create a solid, level position, preferably on a
concrete slab or plastic pad (use NORDYNE
P/N-903897orequivalent)andslightlyabove
grade level, located where the skirting chan-
nel across top of unit is directly under bottom
edge of wall. (See Fig. 2)
• Minimum clearances to obstructions. (See
Fig. 2)

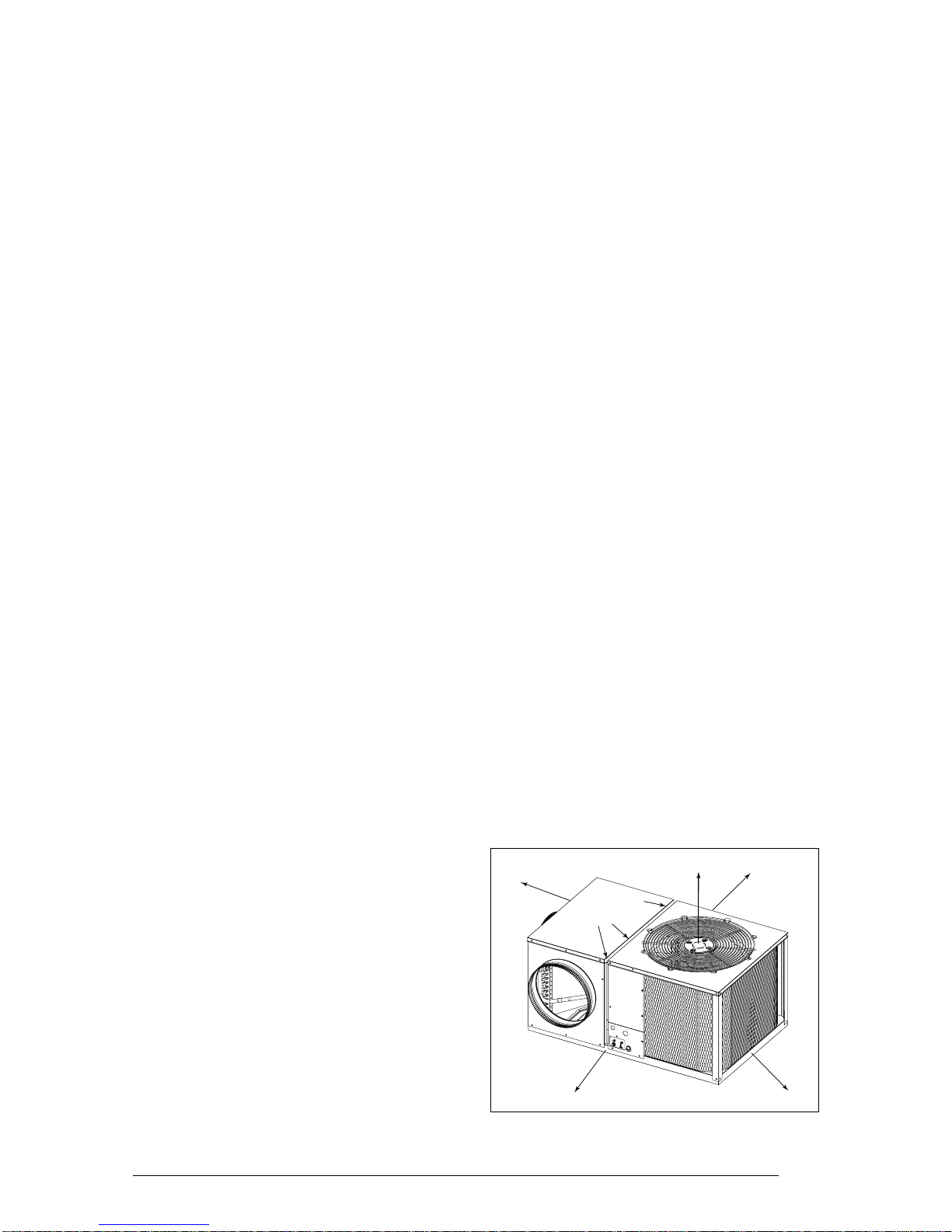

Figure 2. Minimum Unit Clearances
12"
36"
24" 6 ft. 12"
Skirting
Channel

4
2. UNPACK THE UNIT
It is recommended that the unit be unpacked at
the installation site to minimize damage due to
handling.
a. Remove the bands from around the unit.
b. Unfold the top and bottom cap flanges.
c. Carefully remove the top cap and tube.
!CAUTION:
Do not tip the unit on its side. Oil may
enter the compressor cylinders and
causestartingtrouble. Ifunithasbeen
setonitsside,restoretouprightposi-
tion and do not run for several hours.
Then run unit for a few seconds. Do
this three or four times with five min-
utes between runs.
3. INSTALL THE RETURN AND SUPPLY
AIR FITTINGS ON THE UNIT
Thesupplyand returnfittings areshippedin the
supply duct. They attach to the unit openings
with a flange and bead arrangement, secured
with two sheet metal screws. Note: For ease of
access, install fitting before positioning unit in
final location.
SUPPLY DUCT
Positionthesupplyductcollarsotheedgeofthe
unit openings fit between the flange and the
bead. Overlapthecollarendskeepingthe small
screw holes underneath. Align the holes in the
crimped area and install one screw.
Tap collar as necessary to ensure engagement
with unit opening and install second screw.
Tighten first screw.
DUCTINGSYSTEM
DUCT REQUIREMENTS
THE AIR OUTPUT OF THE SYSTEM WILL
NOT CONDITION THE HOME IF THE AIR IS
LOST TO THE OUTSIDE THROUGH LEAKS
IN THE DUCT SYSTEM. ALSO, DUCTS
WHICH ARE COLLAPSED OR RESTRICTED
BY FOREIGN OBJECTS WILL PREVENT
ADEQUATE AIR FLOW.
CONNECTING THE RETURN AND SUPPLY
AIR FLEXIBLE DUCTS
a. Use 12” duct to connect unit to the home
duct system. (See Fig. 3 and 4)
b. Use 14” duct to connect unit to furnace.
(See Fig. 3 and 4)
c. The flexible ducts can be connected to the
corresponding fittings with clamps (field
supplied). Note: Allconnectionsshouldbe
leak tight or a loss in cooling capacity will
result.
d. The flexible ducts may be cut to the re-
quired length, see instructions packed with
duct. Keep all ducts as short and straight
as possible. Avoid sharp bends.
e. Ducts may be spliced with sheet metal
sleeves and clamps.
f. Once the inner duct is connected to the
proper fitting, the insulation and plastic
sleeve should be pulled over the connec-
tion and clamped.
g. For homes withmultiple supply ductsor for
special applications, a Y fitting is available
to divide the supply air so it can be ducted
to different areas of the home for more
efficientcooling/heating. Note: TheYfitting
should be insulated for maximum perfor-
mance.
CONDENSATE DRAIN
A 3/4” condensate drain connection is located
on the side of the unit below the electrical
compartment. (See Figure 5). A field supplied
condensatedrainshouldbeinstalled. Routethe
condensate to a suitable drainage area. Any
connecting tube or hose must have the outlet
below the fitting on the unit for proper drainage.
Figure 3. Supply Air Fittings
Supply Air
From Furnace
14" Dia.
Supply Air
To Main Ducts (2)
12" Dia. 12"
Dia.

5
Figure 4. Typical Applications
14" Flex Duct
12" Flex Duct
MULTIPLE DUCT APPLICATION
Q3BWITHM1ORE2FURNACEINSTALLATION
14" Flex Duct
12" Flex Duct
SINGLE DUCT APPLICATION

6
!WARNING:
Turn off electrical power before ser-
vicing controls. Severe electrical
shock may result unless power is
turned off. Unit must be installed in
compliance with the National Electri-
cal Code (NEC) and local codes.
ELECTRICALCONNECTIONS
1. ELECTRICAL SERVICE
HIGH VOLTAGE
a. An approved branch circuit disconnect
receptacle of adequate size and discon-
nect cover per NEC has already been
installed at the intended location of the unit
ononeofthefourexteriorwallsofthehome.
b. Attach the approved Power Cord/Discon-
nect Plug (NORDYNE P/N-903899) to the
unit using a strain relief connector (Romex
typeorequivalent)throughthehighvoltage
knockout provided.
c. Extend the power cord leads up into the
control panel and connect L1 (Black) and
L2 (White) directly to the contactor lugs
provided. (See Fig. 5)
d. Groundtheheatpumpunitbyattachingthe
power cord ground wire (Green-w/ eyelet)
totheunitusingthegreengroundingscrew
provided in the control panel. (See Fig. 5)
LOW VOLTAGE
a. Low voltage wiring from the indoor furnace
and thermostat will be located under the
home near the branch circuit receptacle
and cover. Route the 24V control wires
through the low voltage sealing grommet.
(See Figure 5)
b. Connectthelowvoltagecontrolwirestothe
leads in the low voltage compartment as
shown in Figure 5 and 6.
Figure 6. Low Voltage Connections
Figure 5. Power Entry and Hook Up
Condensate Drain
Low
Voltage
Entry
Low
Voltage
Connections
Ground
(Green)
L2 (White)
L1 (Black)
Contactor
Lugs
High Voltage Entry

7
2. OVERCURRENT PROTECTION
In general, the best fuse or breaker for any air
conditioner is the smallest size that will permit
the equipment to run under normal use and
service without nuisance trips. Such a device,
sized properly, gives maximum equipment pro-
tection. The principal reason for specifying a
time delay type is to prevent nuisance trips
when the unit starts.
In the event that a fuse does blow or a breaker
trips, always determine the reason. Do not
arbitrarily put in a larger fuse or breaker and do
not, in any case, exceed the maximum size
listed on the data label of the unit.
3. HEAT-COOL THERMOSTAT OPERATION
Heat-Cool Thermostat: Your thermostat
should be located on an inside wall approxi-
mately five feet from the floor away from drafts
and doors. Do not locate lamps or other objects
near the thermostat which could affect its op-
eration or block a free flow of air.
The heat-cool thermostat is equipped with a
system HEAT-COOL switch, which provides a
positive means of preventing simultaneous
operationoftheheatingandcoolingmode. The
thermostat is also equipped with an AUTO-ON
fan switch which allows the home owner to
operate the indoor blower when air circulation
is desired.
4. DEFROST CYCLE CONTROL
The defrost cycle is initiated via a signal from a
low pressure switch located in the outdoor side
return gas tubing. This signal indicates the coil
pressure has fallen low enough due to the build
up of frost. The defrost cycle will terminate via
atemperatureswitchlocatedontheoutdoorcoil
after the frost has been cleared.
5. OUTDOOR THERMOSTAT
Theoutdoorthermostat(locatedatthetopofthe
controlpanel)preventstheauxiliaryheatsource
(gas or electric) from operating above a certain
setpoint. Thethermostat is non-adjustablewith
a factory setting of 40°F.
SYSTEMOPERATION
1. PRE-START CHECK LIST
The following check list should be observed
prior to starting the unit.
Istheunitlevel? Itshouldbelevelorslightly
slanted toward the drain for proper con-
densate drainage.
Is there free air flow to and from the con-
denser? A one foot clearance around the
coil, and six foot clearance above the fan?
Is the wiring correct according to the wiring
diagram and electrical codes?
Are all the wiring connections tight? Check
the condenser fan to make sure it turns
freely.
Is the thermostat wired correctly? Is it
installed in a proper location?
2. START-UP PROCEDURE
a. Set the system switch to the OFF position.
b. Dial thermostat setting as high as it will go.
c. Turnonpowersupplyatthecircuitbreaker.
d. Set thesystem switch toON or COOL. Set
the temperature setting to below room
temperature. Verify that the indoor blower,
outdoor fan, and compressor are ener-
gized and the cooling function starts.
e. Verify that the discharge air grilles are
adjusted and the system is balanced.
f. Verify that there are no air leaks in the duct
work.
g. Verify thatthecondensatedrain isproperly
installed and that it functions correctly.
h. Dial the thermostat higher than room tem-
perature. The unit should stop.
i. Set thermostat to the HEAT position. Pro-
ceed to check for correct heat pump op-
eration.
j. Ifoutdoortemperatureisbelow35°Fverify
that the furnace controls and burners or
heating elements operate correctly.
k. If outdoor temperature is above 35° F you
may jumper out the outdoor thermostat to
check for proper furnace operation.
l. Instruct the owner on unit operation, filter
servicing, and proper thermostat opera-
tion.

8
10SEER - Refrigerant Charging Tables for Heating ModeofOperation
2-1/2 Ton
2 Ton
-ShadedBoxesindicate
floodedconditions
*Note: Allpressuresarelistedinpsig.andalltemperaturesin°F. -RatedDesignValues. SuctionPressurewillbelowerthandesignvalueifindoorair
flow,enteringdrybulb,orenteringwetbulbtemperaturesarelowerthandesign. -Dischargetemperaturesgreaterthancharted valuesindicateanunderchargedsystem.
Pressuresshownareforheatpumpoperatingonlywithoutback-upheat.
OUTDOOR TEMPERATURE (DEG. F)
010203040
Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch.
Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.
15 121 132 22 140 136 29 158 140 36 176 144 45 186 155
16 128 130 23 146 134 30 163 138 37 180 142 46 193 152
17 135 128 24 151 132 31 168 136 38 184 140 47 200 149
18 142 126 25 157 130 32 172 134 39 187 138 48 207 146
19 149 124 26 163 128 33 177 132 40 191 136 49 214 144
20 156 122 27 169 126 34 182 130 41 195 134 50 221 141
21 163 120 28 175 124 35 187 128 42 198 132 51 228 138
50 60
Suc. Disch. Disch. Suc. Disch. Disch.
Press. Press. Temp. Press. Press. Temp.
55 209 172 65 233 190
56 216 168 66 240 183
57 223 163 67 247 177
58 230 159 68 254 171
59 237 154 69 261 165
60 244 150 70 268 159
61 251 145 71 275 153
OUTDOOR TEMPERATURE (DEG. F)
010203040
Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch.
Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.
16 112 116 24 139 133 32 166 151 40 193 168 48 205 188
17 119 114 25 145 131 33 171 149 41 197 166 49 212 185
18 126 112 26 151 129 34 176 147 42 200 164 50 219 182
19 133 110 27 157 127 35 180 145 43 204 162 51 226 179
20 140 108 28 163 125 36 185 143 44 208 160 52 233 176
21 147 106 29 169 123 37 190 141 45 211 158 53 240 173
22 154 104 30 174 121 38 195 139 46 215 156 54 247 171
50 60
Suc. Disch. Disch. Suc. Disch. Disch.
Press. Press. Temp. Press. Press. Temp.
54 226 209 61 247 231
55 233 205 62 254 225
56 240 200 63 261 219
57 247 196 64 268 213
58 254 191 65 275 206
59 261 187 66 282 200
60 268 182 67 289 194

9
3-1/2 Ton
3 Ton

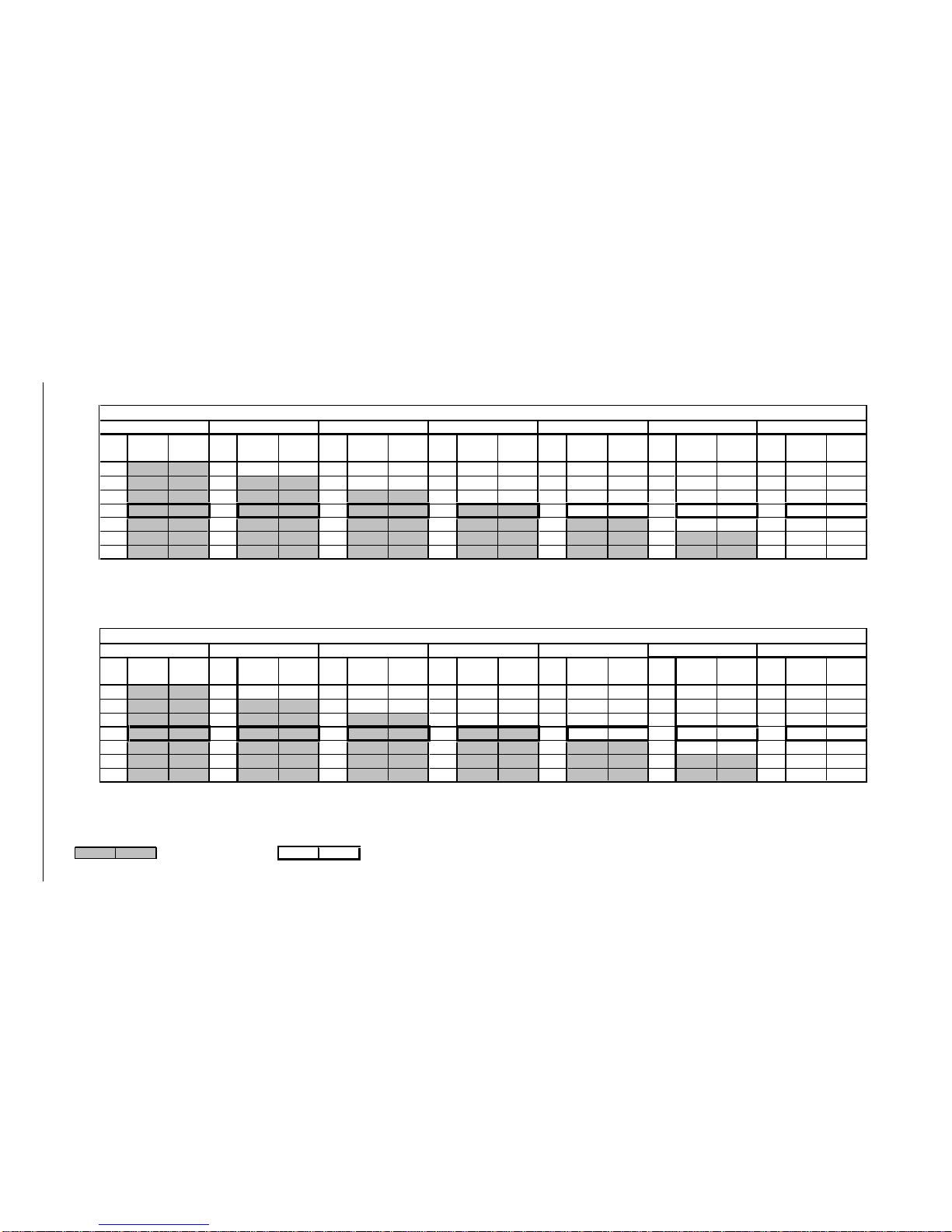

10 SEER - Refrigerant Charging Tables for Heating Mode of Operation - Continued
-ShadedBoxesindicate
floodedconditions
*Note: Allpressuresarelistedinpsig.andalltemperaturesin°F. -RatedDesignValues. SuctionPressurewillbelowerthandesignvalueifindoorair
flow,enteringdrybulb,orenteringwetbulbtemperaturesarelowerthandesign. -Dischargetemperaturesgreaterthancharted valuesindicateanunderchargedsystem.
Pressuresshownareforheatpumpoperatingonlywithoutback-upheat.
OUTDOOR TEMPERATURE (DEG. F)
010203040
Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch.
Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.
13 121 146 20 137 148 28 153 150 36 169 152 44 172 156
14 128 144 21 143 146 29 158 148 37 173 150 45 179 153
15 135 142 22 149 144 30 162 146 38 176 148 46 186 151
16 142 140 23 154 142 31 167 144 39 180 146 47 193 148
17 149 138 24 160 140 32 172 142 40 184 144 48 200 145
18 156 136 25 166 138 33 177 140 41 187 142 49 207 142
19 163 134 26 172 136 34 182 138 42 191 140 50 214 139
50 60
Suc. Disch. Disch. Suc. Disch. Disch.
Press.
Press. Temp.
Press.
Press. Temp.
52 185 163 61 198 169
53 192 158 62 205 163
54 199 154 63 212 157
55 206 149 64 219 151
56 213 145 65 226 145
57 220 140 66 233 139
58 227 136 67 240 132
50 60
Suc. Disch. Disch. Suc. Disch. Disch.
Press.
Press. Temp.
Press.
Press. Temp.
53 186 196 61 200 224
54 193 191 62 207 218
55 200 187 63 214 212
56 207 182 64 221 205
57 214 178 65 228 199
58 221 173 66 235 193
59 228 169 67 242 187
OUTDOOR TEMPERATURE (DEG. F)
010203040
Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch.
Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.
12 127 148 21 141 150 29 155 151 37 169 152 45 172 167
13 134 146 22 147 148 30 160 149 38 173 150 46 179 164
14 141 144 23 153 146 31 165 147 39 177 148 47 186 162
15 148 142 24 159 144 32 169 145 40 180 146 48 193 159
16 155 140 25 164 142 33 174 143 41 184 144 49 200 156
17 162 138 26 170 140 34 179 141 42 188 142 50 207 153
18 169 136 27 176 138 35 184 139 43 191 140 51 214 150

10
-ShadedBoxesindicate
floodedconditions
*Note: Allpressuresarelistedinpsig.andalltemperaturesin°F. -RatedDesignValues. SuctionPressurewillbelowerthandesignvalueifindoorair
flow,enteringdrybulb,orenteringwetbulbtemperaturesarelowerthandesign. -Dischargetemperaturesgreaterthancharted valuesindicateanunderchargedsystem.
Pressuresshownareforheatpumpoperatingonlywithoutback-upheat.

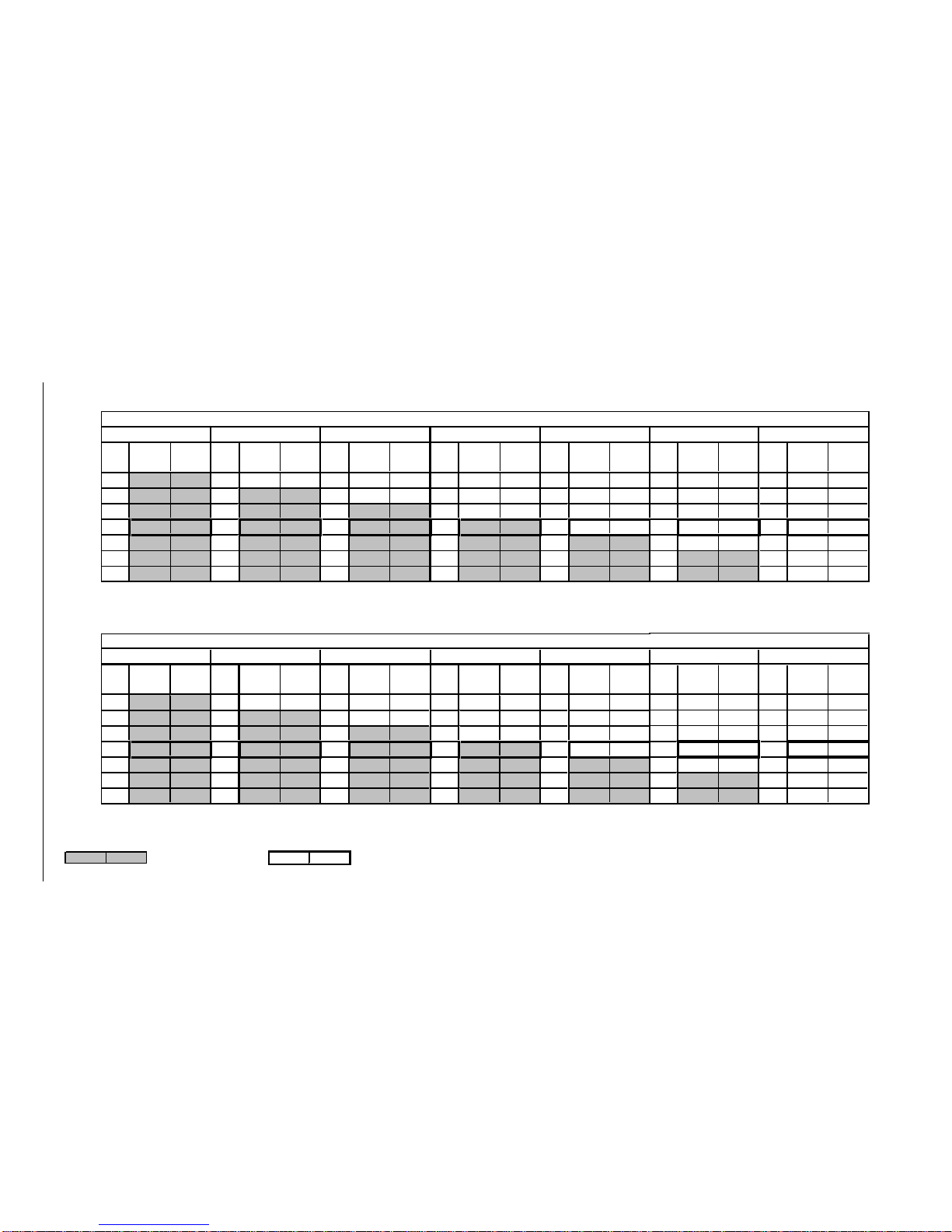

10 SEER - Refrigerant Charging Tables for Heating Mode of Operation - Continued
4 Ton
5 Ton
OUTDOOR TEMPERATURE (DEG. F)
010203040
Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch.
Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.
19 147 139 22 154 138 25 161 137 28 168 135 37 174 157
20 154 137 23 160 136 26 166 135 29 172 133 38 181 154
21 161 135 24 166 134 27 171 133 30 176 131 39 188 151
22 168 133 25 172 132 28 176 131 31 179 129 40 195 148
23 175 131 26 178 130 29 180 129 32 183 127 41 202 145
24 182 129 27 183 128 30 185 127 33 187 125 42 209 143
25 189 127 28 189 126 31 190 125 34 190 123 43 216 140
50 60
Suc. Disch. Disch. Suc. Disch. Disch.
Press. Press. Temp.
Press.
Press. Temp.
52 200 201 68 226 245
53 207 196 69 233 239
54 214 192 70 240 232
55 221 187 71 247 226
56 228 183 72 254 220
57 235 178 73 261 214
58 242 174 74 268 208
OUTDOOR TEMPERATURE (DEG. F)
010203040
Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch.
Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.
11 150 152 15 163 152 20 175 151 25 188 150 35 203 166
12 157 150 16 168 150 21 180 149 26 191 148 36 210 163
13 164 148 17 174 148 22 185 147 27 195 146 37 217 160
14 171 146 18 180 146 23 189 145 28 199 144 38 224 157
15 178 144 19 186 144 24 194 143 29 202 142 39 231 154
16 185 142 20 192 142 25 199 141 30 206 140 40 238 151
17 192 140 21 198 140 26 204 139 31 210 138 41 245 149
50 60
Suc. Disch. Disch. Suc. Disch. Disch.
Press. Press. Temp. Press. Press. Temp.
51 243 198 66 284 230
52 250 193 67 291 224
53 257 189 68 298 218
54 264 184 69 305 211
55 271 180 70 312 205
56 278 175 71 319 199
57 285 171 72 326 193

11
12SEER - Refrigerant Charging Tables for Heating ModeofOperation
2-1/2 Ton
2 Ton
-ShadedBoxesindicate
floodedconditions
*Note: Allpressuresarelistedinpsig.andalltemperaturesin°F. -RatedDesignValues. SuctionPressurewillbelowerthandesignvalueifindoorair
flow,enteringdrybulb,orenteringwetbulbtemperaturesarelowerthandesign. -Dischargetemperaturesgreaterthancharted valuesindicateanunderchargedsystem.
Pressuresshownareforheatpumpoperatingonlywithoutback-upheat.
OUTDOOR TEMPERATURE (DEG. F)
010203040
Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch.
Press Press. Temp.
P
res
s
Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.
15 110 96 23 132 116 32 155 136 40 177 156 48 187 176
16 117 94 24 138 114 33 159 134 41 181 154 49 194 173
17 124 92 25 144 112 34 164 132 42 185 152 50 201 170
18 131 90 26 150 110 35 169 130 43 188 150 51 208 168
19 138 88 27 156 108 36 174 128 44 192 148 52 215 165
20 145 86 28 162 106 37 179 126 45 196 146 53 222 162
21 152 84 29 167 104 38 183 124 46 199 144 54 229 159
50 60
Suc. Disch. Disch. Suc. Disch. Disch.
Press. Press. Temp. Press. Press. Temp.
53 207 196 59 228 216
54 214 192 60 235 210
55 221 187 61 242 204
56 228 183 62 249 198
57 235 178 63 256 192
58 242 174 64 263 186
59 249 169 65 270 179
OUTDOOR TEMPERATURE (DEG. F)
010203040
Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch.
Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.
12 120 128 21 133 132 30 147 136 39 160 140 48 158 152
13 127 126 22 139 130 31 151 134 40 164 138 49 165 150
14 134 124 23 145 128 32 156 132 41 167 136 50 172 147
15 141 122 24 151 126 33 161 130 42 171 134 51 179 144
16 148 120 25 157 124 34 166 128 43 175 132 52 186 141
17 155 118 26 163 122 35 170 126 44 178 130 53 193 138
18 162 116 27 169 120 36 175 124 45 182 128 54 200 135
50 60
Suc. Disch. Disch. Suc. Disch. Disch.
Press.
Press. Temp.
Press.
Press. Temp.
55 164 173 62 170 194
56 171 169 63 177 187
57 178 164 64 184 181
58 185 160 65 191 175
59 192 155 66 198 169
60 199 151 67 205 163
61 206 146 68 212 157

12
12 SEER - Refrigerant Charging Tables for Heating Mode of Operation - Continued
3-1/2 Ton
3 Ton
-ShadedBoxesindicate
floodedconditions
*Note: Allpressuresarelistedinpsig.andalltemperaturesin°F. -RatedDesignValues. SuctionPressurewillbelowerthandesignvalueifindoorair
flow,enteringdrybulb,orenteringwetbulbtemperaturesarelowerthandesign. -Dischargetemperaturesgreaterthancharted valuesindicateanunderchargedsystem.
Pressuresshownareforheatpumpoperatingonlywithoutback-upheat.
OUTDOOR TEMPERATURE (DEG. F)
010203040
Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch.
Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.
13 120 118 22 136 126 31 152 135 40 167 143 48 169 155
14 127 116 23 142 124 32 156 133 41 171 141 49 176 152
15 134 114 24 148 122 33 161 131 42 174 139 50 183 149
16 141 112 25 154 120 34 166 129 43 178 137 51 190 146
17 148 110 26 159 118 35 171 127 44 182 135 52 197 143
18 155 108 27 165 116 36 175 125 45 185 133 53 204 141
19 162 106 28 171 114 37 180 123 46 189 131 54 211 138
50 60
Suc. Disch. Disch. Suc. Disch. Disch.
Press. Press. Temp. Press. Press. Temp.
57 179 170 65 189 185
58 186 165 66 196 179
59 193 161 67 203 173
60 200 156 68 210 167
61 207 152 69 217 160
62 214 147 70 224 154
63 221 143 71 231 148
OUTDOOR TEMPERATURE (DEG. F)
010203040
Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch.
Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.
21 133 124 25 146 127 29 160 130 34 173 132 43 183 155
22 140 122 26 152 125 30 164 128 35 176 130 44 190 152
23 147 120 27 158 123 31 169 126 36 180 128 45 197 150
24 154 118 28 164 121 32 174 124 37 184 126 46 204 147
25 161 116 29 170 119 33 179 122 38 187 124 47 211 144
26 168 114 30 176 117 34 184 120 39 191 122 48 218 141
27 175 112 31 182 115 35 188 118 40 195 120 49 225 138
50 60
Suc. Disch. Disch. Suc. Disch. Disch.
Press. Press. Temp. Press. Press. Temp.
56 213 198 70 243 242
57 220 194 71 250 235
58 227 189 72 257 229
59 234 185 73 264 223
60 241 180 74 271 217
61 248 176 75 278 211
62 255 171 76 285 205

13
12 SEER - Refrigerant Charging Tables for Heating Mode of Operation - Continued
4 Ton
-ShadedBoxesindicate
floodedconditions
*Note: Allpressuresarelistedinpsig.andalltemperaturesin°F. -RatedDesignValues. SuctionPressurewillbelowerthandesignvalueifindoorair
flow,enteringdrybulb,orenteringwetbulbtemperaturesarelowerthandesign. -Dischargetemperaturesgreaterthancharted valuesindicateanunderchargedsystem.
Pressuresshownareforheatpumpoperatingonlywithoutback-upheat.
OUTDOOR TEMPERATURE (DEG. F)
010203040
Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch. Suc. Disch. Disch.
Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.
7 122 121 16 137 123 24 152 125 32 167 126 43 175 144
8 129 119 17 143 121 25 157 123 33 170 124 44 182 141
9 136 117 18 149 119 26 161 121 34 174 122 45 189 138
10 143 115 19 155 117 27 166 119 35 178 120 46 196 136
11 150 113 20 161 115 28 171 117 36 181 118 47 203 133
12 157 111 21 167 113 29 176 115 37 185 116 48 210 130
13 164 109 22 172 111 30 180 113 38 189 114 49 217 127
50 60
Suc. Disch. Disch. Suc. Disch. Disch.
Press. Press. Temp. Press. Press. Temp.
57 202 178 71 228 213
58 209 174 72 235 206
59 216 169 73 242 200
60 223 165 74 249 194
61 230 160 75 256 188
62 237 156 76 263 182
63 244 151 77 270 176

14
10 SEER - Refrigerant Charging Tables for Cooling Mode of Operation
2 Ton OUTDOOR TEMPERATURE (°F)
70 75 80 85 90
Suct. Press. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
69 170 167
71 172 172 186 169
73 174 178 188 174 202 171
75 179 178 190 179 204 176 218 173
77 183 181 195 181 206 181 220 178 234 175
79 198 184 210 183 222 182 236 180
81 214 187 226 186 238 184
83 229 189 242 188
85 233 193 245 192
87 249 196
89
91
93
95
95 100 105
Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
250 177
252 182 266 180
254 186 268 184 282 182
257 190 270 188 284 186
261 194 273 192 286 190
264 198 276 196 289 194
280 200 292 198
295 203
2-1/2 Ton
OUTDOOR TEMPERATURE (°F)
70 75 80 85 90
Suct. Press. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
68 188 161
70 190 167 205 165
72 192 172 207 170 221 169
74 196 175 209 175 224 174 238 172
76 199 178 212 178 226 178 240 177 255 176
78 216 181 229 182 242 182 257 181
80 233 185 246 185 259 185
82 249 189 263 189
84 253 193 266 193
86 269 197
88
90
92
94
95 100 105
Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
272 180
274 184 288 183
276 188 290 187 305 187
279 192 292 191 307 191
283 196 296 196 309 195
286 200 299 200 313 199
303 204 316 204
319 208
-ShadedBoxesindicate
floodedconditions
*Note: Allpressuresarelistedinpsig.andalltemperaturesin°F. -RatedDesignValues. SuctionPressurewillbelowerthandesignvalueifindoorair
flow,enteringdrybulb,orenteringwetbulbtemperaturesarelowerthandesign. -Dischargetemperaturesgreaterthancharted valuesindicateanunderchargedsystem.
Pressuresshownareforheatpumpoperatingonlywithoutback-upheat.

15
3 Ton
OUTDOOR TEMPERATURE (°F)
70 75 80 85 90
Suct. Press. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
67 196 160
69 199 165 213 165
71 201 170 215 170 229 171
73 202 179 217 175 231 176 245 176
75 205 181 218 182 233 180 247 180 261 181
77 222 185 235 186 249 185 263 185
79 238 189 251 189 265 189
81 255 193 268 194
83 258 197 271 197
85 275 201
87
89
91
93
95 100 105
Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
277 185
279 190 293 190
281 194 295 194 309 194
284 198 297 198 311 198
288 202 301 202 313 202
291 206 304 206 317 207
308 211 321 211
324 216
3-1/2 Ton
OUTDOOR TEMPERATURE (°F)
70 75 80 85 90
Suct. Press. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
70 207 162
72 209 168 223 168
74 211 173 225 173 238 173
76 211 183 227 178 240 178 254 178
78 215 186 227 186 242 183 256 182 269 182
80 231 189 244 189 258 187 271 187
82 247 192 260 192 273 191
84 263 195 276 195
86 267 199 279 199
88 283 203
90
92
94
96
95 100 105
Dis.Press. Dis. Temp. Dis. Press. Dis.Temp. Dis. Press. Dis. Temp.
284 187
286 191 300 191
289 195 302 195 315 195
292 199 304 199 317 198
295 203 308 203 319 202
299 207 311 208 324 207
315 212 327 212
331 216
-ShadedBoxesindicate
floodedconditions
*Note: Allpressuresarelistedinpsig.andalltemperaturesin°F. -RatedDesignValues. SuctionPressurewillbelowerthandesignvalueifindoorair
flow,enteringdrybulb,orenteringwetbulbtemperaturesarelowerthandesign. -Dischargetemperaturesgreaterthancharted valuesindicateanunderchargedsystem.
10 SEER - Refrigerant Charging Tables for Cooling Mode of Operation - Continued
Pressuresshownareforheatpumpoperatingonlywithoutback-upheat.

16
10 SEER - Refrigerant Charging Tables for Cooling Mode of Operation - Continued
4 Ton
OUTDOOR TEMPERATURE (°F)
70 75 80 85 90
Suct. Press. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
65 200 140
67 202 146 218 150
69 204 151 220 155 236 159
71 204 162 222 160 239 164 255 168
73 207 165 223 168 241 169 257 172 273 176
75 226 171 242 175 259 177 275 181
77 245 178 261 182 277 185
79 264 185 280 189
81 268 189 283 193
83 287 197
85
87
89
91
95 100 105
Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
291 185
293 189 309 192
295 193 311 196 327 200
299 197 313 200 329 204
302 201 318 205 331 208
306 205 321 209 337 213
325 213 340 218
343 222
5 Ton
OUTDOOR TEMPERATURE (°F)
70 75 80 85 90
Suct. Press. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
56 188 143
58 190 148 205 151
60 193 154 207 156 222 159
62 193 163 210 161 225 163 239 166
64 196 166 210 168 227 168 242 171 256 173
66 214 171 228 174 244 175 259 178
68 232 177 246 180 261 182
70 249 184 263 186
72 253 187 267 190
74 270 194
76
78
80
82
95 100 105
Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
274 180
276 184 290 187
278 189 292 191 307 193
281 193 294 195 309 197
284 197 299 199 311 201
288 201 302 204 316 206
305 208 320 211
323 215
-ShadedBoxesindicate
floodedconditions
*Note: Allpressuresarelistedinpsig.andalltemperaturesin°F. -RatedDesignValues. SuctionPressurewillbelowerthandesignvalueifindoorair
flow,enteringdrybulb,orenteringwetbulbtemperaturesarelowerthandesign. -Dischargetemperaturesgreaterthancharted valuesindicateanunderchargedsystem.
Pressuresshownareforheatpumpoperatingonlywithoutback-upheat.

17
12 SEER - Refrigerant Charging Tables for Cooling Mode of Operation
2 Ton
OUTDOOR TEMPERATURE (°F)
70 75 80 85 90
Suct. Press. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
73 176 98
75 178 103 190 108
77 180 109 192 113 203 118
79 180 120 194 118 206 123 217 128
81 183 123 194 127 208 128 219 132 231 137
83 198 130 209 134 221 137 233 141
85 212 137 223 142 235 146
87 227 146 238 150
89 230 149 241 154
91 244 158
93
95
97
99
95 100 105
Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
244 146
246 150 258 155
249 154 260 159 271 163
252 158 262 163 273 167
255 163 266 167 275 171
259 167 270 171 281 176
273 176 284 181
287 185
2-1/2 Ton
OUTDOOR TEMPERATURE (°F)
70 75 80 85 90
Suct. Press. Dis. Press. Dis. Temp. Dis. Press. Dis.Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
75 187 124
77 189 129 203 133
79 191 135 205 138 218 141
81 192 143 207 143 221 146 234 149
83 196 146 208 149 223 151 236 154 250 157
85 212 152 224 156 238 158 252 161
87 228 159 241 163 254 166
89 244 166 257 170
91 248 170 260 174
93 264 178
95
97
99
101
95 100 105
Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
266 165
268 169 281 172
270 173 283 176 297 180
273 177 285 180 299 183
276 181 289 185 301 187
280 185 293 189 305 192
296 193 309 197
312 201
-ShadedBoxesindicate
floodedconditions
*Note: Allpressuresarelistedinpsig.andalltemperaturesin°F. -RatedDesignValues. SuctionPressurewillbelowerthandesignvalueifindoorair
flow,enteringdrybulb,orenteringwetbulbtemperaturesarelowerthandesign. -Dischargetemperaturesgreaterthancharted valuesindicateanunderchargedsystem.
Pressuresshownareforheatpumpoperatingonlywithoutback-upheat.

18
12 SEER - Refrigerant Charging Tables for Cooling Mode of Operation - Continued
3 Ton
OUTDOOR TEMPERATURE (°F)
70 75 80 85 90
Suct. Press. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
71 183 135
73 186 140 201 142
75 188 145 203 147 218 148
77 188 156 205 152 220 153 235 155
79 191 158 206 160 222 158 238 159 253 161
81 209 163 224 164 240 164 255 165
83 227 167 242 169 257 170
85 245 172 259 174
87 248 176 263 178
89 266 182
91
93
95
97
95 100 105
Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
270 167
272 171 287 172
274 175 289 176 304 178
277 179 291 180 306 182
281 183 295 185 308 185
284 187 299 189 313 191
302 193 316 195
320 200
3-1/2 Ton
OUTDOOR TEMPERATURE(°F)
70 75 80 85 90
Suct. Press. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
71 171 138
73 173 143 189 144
75 176 148 192 149 207 150
77 177 156 194 154 210 155 225 156
79 180 159 195 160 212 160 228 160 244 161
81 199 163 214 165 230 165 246 166
83 217 168 232 169 248 170
85 236 173 251 174
87 239 177 254 178
89 258 182
91
93
95
97
95 100 105
Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
262 167
264 171 279 172
266 175 281 176 297 177
269 179 283 180 299 181
272 183 287 184 301 185
276 187 291 189 306 190
294 193 309 194
313 199
-ShadedBoxesindicate
floodedconditions
*Note: Allpressuresarelistedinpsig.andalltemperaturesin°F. -RatedDesignValues. SuctionPressurewillbelowerthandesignvalueifindoorair
flow,enteringdrybulb,orenteringwetbulbtemperaturesarelowerthandesign. -Dischargetemperaturesgreaterthancharted valuesindicateanunderchargedsystem.
Pressuresshownareforheatpumpoperatingonlywithoutback-upheat.

19
12 SEER - Refrigerant Charging Tables for Cooling Mode of Operation - Continued
4 Ton
OUTDOOR TEMPERATURE (°F)
70 75 80 85 90
Suct. Press. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
68 170 138
70 172 144 187 145
72 175 149 189 150 204 152
74 175 158 191 155 206 157 221 158
76 178 161 192 163 208 162 223 163 237 165
78 196 166 209 167 225 168 239 169
80 213 171 227 172 242 174
82 230 176 244 178
84 234 180 248 182
86 251 185
88
90
92
94
95 100 105
Dis. Press. Dis. Temp. Dis. Press. Dis. Temp. Dis. Press. Dis. Temp.
254 171
256 175 271 176
258 179 273 180 287 182
262 183 275 184 289 186
265 187 279 189 291 190
268 191 282 193 296 195
286 197 300 199
303 204
-ShadedBoxesindicate
floodedconditions
*Note: Allpressuresarelistedinpsig.andalltemperaturesin°F. -RatedDesignValues. SuctionPressurewillbelowerthandesignvalueifindoorair
flow,enteringdrybulb,orenteringwetbulbtemperaturesarelowerthandesign. -Dischargetemperaturesgreaterthancharted valuesindicateanunderchargedsystem.
Pressuresshownareforheatpumpoperatingonlywithoutback-upheat.

7080170
Specifications and illustrations subject to change
without notice and without incurring obligations.
PrintedinU.S.A.(6/01)
¢708017#¤
7080170
INSTALLER
PLEASE LEAVE THESE
INSTALLATIONINSTRUCTIONS
WITH THE HOMEOWNER.
