Nortek Control Mighty Mule MM571W User manual

10022116 Rev-D
Installation Manual
(For a single or dual gate installation)
Horizontal Support
Gate Swings Evenly and Freely
Hung Firmly and Plumb
Post Bracket
Fence Post Set in Concrete Fence Post Set in Concrete
Run 1000' (max.) of low voltage
wire to control box from
transformer (wire not included).
Power Cable
PVC conduit (not included)
to protect wire from lawn
mowers and weed eaters.
PVC conduit (not included)
to run second opener power
cable under driveway.
Gate Bracket
Warning Sign
Secondary Opener Primary Gate Opener
Horizontal Support
Post Bracket
Gate Bracket
Warning Sign
Control Box
(mounted on wood)
120 Volt indoor
Transformer
(surge protector
not supplied)

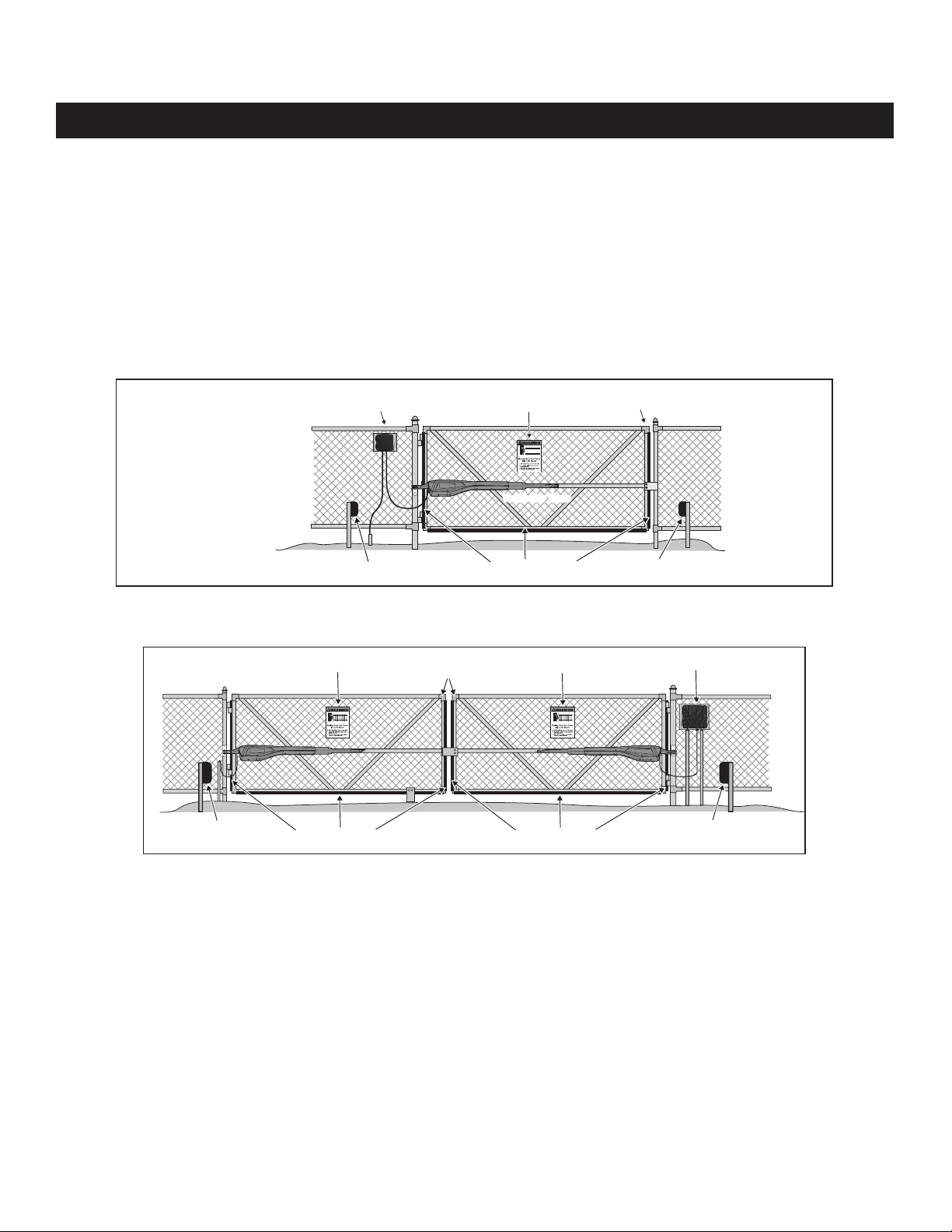

Example of Dual Gate nished installation
(Installations vary slightly on different types of gates)
MM571W
MM572W
Single Gate Installation [MM571W]
Dual gate installation [MM572W]
This product meets the requirements of UL325, the standard for gate operator safety.
Mighty Mule® is the retail brand of Nortek Security & Control, LLC

WARNING
DO NOT SPLICE ANY
POWER WIRES!
DO NOT MODIFY THE
BATTERY HARNESS!
THIS WILL VOID YOUR
MANUFACTURER’S
WARRANTY.
Low voltage wire for transformer not included.

Product Usage
The Mighty Mule Gate Operator meets all of the safety requirements of a Class I Residential Vehicular Gate Operator and is intended for use solely
with vehicular swing gates in single-family residential applications that meet the Class I category listed in the table below.
Residential Vehicular Gate Operator-Class I:
A vehicular gate operator (or system) intended for
use in garages or parking areas associated with a
residence of one-to-four single families.
Commercial/General Access Vehicular Gate
Operator-Class II:
A vehicular gate operator (or system) intended for
use in a commercial location or building such as a
multi-family housing unit (ve or more single family
units), hotel, garages, retail store, or other buildings
accessible by or servicing the general public.
Industrial/Limited Access Vehicular Gate Operator–Class III:
A vehicular gate operator (or system) intended for use in an industrial
location or building such as a factory or loading dock area or other
locations not accessible by or intended to service the general public.
Restricted Access Vehicular Gate Operator – Class IV:
A vehicular gate operator (or system) intended for use in an industrial
location or building such as a factory or loading dock area or other
locations not accessible by or intended to service the general public.
Vehicular Gate Operator Class Categories
WARNING
This equipment meets Underwriters Laboratory Standard 325 (UL 325). However, gate equipment has
hazards associated with its use and therefore by installing this product the installer and user accept
full responsibility for following and noting the installation and safety instructions. Failure to follow
installation and safety instructions can result in hazards developing due to improper assembly. You
agree to properly install this product and that if you fail to do so Nortek Security & Control, LLC, shall
in no event be liable for direct, indirect, incidental, special or consequential damages or loss of prots
whether based in contract tort or any other legal theory during the course of the warranty or at any time
thereafter. The installer and/or user agree to assume responsibility for all liability and use of this product
releasing Nortek Security & Control, LLC, from any and all liability. If you are not in agreement with this
disclaimer or do not feel capable of properly following all installation and safety instructions you may
return this product for full replacement value.
READ ALL INSTRUCTIONS CAREFULLY AND COMPLETELY before attempting to install and
use this automatic gate operator. This gate operator produces a high level of force. Stay clear of the unit
while it is operating and exercise caution at all times.
ALL AUTOMATIC GATE OPERATORS ARE INTENDED FOR USE ON VEHICULAR GATES ONLY.

Table of Contents
Please Read This First! .......................................................................................................................... 2
Important Safety Information................................................................................................................. 3
Manually Opening and Closing Gate .................................................................................................................................................3
For the Installer and End User...........................................................................................................................................................4
Installing Warning Signs and Pedestrian Gates .................................................................................................................................8
Required Safety Precautions for Gates..............................................................................................................................................9
Technical Specications ...................................................................................................................... 10
Mighty Mule 571W/572W Gate Opener...........................................................................................................................................10
Powering Options...........................................................................................................................................................................11
Solar Panel and Gate Activity Chart.................................................................................................................................................11
Before You Begin.................................................................................................................................. 11
Check Existing Gate Size and Material............................................................................................................................................12
IMPORTANT: Check for Proper Gate Installation...............................................................................................................................12
Items Included for Primary Gate Opener Installation (MM571W)......................................................................................................13
Items Included for Secondary Opener Installation (MM572W) .........................................................................................................13
Tools Needed .................................................................................................................................................................................14
Items Not Included .........................................................................................................................................................................14
Check Direction of Gate Swing .......................................................................................................................................................14
Mechanical Installation ........................................................................................................................ 15
Assessing the Gate for Installation .................................................................................................................................................15
Pull-to-Open Operator Mounting (Most Common)...........................................................................................................................16
Installing the Closed Position Stop Plate / Pull-to-Open...................................................................................................................21
Push-to-Open Operator Mounting...................................................................................................................................................24
Installing the Closed Position Stop Plate / Push-to-Open.................................................................................................................29
Control Box Installation...................................................................................................................................................................30
Connecting the Operator(s) and battery .........................................................................................................................................32
Connecting the Operator(s) and battery .........................................................................................................................................33
Transformer or Solar panel wiring Installation.................................................................................................................................34
Transformer or Solar panel wiring Installation.................................................................................................................................35
Electrical Installation and Setup .......................................................................................................... 37
Dip Switches settings.....................................................................................................................................................................37
Transmitter Programming...............................................................................................................................................................38
Closed Limit Programming - Pull to Open .......................................................................................................................................39
Closed Limit Programming - Push to Open .....................................................................................................................................41
Dual Sense Stall Force Setting........................................................................................................................................................43
Auto Close Setting..........................................................................................................................................................................44
Optional Smart Control Setup.............................................................................................................. 44
Connecting Additional Devices ........................................................................................................... 45
Control Board Connections .............................................................................................................................................................46
Connecting Accessories .................................................................................................................................................................47
Maintenance ......................................................................................................................................... 48
Troubleshooting Guide - Audible Feedback ....................................................................................... 49
Troubleshooting Guide - Visual Feedback .......................................................................................... 51
Repair Service ...................................................................................................................................... 53
Accessories .......................................................................................................................................... 54
Appendix A ........................................................................................................................................ 56
Accessory Installation Instructions..................................................................................................................................................56
Gate Operator Installation Checklist ................................................................................................... 57

MM571W / MM572W Installation Instructions
2
BEFORE YOU BEGIN TO INSTALL YOUR AUTOMATIC GATE OPERATOR:
Read these instructions carefully to become familiar with all parts and installation steps.
The video is only designed as an overview of the installation procedure.
You must read the installation manual for detailed instructions
on gate operator safety and proper use of the gate operator.
Please Read This First!
Thank you for purchasing a Mighty Mule Gate Operator—
Nortek Security & Control's "do-it-yourself" automatic
gate operator! When correctly installed and properly used,
your Mighty Mule Gate Operator will give you many years
of reliable service. Please read the following information
to ensure you have the correct system for your particular
needs. If so, this manual and will enable you to properly
install your Mighty Mule Gate Operator.
The Mighty Mule Gate Operator is designed for installation
for single or dual gates. The gate(s) must not exceed 18
feet in length or weigh more than 850 pounds (please see
Technical Specications on page 10). The Mighty Mule
Gate Operator can be used on vinyl, aluminum, chain link,
farm tube, and wrought iron gates.
Not rated for use on solid surface gates due to the
potential to damage the operator and/or injure someone.
The Mighty Mule Gate Operator accommodates extra
transmitters, digital keypads, solar panels, push buttons,
automatic gate locks, and other access control products.
These optional accessories (see the Mighty Mule
Accessory Catalog) are available at most stores. Your
store should be able to special order any accessory not in
stock.
If your store cannot special order accessories, please call
the Mighty Mule Sales Department (800-421-1587).
The Mighty Mule Gate Operator features Dual Sense
Technology™. This feature makes the gate stop and
reverse direction when it comes in contact with an
obstruction.
The Mighty Mule Gate Operator also has an adjustable
auto-close feature. After the gate reaches the fully open
position, it can be set to remain open up to 120 seconds
before automatically closing. Pressing the transmitter
button at any time after the gate opens fully will cause it
to close immediately. OFF is the factory setting; meaning
the gate will stay open until you press the transmitter (or
keypad, etc.) again.
Go to www.linearproaccess.com for a dealer or retailer
near you or call 800-421-1587 for information about our
Linear professional line of gate operators and accessories.
Our Sales Department will be glad to give you the name
and phone number of a Linear dealer near you.
NOT FOR THE CONTAINMENT OF ANIMALS.

MM571W / MM572W Installation Instructions 3
CAUTION
The gate will move freely and uncontrolled when the gate operator is removed from the gate.
ONLY disconnect the operator when the control box power switch is OFF and the gate is NOT moving.
Clevis Pin
Hairpin Clip
Gate Bracket
Front Mount
Because automatic gate operators produce high levels
of force, consumers need to know the potential hazards
associated with improperly designed, installed, and
maintained automated gate operator systems. Keep in
mind that the gate operator is just one component of
the total gate operating system. Each component must
work in unison to provide the end user with convenience,
security, and safety.
This manual contains various safety precautions and
warnings for the installer and end user. Because there
are many possible applications of the gate operator,
the safety precautions and warnings contained in this
Disconnecting the Operator
1. Turn control box power switch OFF.
2. Remove the hairpin clip and clevis pin.
3. Remove the operator’s front mount from the gate bracket.
The gate can be opened and closed manually when the operator
is disconnected.
manual cannot be completely exhaustive in nature. It
does, however, provide an overview of the safe design,
installation, and use of this product. CAREFULLY READ
AND FOLLOW ALL SAFETY PRECAUTIONS, WARNINGS,
AND INSTALLATION INSTRUCTIONS TO ENSURE THE
SAFE SYSTEM DESIGN, INSTALLATION, AND USE OF THIS
PRODUCT.
Warnings in this manual are identied with this
warning symbol. The symbol identies conditions that
can result in damage to the operator or its components,
serious injury, or death.
MANUALLY OPENING AND CLOSING GATE
Because Mighty Mule automatic gate operators are only part of the total gate operating system, it is the
responsibility of the installer and end user to ensure that the total system is safe for its intended use.
NOTE: Substitute a Pin Lock for the clevis pin on the front mount of
the gate operator to prevent theft of the operator from the gate (see
accessory pages in back of this book).
Important Safety Information
Part #: FM133

MM571W / MM572W Installation Instructions
4
WARNING
I. Before Installation
1. Verify this operator is proper for the type and size of gate, frequency of use
and class of the gate system.
2. Make sure the gate has been properly installed and swings freely in both
directions. Repair or replace all worn or damaged gate hardware prior to
installation. A freely moving gate will require less force to operate and will
enhance the performance of the entrapment protection devices used with
the system (see page 7).
3. Review the operation of the system to become familiar with its safety
features. Understand how to disconnect the operator for manual gate
operation (see previous page).
4. The gate and operator installation must comply with any applicable local
codes.
5. This gate operator is intended for vehicular gates only. A separate entrance
or gate must be installed for pedestrian use (see page 8).
6. Always keep people and objects away from the gate and its area of travel.
No one should cross the path of a moving gate.
7. Identify all of the entrapment zones for the type of installation. An
entrapment zone is an area around the automatic gate system where
a person or object could be caught that increase the risk of injury.
Entrapment zones should be eliminated, guarded or protected.
8. When designing a system that will be entered from a highway or main
thoroughfare, make sure the gate system is placed far enough from the
road to prevent trafc congestion.
FOR THE INSTALLER AND END USER
Gate in the
Open Position
ZONE 2
ZONE 3
ZONE 4
ZONE 5
Driveway
ZONE 1
Entrapment
Zones for a
Pull-To-Open
Application
MM571W
Gate in the
Open Position
Gate in the
Open Position
ZONE 2
ZONE 3
ZONE 4
ZONE 5
Driveway
MM572W
ZONE 1
ZONE 2
ZONE 4
ZONE 5
ZONE 3
Entrapment Zones
for a Pull-To-Open
Application
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control
away from children.
3. Always keep people and objects away from the gate. NO ONE SHOULD CROSS
THE PATH OF THE MOVING GATE.
4. Test the gate operator monthly. The gate MUST reverse on contact with a
rigid object or stop when an object activates the non-contact sensors. After
adjusting the force or the limit of travel, retest the gate operator. Failure to
adjust and retest the gate operator properly can increase the risk of injury or
death.
5. Use the manual/emergency release only when the gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the user’s manual. Have
a qualied service person make repairs to gate hardware.
7. The entrance is for vehicles only. Pedestrians must use separate
entrance.
8. The gate must be installed in a location that provides adequate
clearance between it and adjacent structures when opening and
closing to reduce the risk of entrapment. Swinging gates must not
open into public access areas.
9. SAVE THESE INSTRUCTIONS.
To reduce the risk of injury or death:
Important Safety Information

MM571W / MM572W Installation Instructions 5
II. During Installation
1. Install the gate operator on the inside of the property and
fence line. DO NOT install an operator on the outside of
the gate where the public has access to it.
2. Be careful with moving parts and avoid close proximity to
areas where ngers or hands could be pinched.
3. Devices such as contact sensors (sensing
edges) and non contact sensors (photo beams) provide
additional protection against vehicular damage.
4. If push buttons or key switches are installed, they should
be within sight of the gate, located at least 10 feet from
any moving part of the gate (see diagram below).
Never install any control device where a user will
be tempted to reach through the gate to activate the
gate operator.
5. Secure outdoor or easily accessed gate operator controls
in order to prohibit unauthorized use of the gate.
FOR THE INSTALLER AND END USER
Typical Entrapment Zones are shown in the diagrams on page 7:
Zone 1 – leading edge of the gate and the fence post.
Zone 2 – between the gate and the gate post.
Zone 3 – the path of the gate.
Zone 4 – the space between the gate in the open position and any object such as a wall, fence, tree, etc.
Zone 5 – pinch points between the operator and gate.
Moving Gate
Area
Driveway
10'
10'
10'
10'
NEVER install any control device
within the indicated area
MM571W
Pull-To-Open Application
Important Safety Information
Pull-To-Open
Application
Moving Gate
Area
Moving Gate
Area
Driveway
10'10'
10'10'
10'10'
NEVER INSTALL
any control device
within the indicated area
MM572W
Pull-To-Open Application

MM571W / MM572W Installation Instructions
6
III. After Installation
1. Attach the warning signs (included) to each side of the
gate to alert the public of automatic gate operation. It is
your responsibility to post warning signs on both sides
of your gate. If any of these signs or warning decals
becomes damaged,
illegible, or missing, replace them immediately.
Contact Nortek Security & Control for free replacements.
2. The gate is automatic and could move at any time,
posing serious risk of entrapment. No one should be in
contact with the gate when it is
moving or stationary.
3. Do not attempt to drive into the gate area while the gate
is moving; wait until the gate comes to a complete stop.
4. Do not attempt to “beat the gate” while the gate is
closing. This is extremely dangerous.
5. Do not allow children or pets near your gate. Never let
children operate or play with gate controls. Keep the
remote control away from children and unauthorized
users; store controls where children and unauthorized
users do not have access to them.
6. KEEP GATE SYSTEMS MAINTAINED. Always turn power
to operator OFF before performing any maintenance. See
page 48 for maintenance procedures.
7. To operate this equipment safely, YOU must know how to
disconnect the operator for manual gate operation (see
page 17). If you have read the instructions and still do not
understand how to disconnect the operator, contact the
Mighty Mule Service Department.
8. Disconnect the operator ONLY when the power is
TURNED OFF and the gate is NOT moving.
9. Make arrangements with local re and law
enforcement for emergency access.
10. Distribute and discuss copies of the
IMPORTANT SAFETY INFORMATION
section of this manual with all persons
authorized to use your gate.
11. IMPORTANT: Save these safety instructions. Make sure
everyone who is using or will be around the gate and
gate operator are aware of the dangers associated
with automated gate systems. In the event you sell the
property with the gate operator or sell the gate operator,
provide a copy of these safety instructions to the new
owner.
Should you need a replacement manual, a copy can
be obtained by downloading one from the Mighty
Mule web site (www.mightymule.com), by contacting
Nortek Security & Control by calling 800-543-1236 and
requesting a duplicate copy.
FOR THE INSTALLER AND END USER
Important Safety Information

MM571W / MM572W Installation Instructions 7
FOR THE INSTALLER AND END USER
Mighty Mule gate operators utilize Dual Sense Technology™
entrapment protection. Dual Sense Technology™is built
into every Mighty Mule and provides redundant methods of
entrapment protection for open and close gate directions.
In addition to Dual Sense Technology, every Mighty Mule
gate controller has provisions for the connection of additional
obstruction detection devices such as sensing edges and
photo beams.
These devices may be located where there is an increased
risk of obstruction. Refer to the diagram below. One or more
edge sensors may be located at the leading edge, bottom
edge, and post edge, both inside and outside of a vehicular
swing gate system.
Wiring to sensors must be located and arranged so the wiring
between the sensor and the gate operator is not subjected to
mechanical damage.
A wireless sensor such as one that transmits radio frequency
(RF) signals that promote safety shall be located where the
transmission of the signals is not obstructed or impeded by
building structures, natural landscaping or similar objects.
Vehicular Gate
Vehicular Gate
Vehicular Gate
Vehicular Gate
Photo Beams
(recommended, not included)
Photo Beams
(recommended, not included)
Sensing Edges
(recommended, not included)
Sensing Edges
(recommended, not included)
Leading Edges
of gates
Gate Warning Sign Gate Warning Sign Control Box
Leading Edge
of the gate
Photo Beam
(recommended, not included)
Photo Beam
(recommended, not included)
Sensing Edges
(recommended, not included)
Vehicular Gate
Gate Warning Sign
Control Box
Entrapment and Obstruction Protection
Mighty Mules’s Dual Sense Technology™provides entrapment protection. Since all installations are different, you may need to
add photo beams or sensing edges to help prevent damage to vehicle or other items that could be hit by a moving gate.
Entrapment Alarm
The Mighty Mule Automatic Gate Operator is designed to stop and reverse the gate when the gate comes in contact with an
obstruction. Additionally, these operators are equipped with an audio entrapment alarm which will activate if the unit obstructs
twice while opening or closing. This alarm will sound for a period of 5 minutes, or until the operator receives an intended signal
from a hard wired entry/exit source (e.g. push button control or keypad). Turning the power switch on the control box OFF and
back ON will also deactivate the alarm. Wireless controls such as transmitters and wireless keypads will not deactivate the alarm.
Important Safety Information
Example of MM572W Installation
(Installations vary slightly on different types of gates)
Example of MM571W Installation
(Installations vary slightly on different types of gates)
NOTE: Photo beams should
always be located on the
non-travel side of the gate.
Note: Photo Beams should always be located on the non-travel side of the gate.

MM571W / MM572W Installation Instructions
8
Bulldog Pedestrian
Gate Lock
(recommended, not included)
7 foot
minimum
Warning SignPedestrian Gate Warning SignControl Box
Vehicular Gate
Vehicular Gate
Vehicular Gate
Vehicular Gate
Warning SignPedestrian Gate
Pedestrian Gate Lock
(recommended, not included)
7 foot
minimum
Control Box
Vehicular Gate
Vehicular Gate
Important Safety Information
Warning signs alert people of automatic gate operation and are required when installing Mighty Mule Automatic Gate
Operators. A minimum of two WARNING SIGNS must be installed in the area of the gate. Each sign is to be visible by
persons located on the side of the gate on which the placard is installed.
The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate
access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such
that persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.
We recommend using the Bulldog Pedestrian Gate Lock (Call the Nortek Security & Control Sales Department at 800-
421-1587) for controlled access.
INSTALLING WARNING SIGNS AND PEDESTRIAN GATES
Warning Signs
The gate operator is provided with two safety warning signs (four signs for dual operator
installation). The signs MUST be installed on the front and back of the gate where they will be
visible in the area of the gate.
Permanently secure each warning sign to the gate.
Immediately replace a damaged, eligible or missing warning sign.
Call Customer Service at 800-421-1587 for a free replacement.
!
Example of MM572W Installation
(Installations vary slightly on different types of gates)
Example of MM571W Installation
(Installations vary slightly on different types of gates)

MM571W / MM572W Installation Instructions 9
Labels (1) installed on the front of control box
10019674A
1. KEEP CLEAR! Gate may move at any time.
2. Read all SAFETY INSTRUCTIONS in the user’s manual.
3. Do not allow children to operate gate or play in gate area.
4. This gate is for vehicles only. Pedestrians must use separate entrance.
Moving gate can cause injury or death!
1. TENEZ-VOUS LOIN! La barrière peut se déplacer à tout moment.
2. Lisez toutes les instructions de sécurité dans le manuel de l'utilisateur.
3. Ne laissez pas les enfants utiliser la barrière ou jouer à proximité de la barrière.
4. Cette barrière est uniquement réservée aux véhicules. Les piétons doivent
utiliser une autre entrée.
AVERTISSEMENT
WARNING
La barrière en mouvement peut provoquer des
blessures graves ou la mort!
Important Safety Information
These warning labels should be found at the locations specied below. If any of them are missing, immediately contact
Nortek Security & Control for replacements.
REQUIRED SAFETY PRECAUTIONS FOR GATES

MM571W / MM572W Installation Instructions
10
Maximum Weight (lbs.) Maximum Length (ft.)
850 8
750 10
650 12
550 14
450 16
350 18
MIGHTY MULE 571W/572W GATE OPENER
Technical Specications
NOTE: Ball bearing hinges should be used on all gates weighing over 250 lb.
The Gate Capacity Chart below shows the recommended maximum gate length to weight. The minimum
recommended gate length is 5 ft.
_____________________________________ DRIVE _____________________________________
• Low friction screw drive (linear actuator) rated for -5 °F to +160 °F (-20 °C to +71 °C).
• Powered by a 12 V motor with integral gear reducer. Motor speed reduced to 348 rpm at 12 V.
• Maximum opening arc of 110°. Approximate opening time (90°): 18 seconds, depending on weight of gate.
_____________________________________ POWER _____________________________________
• The system is powered by a 12 Vdc battery (included). A second Mighty Mule battery may be used (not included).
• Battery charger is on the control board and maintained by a 120Vac to 19VDC output transformer or by
optional Solar Panels; the panel should generate minimum of 10 Watts (600 mA/20 watt max.). A diode on the
control board prevents battery discharge. IMPORTANT: Never use both transformer and solar panel— this will
damage the battery and control board.
• Three (3) Mini blade-style fuses rated for 25A.
• NOTE: The transformer should not be directly connected to any battery. Do not replace fuses with higher
ampere rated fuses; doing so will void your warranty and may damage your control board.
_____________________________________ CONTROL _____________________________________
• Microprocessor-based control board is set for single or dual leaf, pull-to-open or push-to-open installations.
• Control board has temperature compensated circuits.
• Learn based digital transmitter technology provides millions of codes for enhanced security.
• Receiver is tuned to 318 MHz
• Opener length with push-pull tube fully retracted is 40 1/4", mounting point to mounting point.
Maximum stroke is 20".
• Adjustable auto-close timer (OFF to 3–120 seconds), and Dual Sense Technology™ stall force.
• Power terminal block accommodates a transformer or solar panels.
• Accessory terminal block fully compatible with all Mighty Mule access controls.
• Control board allows connection of edge sensors and photoelectric sensors.
• Audio entrapment alarm sounds if unit encounters an obstruction twice while opening or closing.
__________________________________
OPERATIONAL CAPACITY _________________________________

MM571W / MM572W Installation Instructions 11
1. Determine Charging Option for Battery: Transformer OR Solar
IMPORTANT:
●The transformer is designed for indoor use. If the transformer can be plugged only into an outside electrical outlet, a
weatherproof cover/housing (available at local electrical supply stores) must be used.
●If your gate is more than 1000 ft. from an AC power source, you will need to use at least 10 watt solar charging power to
charge the battery [FM123]. Refer to the Solar Panel and Gate Activity chart below.
●All low voltage wire used with the Mighty Mule gate operator must be 16 gauge dual conductor, stranded, direct burial
wire [RB509]. Do not run more than 1000 ft. of wire.
NEVER USE TRANSFORMER AND SOLAR PANEL(S) AT
THE SAME TIME. It will damage the control board.
The table and map
illustrate the maximum
number of gate cycles
to expect per day in a
particular area when
using from 10 to 30 watts
of solar charging power
prior to the battery depleting to a state where
the unit will not function. The gures shown
are for winter (minimum sunlight). Accessories
connected to your system will draw additional
power from the battery.
Accessories connected to your system will draw
additional power from the battery.
A second battery [FM150] is recommended for solar
and/or high trafc applications. See the accessory
catalog.
Before You Begin
POWERING OPTIONS

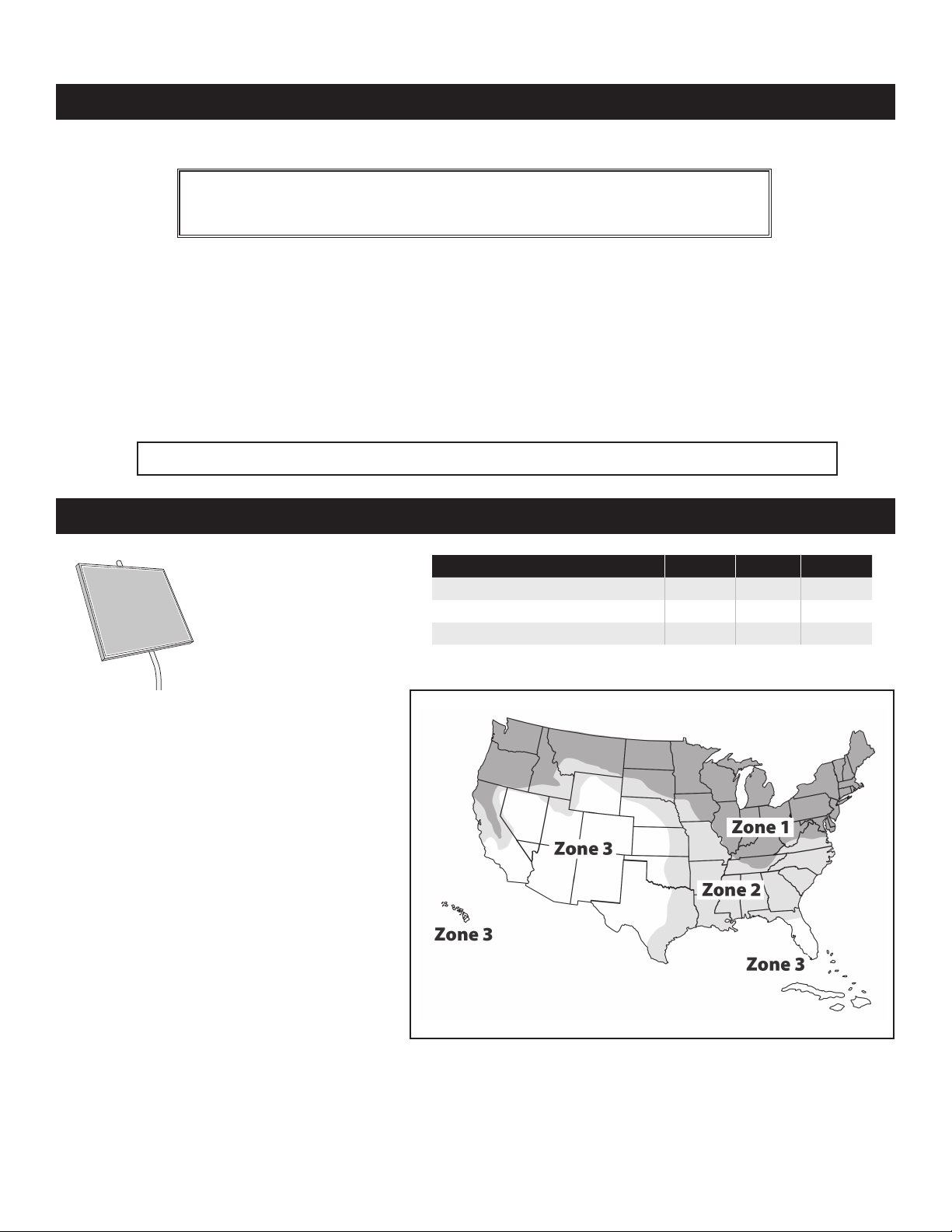

SOLAR PANEL AND GATE ACTIVITY CHART
Single Gate Winter Ratings Zone 1 Zone 2 Zone 3
12 v single gate (10 watts) solar charger 816 26
12 v single gate (20 watts) solar charger 14 28 38
12 v single gate (30 watts) solar charger 20 44 54
* Power increments are for reference only.
* If the gate operator controller is OFF, the system will NOT charge the battery.

MM571W / MM572W Installation Instructions
12
E
A
B
C
D
F
Gate Grounding
●For reference only.
Copper Clad Ground Rod
(not included)
Use an 8 foot, 5/8 inch ground rod,
positioned two feet or less from the
post and 2 inches or less above the
ground. Available at local home center
or hardware stores.
NOTE: No grounding system absolutely
protects against lightning strikes. If
installed correctly, a grounding system
will help minimize damage to your
gate operator.
●The gate must be plumb, level, and swing freely on its hinges.
●The gate must move throughout its arc without binding or dragging on the ground.
●Wheels must NOT be attached to the gate.
●Gates over 250 lb. should have ball bearing hinges with grease ttings.
●Post must be secured in the ground with concrete (minimizes twist/ex when the operator is activated).
●Make sure there is a stable area for mounting the gate bracket (this may require the addition of a horizontal or vertical cross
member).
●We recommend you position the operator near the center-line of a gate to keep the gate from twisting and exing, and to
avoid back-splash from rain.
Copper clad ground rod
(not included)
Ground
Ground
2 Inches or
Less above
ground
Copper ground
rod clamp
Copper Single
Conductor Lug
3/16” Drilled
Pilot Hole
6 ft. deep
or more
Metal gate post
Metal Gate Post
12awg or Larger
Gate Opener
Control Box
2 ft. or Less
from post
IMPORTANT: CHECK FOR PROPER GATE INSTALLATION
CHECK EXISTING GATE SIZE AND MATERIAL
• Gate size: Up to 18 feet and up to 850 lbs. — See
Operational Capacity chart on page 10.
Not rated for use on solid surface gates.
• Type of gate material: Vinyl, aluminum, chain link,
farm tube, wrought iron, wood.
A- Level
B
- Plumb
C
- Free Swinging
D
- Secured Posts in
Concrete
E- Center line Mounting
F- Good Working Hinges (ball bearing
hinges are recommended on gates
over 250 pounds)

MM571W / MM572W Installation Instructions 13
Battery Box, Control Box,
Antenna, Battery
& Battery Harness
Operator
Arm
Gate Bracket
Post Pivot Bracket Post Brackets (2)
RP1010 Transformer
Literature kit
with gate
warning signs
Closed Position
Stop Plate
MMT 103
Transmitter
A
F
GI
E
BC
H
D
8” Nylon Cable Tie (10)
J
3/8” Washer (9)
5/16” Clipped Washer (1)
KL
3/8” x 8” Bolt (4)
M
3/8” x 1-1/2” Clevis Pin (2)
2” Mounting Screw (4)
S
R
3/8” Nut (7) 5/16” Lock Nut (1)
U
T
5/16” x 1-1/2” Bolt (1)
Q
W
P
3/8” x 2-3/4” Bolt (2)
®
3/8” Lock Washer (7)
V
3/8” x 1-1/2” Bolt (1)
Hairpin Clip (2)
#10-14 x 3/4” Screw (8)
NO
3/8” x 1-1/2” Clevis Pin (2)
3/8” x 8” Bolt (4)
8” Nylon Cable Tie (10)
Operator
Arm
Gate Bracket Post Pivot Bracket Post Brackets
Closed Position
Stop Plate
3/8” x 1-1/2” Bolt (1)
5/16” x 1-1/2” Bolt (1)
3/8” Washer (9)
5/16” Washer (1)
3/8” Nut (7) 5/16” Lock Nut (1)
Hairpin Clip (2)
2” Mounting Screw (4)
FG
E
B
H
J K
N
L
QS
O
P
M
R
U
T
3/8” x 2-3/4” Bolt (2)
3/8” Lock Washer (7)
V
ITEMS INCLUDED FOR PRIMARY GATE OPENER INSTALLATION (MM571W)
ITEMS INCLUDED FOR SECONDARY OPENER INSTALLATION (MM572W)

MM571W / MM572W Installation Instructions
14
7/16” Bit
1/2” Bit
7/32” Bit
Drill
Pliers
Level
Clamps Adjustable
Wrench
Pen Center
Punch
Hammer
Tape
Measure
Small
Flat Head
Philips Head
Screwdriver
Flat Head
Screwdriver
Wire
Stripper
Hack Saw 1/2”
wrench
9/16”
wrench
●Low voltage wire will be needed to run from the
transformer to the control box; length depends
upon the distance between the transformer power
supply and the control box. You will need 16 gauge,
low voltage direct burial wire. See Transformer/
Solar Panel Wiring Installation on page 38 and the
accessory catalog.
●PVC conduit.
●If you have thin-walled tube or panel gates, see
Reinforcing Gates for the Gate Brackets, next page.
●Depending on the type of gate, a horizontal cross
member or mounting plate may be needed to
mount the front of the operator and gate bracket to
the gate. See the Reinforcing Gates for the Gate
Brackets examples, next page.
●Surge protection for transformer.
●Some types of installations require u-bolts.
●Additional washers or a metal plate may be
needed for wooden post.
●Weatherproof cover for outdoor outlet and
transformer.
●If the post is larger than 6”, bolts longer than 8”
are needed.
ITEMS NOT INCLUDED
TOOLS NEEDED
CHECK DIRECTION OF GATE SWING
Pull-to-Open Option
Instructions begin on page 2.
Push-to-Open Option
Instructions begin on page 8.
Your Property Your Property
Pull-To-Open
(arm retracts to open)
Push-To-Open
(arm extends to open)
(Requires Push-To-Open Bracket
#FM148—NOT INCLUDED)

MM571W / MM572W Installation Instructions 15
Mechanical Installation
ASSESSING THE GATE FOR INSTALLATION
Your gate operator can be mounted to a variety of gate types. This section shows some of the most common, along with the
reinforcement methods recommended prior to or while mounting your gate operator.
Reinforcing Gates for the Gate Brackets
We recommend using a mufer clamp, wood, or metal, to reinforce thin-walled tube gates, or wood to reinforce panel gates
as shown. These reinforcement methods will prevent damage to the opener and gate. Additional hardware may be needed
depending on the installation. Additional hardware necessary but not included.
Gate
Bracket
Panel
Gate
1" x 6"
Wood
Reinforcement
Gate Bracket
Wood or Metal
Reinforcement
(not supplied)
Thin Walled
Tube Gate
Gate Bracket
Muffler Clamp
(not supplied)
Mufer Clamp for Gate Bracket
Wood or Metal Reinforcement 1” x 6” Reinforcement

MM571W / MM572W Installation Instructions
16
S
E
S
F
B
N
N
!
G
L
O
F
G
V
T
S
FB
S
E
N
!
G
L
O
F
G
T
Minimum 80˚ Open
N
PULL-TO-OPEN OPERATOR MOUNTING (MOST COMMON)
●Assemble the gate post bracket sub
assembly as displayed.
●Attach the gate post bracket
subassembly and gate bracket to the
operator as shown.
●The operator must be retracted with
the gate in the open position. Do not
spin out the inner cylinder
Step 1
Step 2
Your Property

MM571W / MM572W Installation Instructions 17
S
FB
S
E
N
!
G
L
O
F
G
T
N
PULL-TO-OPEN OPERATOR MOUNTING
●Disconnect the operator arm from the
gate bracket.
●While supporting the operator, swing
the gate and operator to the closed
position.
●Check for recommended clearances
and binding as shown. Ensure the
rear mount of the operator does
not press up against the post pivot
bracket assembly in the closed
position as indicated in the diagram
to the right. Note the circled portion of
the diagram.
●Ensure that the necessary arm /
stroke does not exceed 20 inches.
●Make adjustments to the
mounting brackets to achieve the
recommended clearances. Improper
clearance will cause undue stress on
the operator and may cause physical
damage and/or strain the motor.
TIP: Turning the pivot bracket over
gives more hole alignment options for
the gate post pivot bracket assembly.
●With the gate in the OPEN position,
use clamps to secure the operator
to the gate post and center cross
member of the gate.
●Ensure that the operator is level.
●With the operator arm temporarily
secured to the gate, check to
ensure there is at least 2 inches
of clearance between the operator
arm and gate. (See illustration in
Step 4 below).
2" Min. - Pinch-Point Clearance
Top View
2" Min.
20" MAX.
2
1
Closed
Position
Open
Position
Step 3
Step 4
Your Property
THE OPERATOR MUST BE INSTALLED WHILE FULLY RETRACTED, WITH THE GATE IN THE OPEN POSITION.
WARNING: ENSURE THE REAR MOUNT DOES NOT MAKE CONTACT WITH THE
POST-BRACKET ASSEMBLY DURING ANY POINT OF THE GATE TRAVEL.
