North Star 8000i User manual

Northstar 8000i
4 Port USB Hub
Installation Manual
www.northstarnav.com

1Warning and safety information
IMPORTANT SAFETY INFORMATION
Please read carefully before use
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety
measures that follow this symbol to avoid possible
injury or death.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
Read and observe the Warnings and Notices in the
Northstar 8000i System Installation Manual.
2Northstar 8000i 4 Port USB Hub Installation Manual

2Disclaimer
As Northstar is continuously improving this product we retain the right to make
changes to the product at any time which may not be reflected in this version of
the manual. Please contact your nearest Northstar distributor if you require any
further assistance.
It is the owner’s sole responsibility to install and use the instrument and
transducers in a manner that will not cause accidents, personal injury or property
damage. The user of this product is solely responsible for observing safe boating
practices.
BRUNSWICK NEW TECHNOLOGIES INC. AND ITS SUBSIDIARIES AND AFFILIATES
DISCLAIM ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY
CAUSE ACCIDENTS, DAMAGE OR THAT MAY VIOLATE THE LAW.
Governing Language: This statement, any instruction manuals, user guides and
other information relating to the product (Documentation) may be translated to,
or has been translated from, another language (Translation). In the event of any
conflict between any Translation of the Documentation, the English language
version of the Documentation will be the official version of the Documentation.
This manual represents the product as at the time of printing. Brunswick New
Technologies Inc. and its subsidiaries and affiliates reserve the right to make
changes to specifications without notice.
Copyright © 2006 Brunswick New Technologies Inc. Northstar™ is a registered
trademark of Brunswick New Technologies Inc.
3Warranty
The Northstar Warranty Statement is supplied as a separate document.
It is shipped with the Product Registration Card.
In case of any queries, refer to www.northstarnav.com.
Northstar 8000i 4 Port USB Hub Installation Manual 3

Contents
1Warning and safety information 2
2Disclaimer 3
3Warranty 3
4Northstar 8000i 4 Port USB Hub 5
5What comes with your 4 Port USB Hub 7
6Installation 8
7Specification 11
8Maintenance 11
9Technical support, service and repairs 12

4Northstar 8000i 4 Port USB Hub
The Northstar 8000i 4 Port USB Hub connects up to four (4) optional USB
accessories to a Northstar 8000i System. Fit a 4 Port USB Hub if your Northstar 8000i
System processor does not have enough USB ports. This manual describes how to
install the unit, and must be used with the guidelines in the Northstar 8000i System
Installation Manual.
4.1.1.1 4 Port USB Hub - Front view
A Power Connect to supplied power (see "Installation" page 8)
B USB A Type USB down stream ports. The 4 ports can connect to any
Northstar 8000i USB device
C USB B Type USB upstream ports. Use the supplied USB cable to
connect the USB to any Northstar 8000i processor. (see the
Northstar 8000i System installation Manual
Northstar 8000i 4 Port USB Hub Installation Manual 5

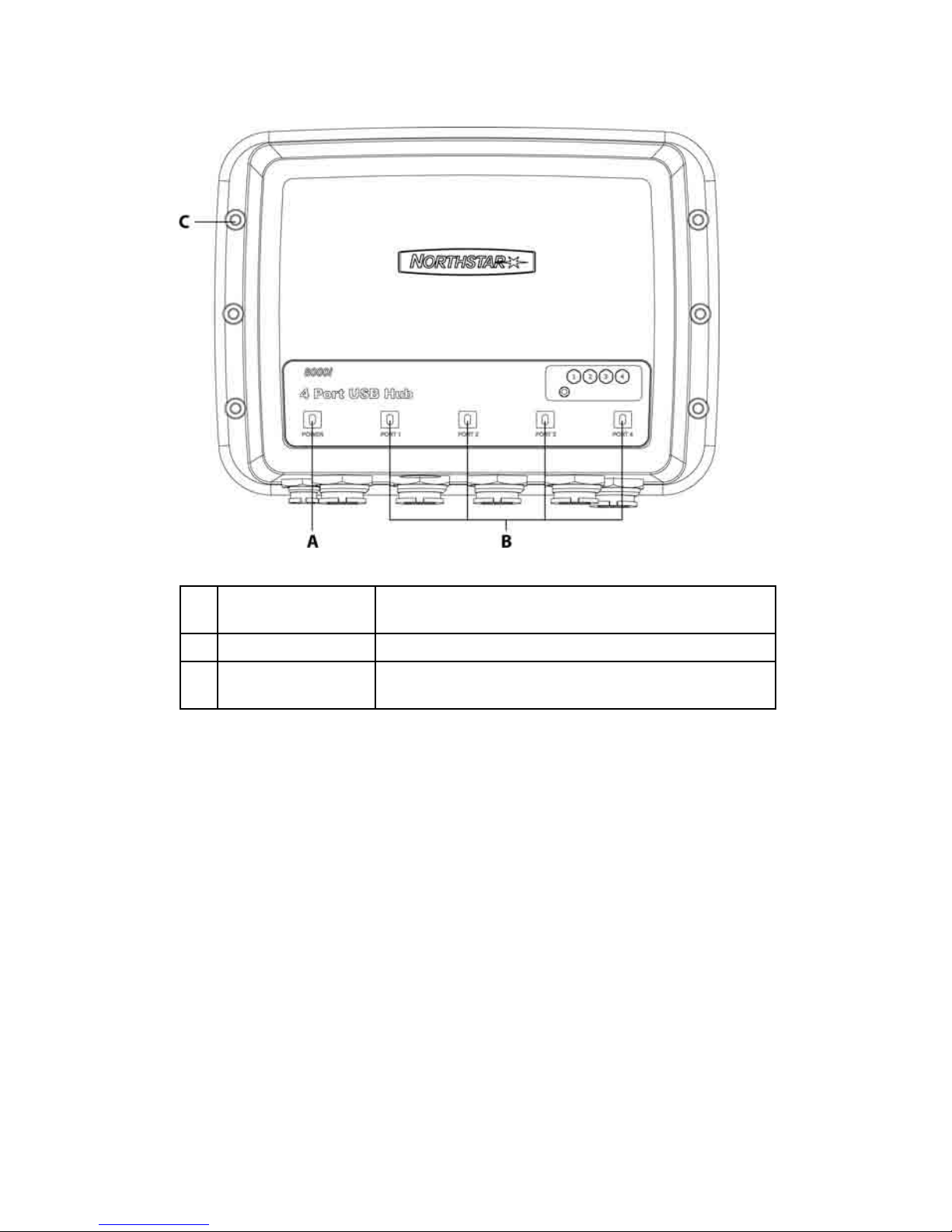

A POWER LED The Red LED indicated that the unit has power and is
turned on
B PORT LEDs The LEDs indicate the operational status of the port
C Panel Mounting
Holes
Use the holes to mount unit
6Northstar 8000i 4 Port USB Hub Installation Manual

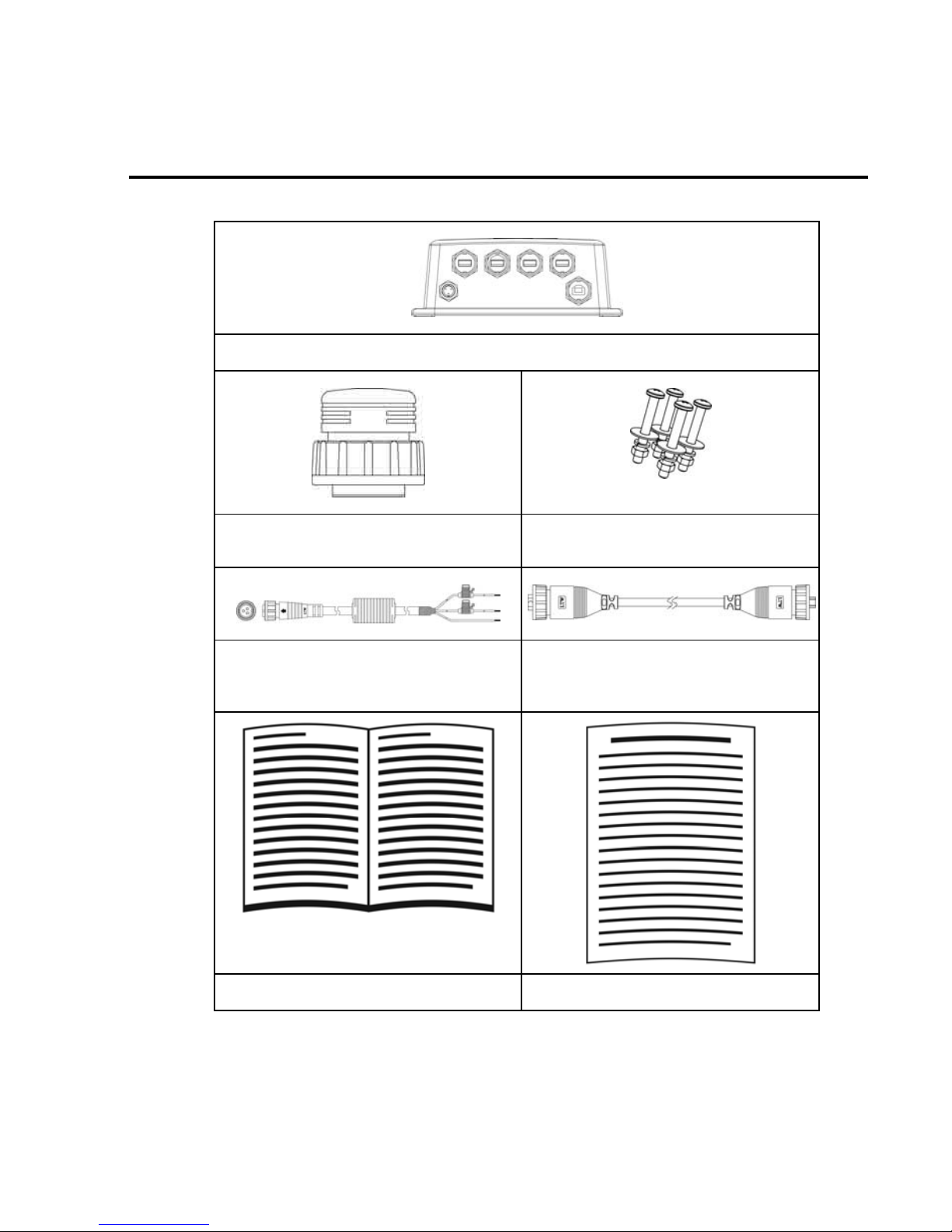

5What comes with your 4 Port USB Hub
4 Port USB Hub NS004720
Large Protective Caps x 5 CN000222-G Mounting Screws x 6 HR000087
Power Cable
AS000453-G
USB Cable A-B
NS004808
This Manual MN000488D-G Warranty
Northstar 8000i 4 Port USB Hub Installation Manual 7

Registration Card Mounting Template LA000591A-G
6Installation
Read and observe the Warnings and Notices in the
Northstar 8000i System Installation Manual.
Follow the Installation Guide in the Northstar 8000i System Installation Manual.
Find a suitable location for the unit following the Location Guidelines in the
Northstar 8000i System Installation Manual.
8Northstar 8000i 4 Port USB Hub Installation Manual

Use the screws supplied to screw the case to the panel.
The unit and all connectors are waterproof. The unit screws to a vertical panel with
the connectors facing down. Form the cables into loops below the unit so that any
condensation will drip off.
Connect up to four (4) USB accessories. Each USB accessory can be powered from
the USB hub by the USB port 5 V supply (500 mA maximum) or the accessory must
have its own power supply.
Connect the USB hub type B connector to a type A USB port in the Northstar 8000i
System, either port on the processor can be used, or connect to a port on another
USB hub.
Connect to supplied power cable making sure a 5 Amp fuse is used
A Red Battery Positive
B Black Battery Negative
C Green / Yellow stripe
or Brown
Ships Ground
D Fuse Use a 5 Amp fuse or breaker
E Battery 12 V DC or 24 V DC Nominal
Northstar 8000i 4 Port USB Hub Installation Manual 9

Turn the unit’s power supply and the Northstar 8000i System on. Check that the
unit’s power supply LED is turns red. Check that the LEDs on the ports that have
accessories connected are green. If an LED is yellow then disconnect that accessory
because it is drawing too much power supply current.
A Red Unit is on Note: The Northstar 8000i processor has
to be connected and working in order for the USB
Hub to function.
B Green USB Accessory Connected and functioning
B Yellow USB accessory is connected but is requiring to much
power. See user guide of peripheral and provide
extra power
Set up and test the USB accessories as described in the Northstar 8000i Operation
Manual.
10 Northstar 8000i 4 Port USB Hub Installation Manual

7Specification
Power supply: 10 V to 35 V DC, 18 W maximum.
Operating temperature: 5ºF to 131ºF (-15ºC to 55ºC).
USB port to Northstar
8000i System:
USB 2.0 and 1.0, 1.1 compliant.
USB accessory ports: USB 2.0 and 1.0, 1.1 compliant. Four ports, type A. Each
port can supply power to the accessory, 4.75 V DC to
5.25 V DC, up to 500 mA per port.
Environment: Waterproof to IPX6.
8Maintenance
Follow the Maintenance Guidelines in the Northstar 8000i System Installation
Manual.
Northstar 8000i 4 Port USB Hub Installation Manual 11

9Technical support, service and repairs
Northstar products are manufactured and serviced by BNT Marine Electronics.
The product is covered by a warranty which is supplied as a separate document.
If you need technical support, or answers to other questions after you've followed
the instructions in this manual, you can:
•contact your Northstar distributor or
•see the inside back cover of the manual or
•visit www.northstarnav.com.
Before you make contact, be sure to have:
•the serial number of the hardware (usually shown on the faceplate of the unit).
When you describe the problem, be as complete and as accurate as possible.
12 Northstar 8000i 4 Port USB Hub Installation Manual

UNITED STATES
30 Sudbury Road,
Acton, MA 01720,
United States
Ph: +1 978.897.6600
Fax: +1 978.897.7241
sales@bntmarine.com
EUROPE
Unit 2, Ocean Quay,
Belvidere Rd, Southampton,
SO14 5QY, England
Ph: +44 2380 339922
Fax: +44 2380 330345
northstaruk@northstarnav.com
AUSTRALIA
PO Box 479,
Gladesville, NSW 2111,
Australia
Ph: +61 2 9879 9000
Fax: +61 2 9879 9001
northstaraus@northstarnav.com
NEW ZEALAND
PO Box 68 155,
Newton, Auckland
New Zealand
Ph: +64 9 481 0500
Fax: +64 9 481 0590
northstarnz@northstarnav.com
www.northstarnav.com

www.northstarnav.com
Made in New Zealand
MN000488D-G
