Northwest Territory Big Sky Lodge User manual

KMT131611-1 09/13
NOTICE!
Do Not Return to Retail Store
call for Warranty consideration
or for replacement parts call
8 8 8 – 2 8 0 – 7 8 7 6
HKD Global Ltd
317 Elm St,Washington, MO 63090 USA
[email protected]
CAMPERS’TIPS
The key to an enjoyable camping experience is planning and
preparation.
Before you go …
Research the area where you intend to camp. Prepare for any
possible weather condition. Be aware of hazards and emergency
protocol. Know the rules and regulations.
Check out your equipment before your trip. Be sure your cook
stove, lanterns, flashlights, air mattress, etc. are in good working
order. Erect your tent to become familiar with setup. Once
you’ve assembled your tent in a dry, well ventilated area, apply
seam sealing compound to the stitching of the inside seams
following manufacturer’s directions. Allow to dry thoroughly
before storage. Reapply annually.
Check lists are great planning tools. Here are some areas to
consider.
Camp set-up: Tent, chairs, table, ground cloth, entrance mat, tarp,
poles, rope, stakes, bungee cords, duct tape, zip ties,
hammer/tools, bedding.
Kitchen set-up, food and beverages: Plan for transport,
preparation, storage and disposal. Remember to pack
fire-starting devices in waterproof containers and bring pots,
dishes, utensils, can opener, heavy duty trash bags and biode-
gradable soap. Store your food in lockers or out of sight in
vehicles.
Clothing: Be prepared for all your activities. Include a hat,
sunglasses and quality socks. Dress in layers.
Hygiene: Personal toiletries, rubber gloves, basic first aid items.
Don’t forget your medications.
Miscellaneous: Extra batteries, sewing kit, clothes pins, dust
pan/brush and insect repellant.
Be considerate of others, humans and wildlife.
Remember the clean up, dispose of waste properly.
“Leave no trace behind.”
CLEANING:
Allow dirt to dry on the fabric after a rainfall before lightly
sweeping it off with a brush. For tougher stains, spray the area
with water and lightly wipe it off with a few strokes. Do not use
washer or dryer. DO NOT SCRUB THE FABRIC. ALWAYS MAKE
SURE IT IS COMPLETELY DRY BEFORE REPACKING.
6-MONTH REPLACEMENT PARTS WARRANTY
This product carries a replacement parts warranty against defects
in materials and workmanship for a period of 6 months from date
of purchase. At its discretion, HKD may provide replacement
parts. Original purchaser will be required to provide proof of
purchase. The consumer will be responsible for shipping cost
incurred outside of the US or Canada.
Warranties DO NOT cover normal wear and tear, misuse, abuse,
inclement weather conditions (i.e. wind, rain, hail, lightning,
tornados or hurricanes) or other acts of God, mildew and rotting,
damage or fading caused by prolonged exposure to UV rays. This
warranty gives you specific legal rights. You may also have other
rights which vary from state to state.
Under no circumstances shall HKD International (HK) Ltd. be
liable for any incidental or consequential damages.
The tent is water repellent. It is not waterproof. During heavy or
continuous rain, some leakage may occur. Avoid contact between
objects and the inside of the tent, as this may result in leakage at
points of contact. In the event of seam leakage, apply
a seam sealer compound.
Although our products are manufactured according to rigorous
specifications, periods of wind or rain may loosen the stakes and
cause the frame to sink into the ground.This will weaken the
structure’s overall rigidity. Puddles may also form on the roof if
the unit has not been assembled tightly. If pooling should occur
it is advisable to drain the fly to avoid possible damage to frames
and fabric. Adjustment of guy lines may be necessary. In case of
inclement weather remove valuables and seek appropriate
shelter. Intended for recreational use only.
For your tent, screen house or canopy DO NOT...
- Pitch near an open fire.
- Use candles, or open flames of any kind in or near.
- Leave children unattended inside.
- Use fuel-burning,oxygen-consuming devices (heaters, lanterns,
cooking stoves or other flame sources) inside.
- Refuel lamps, heaters or stoves inside.
- Smoke inside.
- Store flammable liquids inside.
- Use water repellent compounds other than those recommended
for use on outdoor equipment.
- Spray with insecticide.
- Store on concrete floor.
For your tent, screen house or canopy DO...
- Always extinguish campfire before sleeping or leaving the area.
- Exercise care when using electricity and lighting.
- Make certain it is properly ventilated in all weather conditions.
In extreme weather conditions, snow could obstruct airflow and
cause asphyxiation. Clear frequently.
- Anchor securely to provide additional security in changing
climatic conditions. Snow pegs, skis and/or heavy rocks may be
necessary to supplement stakes and guy lines.
- Take down and store properly after camping.
DANGER!
Stoves, lanterns, candles, grills, heaters and other fuel burning
devices produce carbon monoxide and will consume the
available oxygen in a tent. Use of such devices in a tent may
cause asphyxiation, carbon monoxide poisoning and death or
serious and permanent injuries. For this reason:
- DO NOT use fuel burning devices inside or near this product.
- Your failure to follow this warning may cause death or serious
and permanent injury to you or others.
OWNERS MANUAL
NORTHWEST TERRITORY
Model: Big Sky Lodge
HKD Model: KMT131611-1
WARNING!
- KEEP ALL FLAME AND HEAT SOURCES AWAY FROM
THIS FABRIC. This product is made with flame-resistant
fabric, which meets CPAI-84 specifications. IT IS NOT
FIREPROOF! The fabric will burn if left in continuous contact
with any flame source. The application of any foreign
substance to the fabric may render the flame resistant
properties ineffective.
- Anchor properly at all times and carefully consider campsite
choice. Be aware of possible falling rocks or tree limbs,
lightning strikes, flash floods, strong winds and other hazards
which may cause injury to this product or it’s occupants.
- Have a minimum of two adults for assembly. During assembly
poles are under tension. If not held firmly in place during
assembly, poles could break or flip up possibly causing
serious injury.
- Safety glasses may be worn throughout the assembly
process as an additional precaution.
- Exercise care when using electric devices in or near tents.

KMT131611-1
ASSEMBLY INSTRUCTIONS

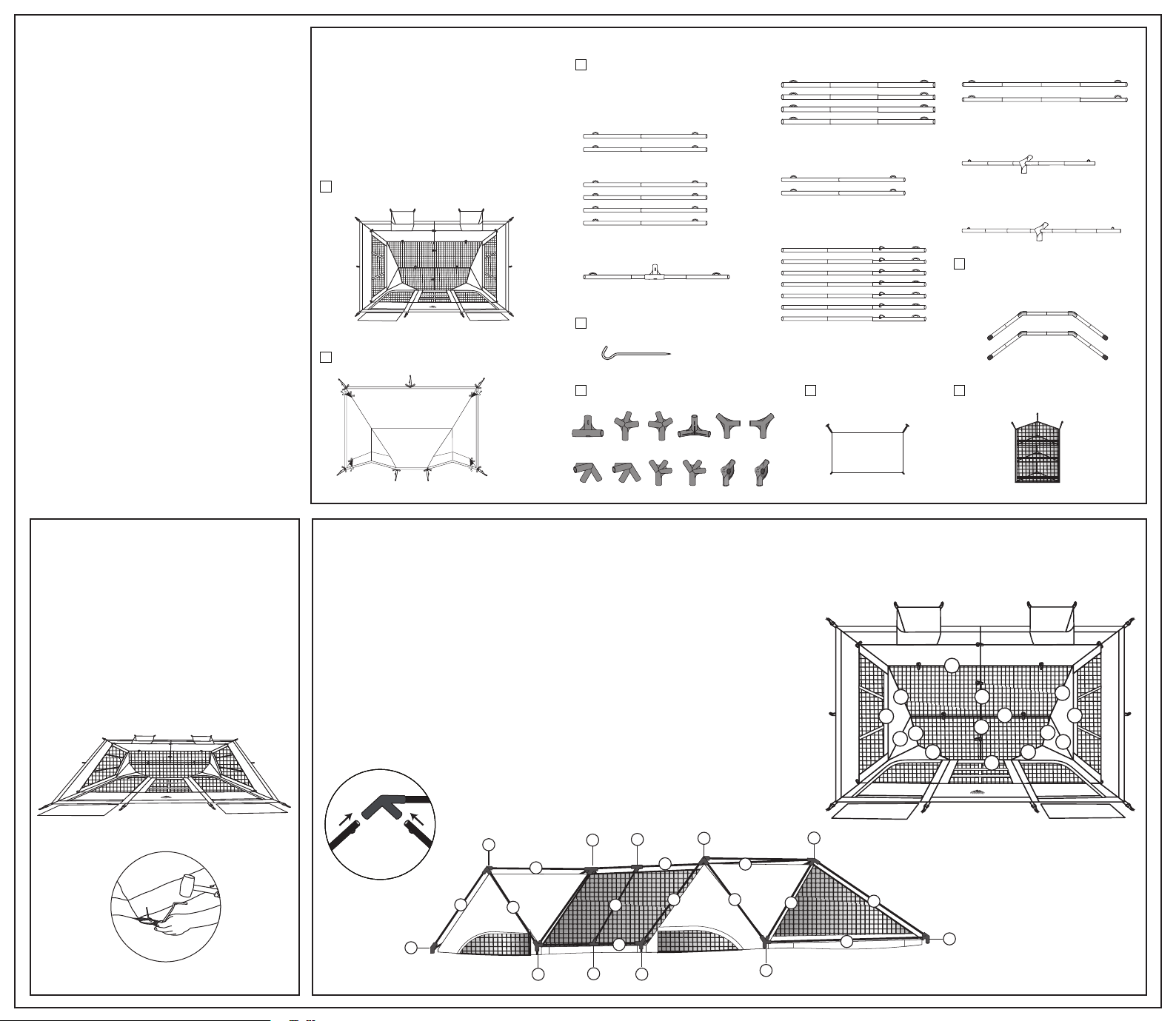

Step 1:Verify Package Contents and Assemble Poles
Tent : 1 each
1) Assemble the roof frame as shown below matching color coded poles to color coded connectors. Use the diagram below and the replacement
parts listing on page 4 as reference. Make certain the metal springs lock into place on all the connectors.
2) Attach ridge, roof and eave poles:
(H) WHITE Ridge Pole. Attach brass s-hook on the tent to middle ridge connector.
(I) GRAY Eave rear pole
(D) GREEN Roof Corner poles
(E) IVORY Roof middle poles
(A) RED Ridge front poles
(B) YELLOW Roof front poles
(C) PINK Eave front pole. Attach brass s-hook on the tent to middle ridge connector.
(G) BLUE Eave side poles
2) Assemble steel poles by inserting the
tapered ends into the adjacent sections.
Assemble fiberglass poles by placing
sections into the metal ferrules.

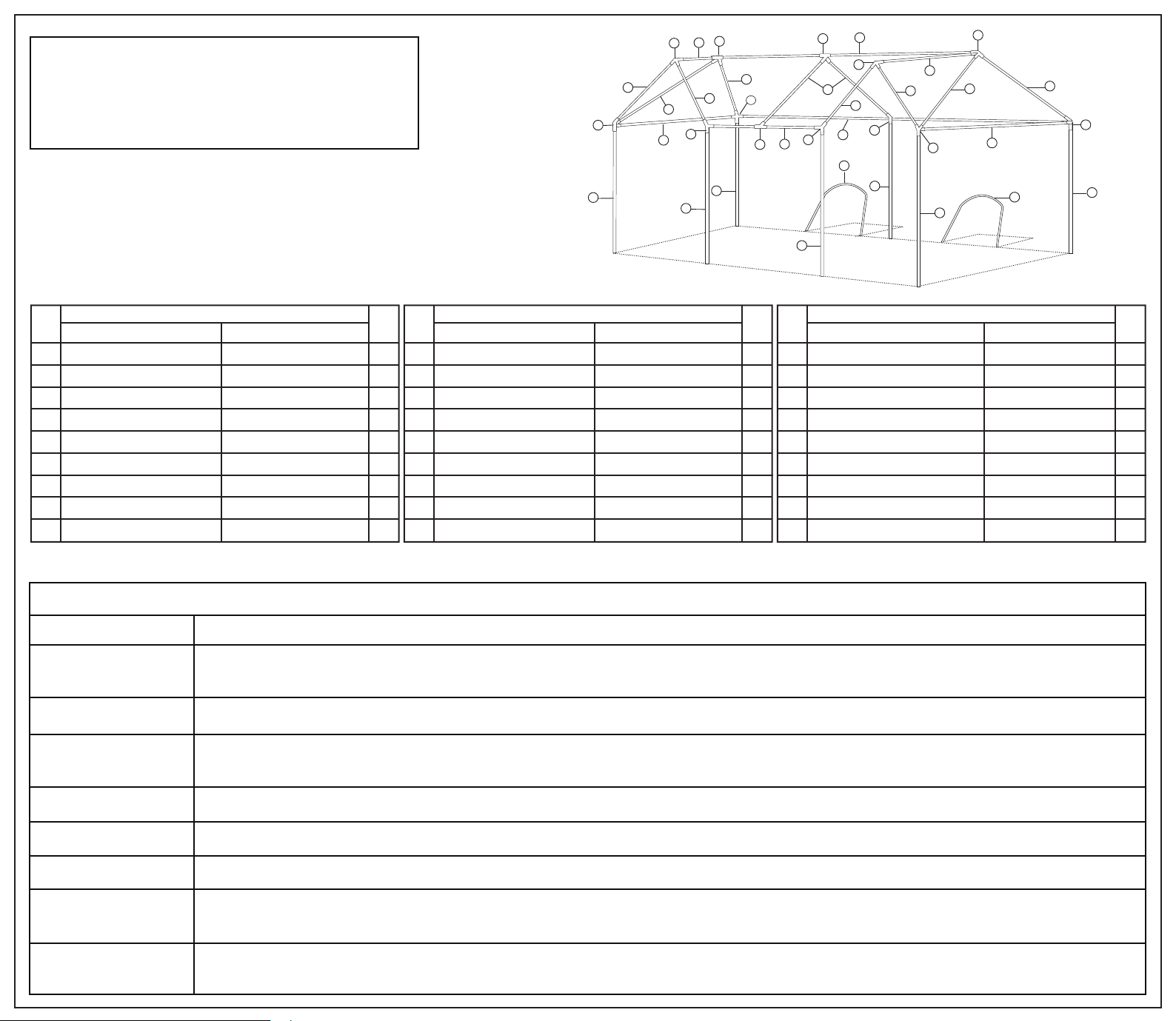

1) Verify package contents as listed below Steel poles : 25 each (total)
( ) denotes color coding
Rainfly : 1 each
IMPORTANT NOTES:
* Assemble your tent before camping to become
familiar with the assembly.
* Two people are recommended for setup.
* Select a clean, level area for the campsite free
of debris and sharp objects, away from a
natural watercourse.
* Use of a ground cloth is recommended to
prolong the life of the tent floor and provide
additional insulation and moisture protection.
* To prevent damage to the zippers, unzip the
doors and windows of the tent prior to
disassembly allowing air to move freely.
* Seam seal the inside stitched seams of the tent.
This will improve weather resistance. Available
in sporting goods departments. Discoloration
may occur if applied to outside seams.
Hanging Shelf : 2 eachMud mat : 2 each
Tent Stakes : 20 each
Fiber glass poles : 2 each (total)
Color Coded Conectors - 12 each
(A) Ridge front (red) - 2 each
(B) Roof front (yellow) - 4 each
(C) Eave front (pink) -1 each
(D) Roof side (green) - 4 each
(E) Roof middle (ivory) - 2 each
(F) Leg (orange) -7 each
(G) Eave side (blue) - 2 each
(H) Ridge (white) - 1 each
(J) Closet - 2 each
(I) Eave rear (gray) - 1 each
Step 3: Assemble roof frameStep 2: Spread and stake tent
1) Spread out the tent floor side down on a
flat, clean and level area.
2) Stake down the tent by inserting a stake
through the stake loops, located along the
perimeter of the tent.
3) Hammer the stakes into the ground at a 45
degree angle using a hammer or mallet.
4) Make certain the tent floor is pulled out
evenly and tightly.
I
E
H
E
C
B
AD
G
D
D
G
DA
B
41
85
7
3
212
10
A
H
C
BB
B
A
BD
D
G
1
6
E
KMT131611-1 09/13

Step 4: Attach leg Poles and Position Fly Step 5: Fully Frame and Attach Fly
1) With 2 persons, begin at one side of the roof frame and attach orange leg poles (F). Un-insert
the bottom section of the leg poles from the adjacent section.This will lower the roof frame to
aid in attaching the fly. Attach the remaning orange leg poles (F) on the opposite side of the tent.
2) Following same procedure, attach the front and the rear leg poles (F).
3) Unfold and position the fly on the tent as shown below.
4) Wrap the Velcro®fasteners, sewn on the undernside of the fly, around the frame.
Step 8: Disassembly Step 9: Packing the Tent
1) To take down the tent, disassemble in
reverse order.
2) Remove accessories (if included)
3) Remove and fold fly.
4) Be sure to leave doors and windows
unzipped to avoid zipper damage.
5) Remove stakes with hammers or stake
puller. DO NOT pull on tent.
6) Carefully disengage poles from pins.Push
poles away from you through the sleeves
to minimize risk of damage to tent or poles.
7) Keep poles and stakes together in bags
provided.
1) With 2 persons, begin on one side of the tent to complete leg assembles. Place bottom of the
legs (F) onto the corresponding pins along the perimeter of the tent floor. Then, fully assemble
the legs poles at the opposite side and finally the front and rear legs.
2) Attach the plastic s-hooks on the fly to the d-rings on each leg pole.
3) Clip the plastic hooks on the tent to the frame.
3) Lay pole bag at opposite end from door.
Tightly roll bag, skin and fly forcing air
through unzipped door.
4) Secure with ties and place in carry bag with
stakes and accessories.
5) Tent must be clean and dry before storage.
Store off concrete floor.
Be certain campfires are extinguished.
Dispose of trash appropriately.
Dimension A should
be close to but not
exceed the length
of the pole bag.
A
Fold tent into a
rectangular shape.
Front of tent
(door unzipped)

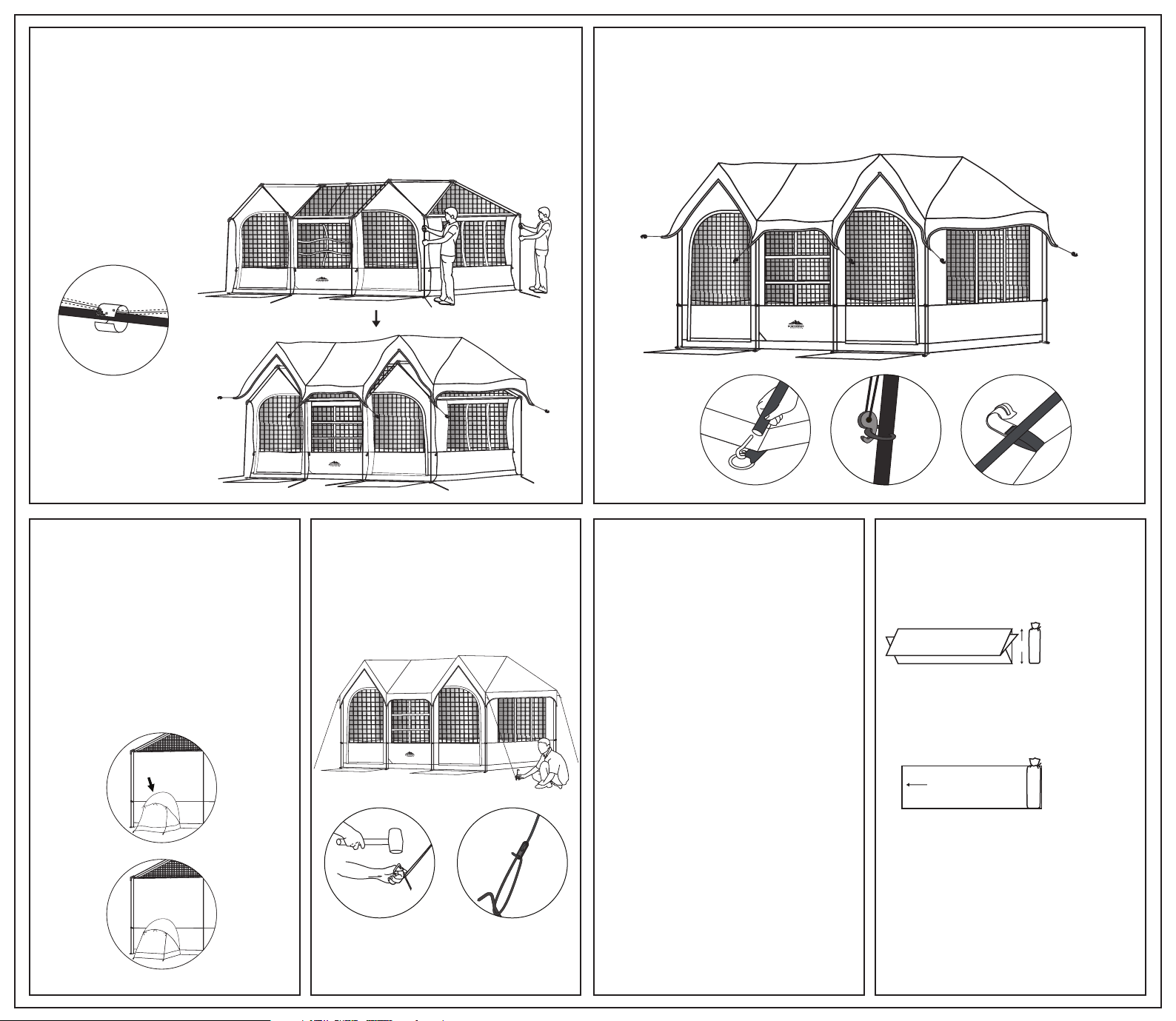

Step 6: Erect Closets Step 7: Secure Guy Lines
Mud mat may be attached using hooks and
stakes. Interior accessories can be attached to
loops inside the tent.
Tent appears as shown.
1) Spread tent flat,distribute evenly.
2) Fold into quarters not to exceed the length
of pole bag.
1) Secure tent using all guy lines and stakes.
Tent must be secured for proper function.
1) To place closet pole (J) inside the closet,
carefully form an upside-down“U”to extend
and support the closet.
2) Insert the pole ends into the pockets at the
base of the tent.
3) Wrap the Velcro® tabs on the closet
wall around the pole to secure the
pole in place.
4) Stake the outside corners.
KMT131611-1 09/13

TROUBLESHOOTING GUIDE
PROBLEM
1. CONDENSATION
2. SEAM LEAKAGE
3. MILDEW
4. REPAIRING A TEAR
5. FAULTY ZIPPER
6. FADING FABRIC
7. FLOOR CONDENSATION
8. USE OF STAKES
SOLUTION
Apply a generous amount of seam sealer on inside seams.Seam sealer may be purchased at any local sporting goods store.
To avoid mildew, store tent/screen house ONLY when thoroughly dry. However, if mildew occurs use a soft bristle brush or sponge with mild dishwashing soap or Fels
Naptha soap to clean. Let dry thoroughly and a tent approved water repellent compound may be applied.
For small tears use a self-adhesive patch kit. We recommend a canvas or awning repair shop for larger tears.
Do not leave up in direct sunlight longer than necessary. If left in sunlight for prolonged periods of time,fabric will fade and weaken.
Stakes should be installed at a 45 degree angle using a hammer or mallet. Stake loops should be kept taut without over stretching fabric or webbing.This could cause
tears or leakage.To remove safely, use a hammer or stake puller. Do not remove by pulling on the fabric.
This is caused by lower temperatures on the outside of the tent combined with body heat on the inside of the tent.When this occurs, avoid touching walls to reduce
contact leakage. Leaving the doors and windows open will reduce moisture condensation. Store wet clothing outside of tent. Not applicable to screen houses.
A ground cloth under the floor helps prolong its life, provides additional insulation and moisture protection. The cloth should be smaller than the floor to prevent rain
from running under the tent. Not applicable to screen houses.
Zippers are self repairing.If the zipper separates, you can move the slider to the beginning of the zipper tape and rework the zipper.
A
B
C
D
E
F
G
H
I
J
1
9
10
11
12
2
3
4
5
6
7
8
St pole - Ridge Front (red) HSP16-104rx2
HSP16-90rx2
HSP16-177rx2,s
HSP16-140rx2
HSP16-124rx2
HSP16-165d,rx1
HSP16-215rx2
HSP16-315rx2,s
HSP16-448rx2,s
St pole - Roof Front (yellow)
St pole - Eave Front (pink)
St pole - Roof Side (green)
St pole - Roof Middle (ivory)
St pole - Leg (orange)
St pole - Eave Side (blue)
St pole - Ridge (white)
St pole - Eave rear (gray)
HHHK15-134-3R
HHHK15-25-3
HHHK15-166-3
HHHK15-134-3L
HHNTM0003
HHNTM0001
HHNTM0002
HHHK15-155-1
HHNTM0004
HHNTM0005
HHNTM0006
HHHK15-166-4
Mud mat
Replacement fly
Hanging shelf
Tent Stake - Metal
HMM5723
HTFKMT131611-1
HHS reg
HMS4 - 8
REPLACEMENT PARTS
KEY
NO.
MODEL NO. KMT131611-1
QTY.
REQ.
DESCRIPTION PART NO.
KEY
NO.
MODEL NO. KMT131611-1
QTY.
REQ.
DESCRIPTION PART NO.
KEY
NO.
MODEL NO. KMT131611-1
QTY.
REQ.
DESCRIPTION PART NO.
SPECIFICATIONS:
8 persons
Floor size: 16’ x 11’ (4.88x3.35m)
Center height: 86” (2.18m)
Net weight: 53.12lbs (24.10kg)
48
11
1
A
B
5
10
7
9
3
12
2
6
1
A
D
D
D
D
C
I
H
G
F
G
B
E
B
B
F
F
F
F
F
F
J
J
2
4
1
4
2
7
2
1
1
HFP7.9-84+74+84c,pfFr pole - Closet 2 1
1
1
1
1
2
2
20
2
1
1
1
1
1
1
1
Hub 3- Way Ridge Front
Hub 4- Way Eave Rear Middle
Hub 4- Way Eave Rear LT
Hub 4- Way Eave Rear RT
Hub 4- Way Eave Front Middle
Hub 3- Way Eave RT of door
Hub 3- Way Eave LT of door
Hub 4- Way Ridge End LT
Hub 4- Way Ridge End RT
Hub 4- Way Eave Front LT
Hub 4- Way Ridge Front RT
Hub 4- Way Ridge Middle
KMT131611-1 09/13
