NOTHERN TVIEIR60 User manual

Rev. 120916
TVIEIR60
HD-TVI Full HD 1080p Outdoor 60’ IR Eyeball
USER GUIDE
3625 Cincinnati Avenue, Rocklin, CA 95765 i855-388-7422 iwww.northernvideo.com
Regulatory Information
FCC Information
FCC compliance: This equipment has been
tested and found to comply with the limits for a
digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated in
a commercial environment. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment in
a residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
FCC Conditions
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
EU Conformity Statement
upon the purchase of equivalent new equipment,
or dispose of it at designated collection points.
For more information see: www.recyclethis.info.
2006/66/EC (battery directive):
This product contains a battery that
cannot be disposed of as unsorted
municipal waste in the European
Union.
See the product documentation for specific
battery information. The battery is marked with
this symbol, which may include lettering to
indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For proper recycling, return the battery to your
supplier or to a designated collection point. For
more information see: www.recyclethis.info.
2012/19/EU (WEEE directive):
Products marked with this symbol
cannot be disposed of as unsorted
municipal waste in the European
Union. For proper recycling, return
this product to your local supplier
This product and - if applicable - the
supplied accessories too are marked
with "CE" and comply therefore with
the applicable harmonized European
standards listed under the Low Voltage Directive
2006/95/EC, the EMC Directive 2004/108/EC,
the RoHS Directive 2011/65/EU.
This series of camera adopts new generation
sensor with high sensitivity and advanced circuit
design technology.It features high resolution,
low image distortion and low noise, etc., which
makes it suitable for surveillance system and
image processing system.
 High performance CMOS sensor and high
resolution bring high-quality image;
 Low illumination;
 OSD menu, parameters are configurable;
 Support auto white balance, auto gain control,
electronic shutter control;
 Support image effect adjustment;
 Unit transmission control;
 Advanced 3-axis design meets different
installation requirements.
1 Introduction
1.1 Product Features
2 Installation
Before you start :
 Please make sure that the device in the package
is in good condition and all the assembly parts
are included.
 Make sure that all the related equipment is
power-off during the installation.
 Check the specification of the products for the
installation environment.
 Check whether the power supply is matched
with your power output to avoid damage.
 Please make sure the wall is strong enough to
withstand three times the weight of the camera
and the mounting.
 If the wall is the cement wall, you need to insert
expansion screws before you install the camera.
If the wall is the wooden wall, you can use
self-tapping screw to secure the camera.
 If the product does not function properly,
please contact your dealer or the nearest
service center. Do not disassemble the camera
for repair or maintenance by yourself.
Thank you for purchasing our product. If there
are any quesons, or requests, please do not
hesitate to contact us.
This manual may contain several technical
incorrect places or prinng errors, and the
content is subject to change without noce.
The updates will be added to the new version of
this manual. We will readily improve or update
the products or procedures described in the
manual.
Privacy Noce
Surveillance laws vary by jurisdicon. Check all
relevant laws in your jurisdicon before using
this product for surveillance purposes to ensure
that your use of this product conforms.
Please refer to the product specificaon for
camera parameters and funcons.

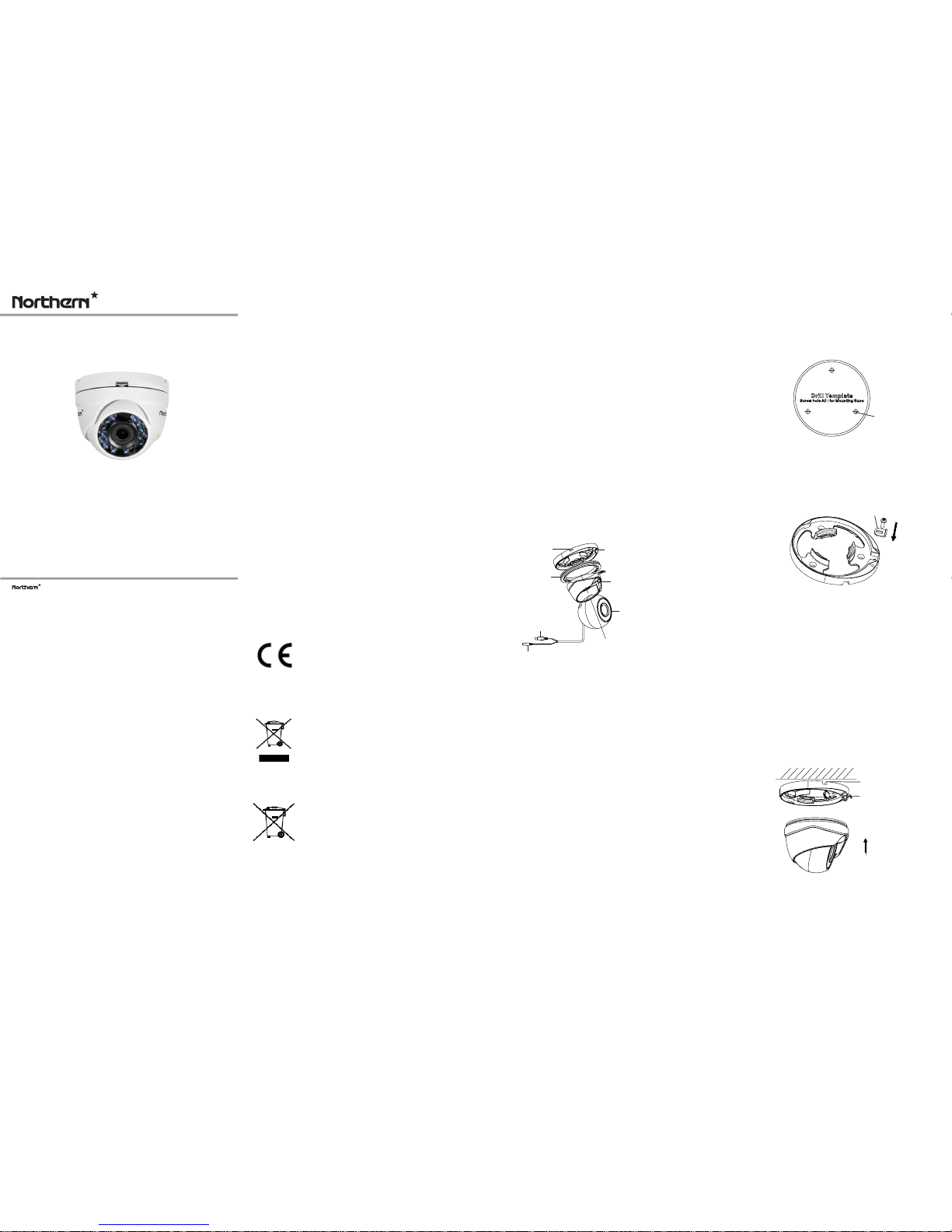

1.2.2 Overview of Type II Camera
HD Video Cable
Mounng Base
Camera
Trim Ring Enclosure
Power Cable
Side Opening
Figure 1-2 Overview of Type II Camera
2.1 Wall Mounng
1.Drill the screw holes according to the drill
template.
Figure 2-1 The Drill Template
Screw hole
2. Screw the clip plate onto the mounng base
loosely.
Figure 2-2 Screw the Clip Plate
Clip Plate
Figure 2-3 Fix the the Camera
Clip Plate
3. Fix the mounng base to the ceiling with the
supplied screws.
4.Route the cables through the side opening and
connect the corresponding power cable and
video cable.
5.Pull out the clip plate and secure the camera
with the trim ring to the mounng base.
6.Push the clip plate in and ghten the lock screw
to secure the trim ring.
Side Opening

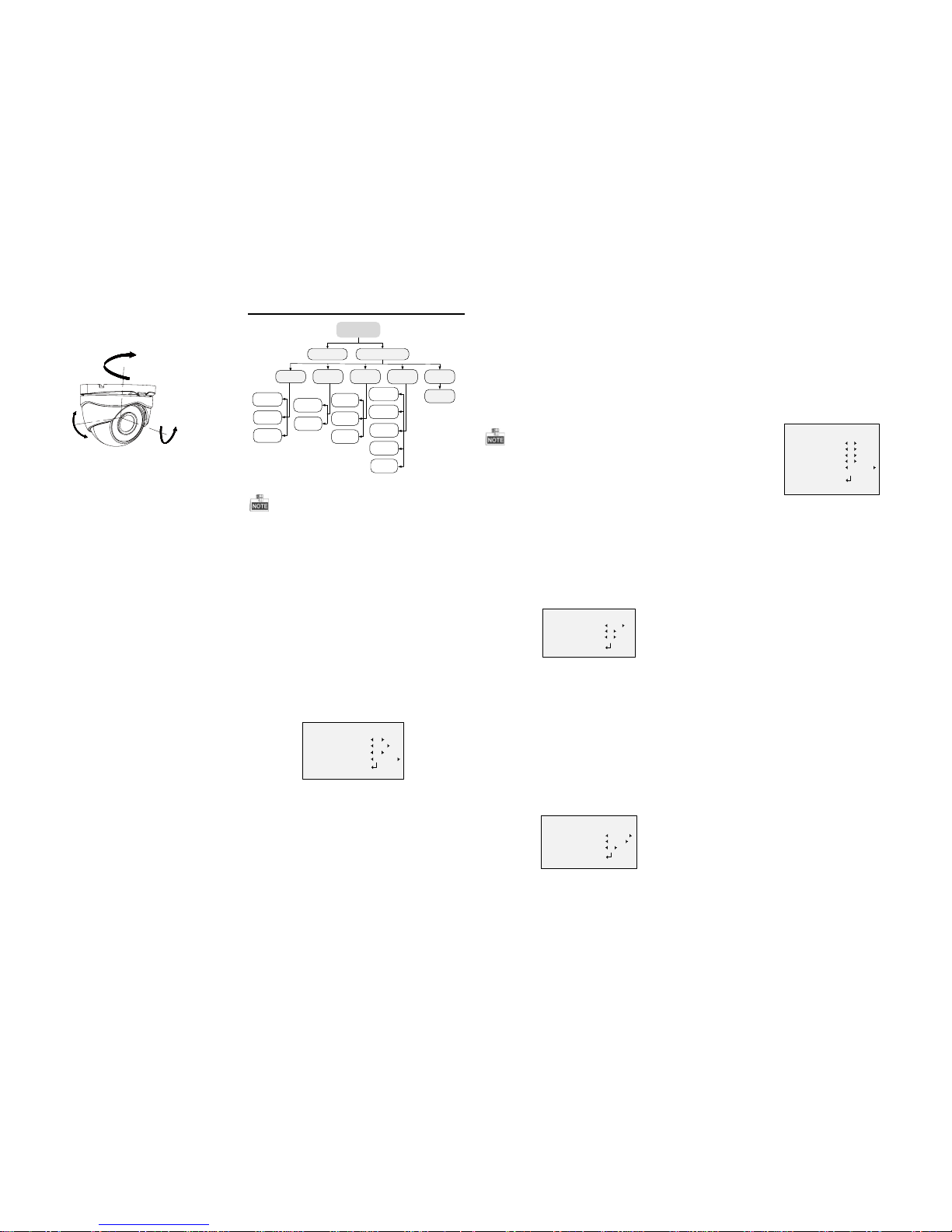

Figure 2-4 3-axis Adjustment
0 to 360° °
0 to 75° ° 0 to 360° °
7.Adjust the camera according to the figure 2-7 to
get an opmum angle and ghten the trim ring.
P Direcon
T Direcon
R Direcon
3Menu Description
MAIN MENU
AE WB DAY
&NIGHT
VIDEO
SETTING RESET
SAVE
&EXIT
BRIGHTNESS
EXPOSURE
MODE
GAIN
ATW
MWB
COLOR
B/W
CONTRAST
SHARPNESS
COLOR
GAIN
DNR
MIRROR
SMART
FORMAT
SETUP
Figure 3-1 Main Menu Overview
With a camera controller (purchased separately) or calling
the preset No. 95 of DVR you can select the menu and
adjust the parameters.
Move the cursor up/down to select the menu item.
Move the cursor left/right to adjust the value of the
selected item.
Press the OK key to confirm a selection.
3.1 Format
Move the cursor to FORMAT, and press the menu
button to enter the FORMAT sub menu. You can set the
format of camera and confirm.
3.2 Main Menu
3.2.2 AE (Auto Exposure)
AE describes the brightness-related parameters. You
can adjust the image brightness by the BRIGHTNESS,
EXPOSURE MODE, and GAIN in different light
conditions.
EX PO SU RE
BRI G H TN ES S
EX PO SU RE MO DE
L V
GA IN
RETURN
5
BL C
5
MIDDLE
Figure 3-2 AE
BRIGHTNESS
Brightness refers to the brightness of the image. You
can set the brightness value from 1 to 10 to darken or
brighten the image. The higher the value is, the brighter
the image is.
EXPOSURE MODE
You can set AE mode as GLOBAL and BLC.
GLOBAL
GLOBAL refers to the normal exposure mode which is
for adjusting the situations including unusual lighting
distribution, variations, non-standard processing, or
other conditions of under exposure to get an optimum
image.
BLC (Backlight Compensation)
BLC (Backlight Compensation) compensate light to the
object in the front to make it clear, but this causes the
over-exposure of the background where the light is
strong.
When BLC is selected as the exposure mode, the BLC
level can be adjusted from 0 to 8.
GAIN
It optimizes the clarity of image in poor light scene. The
GAIN level can be set to HIGH, MIDDLE, and LOW.
Select OFF to disable the GAIN function.
The noise will be amplified if the GAIN is on.
3.2.3 WB (White Balance)
White balance is the white rendition function of the
camera to adjust the color temperature according to
the environment. It can remove the unrealistic color
casts in the image. You can set WB mode as ATW, and
MWB.
ATW
In ATW mode, white balance is being adjusted
automatically according to the color temperature of the
scene illumination.
MWB
You can set the R GAIN/B GAIN value from 0 to 255 to
adjust the shades of red/blue color of the image.
WB
M OD E
R GAIN
B GA I N
RETURN
M WB
5
5
Figure 3-3 MWB Mode
3.2.4 DAY-NIGHT
Color, B/W, and SMART are selectable for DAY and
NIGHT switches.
COLOR
The image is colored in day mode all the time.
B/W
The image is black and white all the time, and the IR
LED turns on in the low-light conditions.
SMART
You can select to turn on/off the INFRARED and set the
value of SMART IR in this menu.
D AY /NIGHT
M OD E
INFRARED
SM AR T I R
RETURN
SM AR T
OP EN
1
Figure 3-4 Day & Night
INFRARED
You can select to turn on/off the IR LED to response to
the requirements of different circumstances.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and to prevent the image from
over exposure. The SMART IR value can be adjusted
from 0 to 3. The higher the value is, the more obvious
effects are, and it is disabled when the value is 0.
3.2.5 VIDEO SETTING
Move the cursor to VIDEO SETTING and press the
confirm button to enter the submenu. CONTRAST,
SHARPNESS, COLOR GAIN, DNR and MIRROR are
adjustable.
VI D E O SET T ING
CONTRAST
SH A RPN ES S
COL OR GAI N
DNR
MIRROR
RETURN
5
5
5
5
DEFAULT
Figure 3-5 Video Setting
CONTRAST
This feature enhances the difference in color and light
between parts of an image. You can set the CONTRAST
value from 1 to 10.
SHARPNESS
Sharpness determines the amount of detail an imaging
system can reproduce. You can set the SHARPNESS
value from 1 to 10.
COLOR GAIN
Adjust this feature to change the saturation of the color.
The value ranges from 1 to 10.
DNR (Digital Noise Reduction)
The DNR function can decrease the noise effect,
especially when capturing moving images in low light
conditions and delivering more accurate and sharp
image quality.
You can set the DNR value from 1 to 10.
MIRROR
DEFAU LT, H, V, and HV are selectable for mirror.
DEFAU LT: The mirror function is disabled.
H: The image flips 180 degree horizontally.
V: The image flips 180 degree vertically.
HV: The image flips 180 degrees both horizontally and
vertically.
3.2.6 RESET
Reset all the settings to the default.
3.2.7 SAVE &EXIT
Move the cursor to SAVE &EXIT and press OK to save
the setting and exit the menu.
