Nova CAMBRIDGE NOV-CD-4005B User manual

ASSEMBLY INSTRUCTIONS
IMPORTANT NOTICE
THIS BOOKLET CONTAINS USEFUL INFORMATION
ABOUT WARRANTY & CARE INSTRUCTIONS.
PLEASE KEEP FOR FUTURE REFERENCE.
CAMBRIDGE FIREPIT TABLE
SKU: NOV-CD-4005B / NOV-CD-4005G
2021 V1.0

ASSEMBLY INSTRUCTIONS
2
PARTS LIST
Table Box
Part Qty Part Name
A 2 Leg Panel
B 1 Table Top
C 1 Side Panel
D 1 Side Panel With Door
E 1 Glass
F12 M6 x 20mm
G12 Washer
H 1 Allen Key
Ax2 Bx1
Cx1 Dx1 Ex1
Fx12 Gx12 Hx1

ASSEMBLY INSTRUCTIONS
3

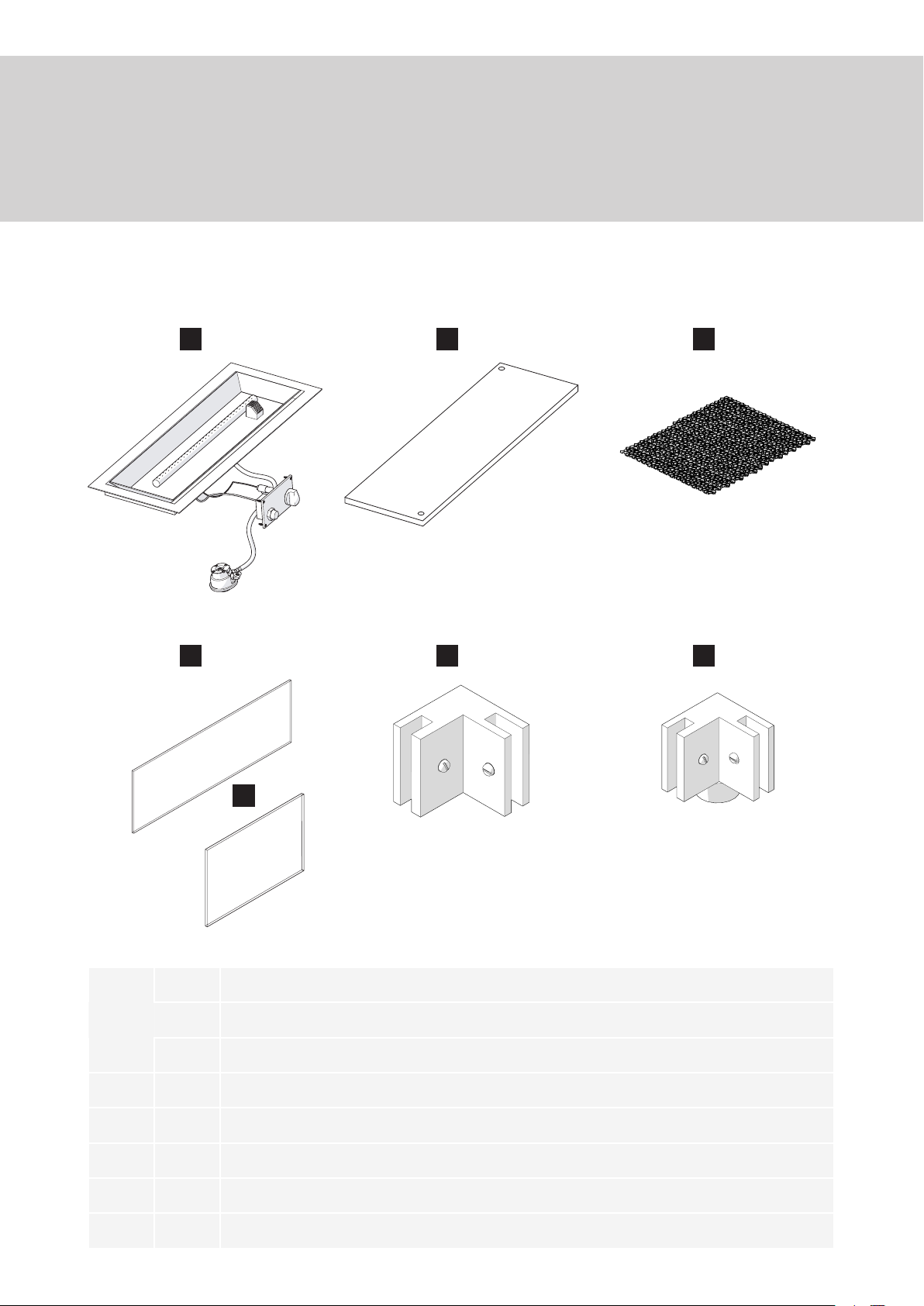

PARTS LIST
Firepit System Box
Windguard Box
Part Qty Part Name
I 1 Firepit System
J 1 Stainless Steel Lid Cover
K 1 Onyx Coloured Fireglass
L 2 Rectangular Winguard Panel
L1 2 Rectangular Winguard Panel
M 4 Top Connector For Windguard
N 4 Bottom Connector For Windguard
Ix1 Jx1 Kx1
Lx2 Mx4 Nx4
L1 x2

4
ASSEMBLY INSTRUCTIONS
SAFETY ADVICE
BEFORE YOU START:
• Ensure that you read this manual before starting to assemble your item(s).
• Check that you have all parts from the above part list. Do not throw away
any packaging until you are confident that you have all parts.
• Assemble this product on a soft/flat surface. Put any glass safely to one
side until it is required and keep any plastic bags, tools and fittings away from
children.
• Throughout the assembly process, make sure all fittings are only finger tight.
Upon completion, securely tighten all fittings.
• After prolonged use we recommend you check all the fittings are tightened
securely.
• Please do not modify this product, use other tools or substitute parts to build
your item(s), this will void your warranty.
• 1 x AAA battery (not supplied) is required for the fire pit system.
• The firepit system requires a 5kg patio gas propane bottle.

5
ASSEMBLY INSTRUCTIONS
SAFETY ADVICE
FAMILIARISE YOURSELF WITH THE FOLLOWING SAFETY ADVICE:
• To avoid danger, please keep all plastic bags away from children and do not
leave tools unattended during the assembly.
• Depending on the item(s) you have ordered, there may be heavy parts with-
in this packaging. Ensure you lift with the correct posture & technique. Please
get help moving and/or lifting if necessary.
• Please only use this product for its intended purpose as outdoor furniture
within a residential environment. Failure to do so will void your warranty.
• Nova Outdoor Living holds no responsibility for any damages caused due to
normal wear and tear, incorrect assembly, misuse and/or negligence
• We reserve the right to make changes for product improvements.
• Please recycle packaging where possible.
• Firepit tables must be used OUTDOORS only
• The wind guard is purely that and will not prevent the surrounding area from
heating up. It prevents the flame from being blown across the table, only and
will get hot.
• The crushed glass is heat resistant and is for decoration to cover the pan
and fire pit system. The ring burner can be covered in crushed glass, however,
the pilot cover cannot be covered or the flame will fail to ignite.
• The pan area should be kept clean at all times and can be cleaned with a
damp cloth.
• To release the gas bottle you press the button under the regulator. This will
only work if the gas is switched off.
• Never move the firepit table whilst in use.
• Make sure the firepit table has cooled down before applying any protective
cover.

ASSEMBLY INSTRUCTIONS
6
ASSEMBLY
STEP 1
Loosely secure the leg panel with the M6 x 20mm screws.
A
B
A B F G H
x2x1x1 x2 x1
G
H
F

ASSEMBLY INSTRUCTIONS
7
ASSEMBLY
STEP 2
Loosely secure the second leg panel with the M6 x 20mm screws.
A
G
H
F
B
A B F G H
x2x1x1 x2 x1

ASSEMBLY INSTRUCTIONS
8
ASSEMBLY
STEP 3
Loosely secure the side panel with the M6 x 20mm screws.
CF G H
x4x1 x4 x1
C
G
H
F

ASSEMBLY INSTRUCTIONS
9
ASSEMBLY
STEP 4

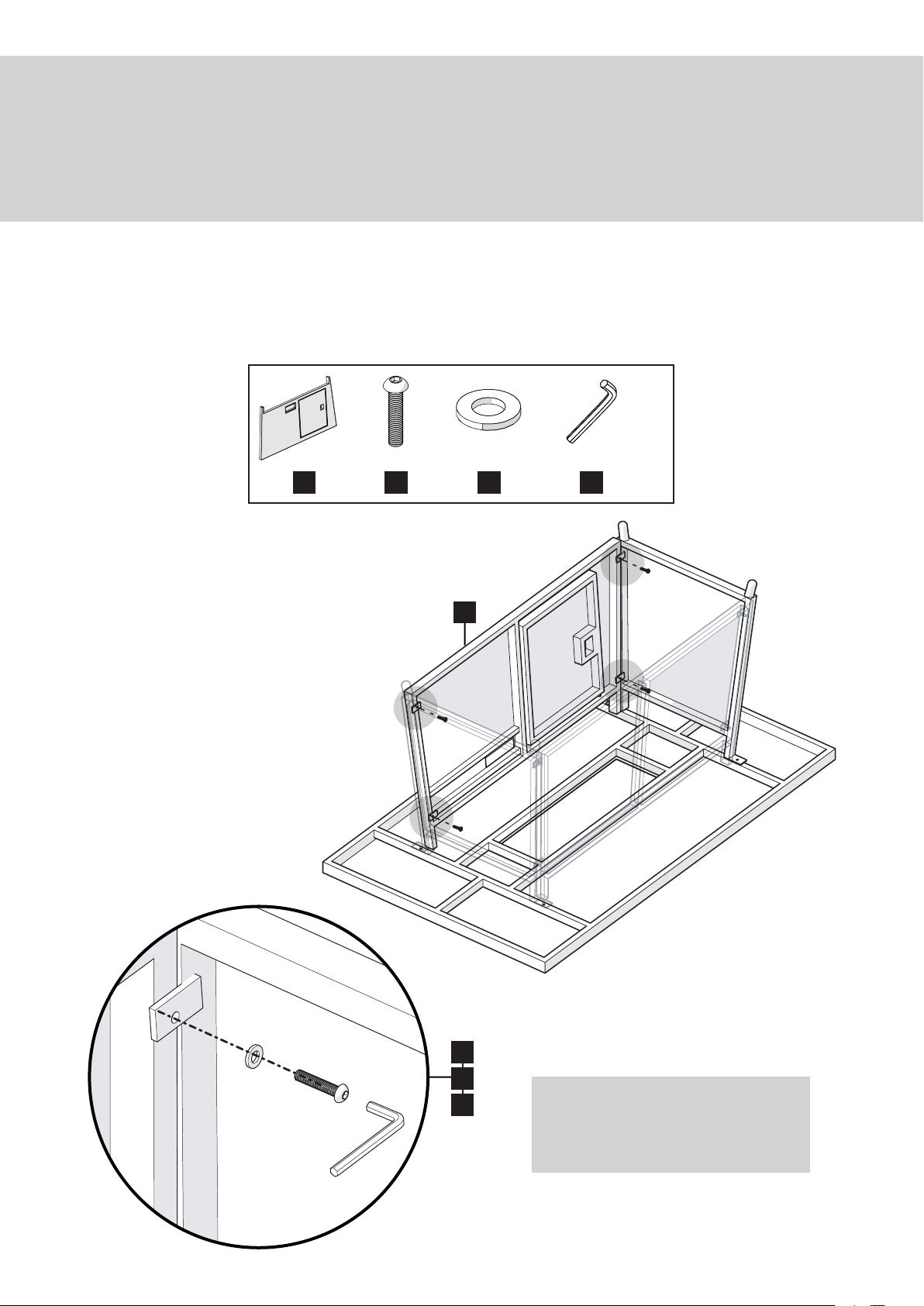

Loosely secure the side panel with door with the M6 x 20mm screws.
D
G
H
F
ITS TIME!
Now tighten all the screws with the
provided Allen key (H)
D F G H
x4x1 x4 x1

1110
ASSEMBLY INSTRUCTIONS
ASSEMBLY
STEP 5

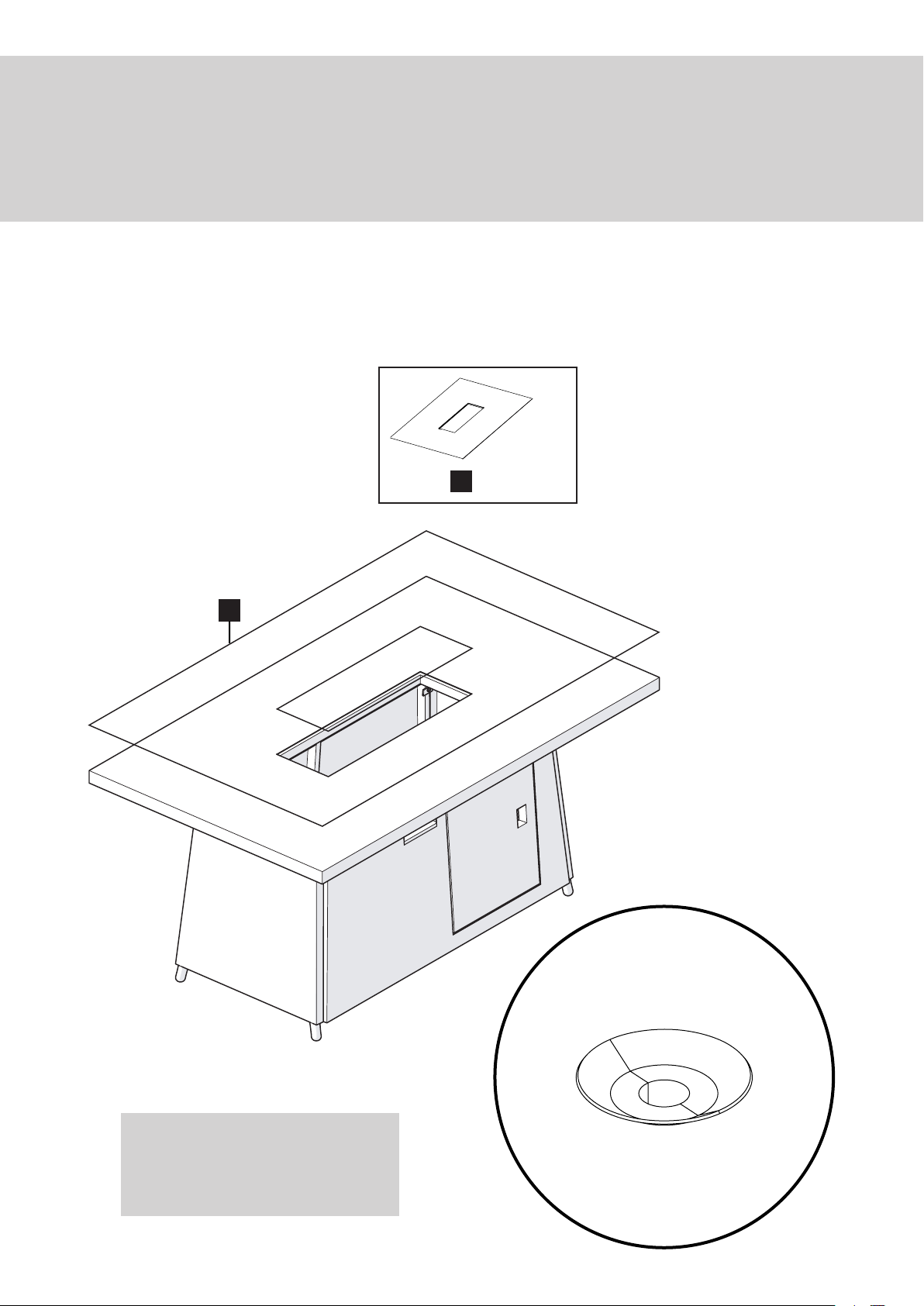

Secure the glass onto the table top ensuring the suction cups are flat.
E
E
x1
COMPLETE
Assembly of the table is now
complete!

ASSEMBLY INSTRUCTIONS
11
FIREPIT SYSTEM ASSEMBLY
STEP 1

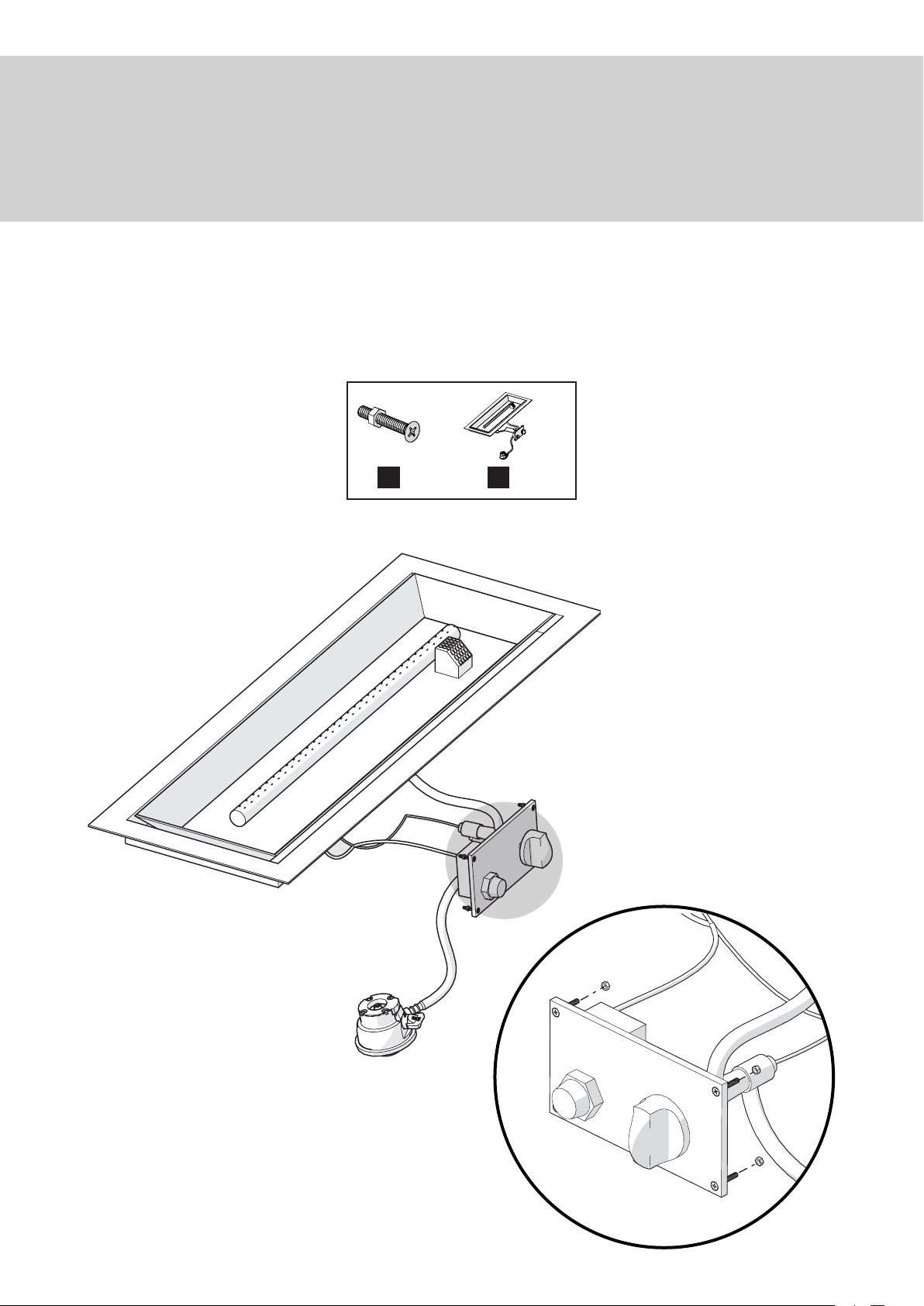

Remove the firepit system control panel nuts. Keep the nuts to one side.
I I
x4 x1

ASSEMBLY INSTRUCTIONS
FIREPIT SYSTEM ASSEMBLY
12 13
STEP 2
Lower the gas firepit system into the centre of the table glass, positioning the
regulator, hose and control panel through the table hole before lowering the system
into place.
I
E
I
x1

ASSEMBLY INSTRUCTIONS
13
FIREPIT SYSTEM ASSEMBLY
STEP 3
Attach the firepit control panel to the table base frame. Tighten the control panel
onto the frame using the previously removed nuts.
COMPLETE
Assembly of the firepit is now
complete!

ASSEMBLY INSTRUCTIONS
14
FIREPIT SYSTEM ASSEMBLY
STEP 4

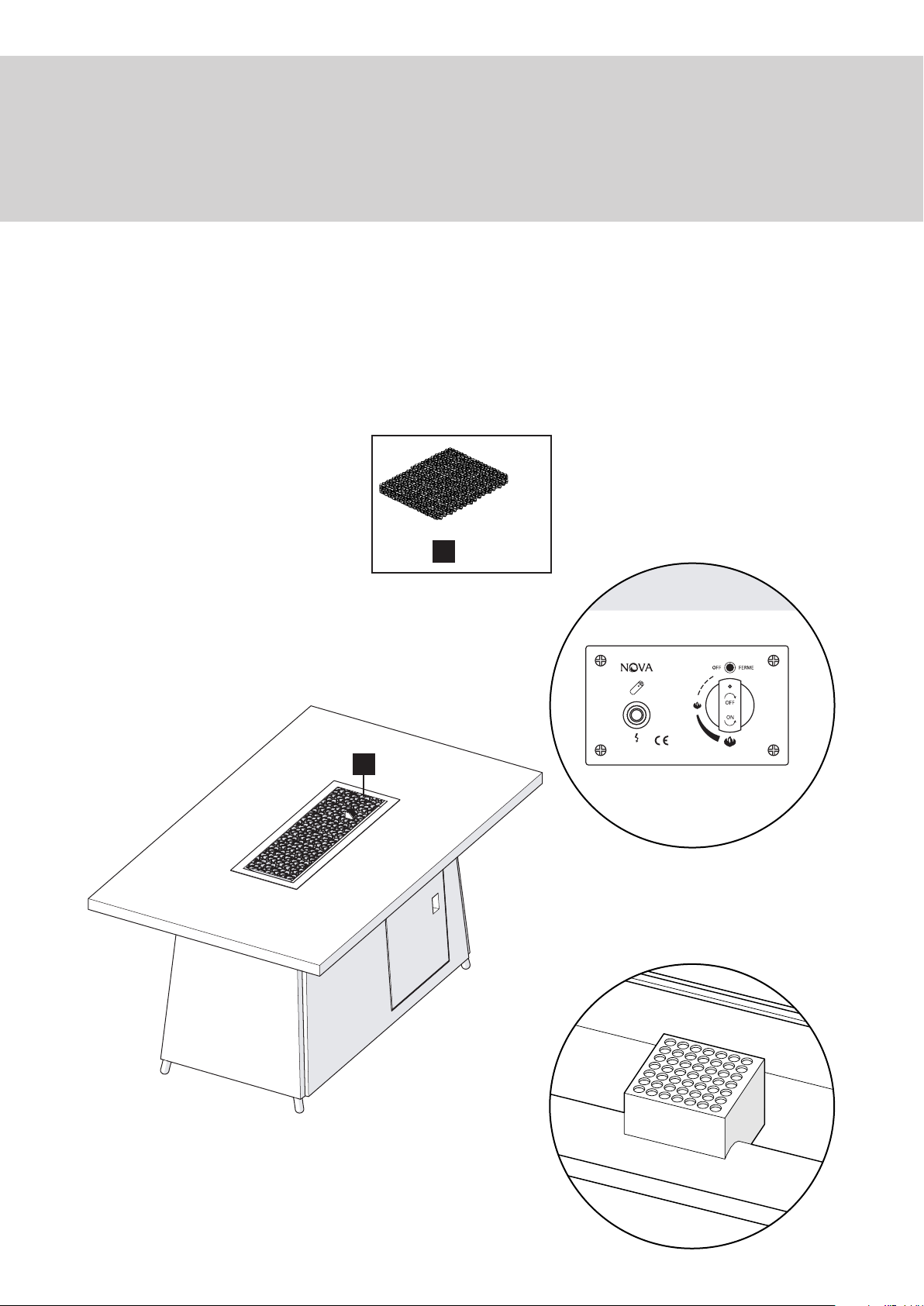

Carefully fill the firepit system with the fireglass ensuring the pilot cover is not
obstructed. Ensure the gas pipes under the table are not kinked and all wiring is
connected.
PIN: 0359CT03837
K
K
x1

ASSEMBLY INSTRUCTIONS
15
FIREPIT SYSTEM ASSEMBLY
STEP 5

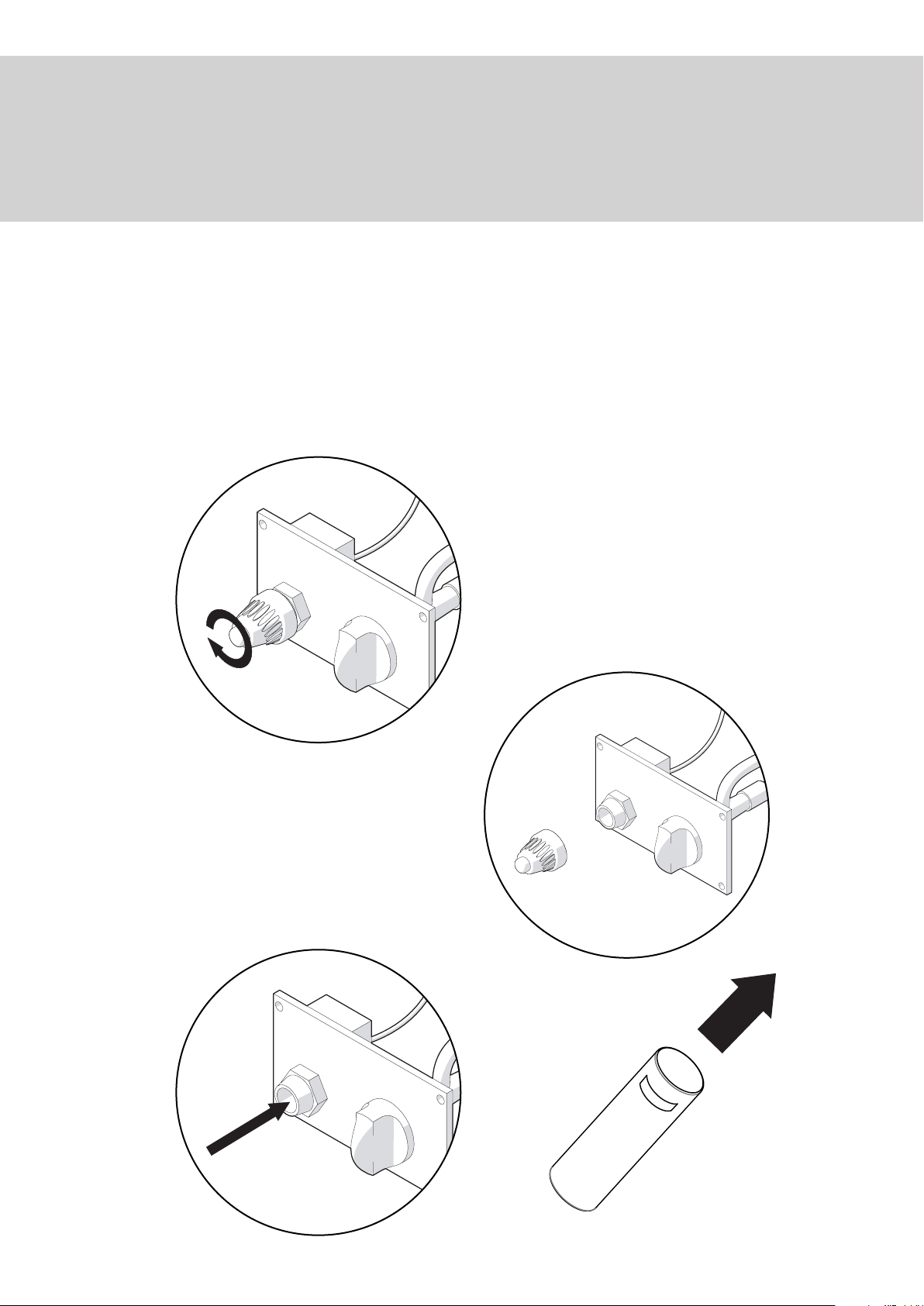

Remove the battery cover. Place 1 x AAA battery into the ignition, ensuring the
negative side is inserted first.

ASSEMBLY INSTRUCTIONS
WINDGUARD ASSEMBLY
16 17
STEP 1
Loosen all the grub-screws in the connectors with a Phillips screwdriver (not
supplied). Loosely position each windguard panel, one at a time, using the top and
bottom connectors until a rectangular windguard is formed. Do not tighten any
screws until the windguard is formed.
M
N
L
L1
M
x4
N L L1
x4 x2 x2

WINDGUARD ASSEMBLY
ASSEMBLY INSTRUCTIONS
17
SAFETY ADVICE
We recommend tightening the
grub-screws occasionally after
use.
STEP 2
Tighten all the grub screws (once the windguard is formed) using a Phillips screwdriver
(not supplied) and position it onto the table top around the firepit.

ASSEMBLY INSTRUCTIONS
TROUBLESHOOTING
18
• Ensure the black wire from the system is
connected to the igniter.
• 1 x AAA battery must be inserted into the
ignition, position within the control panel.
• Ensure the pilot cover is free from the Onyx
glass.
• Ensure all gas pipes are not bent or kinked.
• Ensure the regulator is facing down.

ASSEMBLY INSTRUCTIONS
CARE, MAINTENANCE & WARRANTY INFORMATION
19
Our range of Rattan Furniture is designed for continual outdoor use. The
aluminium frame and weatherproof synthetic weave ensures that you can
leave it outside all year round (excluding cushions). Always use place mats,
coasters, and tablecloths to help protect against dropped items and scratches
on the glass. Never use abrasives to clean the glass. We always recommend
two people to lift the glass, and when cleaning the underside of the glass.
RATTAN CARE
Rattan furniture is so popular due to being very low maintenance. With this
being said, it is still strongly encouraged that you look after your furniture with
the occasional upkeep.
At the start of the season, we recommend cleaning the rattan pieces with warm,
soapy water. You can use a cloth or a soft-bristle brush with gentle pressure.
Once you have finished, wash off any residue with clean water from the garden
hose. Allow the furniture to dry in the sun before adding on the cushions and
putting your feet up.
Most of our rattan products have plastic feet for protection. When moving your
furniture, do not drag it across your patio. This can damage the feet of your
furniture as well as your patio. Only pick the rattan up by the solid frame, not by
the more flexible rattan areas.
We strongly recommend covering your rattan furniture with a garden furniture
cover when not in use, this will keep the product in its best possible condition.
WARRANTY INFORMATION
We regret to inform you that warranty claims cannot be accepted without proof
of purchase. Warranties are valid from the date of purchase, to the original
purchaser only. For us to help you, please ensure all warranty terms have been
adhered to.
These terms can be found at https://warranty.novaoutdoorliving.co.uk/
The warranty applies to residential domestic use within the UK only. It does not
cover commercial use, misuse, accidental damage or normal wear and tear.
We reserve the right to repair and/or replace parts rather than a complete item
at our discretion.
