Abbreviations / Terminology
Ah
Ampere hour
Comms
Communication
DDG
Diver Depth Gauge
DGA
Diver Gas Analyzer
DVR3
Digital Video Recorder
MIC
Microphone
NovaBus
Novasub proprietary data transfer port
PTT
Push To Talk
Vac
Volt AC
xDR
Diver intercom radio
www.novasub.com
4 of 14
SCC-2DR-DSP-L1.0 Manual
Version: 1.2 - Date: 02-09-2022
Introduction
The Surface Control Case (SCC) is a rugged case. It has a 2 channel digital Diver intercom radio (xDR). The case has a
battery built in that is charged when you are connected to an external power supply. This has smart battery charger and
has battery state condition monitoring.
xDR
The xDR Diver Intercom is a self-contained , Two / Four diver Intercom for a 2- or 4- wire communication between the
operator (Tender) and divers. The xDR can operate in half duplex/full duplex mode Tender to Diver and full duplex
between divers (round Robin). The Tender may choose to talk with the divers via the panel microphone, hand held Mic,
headset Mic and Table Mic, using the PTT button. When pressing the PTT the Tender will communicate in full duplex
mode with the diver (only in 4 wire mode). Each diver has a volume control from Diver to Tender and a volume control
from Tender to diver. Apart from the Internal speaker an external speaker can be connected with separate amplifier and
volume control.
The xDR Diver Intercom is the latest generation diver intercom radio based on an internal digital process based DSP
(Digital signal processing). The DSP makes the xDR a complete adjustable Diver Intercom in which you can select what
you want to hear on the outputs and each input and output can be set to the required levels. The advantage of this is that
the xDR can be adjusted to the levels of your connected devices, like diver communication helmets and mask
microphones and speaker. But also the connected audio recording devices, or the audio input devices, like a MP3 player.
The standard xDR is a 2 channel diver radio with a connection of two divers. Each has the Volume control to and from the
diver from the Tender. An overall Tender Volume control. A built in Speaker and Microphone for the Tender. Each diver a
PTT (Push-to Talk) switch and a PTT All switch.
The xDR has a 2 line, 16 characters transflective display. The display is used to scroll through the menu and adjust the
required settings. Without using the Menu settings, by default the xDR will work as a standard 2 Diver intercom as you will
be used too. Using the Menu you have access to an extensive settings menu in which you can configure and adjust the
audio and other settings to your needs.
www.novasub.com
5 of 14
SCC-2DR-DSP-L1.0 Manual
Version: 1.2 - Date: 02-09-2022
Specifications
System
Channels
2x
Connectors
Comms
2x
4x Banana for each channel
External Speaker
1x
2x Banana binding posts
Power
1x, 100-240Vac
C14
Wired Headset
Multipin
1x, With Earphone, Mic & PTT
Lumberg 0271-07
Earphone
1x
Jack 3.5mm (Mono/Stereo)
Mic
1x
Jack 3.5mm (Mono)
Audio Out
2x
RCA
Aux In
1x
Jack 3.5mm (Mono/Stereo)
Battery
Run time
6 hours
Charging time
3 hours
Size
Length
305 mm
Width
270 mm
Height
144 mm
Weight
4.1 kg
www.novasub.com
6 of 14
SCC-2DR-DSP-L1.0 Manual
Version: 1.2 - Date: 02-09-2022
Maintenance
The system is semi ruggedized. Although it is designed to withstand rough circumstances, you must treat it with the same
proper care and caution as any other electronic instrument.
Have your system serviced each 2 years by a Novasub Authorized Service Center. This service will include a general
operational check, replacement of the battery, and overall upgrade of firmware. The service requires special tools and
training.
Maintenance scheme
By Customer
Cleaning
When needed
Drying panels
During operations
and before storing
Charging battery
Regularly
By Novasub Authorized Service Center
Servicing
2 years
Internal backup battery replacement
2 years
WARNING
•It is not allowed to disassemble any part of the system or to repair the product by unqualified personal, in that case all
warranties are void. Qualified personnel are trained by Novasub.
•Avoid large amount of water on the control and monitor panels.
•DO NOT use the system if you detect any moisture or water inside and return it to your dealer.
•The system is capable of permanently damaging the hearing of a person, make sure you never put the volume too
high. When beginning, start with a low volume and gradually increase it to the desired setting
•The system should not be used in snow or in a thunderstorm.
CAUTION
•Protect the unit from shock, extreme heat, direct sunlight, and chemical attack.
•The system cannot withstand the impact of heavy objects like air cylinders, nor chemicals like gasoline, cleaning
solvents, aerosol sprays, adhesive agents, paint, acetone, alcohol, etc. Chemical reactions with such agents will
damage the seals, case and finish.
•Do not use compressed air to blow water off the unit.
•When using the system, make sure it is set up horizontally in a safe environment on a flat surface with enough
ventilation and lighting. Make sure you can control the system in an ergonomic way.
•When the system is charged it should use a charger with a ground.
NOTE!
•The system is not fully waterproof, it can withstand some water drops on the monitor panel and control panel. Be sure
to whip off any water drops or moisture from the panels.
•If the software freezes, then restart the system. If this does not fix the issue, then return the system to your dealer.
•If the software crashes multiple times, then return the system to your dealer.
•If the system is under a voltage, then immediately shut it off and return it to your dealer
•We highly recommend closing the lid when the system is not in use. This extends product life.
Disposal of the device
Please dispose of the device in an appropriate way, treating it as electronic waste. Do not throw it in the garbage. If
you wish, you may return the device to your nearest Novasub dealer
www.novasub.com
7 of 14
SCC-2DR-DSP-L1.0 Manual
Version: 1.2 - Date: 02-09-2022
General
The system can be seen below. Please note that there can be connections to the side or top of the system as well as on
the panel.
External power Connection
Audio Connections
See Manual:
xDR –Diver Intercom
Power ON/OFF
xDR
See Manual:
xDR –Diver Intercom
Headset connections
Note that if any headset is plugged in, the internal
Mic in the panel will not work.
Note that both headset connections can work
parallel with headsets if the headsets do not
require too much power.
Comms Connections
www.novasub.com
8 of 14
SCC-2DR-DSP-L1.0 Manual
Version: 1.2 - Date: 02-09-2022
Basic Controls
Below you find some of the basic controls that are on almost all panels.
Power button
ON Press and hold for 5 second2 to start up the system. This will start up
the xDR
OFF Press and hold for 5 second2 to shut down the system. This will shut
the xDR down.
Speaker button
This uses a “Stay put push button”, this means that once you press it, it will
remain in that position.
Speaker ON Button Pushed in
Speaker OFF Button out
www.novasub.com
9 of 14
SCC-2DR-DSP-L1.0 Manual
Version: 1.2 - Date: 02-09-2022
Procedures
Set up
•When a case is used, place it on a flat surface that can support the unit. Select a working area which is secure, stable,
convenient, and suitable for use during the period of the dive.
•Conduct a visual inspection of unit to insure no damage has occurred during transportation to the job site, or since the
last time the unit was used.
•Connect an external power source if needed
•Connect the Diver Umbilicals
•Turn the system ON
www.novasub.com
10 of 14
SCC-2DR-DSP-L1.0 Manual
Version: 1.2 - Date: 02-09-2022
xDR –Diver Intercom
All information for the controls of this subsystem can be found in the manual:
xDR –Diver Intercom Manual
All manuals and resources can be found under the “Support” tab on the website: www.novasub.com/support/
www.novasub.com
11 of 14
SCC-2DR-DSP-L1.0 Manual
Version: 1.2 - Date: 02-09-2022
Connectors

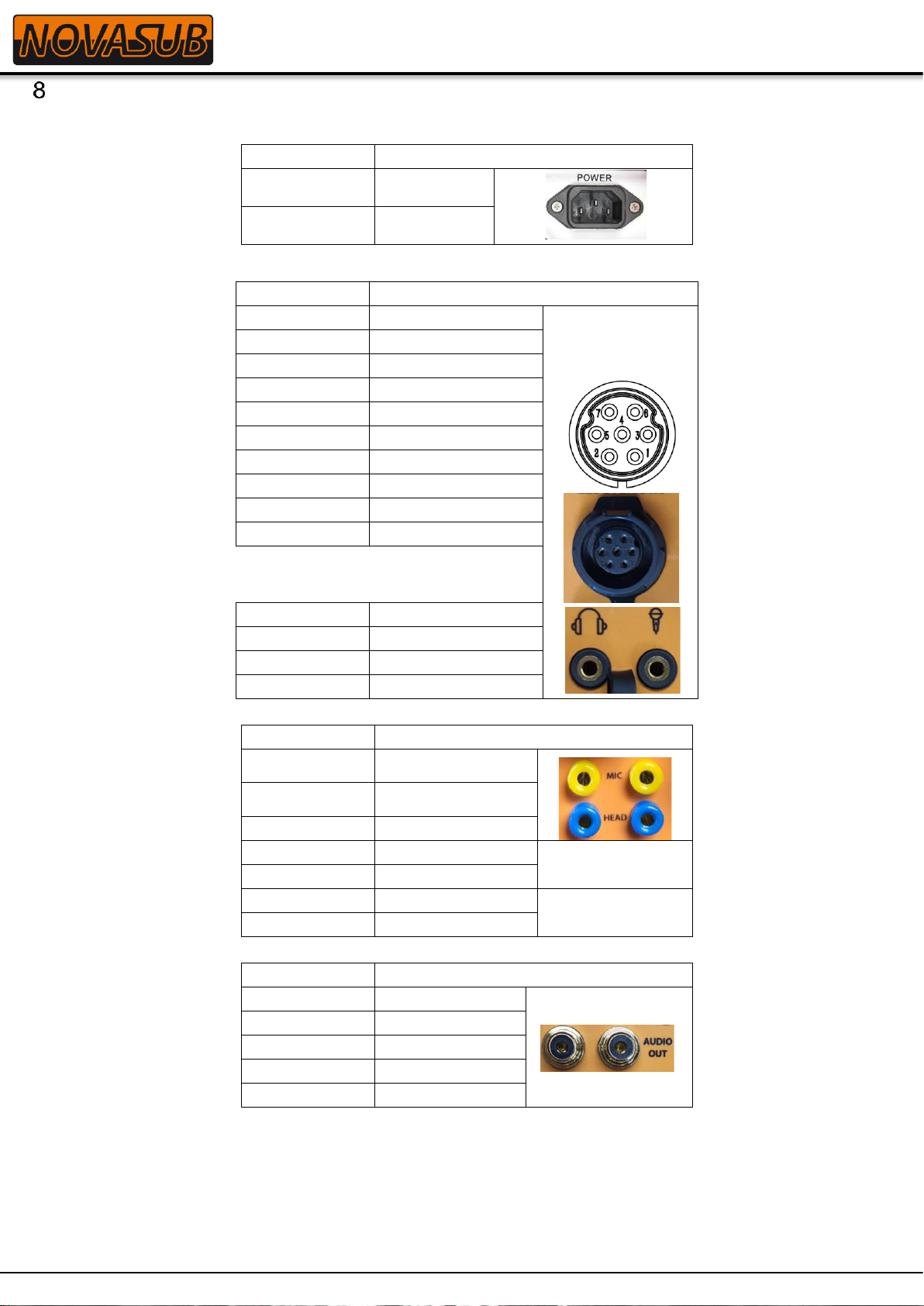

Below you will find all the pin diagrams that can be used. Note that not all are in this system.
IEC
Power 100-240 vac
Type
C14
Mating type
C13
SCC 01-018
Mic/Headset
Type
Lumberg 0271-07
Mating type
0251-07
Function
Pin layout
12 vdc
1
PTT
2
Speaker/mic Gnd
3
RS485+ (Novabus)
4
Mic +
5
Speaker +
6
RS485- (Novabus)
7
Below jacks are parallel connected to 0271-07 multipin
connector
Type
Jack 3,5 mm
Mating type
Jack 3,5 mm
Head
Standard stereo
Mic
Standard mono
2/4 pin comms
Diver 1&2 2 / 4 wire comms
Type
Banana sockets-4mm
Mating type
Banana plugs- 4mm
Function
Pin layout
MIC
Yellow socket
Parallel to comms MIC
multipin connector
MIC
Yellow socket
Head
Blue socket
Parallel to comms Head
multipin connector
Head
Blue socket
Audio output
Audio 1&2
Type
RCA socket
Mating type
RCA plug
Function
Pin layout
Audio +
centre pin
Audio -
connector housing
www.novasub.com
13 of 14
SCC-2DR-DSP-L1.0 Manual
Version: 1.2 - Date: 02-09-2022
Help & Support
Further details about a Warranty Statement can be found at the chapter 10 Warranty
For technical support contact your local a Novasub Authorized Service Center or Seascape Subsea BV.
Seascape Subsea BV is the manufacturer of all Novasub branded products.
Seascape Subsea BV
De Hoogjens 22
NL-4254 XW Sleeuwijk
The Netherlands
T. +31-183-307900
E. info@Seascapesubsea.com
www.seascapesubsea.com
support email: support@novasub.com
Copyright © Seascape Subsea BV
All Rights reserved.
If you have cause to use our technical support service, please make ensure that you have the following details at hand
prior to calling:
•system serial number
•firmware version and build number
•fault description
•any remedial action implemented
www.novasub.com
14 of 14
SCC-2DR-DSP-L1.0 Manual
Version: 1.2 - Date: 02-09-2022
Warranty
Novasub warrants that during the Warranty Period Novasub or a Novasub Authorized Service Center (hereinafter Service
Center) will, at its sole discretion, remedy defects in materials or workmanship free of charge either by a) repairing, or b)
replacing, or c) refunding, subject to the terms and conditions of this Limited Warranty. This Limited Warranty is only valid
and enforceable in the country of purchase.
Warranty Period
The Limited Warranty Period starts at the date of original retail purchase. The Warranty Period is two (2) years for the
product. Warranty applies only on manufacturing defaults. The Warranty Period is one (1) year for accessories, including
mounting hardware and connector cables.
Exclusions and Limitations
This Limited Warranty does not cover:
1. a) normal wear and tear;
b) defects caused by rough handling or;
c) defects or damage caused by misuse contrary to intended or recommended use;
2. user manuals or any third-party items;
3. defects or alleged defects caused by the use with any product, accessory, software and/or service not manufactured or
supplied by Novasub;
4. battery.
This Limited Warranty is not enforceable if item:
1. has been opened beyond intended use;
2. has been repaired using unauthorized spare parts; modified or repaired by unauthorized Service Center;
3. serial number has been removed, altered or made illegible in any way, as determined at the sole discretion of Novasub;
4. has been exposed to chemicals. Novasub does not warrant that the operation of the product will be uninterrupted or
error free, or that the product will work with any hardware or software provided by a third party.
Limitation of Liability
To the maximum extent permitted by applicable mandatory laws, this Limited Warranty is your sole and exclusive remedy
and is in lieu of all other warranties, expressed or implied. Novasub shall not be liable for special, incidental, punitive or
consequential damages, including but not limited to loss of anticipated benefits, loss of data, loss of use, cost of capital,
cost of any substitute equipment or facilities, claims of third parties, damage to property resulting from the purchase or
use of the item or arising from breach of the warranty, breach of contract, negligence, strict tort, or any legal or equitable
theory, even if Novasub knew of the likelihood of such damages. Novasub shall not be liable for delay in rendering
warranty service.
This manual suits for next models
1
Table of contents
Other Novasub Diving Instrument manuals
