NovaTec VPD-25 User manual

I
222 E. Thomas Ave. Baltimore, MD 21225
Phone [phone] Parts Email: [email protected]
Toll Free: 800-938-6682 Service: [email protected]
Main Fax: [phone] Sales: [email protected]
INSTRUCTION MANUAL
Positive Displacement
Vacuum Pump
Model: VPD-25
© 2018 Novatec, Inc. All Rights Reserved
VPD-25 IM 12 FEB 2018

© 2018 Novatec, Inc. All Rights Reserved Page 2
Instruction Manual VPD-25 IM 12 FEB 2018
Please record the following
information, which is specific to
this piece of equipment, in the
space provided. Our Parts/Service
Department will need these
numbers to properly respond to
any of your requests.
DISCLAIMER: NOVATEC, Inc. shall not be
liable for errors contained in this Instruction
Manual nor for misinterpretation of
information contained herein. NOVATEC
shall not, in any event, be held liable for any
special, indirect or consequential damages
in connection with performance or use of
this information.
Instruction Manual: VPD-25 IM 12 FEB 2018
Model #:___________________________
Serial #____________________________

© 2018 Novatec, Inc. All Rights Reserved Page 3
Instruction Manual VPD-25 IM 12 FEB 2018
TABLE OF CONTENTS
TABLE OF CONTENTS .............................................................................................................................................. 3
1.0 INTRODUCTION........................................................................................................................................... 4
2.0 WARNING...................................................................................................................................................... 4
3.1 Seek Time ................................................................................................................................................. 4
4.0 UNPACKING................................................................................................................................................. 5
5.0 GENERAL INSPECTION............................................................................................................................. 5
6.0 MECHANICAL INSTALLATION.................................................................................................................. 6
7.0 ELECTRICAL INSTALLATION................................................................................................................... 6
8.0 ENGINEERING DATA.................................................................................................................................. 6
Specifications:....................................................................................................................................................6
9.0 VPD-25 PARTS LIST ................................................................................................................................... 7
10.0 MAINTENANCE AND INSPECTION SCHEDULE ................................................................................ 8
11.0 BLOWER MAINTENANCE........................................................................................................................ 9
12.0 WARRANTY – NOVATEC, INC. - Effective Date 1 MARCH 2017................................................... 11

© 2018 Novatec, Inc. All Rights Reserved Page 4
Instruction Manual VPD-25 IM 12 FEB 2018
1.0 INTRODUCTION
The Novatec VPD vacuum pump is designed to pneumatically convey plastic pellets or powders in a
vacuum conveying system. It does this by creating a vacuum to “pull” air through the piping system.
Plastic pellets or powders are introduced into the moving air stream in various ways, including
through the use of probes, pick-up tubes, and rotary air locks. The VPD is used in conjunction with
vacuum chamber station valves, etc. to form the conveying system, which is controlled with either
Master Control or Distributed Control Panels. Several vacuum power units may be designed into the
system as required. Vacuum conveying systems typically distribute material from silos, surge bins,
blenders, or drying hoppers to processing machinery.
2.0 WARNING
Always disconnect power before servicing. Only qualified technicians should service, maintain, or
repair the VPD. Before using this equipment, read in detail the product bulletins and other
information found in this manual. A safe installation is necessary before operating the equipment.
The instructions should be understood and followed before installing or operating the equipment.
3.0 OPERATING LIMITATIONS
Operating At Higher Altitudes…3000 Ft Above Sea Level or More
Atmospheric pressure is lower at higher elevations and as a result, the compression of air by the pump
requires more work for vacuum conveying. In these higher altitude applications the pressure relief
valve of VPD pumps must be adjusted on site to prevent the pump from damaging itself or the motor
by attempting to compress air of reduced density to an unsafe level. Contact Novatec Engineering or
Service at the number on the front cover of this manual when operating the pump at 3000 ft or higher
elevation.
Blower exhaust temperature and motor cooling are a function of both vacuum level and elevation.
Blower exhaust temperature must not exceed 300°F to avoid premature blower failure.
Decreased motor FLA limits may require alternate overload protection or increased frame size / hp.
3.1 Seek Time
Excessive starting and stopping of the pump will reduce blower and motor life and void the
warranty. Seek Time is a control parameter that allows your pump to operate for short
periods in vacuum break mode (no vacuum loading) while the system control searches for
new demands. Using the Seek Time feature, pump starts must be limited to 12 per hour to
prevent premature failure. The minimum Seek Time for a pump is 240 seconds
to prevent
exceeding 12 starts per hour. Optimum Seek Time may be set dependent upon pump
capacity, utilization, number of stations, capacity of each vacuum chamber, and individual
station throughputs.
(See your control panel instruction manual for information on Seek
Time)

© 2018 Novatec, Inc. All Rights Reserved Page 5
Instruction Manual VPD-25 IM 12 FEB 2018
4.0 UNPACKING
Caution should be exercised to see that the equipment is not handled roughly. The crate must be
removed carefully. The machine must not be used to pry against Do not pry against the machine when
removing the crate. The vacuum power unit is usually shipped completely assembled and requires no
further attention prior to installation. Note any shipping damage on delivery receipt and report
immediately to trucking company.
5.0 GENERAL INSPECTION
When the unit is unpacked, make a visual inspection looking for missing parts or damage that may
have occurred during shipment. Report any missing parts to Novatec immediately. All electrical and
mechanical connections should be checked for tightness, as vibration during transit may cause them
to loosen.
IMPORTANT: Before placing the vacuum pump into service, be sure oil has been put in the pump, as
oil may have been drained following factory quality control testing. See page 9 for lubrication
guidelines.
NOTE: Replacement blowers are shipped without oil installed.

© 2018 Novatec, Inc. All Rights Reserved Page 6
Instruction Manual VPD-25 IM 12 FEB 2018
6.0 MECHANICAL INSTALLATION
Only qualified technicians familiar with local and national codes should install the equipment. Connect
the vacuum lines as shown on the installation drawings. Connect the compressed air (80-120 psig) to
air actuated valves as required.
7.0 ELECTRICAL INSTALLATION
Connect the proper power supply (check nameplate) through a main line disconnect (field supplied) to
terminal connections L1, L2, L3 and ground into the VPD control cabinet that contains the motor
starter. This is the only power required, as the unit is completely pre-wired. Connect additional control
wiring from the remote mounted master control panel to the vacuum power unit as shown on the
electrical wiring schematic for the master control panel. Verify the correct rotation of the motor with the
directional labels on the assembly.
8.0 ENGINEERING DATA
Utilities:
Compressed Air: 80-120 PSIG
Electric: Verify nameplate information
Horse Power
Voltage
FLA
KVA
VPD-25
25HP
460/3/50
36.0
25.0
460/3/60
575/3/60
31.0
24.7
23.9
Specifications:
25 Hp 500 CFM 13” Maximum Vacuum 4” Line Size
NOTE:
Specifications will be reduced for standard pump assemblies run on 50Hz. Information shown is for
standard PD vacuum pumps. Refer to special job drawings for custom unit information if applicable.
Verify nameplate information on motor before installing and operating. All information is subject to
change without notice.
CAUTION:
Always disconnect power before servicing. Only qualified technicians should service the equipment.
24..0

© 2018 Novatec, Inc. All Rights Reserved Page 7
Instruction Manual VPD-25 IM 12 FEB 2018
9.0 VPD-25 PARTS LIST
NOTE: Information shown is for standard vacuum power units. Refer to special job drawings
for custom unit information. Verify information on existing part before ordering and installing
replacement. All information is subject to change without notice.
QTY
DESCRIPTION
Part Number
1
Blower, GO
PD-6MQ-VERT-BHRD
1
Motor
208/230/460/3/60
01918
1
Motor 575/3/60
04201
1
Vacuum Relief
Valve
vrv20-13
1
Vacuum Gage
50011
1
Silencer (Muffler)
01982
3
V-Belt
03014
1
Solenoid Vacuum
Breaker Valve
115 VAC
08236
24 VDC
08238
1
Vacuum Breaker
Valve
02046
1
Motor Starter
380-460V
epump-e
575V
epump-e-57
1
Filter Element
hf048

© 2018 Novatec, Inc. All Rights Reserved Page 8
Instruction Manual VPD-25 IM 12 FEB 2018
10.0 MAINTENANCE AND INSPECTION SCHEDULE
It is recommended that maintenance and inspection is done on a scheduled basis. Maintenance
requirements will naturally vary widely for each installation and specific operating conditions. It is
suggested that a complete inspection be performed with the necessary maintenance at the end of the
first day, the first week, the first month and the first 3 months. These inspections will be indicative of
how often future maintenance will be necessary.
EVERY WEEK
Inspect the Filter cartridge. Clean or replace as required. Remove any fines collected from the catch
pan. This time interval should be shortened if experience indicates unusual dust loading.
Check the system for air leaks and correct as required.
EVERY MONTH
Inspect the vacuum breaker valve filter/silencer. Clean or replace as required.
EVERY 3 MONTHS
Units equipped with permanently lubricated motor bearings do not need lubrication. All motors should
be examined on an individual basis.
Units equipped with ball bearing motors are factory greased and should be re-lubricated with a high-
grade ball bearing grease rated for temperature and duty cycle required.
WHEN ADDING LUBRICANT
1. Remove filter plugs at the bearings and install grease fittings suitable to your grease gun. Also,
remove the drain plugs at the bearings.
2. Add ball bearing grease until all of the old grease is expelled through the drain hole.
3. Run motor with drain plug removed to eliminate excess grease.
4. Clean and replace drain plugs.
5. Check motor (s) amperage (see Engineering Data Sheet).
EVERY 6 MONTHS
Check for loose electrical connections. Tighten all bolts and nuts. Check V belts. Adjust or replace as
required.

© 2018 Novatec, Inc. All Rights Reserved Page 9
Instruction Manual VPD-25 IM 12 FEB 2018
11.0 BLOWER MAINTENANCE
ROOTS/DRESSER BLOWERS
Before starting pump, be sure oil has been put in the gearbox, as OIL MAY HAVE BEEN DRAINED
FOLLOWING FACTORY SHOP TESTS.
NOTE: ALL BLOWERS SENT AS REPLACMENTS ARE SHIPPED WITHOUT OIL.
Root’s recommends using lubrication oil manufactured by Royal Purple that is called SYNFILM GT
220. The Novatec Part Number for this oil is 03-0991 and is available in quart containers. If you
choose to use another brand of oil, be sure it is a good grade industrial type rust, oxidation, and foam
inhibited, non-detergent oil such as Mobil DTE BB, Texaco R&O 220, Amoco 220 or equal. See Table
below:
Recommended Oil Grades
Ambient
Temperature °F.
Viscosity Range
SSU at 100°F.
ISO No.
(°C)
(38°C)
Above 90°(32°)
1000 – 1200
320
32°to 90°(0°to 32°)
700 – 1000
220
0°to 32°(-18°to 0°)
500 – 700
150
Below 0°(-18°)
300 – 500
100

© 2018 Novatec, Inc. All Rights Reserved Page 10
Instruction Manual VPD-25 IM 12 FEB 2018

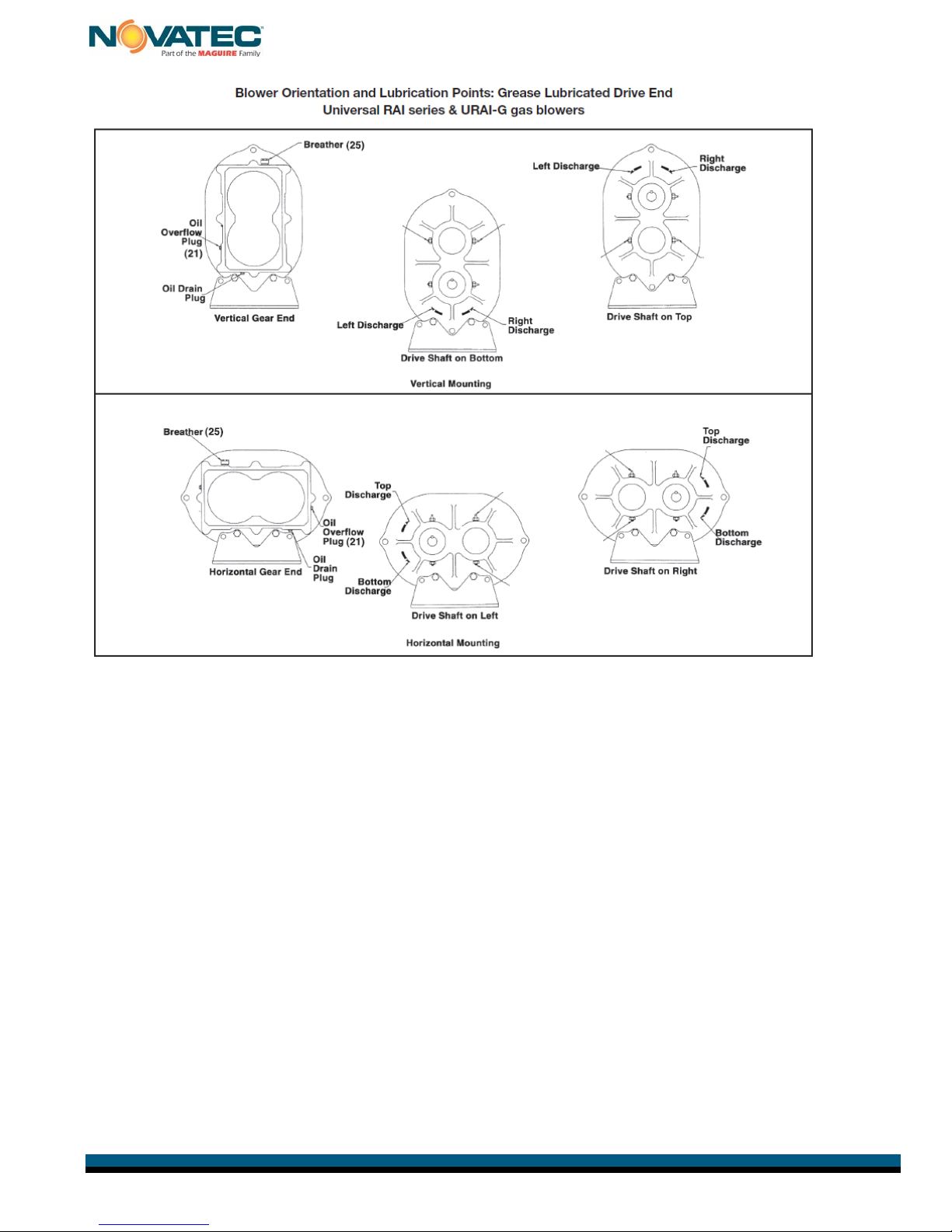

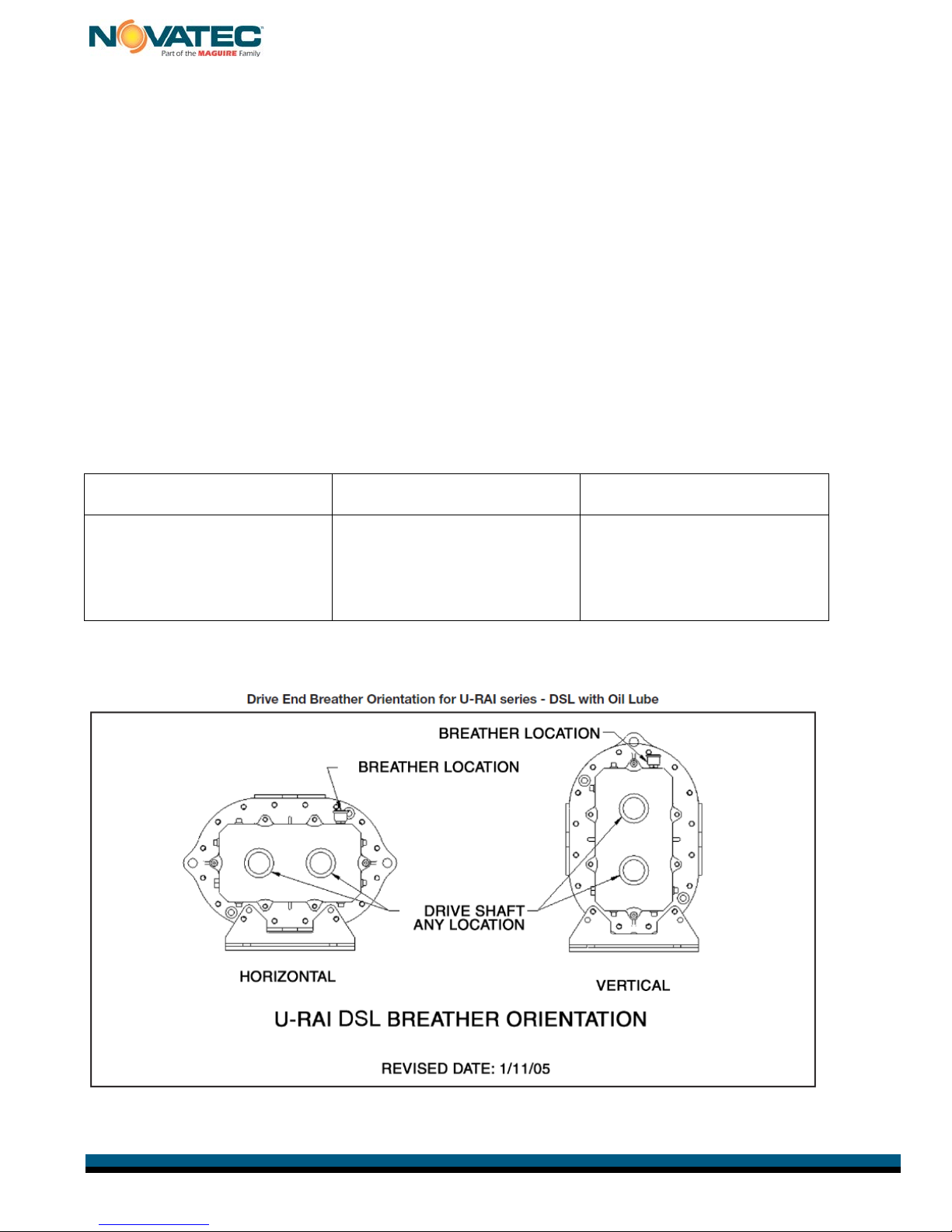

NOTE: Novatec VPD Series pumps utilize Universal RAI–DSL blower models, with bearings enclosed
in a lubricant bath, eliminating the grease and relief fittings.

© 2018 Novatec, Inc. All Rights Reserved Page 11
Instruction Manual VPD-25 IM 12 FEB 2018
12.0 WARRANTY – NOVATEC, INC. - Effective Date 7 FEB 2018
NOVATEC, INC. offers COMPREHENSIVE PRODUCT WARRANTIES on all
of our plastics auxiliary equipment. We warrant each NOVATEC manufactured
product to be free from defects in materials and workmanship, under normal
use and service for the periods listed under “Warranty Periods”. The
obligation of Novatec, under this warranty, is limited to repairing or
furnishing, without charge, a similar part to replace any part which fails
under normal use due to a material or workmanship defect, within its
respective warranty period. It is the purchaser’s responsibility to
provide Novatec with immediate written notice of any such suspected
defect. Warranted replacement parts are billed and shipped freight
pre-paid. The purchaser must return the suspect defective part, freight
prepaid and with identifying documentation to receive full credit for the part
returned. Novatec shall not be held liable for damages or delay caused by
defects. No allowance will be made for repairs or alterations without the
written consent or approval of Novatec.
The provisions in equipment specifications are descriptive, unless
expressly stated as warranties. The liability of Novatec to the
purchaser, except as to title, arising out of the supplying of the said
equipment, or its use, whether based upon warranty, contract or
negligence, shall not in any case exceed the cost of correcting defects
in the equipment as herein provided. All such liability shall terminate
upon the expiration of said warranty periods. Novatec shall not in any
event be held liable for any special, indirect or consequential damages.
Commodities not manufactured by Novatec are warranted and
guaranteed to Novatec by the original manufacturer and then only to
the extent that Novatec is able to enforce such warranty or
guaranty. Novatec, Inc. has not authorized anyone to make any
warranty or representation other than the warrantycontained here.Non-
payment of invoice beyond 90 days will invalidate the warranty. A renewed
warranty can be purchased directly from Novatec.
Please note that we always strive to satisfy our customers in whatever manner is deemed most expedient to overcome any issues in
connection with our equipment.
Warranty Periods:
Note: All warranty periods commence with the shipment of the equipment to the customer.
5-Year (Except 1-Year on Non-Novatec Buy-Out Items)
Resin Drying to Include
NovaWheel™ Dryers *
Dual Bed Dryers
NovaDrier *
NDM-5 Membrane Dryer
Gas-Fired Process Heaters
Gas-Fired Regeneration Heaters
Drying Hoppers
Central Drying Hopper Assemblies
Heater/Blower Units and Hot-Air Dryer
Silo Dehumidifiers
NovaVac Dryers *
Resin Blending and Feeding to Include
WSB Blenders, MaxiBatch & Feeders *
Gaylord Sweeper Systems
Downstream Extrusion Equipment to Include
C and NC Bessemer Series Cutters
NPS Bessemer Series Pullers
NPC Mini Puller/Cutter
All NS Series Servo Saws
All Cooling and Vacuum Tanks Manufactured by Novatec
Nitrogen NovaDriers (Nitro)
DryTemp Plus
Central System Controls to Include
FlexTouch™ Series Controls
FlexXpand™ Series Controls
OptiFlex™ Series Controls
PLC Communications Modules
Greenboard Communications Modules
LOGO! Mini PLC
MCS-600 Series Controls – (Distributed I/O)
MCS-400 Series Controls
CL Silo Manager
Moisture Measurement Equipment to Include
MoistureMaster®
PET Resin Crystallizers
Resin Conveying and Systems Components to Include
GSL Series Vacuum Loaders
GlassVu Loaders, Receivers and Hoppers
VL/VLP Series Loaders
VRH, VR, VR-FL & VRP Series Receivers
Compressed Air Loaders
AL-B Barrel Loader
Cyclone Dust Collectors
Conveying System Accessories
Surge Bins
Valves and Accessories
Electronic Metal Separators
Quick Select Manifolds
Tilt Tables
Filter Dust Collectors
Drawer Magnets
Velocity Control Valves
3-Year
Resin Conveying System Components to Include
** VPDB & VPD Vacuum Positive Displacement Pumps
** SVP Vacuum Pumps
** MVP Vacuum Pumps
** Railcar Unloading Systems
**5-Year Extended Warranty - When a MachineSense® data plan is activated for products with **, Novatec automatically extends the warranty to 5
years. The data plan must be activated within 60 days after product shipment, and remain active through the warranty period to maintain extended warranty
eligibility. The first 6-months of data plan usage is free from Novatec.
1-Year
Infrared Dryers
UltraVac Vacuum Pumps Vacuum Regenerative Blower Pumps Custom Equipment of any kind unless otherwise specified

12
Instruction Manual VPD-25 IM 12 FEB 2018
© Novatec, Inc. 2018 All Rights Reserved
Exclusions:
Routine maintenance/replacement parts are excluded from the warranty. These include, but are not limited to: hoses, desiccant, filters, filter elements, wiper
seals, gaskets, dew point sensors, infrared lamps, motors, internal solenoids, fuses and motor brushes. Use with abrasive materials will void the warranty
of any standard product. Wear resistant options may be available to extend usable service life with abrasive materials. Novatec reserves the right to limit
the warranty if the customer installs replacement parts that do not meet the specifications of the original parts supplied by Novatec.
*Specific Exclusions:
1. NovaDrier and NovaDrier-Nitro warranty is void if coalescing filters are not replaced on a 6-month or yearly basis (per instruction
manual) and/or membrane has been exposed to ozone.
2. NovaVac Dryer -The ability of the canisters to hold vacuum will be compromised if the vacuum seal edge is damaged
from mishandling. We do not warranty canisters damaged from improper handling. We do, however, warranty the seals.
3. LOAD CELLS on our WSB’s are covered by Novatec standard warranty as long as they have not been damaged from
improper handling.
4. Desiccant Wheel Warranty will be void if the wheel has been exposed to plasticizer, dust or other contaminants as a result
of negligence on the part of the processor.
This warranty shall not apply to equipment:
1. Repaired or altered without written approval of NOVATEC unless such repair or alteration was, in
our judgment, not responsible for the failure
2. Which has been subject to misuse, negligence, accident or incorrect wiring by others
3. Warranty is void if processing rates exceed manufacturer-recommended levels or if damage is caused by
ineffective power isolation and/or power spikes/sags or incorrect installation.
NOTE: All conditions and content of this warranty are subject to changes without notice.
