WAGNER TOPFINISH DD10 User manual

TOPFINISH DD10
Pneumatic Double
Diaphragm Pump
Version 12/2017
B_05369
B_06420

3
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
Table of Contents
1 ABOUT THESE INSTRUCTIONS 4
1.1 Preface 4
1.2 Warnings, Notices and Symbols in these Instructions 5
1.3 Languages 5
1.4 Abbreviations 5
1.5 Terminology for the Purpose of this Manual 6
2 CORRECT USE 6
2.1 Device types 6
2.2 Type of Use 6
2.3 For Use in Potentially Explosive Areas 6
2.4 Processible Working Materials 7
2.5 Misuse 7
3 IDENTIFICATION 8
3.1 Explosion protection identication 8
3.2 Identication "X" 8
3.3 Type plate 9
4 BASIC SAFETY INSTRUCTIONS 10
4.1 Safety instructions for the operator 10
4.2 Safety Instructions for Sta 11
5 DESCRIPTION 16
5.1 Components 16
5.2 Mode of operation 16
5.3 Protective and monitoring equipment 16
5.4 Included items 17
5.5 Data 17
5.6 Pressure regulator unit on TOPFINISH DD10 19
6 ASSEMBLY AND COMMISSIONING 20
6.1 Training of Assembly/Commissioning Sta 20
6.2 Storage conditions 20
6.3 Installation conditions 20
6.4 Transportation 20
6.5 Assembly and Installation 21
6.6 Grounding 22
6.7 Commissioning 24
7 OPERATION 25
7.1 Training the operating sta 25
7.2 Emergency stop 25
7.3 Work 25
7.4 Pressure Relief/Work Interruption 26
7.5 Basic cleaning 27
8 CLEANING AND MAINTENANCE 28
8.1 Cleaning 28
8.2 Maintenance 29
8.3 Replacing the Diaphragm 33
8.4 Replacing Valves 34

4
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
1 ABOUT THESE INSTRUCTIONS
1.1 PREFACE
The operating manual contains information about safely operating, maintaining, cleaning
and repairing the device.
The operating manual is part of the device and must be available to the operating and
service personnel.
The device may only be operated by trained personnel and in compliance with this
operating manual. Operating and service personnel should be instructed according to the
safety instructions.
This equipment can be dangerous if it is not operated according to the instructions in this
operating manual.
9 TROUBLESHOOTING AND RECTIFICATION 35
10 REPAIR WORK 36
10.1 Repair Sta 36
10.2 Repair Notes 36
10.3 Tools 36
10.4 Cleaning the parts after disassembly 37
10.5 Assembly of the Device 37
11 FUNCTION TEST AFTER THE REPAIR 38
12 DISPOSAL 38
13 ACCESSORIES 39
14 SPARE PARTS 40
14.1 How can spare parts be ordered? 40
14.2 Overview of the Components 41
14.3 Liquidbody spare parts set 43
14.4 Diaphragm spare parts set 43
14.5 Valve spare parts set 43
14.6 Air piston spare parts set 43
14.7 Product sealing spare parts set 43
14.8 Inlet spare parts set 43
14.9 Outlet spare parts set 44
14.10 Airbody spare parts set 44
14.11 Shaped packing spare parts set 44
14.12 Distributor spare parts set 44
14.13 Regulator unit spare parts set 44
14.14 Grounding spare parts set 44
15 GUARANTEE AND CONFORMITY DECLARATIONS 45
15.1 Important notes on product liability 45
15.2 Warranty claim 45
15.3 EU Declaration of Conformity 46

5
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
1.2 WARNINGS, NOTICES AND SYMBOLS IN THESE INSTRUCTIONS
Warning instructions in this operating manual highlight particular dangers to users and to
the device and state measures for avoiding the hazard. These warning instructions fall into
the following categories:
DANGER Immediate risk of danger.
Non-observance will result in death or serious injury.
WARNING Potential risk.
Non-observance can result in death or serious injury.
CAUTION Potentially hazardous situation.
Non-observance may result in minor injury.
NOTICE Potentially hazardous situation.
Non-observance may result in damage to property.
Notice Provides information about particular characteristics and
how to proceed.
Explanation of warning:
LEVEL OF DANGER
This notice warns you of a hazard!
Possible consequences of not observing the warning instructions.
The measures for preventing the hazard and its consequences.
1.3 LANGUAGES
The operating manual is available in the following languages:
Original Operating Manual
Language Order No.
German 2366669
Translation of the Original Operating Manual
Language Order No. Language Order No.
English 2366672 Swedish 2391414
French 2369230 Russian 2369233
Italian 2369231 Dutch 2382562
Spanish 2369232 Finnish 2391437
Chinese 2369234 -- --
Additional languages on request or at: www.wagner-group.com
1.4 ABBREVIATIONS
Order No. Order number Qty Number of pieces
ET Spare part DH Double stroke
K Marking in the spare parts lists SSt Stainless steel
Pos Position 2K Two components

6
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
1.5 TERMINOLOGY FOR THE PURPOSE OF THIS MANUAL
Cleaning
Cleaning Manual cleaning of devices and device parts with cleaning
agent
Flushing Internal ushing of paint-wetted parts with ushing agent
Product pressure
generator
Pump or pressure tank
Sta qualications
Trained person Is instructed in the tasks assigned to him/her, the potential risks
associated with improper behavior as well as the necessary
protective devices and measures.
Electrically trained
person
Is instructed by an electrician about the tasks assigned to him/
her, the potential risks associated with improper behavior as
well as the necessary protective devices and measures.
Electrician Can assess the work assigned to him/her and detect possible
hazards based on his/her technical training, knowledge and
experience in relevant provisions.
Skilled person in
accordance with TRBS
1203
(2010/Revision 2012)
A person, who, based on his/her technical training, experience
and recent vocational experience, has sucient technical
knowledge in the areas of explosion protection, protection
from pressure hazards and electric hazards (if applicable) and
is familiar with the relevant and generally accepted rules of
technology so that he/she can inspect and assess the status of
devices and coating systems based on workplace safety.
2 CORRECT USE
2.1 DEVICE TYPES
Pneumatic double diaphragm pump and spray pack:
TOPFINISH DD10
2.2 TYPE OF USE
The device is suitable for processing liquid materials like paints and lacquers in accordance
with the classication into explosion classes IIA or IIB (see Chapter 2.4).
WAGNER explicitly prohibits any other use!
The device may only be operated under the following conditions:
Use the device only to work with the products recommended by WAGNER.
Do not deactivate safety xtures.
Use only WAGNER original spare parts and accessories.
The operating personnel must be trained on the basis of this operating manual.
2.3 FOR USE IN POTENTIALLY EXPLOSIVE AREAS
The device can be employed in explosion hazard zones (Zone 1) (see Chapter 3).

7
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
2.4 PROCESSIBLE WORKING MATERIALS
Fluid materials like paints and varnishes.
Application TOPFINISH DD10
Water-dilutable products
Solvent-based lacquers and paints
Two-component coating products
Emulsions
UV lacquers
Primers
Epoxy and polyurethane lacquers, phenolic lacquers
Liquid plastics
Wax-based underside protection
Shear-sensitive lacquers
recommended limited suitability not suitable
NOTICE
Abrasive working materials and pigments!
Greater wear of parts carrying the product.
Use the application-oriented model (ow rate/cycle, product, valves, etc.) as
indicated in Chapter 5.5.
Check if the uids and solvents used are compatible with the pump construction
materials as indicated in Chapter 5.5.1.
Wear caused by abrasive working materials is not covered by the warranty.
Typical applications
Application TOPFINISH DD10
Furniture industry
Kitchen manufacturers
Joinery
Window factories
Steel-processing industry
Construction of vehicles
Shipbuilding
recommended limited suitability not suitable
2.5 MISUSE
Misuse can lead to physical injury and/or property damage!
Special attention must be paid that:
no dry coating products, e.g. powder are processed.
no food, medicine or cosmetics are processed.
It is important to note that the device's materials are not food-safe.

8
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10

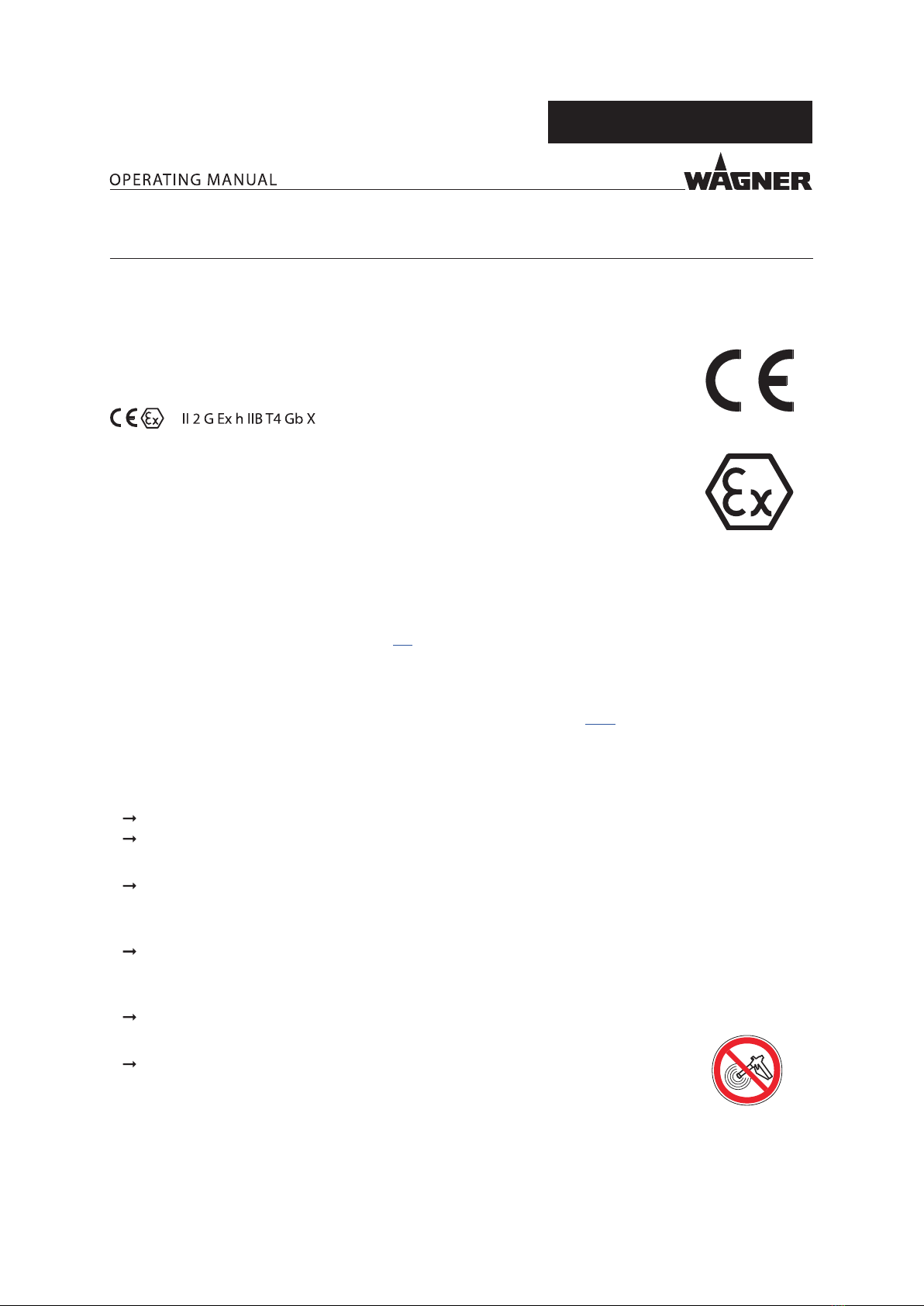

3 IDENTIFICATION
3.1 EXPLOSION PROTECTION IDENTIFICATION
As dened in the Directive 2014/34/EU (ATEX), the device is suitable for use in potentially
explosive areas.
Device types: Pneumatic double diaphragm pump TOPFINISH DD10
Manufacturer: Wagner International AG
CH-9450 Altstätten, Switzerland
CE European Communities
Ex Symbol for explosion protection
II Device class II
2 Category 2 (Zone 1)
G Ex-atmosphere gas
Ex Ignition protection
h Ignition protection for non-electrical devices
IIB Explosion group
T4 Maximum surface temperature < 135 °C; 275 °F (with drying protection
active)
Gb Zone 1 high safety level
X Special notes (see Chapter 3.2)
3.2 IDENTIFICATION "X"
The maximum surface temperature corresponds to the permissible product temperature.
This and the permissible ambient temperature can be found in Chapter 5.5.2 (Technical
Data).
Safe handling of WAGNER spray devices
Mechanical sparks can form if the device comes into contact with metal.
In an explosive atmosphere:
Knocking or pushing metal against metal is to be avoided.
Do not drop the device.
Maximum surface temperature
The maximum surface temperature of the pump depends on the operating
conditions (heated product) and not on the device (frictional heat).
Ignition temperature of the coating product
Ensure that the ignition temperature of the coating product is above the maximum
surface temperature.
Ambient temperature
Permissible ambient temperature: 10 °C to 60 °C; 50 °F to 140 °F.
Surface spraying, electrostatics
Do not spray device parts using electrostatic equipment.

9
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
Cleaning
If there are deposits on the surfaces, the device may form electrostatic charges. Flames
or sparks can form during discharge.
Remove deposits from the surfaces to maintain conductivity.
Use only a damp cloth to clean the device.
Air in the pump uid
Flammable gas mixtures can form if air reaches the pump uid.
Prevent the pump from taking in air and running dry.
If air has been taken in, x the leak. Then, ll slowly and in a controlled manner until
the air has escaped.
Air in the pumped uid can be caused by damaged diaphragms.
Avoid operating the pump with damaged diaphragms.
Periodically check that the pump is working smoothly, paying special attention to
the presence of air in the pumped uid.
Filling and emptying
Flammable gas mixtures can form in the uid section or product hoses if the pump must
be emptied for maintenance.
Empty and ll the device slowly and in a controlled manner.
Avoid potentially explosive atmosphere in the surroundings.
3.3 TYPE PLATE
B_06916
max. Fluid Pressure
Tamb °C/°F
Article No.
max. Air Pressure
Year of manufacture - Serial No.
Check user manual before use!
Designed and assembled by WAGNER in Switzerland.
Wagner International AG, CH-9450 Altstätten
II 2G Ex h IIB T4 Gb X
0.8MPa; 116 psi
0.8MPa; 116 psi
4-40/39-104
1
2
3
4
5
6
7
8
Designation
1 Manufacturer and CE Identication
2 Max. air pressure
3 Max. product pressure
4 Permissible ambient temperature
5 Article number
6 Model year - serial number
7 Read the operating manual before use
8 Indication of origin

10
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
4 BASIC SAFETY INSTRUCTIONS
4.1 SAFETY INSTRUCTIONS FOR THE OPERATOR
Keep this operating manual at hand near the device at all times.
Always follow local regulations concerning occupational safety and accident
prevention.
4.1.1 ELECTRICAL DEVICES AND EQUIPMENT
Electric shock hazard!
Danger to life from electric shock
Prepare device in accordance with the local safety requirements with regard to the
operating mode and ambient inuences.
May only be maintained by skilled electricians or under their supervision. With open
housings, there is a danger from line voltage.
Operate device in accordance with the safety regulations and electrotechnical
regulations.
Must be repaired immediately in the event of problems.
Decommission if it poses a hazard or is damaged.
Must be de-energized before work is commenced. Inform sta about planned work.
Observe electrical safety regulations.
Ground all devices to a common grounding point.
Only operate the device with a properly installed socket with a protective ground
wire connection.
Keep liquids away from electrical devices.
4.1.2 A SAFE WORK ENVIRONMENT
Hazard due to dangerous uids or steam!
Severe or fatal injuries due to explosion hazard or inhalation, swallowing or contact with
the skin or eyes.
Ensure that the oor in the working are is static dissipative in accordance
withEN61340-4-1 (resistance must not exceed 100 M).
Paint mist extraction systems/ventilation systems must be tted on site according
to local regulations.
Make sure that the ground connection and potential equalization of all system parts
are reliable and continuous and can withstand the expected stress (e.g. mechanical
stress, corrosion).
Ensure that product / air hoses adapted to the working pressure are used.
Ensure that personal protective equipment (see Chapter 4.2.1) is available and is
used.
Ensure that all persons within the working area wear static dissipative shoes.
Footwear must comply with EN 20344. The measured insulation resistance must not
exceed 100 M.
Ensure that during spraying, persons wear electrically conductive gloves. The
grounding takes place via the spray gun handle or the trigger.
Protective clothing, including gloves, must comply with EN 1149-5. The measured
insulation resistance must not exceed 100 M.

11
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
Ensure that there are no ignition sources such as naked ames, sparks, glowing
wires, or hot surfaces in the vicinity. No smoking.
Ensure that the pipe joints, hoses, equipment parts and connections are
permanently, technically leak-proof:
- Periodic preventative maintenance and service (replacing hoses, checking
tightness strength of the connections etc.).
- Regular monitoring of leaks and defects via visual inspection and odor testing,
e.g., daily before commissioning, at the end of work or weekly.
Ensure that maintenance and safety checks are performed regularly.
In the event of defects, immediately bring the device or system to a stop and
arrange to have repairs carried out immediately.
4.1.3 PERSONNEL QUALIFICATIONS
Hazard due to incorrect use of device!
Risk of death due to untrained personnel.
Ensure that the operating personnel has been instructed by the operator in
accordance with the operating manual and the operating instructions. The device
must only be operated, maintained and repaired by trained personnel. Refer to the
operating instructions for information about the required personnel qualications.
4.2 SAFETY INSTRUCTIONS FOR STAFF
Always follow the information in this manual, particularly the safety instructions and
the warning instructions.
Always follow local regulations concerning occupational safety and accident
prevention.
In electrostatics application: anyone tted with active implants (e.g., a pacemaker)
must not enter the high-voltage area!
4.2.1 PERSONAL SAFETY EQUIPMENT
Hazard due to dangerous uids or steam!
Serious or fatal injuries due to inhalation, swallowing or contact with the skin or eyes.
When preparing or working with paint and when cleaning the device, follow the
working instructions of the manufacturer of the lacquers, solvents, and cleaning
agents being used.
Take the specied protective measures. In particular wear safety goggles, protective
clothing and gloves, as well as hand protection cream if necessary.
Use a mask or breathing apparatus if necessary.
For sucient health and environmental safety: Operate the device in a spray booth
or on a spraying wall with the ventilation (extraction) switched on.
Wear suitable protective clothing when working with hot products.

12
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10

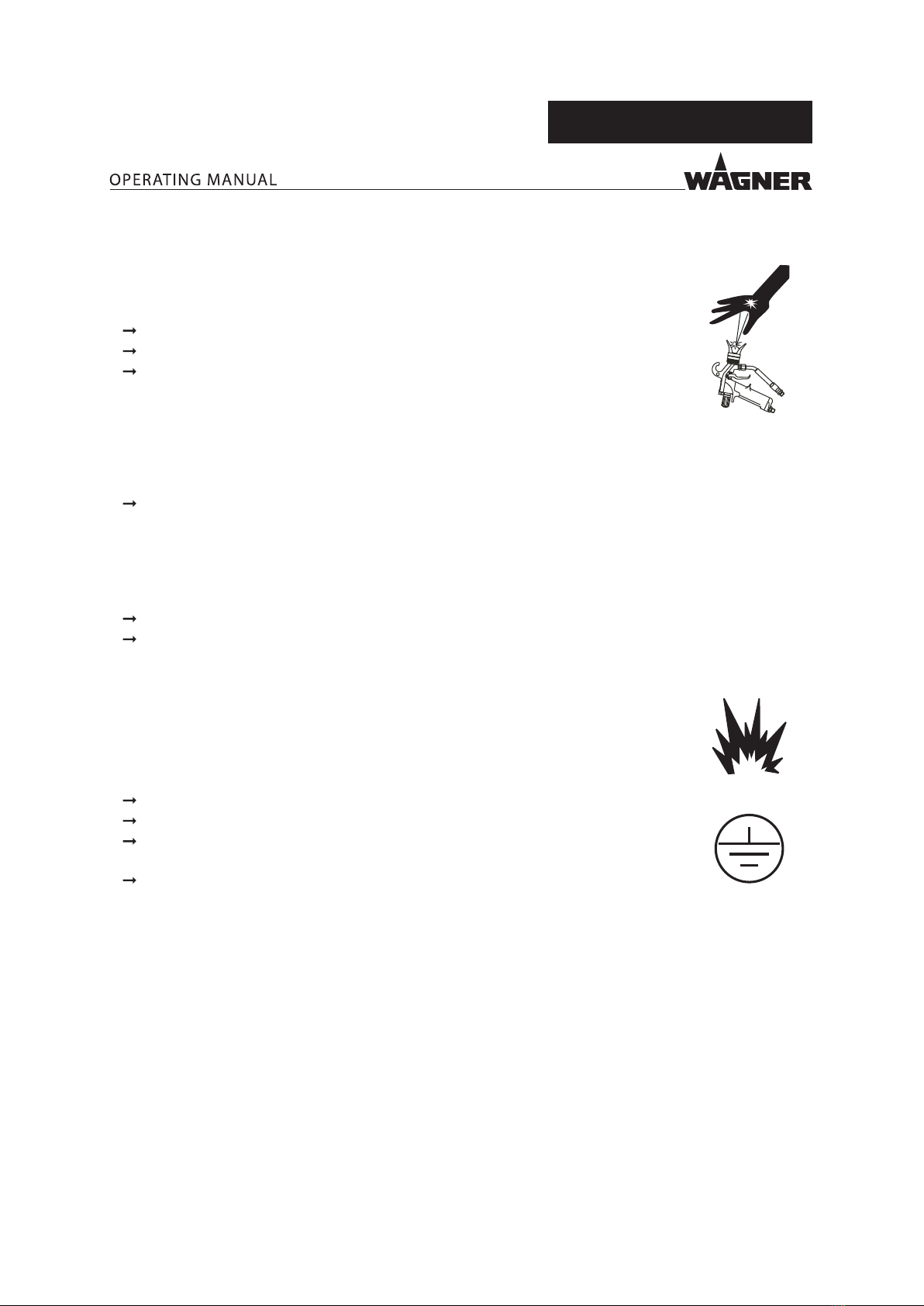

4.2.2 SAFE HANDLING OF WAGNER SPRAY DEVICES
Hazard due to injection of lacquer or ushing agent into the skin!
The spray jet is under pressure and can cause dangerous injuries. Avoid injection of paint
or ushing agents:
Never point the spray gun at people.
Never reach into the spray jet.
Before any work on the device, in the event of work interruptions and malfunctions:
– Switch o the energy/compressed air supply.
- Relieve the pressure from the spray gun and device.
- Secure the spray gun against actuation.
− Disconnect the control unit from the mains.
- In the event of functional faults, remedy the fault as described in the
"Troubleshooting" chapter.
If necessary or at least every 12 months, the liquid ejection devices must be
checked for safe working conditions by an expert (e.g. WAGNER Service Technician)
in accordance with the guidelines for liquid ejection devices (ZH 1/406 and DGUV
100-500 Chapters 2.29 and 2.36).
− For shut-down devices, the check can be postponed until the next start-up.
In the event of skin injuries caused by lacquer or ushing agents:
Note the lacquer or ushing agent that you have been using.
Consult a doctor immediately.
4.2.3 GROUND THE UNIT
Hazard due to electrostatic charge!
Explosion hazard and damage to the device.
Friction, owing liquids and air or electrostatic coating processes create charges. Flames
or sparks can form during discharge.
Correct grounding of the entire spraying system prevents electrostatic charges.
Ensure that all devices and tanks are grounded before each spraying process.
Ground the work pieces to be coated.
Ensure that all persons inside the working area are grounded, e.g., that they are
wearing static dissipative shoes.
Wear static dissipative gloves when spraying. The grounding takes place via the
spray gun handle or the trigger.

13
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10

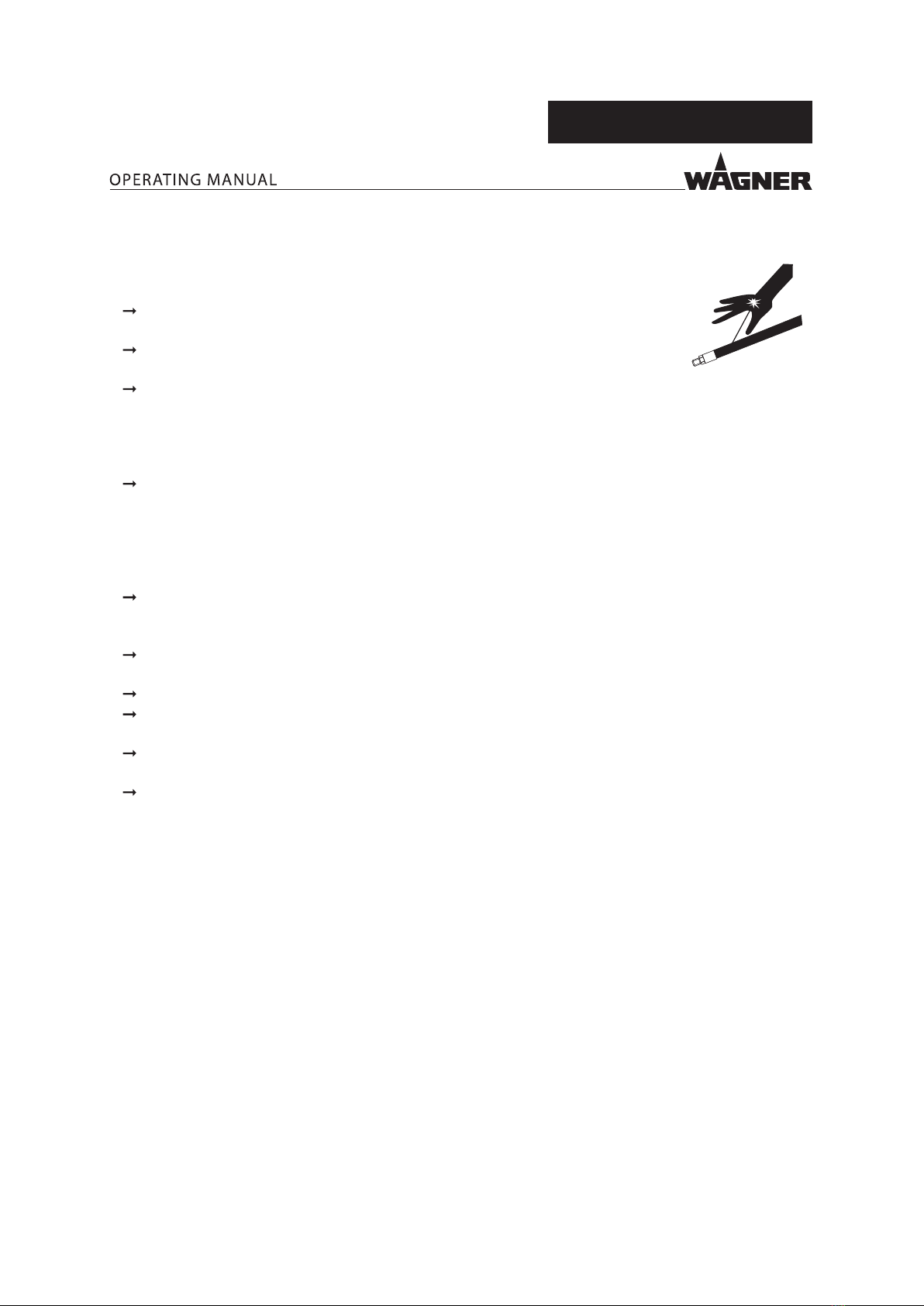

4.2.4 PRODUCT HOSE
Hazard due to bursting of product hose!
The product hose is under pressure and may cause dangerous injuries.
Ensure that the hose material is chemically resistant to the sprayed products and
the ushing agents used.
Ensure that the product hose and the ttings are suitable for the pressure
generated.
Ensure that the following information can be seen on the hose used:
− manufacturer
− permissible operating pressure
− date of manufacture
Make sure that the hoses are laid only in suitable places. Hoses should not be laid in
the following places under any circumstances:
− in high traffic areas
− on sharp edges
− on moving parts or
− on hot surfaces
Ensure that the hoses are never run over by vehicles (e.g., fork lift trucks), or that the
hoses are never put under pressure from the outside in any other way.
Ensure that the hoses are never kinked. Observe maximum bending radii.
Ensure that no work is ever performed with a damaged hose.
Make sure that the hoses are never used to pull or move the equipment.
The electrical resistance of the product hose, measured at both valves, must be less
than 1 M.
Suction hoses may not be subjected to pressure.
Several liquids have a high expansion coecient. In some cases their volume can rise with
consequent damage to pipes, ttings, etc. and cause uid leakage.
When the pump sucks liquid from a closed tank, ensure that air or a suitable gas can
enter the tank. Thus a negative pressure is avoided. The vacuum could implode the tank
(squeeze) and can cause it to break. The tank would leak and the liquid would ow out.
The pressure created by the pump is a multiplication of the inlet air pressure.

14
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10

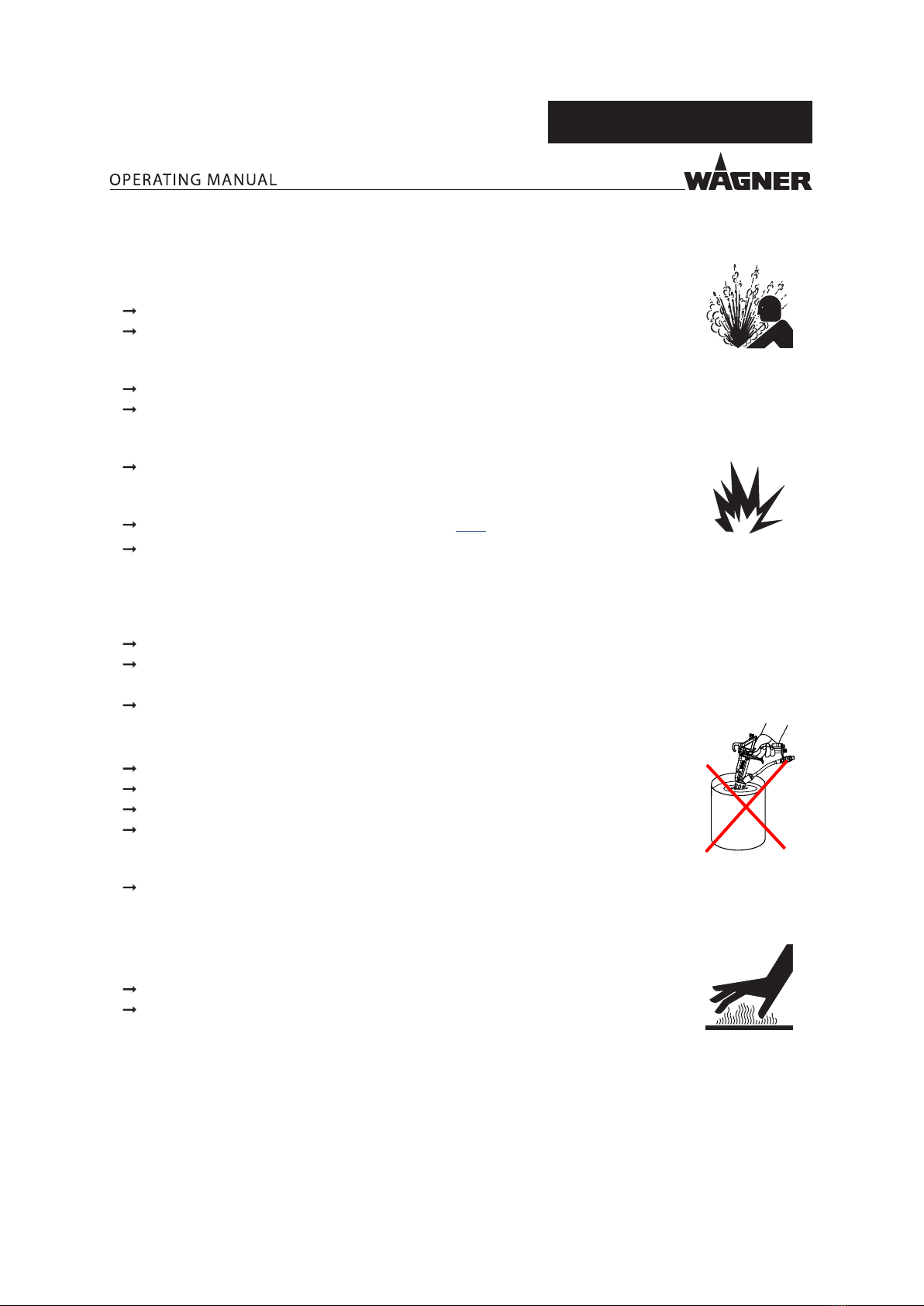

4.2.5 CLEANING AND FLUSHING
Hazard due to cleaning and ushing!
Explosion hazard and damage to the device.
Preference should be given to non-ammable cleaning and ushing agents.
When carrying out cleaning work with ammable cleaning agents, make sure
that all equipment and resources (e.g., collection tank, funnel, transport cart) are
conductive or static dissipative and grounded.
Observe the specications of the lacquer manufacturer.
Ensure that the ash point of the cleaning agent is at least 15 K above the ambient
temperature or that cleaning is undertaken at a cleaning station with technical
ventilation.
Never use chloride or halogenated solvents (such as trichloroethane and methylene
chloride) with units containing aluminium or galvanized and zinc-plated parts. They
may react chemically thus producing an explosion danger.
Take measures for workplace safety (see Chapter 4.1.2).
When commissioning or emptying the device, please note that an explosive
mixture may temporarily exist inside the lines and components of equipment:
−depending upon the used coating product,
−depending on the ushing agent (solvent) used.
explosive mixture inside the lines and items of equipment.
Only electrically conductive tanks may be used for cleaning and ushing agents.
The tanks must be grounded.
An explosive gas/air mixture forms in closed tanks.
Never spray into a closed tank when using solvents for ushing.
External cleaning
When cleaning the exterior of the device or its parts, also observe the following:
Relieve the pressure from the device.
De-energize the device electrically.
Disconnect the pneumatic supply line.
Use only moistened cloths and brushes. Never use abrasive agents or hard objects,
and never spray cleaning agents with a spray gun. Cleaning the device must not
damage it in any way.
Ensure that no electric component is cleaned with or immersed into solvent.
4.2.6 TOUCHING HOT SURFACES
Hazard due to hot surfaces because of hot coating products!
Risk of burn injuries
Only touch hot surfaces if you are wearing protective gloves.
When operating the device with a coating product with a temperature of > 43 °C;
109 °F:
- Identify the device with a warning label "Warning – hot surface".
Order No.
9998910 Instruction label
9998911 Protection label
Note: Order the two stickers together.

15
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
4.2.7 MAINTENANCE AND REPAIR
Hazard due to improper maintenance and repair!
Danger to life and equipment damage.
Only a WAGNER service center or a suitably trained person may carry out repairs and
replace parts.
Use only WAGNER original spare parts and accessories.
Do not change or modify the device; if change is necessary, contact WAGNER.
Only repair and replace parts that are listed in the 13 "Spare parts" chapter and 14
that are assigned to the unit.
Do not use any defective components.
Before all work on the device and in the event of work interruptions:
- Relieve the pressure from the spray gun, hoses and all devices.
- Secure the spray gun against actuation.
– Switch o the energy and compressed air supply.
- Disconnect the control unit from the mains. Secure the spray gun against
actuation.
Observe the operating and service manual for all work.
4.2.8 PROTECTIVE AND MONITORING EQUIPMENT
Hazard due to removal of protective and monitoring equipment!
Danger to life and equipment damage.
Protective and monitoring equipment must not be removed, modied or rendered
unusable.
Regularly check for perfect functioning.
If defects are detected on protective and monitoring equipment, the system must
not be operated until these defects are remedied.

16
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
5 DESCRIPTION
5.1 COMPONENTS
B_05370 4
5
6
23
1
Designation
1Air outlet for gun air
2Product outlet
3Product inlet
4Air inlet
5Pump housing
6Pressure regulator unit
5.2 MODE OF OPERATION
The double diaphragm pump is driven with compressed air. A pneumatic manifold
alternates in supplying two diaphragms with compressed air. Diaphragm motion is
created in this manner. The product is thus sucked in and displaced again. A series of four
non-return valves prevents the liquid from owing back, thus producing the suction and
delivery phases in each pumping chamber, and generating the pumping eect.
5.2.1 POSITIONING
The pump can be mounted horizontally (± 10°) as well as vertically (± 10°) in any position.
Ensure that all fastening screws are correctly tightened.
Tighten the xing screws regularly depending on pump use. In the case of continuous
or prolonged operation, it is advisable to check at least once a week that there are no air
and/or liquid leaks. The entire pressure regulator unit (1) can be rotated in increments of
90 degrees to align the control elements. For this purpose, the four screws (2) must be
removed.
B_05371
1
2
5.3 PROTECTIVE AND MONITORING EQUIPMENT
WARNING
Overpressure!
Danger to life from bursting components.
Never change the safety valve setting.
The air motor is tted with a safety valve. The safety valve has been set and sealed at the
factory. In case of pressures over and above the permissible operating pressure, the valve,
which is held with a spring, automatically opens and releases the excess pressure.

17
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
5.4 INCLUDED ITEMS
Order No. Designation
1-- TOPFINISH DD10 diaphragm pump
The standard equipment includes:
1 see Chapter 15.3 Declaration of Conformity
1 2366669 Operating manual, German
1 see Chapter 1.3 Operating manual in the local language
The delivery note shows the exact scope of delivery. Accessories: see Chapter .
5.5 DATA
5.5.1 MATERIALS OF PAINT WETTED PARTS
Paint-wetted parts Product
Diaphragms PA (Polyamide)
Remaining material-wetted parts Stainless steel
5.5.2 TECHNICAL DATA
Description Units TOPFINISH DD10
Pump ratio 1 : 1
Volume ow per double stroke cm
cu inch
42.2
25.75
Maximum operating pressure
MPa
bar
psi
0.8
8
116
Compressed air quality: free from oil and water
Quality standard 7.5.4 according to ISO 8573.1: 2010
7: Particle concentration 5–10mg/m³
5: Humidity: pressure dew point: ≤ +7 °C
4: Oil content ≤ 5mg/m3
Air inlet pressure
MPa
bar
psi
0.15 – 0.8
1.5 – 8
22 – 116
Air inlet (inside thread) inch 1/4"
Sound pressure level at 0.4 MPa; 4bar; 58psi air pressure* dB(A) 58.4
Sound pressure level at 0.6 MPa; 6bar; 87psi air pressure* dB(A) 61.6
Sound pressure level at 0.8 MPa; 8bar; 116psi air
pressure*
dB(A) 64.0
Product inlet connection (inside thread) inch 1/2"
Product outlet (inside thread) inch 3/8"
Weight kg; lb 4.1
Product pH value pH 3.5 – 9
Product viscosity DIN 4 sec 15 – 60
Product temperature °C
°F
4 – 60
39.2 – 140
Ambient temperature °C
°F
4- 40
39.2 – 104
Allowable inclination for operation ± 10
*A-rated sound pressure level measured at 1 m distance, LpA1m, according to DIN EN 14462: 2015. Reference
measurements have been made by SUVA (Swiss Accident Insurance Institute).
WARNING
Exhaust air containing oil!
Risk of poisoning if inhaled.
Provide compressed air free from oil and water.

18
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
5.5.3 DIMENSIONS AND CONNECTIONS
mm; inch
A 191; 7.52
B 135; 5.31
C 141; 5.55
D 236; 9.29
E 264; 10.39
F 149; 5.87
G 170; 6.69
H 192; 7.56
I G1/2"
K G1/4"
L G1/4“
M G3/8"
B_05372
A
J
K
B
C
D
E
F
G
H
M
L
5.5.4 PERFORMANCE DIAGRAMS
Example
Stroke frequency /min
Product pressure bar (MPa) psi
8 bar
6 bar
4 bar
8 bar
6 bar
4 bar
B_00301
Air consumption nl/min <scfm>
Water delivery rate l/min <gpm>
0
0 1.0 2.0 3.0 4.0 5.0 6.0
1.0 (0.1)
<14.5>
2.0 (0.2)
<29.0>
3.0 (0.3)
<43.5>
4.0 (0.4)
<58.0>
5.0 (0.5)
<72.5>
6.0 (0.6)
<87.0>
7.0 (0.7)
<101.5>
8.0 (0.8)
<116.0>
7.5
<0.27>
15.0
<0.54>
22.5
<0.81>
30.0
<1.08>
37.5
<1.35>
45.0
<1.61>
52.5
<1.88>
60.0
<2.15>
bar (MPa)
<psi>
nl/min
<scfm>
l/min
<gpm>
A
B
C
D
A
B
C
D
B_06255 <1.59><1.32><1.06><0.79><0.53><0.26>
TOPFINISH DD10
Stroke frequency /min
Product pressure
Air consumption
Water ow rate
A = 8 bar (0.8 MPa; 116 psi) air pressure
B = 6 bar; 0.6 MPa; 87 psi air pressure
C = 4 bar; 0.4 MPa; 58 psi air pressure
D = 2 bar; 0.2 MPa; 29 psi air pressure

19
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
5.6 PRESSURE REGULATOR UNIT ON TOPFINISH DD10
Designation
B_05381
7
1
2
6
3
5
4
1 Pressure gauge - pump
2 Pressure gauge - atomizing air
3 Pressure regulator - atomizing
air
4 Pressure regulator - pump
5 Compressed air Inlet
6 Ball valve
7Air outlet for gun air
Positions of the ball valve
B_05379
12
1Open: working position
2Closed: the air motor can still be
under pressure.
5.6.1 RETURN VALVE
Positions of the ball valve
1Open: working position
2Closed: the air motor can still be
under pressure.
Designation
3 Material return line
4 Product outlet
12
B_05382
3
4

20
VERSION 12/2017 ORDER NUMBER DOC 2366672 TOPFINISCH DD10
6 ASSEMBLY AND COMMISSIONING
6.1 TRAINING OF ASSEMBLY/COMMISSIONING STAFF
The assembly and commissioning sta must have the technical skills to safely
commission the device.
When assembling, commissioning and carrying out all work, read and follow the
operating manuals and safety regulations for the additionally required system
components.
A skilled person must check to ensure that the device is in a reliable state after it is installed
and commissioned.
6.2 STORAGE CONDITIONS
Until the point of assembly, the device must be stored in a dry location, free from vibrations
and with a minimum of dust. The device must be stored in closed rooms.
The air temperature at the storage location must be between -20 °C and 60 °C (-4 °F and
140 °F).
The relative air humidity at the storage location must be between 10 and 95% (without
condensation).
6.3 INSTALLATION CONDITIONS
The air temperature at the installation site must be in a range between 0 °C and 40 °C; 32
°F and 132 °F.
The relative air humidity at the installation site must be between 10 and 95% (without
condensation).
6.4 TRANSPORTATION
The pump can be moved on a trolley or manually without lifting equipment e.g., a crane.
