OPERATION AND MAINTENANCE MANUAL FOR
H.E.P.A. VACUUMS
FOR PROFESSIONAL USE ONLY
IMPORTANT SAFETY INFORMATION ENCLOSED.
READ AND UNDERSTAND THIS MANUAK BEFORE OPERATING THIS PRODUCT.
IT IS YOUR RESPONSIBILITY TO MAKE THIS SAFETY INFORMATION
AVAILABLE TO OTHERS THAT WILL OPERATE THIS PRODUCT.
FAILURE TO OBSERVE THE FOLLOWING WARNING COULD RESULT IN INJURY.
PLACING TOOL IN SERVICE
Always install, operate, inspect and maintain
this product in accordance with all applicable
standards and regulations (local, state, country,
federal, etc.).
Always use clean, dry air at 90 psi
(6.2bar/620kPa) maximum air pressure at the
inlet. Higher pressure may result in hazardous
situations including excessive speed, rupture,
or incorrect output torque or force.
Be sure all hoses and fittings are the correct
size and are tightly secured. Make sure you
have no air leakage.
Ensure an accessible emergency shut off valve
has been installed in the air supply line, and
make others aware of its location.
Do not use damaged, frayed, or deteriorated air
hoses and fittings.
Always use proper gauge electrical cords with
correct connections.
Do not use damaged, frayed, or deteriorated
electrical cords or connections. (When
applicable.)
Keep clear of whipping air hoses. Shut off the
compressed air before approaching a whipping
hose.
Always turn off the power supply and disconnect
the tool from power supply before installing,
removing or adjusting any accessory on this tool,
or before performing any maintenance on this
tool.
Do not lubricate tools with flammable or volatile
liquids such as kerosene, diesel or jet fuel. Use
only recommended lubricants.
Keep work area clean, uncluttered, ventilated and
illuminated.
Keep all electrical connections clear of water or
other liquids. (When applicable.)
Do not operate the machine while flammable or
volatile liquids such as gasoline, diesel or jet fuel
are present. Failure to do so can result in
explosion. (When applicable.)
Do not remove any labels. Replace any damaged
label.
USING THE TOOL
Always wear protection when operating or
performing maintenance on this tool.
Always wear hearing protection when operating
this tool.
Always use Personal Protective Equipment
appropriate to the tool used and material
worked. This may include dust mask or other
breathing apparatus, safety glasses, ear plugs,
gloves, apron, safety shoes, hard hat and other
equipment,
Prevent exposure and breathing of harmful dust
and particles created by power tool use:
Some dust created by power sanding,
sawing, grinding, drilling, and other
construction activities contains
chemicals known to cause cancer, birth
defects or other reproductive harm. Some
examples of these chemicals are:
- Lead from lead based paints,
- Crystalline silica from bricks and
cement and other masonry
products, and
- Arsenic and chromium from
chemically treated lumber
Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals: work in a well ventilated area,
and work with approved safety equipment,
such as those dust masks that are specially
designed to filter out microscopic particles.
Keep others a safe distance from your work area,
or ensure they use appropriate Personal
Protective Equipment.
NOTICE
WARNING

This tool is not designed for working in
explosive environments, including those
caused by fumes and dust, or near flammable
materials.
This tool is not insulated against electric shock.
Be aware of buried, hidden or other hazards in
your work environment. Do not contact or
damage cords, conduits, pipes, or hoses that
may contain electrical wires, explosive gases or
harmful liquids.
Keep hands, loose clothing, long hair and
jewelry away from working end of tool.
Power tools can vibrate in use. Vibration,
repetitive motions or uncomfortable positions
may be harmful to your hands and arms. Stop
using any tool if discomfort, tingling feeling or
pain occurs. Seek medical advices before
resuming use.
Keep body stance balanced and firm. Do not
overreach when operating this tool. Anticipate
and be alert for sudden changes in motion,
reaction torques, or forces during startup and
operation.
Tool and/or accessories may briefly continue
their motion after throttle is released,
To avoid accidental starting –ensure tool in
“off” position before applying air pressure,
avoid throttle when carrying, and release
throttle with loss of air.
Ensure work pieces are secure. Use clamps or
vises to hold work piece whenever possible.
Do not carry or drag the tool by the hose.
Do not use power tools when tired, or under the
influence of medication, drugs, or alcohol.
Never us a damaged or malfunctioning tool or
accessory,
Do not modify the tool, safety devices, or
accessories.
Do not use this tool for purposed other than
those recommended.
Use accessories recommended by Novatek
Corp.
Never operate a percussion Tool unless an
accessory is properly installed and the tool is
held firmly against the work,
Always use a retainer, when furnished, in
addition to proper barriers to protect persons in
surrounding or lower areas from possible
ejected accessories.
When wearing gloves and operating models with
inside trigger, always be sure that the gloves will
not prevent the trigger from being released.
Wear safety shoes, hard hat, safety goggles,
gloves, dust mask and any other appropr5iate
protective clothing while operating the tool.
Do no indulge in horseplay. Distraction can
cause accidents.
Keep hands and fingers away from the throttle
lever until it is time to operate the tool.
Never rest the tool or chisel on your foot.
Never point the tool at anyone.
Compressed air is dangerous. Never point an air
hose at yourself or others.
Never blow clothes free of dust with compressed
air.
Be sure all hose connections are tight. A loose
hose not only leaks but can come completely off
the tool and while whipping under pressure, can
injure the operator and other ins the area. Attach
safety cables to all hosed to prevent injury in case
a hose is accidentally broken.
Never disconnect a pressurized air hose. Always
turn off the air supply and bleed the tool before
disconnecting a hose.
The operator must keep limbs and body clear of
the chisel. If a chisel breaks, the tool with the
broken chisel projecting from the tool will
suddenly surge forward.
Do not ride the tool with one leg over the handle.
Injury can result if the chisel breaks while riding
the tool.
Know what is underneath the material being
worked. Be alert for hidden water, gas, sewer,
telephone or electric lines.
Use only proper cleaning solvents to clean parts.
Use only cleaning solvents which meet current
safety and health standards. Use cleaning
solvents in a well ventilated area.
Do not flush the tool or clean any parts with diesel
fuel. Diesel fuel residue will ignite in the tool
when the tool is operated, causing damage to
internal parts. When using models with outside
triggers or throttle levers, take care when setting
the tool down to prevent accidental operation.
Do not operate the tool with broken or damaged
parts.
Never start the tool when it is lying on the ground.
This tool is not designed for working in explosive
atmospheres.
This tool is not insulated against electric shock.

TABLE OF CONTENTS
SECTION I
GENERAL.......................................................................................................................................6
SECTION II
SAFETY.......................................................................................................................................... 6
SECTION III
PRIOR TO USE.............................................................................................................................. 6
SECTION IV
IN USE............................................................................................................................................8
SECTION V
VACUUM, CART & ACCESSORIES............................................................................................... 8
SECTION VI
FILTERS & HOSES ....................................................................................................................... 9
SECTION VII
ROUTINE MAINTENANCE........................................................................................................... 10
CLEANING & INSPECTION ......................................................................................................... 11
SECTION VIII

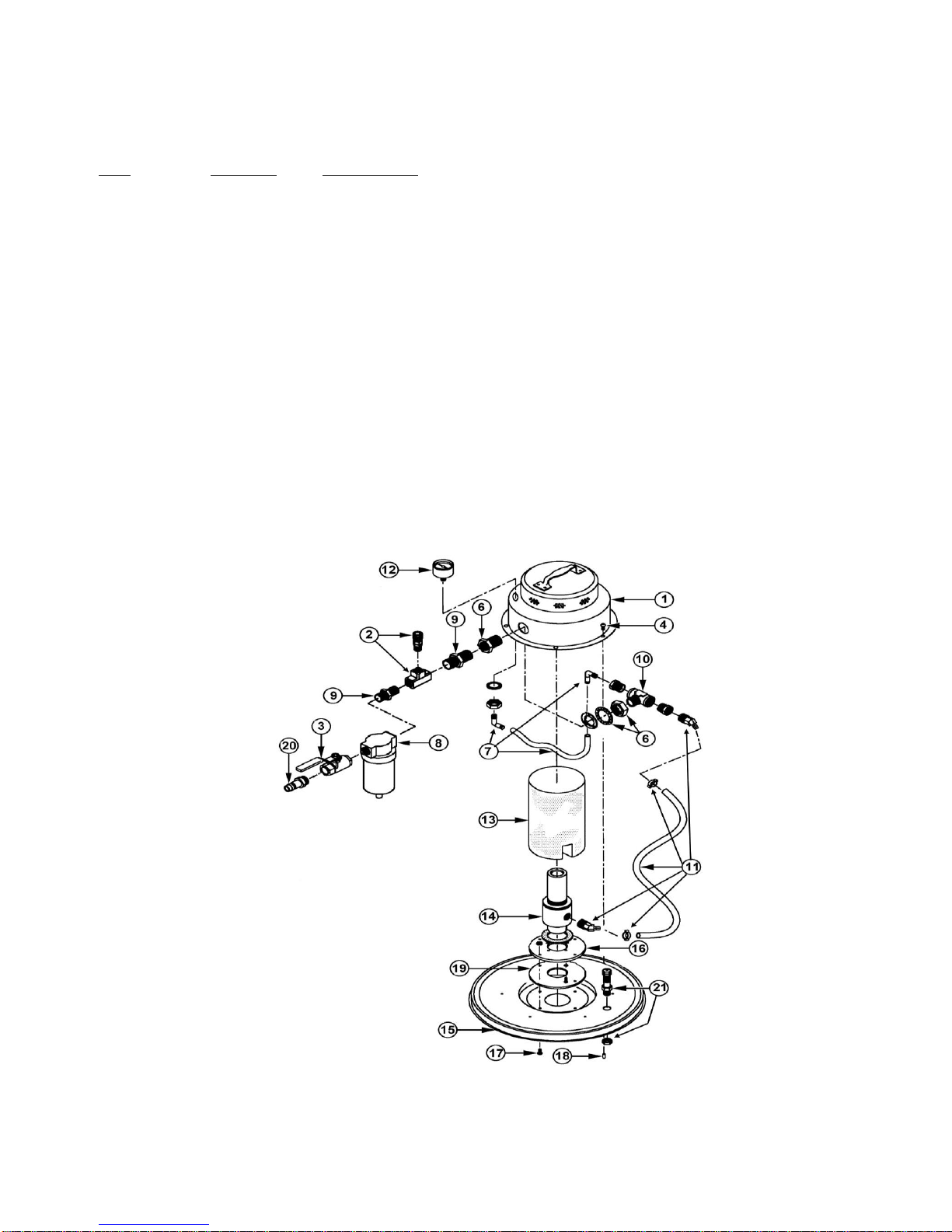

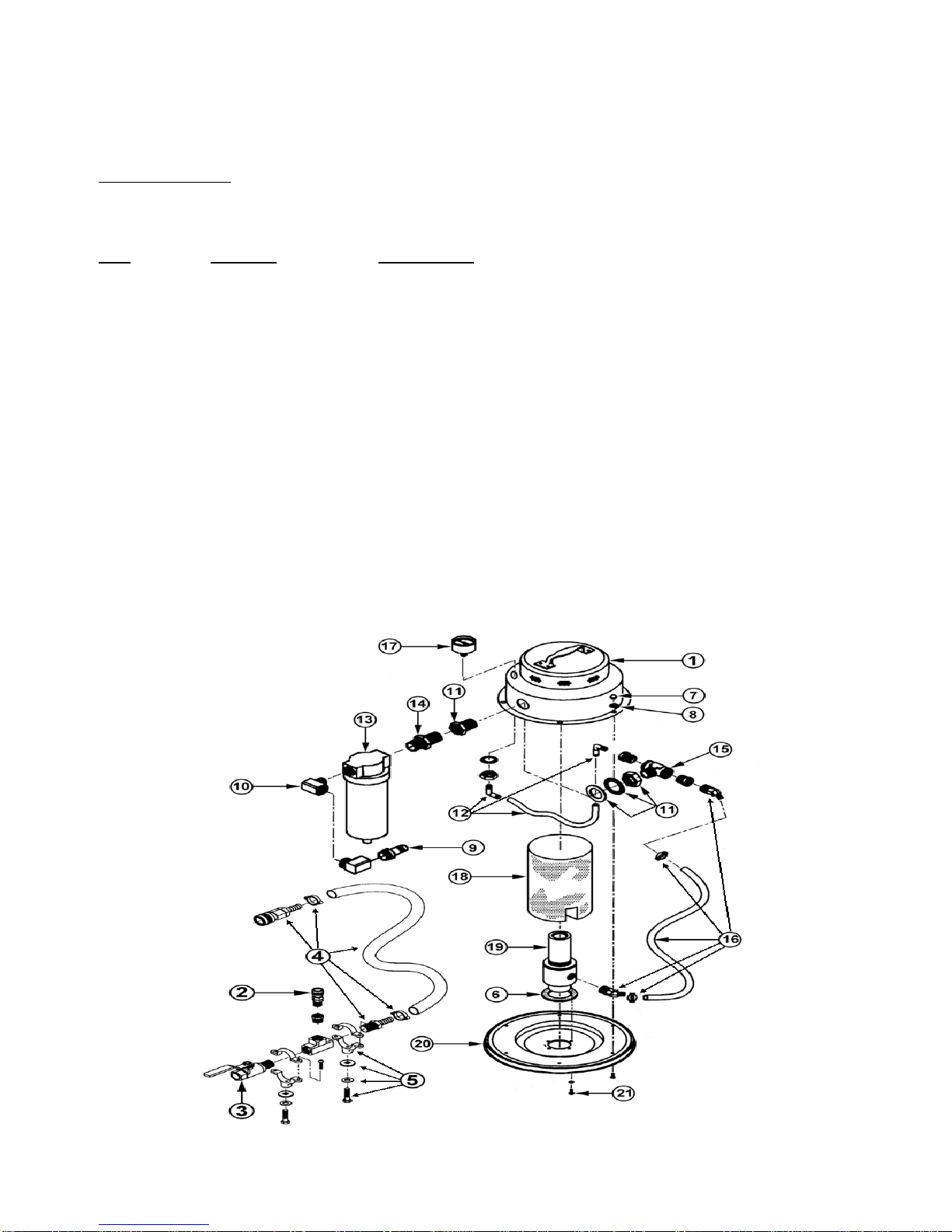

SERVICE LAYOUTS .................................................................................................................... 12
SPECIFICATIONS........................................................................................................................ 18
NOVATEK WARRANTY ............................................................................................................... 19

SECTION I
GENERAL
This operation and maintenance manual is furnished with each VSE Air and Electric Powered High Efficiency Vacuum
Recovery System. It outlines the general operation and maintenance items critical to insure satisfactory, safe and long life of
the Vacuum Systems. It is important that the user becomes familiar with the OSHA requirements for working with and
disposing of hazardous waste.
READ ALL INSTRUCTIONS AND DATA IN THIS OPERATION AND MAINTENANCE MANUAL PRIOR TO OPERATION
OF THIS EQUIPMENT.
These instructions are for your protection and convenience. Please read them carefully since failure to follow the
precautions could result in injury. Whenever using electric powered equipment, basic safety precautions should be
followed.
If after reading this manual anything seems unclear, contact a NOVATEK authorized distributor or NOVATEK directly by
dialing 1-866-563-7800.
SECTION II
SAFETY
These Vacuum Systems are highly efficient systems designed for collection, filtering, containing and disposal of hazardous
waste products generated from coating removal operations. In order to properly operate the systems effectively and safely,
the following should be strictly adhered to.
1. Do not leave the vacuum system unattended when connected to a power supple line. Turn off air/electric and
disconnect unit from the line when not in use and before servicing.
2. Do not allow the unit to be used as a conventional Vacuum Cleaner.
3. Follow the procedures outlined in this manual for safe and efficient use of the system. Use only Novatek’s
recommended parts and attachments.
4. Do no operate with damaged parts. If the vacuum system is not working as specified due to misuse, return
damaged parts or return to a Distribution Service Center for inspection and repair as necessary.
5. Do not pull or carry the unit by the air hose or power lines, use lines as a handle, close a door on the lines, or pull
the lines around sharp corners or edges. Keep the lines away from heated surfaces.
6. Do not allow objects to enter into the vacuum opening. Do not operate with any openings blocked.
7. Keep vacuum flow path clear of debris for safe efficient operations.
8. Keep hair, lose clothing, fingers and all parts of the body away from vacuum openings and moving parts of the
tools being operated.
9. Do not pick up anything that is burning or smoking, such as hot ashes, matches or cigarettes.

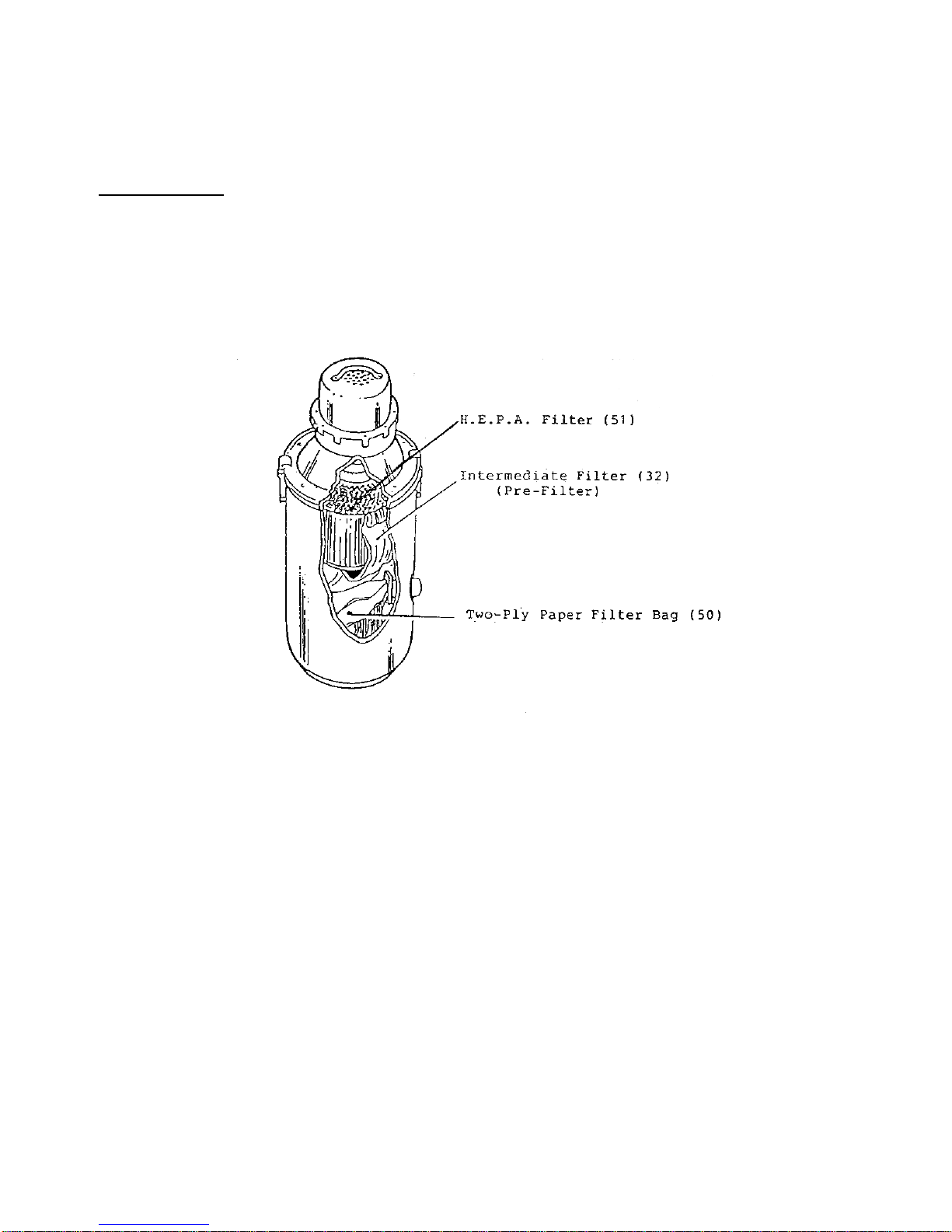

10. Do not use without paper filter bags, intermediate filter, and H.E.P.A. filter in place.
11. Turn off all controls before disconnecting the power supply.
12. Do not use without approved safety restraints when operating on stairs, ladders, etc.
13. Do not use in areas where flammable or combustible liquids, such as gasoline, may be ingested.
14. Do not use where oxygen or anesthetics are used.
Replace damaged or worn parts immediately with genuine Novatek original equipment parts or to maintain safety and to
protect your limited liability/warranty.

SECTION III
PRIOR TO USE
EQUIPMENT OPERATION AND FILTER CARE INSTRUCTIONS
1. The Novatek Vacuum Shrouded Equipment has been specifically designed to clean up hazardous material such as
lead-based paint and asbestos. Special filters reduce the incidence of airborne dust that would be created by other
methods of cleaning.
2. During the removal of protective coatings, asbestos dust, and other hazardous materials, do not sweep, scoop,
shovel or in any manner handle other than by vacuuming.
3. Do not attempt, at any time, to bypass, remove, substitute, or by any other means, change the filters in this system
with non-original equipment manufacturer parts. Use only approved Novatek vacuum filters and filter bags. Before
attempting to use and before cleaning, be certain that you fully understand the instructions given for the setting up
or cleaning/changing of filters in this vacuum unit.
EQUIPMENT SET UP
Remove the vacuum unit and all the attachments from the carton. Do not use the system until this owner's manual has
been read and fully understood. Improper use could cause damage to the units or to the special filters employed.
BACK PACK FRAME/CANISTER ASSEMBLY (Models VA03ABK, VA03EBK)
The vacuum unit is shipped with the frame attached to the canister. Adjust the various straps to fit the operator as illustrated
and discussed below.
ADJUSTING HARNESS STRAPS TO THE OPERATOR:
1. Set the vacuum unit on a table with the frame to the table edge.
2. Loosen all straps; top and bottom.
3. Slip arms and shoulders through the shoulder and chest straps.
4. Close the waist straps and tighten.
5. Tighten the upper and lower adjustments of the shoulder and chest straps so that the shoulder pads come over the
shoulders but remain above the armpit.
6. Equalize the tension on each strap so that the frame is held level.

REMOVAL OF CANISTER FROM BACK PACKS (Models VA03ABK, VA03EBK)
The back pack frame can be detached by removing the two speed pins from the attaching lugs, pulling the frame away from
the canister, and then lifting the vacuum unit up freeing it from the lower bracket of the frame.
Whenever the back pack frame has been removed from the canister, it should be remounted to the canister before the
vacuum unit can be used as a back pack.

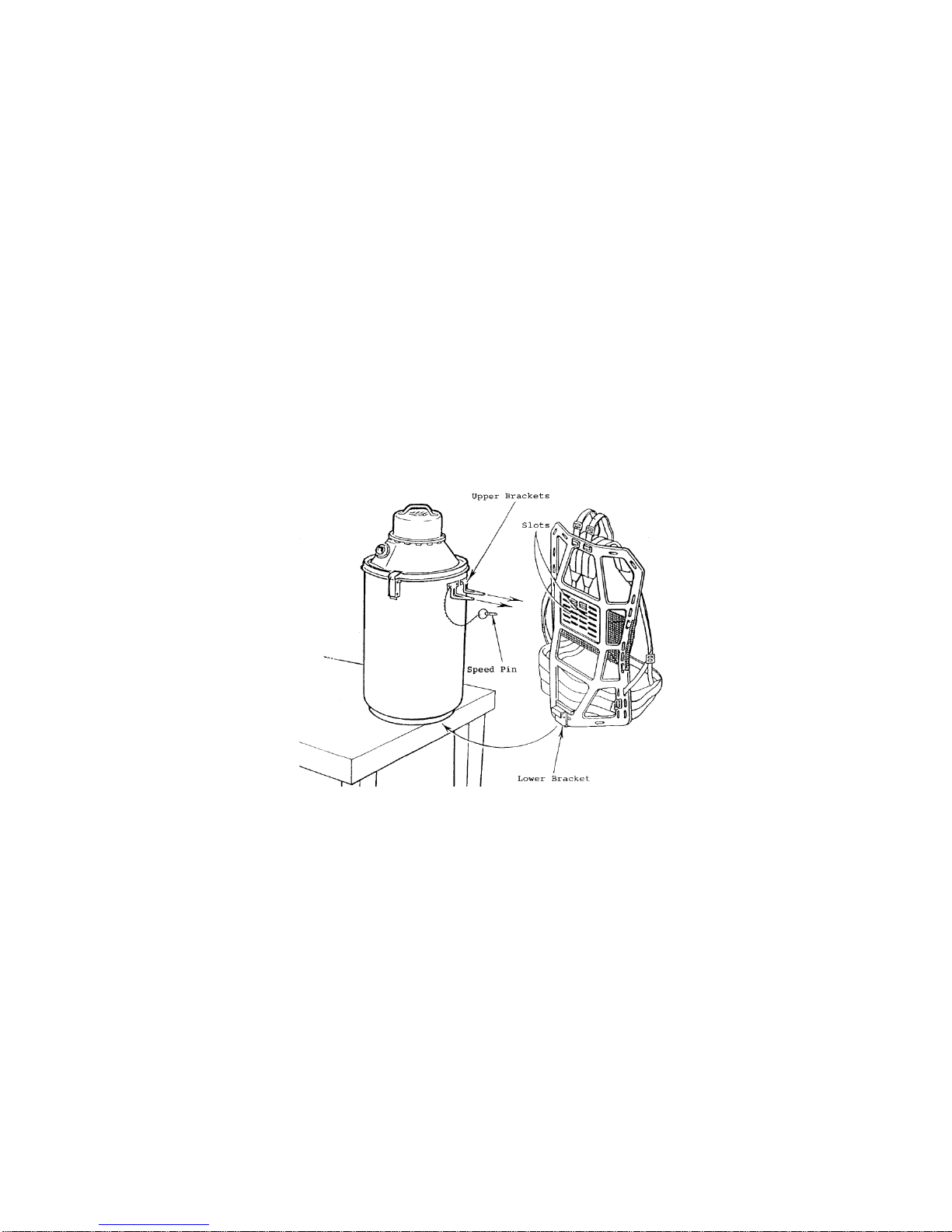

REMOUNTING THE FRAME TO CANISTER (SEE ILLUSTRATION)
1. Set the canister on a table with the top frame brackets turned to the table edge.
2. Make sure the double rubber pads are on the canister under the top brackets and that a rubber pad is on the
bottom bracket of the frame.
3. Pick up the frame and catch the bottom of the canister with the bottom bracket.
4. Pull the frame up towards the canister, fitting the two top canister brackets through the second slots from the
bottom of the center frame mounting plate.
5. Push the frame onto the canister mounting brackets until the tip of the brackets can be seen showing a 5/16” hole.
6. Insert a speed pin hanging from a chain on each upper bracket into the holes to secure the frame onto the canister.

SECTION IV
VACUUM, CART & ACCESSORIES
(Models VA15AHFL. VA15EHFL)
The vacuum canister & wheels with the following accessories are included:
- Pre-Filter (white) - 2
- Disposable Filter - 5
- Collection Bag
- Crush Proof Vacuum Hose - 10’
- In Line Filter/Dryer (installed) (air models only)
- Operations & Maintenance Manual

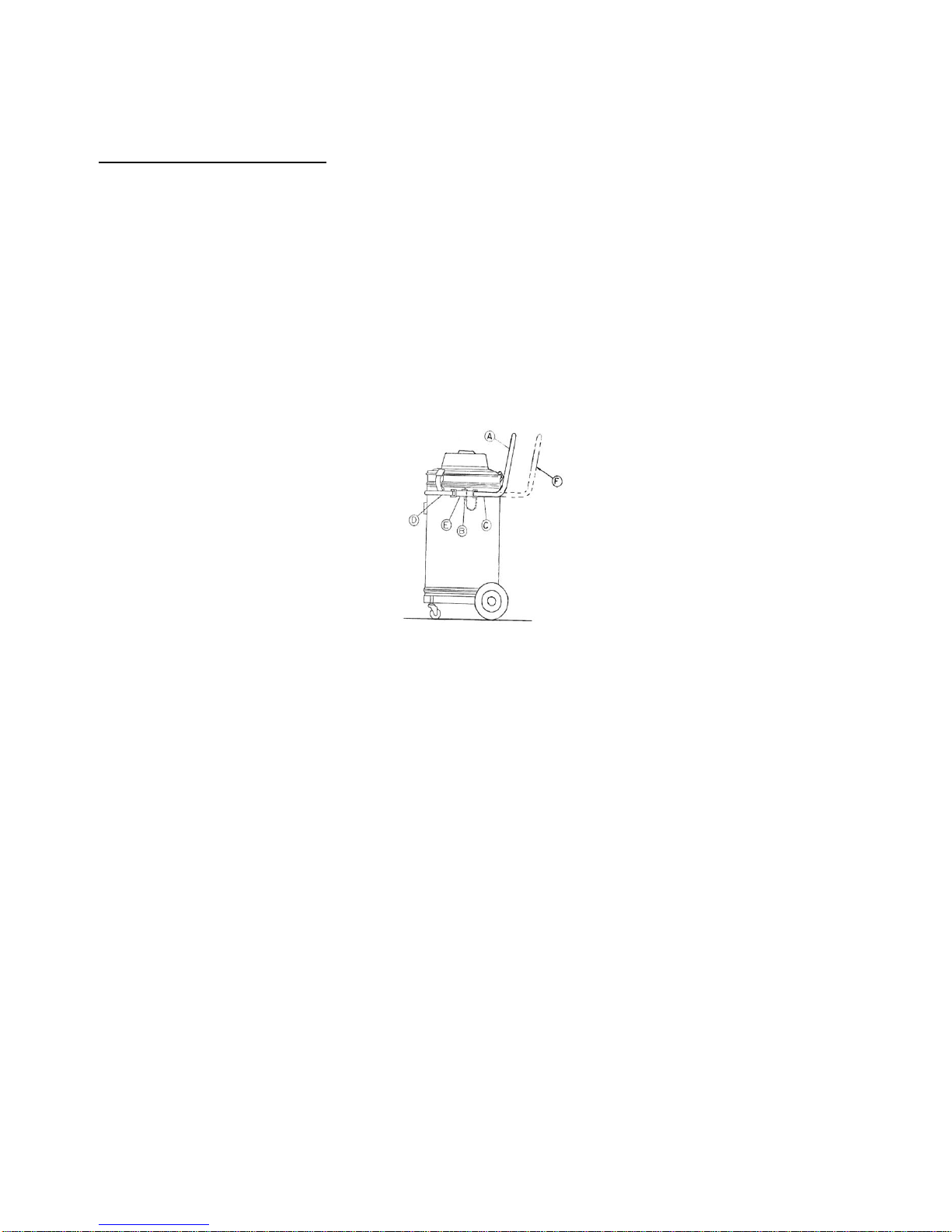

The collapsible push handle should be repositioned from its packing configuration (A) to operating configuration (F) by
withdrawing 2 pins (B). Refer to the following illustration. The handle is moved to the operating position by grasping both
sides of handle at (C). The handle is locked into position when forward holes (D) align with hole in socket casting (E) and
locking pin (B) is pushed in place. The reverse procedure is required to store the handle for packing.

SECTION V
FILTERS & HOSES
FILTERS
This vacuum unit has special filters installed as shown below. The two-ply paper filter (50) contains the bulk of the debris
and protects the remaining filters from excess dirt. The white intermediate filter (32) is a very fine non-woven filter that
extends the life of the expensive High Efficiency Particulate Absolute (H.E.P.A.) filter (51).
INITIAL INSTALLATION OF FILTERS
1. Remove all items from the carton and set the vacuum unit on the edge of a table. Unsnap the hold-down clamps.
Disengage the two clamps and remove the head assembly and carefully place aside.
2. Remove the H.E.P.A. filter unit and the intermediate white filter and place aside.
3. Mount the disposable two-ply filter bag by taking hold of the free ends of the cardboard attached to the paper bag
and pulling the cardboard forward over the inlet fitting getting the cardboard as close to the wall of the canister as
possible.
4. Place the white intermediate filter in position on top of the canister. Fold the edge to the outside of the canister
overlapping approximately one inch. Insert the H.E.P.A. filter being careful not to move the intermediate filter. The
sealing gasket must sit evenly on the rim of the canister to obtain an air tight seal.
5. Replace the power head assembly on top of the H.E.P.A. filter seated in the top of the canister.
CAUTION: TO ENSURE A SNUG FIT, MAKE SURE THAT THE AREA AROUND THE LID AND TOP EDGE OF THE
VINYL SEALING GASKET IS FREE OF DIRT AND OTHER FOREIGN MATTER.

FILTER CHANGE REQUIREMENTS
Whenever the two-ply paper bag becomes filled, it should be replaced. Excessive over filling of this bag makes it difficult to
remove and can result in breakage and spills. The intermediate white filter should be replaced with every fifth change of the
two-ply paper bag or whenever there is damage or visible collection of debris on the outside of the filter. Follow the
procedures for removing and replacing filter as outlined in Section 4 of this manual: Routine Maintenance.
HOSE ATTACHMENTS
The vacuum hose and swivel connector are factory pre-assembled. The swivel connector (48) is inserted into the inlet
fitting on the stainless steel can (35) and twisted clockwise until the connector snaps in place (rivets rest against the slot
and on hose connector).
The vacuum hose is attached to the tool by sliding the vacuum hose cuff end firmly onto the tool vacuum take off tube.
The VSE is powered by a single compressed air line attached to the ball valve inlet (3). The tool operating compressed
air is taken off at the “T” fitting (2). See Specifications - Section 7 for minimum air requirement.
STANDARD ITEMS INCLUDED
The following items are shipped with each VSE Vacuum:
- Pre filters (2)
- Disposable filter (5)
- Collection bags
- Crush proof vacuum hose (1 1/2” Dia.), 6’ long
- In line filter/dryer (installed) (air models only)
- Operation & Maintenance Manual

SECTION VI
ROUTINE MAINTENANCE
Very little maintenance is required on the VSE. The following outlines the routine maintenance required.
Loss of Vacuum
If system vacuum is lost as indicated on the vacuum gauge, check the following:
- Check hose for damage or internal blockage
- Check for adequate air supply
- Check the canister for dents along the rim which may prevent a positive seal
- Check to insure the intermediate or pre-filter is clean and free from dirt and dust
Replacement of Loaded Paper Filter Bags
- Remove the power head assembly, H.E.P.A. filter, and white intermediate filter
- Push cardboard tab on filter bag off the air inlet tube
- When the paper filter bag is full, remove by turning canister on its side to facilitate removal. Remove paper backing
from sealing flap located over cardboard collar. Press sealing flap firmly over the opening to prevent leakage of
recovered material.
- Dispose of the filled filter bag into the plastic container bag. Tie off bag to insure no spillage occurs. The plastic
bags have storage capacity of 5 filter bags.
Replacement of the Pre-Filter (White)
- Under normal conditions the pre-filter is changed after every fifth paper filter bag is replaced or whenever there is
damage to the pre-filter or a visible collection of debris on the outside of the filter.
- Prior to removing the pre-filter, wipe down all exposed surfaces on the underside of the removed lid (tower head)
using a dampened cloth.
- Remove the pre-filter from the H.E.P.A. filter and be careful not to damage or puncture the paper media used in
this unit. DO NOT ATTEMPT TO CLEAN THE PRE- FILTER IN ANY WAY. DISPOSE OF IN THE SAME
MANNER AS DESCRIBED IN THE PRECEDING SECTION.
- Prior to any further cleaning of the canister, place a new pre-filter onto the H.E.P.A. filter. Replace the filters into
the canister, then replace the air Venturi head and clamp in place by engaging the clamp assemblies.
CLEANING AND INSPECTION
Always wear an OSHA approved face mask for use with asbestos and other hazardous materials every time you are using
this vacuum recovery system. You should also wear suitable gloves and protective clothing.
- Disconnect the vacuum unit from the compressed air supply.
- Carefully and slowly remove only the lid and set the lid and filter aside.
- Using a damp cloth, wipe down all of the exposed surfaces inside of the canister. Put the cloth aside. DO NOT
DISCARD CLOTH.
- Carefully and very slowly, push the paper filter bag down and off the intake tube, using the attached cardboard
collar. Remove the paper backing from the sealing flap located over the cardboard collar. (Note: If the filter bag
does not have sealing flap use adhesive tape). Press the sealing flap firmly over the opening to prevent spill-back
of the recovered material. After the collar is removed from the intake tube, take the damp cloth and wipe off any
surfaces that were not previously wiped. At this time, re-wipe the entire inside of the canister and drop the wiping
cloth into the OSHA approved poly bag.
CAUTION: HAZARDOUS MATERIALS MUST BE DISPOSED OF PROPERLY. NEVER THROW CONTAMINATED
DEBRIS IN WITH YOU USUAL TRASH RECEPTACLE. PLACE DEBRIS IN A 6 MIL POLY BAG OR A CAN MARKED
WITH A “HAZARDOUS MATERIALS” WARNING AND DISPOSE IN ACCORDANCE WITH YOUR LOCAL
HAZARDOUS WASTE REGULATIONS.

SECTION VII
SERVICE LAYOUTS
PARTS LIST FOR VACUUM HEAD –(3H Air Backpack)
(PN: VA03ABK)
REF. PART NO. DESCRIPTION
1 VAC3302 Dome Assembly with handles
2 VAC3325 “T”Connector ½”Brass w/ 3/8” Socket ½” Male NPT
3 VAC3324 Ball Valve Assembly
4 VAC3304 Hose Assembly ½” ID
5 VAC3323 Hose to Harness Clamp
6 VAC3317 Gasket to Venturi
7 VAC3319 Acorn Nut to Dome
8 VAC3318 Hex Nut to Dome
9 VAC3330 Plug Quick Connect ½” Male NPT
10 VAC3331 Street E11, ½” Brass
11 VAC3332 Bulk Head, ½” Brass Fittings
12 VAC3333 Internal Small Tubing w/Fittings
13 VAC3346 Filter/Dryer
14 VAC3348 Nipple- ½” Brass
15 VAC3306 “T” Connector 2” NPT ID Brass
16 VAC3305 Internal Red Hose 3/8” ID w/Fittings
17 VAC3335 Pressure Gauge
18 VAC3322 Muffler
19 VAC3321 Venturi
20 VAC3320 Outer Can Cover (12”)
21 VAC3313 Screw to Venturi
22 VAC3314 Screw to Dome

PARTS LIST FOR VACUUM HEAD –(3AEH Electric Backpack)
(PN: VA03EBK)
REF. PART NO. DESCRIPTION
1 VAC3313 Screw to Dome
2 VAC3318 Hex Nut to Dome
3 VAC3319 Acorn Nut to Dome
4 VAC3352 #10-32 x .62 Screw and Washer
5 VAC3353 Switch Assembly
6 VAC3354 Strain Relief
7 VAC3355 Upper Dome Assembly
8 VAC3356 16/3 –30ft Line Cord
9 VAC3357 Screen
10 VAC3358 Flat Gasket
11 VAC3359 2 HP By-Pass Motor
12 VAC3360 Circle Gasket
13 VAC3361 Circle Gasket
14 VAC3362 Push-In Cap Plug
15 VAC3363 Outer Cover
16 VAC3364 #10-32 x .31 Screw and Washer
17 VAC3365 Motor Hold-down Plate
18 VAC3366 Grounding Wire
19 VAC3367 Circle Gasket

PARTS LIST FOR BACKPACK CANISTER / FRAME –(3H Air & 3AEH ELECTRIC BACKPACKS)
(PN: VA03ABK & VA03EBK)
REF. PART NO. DESCRIPTION
1 VAC3342 HEPA Filter Gasket (12” Dia)
2 VAC3133 HEPA Filter Assembly with Gasket (#1)
3 VAC3310 Pre-Filter, 2 per pack
4 VAC3120 Filter & Containment Bags, 5 per pack
5 VAC3303 Steel Backpack Can
6 VAC3341 Canister Gasket 6”
7 VAC3340 Speed Pin
8 VAC3301 Frame w/ Shoulder & Harness
9 VAC3343 Mounting Clip
10 VAC3131 Swivel Connector ½”
11 VAC3337 Retaining Clips
12 VAC71950 Vacuum Hose 1 ½” Crush Proof

PARTS LIST FOR VACUUM HEAD AIR (15H Air Vacuums)
(PN: VA15AHFL)
REF. PART NO. DESCRIPTION
1 VAC3302 Dome Assembly with handles
2 VAC3325 “T” Connector 1/2” Brass w/ 3/8” Socket - 1/2” Male NPT
3 VAC3324 Ball Valve Assembly
4 VAC3319 Acorn Nut to Dome
5 VAC3318 Hex Nut to Dome
6 VAC3332 Bulk Head, 1/2 Brass
7 VAC3333 Internal Small Tubing w/Fittings
8 VAC3346 Filter/Dryer
9 VAC3348 Nipple - 1/2” Brass
10 VAC3306 “T” Connector 2” NPT ID Brass
11 VAC3305 Internal Red Hose 3/8” ID w/Fittings
12 VAC3335 Pressure Gauge
13 VAC3322 Muffler
14 VAC3321 Venturi
15 VAC15016 Cover Assembly (16”)
16 VAC15017 Mounting Plate
17 VAC15018 Screws
18 VAC3314 Screw to Dome
19 VAC15019 Gasket
20 VAC3330 Plug Quick Connect ½” Male NPT
21 VAC3328 Air Relief Valve
22 VAC3313 Screw to Venturi

PARTS LIST FOR VACUUM HEAD (15PEH Electric Floor Vacuum)
(PN: VA15EHFL)
REF. PART NO. DESCRIPTION
1 VAC3314 Screw to Dome
2 VAC3318 Hex Nut to Dome
3 VAC3319 Acorn Nut to Dome
4 VAC3352 #10-32 x .62 Screw and Washer
5 VAC3353 Switch Assembly
6 VAC3354 Strain Relief
7 VAC3355 Upper Dome Assembly
8 VAC3356 16/3 –30ft Line Cord
9 VAC3357 Screen
10 VAC3358 Flat Gasket
11 VAC3359 2 HP By-Pass Motor
12 VAC3360 Circle Gasket
13 VAC3361 Circle Gasket
14 VAC3362 Push-In Cap Plug
15 VAC3363 Outer Cover
16 VAC3364 Screw and Washer for Ground Wire
17 VAC3365 Motor Hold-down Plate
18 VAC3366 Grounding Wire
19 VAC3367 Circle Gasket

FLOOR VACUUM / CANISTER ASSEMBLY
PN: VA15AHFL, VA15EHFL
REF. PART NO. DESCRIPTION
1 VAC15011 HEPA Filter Assembly with Gasket (16” Dia)
1a VAC15511 Hepa Gasket 16” (Not Shown)
2 VAC15010 Pre-Filter, 2 per pack
3 VAC15012 Disposable Bags (Pkg. 5)
4 VAC15520 15 Gallon Recovery Can with Hardware (No Wheels)
5 VAC3131 Swivel Connector 1 ½”
6 VAC71950 Vacuum Hose 1 ½” Crush Proof
7 VAC15514 Push Handle
8 VAC15515 Glide Mobile Dolly
9 VAC15517 Rear Wheel & Hub Cap
10 VAC15015 Ball Bearing Caster
11 VAC15519 Fastener Set
12 VAC3338 Drain Valve
13 VAC3337 Retaining Clips

NOVATEK CORPORATION LIMITED WARRANTY
The TOOLS manufactured by NOVATEK CORPORATION are warranted to be free from defects in
material and workmanship for a period of 180 DAYS from the date of purchase. This warranty does
not apply to accessories. All electrical components of the tool are also warranted to be free from
defects in material and workmanship for a period of 180 DAYS.
This warranty applies only to TOOLS purchased new from NOVATEK CORPORATION or one of its
authorized distributors. This warranty does not apply to any TOOL which has been abused, misused,
modified or repaired by someone other than NOVATEK CORPORATION or its authorized repair
center.
If a TOOL proves defective in material or workmanship within one year of purchase from NOVATEK
CORPORATION, it should be returned to NOVATEK CORPORATION, transportation pre-paid. The
return must be authorized by a RETURN MERCHANDISE AUTHORIZATION NUMBER (R.M.A. #)
obtained from NOVATEK CORPORATION prior to returning the UNIT. All packages must show
clearly on the outside the return merchandise authorization number. All packages received without
any R.M.A. # on the outside will be refused by NOVATEK CORPORATION receiving department.
Warranty claims will only be considered upon adequate proof of date of purchase. NOVATEK
CORPORATION will, at its option, REPAIR or REPLACE DEFECTIVE PARTS. Repairs or
replacements are warranted as above for the remainder of the original warranty period. The sole
liability of NOVATEK CORPORATION and the user’s exclusive remedy under this warranty is limited
to the repair or replacement of the defective product.
THERE ARE NO OTHER WARRANTIES EXPRESSED OR IMPLIED AND NOVATEK
CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES OR ANY OTHER EXPENSES OR REPAIR OR REPLACEMENT AS DESCRIBED
ABOVE.
All warranty claims should be forwarded to:
NOVATEK CORPORATION
700 Schell Lane
Phoenixville, PA 19460
ATTENTION: CLAIM AND SERVICE DEPARTMENT
R.M.A. # ____________
CALL Toll Free at 1-866-563-7800 for your RMA number prior to shipping.
Also include a brief description of the problem as well as a phone number, contact name and return
address in case NOVATEK CORPORATION service personnel has to get in contact with you.
