Novogratz DL8417-3 User manual

Model No:
UPC CODE:
NOTE:
Lot number:
(TAKEN FROM CARTON)
_____________________________________
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
Date of purchase:
_______ / _______ / _______
KEEP FOR FUTURE REFERENCE.
THIS INSTRUCTION BOOKLET
0-65857-19827-0
INSTRUCTION MANUAL
DL8417-3
CONSOLE
DO NOT RETURN PRODUCT TO THE RETAILER.
If a part is missing or damaged, contact our customer service department.
We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

*
*
*
*
*
*
*
*
Assemble on a soft, smooth surface to prevent damage to the product finish.
NOTES AND INSTALLATION
CUSTOMER SERVICE
Montreal, Quebec
12345 Albert-Hudon Boulevard, Suite 100
Dorel Living - Customer Service Department
You can also contact us by writing to the address listed below. Please include the product model number, color and a detailed
description of your enquiry.
Canada, H1G 3L1
Ensure all parts and components are present before beginning assembly.
A Phillips head screw driver is not included.
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
DO NOT use power tools.
CAUTION: Adult assembly required.
Assembly will require two people.
To avoid unnecessary damage, when levelers have been extended, DO NOT drag across surface when moving.
Be sure to lift and carry the item to its location.
Estimated assembly time: 60 minutes.
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used occasionally to clean
surface. Dry immediately. Do not use any abrasives that may damage finish. Excessive exposure to sunlight and
extreme changes in temperature and moisture can damage wood furniture.
Check bolts/screws periodically and tighten them if necessary.
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such
defect. This warranty covers 1 year from the date of original purchase from authorized retailers. This warranty is
valid only upon presentation of proof of purchase. This is solely limited to the repair or replacement of defective
furniture components and no assembly labor is included. This warranty does not apply to any product which has
been improperly assembled, subjected to misuse or abuse or which has been altered or repaired in any way. The
warranty does not cover wearing, tearing, fading or splitting of the fabric (where applicable). This warranty gives
you specific legal rights and you may also have other rights which vary from State to State or Province to Province.
1-YEAR LIMITED WARRANTY
CARE, CLEANING AND MAINTENANCE

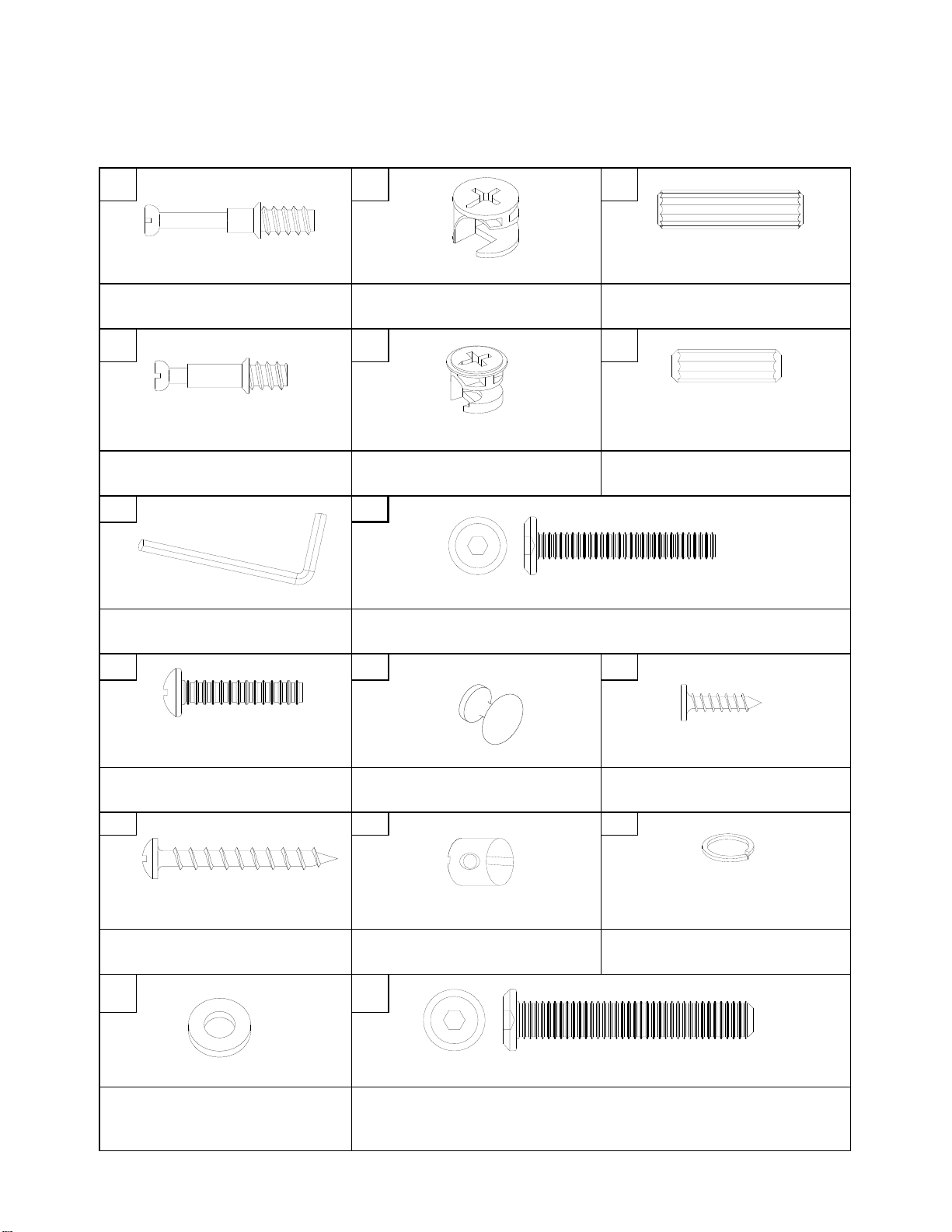

HARDWARE LIST
1 2 3
4 5 6
7 8
910 11
12 13 14
15 16
PLASTIC BARREL NUT
8 PCS
SPRING WASHER
8 PCS
BOLT
5 PCS
Ø7 X 3.5 X 15mm
KNOB
5 PCS
SCREW
6 PCS
Ø9 X 4 X 20mm
CONSOLE
DL8417-3
Ø8 X 30mm
Ø6 X 20mm
WOOD DOWEL
26 PCS
CAM LOCK
22 PCS
5/16" X 50mm
BOLT
8 PCS
Ø19 X 5/16" X 1.5mm
FLAT WASHER
8 PCS
CAM BOLT
22 PCS
WOOD DOWEL
12 PCS
ALLEN KEY
1 PC
CAM BOLT
12 PCS
CAM LOCK
12 PCS
Ø14 X 5/16" X 1.5mm
BOLT
6 PCS
1/4" X 40mm
Ø8 X 4 X 35mm
Ø8 X 8mm
SCREW
8 PCS
S

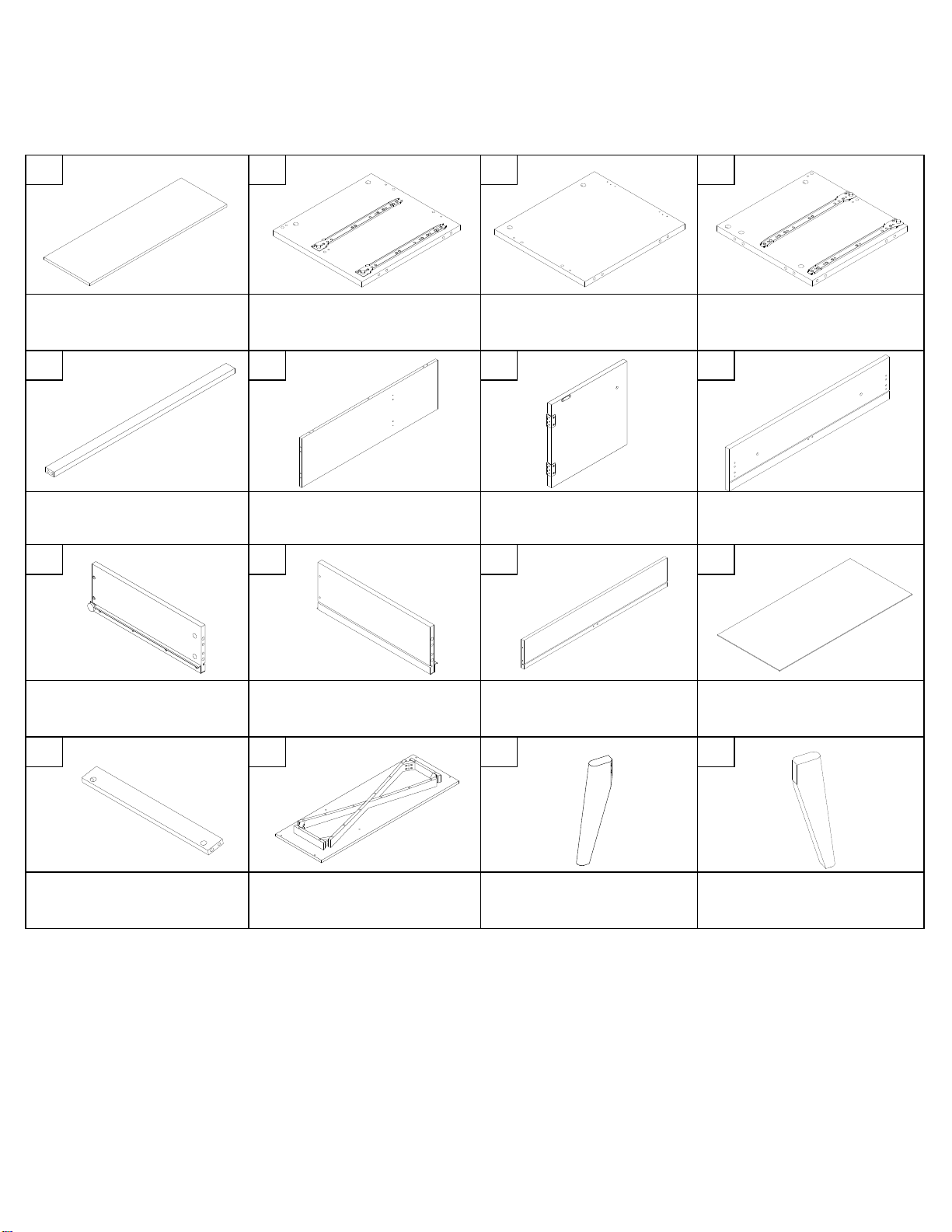

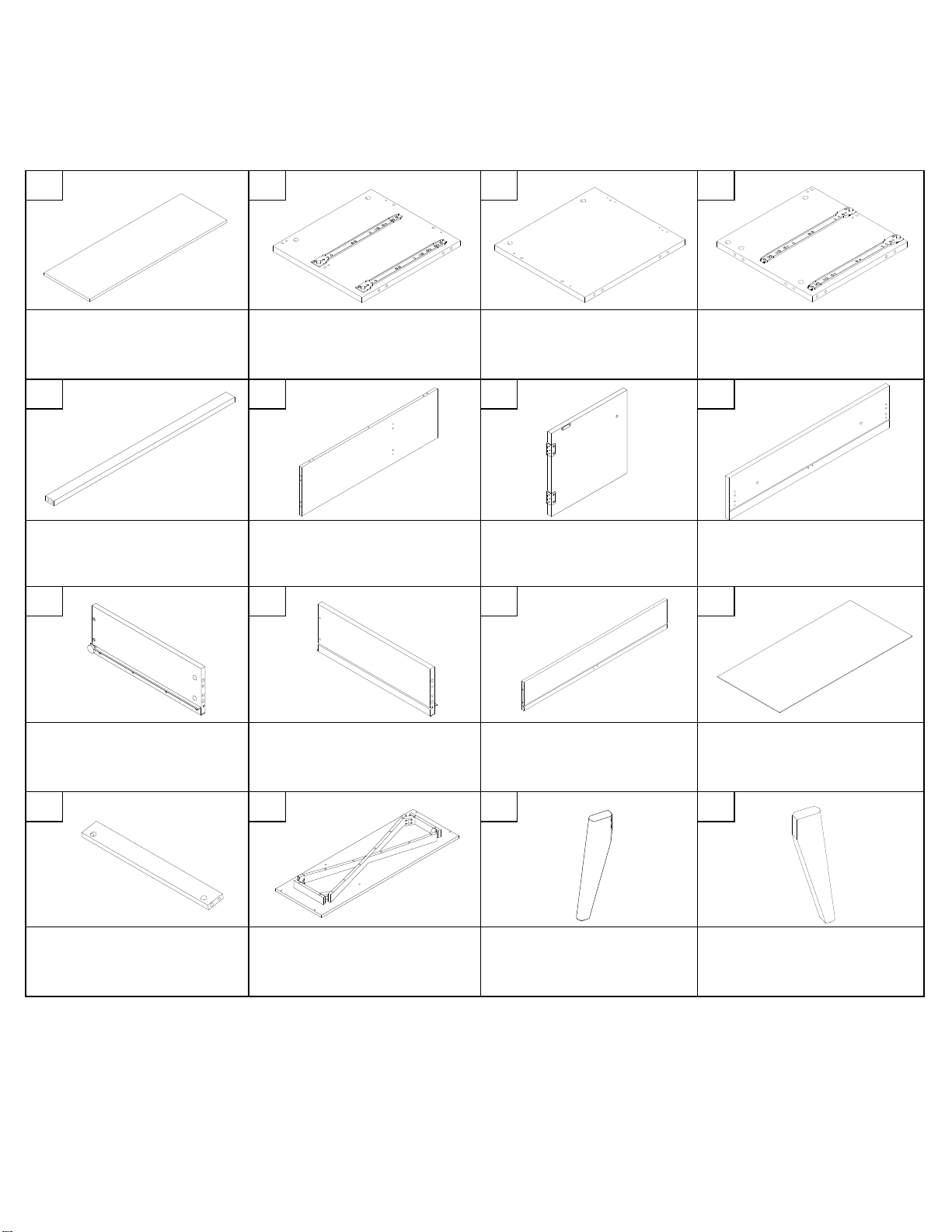

PARTS LIST
A B C D
E F G H
I J K L
M N O P
LEFT SIDE PANEL
2 PCS
1 PC
1 PC
FRONT RAIL
1 PC
1 PC
RIGHT SIDE PANEL
CONSOLE
DL8417-3
2 PCS
1 PC
2 PCS
2 PCS
DRAWER BOTTOM RAIL
DRAWER FRONT
DOOR
DRAWER BOTTOM
BACK PANEL
1 PC
DRAWER BACK
2 PCS
BOTTOM PANEL
2 PCS
RIGHT LEG
DRAWER LEFT SIDE
TOP PANEL
2 PCS
LEFT LEG
2 PCS
2 PCS
DRAWER RIGHT SIDE
MIDDLE PANEL
1 PC

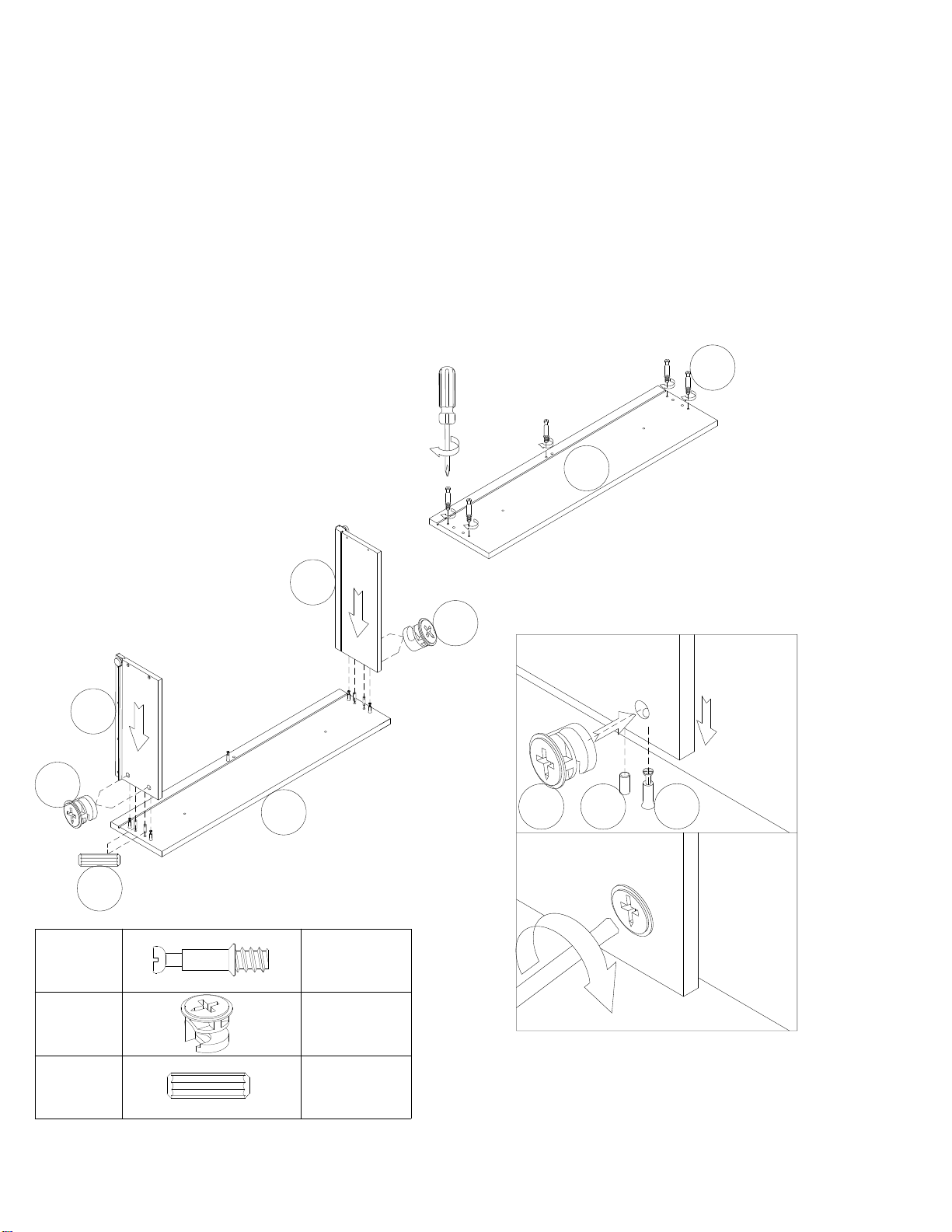

STEP 1
CONSOLE
DL8417-3
Insert cam bolt (1) into the left and right side panel (B & C) and middle panel (D) using a
Phillips head screwdriver (not included) as shown.
8 PCS
1
C
D
B
1
1
1

STEP 2
CONSOLE
DL8417-3
Insert cam bolt (1) into the back panel (F) using a Phillips head screwdriver (not included) as shown.
Insert cam locks (2) and wood dowels (3) into the middle panel (D) as shown.
Attach the middle panel (D) to back panel (F) and secure by rotating the cam locks (2) 1/2 turn clockwise using a
Phillips head screwdriver (not included).
Insert cam locks (2) and wood dowels (3) into the front rails (E), back panel (F) and side panels (B & C) as
shown.
Attach the front rails (E) to left side panel (B) and middle panel (D).
Attach the back panel (F) to side panels (B & C).
Secure the rails and panels by rotating the cam locks (2) 1/2 turn clockwise using a Phillips head screwdriver
(not included).
3
3
F
F
2
D
C
1
D
3
2
3
E
F
B
2
12 PCS
10 PCS
2
10 PCS
3

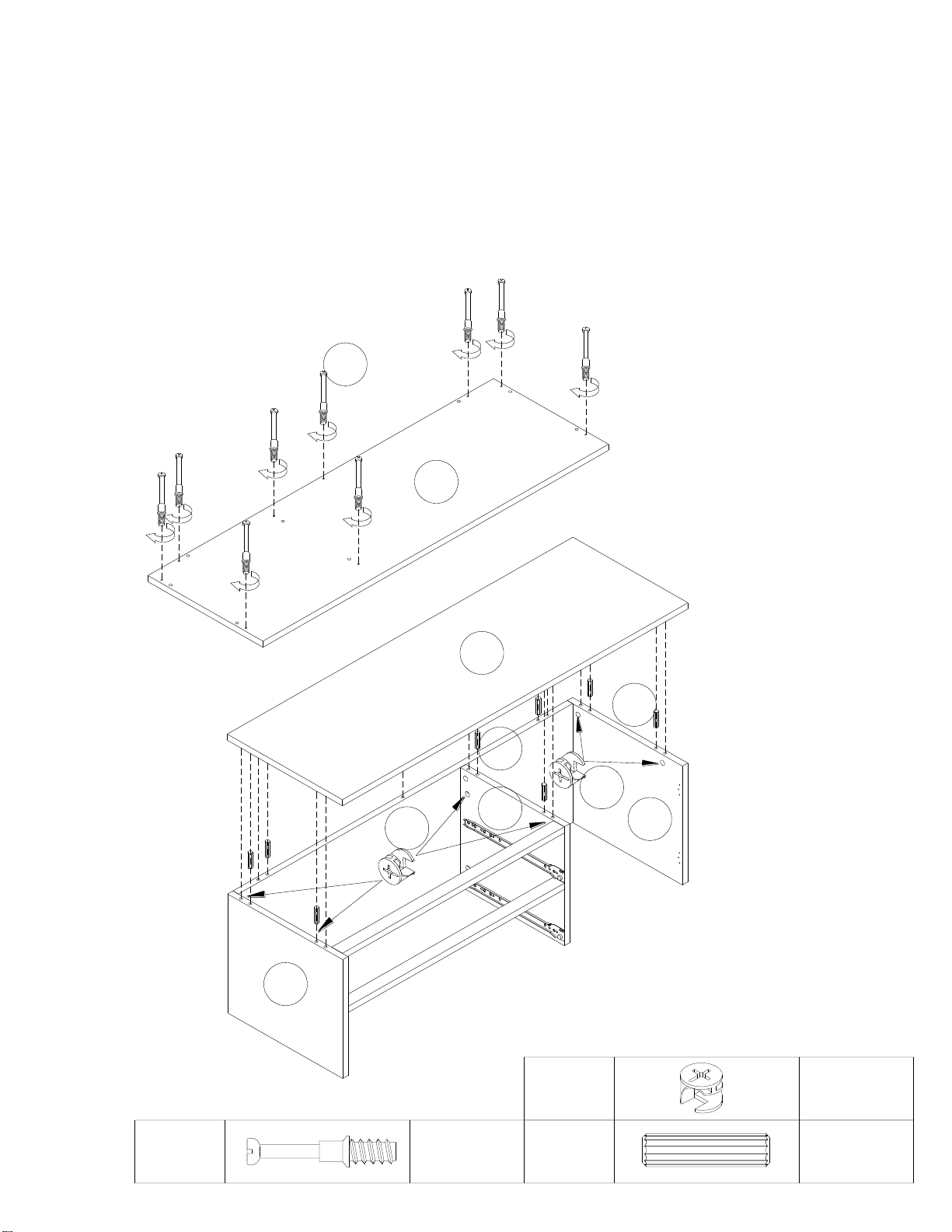

STEP 3
CONSOLE
DL8417-3

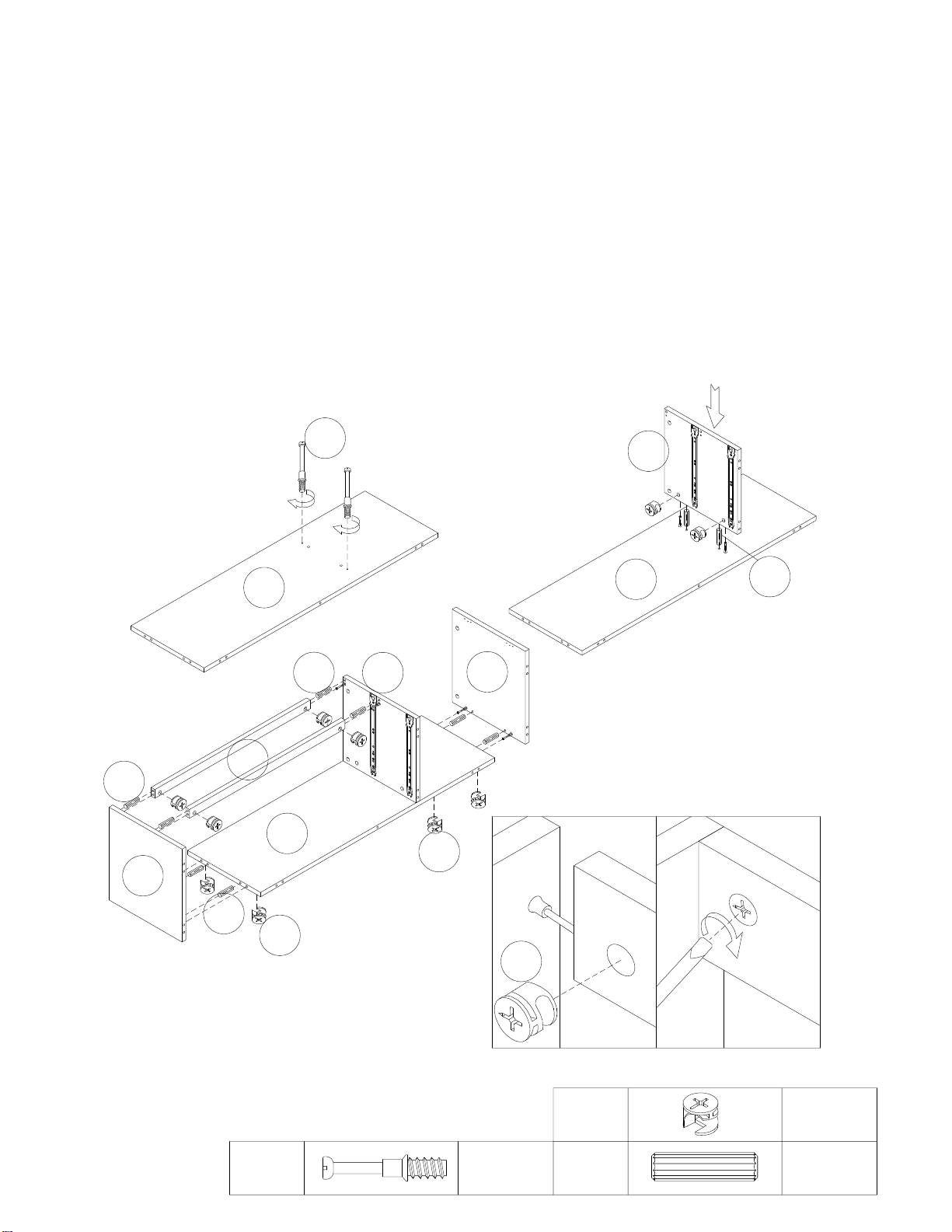

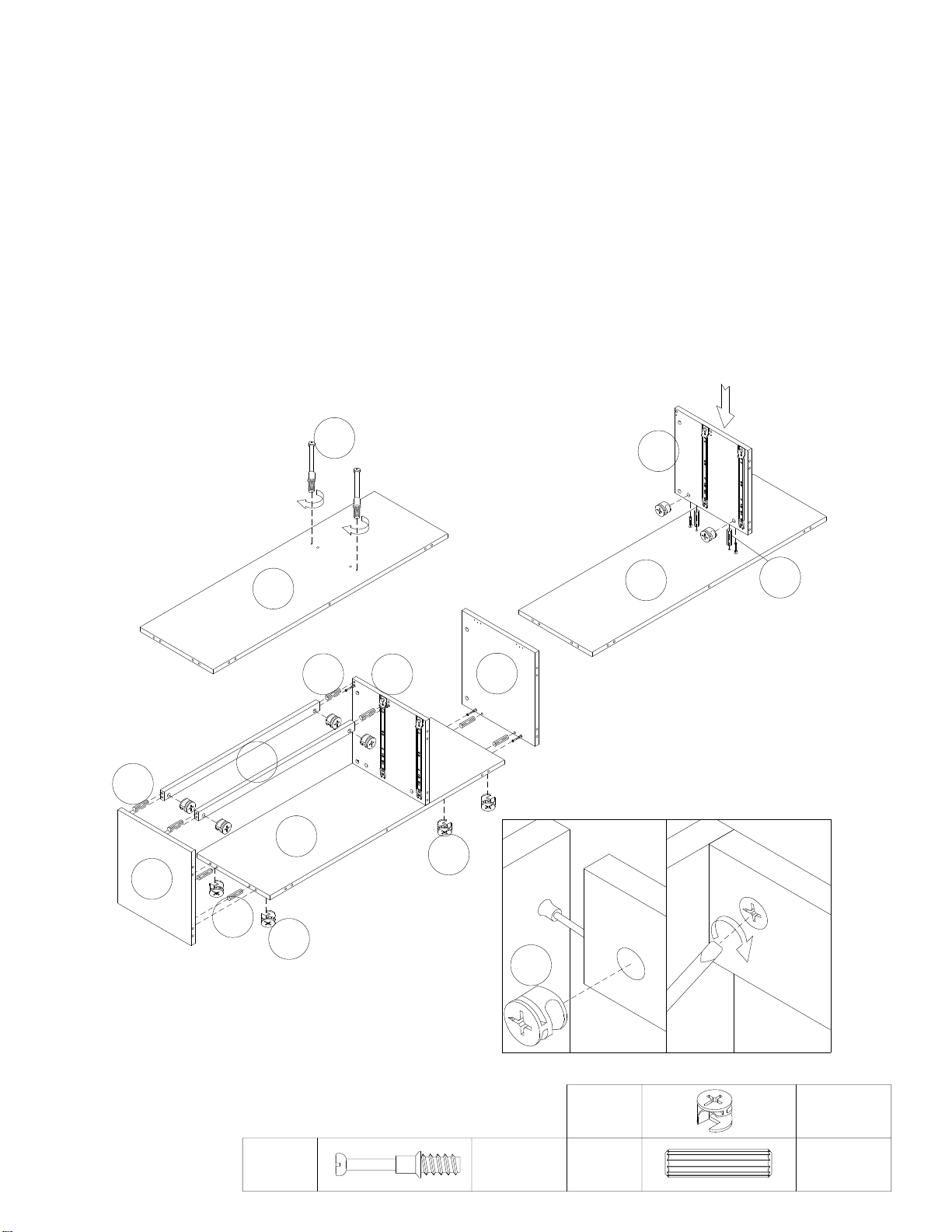

Insert cam bolts (1) into the top panel (A) using a Phillips head screwdriver (not included).
Insert cam locks (2) into the panels (B, C & D) as shown.
Attach top panel (A) to the side panels (B & C) and middle panel (D) with wood dowels (3) as shown.
Secure the top panel (A) by rotating the cam locks (2) 1/2 turn clockwise using a Phillips head
screwdriver (not included).
A
A
2
1
33
2DC
B
19 PCS 8 PCS 3
6 PCS
2

STEP 4
CONSOLE
DL8417-3
Attach left and right legs (O & P) to the bottom panel (N) with bolts (16), spring washers (14)
and flat washers (15) as shown.
Use Allen key (7) to tighten the bolts.
Turn the unit upright and insert cam bolts (1) into the bottom panel (N) using a Phillips head screwdriver (not
included) as shown.
O
O
N
15
16
14
7
N
1
P
O
N
P
8 PCS
14
8 PCS
15
8 PCS
16
3 PCS
1

STEP 5
CONSOLE
DL8417-3
Insert wood dowels (3) into side and back panels (B, C & F).
Attach bottom panel (N) to the assembled unit with bolts (8). Use Allen key (7) to tighten the bolts.
3
8
3
8
8 PCS
6 PCS
3
7
N
3
C
B
3
3
7
8
D
N
8
3
8

STEP 6
CONSOLE
DL8417-3
Insert cam locks (2) into the back panel (F) .
Secure the top panel (A) and bottom panel (N) by rotating the cam locks (2) on back panel (F)
1/2 turn clockwise using a Phillips head screwdriver (not included).
Attach the hinges on the door (G) to the pre-drilled holes on the right side panel (C) with screws (11)
as shown. Use a Phillips head screwdriver (not included) to tighten the screws.
Adjust the hinges, if required.
11
2
6 PCS
6 PCS
2
F
Adjust up and down
11 G

STEP 7
Insert cam bolts (4) into the drawer front (H) as shown.
Insert wood dowels (6) and cam locks (5) into the drawer left and right sides (I & J) as shown.
Secure the drawer left and right sides (I & J) to drawer front (H) by rotating the cam locks (5)
1/2 turn clockwise using a Phillips head screwdriver (not included).
CONSOLE
DL8417-3
J
I
H
6
4
S
5
S
55
H4
S
6
S
6
S
8 PCS
8 PCS
410 PCS
5

STEP 8
CONSOLE
DL8417-3
Slide the drawer bottom (L) into the grooves of drawer left and right sides and drawer front.
Insert wood dowel (6) and cam lock (5) into the drawer bottom rail (M) as shown in figure 1.
Secure drawer bottom rail (M) to drawer front by rotating the cam lock (5) 1/2 turn clockwise
using a Phillips head screwdriver (not included).
Insert cam bolt (4) into drawer back (K) as shown in figure 2.
Insert wood dowel (6) and cam lock (5) into the drawer bottom rail (M).
Attach drawer back (K) to the drawer sides with screws (12) and plastic barrel nuts (13). Secure
drawer bottom rail (M) to drawer back (K) by rotating the cam locks (5) 1/2 turn clockwise using a
Phillips head screwdriver (not included).
Repeat above steps for the other drawer.
8 PCS
2 PCS
6
12
13
S
4
8 PCS
4 PCS
5
4 PCS
Figure1
L
6
M
5
12
6
K
M
* USE FLAT HEAD
SCREWDRIVER (NOT
INCLUDED) TO ALIGN
PLASTIC BARREL
NUT WITH SCREW.
K
Figure 2
13
12
4
13
L
13
5
12

STEP 9
CONSOLE
DL8417-3
Insert the drawers into the assembled unit.
Attach knobs (10) with bolts (9) using a Phillips head screwdriver (not included).
9
910
10
5 PCS
10
5 PCS
9

That's it! You've finished assembling your Console
CONSOLE
DL8417-3
CAUTION: This unit is intended for use only with the products
and/or maximum weights indicated. Use with other products and/or
products heavier than the maximum weights indicated may result in
instability or cause possible injury.
DO NOT RETURN PRODUCT TO THE RETAILER
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
Drawer
maximum
weight
15 lbs.
Top panel
maximum
weight
50 lbs. m
Shelf
maximum
weight
15 lbs.

Modelo No:
DL8417-3
CODIGO UPC
0-65857-19827-0
NOTA:
ESTE MANUAL DE INSTRUCCIONES
CONTIENE INFORMACIÓN DE
SEGURIDAD IMPORTANTE. POR
FAVOR LÉALA Y CONSÉRVELA
PARA REFERENCIA FUTURA.
Numero de lote:
(TOMADO DEL CARTON)
___________________
CONSOLA
MANUAL DE INSTRUCCIONES
Fecha de compra:
_______ / _______ / _______
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
NO DEVUELVA EL PRODUCTO A LA TIENDA.
Si falta una pieza o está dañada, contacte nuestro departamento de servicio
a la clientela. Reemplazaremos la pieza SIN cargo.
Tel #: [phone]
Correo electrónico: [email protected]

*
*
* El destornillador en cruz no está incluido.
*
*
* El armado y la manipulación pueden requerir dos personas.
*
* El tiempo de armado se estima en 60 minutos.
ADVERTENCIA: Si este producto está dañado y/o
ciertas piezas faltan o están rotas, NO LO USE.
Para evitar dañar la superficie, una vez instalados los niveladores, NO arrastrar el mueble para desplazarlo.
Asegúrese de levantarlo.
CUIDADO, LIMPIEZA Y MANTENIMIENTO
Límpiela regularmente con un paño suave para evitar la acumulación de suciedad. Ocasionalmente se
puede usar un paño húmedo para limpiar la superficie. Séquela inmediatamente. No utilice productos
abrasivos que puedan dañar el acabado. La exposición excesiva a la luz solar y los cambios extremos
de temperatura y humedad pueden dañar los muebles de madera.
Verifique las arandelas/tornillos periódicamente y ajústelos si es necesario.
GARANTÍA LIMITADA DE 1 AÑO
Dorel garantiza que este producto está libre de defectos de material y mano de obra y se compromete a
remediar cualquier defecto de este tipo. Esta garantía cubre 1 año a partir de la fecha de compra original.
Esta garantía es válida solamente con presentación de una prueba de compra. Esto se limita a la
reparación o reemplazo de componentes defectuosos del mueble y no se incluye ningún trabajo de
ensamblaje. Esta garantía no se aplica a ningún producto que haya sido mal ensamblado, sujeto a mal uso
o abuso, o que haya sido alterado o reparado de cualquier manera. Cualquier uso, rotura o pérdida de color
de la tela no están incluidos en esta garantía (donde corresponda). Esta garantía le da derechos legales
específicas y usted puede también tener otros derechos que varían de estado a estado o de provincia a
provincia.
PRECAUCIÓN: Requiere ser armado por un adulto.
SERVICIO AL CLIENTE
También puede contactarnos escribiendo a la dirección que figura a continuación. Por favor incluya el número de modelo del
producto, el color y una descripción detallada de su pregunta.
Dorel Living - Customer Service Department
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
NOTAS E INSTALACIÓN
Antes de comenzar a armarla, asegúrese de identificar todas las piezas y componentes
Ensamble sobre una superficie suave, lisa para evitar daños en el acabado del producto.
NO USE herramientas eléctricas.

LISTA DE ACCESORIOS
1 2 3
4 5 6
7 8
910 11
12 13 14
15 16
Ø19 X 5/16" X 1.5mm
5/16" X 50mm
ARANDELA PLANA
8 PZAS
PERNO
8 PZAS
Ø8 X 4 X 35mm
Ø8 X 8mm
Ø14 X 5/16" X 1.5mm
TORNILLO
8 PZAS
TUERCA BARRILETE DE
PLASTICO
8 PZAS
ARANDELA RESORTE
8 PZAS
PERNO
5 PZAS
PERILLA
5 PZAS
TORNILLO
6 PZAS
Ø9 X 4 X 20mm
Ø7 X 3.5 X 15mm
LLAVE ALLEN
1 PZA
PERNO
6 PZAS
1/4" X 40mm
Ø6 X 20mm
PERNO DE LEVA
12 PZAS
SEGURO DE LEVA
12 PZAS
CLAVIJA DE MADERA
12 PZAS
PERNO DE LEVA
22 PZAS
SEGURO DE LEVA
22 PZAS
CLAVIJA DE MADERA
26 PZAS
CONSOLA
DL8417-3
Ø8 X 30mm
S

LISTA DE PIEZAS
A B C D
E F G H
I J K L
M N O P
RIEL INFERIOR DEL CAJÓN
PANEL INFERIOR
PATA IZQUIERDA
PATA DERECHA
2 PZAS
1 PZA
2 PZAS
2 PZAS
LADO IZQUIERDO DEL
CAJÓN
LADO DERECHO DEL
CAJÓN
PANEL POSTERIOR DEL
CAJÓN
PANEL INFERIOR DEL
CAJÓN
2 PZAS
2 PZAS
2 PZAS
2 PZAS
PANEL FRONTAL DEL
CAJÓN
2 PZAS
1 PZA
1 PZA
2 PZAS
RIEL FRONTAL
PANEL POSTERIOR
PUERTA
PANEL SUPERIOR
PANEL LATERAL
IZQUIERDO
PANEL LATERAL
DERECHO
PANEL CENTRAL
1 PZA
1 PZA
1 PZA
1 PZA
CONSOLA
DL8417-3

ETAPA 1
Inserte el perno de la leva (1) en el panel lateral izquierdo y derecho (B y C) y al panel central (D)
con una destornillador Phillips (no incluido) como se muestra.
CONSOLA
DL8417-3
8 PCS
1
C
D
B
1
1
1

ETAPA 2
CONSOLA
DL8417-3
Inserte el perno de leva (1) en el panel posterior (F) con un destornillador Phillips (no incluido) como se
muestra.
Inserte las cerraduras de leva (2) y las clavijas de madera (3) en el panel central (D) como se muestra.
Fije el panel central (D) al panel posterior (F) y asegúrelo girando los seguros de leva (2) 1/2 vuelta en sentido
horario con un destornillador Phillips (no incluido).
Inserte los seguros de leva (2) y las clavijas de madera (3) a los rieles delanteros (E), al panel posterior (F) y a
los paneles laterales (B y C) como se muestra.
Fije los rieles frontales (E) al panel lateral izquierdo (B) y al panel central (D).
Fije el panel posterior (F) a los paneles laterales (B y C).
Asegure los rieles y los paneles girando los seguros de leva (2) 1/2 vuelta en el sentido horario con un
destornillador Phillips (no incluido).
3
3
F
F
2
D
C
1
D
3
2
3
E
F
B
2
12 PCS
10 PCS
2
10 PCS
3
